Ignite UI API Reference

mobile.igListViewLoadOnDemand

mobile.igListViewLoadOnDemand_image

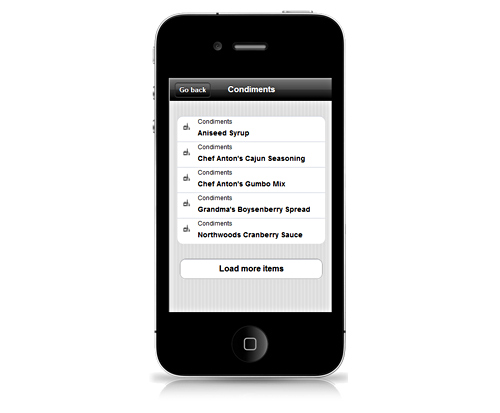

The igListView control features load on demand which is available for flat data where users can request more items with a press of a button. Load on demand can be configured to operate in a local context or remote to the server. The igListView control adheres to the jQuery Mobile approach of using markup-based initialization and configuration along with the standard jQuery initialization. For more information on the igListView control’s HTML data-* attributes see igListView Data Attribute Reference.

The following code snippet demonstrates how to initialize the igListView control with filtering feature enabled.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igList control read, Using JavaScript Resources in IgniteUI and Styling and Theming IgniteUI.

Code Sample


        <!doctype html>
        <html>
        <head>
            <!-- jQuery Mobile Styles -->
            <link rel="stylesheet" href="../content/jqm/jquery.mobile.structure.min.css" />
            <!-- jQuery Core -->
            <script type="text/javascript" src="js/jquery.js"></script>
            <!-- jQuery Mobile Core -->
            <script type="text/javascript" src="js/jquery.mobile.js"><script>
            <!-- Infragistics mobile loader -->
            <script type="text/javascript" src="js/infragistics.mobile.loader.js"></script>
            <script type="text/javascript">
                var northwindEmployees = [
                    { "ID": 1, "Name": "Davolio, Nancy", "Title": "Sales Representative", "ImageUrl": "../content/images/nw/employees/1.png", "Phone": "(206) 555-9857", "PhoneUrl": "tel:(206) 555-9857" },
                    { "ID": 2, "Name": "Fuller, Andrew", "Title": "Vice President, Sales", "ImageUrl": "../content/images/nw/employees/2.png", "Phone": "(206) 555-9482", "PhoneUrl": "tel:(206) 555-9482" },
                    { "ID": 3, "Name": "Leverling, Janet", "Title": "Sales Representative", "ImageUrl": "../content/images/nw/employees/3.png", "Phone": "(206) 555-3412", "PhoneUrl": "tel:(206) 555-3412" },
                    { "ID": 4, "Name": "Peacock, Margaret", "Title": "Sales Representative", "ImageUrl": "../content/images/nw/employees/4.png", "Phone": "(206) 555-8122", "PhoneUrl": "tel:(206) 555-8122" },
                    { "ID": 5, "Name": "Buchanan, Steven", "Title": "Sales Manager", "ImageUrl": "../content/images/nw/employees/5.png", "Phone": "(71) 555-4848", "PhoneUrl": "tel:(71) 555-4848" },
                    { "ID": 6, "Name": "Suyama, Michael", "Title": "Sales Representative", "ImageUrl": "../content/images/nw/employees/6.png", "Phone": "(71) 555-7773", "PhoneUrl": "tel:(71) 555-7773" },
                    { "ID": 7, "Name": "King, Robert", "Title": "Sales Representative", "ImageUrl": "../content/images/nw/employees/7.png", "Phone": "(71) 555-5598", "PhoneUrl": "tel:(71) 555-5598" },
                    { "ID": 8, "Name": "Callahan, Laura", "Title": "Inside Sales Coordinator", "ImageUrl": "../content/images/nw/employees/8.png", "Phone": "(206) 555-1189", "PhoneUrl": "tel:(206) 555-1189" },
                    { "ID": 9, "Name": "Dodsworth, Anne", "Title": "Sales Representative", "ImageUrl": "../content/images/nw/employees/9.png", "Phone": "(71) 555-4444", "PhoneUrl": "tel:(71) 555-4444" }
                ];
            </script>
            <script type="text/javascript">
                $.ig.loader({
                    scriptPath: "js",
                    cssPath: "css",
                    resources: "igmList.LoadOnDemand",
                    theme: "ios"
                });
            </script>
        </head>
        <body>
            <ul id="contactsListView"
                data-role="iglistview"
                data-icon-mode="thumbnail"
                data-data-source="northwindEmployees"
                data-bindings-header-key="Name"
                data-bindings-primary-key="ID"
                data-bindings-text-key="Phone"
                data-bindings-image-url-key="ImageUrl"
                data-load-on-demand="true"
                data-load-on-demand-type="local"
                data-load-on-demand-page-size="4">
            </ul>
        </body>
        </html>


Related Samples

Related Topics

Dependencies

jquery-1.7.2.js
jquery.mobile-1.2.0.js
infragistics.mobileui.list.js
infragistics.datasource.js
infragistics.ui.shared.js
infragistics.util.js
  • autoHideButtonAtEnd

    Type:
    bool
    Default:
    true

    When true and there are no pages left (according to data source), the fetch more button and automatic loading will stop.

    Code Sample


                //Initialize
                $(".selector").igListView({
                    features: [
                        {
                            name: "LoadOnDemand",
                            autoHideButtonAtEnd: true
                        }
                    ]
                });

                //Get
                var autoHideButton = $(".selector").igListViewLoadOnDemand("option", "autoHideButtonAtEnd");

  • loadButtonTheme

    Type:
    string
    Default:
    null

    Denotes the theme to apply to the load more button. By default, when null, it will inherit from the page.

  • mode

    Type:
    enumeration
    Default:
    button

    Defines whether to show a button to load more items or whether they should be fetched automatically.

    Members

    • automatic
    • Type:string
    • button
    • Type:string

    Code Sample


                //Initialize
                $(".selector").igListView({
                    features: [
                        {
                            name: "LoadOnDemand",
                            mode: "automatic"
                        }
                    ]
                });

                //Get
                var mode = $(".selector").igListViewLoadOnDemand("option", "mode");

  • pageIndexUrlKey

    Type:
    string
    Default:
    null

    Denotes the name of the encoded URL parameter that will state what is the currently requested page index.

    Code Sample


                //Initialize
                $(".selector").igListView({
                    features: [
                        {
                            name: "LoadOnDemand",
                            pageIndexUrlKey: "page"
                        }
                    ]
                });

                //Get
                var pageIndexKey = $(".selector").igListViewLoadOnDemand("option", "pageIndexUrlKey");

  • pageSize

    Type:
    number
    Default:
    10

    When greater than 0, controls how many items are initially fetched and loaded.

    Code Sample


                //Initialize
                $(".selector").igListView({
                    features: [
                        {
                            name: "LoadOnDemand",
                            pageSize: 5
                        }
                    ]
                });

                //Get
                var pageSize = $(".selector").igListViewLoadOnDemand("option", "pageSize");

  • pageSizeUrlKey

    Type:
    string
    Default:
    null

    Denotes the name of the encoded URL parameter that will state what is the currently requested page size.

    Code Sample


                //Initialize
                $(".selector").igListView({
                    features: [
                        {
                            name: "LoadOnDemand",
                            pageSizeUrlKey: "pageSize"
                        }
                    ]
                });

                //Get
                var pageSizeKey = $(".selector").igListViewLoadOnDemand("option", "pageSizeUrlKey");

  • recordCountKey

    Type:
    string
    Default:
    null

    The property in the response that will hold the total number of records in the data source.

    Code Sample


                //Initialize
                $(".selector").igListView({
                    features: [
                        {
                            name: "LoadOnDemand",
                            recordCountKey: "count"
                        }
                    ]
                });

                //Get
                var recordCountKey = $(".selector").igListViewLoadOnDemand("option", "recordCountKey");

  • type

    Type:
    enumeration
    Default:
    null

    Defines local or remote sorting.

    Members

    • remote
    • Type:string
    • local
    • Type:string

    Code Sample


                //Initialize
                $(".selector").igListView({
                    features: [
                        {
                            name: "LoadOnDemand",
                            type: "local"
                        }
                    ]
                });

                //Get
                var type = $(".selector").igListViewLoadOnDemand("option", "type");


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • itemsRequested

    Cancellable:
    false

    Event fired after a new page of data is appended to the dataView.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igListViewLoadOnDemand.
    Use ui.owner.list to get reference to igList.

    Code Sample


                //Delegate
                $(document).delegate(".selector", "iglistviewloadondemanditemsrequested", function (evt, ui) {
                    //return reference to igListViewLoadOnDemand
                    ui.owner;
                    //return reference to igList
                    ui.owner.list;
                });

                //Initialize
                $(".selector").igListView({
                    features: [
                        {
                            name: "LoadOnDemand",
                            itemsRequested: function(evt, ui) {...}
                        }
                    ]
                });

  • itemsRequesting

    Cancellable:
    true

    Event fired before a new page of data is fetched and appended to the dataView.
    Return false in order to cancel fetching new page of data.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igListViewLoadOnDemand.
    Use ui.owner.list to get reference to igList.
    Use ui.newPageIndex to get the index of the next page of data.

    Code Sample


                //Delegate
                $(document).delegate(".selector", "iglistviewloadondemanditemsrequesting", function (evt, ui) {
                    //return index of the next page of data
                    ui.newPageIndex
                    //return reference to igListViewLoadOnDemand
                    ui.owner;
                    //return reference to igList
                    ui.owner.list;
                });

                //Initialize
                $(".selector").igListView({
                    features: [
                        {
                            name: "LoadOnDemand",
                            itemsRequesting: function(evt, ui) {...}
                        }
                    ]
                });

  • destroy

    .destroy( );

    Destroys the igListViewLoadOnDemand feature.

    Code Sample


          $(".selector").igListViewLoadOnDemand("destroy");

  • ui-iglist-load-more

    The class to apply to the button to load more data (when mode="button").
