ui.igPieChart

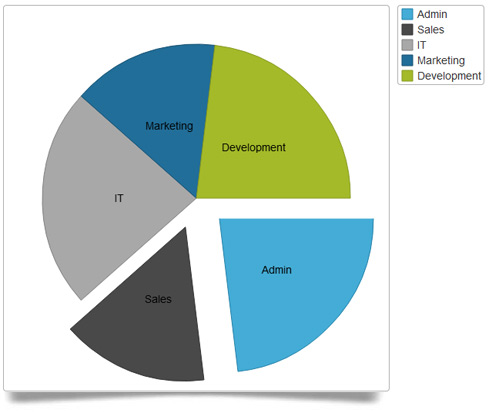

ui.igPieChart_image

The igPieChart control is a HTML 5 jQuery Chart based on Infragistics Silverlight Data Visualization xamPieChart™ control. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igPieChart control.

For details on how to reference the required scripts and themes for the igPieChart control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!doctype html>
<html>
<head>
    <title>Ignite UI igPieChart</title>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
    <script src="js/infragistics.dv.js" type="text/javascript"></script>

    <script type="text/javascript">
        $(function () {
            var data = [
                    { "Budget": 60, "Label": "Administration" },
                    { "Budget": 40, "Label": "Sales" },
                    { "Budget": 60, "Label": "IT" },
                    { "Budget": 40, "Label": "Marketing" },
                    { "Budget": 60, "Label": "Development" },
                    { "Budget": 20, "Label": "Support" }
                ];

            $("#chart").igPieChart({
                dataSource: data,
                width: "500px",
                height: "500px",
                valueMemberPath: "Budget",
                labelMemberPath: "Label",
                explodedSlices: "0 1",
                radiusFactor: .8,
                legend: {
                    element: "legend",
                    type: "item"
                }
            });
        });
    </script>
</head>
<body>
    <div id="chart"></div>
	<div id="legend"></div>
</body>
</html>


Related Samples

Related Topics

Dependencies

jquery-1.4.4.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.util.js
infragistics.dv.core.js
infragistics.chart_piechart.js
infragistics.chart_categorychart.js
infragistics.chart_financialchart.js
infragistics.chart_polarchart.js
infragistics.chart_radialchart.js
infragistics.chart_rangecategorychart.js
infragistics.chart_scatterchart.js
infragistics.datasource.js
infragistics.dvcommonwidget.js

Inherits

  • allowSliceExplosion

    Type:
    bool
    Default:
    null

    Gets or sets whether the slices can be exploded.

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                allowSliceExplosion : true
            });

            //Get
            var allowSliceExplosion = $(".selector").igPieChart("option", "allowSliceExplosion");

            //Set
            $(".selector").igPieChart("option", "allowSliceExplosion", true);

  • allowSliceSelection

    Type:
    bool
    Default:
    null

    Gets or sets whether the slices can be selected.

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                allowSliceSelection : true
            });

            //Get
            var allowSliceSelection = $(".selector").igPieChart("option", "allowSliceSelection");

            //Set
            $(".selector").igPieChart("option", "allowSliceSelection", true);

  • brushes

    Type:
    object
    Default:
    null

    Gets or sets the Brushes property.
    The brushes property defines the palette from which automatically assigned slice brushes are selected.
    The value provided should be an array of css color strings. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                brushes: [ "#ff0000", "#ffff00", "#00ffff" ]
            });

            //Get
            var brushes = $(".selector").igPieChart("option", "brushes");

            //Set
            $(".selector").igPieChart("option", "brushes", [ "#ff0000", "#ffff00", "#00ffff" ]);

  • dataSource

    Type:
    object
    Default:
    null

    Can be any valid data source accepted by $.ig.DataSource, or an instance of an $.ig.DataSource itself.

    Code Sample

    	      //Initialize
            var data1 = [
                { "ID": 1, "Cost": 12.5 },
                { "ID": 2, "Cost": 18.56 },
                { "ID": 3, "Cost": 22.18 }
              ];
            $(".selector").igPieChart({
                dataSource: data1
            });

            //Get
            var dataSource = $(".selector").igPieChart("option", "dataSource");

            //Set
            var data1 = [
                { "ID": 1, "Cost": 12.5 },
                { "ID": 2, "Cost": 18.56 },
                { "ID": 3, "Cost": 22.18 }
              ];
            $(".selector").igPieChart("option", "dataSource", data1);

  • dataSourceType

    Type:
    string
    Default:
    null

    Explicitly set data source type (such as "json"). Please refer to the documentation of $.ig.DataSource and its type property.

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                dataSourceType: "array"
            });

            //Get
            var dataSourceType = $(".selector").igPieChart("option", "dataSourceType");

            //Set
            $(".selector").igPieChart("option", "dataSourceType", "array");

  • dataSourceUrl

    Type:
    string
    Default:
    null

    Specifies a remote URL accepted by $.ig.DataSource in order to request data from it.

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                dataSourceUrl: "http://www.example.com"
            });

            //Get
            var dataSourceUrl = $(".selector").igPieChart("option", "dataSourceUrl");

            //Set
            $(".selector").igPieChart("option", "dataSourceUrl", "http://www.example.com");

  • explodedRadius

    Type:
    number
    Default:
    0.2

    Determines how much the exploded slice is offset from the center. Value between 0 and 1.

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                explodedRadius: 0.35
            });

            //Get
            var explodedRadius = $(".selector").igPieChart("option", "explodedRadius");

            //Set
            $(".selector").igPieChart("option", "explodedRadius", 0.35);

  • explodedSlices

    Type:
    array
    Default:
    null
    Elements Type:

    Gets or sets the collection of exploded slice indices.
    Should be an array of integers that indicate the indexes of the slices to explode.

    Code Sample

    // Initialize
    $(".selector").igPieChart({
        explodedSlices: [0, 1, 5]
    });

    // Get
    var explodedSlices = $(".selector").igPieChart("option", "explodedSlices");

    // Set
    $(".selector").igPieChart("option", "explodedSlices", [0, 1, 5]);

  • formatLabel

    Type:
    function
    Default:
    null

    Gets or sets the function to use to transform a pie slice data context into a label for the slice. Function takes one argument of type object.
    Use context.item to get the item associated with the slice, if any.
    Use context.actualItemBrush to get the brush used to paint the slice.
    Use context.outline to get the outline brush used to paint the slice.
    Use context.itemLabel to get the label object that would be used for the slice.
    Use context.percentValue to see the percentage value that is associated with the slice.
    Use context.isOthersSlice to tell if the associated slice is the others slice.
    Should return a string value that should be used for the label.

  • height

    Type:
    number
    Default:
    null

    The height of the chart. It can be set as a number in pixels, string (px) or percentage (%).

    Code Sample

    //  Initialize
    $(".selector").igPieChart({
        height: 250
    });

    //  Get
    var height = $(".selector").igPieChart("option", "height");

    //  Set
    $(".selector").igPieChart("option", "height", 250);

  • labelExtent

    Type:
    number
    Default:
    10

    Gets or sets the pixel amount, by which the labels are offset from the edge of the slices.

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                labelExtent: 15
            });

            //Get
            var labelExtent = $(".selector").igPieChart("option", "labelExtent");

            //Set
            $(".selector").igPieChart("option", "labelExtent", 15);

  • labelMemberPath

    Type:
    string
    Default:
    null

    Gets or sets the property name that contains the labels.

    Code Sample

    	      //Initialize
    	      var data = [
                { "Department": "Accounting", "Cost": 12.5 },
                { "Department": "Marketing", "Cost": 18.56 },
                { "Department": "R&D", "Cost": 22.18 }
              ];
    	      $(".selector").igPieChart({
    	          labelMemberPath: "Department"
    	      });

    	      //Get
    	      var opValue = $(".selector").igPieChart("option", "labelMemberPath");

    	      //Set
    	      $(".selector").igPieChart("option", "labelMemberPath", "Department");

  • labelsPosition

    Type:
    enumeration
    Default:
    center

    Gets or sets the position of chart labels.

    Members

    • none
    • Type:string
    • No labels will be displayed. .
    • center
    • Type:string
    • Labels will be displayed in the center. .
    • insideEnd
    • Type:string
    • Labels will be displayed inside and by the edge of the container. .
    • outsideEnd
    • Type:string
    • Labels will be displayed outside the container. .
    • bestFit
    • Type:string
    • Labels will automatically decide their location.

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                labelsPosition: "bestFit"
            });

            //Get
            var opValue = $(".selector").igPieChart("option", "labelsPosition");

            //Set
            $(".selector").igPieChart("option", "labelsPosition", "bestFit");

  • leaderLineMargin

    Type:
    number
    Default:
    6.0

    Gets or sets the margin between a label and the end of its leader line.

  • leaderLineType

    Type:
    enumeration
    Default:
    straightline

    Gets or sets what type of leader lines will be used for the outside end labels.

    Members

    • straightLine
    • Type:string
    • .
    • simpleCurve
    • Type:string
    • .
    • radialCurve
    • Type:string
  • leaderLineVisibility

    Type:
    enumeration
    Default:
    visible

    Gets or sets whether the leader lines are visible.

    Members

    • visible
    • Type:string
    • .
    • collapsed
    • Type:string

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                leaderLineVisibility: "collapsed"
            });

            //Get
            var opValue = $(".selector").igPieChart("option", "leaderLineVisibility");

            //Set
            $(".selector").igPieChart("option", "leaderLineVisibility", "collapsed");

  • legend

    Type:
    object
    Default:
    {}

    Can be any valid options accepted by $.ig.ChartLegend, or an instance of an $.ig.ChartLegend itself.

    Code Sample

    	      //Initialize
    	      $(".selector").igPieChart({
    	          legend: { element: 'legend', type: 'item' }
    	      });

    	      //Get
    	      var legend = $(".selector").igPieChart("option", "legend");

    • element

      Type:
      string
      Default:
      null

      The name of the element to turn into a legend.

      Code Sample

      	      //Initialize
      	      $(".selector").igPieChart({
      	          legend: { element: "legend", type: "item" }
      	      });

      	      //Get
      	      var legend = $(".selector").igPieChart("option", "legend");
              //  Get legend element on page
              legend.element;

    • height

      Type:
      number
      Default:
      null

      The height of the legend. It can be set as a number in pixels, string (px) or percentage (%).

      Code Sample

      	      //Initialize
      	      $(".selector").igPieChart({
      	          legend: { element: "legend", type: "item", height: "100px" }
      	      });

      	      //Get
      	      var legend = $(".selector").igPieChart("option", "legend");
              //  Get legend height
              legend.height;

    • type

      Type:
      enumeration
      Default:
      item

      Type of the legend.

      Members

      • item
      • Type:string
      • Specify the legend as item legend. It displays a legend item for each pie in the igPieChart control.
      • legend
      • Type:string
      • Specify the legend as legend. It is supported by all types of series in the igDataChart control.

      Code Sample

      	      //Initialize
      	      $(".selector").igPieChart({
      	          legend: { element: "legend", type: "item" }
      	      });

      	      //Get
      	      var legend = $(".selector").igPieChart("option", "legend");
              //  Get legend type
              legend.type;

    • width

      Type:
      number
      Default:
      null

      The width of the legend. It can be set as a number in pixels, string (px) or percentage (%).

      Code Sample

      	      //Initialize
      	      $(".selector").igPieChart({
      	          legend: { element: "legend", type: "item", width: "100px" }
      	      });

      	      //Get
      	      var legend = $(".selector").igPieChart("option", "legend");
              //  Get legend width
              legend.width;

  • legendItemBadgeTemplate

    Type:
    object
    Default:
    null

    Gets or sets the LegendItemBadgeTemplate property.
    The legend item badge is created according to the LegendItemBadgeTemplate on-demand by
    the chart object itself.
    The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

    Code Sample

    	      //Initialize
    	      $(".selector").igPieChart({
    	          legendItemBadgeTemplate: {
                        measure: function(measureInfo) {
                            measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                            measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                            measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                            measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                            measureInfo.data;       // if present, represents the contextual data for this template]
                        },
                        render: function (renderInfo) {
                            measureInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                            measureInfo.xPosition;          //    if present, specifies the x position at which to render the content
                            measureInfo.yPosition;          //    if present, specifies the y position at which to render the content
                            measureInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                            measureInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                            measureInfo.data;               //    if present, specifies the data that is in context for this content
                            measureInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
                        }
                    }
    	      });

  • legendItemTemplate

    Type:
    object
    Default:
    null

    Gets or sets the LegendItemTemplate property.
    The legend item control content is created according to the LegendItemTemplate on-demand by
    the chart object itself.
    The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

    Code Sample

    	      //Initialize
    	      $(".selector").igPieChart({
    	          legendItemTemplate: {
                        measure: function(measureInfo) {
                            measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                            measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                            measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                            measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                            measureInfo.data;       // if present, represents the contextual data for this template]
                        },
                        render: function (renderInfo) {
                            measureInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                            measureInfo.xPosition;          //    if present, specifies the x position at which to render the content
                            measureInfo.yPosition;          //    if present, specifies the y position at which to render the content
                            measureInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                            measureInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                            measureInfo.data;               //    if present, specifies the data that is in context for this content
                            measureInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
                        }
                    }
    	      });

  • othersCategoryStyle

    Type:
    object
    Default:
    null

    Gets or sets a style object that can be used to override the style settings on the others category slice.

  • othersCategoryText

    Type:
    string
    Default:
    others

    Gets or sets the label of the Others slice.

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                othersCategoryText: "Other Countries"
            });

            //Get
            var opValue = $(".selector").igPieChart("option", "othersCategoryText");

            //Set
            $(".selector").igPieChart("option", "othersCategoryText", "Other Countries");

  • othersCategoryThreshold

    Type:
    number
    Default:
    3

    Gets or sets the threshold value that determines if slices are grouped into the Others slice.

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                othersCategoryThreshold: 8
            });

            //Get
            var opValue = $(".selector").igPieChart("option", "othersCategoryThreshold");

            //Set
            $(".selector").igPieChart("option", "othersCategoryThreshold", 8);

  • othersCategoryType

    Type:
    enumeration
    Default:
    percent

    Gets or sets whether to use numeric or percent-based threshold value.

    Members

    • number
    • Type:string
    • Data value is compared directly to the value of OthersCategoryThreshold. .
    • percent
    • Type:string
    • Data value is compared to OthersCategoryThreshold as a percentage of the total.

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                othersCategoryType: "percent"
            });

            //Get
            var opValue = $(".selector").igPieChart("option", "othersCategoryType");

            //Set
            $(".selector").igPieChart("option", "othersCategoryType", "percent");

  • outlines

    Type:
    object
    Default:
    null

    Gets or sets the Outlines property.
    The Outlines property defines the palette from which automatically assigned slice outlines are selected.
    The value provided should be an array of css color strings. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                outlines: [ "#ff0000", "#ffff00", "#00ffff" ]
            });

            //Get
            var opValue = $(".selector").igPieChart("option", "outlines");

            //Set
            $(".selector").igPieChart("option", "outlines", [ "#ff0000", "#ffff00", "#00ffff" ]);

  • radiusFactor

    Type:
    number
    Default:
    0.9

    Gets or sets the scaling factor of the chart's radius. Value between 0 and 1.

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                radiusFactor: 0.75
            });

            //Get
            var opValue = $(".selector").igPieChart("option", "radiusFactor");

            //Set
            $(".selector").igPieChart("option", "radiusFactor", 0.75);

  • responseDataKey

    Type:
    string
    Default:
    null

    See $.ig.DataSource. Specifies the name of the property in which data records are held if the response is wrapped.

    Code Sample

    	      //Initialize
    	      $(".selector").igPieChart({
    	          responseDataKey: "Records"
    	      });

    	      //Get
    	      var responseDataKey = $(".selector").igPieChart("option", "responseDataKey");

  • selectedStyle

    Type:
    object
    Default:
    null

    Gets or sets the style used when a slice is selected.

    Code Sample

    //Initialize
    $(".selector").igPieChart({
    	  selectedStyle: "sliceSelected"
    });

    //Get
    var selectedStyle = $(".selector").igPieChart("option", "selectedStyle");

    //set
    $(".selector").igPieChart("option", "selectedStyle", "sliceSelected");

  • showTooltip

    Type:
    bool
    Default:
    false

    Whether the chart should render a tooltip.

    Code Sample

    // Initialize
    $(".selector").igPieChart({
        showTooltip: true
    });

    // Get
    var showTooltip = $(".selector").igPieChart("option", "showTooltip");

    // Set
    $(".selector").igPieChart("option", "showTooltip", true);

  • startAngle

    Type:
    number
    Default:
    0

    Gets or sets the starting angle of the chart.
    The default zero value is equivalent to 3 o'clock.

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                startAngle: 3
            });

            //Get
            var opValue = $(".selector").igPieChart("option", "startAngle");

            //Set
            $(".selector").igPieChart("option", "startAngle", 3);

  • sweepDirection

    Type:
    enumeration
    Default:
    clockwise

    Gets or sets the rotational direction of the chart.

    Members

    • counterclockwise
    • Type:string
    • .
    • clockwise
    • Type:string

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                sweepDirection: "counterclockwise"
            });

            //Get
            var opValue = $(".selector").igPieChart("option", "sweepDirection");

            //Set
            $(".selector").igPieChart("option", "sweepDirection", "counterclockwise");

  • textStyle

    Type:
    string
    Default:
    null

    Overrides the style used for text in the pie chart.

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                textStyle: "pieLabel"
            });

            //Get
            var opValue = $(".selector").igPieChart("option", "textStyle");

            //Set
            $(".selector").igPieChart("option", "textStyle", "pieLabel");

  • theme

    Type:
    string
    Default:
    c

    The swatch used to style this widget.

    Code Sample

    //Initialize
    $(".selector").igPieChart({
        theme: "metro"
    });

    //Get
    var theme = $(".selector").igPieChart("option", "theme");

  • tooltipTemplate

    Type:
    string
    Default:
    null

    The name of template or the template itself that chart tooltip will use to render.

    Code Sample

    //Initialize
    $(".selector").igPieChart({
        tooltipTemplate: "salesTooltip"
    });

    //Get
    var tooltipTemplate = $(".selector").igPieChart("option", "tooltipTemplate");

    //Set
    $(".selector").igPieChart("option", "tooltipTemplate", "salesTooltip");

  • valueMemberPath

    Type:
    string
    Default:
    null

    Gets or Sets the property name that contains the values.

    Code Sample

    	      //Initialize
    	      var data1 = [
                { "Department": "Accounting", "Cost": 12.5 },
                { "Department": "Marketing", "Cost": 18.56 },
                { "Department": "R&D", "Cost": 22.18 }
              ];
    	      $(".selector").igPieChart({
    	          valueMemberPath: "Cost"
    	      });

    	      //Get
    	      var opValue = $(".selector").igPieChart("option", "valueMemberPath");

    	      //Set
    	      var data1 = [
                { "Department": "Accounting", "Cost": 12.5 },
                { "Department": "Marketing", "Cost": 18.56 },
                { "Department": "R&D", "Cost": 22.18 }
              ];
    	      $(".selector").igPieChart("option", "valueMemberPath", "Cost");

  • width

    Type:
    number
    Default:
    null

    The width of the chart. It can be set as a number in pixels, string (px) or percentage (%).

    Code Sample

    	      //Initialize
            $(".selector").igPieChart({
                width: 250
            });

            //Get
            var opValue = $(".selector").igPieChart("option", "width");


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • browserNotSupported

    Cancellable:
    false

    Event fired when the control is displayed on a non HTML5 compliant browser.

    Code Sample

    //  Bind
    $(document).delegate(".selector", "igpiechartbrowsernotsupported", function () {

    });

    //Initialize
    $(".selector").igPieChart({
        browserNotSupported: function () { ... }
    });

  • sliceClick

    Cancellable:
    false

    Raised when the slice is clicked.
    Function takes arguments evt and ui.
    Use ui.chart to get reference to chart object.
    Use ui.slice to get reference to slice object.
    Use ui.slice.item to get reference to current pie chart item.
    Use ui.slice.isExploded to get is the slice exploded.
    Use ui.slice.isSelected to get is the slice selected.

    Code Sample

    //  Bind
    $(document).delegate(".selector", "igpiechartsliceclick", function (evt, ui) {
    			//Use ui.chart to get reference to chart object.
          ui.chart;

    			//Use ui.slice to get reference to slice object.
          ui.slice;

    			//Use ui.slice.item to get reference to current pie chart item.
          ui.slice.item;

    			//Use ui.slice.isExploded to get is the slice exploded.
          ui.slice.isExploded;

          //Use ui.slice.isSelected to get is the slice selected.
          ui.slice.isSelected;
    });

    //Initialize
    $(".selector").igPieChart({
        sliceClick: function (evt, ui) { ... }
    });

  • tooltipHidden

    Cancellable:
    false

    Event fired after a tooltip is hidden
    Function takes arguments evt and ui.
    Use ui.element to get reference to tooltip DOM element.
    Use ui.item to get reference to current pie chart item.
    Use ui.chart to get reference to chart object.

    Code Sample

    //  Bind
    $(document).delegate(".selector", "igpiecharttooltiphidden", function (evt, ui) {
          //Use ui.element to get reference to tooltip DOM element.
          ui.element;

          //Use ui.item to get reference to current series item object.
          ui.item;

    			//Use ui.chart to get reference to chart object.
          ui.chart;
    });

    //Initialize
    $(".selector").igPieChart({
        tooltipHidden: function (evt, ui) { ... }
    });

  • tooltipHiding

    Cancellable:
    true

    Event fired when the mouse has left an element and the tooltip is about to hide
    Function takes arguments evt and ui.
    Use ui.element to get reference to tooltip DOM element.
    Use ui.item to get reference to current pie chart item.
    Use ui.chart to get reference to chart object.

    Code Sample

    //  Bind
    $(document).delegate(".selector", "igpiecharttooltiphiding", function (evt, ui) {
          //Use ui.element to get reference to tooltip DOM element.
          ui.element;

          //Use ui.item to get reference to current series item object.
          ui.item;

    			//Use ui.chart to get reference to chart object.
          ui.chart;
    });

    //Initialize
    $(".selector").igPieChart({
        tooltipHiding: function (evt, ui) { ... }
    });

  • tooltipShowing

    Cancellable:
    true

    Event fired when the mouse has hovered on an element long enough to display a tooltip
    Function takes arguments evt and ui.
    Use ui.element to get reference to tooltip DOM element.
    Use ui.item to get reference to current pie chart item.
    Use ui.chart to get reference to chart object.

    Code Sample

    //  Bind
    $(document).delegate(".selector", "igpiecharttooltipshowing", function (evt, ui) {
          //Use ui.element to get reference to tooltip DOM element.
          ui.element;

          //Use ui.item to get reference to current series item object.
          ui.item;

    			//Use ui.chart to get reference to chart object.
          ui.chart;
    });

    //Initialize
    $(".selector").igPieChart({
        tooltipShowing: function (evt, ui) { ... }
    });

  • tooltipShown

    Cancellable:
    false

    Event fired after a tooltip is shown
    Function takes arguments evt and ui.
    Use ui.element to get reference to tooltip DOM element.
    Use ui.item to get reference to current pie chart item.
    Use ui.chart to get reference to chart object.

    Code Sample

    //  Bind
    $(document).delegate(".selector", "igpiecharttooltipshown", function (evt, ui) {
          //Use ui.element to get reference to tooltip DOM element.
          ui.element;

          //Use ui.item to get reference to current series item object.
          ui.item;

    			//Use ui.chart to get reference to chart object.
          ui.chart;
    });

    //Initialize
    $(".selector").igPieChart({
        tooltipShown: function (evt, ui) { ... }
    });

  • addItem

    .igPieChart( "addItem", item:object );

    Adds a new item to the data source and notifies the chart.

    • item
    • Type:object
    • the new item that will be added to the data source.

    Code Sample

    		    $(".selector").igPieChart("addItem", {"Item1": "Value1", "Item2": 1000, "Item3": 1019.75} );

  • destroy

    .igPieChart( "destroy" );

    Destroys the widget.

    Code Sample

    		    $(".selector").igPieChart("destroy");

  • exportImage

    .igPieChart( "exportImage", [width:object], [height:object] );
    Return Type:
    object
    Return Type Description:
    Returns a IMG DOM element.

    Exports the chart to a PNG image.

    • width
    • Type:object
    • Optional
    • The width of the image.
    • height
    • Type:object
    • Optional
    • The height of the image.

    Code Sample

            var image = $(".selector").igPieChart("exportImage", "500px", "500px");

  • exportVisualData

    .igPieChart( "exportVisualData" );

    Exports visual data from the pie chart to aid in unit testing.

  • id

    .igPieChart( "id" );
    Return Type:
    string

    Returns the ID of parent element holding the chart.

    Code Sample

    		    var containerElement = $(".selector").igPieChart("id");

  • insertItem

    .igPieChart( "insertItem", item:object, index:number );

    Inserts a new item to the data source and notifies the chart.

    • item
    • Type:object
    • the new item that will be inserted in the data source. .
    • index
    • Type:number
    • The index in the data source where the new item will be inserted.

    Code Sample

    		    $(".selector").igPieChart("insertItem", {"Item1": "Value1", "Item2": 1000, "Item3": 1019.75}, 5 );

  • option

    .igPieChart( "option", key:object, value:object );

    • key
    • Type:object
    • value
    • Type:object
  • print

    .igPieChart( "print" );

    Creates a print preview page with the chart, hiding all other elements on the page.

    Code Sample

    $(".selector").igDataChart("print");

  • removeItem

    .igPieChart( "removeItem", index:number );

    Deletes an item from the data source and notifies the chart.

    • index
    • Type:number
    • The index in the data source from where the item will be been removed.

    Code Sample

    		    $(".selector").igPieChart("removeItem", 5 );

  • setItem

    .igPieChart( "setItem", index:number, item:object );

    Updates an item in the data source and notifies the chart.

    • index
    • Type:number
    • The index in the data source that we want to change.
    • item
    • Type:object
    • the new item that we want to set in the data source.

    Code Sample

    		    $(".selector").igPieChart("setItem", 5, {"Item1": "Value1", "Item2": 1000, "Item3": 1019.75} );

  • widget

    .igPieChart( "widget" );

    Returns the element holding the chart.

    Code Sample

            var widget = $(".selector").igPieChart("widget");

  • ui-corner-all ui-widget-content ui-chart-piechart-container

    Get or set the class applied on a div element.
  • ui-chart-tooltip ui-widget-content ui-corner-all

    Get or set the class applied to the tooltip div element.
  • ui-html5-non-html5-supported-message ui-helper-clearfix ui-html5-non-html5

    Get or set the class applied on a div element, shown when the chart is opened in a non HTML5 compatible browser.

Copyright © 1996 - 2018 Infragistics, Inc. All rights reserved.

#
