ui.igBulletGraph

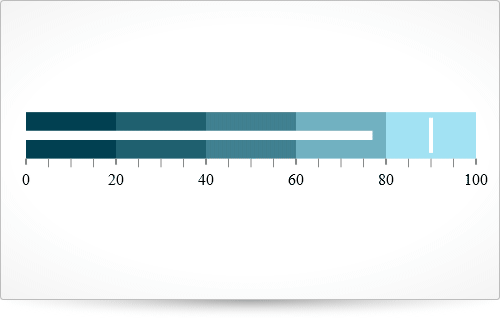

ui.igBulletGraph_image
The igBulletGraph control is an Ignite UI control which allows for visualizing data in the form of a bullet graph. Linear by design, it provides a simple and concise view of a primary measure compared against a scale and, optionally, some other measure.

Code Sample


<!DOCTYPE html>
<html>
<head>

    <!-- Ignite UI Required Combined CSS Files -->
    <link href="../../igniteui/css/themes/infragistics/infragistics.theme.css" rel="stylesheet" />
    <link href="../../igniteui/css/structure/infragistics.css" rel="stylesheet" />

    <!-- Used to style the API Viewer and Explorer UI -->
    <link href="../../css/apiviewer.css" rel="stylesheet" type="text/css" />

    <script src="../../js/modernizr.min.js"></script>
    <script src="../../js/jquery.min.js"></script>
    <script src="../../js/jquery-ui.min.js"></script>

    <!-- Ignite UI Required Combined JavaScript Files -->
    <script src="../../igniteui/js/infragistics.core.js"></script>
    <script src="../../igniteui/js/infragistics.dv.js"></script>

</head>
<body>
    <div id="bulletgraph" ></div>

    <script type="text/javascript">
        $(function () {
            $("#bulletgraph").igBulletGraph({
                height: "80px",
                width: "100%",
                minimumValue: 0,
                maximumValue: 30,
                value: 26,
                targetValue: 22,
                ranges: [
                    {
                        name: 'bad',
                        startValue: 0,
                        endValue: 14
                    },
                    {
                        name: 'acceptable',
                        startValue: 14,
                        endValue: 25
                    },
                    {
                        name: 'good',
                        startValue: 25,
                        endValue: 30
                    }],
                transitionDuration: 1000,
                formatLabel: function (evt, ui) {
                        ui.label = ui.label+"K";
                    }
            });
        });
    </script>
</body>
</html>


Related Samples

Related Topics

Dependencies

jquery-1.8.3.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.util.js
infragistics.dv.simple.core.js
infragistics.gauge_bulletgraph.js

Inherits

  • backingBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use to fill the backing of the bullet graph.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        backingBrush: "#164F6D"
    });

    // Get
    var backingBrush = $(".selector").igBulletGraph("option", "backingBrush");

    // Set
    $(".selector").igBulletGraph("option", "backingBrush", "#164F6D");

  • backingInnerExtent

    Type:
    number
    Default:
    0

    Gets or sets the inner extent of the bullet graph backing.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        backingInnerExtent: 0.3
    });

    // Get
    var backingInnerExtent = $(".selector").igBulletGraph("option", "backingInnerExtent");

    // Set
    $(".selector").igBulletGraph("option", "backingInnerExtent", 0.3);

  • backingOuterExtent

    Type:
    number
    Default:
    1

    Gets or sets the outer extent of the bullet graph backing.

    Code Sample

    // Initialize
    $(".selector").igBulletGraph({
        backingOuterExtent: 0.65
    });

    // Get
    var backingOuterExtent = $(".selector").igBulletGraph("option", "backingOuterExtent");

    // Set
    $(".selector").igBulletGraph("option", "backingOuterExtent", 0.65);

  • backingOutline

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for the outline of the backing.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        backingOutline: "#164F6D"
    });

    // Get
    var backingOutline = $(".selector").igBulletGraph("option", "backingOutline");

    // Set
    $(".selector").igBulletGraph("option", "backingOutline", "#164F6D");

  • backingStrokeThickness

    Type:
    number
    Default:
    2

    Gets or sets the stroke thickness of the backing outline.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        backingStrokeThickness: 3
    });

    // Get
    var backingStrokeThickness = $(".selector").igBulletGraph("option", "backingStrokeThickness");

    // Set
    $(".selector").igBulletGraph("option", "backingStrokeThickness", 3);

  • font

    Type:
    string
    Default:
    null

    Gets or sets the font.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        font: "20px Georgia"
    });

    // Get
    var font = $(".selector").igBulletGraph("option", "font");

    // Set
    $(".selector").igBulletGraph("option", "font", "20px Georgia");

  • fontBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for the label font.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        fontBrush: "#164F6D"
    });

    // Get
    var fontBrush = $(".selector").igBulletGraph("option", "fontBrush");

    // Set
    $(".selector").igBulletGraph("option", "fontBrush", "#164F6D");

  • height

    Type:
    number
    Default:
    null

    The height of the gauge. It can be set as a number in pixels, string (px) or percentage (%).

  • interval

    Type:
    number
    Default:
    0

    Gets or sets the interval to use for the scale.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        interval: 15
    });

    // Get
    var interval = $(".selector").igBulletGraph("option", "interval");

    // Set
    $(".selector").igBulletGraph("option", "interval", 15);

  • isScaleInverted

    Type:
    bool
    Default:
    false

    Gets or sets a value indicating whether the scale is inverted.
    When the scale is inverted the direction in which the scale values increase is right to left.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        isScaleInverted: true
    });

    // Get
    var isScaleInverted = $(".selector").igBulletGraph("option", "isScaleInverted");

    // Set
    $(".selector").igBulletGraph("option", "isScaleInverted", true);

  • labelExtent

    Type:
    number
    Default:
    0

    Gets or sets the position at which to put the labels as a value from 0 to 1, measured from the bottom of the scale.
    Values further from zero than 1 can be used to hide the labels of the bullet graph.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        labelExtent: 0.65
    });

    // Get
    var labelExtent = $(".selector").igBulletGraph("option", "labelExtent");

    // Set
    $(".selector").igBulletGraph("option", "labelExtent", 0.65);

  • labelInterval

    Type:
    number
    Default:
    0

    Gets or sets the interval to use for rendering labels. This defaults to be the same interval as the tickmarks on the scale.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        labelInterval: 15
    });

    // Get
    var labelInterval = $(".selector").igBulletGraph("option", "labelInterval");

    // Set
    $(".selector").igBulletGraph("option", "labelInterval", 15);

  • labelsPostInitial

    Type:
    number
    Default:
    0

    A value to start adding labels, added to the scale's MinimumValue.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        labelsPostInitial: 5000
    });

    // Get
    var labelsPostInitial = $(".selector").igBulletGraph("option", "labelsPostInitial");

    // Set
    $(".selector").igBulletGraph("option", "labelsPostInitial", 5000);

  • labelsPreTerminal

    Type:
    number
    Default:
    0

    A value to stop adding labels, subtracted from the scale's MaximumValue.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        labelsPreTerminal: 5000
    });

    // Get
    var labelsPreTerminal = $(".selector").igBulletGraph("option", "labelsPreTerminal");

    // Set
    $(".selector").igBulletGraph("option", "labelsPreTerminal", 5000);

  • maximumValue

    Type:
    number
    Default:
    100

    Gets or sets the maximum value of the scale.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        maximumValue: 5000
    });

    // Get
    var maximumValue = $(".selector").igBulletGraph("option", "maximumValue");

    // Set
    $(".selector").igBulletGraph("option", "maximumValue", 5000);

  • minimumValue

    Type:
    number
    Default:
    0

    Gets or sets the minimum value of the scale.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        minimumValue: 500
    });

    // Get
    var minimumValue = $(".selector").igBulletGraph("option", "minimumValue");

    // Set
    $(".selector").igBulletGraph("option", "minimumValue", 500);

  • minorTickBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for the minor tickmarks.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        minorTickBrush: "blue"
    });

    // Get
    var minorTickBrush = $(".selector").igBulletGraph("option", "minorTickBrush");

    // Set
    $(".selector").igBulletGraph("option", "minorTickBrush", "blue");

  • minorTickCount

    Type:
    number
    Default:
    3

    Gets or sets the number of minor tickmarks to place between major tickmarks.

    Code Sample

    // Initialize
    $(".selector").igBulletGraph({
        minorTickCount: 5
    });

    // Get
    var minorTickCount = $(".selector").igBulletGraph("option", "minorTickCount");

    // Set
    $(".selector").igBulletGraph("option", "minorTickCount", 5);

  • minorTickEndExtent

    Type:
    number
    Default:
    0.2

    Gets or sets the position at which to stop rendering the minor tickmarks as a value from 0 to 1, measured from the front/bottom of the bullet graph.
    Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.

    Code Sample

    // Initialize
    $(".selector").igBulletGraph({
        minorTickEndExtent: .5
    });

    // Get
    var minorTickEndExtent = $(".selector").igBulletGraph("option", "minorTickEndExtent");

    // Set
    $(".selector").igBulletGraph("option", "minorTickEndExtent", .5);

  • minorTickStartExtent

    Type:
    number
    Default:
    0.06

    Gets or sets the position at which to start rendering the minor tickmarks as a value from 0 to 1, measured from the front/bottom of the bullet graph.
    Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.

    Code Sample

    // Initialize
    $(".selector").igBulletGraph({
        minorTickStartExtent: .05
    });

    // Get
    var minorTickStartExtent = $(".selector").igBulletGraph("option", "minorTickStartExtent");

    // Set
    $(".selector").igBulletGraph("option", "minorTickStartExtent", .05);

  • minorTickStrokeThickness

    Type:
    number
    Default:
    1

    Gets or sets the stroke thickness to use when rendering minor ticks.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        minorTickStrokeThickness: 4
    });

    // Get
    var minorTickStrokeThickness = $(".selector").igBulletGraph("option", "minorTickStrokeThickness");

    // Set
    $(".selector").igBulletGraph("option", "minorTickStrokeThickness", 4);

  • orientation

    Type:
    enumeration
    Default:
    horizontal

    Gets or sets the orientation of the scale.

    Members

    • horizontal
    • Type:string
    • .
    • vertical
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        orientation: "vertical"
    });

    // Get
    var orientation = $(".selector").igBulletGraph("option", "orientation");

    // Set
    $(".selector").igBulletGraph("option", "orientation", "vertical");

  • rangeBrushes

    Type:
    object
    Default:
    null

    Gets or sets a collection of brushes to be used as the palette for bullet graph ranges.
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        rangeBrushes: ["#164F6D", "green", "#AF3", "yellow"],
    });

    // Get
    var rangeBrushes = $(".selector").igBulletGraph("option", "rangeBrushes");

    // Set
    $(".selector").igBulletGraph("option", "rangeBrushes", ["#164F6D", "green", "#AF3", "yellow"]);

  • rangeInnerExtent

    Type:
    number
    Default:
    0.2

    Gets or sets the position at which to start rendering the ranges, measured from the front/bottom of the control as a value from 0 to 1.
    Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        rangeInnerExtent: 0.4,
    });

    // Get
    var rangeInnerExtent = $(".selector").igBulletGraph("option", "rangeInnerExtent");

    // Set
    $(".selector").igBulletGraph("option", "rangeInnerExtent", 0.4);

  • rangeOuterExtent

    Type:
    number
    Default:
    0.95

    Gets or sets the position at which to stop rendering the range as a value from 0 to 1 measured from the front/bottom of the bullet graph.
    Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        rangeOuterExtent: 0.4,
    });

    // Get
    var rangeOuterExtent = $(".selector").igBulletGraph("option", "rangeOuterExtent");

    // Set
    $(".selector").igBulletGraph("option", "rangeOuterExtent", 0.4);

  • rangeOutlines

    Type:
    object
    Default:
    null

    Gets or sets a collection of brushes to be used as the palette for bullet graph outlines.
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

    Code Sample

    // Initialize
    $(".selector").igBulletGraph({
        rangeOutlines: ["#164F6D", "green", "#AF3", "yellow"],
    });

    // Get
    var rangeOutlines = $(".selector").igBulletGraph("option", "rangeOutlines");

    // Set
    $(".selector").igBulletGraph("option", "rangeOutlines", ["#164F6D", "green", "#AF3", "yellow"]);

  • ranges

    Type:
    array
    Default:
    []
    Elements Type:
    object

    Gets or sets the scale ranges to render on the bullet graph.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        ranges: [
                        {
                            name: 'bad',
                            startValue: 0,
                            endValue: 50
                        },
                        {
                            name: 'acceptable',
                            startValue: 50,
                            endValue: 80
                        },
                        {
                            name: 'good',
                            startValue: 80,
                            endValue: 100
                        }
        ]
    });

    // Get
    var ranges = $(".selector").igBulletGraph("option", "ranges");

    // Set
    $(".selector").igBulletGraph("option", "ranges", [
                        {
                            name: 'bad',
                            startValue: 0,
                            endValue: 50
                        },
                        {
                            name: 'acceptable',
                            startValue: 50,
                            endValue: 80
                        },
                        {
                            name: 'good',
                            startValue: 80,
                            endValue: 100
                        }
    ]);

    • brush

      Type:
      string
      Default:
      null

      Gets or sets the brush to use to fill the range.

      Code Sample


      //Initialize
      $(".selector").igBulletGraph({
          ranges: [
              { name: "range1", brush: "rgba(164, 189, 41, 1)" }
          ]
      });

      //Get
      var ranges = $(".selector").igBulletGraph("option", "ranges");
      var brush = ranges[0].brush;

      //Set
      $(".selector").igBulletGraph("option", "ranges", [{name: "range1", brush:"red" }]);

    • endValue

      Type:
      number
      Default:
      0

      Gets or sets the value at which the range ends along the scale.

    • innerEndExtent

      Type:
      number
      Default:
      0

      Gets or sets the distance measured from the front/bottom of the bullet graph (from 0 to 1) at which to end rendering the inner edge of the range.
      Values further from zero than 1 can be used to make this extend further than the normal width/height of the bullet graph.

    • innerStartExtent

      Type:
      number
      Default:
      0

      Gets or sets the distance measured from the front/bottom of the bullet graph (from 0 to 1) at which to start rendering the inner edge of the range.
      Values further from zero than 1 can be used to make this extend further than the normal width/height of the bullet graph.

    • name

      Type:
      string
      Default:
      null

      Gets or sets the name of the range.

      Code Sample


      //Initialize
      $(".selector").igBulletGraph({
          ranges: [
              { name: "range1" }
          ]
      });

      //Get
      var ranges = $(".selector").igBulletGraph("option", "ranges");
      var name = ranges[0].name;

    • outerEndExtent

      Type:
      number
      Default:
      0

      Gets or sets the distance measured from the front/bottom of the bullet graph (from 0 to 1) at which to end rendering the outer edge of the range.
      Values further from zero than 1 can be used to make this extend further than the normal width/height of the bullet graph.

    • outerStartExtent

      Type:
      number
      Default:
      0

      Gets or sets the distance measured from the front/bottom of the bullet graph (from 0 to 1) at which to start rendering the outer edge of the range.
      Values further from zero than 1 can be used to make this extend further than the normal width/height of the bullet graph.

    • outline

      Type:
      string
      Default:
      null

      Gets or sets the outline to use when rendering the range.

      Code Sample


      //Initialize
      $(".selector").igBulletGraph({
          ranges: [
              { name: "range1", outline: "green" }
          ]
      });

      //Get
      var ranges = $(".selector").igBulletGraph("option", "ranges");
      var outline = ranges[0].outline;

      //Set
      $(".selector").igBulletGraph("option", "ranges", [{ name: "range1", outline: "green" }]);

    • startValue

      Type:
      number
      Default:
      0

      Gets or sets the value at which the range starts along the scale.

    • strokeThickness

      Type:
      number
      Default:
      0

      Gets or sets the stroke thickness to use when rendering this range's outline.

      Code Sample


      //Initialize
      $(".selector").igBulletGraph({
          ranges: [
              { name: "range1", strokeThickness: 3 }
          ]
      });

      //Get
      var ranges = $(".selector").igBulletGraph("option", "ranges");
      var strokeThickness = ranges[0].strokeThickness;

      //Set
      $(".selector").igBulletGraph("option", "ranges", [{ name: "range1", strokeThickness: 3 }]);

  • rangeToolTipTemplate

    Type:
    string
    Default:
    null

    Gets or sets the ranges' tooltip template.

    Code Sample


    <script id="myRangeToolTipTemplateScript" type="text/x-jquery-tmpl">
    	<div class='ui-bulletgraph-range-tooltip'  >
            <font color='${itemBrush}'>
                ${item.name} : ${item.startValue}% - ${item.endValue}%
            </font>
        </div>
    </script>

    // Initialize
    $(".selector").igBulletGraph({
        showToolTip: true,
        rangeTooltipTemplate: "myRangeToolTipTemplateScript"
    });

    // Get
    var rangeToolTipTemplate = $(".selector").igBulletGraph("option", "rangeToolTipTemplate");

    // Set
    $(".selector").igBulletGraph("option", "rangeToolTipTemplate", "myRangeToolTipTemplateScript");

  • scaleEndExtent

    Type:
    number
    Default:
    0.95

    Gets or sets the position at which to stop rendering the scale as a value from 0 to 1, measured from the front/bottom of the bullet graph.
    Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        scaleEndExtent: .7
    });

    // Get
    var scaleEndExtent = $(".selector").igBulletGraph("option", "scaleEndExtent");

    // Set
    $(".selector").igBulletGraph("option", "scaleEndExtent", .7);

  • scaleStartExtent

    Type:
    number
    Default:
    0.05

    Gets or sets the position at which to start rendering the scale, measured from the front/bottom of the bullet graph as a value from 0 to 1.
    Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        scaleStartExtent: .1
    });

    // Get
    var scaleStartExtent = $(".selector").igBulletGraph("option", "scaleStartExtent");

    // Set
    $(".selector").igBulletGraph("option", "scaleStartExtent", .1);

  • showToolTip

    Type:
    bool
    Default:
    null

    Gets or sets a value indicating whether tooltips are enabled.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        showToolTip: true
    });

    // Get
    var showToolTip = $(".selector").igBulletGraph("option", "showToolTip");

    // Set
    $(".selector").igBulletGraph("option", "showToolTip", true);

  • showToolTipTimeout

    Type:
    number
    Default:
    0

    Gets or sets the time in milliseconds that tooltip appearance is delayed with.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        showToolTipTimeout: 2000
    });

    // Get
    var showToolTipTimeout = $(".selector").igBulletGraph("option", "showToolTipTimeout");

    // Set
    $(".selector").igBulletGraph("option", "showToolTipTimeout", 2000);

  • targetValue

    Type:
    number
    Default:
    0

    Gets or sets the value indicated by the target value bar.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        targetValue: 30
    });

    // Get
    var targetValue = $(".selector").igBulletGraph("option", "targetValue");

    // Set
    $(".selector").igBulletGraph("option", "targetValue", 30);

  • targetValueBreadth

    Type:
    number
    Default:
    3

    Get or sets the breadth of the target value element.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        targetValueBreadth: 5
    });

    // Get
    var targetValueBreadth = $(".selector").igBulletGraph("option", "targetValueBreadth");

    // Set
    $(".selector").igBulletGraph("option", "targetValueBreadth", 5);

  • targetValueBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use when rendering the fill of the comparative marker.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        targetValueBrush: "white"
    });

    // Get
    var targetValueBrush = $(".selector").igBulletGraph("option", "targetValueBrush");

    // Set
    $(".selector").igBulletGraph("option", "targetValueBrush", "white");

  • targetValueInnerExtent

    Type:
    number
    Default:
    0.3

    Gets or sets the position at which to start rendering the target value, measured from the front/bottom of the control as a value from 0 to 1.
    Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        targetValueInnerExtent: 0.4
    });

    // Get
    var targetValueInnerExtent = $(".selector").igBulletGraph("option", "targetValueInnerExtent");

    // Set
    $(".selector").igBulletGraph("option", "targetValueInnerExtent", 0.4);

  • targetValueName

    Type:
    string
    Default:
    null

    Gets or sets the name used for the target value. The name is displayed in the default target value tooltip.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        targetValueName: "myGoal"
    });

    // Get
    var targetValueName = $(".selector").igBulletGraph("option", "targetValueName");

    // Set
    $(".selector").igBulletGraph("option", "targetValueName", "myGoal");

  • targetValueOuterExtent

    Type:
    number
    Default:
    0.85

    Gets or sets the position at which to start rendering the target value, measured from the front/bottom of the control as a value from 0 to 1.
    Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        targetValueOuterExtent: 0.1
    });

    // Get
    var targetValueOuterExtent = $(".selector").igBulletGraph("option", "targetValueOuterExtent");

    // Set
    $(".selector").igBulletGraph("option", "targetValueOuterExtent", 0.1);

  • targetValueOutline

    Type:
    string
    Default:
    null

    Gets or sets the brush to use when rendering the outline of the target value.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        targetValueOutline: "white"
    });

    // Get
    var targetValueOutline = $(".selector").igBulletGraph("option", "targetValueOutline");

    // Set
    $(".selector").igBulletGraph("option", "targetValueOutline", "white");

  • targetValueStrokeThickness

    Type:
    number
    Default:
    1

    Gets or sets the stroke thickness of the outline of the target value bar.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        targetValueStrokeThickness: 3
    });

    // Get
    var targetValueStrokeThickness = $(".selector").igBulletGraph("option", "targetValueStrokeThickness");

    // Set
    $(".selector").igBulletGraph("option", "targetValueStrokeThickness", 3);

  • targetValueToolTipTemplate

    Type:
    string
    Default:
    null

    Gets or sets the target value's tooltip template.

    Code Sample


    <script id="myTargetValueToolTipTemplateScript" type="text/x-jquery-tmpl">
        <div class='ui-bulletgraph-targetValue-tooltip'>
            ${item.name}: ${item.value}%
        </div>
    </script>
    // Initialize
    $(".selector").igBulletGraph({
        showToolTip: true,
        targetValueTooltipTemplate: "myTargetValueToolTipTemplateScript"
    });
    // Get
    var targetValueToolTipTemplate = $(".selector").igBulletGraph("option", "targetValueToolTipTemplate");

    // Set
    $(".selector").igBulletGraph("option", "targetValueToolTipTemplate", "myTargetValueToolTipTemplateScript");

  • tickBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for the major tickmarks.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        tickBrush: "blue"
    });

    // Get
    var tickBrush = $(".selector").igBulletGraph("option", "tickBrush");

    // Set
    $(".selector").igBulletGraph("option", "tickBrush", "blue");

  • tickEndExtent

    Type:
    number
    Default:
    0.2

    Gets or sets the position at which to stop rendering the major tickmarks as a value from 0 to 1, measured from the front/bottom of the bullet graph.
    Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        tickEndExtent: .5
    });

    // Get
    var tickEndExtent = $(".selector").igBulletGraph("option", "tickEndExtent");

    // Set
    $(".selector").igBulletGraph("option", "tickEndExtent", .5);

  • ticksPostInitial

    Type:
    number
    Default:
    0

    A value to start adding tickmarks, added to the scale's MinimumValue.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        ticksPostInitial: 50
    });

    // Get
    var ticksPostInitial = $(".selector").igBulletGraph("option", "ticksPostInitial");

    // Set
    $(".selector").igBulletGraph("option", "ticksPostInitial", 50);

  • ticksPreTerminal

    Type:
    number
    Default:
    0

    A value to stop adding tickmarks, subtracted from the scale's MaximumValue.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        ticksPreTerminal: 50
    });

    // Get
    var ticksPreTerminal = $(".selector").igBulletGraph("option", "ticksPreTerminal");

    // Set
    $(".selector").igBulletGraph("option", "ticksPreTerminal", 50);

  • tickStartExtent

    Type:
    number
    Default:
    0.1

    Gets or sets the position at which to start rendering the major tickmarks as a value from 0 to 1, measured from the front/bottom of the bullet graph.
    Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        tickStartExtent: .05
    });

    // Get
    var tickStartExtent = $(".selector").igBulletGraph("option", "tickStartExtent");

    // Set
    $(".selector").igBulletGraph("option", "tickStartExtent", .05);
  • tickStrokeThickness

    Type:
    number
    Default:
    2

    Gets or sets the stroke thickness to use when rendering ticks.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        tickStrokeThickness: 4
    });

    // Get
    var tickStrokeThickness = $(".selector").igBulletGraph("option", "tickStrokeThickness");

    // Set
    $(".selector").igBulletGraph("option", "tickStrokeThickness", 4);

  • transitionDuration

    Type:
    number
    Default:
    0

    Gets or sets the number of milliseconds over which changes to the bullet graph should be animated.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        transitionDuration: 2000
    });

    // Get
    var transitionDuration = $(".selector").igBulletGraph("option", "transitionDuration");

    // Set
    $(".selector").igBulletGraph("option", "transitionDuration", 2000);

  • value

    Type:
    number
    Default:
    0

    Gets or sets the value at which the bar ends.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        value: 50
    });

    // Get
    var value = $(".selector").igBulletGraph("option", "value");

    // Set
    $(".selector").igBulletGraph("option", "value", 50);

  • valueBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for the actual value element.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        valueBrush: "white"
    });

    // Get
    var valueBrush = $(".selector").igBulletGraph("option", "valueBrush");

    // Set
    $(".selector").igBulletGraph("option", "valueBrush", "white");

  • valueInnerExtent

    Type:
    number
    Default:
    0.5

    Gets or sets the position at which to start rendering the actual value geometries, measured from the front/bottom of the bullet graph as a value from 0 to 1.
    Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        valueInnerExtent: .6
    });

    // Get
    var valueInnerExtent = $(".selector").igBulletGraph("option", "valueInnerExtent");

    // Set
    $(".selector").igBulletGraph("option", "valueInnerExtent", .6);

  • valueName

    Type:
    string
    Default:
    null

    Gets or sets the name used for actual value.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        valueName: "myProgress"
    });

    // Get
    var valueName = $(".selector").igBulletGraph("option", "valueName");

    // Set
    $(".selector").igBulletGraph("option", "valueName", "myProgress");

  • valueOuterExtent

    Type:
    number
    Default:
    0.65

    Gets or sets the position at which to stop rendering the actual value geometries as a value from 0 to 1 measured from the front/bottom of the bullet graph.
    Values further from zero than 1 can be used to make this extend further than the normal size of the bullet graph.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        valueOuterExtent: .6
    });

    // Get
    var valueOuterExtent = $(".selector").igBulletGraph("option", "valueOuterExtent");

    // Set
    $(".selector").igBulletGraph("option", "valueOuterExtent", .6);

  • valueOutline

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for the outline of actual value element.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        valueOutline: "white"
    });

    // Get
    var valueOutline = $(".selector").igBulletGraph("option", "valueOutline");

    // Set
    $(".selector").igBulletGraph("option", "valueOutline", "white");

  • valueStrokeThickness

    Type:
    number
    Default:
    1

    Gets or sets the stroke thickness to use when rendering single actual value element.

    Code Sample


    // Initialize
    $(".selector").igBulletGraph({
        valueStrokeThickness: 3
    });

    // Get
    var valueStrokeThickness = $(".selector").igBulletGraph("option", "valueStrokeThickness");

    // Set
    $(".selector").igBulletGraph("option", "valueStrokeThickness", 3);

  • valueToolTipTemplate

    Type:
    string
    Default:
    null

    Gets or sets the value's tooltip template.

    Code Sample


    <script id="myValueToolTipTemplateScript" type="text/x-jquery-tmpl">
    	<div class='ui-bulletgraph-value-tooltip'>
            ${item.name} : ${item.value}
        </div>
    </script>

    // Initialize
    $(".selector").igBulletGraph({
        showToolTip: true,
        valueTooltipTemplate: "myValueToolTipTemplateScript"
    });

    // Get
    var valueToolTipTemplate = $(".selector").igBulletGraph("option", "valueToolTipTemplate");

    // Set
    $(".selector").igBulletGraph("option", "valueToolTipTemplate", "myValueToolTipTemplateScript");

  • width

    Type:
    number
    Default:
    null

    The width of the gauge. It can be set as a number in pixels, string (px) or percentage (%).

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • alignLabel

    Cancellable:
    false

    Code Sample


    //Bind
    $(document).delegate(".selector", "igbulletgraphalignlabel", function (evt, ui) {
        // Get reference to igBulletGraph.
        ui.owner;

        // Get the mimimum value of the bullet graph scale
        ui.actualMinimumValue;

        // Get the maximum value of the bullet graph scale
        ui.actualMaximumValue;

        // Get the value on the the bullet graph scale associated with the label.
        ui.value;

        // Get whether the string value of the label.
        ui.label;

        //Get the width of the label.
        ui.width;

        // Get the height of the label.
        ui.height;

        // Get the X offset of the label on the the bullet graph scale.
        ui.offsetX;

        // Get the Y offset of the label on the the bullet graph scale.
        ui.offsetY;
    });

    // Initialize
    $(".selector").igBulletGraph({
        alignLabel: function(evt, ui) {...}
    });

  • formatLabel

    Cancellable:
    false

    Code Sample


    //Bind
    $(document).delegate(".selector", "igbulletgraphformatlabel", function (evt, ui) {
        // Get reference to igBulletGraph.
        ui.owner;

        // Get the mimimum value of the bullet graph scale
        ui.actualMinimumValue;

        // Get the maximum value of the bullet graph scale
        ui.actualMaximumValue;

        // Get the value on the the bullet graph scale associated with the label.
        ui.value;

        // Get whether the string value of the label.
        ui.label;
    });

    // Initialize
    $(".selector").igBulletGraph({
        formatLabel: function(evt, ui) {...}
    });

  • addRange

    .igBulletGraph( "addRange", value:object );

    Adds a new range to the bullet graph.

    • value
    • Type:object
    • The range object to be added.

    Code Sample

     $(".selector").igBulletGraph("addRange", { name: "Range1", value: 10, endValue: 40, brush: "red" });
  • destroy

    .igBulletGraph( "destroy" );

    Destroys widget.

    Code Sample

     $(".selector").igBulletGraph("destroy");
  • exportVisualData

    .igBulletGraph( "exportVisualData" );
    Return Type:
    object
    Return Type Description:
    a JavaScript object containing the visual data.

    Returns information about how the bullet graph is rendered.

    Code Sample

     $(".selector").igBulletGraph("exportVisualData");
  • flush

    .igBulletGraph( "flush" );

    Causes all pending changes of the bullet graph e.g. by changed property values to be rendered immediately.

    Code Sample

     $(".selector").igBulletGraph("flush");
  • getRangeNames

    .igBulletGraph( "getRangeNames" );

    Returns a string containing the names of all the ranges delimited with a \n symbol.

    Code Sample

     $(".selector").igBulletGraph("getRangeNames");
  • removeRange

    .igBulletGraph( "removeRange", value:object );

    Removes a range from the bullet graph.

    • value
    • Type:object
    • A JS object with properties set as follows: name: nameOfTheRangeToRemove, remove: true.

    Code Sample

     $(".selector").igBulletGraph("removeRange", { name: 'range1', remove: true });
  • styleUpdated

    .igBulletGraph( "styleUpdated" );

    Re-polls the css styles for the widget. Use this method when the css styles have been modified.

    Code Sample

     $(".selector").igBulletGraph("styleUpdated");
  • updateRange

    .igBulletGraph( "updateRange", value:object );

    Updates the specified range of the bullet graph.

    • value
    • Type:object
    • The range object to be updated.

    Code Sample

     $(".selector").igBulletGraph("updateRange", "range1");
  • ui-bulletgraph

    Class applied to main element: ui-bulletGraph ui-corner-all ui-widget-content.
  • ui-bulletgraph-backing

    Class applying background-color and border-color to the backing element.
  • ui-bulletgraph-range-fill-palette-n

    Class applying background-image to the fill of the n-th range of the bullet graph. Only gradient colors are accepted. As many palettes can be defined as neccessary.
  • ui-bulletgraph-label

    Class applying background-color to the text elements.
  • ui-bulletgraph-minortick

    Class applying background-color to the minor tick elements.
  • ui-bulletgraph-range-outline-palette-n

    Class applying background-image to the outline of the n-th range of the bullet graph. Only gradient colors are accepted. As many palettes can be defined as neccessary.
  • ui-bulletgraph-range-palette-n

    Class applying background-color and border-color to the n-th range of the bullet graph. As many palettes can be defined as neccessary.
  • ui-bulletgraph-targetvalue

    Class applying background-color and border-color to the target value element.
  • ui-bulletgraph-tick

    Class applying background-color to the tick elements.
  • ui-bulletgraph-value

    Class applying background-color and border-color to the value element.
  • ui-bulletgraph-tooltip ui-corner-all

    Class applied to the tooltip element: ui-bulletgraph-tooltip ui-corner-all.
  • ui-html5-non-html5-supported-message ui-helper-clearfix ui-html5-non-html5

    Class applied to main element, shown when the bulletGraph is opened in a non HTML5 compatible browser.

Copyright © 1996 - 2018 Infragistics, Inc. All rights reserved.

#
