Ignite UI API Reference

ui.igGridSorting

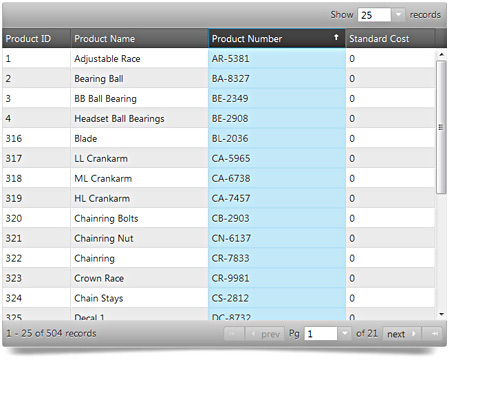

ui.igGridSorting_image

Both the igGrid and igHierarchicalGrid controls feature column sorting. This feature allows users to order the rows in the grid according the sort order of a given column. Both ascending and descending sort directions are available. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igGrid control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

        <!doctype html>
        <html>
        <head>
            <!-- Infragistics Combined CSS -->
            <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
            <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
            <!-- jQuery Core -->
            <script src="js/jquery.js" type="text/javascript"></script>
            <!-- jQuery UI -->
            <script src="js/jquery-ui.js" type="text/javascript"></script>
            <!-- Infragistics Combined Scripts -->
            <script src="js/infragistics.core.js" type="text/javascript"></script>
			      <script src="js/infragistics.lob.js" type="text/javascript"></script>
	        <script type="text/javascript">
		        var products = [
			        { "ProductID": 1, "Name": "Adjustable Race", "ProductNumber": "AR-5381" },
			        { "ProductID": 2, "Name": "Bearing Ball", "ProductNumber": "BA-8327" },
			        { "ProductID": 3, "Name": "BB Ball Bearing", "ProductNumber": "BE-2349" },
			        { "ProductID": 4, "Name": "Headset Ball Bearings", "ProductNumber": "BE-2908" },
			        { "ProductID": 316, "Name": "Blade", "ProductNumber": "BL-2036" },
			        { "ProductID": 317, "Name": "LL Crankarm", "ProductNumber": "CA-5965" },
			        { "ProductID": 318, "Name": "ML Crankarm", "ProductNumber": "CA-6738" },
			        { "ProductID": 319, "Name": "HL Crankarm", "ProductNumber": "CA-7457" },
			        { "ProductID": 320, "Name": "Chainring Bolts", "ProductNumber": "CB-2903" }
		        ];

		        $(function () {
			        $("#gridSorting").igGrid({
				        columns: [
					        { headerText: "Product ID", key: "ProductID", dataType: "number" },
					        { headerText: "Product Name", key: "Name", dataType: "string" },
					        { headerText: "Product Number", key: "ProductNumber", dataType: "string" }
				        ],
				        features: [
					        {
						        name: "Sorting",
						        type: "local"
					        }
				        ],
				        width: "500px",
				        dataSource: products
			        });
		        });
	        </script>
        </head>
        <body>
	        <div id="gridSorting"></div>
        </body>
        </html>


Related Samples

Related Topics

Dependencies

jquery-1.4.4.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.ui.grid.framework.js
infragistics.ui.shared.js
infragistics.datasource.js
infragistics.util.js

Inherits

  • applySortedColumnCss

    Type:
    bool
    Default:
    true

    Enables/disables special styling for sorted columns. If false, sorted column cells will not have any special sort-related styling.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        applySortedColumnCss : false
                    }
                ]
            });

            //Get
            var sortCss = $(".selector").igGridSorting("option", "applySortedColumnCss");

            //Set
            $(".selector").igGridSorting("option", "applySortedColumnCss", false);

  • caseSensitive

    Type:
    bool
    Default:
    false

    Enables or disables the case sensitivity of the sorting. Works only for local sorting.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        caseSensitive : true
                    }
                ]
            });

            //Get
            var caseSensitive = $(".selector").igGridSorting("option", "caseSensitive");

            //Set
            $(".selector").igGridSorting("option", "caseSensitive", true);

  • columnSettings

    Type:
    array
    Default:
    []
    Elements Type:
    object

    A list of custom column settings that specify custom sorting settings for a specific column (whether sorting is enabled / disabled, default sort direction, first sort direction, etc.).

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        columnSettings : [
    				        {
                                columnIndex: 0,
                                allowSorting: true,
                                firstSortDirection: "ascending",
                                currentSortDirection: "descending"
                            }
    			        ]
                    }
                ]
            });

            //Get
            var colSettings = $(".selector").igGridSorting("option", "columnSettings");

            //Set
            var colSettings = [
    				{
                        columnKey: "ProductName",
                        allowSorting: true,
                        firstSortDirection: "ascending",
                        currentSortDirection: "descending"
                    }
    			];

            $(".selector").igGridSorting("option", "columnSettings", colSettings);

    • allowSorting

      Type:
      bool
      Default:
      true

      Enables / disables sorting on the specified column. By default all columns are sortable.

      Code Sample


              //Initialize
              $(".selector").igGrid({
                  features : [
                      {
                          name : "Sorting",
                          columnSettings : [
                              {
                                  columnIndex: 0,
                                  allowSorting: true,
                                  firstSortDirection: "ascending",
                                  currentSortDirection: "descending"
                              }
                          ]
                      }
                  ]
              });

    • columnIndex

      Type:
      number
      Default:
      null

      Column index. Either key or index must be set in every column setting.

      Code Sample


              //Initialize
              $(".selector").igGrid({
                  features : [
                      {
                          name : "Sorting",
                          columnSettings : [
                              {
                                  columnIndex: 0,
                                  allowSorting: true,
                                  firstSortDirection: "ascending",
                                  currentSortDirection: "descending"
                              }
                          ]
                      }
                  ]
              });

    • columnKey

      Type:
      string
      Default:
      null

      Column key. Either key or index must be set in every column setting.

      Code Sample


              //Initialize
              $(".selector").igGrid({
                  features : [
                      {
                          name : "Sorting",
                          columnSettings : [
                              {
                                  columnKey: "ProductID",
                                  allowSorting: true,
                                  firstSortDirection: "ascending",
                                  currentSortDirection: "descending"
                              }
                          ]
                      }
                  ]
              });

    • currentSortDirection

      Type:
      enumeration
      Default:
      null

      The current (or default) sort direction. If this setting is specified, the column will be rendered sorted according to this option. .

      Members

      • asc
      • Type:string
      • desc
      • Type:string

      Code Sample


                  //Initialize
                  $(".selector").igGrid({
                      features : [
                          {
                              name : "Sorting",
                              columnSettings : [
                                  {
                                      columnIndex: 0,
                                      allowSorting: true,
                                      firstSortDirection: "ascending",
                                      currentSortDirection: "descending"
                                  }
                              ]
                          }
                      ]
                  });

    • firstSortDirection

      Type:
      enumeration
      Default:
      null

      This will be the first sort direction when the column hasn't been sorted before .

      Members

      • asc
      • Type:string
      • desc
      • Type:string

      Code Sample


              //Initialize
              $(".selector").igGrid({
                  features : [
                      {
                          name : "Sorting",
                          columnSettings : [
                              {
                                  columnIndex: 0,
                                  allowSorting: true,
                                  firstSortDirection: "ascending",
                                  currentSortDirection: "descending"
                              }
                          ]
                      }
                  ]
              });

  • customSortFunction

    Type:
    function
    Default:
    null

    Custom sort function(or name of the function as a string) accepting three parameters - the data to be sorted, an array of data source field definitions, and the direction to sort with (optional). The function should return the sorted data array.

    Code Sample


        var myCustomFunc = function(data, fields, direction) {
    	    function myCompareFunc(obj1, obj2) {
    		    if (direction == "descending")
    		    {
    			    return obj2[fields[0].fieldName] - obj1[fields[0].fieldName];
    		    }
    		    return obj1[fields[0].fieldName] - obj2[fields[0].fieldName];
    	    }
    	    var result = data.sort(myCompareFunc);
    	    return result;
        }

        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Sorting",
                    customSortFunction : myCustomFunc
                }
            ]
        });

        //Get
        var sortFunc = $(".selector").igGridSorting("option", "customSortFunction");

        //Set
        $(".selector").igGridSorting("option", "customSortFunction", myCustomFunc);

  • featureChooserSortAsc

    Type:
    string
    Default:
    ""

    Specifies text of feature chooser button for ascending sorting.

    Code Sample


        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Sorting",
                    featureChooserSortAsc : "Sort A to Z"
                }
            ]
        });

        //Get
        var featureChooserSortAsc = $(".selector").igGridSorting("option", "featureChooserSortAsc");

  • featureChooserSortDesc

    Type:
    string
    Default:
    ""

    Specifies text of feature chooser button for descending sorting.

    Code Sample


        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Sorting",
                    featureChooserSortDesc : "Sort Z to A"
                }
            ]
        });

        //Get
        var featureChooserSortDesc = $(".selector").igGridSorting("option", "featureChooserSortDesc");

  • featureChooserText

    Type:
    string
    Default:
    ""

    Specifies text in feature chooser.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        featureChooserText : "Sorting"
                    }
                ]
            });

            //Get
            var text = $(".selector").igGridSorting("option", "featureChooserText");

            //Set
            $(".selector").igGridSorting("option", "featureChooserText", "Sorting");

  • firstSortDirection

    Type:
    enumeration
    Default:
    ascending

    Specifies which direction to use on the first click / keydown, if the column hasn't been sorted before .

    Members

    • ascending
    • Type:string
    • descending
    • Type:string

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        firstSortDirection : "descending"
                    }
                ]
            });

            //Get
            var direction = $(".selector").igGridSorting("option", "firstSortDirection");

            //Set
            $(".selector").igGridSorting("option", "firstSortDirection", "descending");

  • inherit

    Type:
    bool
    Default:
    false

    Enables/disables feature inheritance for the child layouts. NOTE: It only applies for igHierarchicalGrid.

  • modalDialogAnimationDuration

    Type:
    number
    Default:
    200

    Specifies time of milliseconds for animation duration to show/hide modal dialog.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        modalDialogAnimationDuration : 300
                    }
                ]
            });

            //Get
            var duration = $(".selector").igGridSorting("option", "modalDialogAnimationDuration");

            //Set
            $(".selector").igGridSorting("option", "modalDialogAnimationDuration", 300);

  • modalDialogButtonApplyText

    Type:
    string
    Default:
    ""

    Specifies text of button which apply changes in modal dialog.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        modalDialogButtonApplyText : "Apply"
                    }
                ]
            });

            //Get
            var text = $(".selector").igGridSorting("option", "modalDialogButtonApplyText");

            //Set
            $(".selector").igGridSorting("option", "modalDialogButtonApplyText", "Apply");

  • modalDialogButtonCancelText

    Type:
    string
    Default:
    ""

    Specifies text of button which cancel changes in modal dialog.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        modalDialogButtonCancelText : "Cancel"
                    }
                ]
            });

            //Get
            var text = $(".selector").igGridSorting("option", "modalDialogButtonCancelText");

            //Set
            $(".selector").igGridSorting("option", "modalDialogButtonCancelText", "Cancel");

  • modalDialogCaptionButtonAsc

    Type:
    string
    Default:
    ""

    Specifies caption for each ascending sorted column in multiple sorting dialog.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        modalDialogCaptionButtonAsc : "Ascending"
                    }
                ]
            });

            //Get
            var caption = $(".selector").igGridSorting("option", "modalDialogCaptionButtonAsc");

            //Set
            $(".selector").igGridSorting("option", "modalDialogCaptionButtonAsc", "Ascending");

  • modalDialogCaptionButtonDesc

    Type:
    string
    Default:
    ""

    Specifies caption for each descending sorted column in multiple sorting dialog.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        modalDialogCaptionButtonDesc : "Descending"
                    }
                ]
            });

            //Get
            var caption = $(".selector").igGridSorting("option", "modalDialogCaptionButtonDesc");

            //Set
            $(".selector").igGridSorting("option", "modalDialogCaptionButtonDesc", "Descending");

  • modalDialogCaptionButtonUnsort

    Type:
    string
    Default:
    ""

    Specifies caption for unsort button in multiple sorting dialog.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        modalDialogCaptionButtonUnsort : "Unsort"
                    }
                ]
            });

            //Get
            var caption = $(".selector").igGridSorting("option", "modalDialogCaptionButtonUnsort");

            //Set
            $(".selector").igGridSorting("option", "modalDialogCaptionButtonUnsort", "Unsort");

  • modalDialogCaptionText

    Type:
    string
    Default:
    ""

    Specifies caption text for multiple sorting dialog.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        modalDialogCaptionText : "Multiple Sorting"
                    }
                ]
            });

            //Get
            var caption = $(".selector").igGridSorting("option", "modalDialogCaptionText");

            //Set
            $(".selector").igGridSorting("option", "modalDialogCaptionText", "Multiple Sorting");

  • modalDialogHeight

    Type:
    enumeration
    Default:
    ""

    Specifies height of multiple sorting dialog .

    Members

      • string
      • The widget height can be set in pixels (px) and percentage (%).
      • number
      • The widget height can be set as a number.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        modalDialogHeight : 300
                    }
                ]
            });

            //Get
            var height = $(".selector").igGridSorting("option", "modalDialogHeight");

            //Set
            $(".selector").igGridSorting("option", "modalDialogHeight", 300);

  • modalDialogResetButtonLabel

    Type:
    string
    Default:
    ""

    Specifies sortby button label for each unsorted column in multiple sorting dialog.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        modalDialogResetButtonLabel : "Reset"
                    }
                ]
            });

            //Get
            var label = $(".selector").igGridSorting("option", "modalDialogResetButtonLabel");

            //Set
            $(".selector").igGridSorting("option", "modalDialogResetButtonLabel", "Reset");

  • modalDialogSortByButtonText

    Type:
    string
    Default:
    ""

    Specifies sortby button text for each unsorted column in multiple sorting dialog.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        modalDialogSortByButtonText : "Sort By"
                    }
                ]
            });

            //Get
            var text = $(".selector").igGridSorting("option", "modalDialogSortByButtonText");

            //Set
            $(".selector").igGridSorting("option", "modalDialogSortByButtonText", "Sort By");

  • modalDialogSortOnClick

    Type:
    bool
    Default:
    false

    Specifies whether sorting to be applied immediately when click sort/unsort columns in multiple sorting dialog. When it is false Apply button shows and sorting is applied when the button is clicked.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        modalDialogSortOnClick : true
                    }
                ]
            });

            //Get
            var text = $(".selector").igGridSorting("option", "modalDialogSortOnClick");

            //Set
            $(".selector").igGridSorting("option", "modalDialogSortOnClick", true);

  • modalDialogWidth

    Type:
    number
    Default:
    350

    Specifies width of multiple sorting dialog.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        modalDialogWidth : true
                    }
                ]
            });

            //Get
            var width = $(".selector").igGridSorting("option", "modalDialogWidth");

            //Set
            $(".selector").igGridSorting("option", "modalDialogWidth", 300);

  • mode

    Type:
    enumeration
    Default:
    single

    Defines single column sorting or multiple column sorting.

    Members

    • single
    • Type:string
    • multi
    • Type:string
    • if enabled, previous sorted state for columns won't be cleared.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        mode : "multi"
                    }
                ]
            });

            //Get
            var mode = $(".selector").igGridSorting("option", "mode");

            //Set
            $(".selector").igGridSorting("option", "mode", "multi");

  • sortedColumnTooltip

    Type:
    string
    Default:
    ""

    Custom sorted column tooltip in jQuery templating format.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        sortedColumnTooltip : "Sorted"
                    }
                ]
            });

            //Get
            var tooltip = $(".selector").igGridSorting("option", "sortedColumnTooltip");

            //Set
            $(".selector").igGridSorting("option", "sortedColumnTooltip", "Sorted");
  • sortingDialogContainment

    Type:
    string
    Default:
    owner

    Controls containment behavior of multiple sorting dialog.
    owner The multi sorting dialog will be draggable only in the grid area
    window The multi sorting dialog will be draggable in the whole window area.

  • sortUrlKey

    Type:
    string
    Default:
    null

    URL param name which specifies how sorting expressions will be encoded in the URL. Uses OData conventions. ex: ?sort(col1)=asc.

    Code Sample


        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Sorting",
                    sortUrlKey: "myCustomSort"
                }
            ]
        });

        //Get
        var sortKey = $(".selector").igGridSorting("option", "sortUrlKey");

        //Set
        $(".selector").igGridSorting("option", "sortUrlKey", "myCustomSort");

  • sortUrlKeyAscValue

    Type:
    string
    Default:
    null

    URL param value for ascending type of sorting. Uses OData conventions. Example: ?sort(col1)=asc.

    Code Sample


        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Sorting",
                    sortUrlKey: "myCustomSort",
    			    sortUrlKeyAscValue: "myAsc"
                }
            ]
        });

        //Get
        var sortKeyAsc = $(".selector").igGridSorting("option", "sortUrlKeyAscValue");

        //Set
        $(".selector").igGridSorting("option", "sortUrlKeyAscValue", "myAsc");

  • sortUrlKeyDescValue

    Type:
    string
    Default:
    null

    URL param value for descending type of sorting. Uses OData conventions.

    Code Sample


        //Initialize
        $(".selector").igGrid({
            features : [
                {
                    name : "Sorting",
                    sortUrlKey: "myCustomSort",
    			    sortUrlKeyDescValue: "myDesc"
                }
            ]
        });

        //Get
        var sortKeyDesc = $(".selector").igGridSorting("option", "sortUrlKeyDescValue");

        //Set
        $(".selector").igGridSorting("option", "sortUrlKeyDescValue", "myDesc");

  • type

    Type:
    enumeration
    Default:
    null

    Defines local or remote sorting.

    Members

    • remote
    • Type:string
    • local
    • Type:string

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        type : "remote"
                    }
                ]
            });

            //Get
            var sortType = $(".selector").igGridSorting("option", "type");

            //Set
            $(".selector").igGridSorting("option", "type", "remote");
  • unsortedColumnTooltip

    Type:
    string
    Default:
    ""

    Custom unsorted column tooltip in jQuery templating format.

    Code Sample


            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Sorting",
                        unsortedColumnTooltip : "Unsorted"
                    }
                ]
            });

            //Get
            var tooltip = $(".selector").igGridSorting("option", "unsortedColumnTooltip");

            //Set
            $(".selector").igGridSorting("option", "unsortedColumnTooltip", "Unsorted");


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • columnSorted

    Cancellable:
    false

    Event fired after the column has already been sorted and data - re-rendered.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridSorting.
    Use ui.owner.grid to get reference to igGrid.
    Use ui.columnKey to get column key.
    Use ui.direction to get sorting direction.

    Code Sample


    			//Delegate
    			$(document).delegate(".selector", "iggridsortingcolumnsorted", function (evt, ui) {
    				//return reference to igGridSorting object
    				ui.owner;
    				//return reference igGrid object
    				ui.owner.grid;
    				//return column key
    				ui.columnKey;
    				//return sort direction
    				ui.direction;
    			});

    			//Initialize
                $(".selector").igGrid({
    				features: [{
    					name: "Sorting",
    					type: "local",
    					columnSorted: function (evt, ui) {...}
    				}]
    			});

  • columnSorting

    Cancellable:
    true

    Event fired before sorting is invoked for a certain column.
    Return false in order to cancel column sorting.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridSorting.
    Use ui.owner.grid to get reference to igGrid.
    Use ui.columnKey to get column key.
    Use ui.direction to get sorting direction.

    Code Sample


    			//Delegate
    			$(document).delegate(".selector", "iggridsortingcolumnsorting", function (evt, ui) {
    				//return reference to igGridSorting object
    				ui.owner;
    				//return reference igGrid object
    				ui.owner.grid;
    				//return column key
    				ui.columnKey;
    				//return sort direction
    				ui.direction;
    			});

    			//Initialize
                $(".selector").igGrid({
    				features: [{
    					name: "Sorting",
    					type: "local",
    					columnSorting: function (evt, ui) {...}
    				}]
    			});

  • modalDialogButtonApplyClick

    Cancellable:
    true

    Event fired when button Apply in modal dialog is clicked
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridSorting widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.
    Use ui.columnsToSort to get array of columns which should be sorted - array of objects of sort order - Asc/Desc and columnIdentifier.

    Code Sample


                //Delegate
    			$(document).delegate(".selector", "iggridsortingmodaldialogbuttonapplyclick", function (evt, ui) {

                    // Get reference to igGridSorting object
    				ui.owner;

    				// Get the reference to the igGrid widget.
    				ui.owner.grid;

    				// Get a reference to the modal dialog element. This is a jQuery object.
    				ui.modalDialogElement;

    				// Get array of columns which should be sorted - array of objects of sort order - Asc/Desc and columnIdentifier
    				ui.columnsToSort;
    			});

    			//Initialize
                $(".selector").igGrid({
    				features: [{
    					name: "Sorting",
    					modalDialogButtonApplyClick: function (evt, ui) {...}
    				}]
    			});

  • modalDialogButtonResetClick

    Cancellable:
    true

    Event fired when the button to reset sorting is clicked.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridSorting widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.

    Code Sample


                //Delegate
    			$(document).delegate(".selector", "iggridsortingmodaldialogbuttonresetclick", function (evt, ui) {

                    // Get reference to igGridSorting object
    				ui.owner;

    				// Get the reference to the igGrid widget.
    				ui.owner.grid;

    				// Get a reference to the modal dialog element. This is a jQuery object.
    				ui.modalDialogElement;
    			});

    			//Initialize
                $(".selector").igGrid({
    				features:
                    [{
    					name: "Sorting",
    					modalDialogButtonResetClick: function (evt, ui) {...}
    				}]
    			});

  • modalDialogButtonUnsortClick

    Cancellable:
    true

    Event fired when button to unsort column is clicked in modal dialog
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridSorting widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.
    Use ui.columnKey to get the column key.

    Code Sample


                //Delegate
    			$(document).delegate(".selector", "iggridsortingmodaldialogbuttonunsortclick", function (evt, ui) {

                    // Get reference to igGridSorting object
    				ui.owner;

    				// Get the reference to the igGrid widget.
    				ui.owner.grid;

    				// Get a reference to the modal dialog element. This is a jQuery object.
    				ui.modalDialogElement;

                    // Get column key.
                    ui.columnKey;
    			});

    			//Initialize
                $(".selector").igGrid({
    				features:
                    [{
    					name: "Sorting",
    					modalDialogButtonUnsortClick: function (evt, ui) {...}
    				}]
    			});

  • modalDialogClosed

    Cancellable:
    false

    Event fired after the modal dialog has been closed.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridSorting widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.

    Code Sample


                // Delegate
    			$(document).delegate(".selector", "iggridsortingmodaldialogclosed", function (evt, ui) {

                    // Get reference to igGridSorting object
    				ui.owner;

    				// Get the reference to the igGrid widget.
    				ui.owner.grid;

    				// Get a reference to the modal dialog element. This is a jQuery object.
    				ui.modalDialogElement;
    			});

    			// Initialize
                $(".selector").igGrid({
    				features:
                    [{
    					name: "Sorting",
    					modalDialogClosed: function (evt, ui) {...}
    				}]
    			});

  • modalDialogClosing

    Cancellable:
    true

    Event fired before the modal dialog is closed.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridSorting widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.

    Code Sample


                // Delegate
    			$(document).delegate(".selector", "iggridsortingmodaldialogclosing", function (evt, ui) {

                    // Get reference to igGridSorting object
    				ui.owner;

    				// Get the reference to the igGrid widget.
    				ui.owner.grid;

    				// Get a reference to the modal dialog element. This is a jQuery object.
    				ui.modalDialogElement;
    			});

    			// Initialize
                $(".selector").igGrid({
    				features:
                    [{
    					name: "Sorting",
    					modalDialogClosing: function (evt, ui) {...}
    				}]
    			});

  • modalDialogContentsRendered

    Cancellable:
    false

    Event fired after the contents of the modal dialog are rendered.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridSorting widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.

    Code Sample


                // Delegate
    			$(document).delegate(".selector", "iggridsortingmodaldialogcontentsrendered", function (evt, ui) {

                    // Get reference to igGridSorting object
    				ui.owner;

    				// Get the reference to the igGrid widget.
    				ui.owner.grid;

    				// Get a reference to the modal dialog element. This is a jQuery object.
    				ui.modalDialogElement;
    			});

    			// Initialize
                $(".selector").igGrid({
    				features:
                    [{
    					name: "Sorting",
    					modalDialogContentsRendered: function (evt, ui) {...}
    				}]
    			});

  • modalDialogContentsRendering

    Cancellable:
    true

    Event fired before the contents of the modal dialog are rendered.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridSorting widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.

    Code Sample


                // Delegate
    			$(document).delegate(".selector", "iggridsortingmodaldialogcontentsrendering", function (evt, ui) {

                    // Get reference to igGridSorting object
    				ui.owner;

    				// Get the reference to the igGrid widget.
    				ui.owner.grid;

    				// Get a reference to the modal dialog element. This is a jQuery object.
    				ui.modalDialogElement;
    			});

    			// Initialize
                $(".selector").igGrid({
    				features:
                    [{
    					name: "Sorting",
    					modalDialogContentsRendering: function (evt, ui) {...}
    				}]
    			});

  • modalDialogMoving

    Cancellable:
    true

    Event fired every time the modal dialog changes its position.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridSorting widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.
    Use ui.originalPosition to get the original position of the modal dialog div as { top, left } object, relative to the page.
    Use ui.position to get the current position of the modal dialog div as { top, left } object, relative to the page.

    Code Sample


                // Delegate
    			$(document).delegate(".selector", "iggridsortingmodaldialogmoving", function (evt, ui) {

                    // Get reference to igGridSorting object
    				ui.owner;

    				// Get the reference to the igGrid widget.
    				ui.owner.grid;

    				// Get a reference to the modal dialog element. This is a jQuery object.
    				ui.modalDialogElement;

                    // Get the original position of the modal dialog div as { top, left } object, relative to the page.
                    ui.originalPosition;

                    // Get the current position of the modal dialog div as { top, left } object, relative to the page.
                    ui.position;
    			});

    			// Initialize
                $(".selector").igGrid({
    				features:
                    [{
    					name: "Sorting",
    					modalDialogMoving: function (evt, ui) {...}
    				}]
    			});

  • modalDialogOpened

    Cancellable:
    false

    Event fired after the modal dialog is already opened.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridSorting widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.

    Code Sample


                // Delegate
    			$(document).delegate(".selector", "iggridsortingmodaldialogopened", function (evt, ui) {

                    // Get reference to igGridSorting object
    				ui.owner;

    				// Get the reference to the igGrid widget.
    				ui.owner.grid;

    				// Get a reference to the modal dialog element. This is a jQuery object.
    				ui.modalDialogElement;
    			});

    			// Initialize
                $(".selector").igGrid({
    				features:
                    [{
    					name: "Sorting",
    					modalDialogOpened: function (evt, ui) {...}
    				}]
    			});

  • modalDialogOpening

    Cancellable:
    true

    Event fired before the modal dialog is opened.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridSorting widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.columnChooserElement to get a reference to the modal dialog element. This is a jQuery object.

    Code Sample


                // Delegate
    			$(document).delegate(".selector", "iggridsortingmodaldialogopening", function (evt, ui) {

                    // Get reference to igGridSorting object
    				ui.owner;

    				// Get the reference to the igGrid widget.
    				ui.owner.grid;

    				// Get a reference to the modal dialog element. This is a jQuery object.
    				ui.modalDialogElement;
    			});

    			// Initialize
                $(".selector").igGrid({
    				features:
                    [{
    					name: "Sorting",
    					modalDialogOpening: function (evt, ui) {...}
    				}]
    			});

  • modalDialogSortClick

    Cancellable:
    true

    Event fired when column(which is not sorted) is clicked to be sorted in modal dialog
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridSorting widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.
    Use ui.columnKey to get the column key.

    Code Sample


                // Delegate
    			$(document).delegate(".selector", "iggridsortingmodaldialogsortclick", function (evt, ui) {

                    // Get reference to igGridSorting object
    				ui.owner;

    				// Get the reference to the igGrid widget.
    				ui.owner.grid;

    				// Get a reference to the modal dialog element. This is a jQuery object.
    				ui.modalDialogElement;

                    // Get the column key.
                    ui.columnKey;
    			});

    			// Initialize
                $(".selector").igGrid({
    				features:
                    [{
    					name: "Sorting",
    					modalDialogSortClick: function (evt, ui) {...}
    				}]
    			});

  • modalDialogSortingChanged

    Cancellable:
    true

    Event fired when sorting of column is changed in modal dialog. Column should be sorted
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridSorting widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.modalDialogElement to get a reference to the modal dialog element. This is a jQuery object.
    Use ui.columnKey to get the column key
    Use ui.isAsc to get whether column should be ascending or not. If true it should be ascending.

    Code Sample


                // Delegate
    			$(document).delegate(".selector", "iggridsortingmodaldialogsortingchanged", function (evt, ui) {

                    // Get reference to igGridSorting object
    				ui.owner;

    				// Get the reference to the igGrid widget.
    				ui.owner.grid;

    				// Get a reference to the modal dialog element. This is a jQuery object.
    				ui.modalDialogElement;

                    // Get the column key.
                    ui.columnKey;

                    // Get whether column should be ascending or not. If true it should be ascending
                    ui.isAsc;
    			});

    			// Initialize
                $(".selector").igGrid({
    				features:
                    [{
    					name: "Sorting",
    					modalDialogSortingChanged: function (evt, ui) {...}
    				}]
    			});

  • closeMultipleSortingDialog

    .igGridSorting( "closeMultipleSortingDialog" );

    Close multiple sorting dialog.

    Code Sample

     $(".selector").igGridSorting("closeMultipleSortingDialog");
  • destroy

    .igGridSorting( "destroy" );

    Code Sample


          $(".selector").igGridSorting("destroy");

  • openMultipleSortingDialog

    .igGridSorting( "openMultipleSortingDialog" );

    Open multiple sorting dialog.

    Code Sample

     $(".selector").igGridSorting("openMultipleSortingDialog");
  • removeDialogClearButton

    .igGridSorting( "removeDialogClearButton" );

    Remove clear button for multiple sorting dialog.

    Code Sample

     $(".selector").igGridSorting("removeDialogClearButton");
  • renderMultipleSortingDialogContent

    .igGridSorting( "renderMultipleSortingDialogContent", isToCallEvents:object );

    Renders content of multiple sorting dialog - sorted and unsorted columns.

    • isToCallEvents
    • Type:object

    Code Sample

     $(".selector").igGridSorting("renderMultipleSortingDialogContent", true);
  • sortColumn

    .igGridSorting( "sortColumn", index:object, direction:object );

    Sorts a grid column and updates the UI.

    • index
    • Type:object
    • Column key (string) or index (number). Specifies the column which we want to sort. If the mode is multiple, previous sorting states are not cleared. .
    • direction
    • Type:object
    • Specifies sorting direction (ascending or descending) .

    Code Sample


          $(".selector").igGridSorting("sortColumn", 1, "descending");

  • sortMultiple

    .igGridSorting( "sortMultiple" );

    Sorts grid columns and updates the UI.

    Code Sample

     $(".selector").igGridSorting("sortMultiple");
  • unsortColumn

    .igGridSorting( "unsortColumn", index:object, header:object );

    • index
    • Type:object
    • header
    • Type:object

    Code Sample

     $(".selector").igGridSorting("unsortColumn");
  • ui-iggrid-colasc ui-state-highlight

    Classes applied to a column's cells when it's sorted ascending.
  • ui-iggrid-colheaderasc

    Classes applied to a column header when it's sorted ascending.
  • ui-iggrid-coldesc ui-state-highlight

    Classes applied to a column's cells when it's sorted descending.
  • ui-iggrid-colheaderdesc

    Classes applied to a column header when it's sorted descending.
  • ui-iggrid-sorting-dialog-ascdescbutton

    Classes applied to ascending/descending button in multiple sorting dialog.
  • ui-button ui-corner-all ui-button-icon-only ig-sorting-indicator

    Classes applied to ascending button for sorted column in multiple sorting dialog.
  • ui-button-icon-primary ui-icon ui-icon-arrowthick-1-n

    Classes applied to ascending button icon for sorted column in multiple sorting dialog.
  • ui-button ui-corner-all ui-button-icon-only ig-sorting-indicator

    Classes applied to descending button icon for sorted column in multiple sorting dialog.
  • ui-button-icon-primary ui-icon ui-icon-arrowthick-1-s

    Classes applied to descending button icon for sorted column in multiple sorting dialog.
  • ui-state-hover

    Classes applied to hovered buttons - e.g. unsort button in multiple sorting dialog.
  • ui-iggrid-sorting-dialog-sortbybuttons ui-button ui-widget ui-state-default ui-corner-all ui-button-icon-only ui-igbutton ui-widget-content ui-igbutton-remove

    Classes applied to remove sorting button for sorted column in multiple sorting dialog.
  • ui-button-icon-primary ui-icon ui-icon-circle-close

    Classes applied to remove sorting button for sorted column in multiple sorting dialog.
  • ui-iggrid-dialog-text

    Classes applied to container which holds unsorted column name in multiple sorting dialog.
  • ui-iggrid-sorting-dialog-sortedcolumns

    Classes applied to container of sorted columns in multiple sorting dialog.
  • ui-widget-content

    Classes applied to list item for each sorted column in multiple sorting dialog.
  • ui-iggrid-dialog-text

    Classes applied to container which holds sorted column name in multiple sorting dialog.
  • ui-iggrid-sorting-dialog-unsortedcolumns

    Classes applied to container of unsorted columns in multiple sorting dialog.
  • ui-widget-content

    Classes applied to list item for each unsorted column in multiple sorting dialog.
  • ui-iggrid-sorting-dialog-unsortedcolumns-sortbybutton

    Classes applied to sort button for each colum in multiple sorting dialog.
  • ui-iggrid-featurechooser-li-iconcontainer ui-icon ui-iggrid-icon-sort-a-z

    Classes applied to the ascending sorting indicator in feature chooser.
  • ui-iggrid-featurechooser-li-iconcontainer ui-icon ui-iggrid-icon-sort-z-a

    Classes applied to the descending sorting indicator in feature chooser.
  • ui-icon ui-iggrid-icon-multiple-sorting

    Classes applied to the feature chooser icon to show multiple sorting dialog.
  • ui-iggrid-sorting-dialog-sortbybutton

    Classes applied to sort by button in multiple sorting dialog.
  • ui-iggrid-sortableheader ui-state-default

    Classes applied to a sortable column header.
  • ui-iggrid-sortableheaderactive ui-state-active

    Classes appied to a sortable header when it's active (navigated with keyboard / clicked).
  • ui-iggrid-sortableheaderfocus ui-state-focus

    Classes applied to the sortable column header when it has focus.
  • ui-iggrid-sortableheaderhover ui-state-hover

    Classes applied to a sortable column header when it is hovered.
  • ui-iggrid-colindicator

    Classes applied to the sorting indicator SPAN rendered inside the column header.
  • ui-iggrid-colindicator-asc ui-icon ui-icon-arrowthick-1-n

    Classes applied to the sorting indicator span when it's in ascending state.
  • ui-iggrid-colindicator-desc ui-icon ui-icon-arrowthick-1-s

    Classes applied to the sorting indicator span when it's in descending state.

Copyright © 1996 - 2018 Infragistics, Inc. All rights reserved.

#
