ui.igGridUpdating

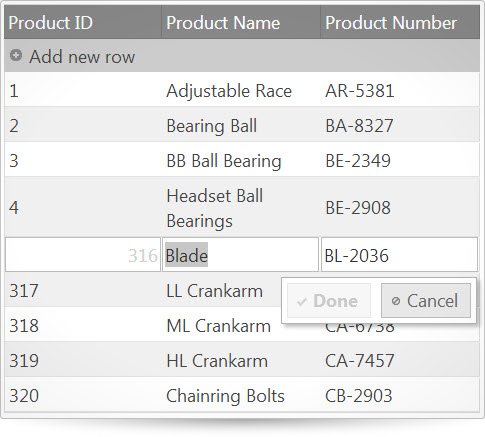

ui.igGridUpdating_image

Both the igGrid and igHierarchicalGrid controls feature data updating in the grid. The updating features of the grid provide a wide array of adding and editing values of the underling set of data bound to the grid. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igGrid control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
	  <script src="js/infragistics.core.js" type="text/javascript"></script>
	  <script src="js/infragistics.lob.js" type="text/javascript"></script>
    <script type="text/javascript">
    $(function () {
        var ds = [
    	    { "ProductID": 1, "Name": "Adjustable Race", "ProductNumber": "AR-5381" },
    	    { "ProductID": 2, "Name": "Bearing Ball", "ProductNumber": "BA-8327" },
    	    { "ProductID": 3, "Name": "BB Ball Bearing", "ProductNumber": "BE-2349" },
    	    { "ProductID": 4, "Name": "Headset Ball Bearings", "ProductNumber": "BE-2908" },
    	    { "ProductID": 316, "Name": "Blade", "ProductNumber": "BL-2036" },
    	    { "ProductID": 317, "Name": "LL Crankarm", "ProductNumber": "CA-5965" },
    	    { "ProductID": 318, "Name": "ML Crankarm", "ProductNumber": "CA-6738" },
    	    { "ProductID": 319, "Name": "HL Crankarm", "ProductNumber": "CA-7457" },
    	    { "ProductID": 320, "Name": "Chainring Bolts", "ProductNumber": "CB-2903" }
        ];

        $("#gridUpdating").igGrid({
            primaryKey: "ProductID",
            columns: [
		        { headerText: "Product ID", key: "ProductID", dataType: "number" },
		        { headerText: "Product Name", key: "Name", dataType: "string" },
		        { headerText: "Product Number", key: "ProductNumber", dataType: "string" }
	        ],
            dataSource: ds,
            features: [
            {
                name: "Updating",
                enableAddRow: true,
                editMode: "row",
                enableDeleteRow: true,
                columnSettings: [
                    { columnKey: "ProductID", editorOptions: { type: "numeric", disabled: true} },
                ]
            }]
        });
    });
    </script>
</head>
<body>
	<table id="gridUpdating"></table>
</body>
</html>


Related Samples

Related Topics

Dependencies

jquery-1.4.4.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.ui.grid.framework.js
infragistics.ui.editors.js
infragistics.ui.validator.js
infragistics.ui.combo.js
infragistics.ui.rating.js
infragistics.ui.shared.js
infragistics.datasource.js
infragistics.util.js

Inherits

  • addRowLabel

    Type:
    string
    Default:
    null

    Sets gets text for add-new-row button. If that is not set, then $.ig.GridUpdating.locale.addRowLabel is used.

    Code Sample


    //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    addRowLabel: "Add a row here"
        	}
        ]
    });

    //Get
    var label = $("#grid").igGridUpdating("option", "addRowLabel");

    //Set
    $("#grid").igGridUpdating("option", "addRowLabel", "Add a row here");

  • addRowTooltip

    Type:
    string
    Default:
    null

    Sets gets text for title of add-new-row button. If that is not set, then $.ig.GridUpdating.locale.addRowTooltip is used.

    Code Sample


    //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    addRowTooltip: "Add a row here"
        	}
        ]
    });

    //Get
    var label = $("#grid").igGridUpdating("option", "addRowTooltip");

    //Set
    $("#grid").igGridUpdating("option", "addRowTooltip", "Add a row here");
  • cancelLabel

    Type:
    string
    Default:
    null

    Sets gets text for Cancel editing button. If that is not set, then $.ig.GridUpdating.locale.cancelLabel is used.

    Code Sample


    //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    cancelLabel: "Click to cancel"
        	}
        ]
    });

    //Get
    var label = $("#grid").igGridUpdating("option", "cancelLabel");

    //Set
    $("#grid").igGridUpdating("option", "cancelLabel", "Click to cancel");
  • cancelTooltip

    Type:
    string
    Default:
    null

    Sets gets text for title of Cancel editing button. If that is not set, then $.ig.GridUpdating.locale.cancelTooltip is used.

    Code Sample


    //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    cancelTooltip: "Click to cancel"
        	}
        ]
    });

    //Get
    var label = $("#grid").igGridUpdating("option", "cancelTooltip");

    //Set
    $("#grid").igGridUpdating("option", "cancelTooltip", "Click to cancel");
  • columnSettings

    Type:
    array
    Default:
    []
    Elements Type:
    object

    Sets gets array of settings for each column.

    Code Sample


    //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    columnSettings: [
                    {
                        columnKey : "Name",
                        defaultValue: "Infragistics",
                        editorType: "text",
                        editorOptions: {
    							button: "dropdown",
    							listItems: names,
    							readOnly: true,
    							dropDownOnReadOnly: true
    						},
                        required: true,
                        validation: true
                    }
                ]
        	}
        ]
    });

    //Get
    var columnSettings = $("#grid").igGridUpdating("option", "columnSettings");

    //Set
    $("#grid").igGridUpdating("option", "columnSettings", columnSettings);


    • columnKey

      Type:
      string
      Default:
      null

      Sets gets identifier for column. That value should correspond to the "key" of a column in the "columns" of igGrid.

      Code Sample


      //Initialize
      $("#grid").igGrid({
      	features: [
              {
      		    name: "Updating",
      		    columnSettings: [
                      {
                          columnKey : "Name",
                          defaultValue: "Infragistics"
                      }
                  ]
          	}
          ]
      });

      //Get
      var columnSettings = $("#grid").igGridUpdating("option", "columnSettings")[0].columnKey;

      //Set
      $("#grid").igGridUpdating("option", "columnSettings", columnSettings);
    • defaultValue

      Type:
      object
      Default:
      null

      Sets gets default value in cell for add-new-row. That can be string, number, Date or boolean.

      Code Sample


      //Initialize
      $("#grid").igGrid({
      	features: [
              {
      		    name: "Updating",
      		    columnSettings: [
                      {
                          columnKey : "Name",
                          defaultValue: "Infragistics"
                      }
                  ]
          	}
          ]
      });

      //Get
      var columnSettings = $("#grid").igGridUpdating("option", "columnSettings")[0].defaultValue;

      //Set
      $("#grid").igGridUpdating("option", "columnSettings", columnSettings);
    • editorOptions

      Type:
      object
      Default:
      null

      Sets gets options supported by corresponding editor such as igEditor, igCombo, or custom editor defined by editorProvider option.
      In addition to specific editor options, it may contain the member "id", which will be set to the element of editor.
      That "id" can be usefull to link cascading igCombo editors.

      Code Sample


      //Initialize
      $("#grid").igGrid({
      	features: [
              {
      		    name: "Updating",
      		    columnSettings: [
                      {
                          columnKey : "Name",
                          editorType: "text",
                          editorOptions: {
      							button: "dropdown",
      							listItems: names,
      							readOnly: true,
      							dropDownOnReadOnly: true
      						}
                      }
                  ]
          	}
          ]
      });

      //Get
      var columnSettings = $("#grid").igGridUpdating("option", "columnSettings")[0].editorOptions;

      //Set
      $("#grid").igGridUpdating("option", "columnSettings", columnSettings);

    • editorProvider

      Type:
      object
      Default:
      null

      Sets gets custom editor provider. It should extend $.ig.EditorProviderDefault or it should have definitions of all its methods.

      Code Sample

      // This editor provider demonstrates how to wrap HTML 5 number INPUT into editor provider for the igGridUpdating
      $.ig.EditorProviderNumber = $.ig.EditorProviderNumber || $.ig.EditorProvider.extend({
      	// initialize the editor
      	createEditor: function (updating, key, columnSetting, tabIndex) {
      		// updating - reference to igGridUpdating feature
      		// key - the key of the colomn. There is only one editor instance per column
      		// columnSetting - settings set by the user in iGridUpdating.columnSettings[<index>]
      		// tabIndex - the tabIndex of the editor
      		var element = $('<input type="number" />');

      		this.editor = element;

      		element.on("keydown", function() {
      			// notify igGridUpdating that the value is changed
      			updating._notifyChanged();
      		});
      		return element;
      	},
      	// get editor value
      	getValue: function () {
      		return parseFloat(this.editor.val());
      	},
      	// set editor value
      	setValue: function (val) {
      		return this.editor.val(val || 0);
      	},
      	// size the editor into the TD cell
      	setSize: function (width, height) {
      	  this.editor.css({
      			width: width - 2,
      			height: height - 2,
      			borderWidth: "1px",
      			backgroundPositionY: "9px"
      	  });
      	},
      	// focus the editor
      	setFocus: function () {
      		this.editor[0].select();
      	},
      	// validate the editor
      	validator: function () {
      		// no validator
      		return null;
      	},
      	// destroy the editor
      	destroy: function () {
      		this.editor.remove();
      	}
      });

      //Initialize
      $("#grid").igGrid({
      	features: [
              {
      		    name: "Updating",
      		    columnSettings: [
                      {
                          columnKey : "SafetyStockLevel",
                          editorProvider: new $.ig.EditorProviderNumber()
                      }
                  ]
          	}
          ]
      });

      //Get
      var columnSettings = $("#grid").igGridUpdating("option", "columnSettings")[0].editorProvider;

    • editorType

      Type:
      enumeration
      Default:
      null

      Sets type of editor. Note: the css and js files used by ui.igEditor should be available.

      Members

      • text
      • Type:string
      • the igEditor with type text is created.
      • 0
      • Type:number
      • the igEditor with type text is created (same as 'text').
      • mask
      • Type:string
      • the igEditor with type mask is created.
      • 1
      • Type:number
      • the igEditor with type mask is created (same as 'mask').
      • date
      • Type:string
      • the igEditor with type date editor is created.
      • 2
      • Type:number
      • the igEditor with type date editor is created (same as 'date').
      • datepicker
      • Type:string
      • the igEditor with type datepicker is created. Note: the css and js files used by jquery.ui.datepicker should be available.
      • 3
      • Type:number
      • the igEditor with type datepicker is created (same as 'datepicker').
      • numeric
      • Type:string
      • the igEditor with type numeric is created.
      • 4
      • Type:number
      • the igEditor with type numeric is created (same as 'numeric').
      • currency
      • Type:string
      • the igEditor with type currency is created.
      • 5
      • Type:number
      • the igEditor with type currency is created (same as 'currency').
      • percent
      • Type:string
      • the igEditor with type percent is created.
      • 6
      • Type:number
      • the igEditor with type percent is created (same as 'percent').
      • combo
      • Type:string
      • the igCombo editor is created. Note: the css and js files used by ui.igCombo should be available.
      • rating
      • Type:string
      • the igRating editor is created. Note: the css and js files used by ui.igRating should be available.

      Code Sample

       //Initialize
      $("#grid").igGrid({
      	features: [
              {
      		    name: "Updating",
      		    columnSettings: [
                      {
                          columnKey : "BirthDate",
                          editorType: "datepicker"
                      }
                  ]
          	}
          ]
      });

      //Get
      var columnSettings = $("#grid").igGridUpdating("option", "columnSettings")[0].editorType;

      //Set
      $("#grid").igGridUpdating("option", "columnSettings", columnSettings);
    • readOnly

      Type:
      bool
      Default:
      null

      Sets gets read only. If option is enabled, then editor is not used and cells in column are excluded from editing.

      Code Sample

       //Initialize
      $("#grid").igGrid({
      	features: [
              {
      		    name: "Updating",
      		    columnSettings: [
                      {
                          columnKey : "Name",
                          readOnly: true
                      }
                  ]
          	}
          ]
      });

      //Get
      var columnSettings = $("#grid").igGridUpdating("option", "columnSettings")[0].readOnly;

      //Set
      $("#grid").igGridUpdating("option", "columnSettings", columnSettings);
    • required

      Type:
      bool
      Default:
      null

      Sets gets validation for required entry.

      Code Sample


      //Initialize
      $("#grid").igGrid({
      	features: [
              {
      		    name: "Updating",
      		    columnSettings: [
                      {
                          columnKey : "Name",
                          required: true
                      }
                  ]
          	}
          ]
      });

      //Get
      var columnSettings = $("#grid").igGridUpdating("option", "columnSettings")[0].required;

      //Set
      $("#grid").igGridUpdating("option", "columnSettings", columnSettings);
    • validation

      Type:
      bool
      Default:
      null

      Enables disables validation of editor value.
      Value true: enable validation according to rules of igEditor.
      In case of numeric editors, the validation occurs for min/maxValue including range of values for dataMode, illegal number like "." or "-".
      In case of date editors, the validation occurs for min/maxValue and missing fields in "dateInputFormat".
      In case of mask editors, the validation occurs for not filled required positions in inputMask.
      If "editorOptions" enables "required", then validation for all types of editor has effect.
      Value false: do not enable validation.

      Code Sample


      //Initialize
      $("#grid").igGrid({
      	features: [
              {
      		    name: "Updating",
      		    columnSettings: [
                      {
                          columnKey : "Name",
                          validation: true
                      }
                  ]
          	}
          ]
      });

      //Get
      var columnSettings = $("#grid").igGridUpdating("option", "columnSettings")[0].validation;

      //Set
      $("#grid").igGridUpdating("option", "columnSettings", columnSettings);
  • deleteRowLabel

    Type:
    string
    Default:
    null

    Sets gets text for Delete row button. If that is not set, then $.ig.GridUpdating.locale.deleteRowLabel is used.

    Code Sample


    //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    deleteRowLabel: "Delete this row"
        	}
        ]
    });

    //Get
    var label = $("#grid").igGridUpdating("option", "deleteRowLabel");

    //Set
    $("#grid").igGridUpdating("option", "deleteRowLabel", "Delete this row");
  • deleteRowTooltip

    Type:
    string
    Default:
    null

    Sets gets text for title of Delete row button. If that is not set, then $.ig.GridUpdating.locale.deleteRowTooltip is used.

    Code Sample


    //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    deleteRowTooltip: "Delete this row"
        	}
        ]
    });

    //Get
    var label = $("#grid").igGridUpdating("option", "deleteRowTooltip");

    //Set
    $("#grid").igGridUpdating("option", "deleteRowTooltip", "Delete this row");
  • doneLabel

    Type:
    string
    Default:
    null

    Sets gets text for Done editing button. If that is not set, then $.ig.GridUpdating.locale.doneLabel is used.

    Code Sample


    //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    doneLabel: "Fine"
        	}
        ]
    });

    //Get
    var label = $("#grid").igGridUpdating("option", "doneLabel");

    //Set
    $("#grid").igGridUpdating("option", "doneLabel", "Fine");
  • doneTooltip

    Type:
    string
    Default:
    null

    Sets gets text for title of Done editing button. If that is not set, then $.ig.GridUpdating.locale.doneTooltip is used.

    Code Sample


    //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    doneTooltip: "Fine"
        	}
        ]
    });

    //Get
    var label = $("#grid").igGridUpdating("option", "doneTooltip");

    //Set
    $("#grid").igGridUpdating("option", "doneTooltip", "Fine");
  • editMode

    Type:
    enumeration
    Default:
    row

    Sets gets edit mode.

    Members

    • row
    • Type:string
    • editors in all cells in a row are displayed. Editor under clicked cell should get input focus. Optional Done/Cancel buttons can be displayed.
    • cell
    • Type:string
    • editor only for clicked cell is displayed. The Done/Cancel buttons are not supported.
    • rowedittemplate
    • Type:string
    • editor for all cells will be rendered as popup dialog.
    • none
    • Type:string
    • editing of grid-cells is disabled.
    • null
    • Type:object
    • editing of grid-cells is disabled.

    Code Sample


    //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    editMode: "rowedittemplate"
        	}
        ]
    });

    //Get
    var mode = $("#grid").igGridUpdating("option", "editMode");

    //Set
    $("#grid").igGridUpdating("option", "editMode", "rowedittemplate");
  • enableAddRow

    Type:
    bool
    Default:
    true

    Sets gets add-new-row functionality.
    Notes: If igGrid has primaryKey, then application should process generatePrimaryKeyValue event and provide value for a cell.
    It is also recommended to set readOnly:true for the column (within columnSettings) with the primaryKey or to use editorOptions:{readOnly:true}.
    By default the value of a cell with primary key is generated automatically and its value is equal to number of rows in grid plus 1.
    Value true: the "Add Row" button is displayed on header, click on that button shows editors in all columns and new row inserted at the end of editing.
    Value false: add-row functionality is disabled.

    Code Sample


    //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    enableAddRow: false
        	}
        ]
    });

    //Get
    var addEnabled = $("#grid").igGridUpdating("option", "enableAddRow");

    //Set
    $("#grid").igGridUpdating("option", "enableAddRow", false);
  • enableDataDirtyException

    Type:
    bool
    Default:
    true

    Sets gets ability to enable or disable exception, which is raised when grid has pending transaction and may fail to render data correctly.

    Code Sample


    //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    enableDataDirtyException: false
        	}
        ]
    });

    //Get
    var isEnabled = $("#grid").igGridUpdating("option", "enableDataDirtyException");

    //Set
    $("#grid").igGridUpdating("option", "enableDataDirtyException", false);
  • enableDeleteRow

    Type:
    bool
    Default:
    true

    Sets gets delete-row functionality.
    Value true: the "Delete" button is displayed on mouse-over a row and all selected rows are deleted by Delete-key.
    Value false: delete-row is disabled.

    Code Sample


    //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    enableDeleteRow: false
        	}
        ]
    });

    //Get
    var isEnabled = $("#grid").igGridUpdating("option", "enableDeleteRow");

    //Set
    $("#grid").igGridUpdating("option", "enableDeleteRow", false);
  • excelNavigationMode

    Type:
    bool
    Default:
    false

    Enables excel navigating style while editing a cell
    Value true: Arrows will not navigate inside the edited cell, but will exit the edit mode
    and move the focus to the nearest cell.
    Value false: Arrows will navigate the cursor inside the edited cell.

    Code Sample


          //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    excelNavigationMode: true
        	}
        ]
    });

    //Get
    var isExcelNavMode = $("#grid").igGridUpdating("option", "excelNavigationMode");

    //Set
    $("#grid").igGridUpdating("option", "excelNavigationMode", true);

  • horizontalMoveOnEnter

    Type:
    bool
    Default:
    false

    Enables horizontal move to the right on Enter while editing a cell.
    Value true: Pressing Enter will move the focus to the next edited cell on the right
    Value false: Pressing Enter will move the focus to the next edited cell on the row below.

    Code Sample


           //Initialize
          $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    horizontalMoveOnEnter: true
        	}
        ]
    });

    //Get
    var moveOnEnter = $("#grid").igGridUpdating("option", "horizontalMoveOnEnter");

    //Set
    $("#grid").igGridUpdating("option", "horizontalMoveOnEnter", true);

  • rowEditDialogCaptionLabel

    Type:
    string
    Default:
    null

    Sets gets text for caption of the rowEditDialog. If that is not set, then $.ig.GridUpdating.locale.rowEditDialogCaptionLabel is used.

  • rowEditDialogContainment

    Type:
    string
    Default:
    owner

    Controls containment behavior.
    owner The row edit dialog will be draggable only in the grid area
    window The row edit dialog will be draggable in the whole window area.

    Code Sample


           //Initialize
           $("#grid").igGrid({
              features: [
                {
                  name: "Updating",
                  editMode:"rowedittemplate",
                  rowEditDialogContainment: "owner"
                }
              ] });

              //Get
              var containment = $("#grid").igGridUpdating("option", "rowEditDialogContainment");
              //Set
              $("#grid").igGridUpdating("option", "rowEditDialogContainment", "window");

  • rowEditDialogContentHeight

    Type:
    enumeration
    Default:
    150

    the height of the row edit dialog content .

    Members

      • string
      • The dialog content height in pixels (150px).
      • number
      • The dialog content height as a number (150).

    Code Sample


           //Initialize
           $("#grid").igGrid({
              features: [
                {
                  name: "Updating",
                  editMode:"rowedittemplate",
                  rowEditDialogContentHeight: "200px"
                }
              ] });

              //Get
              var rowEditDialogContentHeight = $("#grid").igGridUpdating("option", "rowEditDialogContentHeight");

  • rowEditDialogFieldWidth

    Type:
    number
    Default:
    140

    Width of the row edit dialog fields
    number The width as a number (0).

    Code Sample


          //Initialize
          $("#grid").igGrid({
              features: [
                {
                  name: "Updating",
                  editMode:"rowedittemplate",
                  rowEditDialogFieldWidth: 150
                }
              ] });

              //Get
              var width = $("#grid").igGridUpdating("option", "rowEditDialogFieldWidth");

              //Set
              $("#grid").igGridUpdating("option", "rowEditDialogFieldWidth", 150);

  • rowEditDialogHeight

    Type:
    enumeration
    Default:
    350

    default row edit dialog height.

    Members

      • string
      • The dialog window height in pixels (350px).
      • number
      • The dialog window height as a number (350).

    Code Sample


            //Initialize
          $("#grid").igGrid({
              features: [
                {
                  name: "Updating",
                  editMode:"rowedittemplate",
                  rowEditDialogHeight: 200
                }
              ] });

              //Get
              var height = $("#grid").igGridUpdating("option", "rowEditDialogHeight");

              //Set
              $("#grid").igGridUpdating("option", "rowEditDialogHeight", "200px");

  • rowEditDialogOkCancelButtonWidth

    Type:
    enumeration
    Default:
    120

    Width of the Ok and Cancel buttons in the row edit dialogs .

    Members

      • string
      • The advanced row edit dialog Ok and Cancel buttons width in pixels (100px).
      • number
      • The advanced row edit dialog Ok and Cancel buttons width as a number (100).

    Code Sample


          //Initialize
          $("#grid").igGrid({
              features: [
                {
                  name: "Updating",
                  editMode:"rowedittemplate",
                  rowEditDialogOkCancelButtonWidth: 100
                }
              ] });

              //Get
              var OkCancelWidth = $("#grid").igGridUpdating("option", "rowEditDialogOkCancelButtonWidth");

              //Set
              $("#grid").igGridUpdating("option", "rowEditDialogOkCancelButtonWidth", "100px");


  • rowEditDialogRowTemplate

    Type:
    string
    Default:
    null

    Custom template for rows in row edit dialog
    The default template is "<tr><td>${headerText}</td><td data-key='${dataKey}'><input /></td></tr>".

    Code Sample


          //Initialize
          $("#grid").igGrid({
              features: [
                {
                  name: "Updating",
                  editMode:"rowedittemplate",
                  rowEditDialogRowTemplate: "<tr><td>${headerText}</td><td data-key='${dataKey}'> {{if ${headerText} =='On Site'}} <input type='checkbox' />{{else}}<input />{{/if}}</td></tr>"
                }
              ] });

              //Get
              var retTemplate = $("#grid").igGridUpdating("option", "rowEditDialogRowTemplate");

              //Set
              $("#grid").igGridUpdating("option", "rowEditDialogRowTemplate", "<tr><td>${headerText}</td><td data-key='${dataKey}'> {{if ${headerText} =='On Site'}} <input type='checkbox' />{{else}}<input />{{/if}}</td></tr>");

  • rowEditDialogRowTemplateID

    Type:
    string
    Default:
    null

    ID to x-jquery-tmpl template. If both rowEditDialogRowTemplate and rowEditDialogRowTemplateID are
    specified, then rowEditDialogRowTemplateID will be used.

    Code Sample


          <script id="rowEditDialogRowTemplate1" type="text/x-jquery-tmpl">
            <tr class="tableBackGround">
                <td> ${headerText}
                </td>
                <td data-key='${dataKey}'>
                    <input />
                </td>
            </tr>
         </script>

          //Initialize
          $("#grid").igGrid({
              features: [
                {
                  name: "Updating",
                  editMode:"rowedittemplate",
                  rowEditDialogRowTemplateID: "rowEditDialogRowTemplate1"
                }
              ] });

              //Get
              var retTemplateID = $("#grid").igGridUpdating("option", "rowEditDialogRowTemplateID");

              //Set
              $("#grid").igGridUpdating("option", "rowEditDialogRowTemplateID", "rowEditDialogRowTemplate1");

  • rowEditDialogWidth

    Type:
    enumeration
    Default:
    370

    default row edit dialog width.

    Members

      • string
      • The dialog window width in pixels (370px).
      • number
      • The dialog window width as a number (370).

    Code Sample

           //Initialize
          $("#grid").igGrid({
              features: [
                {
                  name: "Updating",
                  editMode:"rowedittemplate",
                  rowEditDialogWidth: 400
                }
              ] });

              //Get
              var width = $("#grid").igGridUpdating("option", "rowEditDialogWidth");

              //Set
              $("#grid").igGridUpdating("option", "rowEditDialogWidth", "400px");

  • saveChangesErrorHandler

    Type:
    enumeration
    Default:
    null

    Specifies a custom function to be called when AJAX request to the updateUrl option fails. Receives three arguments - the jqXHR, string describing the type of error and an optional exception object.

    Code Sample


            //Initialize
            $("#grid").igGrid({
                features: [
                    {
                        name: "Updating",
                        saveChangesErrorHandler : function (jqXHR, textStatus, errorThrown) {
                            $("#message").text("An error occurred while saving the changes. Error details: " + textStatus).fadeIn(3000).fadeOut(5000);
                        }
                    }
                ]
            });

            //Get
            var errorHandler = $("#grid").igGridUpdating("option", "saveChangesErrorHandler");

            //Set
            $("#grid").igGridUpdating("option", "saveChangesErrorHandler", function(jqXHR, textStatus, errorThrown) {
                $("#message").text("An error occurred while saving the changes. Error details: " + textStatus).fadeIn(3000).fadeOut(5000);
            });

  • saveChangesSuccessHandler

    Type:
    enumeration
    Default:
    null

    Specifies a custom function to be called when AJAX request to the updateUrl option succeeds. Receives as argument the data returned by the server.

    Code Sample


          //Initialize
          $("#grid").igGrid({
              features: [
                  {
                      name: "Updating",
                      saveChangesSuccessHandler : function (data) {
                          $("#message").text("Changes were saved successfully").fadeIn(3000).fadeOut(5000);
                      }
                  }
              ]
          });

          //Get
          var successHandler = $("#grid").igGridUpdating("option", "saveChangesSuccessHandler");

          //Set
          $("#grid").igGridUpdating("option", "saveChangesSuccessHandler", function(data) {
              $("#message").text("Changes were saved successfully").fadeIn(3000).fadeOut(5000);
          });

  • showDoneCancelButtons

    Type:
    bool
    Default:
    true

    Sets gets visibility of the end-edit pop-up dialog with Done/Cancel buttons.

    Code Sample


    //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    showDoneCancelButtons: false
        	}
        ]
    });

    //Get
    var showButton = $("#grid").igGridUpdating("option", "showDoneCancelButtons");

    //Set
    $("#grid").igGridUpdating("option", "showDoneCancelButtons", false);
  • showReadonlyEditors

    Type:
    bool
    Default:
    true

    Used in row edit template when editing is disabled for a particular column
    Value true: disabled columns are rendered as disabled
    Value false: disabled columns are not rendered in the editors.

    Code Sample


          //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
            editMode :"rowedittemplate",
    		    showReadonlyEditors: false
        	}
        ]
    });

    //Get
    var showReadOnly = $("#grid").igGridUpdating("option", "showReadonlyEditors");

    //Set
    $("#grid").igGridUpdating("option", "showReadonlyEditors", false);


  • startEditTriggers

    Type:
    string
    Default:
    click,f2,enter

    Sets gets triggers for start edit mode.
    Possible values: "click", "dblclick", "F2", "enter" and their combinations separated by coma.
    Notes:
    The array of strings similar to ['dblclick', 'f2'] is also supported.
    The keyboard triggers have effect only when "Selection" feature of grid is enabled.
    If the 'dblclick' is included, then 'click' has no effect.

    Code Sample


    //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    startEditTriggers: "dblclick,F2"
        	}
        ]
    });

    //Get
    var triggers = $("#grid").igGridUpdating("option", "startEditTriggers");

    //Set
    $("#grid").igGridUpdating("option", "startEditTriggers", "dblclick,F2");
  • swipeDistance

    Type:
    enumeration
    Default:
    100px

    The swipe distance when on touch to trigger row delete button to appear.

    Code Sample


    //Initialize
    $("#grid").igGrid({
        features: [
            {
                name: "Updating",
                swipeDistance: "200px"
            }
        ]
    });

    //Get
    var triggers = $("#grid").igGridUpdating("option", "swipeDistance");

    //Set
    $("#grid").igGridUpdating("option", "swipeDistance", "200px");
  • validation

    Type:
    bool
    Default:
    false

    Sets gets option to enable validation for all columns.

    Code Sample


    //Initialize
    $("#grid").igGrid({
    	features: [
            {
    		    name: "Updating",
    		    validation: true
        	}
        ]
    });

    //Get
    var isValidating = $("#grid").igGridUpdating("option", "validation");

    //Set
    $("#grid").igGridUpdating("option", "validation", true);

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • dataDirty

    Cancellable:
    true

    Event which is raised when autoCommit of grid is not enabled and grid has pending transaction which may fail to be correctly rendered.
    Application should process that event and it may trigger commit of grid.
    Return false in order to prevent exception.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.owner.grid to get reference to igGrid.

    Code Sample


          	//Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingdatadirty", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
    					dataDirty: function(evt, ui){ ... }
                    }
                ]
            });

  • editCellEnded

    Cancellable:
    false

    Event which is raised after end cell editing.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.owner.grid to get reference to igGrid.
    Use ui.rowID to get key or index of row.
    Use ui.columnIndex to get index of column.
    Use ui.columnKey to get key of column.
    Use ui.editor to get reference to igEditor.
    Use ui.value to get value of cell.
    Use ui.oldValue to get old value.
    Use ui.update to check if cell was modified and data source will be updated.
    Use ui.rowAdding to check if that event is raised while new-row-adding.

    Code Sample


            //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingeditcellended", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // to get key or index of row
                ui.rowID;

                // get index of column
                ui.columnIndex;

                // get key of column
                ui.columnKey;

                // get reference to igEditor
                ui.editor;

                // get value of cell
                ui.value;

                // get old value of cell
                ui.oldValue;

                // check if cell was modified and data source will be updated
                ui.update;
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
    					editCellEnded: function(evt, ui){ ... }
                    }
                ]
            });
  • editCellEnding

    Cancellable:
    true

    Event which is raised before end cell editing.
    Return false in order to cancel update of data source.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.owner.grid to get reference to igGrid.
    Use ui.rowID to get key or index of row.
    Use ui.columnIndex to get index of column.
    Use ui.columnKey to get key of column.
    Use ui.keepEditing=true in order to keep editing. It has effect only when evt.originalEvent is defined and only when editMode is "cell".
    Use ui.editor to get reference to igEditor.
    Use ui.value to get value of cell/editor. That value can be modified and it will be used to update data source.
    Use ui.oldValue to get old value.
    Use ui.update to check if value was modified and data source will be updated.
    Use ui.rowAdding to check if that event is raised while new-row-adding.

    Code Sample


                  //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingeditcellending", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // to get key or index of row
                ui.rowID;

                // get index of column
                ui.columnIndex;

                // get key of column
                ui.columnKey;

                // get reference to igEditor
                ui.editor;

                // get value of cell
                ui.value;

                // get old value of cell
                ui.oldValue;

                // check if cell was modified and data source will be updated
                ui.update;

                // check if that event is raised while new-row-adding
                ui.rowAdding;
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
    					editCellEnding: function(evt, ui){ ... }
                    }
                ]
            });

  • editCellStarted

    Cancellable:
    false

    Event which is raised after start cell editing.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.owner.grid to get reference to igGrid.
    Use ui.rowID to get key or index of row.
    Use ui.columnIndex to get index of column.
    Use ui.columnKey to get key of column.
    Use ui.editor to get reference to igEditor.
    Use ui.value to get value of editor.
    Use ui.rowAdding to check if that event is raised while new-row-adding.

    Code Sample

             //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingeditcellstarted", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // to get key or index of row
                ui.rowID;

                // get index of column
                ui.columnIndex;

                // get key of column
                ui.columnKey;

                // get reference to igEditor
                ui.editor;

                // get value of cell
                ui.value;

                // check if that event is raised while new-row-adding
                ui.rowAdding;
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
    					editCellStarted: function(evt, ui){ ... }
                    }
                ]
            });
  • editCellStarting

    Cancellable:
    true

    Event which is raised before start cell editing.
    Return false in order to cancel start editing and do not show editors.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.owner.grid to get reference to igGrid.
    Use ui.rowID to get key or index of row.
    Use ui.columnIndex to get index of column.
    Use ui.columnKey to get key of column.
    Use ui.editor to get reference to igEditor.
    Use ui.value to get or set value of editor.
    Use ui.rowAdding to check if that event is raised while new-row-adding.

    Code Sample


            //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingeditcellstarting", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // to get key or index of row
                ui.rowID;

                // get index of column
                ui.columnIndex;

                // get key of column
                ui.columnKey;

                // get reference to igEditor
                ui.editor;

                // get value of cell
                ui.value;

                // check if that event is raised while new-row-adding
                ui.rowAdding;
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
    					editCellStarting: function(evt, ui){ ... }
                    }
                ]
            });

  • editRowEnded

    Cancellable:
    false

    Event which is raised after end row editing.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.owner.grid to get reference to igGrid.
    Use ui.rowID to get key or index of row.
    Use ui.update to check if value of any cell was modified and data source will be updated.
    Use ui.rowAdding to check if that event is raised while new-row-adding.
    Use ui.values[key] to get value of cell in column with the key. That is available only when ui.update is true.
    Use ui.oldValues[key] to get old value of cell in column with the key. That is available only when ui.update is true.

    Code Sample



            //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingeditrowended", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // to get key or index of row
                ui.rowID;

                // check if cell was modified and data source will be updated
                ui.update;

                // get value of cell in column with the key
                ui.values[key];

                // to get old value of cell in column with the key
                ui.oldValues[key];

                // check if that event is raised while new-row-adding
                ui.rowAdding;
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
    					editRowEnded: function(evt, ui){ ... }
                    }
                ]
            });
  • editRowEnding

    Cancellable:
    true

    Event which is raised before end row editing.
    Return false in order to cancel update of data source.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.owner.grid to get reference to igGrid.
    Use ui.rowID to get key or index of row.
    Use ui.keepEditing=true in order to keep editing. It has effect only when evt.originalEvent is defined.
    Use ui.update to check if value of any cell was modified and data source will be updated.
    Use ui.rowAdding to check if that event is raised while new-row-adding.
    Use ui.values[key] to get value of cell in column with the key. That is available only when ui.update is true.
    Use ui.oldValues[key] to get old value of cell in column with the key. That is available only when ui.update is true.

    Code Sample


            //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingeditrowending", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // to get key or index of row
                ui.rowID;

                // in order to keep editing
                ui.keepEditing = true;

                // check if cell was modified and data source will be updated
                ui.update;

                // get value of cell in column with the key
                ui.values[key];

                // to get old value of cell in column with the key
                ui.oldValues[key];

                // check if that event is raised while new-row-adding
                ui.rowAdding;
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
    					editRowEnding: function(evt, ui){ ... }
                    }
                ]
            });

  • editRowStarted

    Cancellable:
    false

    Event which is raised after start row editing.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.owner.grid to get reference to igGrid.
    Use ui.rowID to get key or index of row.
    Use ui.rowAdding to check if that event is raised while new-row-adding.

    Code Sample


          //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingeditrowstarted", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // to get key or index of row
                ui.rowID;

                // check if that event is raised while new-row-adding
                ui.rowAdding;
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
    					editRowStarted: function(evt, ui){ ... }
                    }
                ]
            });

  • editRowStarting

    Cancellable:
    true

    Event which is raised before start row editing.
    Return false in order to cancel editing and do not show editors in row.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.owner.grid to get reference to igGrid.
    Use ui.rowID to get key or index of row.
    Use ui.rowAdding to check if that event is raised while new-row-adding.

    Code Sample


            //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingeditrowstarting", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // to get key or index of row
                ui.rowID;

                // check if that event is raised while new-row-adding
                ui.rowAdding;
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
    					editRowStarting: function(evt, ui){ ... }
                    }
                ]
            });

  • generatePrimaryKeyValue

    Cancellable:
    false

    Event which is raised before adding new row to get value of cell for primaryKey column.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.owner.grid to get reference to igGrid.
    Use ui.value to set unique record-key-identifier for new row. It is prefilled with suggested value (defaultValue of column or number of rows in data source).

    Code Sample


            //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatinggenerateprimarykeyvalue", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // set unique record-key-identifier for new row
                ui.value;
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
    					generatePrimaryKeyValue: function(evt, ui){ ... }
                    }
                ]
            });


  • rowAdded

    Cancellable:
    false

    Event which is raised after adding new row.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.owner.grid to get reference to igGrid.
    Use ui.values[key] to get new value of cell in column with the key.
    Use ui.oldValues[key] to get default value (before editing) of cell in column with the key.

    Code Sample

            //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingrowadded", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // get new value of cell in column with the key
                ui.values[key];

                // get default value (before editing) of cell in column with the key
                ui.oldValues[key];
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
    					rowAdded: function(evt, ui){ ... }
                    }
                ]
            });

  • rowAdding

    Cancellable:
    true

    Event which is raised before adding new row.
    Return false in order to cancel adding new row to data source.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.owner.grid to get reference to igGrid.
    Use ui.values[key] to get new value of cell in column with the key.
    Use ui.oldValues[key] to get default value (before editing) of cell in column with the key.

    Code Sample


            //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingrowadding", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // get new value of cell in column with the key
                ui.values[key];

                // get default value (before editing) of cell in column with the key
                ui.oldValues[key];
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
    					rowAdding: function(evt, ui){ ... }
                    }
                ]
            });


  • rowDeleted

    Cancellable:
    false

    Event which is raised after row deleting.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.owner.grid to get reference to igGrid.
    Use ui.element to get reference to jquery object which represents TR of row to delete.
    Use ui.rowID to get key or index of row to delete.

    Code Sample


            //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingrowdeleted", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // get reference to jquery object which represents TR of row to delete
                ui.element;

                // get key or index of row to delete
                ui.rowID;
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
    					rowDeleted: function(evt, ui){ ... }
                    }
                ]
            });

  • rowDeleting

    Cancellable:
    true

    Event which is raised before row deleting.
    Return false in order to cancel.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.owner.grid to get reference to igGrid.
    Use ui.element to get reference to jquery object which represents TR of row to delete.
    Use ui.rowID to get key or index of row to delete.

    Code Sample


            //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingrowdeleting", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // get reference to jquery object which represents TR of row to delete
                ui.element;

                // get key or index of row to delete
                ui.rowID;
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
    					rowDeleting: function(evt, ui){ ... }
                    }
                ]
            });
  • rowEditDialogClosed

    Cancellable:
    false

    Event fired after the row edit dialog is closed.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.dialogElement to get reference to row edit dialog DOM element.

    Code Sample


           //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingroweditdialogclosed", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // get reference to the row edit dialog DOM element
                ui.dialogElement;

                // get reference to the current data row
                ui.dialogElement.data('tr');
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
                        editMode : "rowedittemplate",
    					rowEditDialogClosed: function(evt, ui){ ... }
                    }
                ]
            });

  • rowEditDialogClosing

    Cancellable:
    false

    Event fired before the row edit dialog is closed.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.dialogElement to get reference to row edit dialog DOM element.

    Code Sample


           //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingroweditdialogclosing", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // get reference to the row edit dialog DOM element
                ui.dialogElement;

                // get reference to the current data row
                ui.dialogElement.data('tr');
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
                        editMode : "rowedittemplate",
    					rowEditDialogClosing: function(evt, ui){ ... }
                    }
                ]
            });

  • rowEditDialogContentsRendered

    Cancellable:
    false

    Event fired after the contents of the row edit dialog are rendered.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.dialogElement to get reference to row edit dialog DOM element.

    Code Sample


                 //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingroweditdialogcontentsrendered", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // get reference to the row edit dialog DOM element
                ui.dialogElement;

                // get reference to the current data row
                ui.dialogElement.data('tr');
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
                        editMode : "rowedittemplate",
    					rowEditDialogContentsRendered: function(evt, ui){ ... }
                    }
                ]
            });

  • rowEditDialogContentsRendering

    Cancellable:
    false

    Event fired before the contents of the row edit dialog are rendered.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.dialogElement to get reference to row edit dialog DOM element.

    Code Sample

              //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingroweditdialogcontentsrendering", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // get reference to the row edit dialog DOM element
                ui.dialogElement;

                // get reference to the current data row
                ui.dialogElement.data('tr');
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
                        editMode : "rowedittemplate",
    					rowEditDialogContentsRendering: function(evt, ui){ ... }
                    }
                ]
            });

  • rowEditDialogOpened

    Cancellable:
    false

    Event fired after the row edit dialog is opened.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.dialogElement to get reference to row edit dialog DOM element.

    Code Sample


            //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingroweditdialogopened", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // get reference to the row edit dialog DOM element
                ui.dialogElement;

                // get reference to the current data row
                ui.dialogElement.data('tr');
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
                        editMode : "rowedittemplate",
    					rowEditDialogOpened: function(evt, ui){ ... }
                    }
                ]
            });

  • rowEditDialogOpening

    Cancellable:
    false

    Event fired before the row edit dialog is opened.
    Function takes arguments evt and ui.
    Use ui.owner to get reference to igGridUpdating.
    Use ui.dialogElement to get reference to row edit dialog DOM element.

    Code Sample


                  //Bind after initialization
    		$(document).delegate(".selector", "iggridupdatingroweditdialogopening", function (evt, ui) {
                //return the triggered event
                evt;

                // get reference to igGridUpdating widget
                ui.owner;

                // get reference to the row edit dialog DOM element
                ui.dialogElement;

                // get reference to the current data row
                ui.dialogElement.data('tr');
            });

            //Initialize
            $(".selector").igGrid({
                features : [
                    {
                        name : "Updating",
                        editMode : "rowedittemplate",
    					rowEditDialogOpening: function(evt, ui){ ... }
                    }
                ]
            });

  • addRow

    .igGridUpdating( "addRow", values:object );

    Adds a new row to the grid. It also creates a transaction and updates the UI. Functionality depends on autoCommit option of igGrid.

    • values
    • Type:object
    • pairs of values in the format { column1Key: value1, column2Key: value2, ... }.

    Code Sample


    $("#grid").igGridUpdating("addRow", {ID: 1, Name: "John"});

  • deleteRow

    .igGridUpdating( "deleteRow", rowId:object, [tr:domelement] );

    Deletes a row from the grid. It also creates a transaction and updates the UI. Functionality depends on autoCommit option of igGrid.

    • rowId
    • Type:object
    • value of the primary key column of the igGrid.
    • tr
    • Type:domelement
    • Optional
    • reference to the TR element which represents row.

    Code Sample


    $("#grid").igGridUpdating("deleteRow", 5);

  • destroy

    .igGridUpdating( "destroy" );
    Return Type:
    object
    Return Type Description:
    Returns reference to this igGridUpdating.

    Destroys igGridUpdating.

    Code Sample


    $("#grid").igGridUpdating("destroy");
  • editorForCell

    .igGridUpdating( "editorForCell", td:jquery, [add:bool] );
    Return Type:
    object
    Return Type Description:
    Returns reference to igEditor or null.

    Find or create editor which is used for a cell in igGrid.

    • td
    • Type:jquery
    • Reference to jquery TD object in igGrid.
    • add
    • Type:bool
    • Optional
    • Request to create editor. That parameter was designed for internal use and first td parameter must contain valid cell in grid.

    Code Sample


    var editor = $("#grid").igGridUpdating("editorForCell", $(gridTDCell) );
  • editorForKey

    .igGridUpdating( "editorForKey", key:object );
    Return Type:
    object
    Return Type Description:
    Returns reference to igEditor or null.

    Find editor for a column with key. That method can be used only after editor was already created.

    • key
    • Type:object
    • Key of column. That can be string or number depending on structure of data in dataSource of grid.

    Code Sample


    var editor = $("#grid").igGridUpdating("editorForKey", "ProductName");
  • endEdit

    .igGridUpdating( "endEdit", [update:bool], [e:object] );
    Return Type:
    bool
    Return Type Description:
    Returns false if request failed and editing is continued.

    End row editing.

    • update
    • Type:bool
    • Optional
    • Request to update grid with new values.
    • e
    • Type:object
    • Optional
    • Browser event. If it is defined, then events are raised.

    Code Sample


    $("#grid").igGridUpdating("endEdit");
  • findHiddenComboEditor

    .igGridUpdating( "findHiddenComboEditor", editor:jquery );
    Return Type:
    object
    Return Type Description:
    Returns reference to igCombo or null.

    Find reference to igCombo, which is assigned to a hidden column and which is used as provider of data for visible cascading igCombo editor.
    That method can be used only after visible editor was already created.

    • editor
    • Type:jquery
    • Reference to jQuery element which represents visible cascading igCombo linked to hidden igCombo.

    Code Sample


                var combo = $("#grid").igGridUpdating("findHiddenComboEditor", $("#hidden_combo_id"));

  • findInvalid

    .igGridUpdating( "findInvalid" );

    Find column-key which editor has invalid value.
    returnType="string|number" Return null or key of column which editor has invalid value and validation of column is enabled.

    Code Sample


    var colKey = $("#grid").igGridUpdating("findInvalid");
  • isEditing

    .igGridUpdating( "isEditing" );
    Return Type:
    bool
    Return Type Description:
    Returns true if editing is on.

    Check if editing is on.

    Code Sample


    var isEditing = $("#grid").igGridUpdating("isEditing");
  • setCellValue

    .igGridUpdating( "setCellValue", rowId:object, colKey:string, value:object, [tr:domelement] );

    Sets a cell value for the specified cell. It also creates a transaction and updates the UI. Functionality depends on autoCommit option of igGrid.
    If the specified cell is currently in edit mode, the function will set the desired value in the cell's editor instead.

    • rowId
    • Type:object
    • identifier of row such as value at primaryKey-column of igGrid or if it is not used, then index or row within dataSource of grid.
    • colKey
    • Type:string
    • column key.
    • value
    • Type:object
    • the new cell value.
    • tr
    • Type:domelement
    • Optional
    • reference to the TR-row where TD-cell is located.

    Code Sample


    $("#grid").igGridUpdating("setCellValue", 5, "ProductName", "bologna");
  • startAddRowEdit

    .igGridUpdating( "startAddRowEdit", [e:object] );
    Return Type:
    bool
    Return Type Description:
    Returns true in case of success or current editing is continued.

    Start row editing.

    • e
    • Type:object
    • Optional
    • Browser event. If it is defined, then events are raised.

    Code Sample


    $("#grid").igGridUpdating("startAddRowEdit");
  • startEdit

    .igGridUpdating( "startEdit", row:number, col:number, [e:object] );
    Return Type:
    bool
    Return Type Description:
    Returns true in case of success or current editing is continued.

    Start editing.

    • row
    • Type:number
    • Index of row.
    • col
    • Type:number
    • Index of column.
    • e
    • Type:object
    • Optional
    • Browser event. If it is defined, then events are raised.

    Code Sample


    $("#grid").igGridUpdating("startEdit", 5, 5);
  • updateRow

    .igGridUpdating( "updateRow", rowId:object, values:object, [tr:domelement] );

    Set values for all cells in a row. It also creates a transaction and updates the UI. Functionality depends on autoCommit option of igGrid.
    If the specified row is currently in edit mode, the function will set the desired values in the row's editors instead.

    • rowId
    • Type:object
    • identifier of row such as value at primaryKey-column of igGrid or if it is not used, then index or row within dataSource of grid.
    • values
    • Type:object
    • pairs of values in the format { column1Key: value1, column2Key: value2, ... }.
    • tr
    • Type:domelement
    • Optional
    • reference to the TR element which represents row.

    Code Sample


    $("#grid").igGridUpdating("updateRow", 5, {ProductName: "tuna"});
  • ui-iggrid-addrow ui-widget-header

    Classes applied to the add-new-row button. Default value is 'ui-iggrid-addrow ui-widget-header'.
  • ui-iggrid-addrowactive ui-state-active

    Classes applied to the add-new-row button in active/focus state. Default value is 'ui-iggrid-addrowactive ui-state-active'.
  • ui-iggrid-addrowhover ui-state-hover

    Classes applied to the add-new-row button in mouse-over state. Default value is 'ui-iggrid-addrowhover ui-state-hover'.
  • ui-iggrid-addrowicon ui-icon ui-icon-circle-plus

    Classes applied to the icon on add-new-row button. Default value is 'ui-iggrid-addrowicon ui-icon ui-icon-circle-plus'.
  • ui-widget-overlay ui-iggrid-blockarea

    Classes applied to the filtering block area, when the advanced row edit dialog is opened and the area behind it is grayed out (that's the block area).
  • ui-iggrid-button ui-state-default ui-corner-all

    Classes applied to the buttons. Default value is 'ui-iggrid-button ui-state-default'.
  • ui-iggrid-buttonactive ui-state-active

    Classes applied to buttons in active/focus state. Default value is 'ui-iggrid-buttonactive ui-state-active'.
  • ui-iggrid-buttoncontainer ui-widget-content ui-corner-all

    Classes applied to the container of Done and Cancel editing buttons. Default value is 'ui-iggrid-buttoncontainer ui-widget-content'.
  • ui-iggrid-buttondisabled ui-state-disabled

    Classes applied to buttons in disabled state. Default value is 'ui-iggrid-buttondisabled ui-state-disabled'.
  • ui-iggrid-buttonhover ui-state-hover

    Classes applied to buttons in mouse-over state. Default value is 'ui-iggrid-buttonhover ui-state-hover'.
  • ui-iggrid-button-icon-only

    Class applied to Done and Cangel buttons when they have no text. Default value is 'ui-iggrid-button-icon-only'.
  • ui-iggrid-cancelbutton ui-corner-all

    Class applied to the Cancel button. Default value is 'ui-iggrid-cancelbutton'.
  • ui-iggrid-cancelicon ui-icon ui-icon-cancel

    Classes applied to the icon on Done button. Default value is 'ui-iggrid-cancelicon ui-icon ui-icon-cancel'.
  • ui-iggrid-deletebutton ui-state-default ui-corner-all

    Classes applied to the Delete button. Default value is 'ui-iggrid-deletebutton ui-state-default'.
  • ui-iggrid-deleteicon ui-icon ui-icon-circle-close

    Classes applied to the icon on Delete button. Default value is 'ui-iggrid-deleteicon ui-icon ui-icon-circle-close'.
  • ui-iggrid-donebutton ui-priority-primary ui-corner-all

    Classes applied to the Done button. Default value is 'ui-iggrid-donebutton ui-priority-primary'.
  • ui-iggrid-doneicon ui-icon ui-icon-check

    Classes applied to the icon on Done button. Default value is 'ui-iggrid-doneicon ui-icon ui-icon-check'.
  • ui-iggrid-editingcell

    Classes applied to the editing cells. Default value is 'ui-iggrid-editingcell'.
  • ui-iggrid-editor

    Class applied to editors. Default value is 'ui-iggrid-editor'.
  • ui-dialog ui-draggable ui-resizable ui-iggrid-dialog ui-widget ui-widget-content ui-corner-all

    Classes applied to the row edit dialog element.
  • ui-dialog-titlebar ui-iggrid-filterdialogcaption ui-widget-header ui-corner-all ui-helper-reset ui-helper-clearfix

    Class applied to editors.
  • ui-dialog-title

    Class applied to editors.
  • ui-dialog-buttonpane ui-widget-content ui-helper-clearfix ui-iggrid-filterdialogokcancelbuttoncontainer

    Classes applied to the row edit dialog OK and Cancel buttons.
  • ui-iggrid-filtertable ui-helper-reset

    Classes applied to the row edit dialog table.

Copyright © 1996 - 2024 Infragistics, Inc. All rights reserved.

#
