ui.igGridColumnMoving

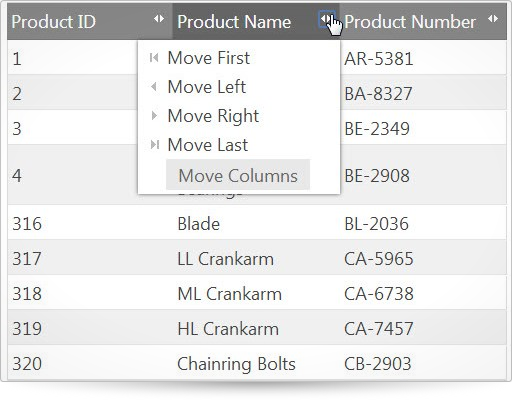

ui.igGridColumnMoving_image

Both the igGrid and igHierarchicalGrid controls feature column moving in the grid. Column moving allows you to change the order of the columns as they appear in the grid. The column moving features has two modes:

The immediate mode moves the column header while you are dragging it and animates the swapping of other grid columns. The moving of the column contents is performed when you drop the column header.

Deferred mode uses arrows to show which position the column will be placed if you drop it.

Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igGrid control with column moving feature.

Click here for more information on how to get started using this API . For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
	  <script src="js/infragistics.lob.js" type="text/javascript"></script>
    <script type="text/javascript">
        var products = [
            { "ProductID": 1, "Name": "Adjustable Race", "ProductNumber": "AR-5381" },
            { "ProductID": 2, "Name": "Bearing Ball", "ProductNumber": "BA-8327" },
            { "ProductID": 3, "Name": "BB Ball Bearing", "ProductNumber": "BE-2349" },
            { "ProductID": 4, "Name": "Headset Ball Bearings", "ProductNumber": "BE-2908" },
            { "ProductID": 316, "Name": "Blade", "ProductNumber": "BL-2036" },
            { "ProductID": 317, "Name": "LL Crankarm", "ProductNumber": "CA-5965" },
            { "ProductID": 318, "Name": "ML Crankarm", "ProductNumber": "CA-6738" },
            { "ProductID": 319, "Name": "HL Crankarm", "ProductNumber": "CA-7457" },
            { "ProductID": 320, "Name": "Chainring Bolts", "ProductNumber": "CB-2903" }
        ];

        $(function () {
            $("#gridColumnMoving").igGrid({
                columns: [
                    { headerText: "Product ID", key: "ProductID", dataType: "number" },
                    { headerText: "Product Name", key: "Name", dataType: "string" },
                    { headerText: "Product Number", key: "ProductNumber", dataType: "string" }
                ],
                features:[
                    {
                        name: "ColumnMoving"
                    }
                ],
                width: "500px",
                dataSource: products
            });
        });
    </script>
</head>
<body>
    <table id="gridColumnMoving"></table>
</body>
</html>


Related Samples

Related Topics

Dependencies

jquery-1.9.1.js
jquery.ui.core.js
jquery.ui.widget.js
jquery.ui.mouse.js
jquery.ui.draggable.js
infragistics.ui.grid.framework.js
infragistics.ui.tree.js
infragistics.ui.shared.js
infragistics.datasource.js
infragistics.util.js
infragistics.ui.grid.shared.js
infragistics.ui.grid.featurechooser.js

Inherits

  • addMovingDropdown

    Type:
    bool
    Default:
    true

    Specifies if header cells should include an additional button that opens a moving helper dropdown.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							addMovingDropdown: false
    						}
    					]
    				});

    				//Get
    				var addMovingDropdown = $(".selector").igGridColumnMoving("option", "addMovingDropdown");

  • columnMovingDialogContainment

    Type:
    string
    Default:
    "owner"

    Controls containment behavior of column moving dialog.

    owner The dialog will be draggable only in the grid area
    window The dialog will be draggable in the whole window area.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name : "ColumnMoving",
    							columnMovingDialogContainment : "window"
    						}
    					]
    				});

    				//Get
    				var columnMovingDialogContainment = $(".selector").igGridColumnMoving("option", "columnMovingDialogContainment");

  • columnSettings

    Type:
    array
    Default:
    []
    Elements Type:
    object

    A list of column settings that specifies moving options on a per column basis.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    			columnSettings: [
    								{ columnKey: "ProductID", allowMoving: true }
    							]
    						}
    					]
    				});

    				//Get
    				var columnSettings = $(".selector").igGridColumnMoving("option", "columnSettings");

    • allowMoving

      Type:
      bool
      Default:
      true

      Allows the column to be moved.

      Code Sample


      						//Initialize
      						$(".selector").igGrid({
      							features : [
      								{
      									name : "ColumnMoving",
      									columnSettings: [
      										{ columnIndex: 0, allowMoving: true }
      									]
      								}
      							]
      						});

      						//Get
      						var columnSettings = $(".selector").igGridColumnMoving("option", "columnSettings");
      						var allowMoving = columnSettings[0].allowMoving;

    • columnIndex

      Type:
      number
      Default:
      null

      Column index. Can be used in place of column key. The preferred way of populating a column setting is to always use the column keys as identifiers.

      Code Sample


      						//Initialize
      						$(".selector").igGrid({
      							features : [
      								{
      									name : "ColumnMoving",
      									columnSettings: [
      										{ columnIndex: 0, allowMoving: true }
      									]
      								}
      							]
      						});

      						//Get
      						var columnSettings = $(".selector").igGridColumnMoving("option", "columnSettings");
      						var columnIndex = columnSettings[0].columnIndex;

    • columnKey

      Type:
      string
      Default:
      null

      Column key. This is a required property in every column setting if columnIndex is not set.

      Code Sample


      						//Initialize
      						$(".selector").igGrid({
      							features : [
      								{
      									name : "ColumnMoving",
      									columnSettings: [
      										{ columnKey: "ProductID", allowMoving: true }
      									]
      								}
      							]
      						});

      						//Get
      						var columnSettings = $(".selector").igGridColumnMoving("option", "columnSettings");
      						var columnKey = columnSettings[0].columnKey;

  • dialogWidget

    Type:
    string
    Default:
    "igGridModalDialog"

    Name of the dialog widget to be used. It should inherit from $.ui.igGridModalDialog.

    Code Sample


    				//create dialog widget that inherits from $.ui.igGridModalDialog
    				$.widget("ui.CustomDialog", $.ui.igGridModalDialog, {});
    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    						dialogWidget: "CustomDialog"
    						}
    					]
    				});

    				//Get
    				var dialogWidget = $(".selector").igGridColumnMoving("option", "dialogWidget");

  • dragHelperOpacity

    Type:
    number
    Default:
    1.0

    Specifies the opacity of the drag markup, while a column header is being dragged.
    The value must be between 0 and 1. When GroupBy is enabled, the corresponding option in the GroupBy configuration
    will be used with priority over this one.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							dragHelperOpacity: 0.5
    						}
    					]
    				});

    				//Get
    				var dragHelperOpacity = $(".selector").igGridColumnMoving("option", "dragHelperOpacity");

  • dropDownMoveFirstText

    Type:
    string
    Default:
    ""

    Specifies caption for the move first dropdown button.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							dropDownMoveFirstText: "New Move First"
    						}
    					]
    				});

    				//Get
    				var dropDownMoveFirstText = $(".selector").igGridColumnMoving("option", "dropDownMoveFirstText");

  • dropDownMoveLastText

    Type:
    string
    Default:
    ""

    Specifies caption for the move last dropdown button.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							dropDownMoveLastText: "New Move Last"
    						}
    					]
    				});

    				//Get
    				var dropDownMoveLastText = $(".selector").igGridColumnMoving("option", "dropDownMoveLastText");

  • dropDownMoveLeftText

    Type:
    string
    Default:
    ""

    Specifies caption for the move left dropdown button.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							dropDownMoveLeftText: "New Move Left"
    						}
    					]
    				});

    				//Get
    				var dropDownMoveLeftText = $(".selector").igGridColumnMoving("option", "dropDownMoveLeftText");

  • dropDownMoveRightText

    Type:
    string
    Default:
    ""

    Specifies caption for the move right dropdown button.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							dropDownMoveRightText: "New Move Right"
    						}
    					]
    				});

    				//Get
    				var dropDownMoveRightText = $(".selector").igGridColumnMoving("option", "dropDownMoveRightText");

  • featureChooserSubmenuText

    Type:
    string
    Default:
    ""

    Specifies caption text for the feature chooser submenu button.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							featureChooserSubmenuText: "Move to"
    						}
    					]
    				});

    					//Get
    				var featureChooserSubmenuText = $(".selector").igGridColumnMoving("option", "featureChooserSubmenuText");

  • hideHeaderContentsDuringDrag

    Type:
    bool
    Default:
    true

    Specifies whether the contents of the column being dragged will get hidden. The option is only
    relevant in immediate moving mode.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							hideHeaderContentsDuringDrag: false
    						}
    					]
    				});

    					//Get
    				var hideHeaderContentsDuringDrag = $(".selector").igGridColumnMoving("option", "hideHeaderContentsDuringDrag");

  • inherit

    Type:
    bool
    Default:
    false

    Enables/disables feature inheritance for the child layouts. NOTE: It only applies for igHierarchicalGrid.

  • mode

    Type:
    enumeration
    Default:
    immediate

    Specify the drag-and-drop mode for the feature.

    Members

    • immediate
    • Type:string
    • Column headers will rearange as you drag with a space opening under the cursor for the header to be dropped on.
    • deferred
    • Type:string
    • A clone of the header dragged will be created and indicators will be shown between columns to help navigate the drop.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							mode: "deferred"
    						}
    					]
    				});
    				//Get
    				var mode = $(".selector").igGridColumnMoving("option", "mode");

  • moveType

    Type:
    enumeration
    Default:
    dom

    Specify the way columns will be rearranged.

    Members

    • dom
    • Type:string
    • Columns will be rearranged through dom manipulation.
    • render
    • Type:string
    • Columns will not be rearranged but the grid will be rendered again with the new column order. Please note this option is incompatible with immediate move mode.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							moveType: "render"
    						}
    					]
    				});
    				//Get
    				var moveType = $(".selector").igGridColumnMoving("option", "moveType");
    				//Set
    				$(".selector").igGridColumnMoving("option", "moveType", "render");

  • movingAcceptanceTolerance

    Type:
    number
    Default:
    20

    Specifies the length (in pixels) between the dragged column and the column edges below which the move operation is accepted.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingAcceptanceTolerance: 10
    						}
    					]
    				});

    				//Get
    				var movingAcceptanceTolerance = $(".selector").igGridColumnMoving("option", "movingAcceptanceTolerance");

  • movingDialogAnimationDuration

    Type:
    number
    Default:
    200

    Specifies time in milliseconds for animation duration to show/hide modal dialog.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogAnimationDuration: 100
    						}
    					]
    				});

    				//Get
    				var movingDialogAnimationDuration = $(".selector").igGridColumnMoving("option", "movingDialogAnimationDuration");

  • movingDialogCaptionButtonAsc

    Type:
    string
    Default:
    ""

    Specifies caption for each move up button in the column moving dialog.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogCaptionButtonAsc: "Ascending"
    						}
    					]
    				});

    				//Get
    				var movingDialogCaptionButtonAsc = $(".selector").igGridColumnMoving("option", "movingDialogCaptionButtonAsc");

  • movingDialogCaptionButtonDesc

    Type:
    string
    Default:
    ""

    Specifies caption for each move down button in the column moving dialog.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogCaptionButtonDesc: "Descending"
    						}
    					]
    				});

    				//Get
    				var movingDialogCaptionButtonDesc = $(".selector").igGridColumnMoving("option", "movingDialogCaptionButtonDesc");

  • movingDialogCaptionText

    Type:
    string
    Default:
    ""

    Specifies caption text for the column moving dialog.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogCaptionText: "My Moving Dialog"
    						}
    					]
    				});

    				//Get
    				var movingDialogCaptionText = $(".selector").igGridColumnMoving("option", "movingDialogCaptionText");

  • movingDialogDisplayText

    Type:
    string
    Default:
    ""

    Specifies caption text for the feature chooser entry.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogDisplayText: "My Dialog"
    						}
    					]
    				});

    				//Get
    				var movingDialogDisplayText = $(".selector").igGridColumnMoving("option", "movingDialogDisplayText");

  • movingDialogDropTooltipMarkup

    Type:
    string
    Default:
    "<div><p><span></span><strong>{text}</strong></p></div>"

    Specifies markup for drop tooltip in column moving dialog.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogDropTooltipMarkup: "<div style='color:red'><p><span></span><strong>{text}</strong></p></div>"
    						}
    					]
    				});

    				//Get
    				var movingDialogDropTooltipMarkup = $(".selector").igGridColumnMoving("option", "movingDialogDropTooltipMarkup");

  • movingDialogDropTooltipText

    Type:
    string
    Default:
    ""

    Specifies text for drop tooltip in column moving dialog.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogDropTooltipText: "Set your tooltip text"
    						}
    					]
    				});

    				//Get
    				var movingDialogDropTooltipText = $(".selector").igGridColumnMoving("option", "movingDialogDropTooltipText");

  • movingDialogHeight

    Type:
    number
    Default:
    ""

    Specifies height of column moving dialog.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogHeight: "400px"
    						}
    					]
    				});

    				//Get
    				var movingDialogHeight = $(".selector").igGridColumnMoving("option", "movingDialogHeight");

  • movingDialogWidth

    Type:
    number
    Default:
    400

    Specifies width of column moving dialog.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogWidth: "300px"
    						}
    					]
    				});

    				//Get
    				var movingDialogWidth = $(".selector").igGridColumnMoving("option", "movingDialogWidth");

  • movingScrollTolerance

    Type:
    number
    Default:
    20

    Specifies the length (in pixels) between the dragged column and the grid edges below which horizontal scrolling occurs.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingScrollTolerance: 10
    						}
    					]
    				});

    				//Get
    				var movingScrollTolerance = $(".selector").igGridColumnMoving("option", "movingScrollTolerance");

  • movingToolTipMove

    Type:
    string
    Default:
    ""

    Specifies tooltip text for the move indicator.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingToolTipMove: "My tooltip"
    						}
    					]
    				});

    				//Get
    				var movingToolTipMove = $(".selector").igGridColumnMoving("option", "movingToolTipMove");

  • scrollDelta

    Type:
    number
    Default:
    2

    Specifies the length (in pixels) of each individual scroll operation.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							scrollDelta: 4
    						}
    					]
    				});

    				//Get
    				var scrollDelta = $(".selector").igGridColumnMoving("option", "scrollDelta");

  • scrollSpeedMultiplier

    Type:
    number
    Default:
    2.0

    Specifies a multiplier for the delay between subsequent scroll operations. The larger this number is, the slower scrolling will appear to be.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							scrollSpeedMultiplier: 4.0
    						}
    					]
    				});

    				//Get
    				var scrollSpeedMultiplier = $(".selector").igGridColumnMoving("option", "scrollSpeedMultiplier");


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • columnDragCanceled

    Cancellable:
    false

    Event which is fired when a drag operation is canceled.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • columnKey
          Type: String

          Gets the column key of the column that was being dragged.

        • columnIndex
          Type: Number

          Gets the column index of the column that was being dragged.

        • owner
          Type: jQuery

          Gets a reference to the widget.

        • header
          Type: jQuery

          Gets a reference to the orginal th being dragged.

        • helper
          Type: jQuery

          Gets a reference to cloned DOM element that was actually being dragged.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcolumnmovingcolumndragcanceled", function (evt, args) {
    					//return the triggered event
    					evt;

    					// reference to the igGridColumnMoving widget.
    					args.owner;

    					// reference to the grid widget.
    					args.owner.grid;

    					// the key of the column, which was being dragged
    					args.columnKey;

    					// the index of the column, which was being dragged
    					args.columnIndex;

    					// the orginal th that was being dragged
    					args.header;

    					// the cloned DOM element that was actually being dragged
    					args.helper;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							columnDragCanceled: function(evt, args){ ... }
    						}
    					]
    				});

  • columnDragEnd

    Cancellable:
    false

    Event which is fired when a drag operation ends on a column header.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • columnKey
          Type: String

          Gets the column key of the column that was being dragged.

        • columnIndex
          Type: Number

          Gets the column index of the column that was being dragged.

        • owner
          Type: jQuery

          Gets a reference to the widget.

        • header
          Type: jQuery

          Gets a reference to the orginal th that was being dragged.

        • helper
          Type: jQuery

          Gets a reference to cloned DOM element that was actually being dragged.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcolumnmovingcolumndragend", function (evt, args) {
    					//return the triggered event
    					evt;

    					// reference to the igGridColumnMoving widget.
    					args.owner;

    					// reference to the grid widget.
    					args.owner.grid;

    					// the key of the column, which was being dragged
    					args.columnKey;

    					// the index of the column, which was being dragged
    					args.columnIndex;

    					// the orginal th that was being dragged
    					args.header;

    					// the cloned DOM element that was actually being dragged
    					args.helper;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							columnDragEnd: function(evt, args){ ... }
    						}
    					]
    				});

  • columnDragStart

    Cancellable:
    true

    Event which is fired when a drag operation begins on a column header.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • columnKey
          Type: String

          Gets the column key of the column being dragged.

        • columnIndex
          Type: Number

          Gets the column index of the column being dragged.

        • owner
          Type: jQuery

          Gets a reference to the widget.

        • header
          Type: jQuery

          Gets a reference to the orginal th being dragged.

        • header
          Type: jQuery

          Gets a reference to cloned DOM element that's actually being dragged.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcolumnmovingcolumndragstart", function (evt, args) {
    					//return the triggered event
    					evt;

    					// reference to the igGridColumnMoving widget.
    					args.owner;

    					// reference to the grid widget.
    					args.owner.grid;

    					// the key of the column, which was being dragged
    					args.columnKey;

    					// the index of the column, which was being dragged
    					args.columnIndex;

    					// the orginal th that was being dragged
    					args.header;

    					// the cloned DOM element that was actually being dragged
    					args.helper;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							columnDragStart: function(evt, args){ ... }
    						}
    					]
    				});

  • columnMoved

    Cancellable:
    false

    Event which is fired when a column moving operation completes.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • columnKey
          Type: String

          Gets the column key of the column that was moved.

        • oldIndex
          Type: Number

          Gets the previous column index of the column that was moved.

        • newIndex
          Type: Number

          Gets the new column index of the column that was being moved.

        • owner
          Type: Object

          Gets a reference to the widget.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcolumnmovingcolumnmoved", function (evt, args) {
    					//return the triggered event
    					evt;

    					// reference to the igGridColumnMoving widget.
    					args.owner;

    					// reference to the grid widget.
    					args.owner.grid;

    					// the key of the column, which was being moved
    					args.columnKey;

    					// the previous index of the column, which was being moved
    					args.oldIndex;

    					// the new index of the column, which was being moved
    					args.newIndex;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							columnMoved: function(evt, args){ ... }
    						}
    					]
    				});

  • columnMoving

    Cancellable:
    true

    Event which is fired when a column moving operation is initiated.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • columnKey
          Type: String

          Gets the column key of the column that was being moved.

        • columnIndex
          Type: Number

          Gets the column index of the column that was being moved.

        • targetIndex
          Type: Number

          Gets the new column index of the column that was being moved.

        • owner
          Type: jQuery

          Gets a reference to the widget.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcolumnmovingcolumnmoving", function (evt, args) {
    					//return the triggered event
    					evt;

    					// reference to the igGridColumnMoving widget.
    					args.owner;

    					// reference to the grid widget.
    					args.owner.grid;

    					// the key of the column, which was being moved
    					args.columnKey;

    					// the index of the column, which was being moved
    					args.columnIndex;

    					// the new column index of the column that was being moved
    					args.targetIndex;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							columnMoving: function(evt, args){ ... }
    						}
    					]
    				});

  • movingDialogClosed

    Cancellable:
    false

    Event fired after the moving dialog has been closed.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets a reference to the ColumnMoving widget.

    • ui
      Type: Object

        • owner.grid
          Type: Object

          Gets the reference to the grid widget.

        • movingDialogElement
          Type: jQuery

          Gets a reference to the moving dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcolumnmovingmovingdialogclosed", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// reference to the igGridColumnMoving widget.
    					ui.owner;

    					// reference to the grid widget.
    					ui.owner.grid;

    					// he moving dialog element. This is a jQuery object.
    					ui.movingDialogElement;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogClosed: function(evt, ui){ ... }
    						}
    					]
    				});

  • movingDialogClosing

    Cancellable:
    true

    Event fired before the moving dialog is closed.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets a reference to the ColumnMoving widget.

    • ui
      Type: Object

        • owner.grid
          Type: Object

          Gets the reference to the grid widget.

        • movingDialogElement
          Type: jQuery

          Gets a reference to the moving dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcolumnmovingmovingdialogclosed", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// reference to the igGridColumnMoving widget.
    					ui.owner;

    					// reference to the grid widget.
    					ui.owner.grid;

    					// the moving dialog element. This is a jQuery object.
    					ui.movingDialogElement;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogClosed: function(evt, ui){ ... }
    						}
    					]
    				});

  • movingDialogContentsRendered

    Cancellable:
    false

    Event fired after the contents of the model dialog are rendered.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets a reference to the ColumnMoving widget.

    • ui
      Type: Object

        • owner.grid
          Type: Object

          Gets the reference to the grid widget.

        • movingDialog
          Type: jQuery

          Gets a reference to the Moving Dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcolumnmovingmovingdialogcontentsrendered", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// reference to the igGridColumnMoving widget.
    					ui.owner;

    					// reference to the grid widget.
    					ui.owner.grid;

    					// the moving dialog element. This is a jQuery object.
    					ui.movingDialog;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogContentsRendered: function(evt, ui){ ... }
    						}
    					]
    				});

  • movingDialogContentsRendering

    Cancellable:
    true

    Event fired before the contents of the model dialog are rendered.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets a reference to the ColumnMoving widget.

    • ui
      Type: Object

        • owner.grid
          Type: Object

          Gets the reference to the grid widget.

        • movingDialog
          Type: jQuery

          Gets a reference to the Moving Dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcolumnmovingmovingdialogcontentsrendering", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// reference to the igGridColumnMoving widget.
    					ui.owner;

    					// reference to the grid widget.
    					ui.owner.grid;

    					// the moving dialog element. This is a jQuery object.
    					ui.movingDialog;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogContentsRendering: function(evt, ui){ ... }
    						}
    					]
    				});

  • movingDialogDragColumnMoved

    Cancellable:
    false

    Event fired when column moving is completed through dragging it in the moving dialog.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets a reference to the ColumnMoving widget.

    • ui
      Type: Object

        • owner.grid
          Type: Object

          Gets the reference to the grid widget.

        • movingDialog
          Type: jQuery

          Gets a reference to the Moving Dialog element. This is a jQuery object.

        • columnKey
          Type: String

          Gets the column key of the column that was being moved.

        • columnIndex
          Type: Number

          Gets the column index of the column that was being moved.

        • targetIndex
          Type: Number

          Gets the new column index of the column that was being moved.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcolumnmovingmovingdialogdragcolumnmoved", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// reference to the igGridColumnMoving widget.
    					ui.owner;

    					// reference to the grid widget.
    					ui.owner.grid;

    					// the moving dialog element. This is a jQuery object.
    					ui.movingDialog;

    					// the key of the column, which was being moved
    					ui.columnKey;

    					// the index of the column, which was being moved
    					ui.columnIndex;

    					// the new column index of the column that was being moved
    					ui.targetIndex;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogDragColumnMoved: function(evt, ui){ ... }
    						}
    					]
    				});

  • movingDialogDragColumnMoving

    Cancellable:
    true

    Event fired when column moving is initiated through dragging it in the moving dialog.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets a reference to the ColumnMoving widget.

    • ui
      Type: Object

        • owner.grid
          Type: Object

          Gets the reference to the grid widget.

        • movingDialog
          Type: jQuery

          Gets a reference to the Moving Dialog element. This is a jQuery object.

        • columnKey
          Type: String

          Gets the column key of the column that was being moved.

        • columnIndex
          Type: Number

          Gets the column index of the column that was being moved.

        • targetIndex
          Type: Number

          Gets the new column index of the column that was being moved.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcolumnmovingmovingdialogdragcolumnmoving", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// reference to the igGridColumnMoving widget.
    					ui.owner;

    					// reference to the grid widget.
    					ui.owner.grid;

    					// the moving dialog element. This is a jQuery object.
    					ui.movingDialog;

    					// the key of the column, which was being moved
    					ui.columnKey;

    					// the index of the column, which was being moved
    					ui.columnIndex;

    					// the new column index of the column that was being moved
    					ui.targetIndex;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogDragColumnMoving: function(evt, ui){ ... }
    						}
    					]
    				});

  • movingDialogDragged

    Cancellable:
    false

    Event fired every time the moving dialog changes its position.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets a reference to the ColumnMoving widget.

    • ui
      Type: Object

        • owner.grid
          Type: Object

          Gets the reference to the grid widget.

        • movingDialogElement
          Type: jQuery

          Gets a reference to the moving dialog element. This is a jQuery object.

        • originalPosition
          Type: Object

          Gets the original position of the moving dialog div as { top, left } object, relative to the page.

        • position
          Type: Object

          Gets the current position of the moving dialog div as { top, left } object, relative to the page.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcolumnmovingmovingmovingdialogdragged", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// reference to the igGridColumnMoving widget.
    					ui.owner;

    					// reference to the grid widget.
    					ui.owner.grid;

    					// the moving dialog element. This is a jQuery object.
    					ui.movingDialogElement;

    					// the original position of the moving dialog div as { top, left } object, relative to the page
    					ui.originalPosition;

    					// the current position of the moving dialog div as { top, left } object, relative to the page
    					ui.position;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogDragged: function(evt, ui){ ... }
    						}
    					]
    				});

  • movingDialogMoveDownButtonPressed

    Cancellable:
    false

    Event fired when move down button is pressed in the moving dialog.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets a reference to the ColumnMoving widget.

    • ui
      Type: Object

        • owner.grid
          Type: Object

          Gets the reference to the grid widget.

        • movingDialog
          Type: jQuery

          Gets a reference to the Moving Dialog element. This is a jQuery object.

        • columnKey
          Type: String

          Gets the column key of the column that was being moved.

        • columnIndex
          Type: Number

          Gets the column index of the column that was being moved.

        • targetIndex
          Type: Number

          Gets the new column index of the column that was being moved.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcolumnmovingmovingdialogmovedownbuttonpressed", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// reference to the igGridColumnMoving widget.
    					ui.owner;

    					// reference to the grid widget.
    					ui.owner.grid;

    					// the moving dialog element. This is a jQuery object.
    					ui.movingDialog;

    					// the key of the column, which was being moved
    					ui.columnKey;

    					// the index of the column, which was being moved
    					ui.columnIndex;

    					// the new column index of the column that was being moved
    					ui.targetIndex;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogMoveDownButtonPressed: function(evt, ui){ ... }
    						}
    					]
    				});

  • movingDialogMoveUpButtonPressed

    Cancellable:
    false

    Event fired when move up button is pressed in the moving dialog.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets a reference to the ColumnMoving widget.

    • ui
      Type: Object

        • owner.grid
          Type: Object

          Gets the reference to the grid widget.

        • movingDialog
          Type: jQuery

          Gets a reference to the Moving Dialog element. This is a jQuery object.

        • columnKey
          Type: String

          Gets the column key of the column that was being moved.

        • columnIndex
          Type: Number

          Gets the column index of the column that was being moved.

        • targetIndex
          Type: Number

          Gets the new column index of the column that was being moved.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcolumnmovingmovingdialogmoveupbuttonpressed", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// reference to the igGridColumnMoving widget.
    					ui.owner;

    					// reference to the grid widget.
    					ui.owner.grid;

    					// the moving dialog element. This is a jQuery object.
    					ui.movingDialog;

    					// the key of the column, which was being moved
    					ui.columnKey;

    					// the index of the column, which was being moved
    					ui.columnIndex;

    					// the new column index of the column that was being moved
    					ui.targetIndex;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogMoveUpButtonPressed: function(evt, ui){ ... }
    						}
    					]
    				});

  • movingDialogOpened

    Cancellable:
    false

    Event fired after the column chooser is already opened.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets a reference to the ColumnMoving widget.

    • ui
      Type: Object

        • owner.grid
          Type: Object

          Gets the reference to the grid widget.

        • movingDialogElement
          Type: jQuery

          Gets a reference to the moving dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcolumnmovingmovingdialogopened", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// reference to the igGridColumnMoving widget.
    					ui.owner;

    					// reference to the grid widget.
    					ui.owner.grid;

    					// the moving dialog element. This is a jQuery object.
    					ui.movingDialogElement;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogOpened: function(evt, ui){ ... }
    						}
    					]
    				});

  • movingDialogOpening

    Cancellable:
    true

    Event fired before the moving dialog is opened.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets a reference to the widget.

    • ui
      Type: Object

        • owner.grid
          Type: Object

          Gets the reference to the grid widget.

        • movingDialogElement
          Type: jQuery

          Gets a reference to the moving dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridcolumnmovingmovingdialogopening", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// reference to the igGridColumnMoving widget.
    					ui.owner;

    					// reference to the grid widget.
    					ui.owner.grid;

    					// the moving dialog element. This is a jQuery object.
    					ui.movingDialogElement;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "ColumnMoving",
    							movingDialogOpening: function(evt, ui){ ... }
    						}
    					]
    				});

  • destroy

    .igGridColumnMoving( "destroy" );

    Restoring overwritten functions.

    Code Sample


    				$(".selector").igGridColumnMoving("destroy");

  • moveColumn

    .igGridColumnMoving( "moveColumn", column:object, target:object, [after:bool], [inDom:bool], [callback:function] );

    Moves a visible column at a specified place, in front or behind a target column or at a target index
    Note: This method is asynchronous which means that it returns immediately and any subsequent code will execute in parallel. This may lead to runtime errors. To avoid them put the subsequent code in the callback parameter provided by the method.

    • column
    • Type:object
    • An identifier of the column to be moved. It can be a key, a Multi-Column Header identificator, or an index in a number format. The latter is not supported when the grid contains multi-column headers.
    • target
    • Type:object
    • An identifier of a column where the moved column should move to or an index at which the moved column should be moved to. In the case of a column identifier the column will be moved after it by default.
    • after
    • Type:bool
    • Optional
    • Specifies whether the column moved should be moved after or before the target column.
    • inDom
    • Type:bool
    • Optional
    • Specifies whether the column moving will be enacted through DOM manipulation or through rerendering of the grid.
    • callback
    • Type:function
    • Optional
    • Specifies a custom function to be called when the column is moved.

    Code Sample


    				// calling method with column indexes
    				$(".selector").igGridColumnMoving("moveColumn", 0, 1, true, false);

    				// calling method with column keys
    				$(".selector").igGridColumnMoving("moveColumn", "ProductId", "ProductName", true, true);

    				// calling method with column keys and function callback
    				$(".selector").igGridColumnMoving("moveColumn", "ProductId", "ProductName", true, true, function () {
    					// Custom code executed after the move operation finishes
    				});

  • ui-iggrid-columnmoving-dropdown-dialog ui-widget ui-widget-content ui-corner-all

    Classes applied to the column moving dropdown dialog.
  • ui-iggrid-columnmoving-dropdown-ddlistitemicons ui-state-default

    Classes applied to each item in the column moving dropdown list.
  • ui-iggrid-columnmoving-dropdown-listitem-hover ui-state-active ui-state-hover

    Classes applied to each item in the column moving dropdown list when mouse hovers over them.
  • ui-iggrid-columnmoving-dropdown-ddlistitemtext

    Classes applied to the text of each item in the column moving dropdown list when mouse hovers over them.
  • ui-iggrid-columnmoving-dropdown-list ui-menu

    Classes applied to the column moving dropdown list.
  • ui-iggrid-hiding-indicator-selected

    Classes applied to the column indicators of the moving drop down.
  • ui-iggrid-columnmoving-dragbottom ui-icon ui-icon-triangle-1-n

    Classes applied to the bottom column moving indicator in deferred mode.
  • ui-iggrid-columnmoving-dragleft

    Classes applied to the column moving indicators in deferred mode when they are tilted to the left.
  • ui-iggrid-columnmoving-dragright

    Classes applied to the column moving indicators in deferred mode when they are tilted to the right.
  • ui-iggrid-columnmoving-dragtop ui-icon ui-icon-triangle-1-s

    Classes applied to the top column moving indicator in deferred mode.
  • ui-iggrid-moving-indicator

    Classes applied to the table header button expanding the moving dropdown.
  • ui-iggrid-columnmovingiconcontainer

    Classes applied to the feature chooser icon container.
  • ui-iggrid-indicatorcontainer

    Classes applied to the container for the drop down header button.
  • ui-iggrid-featurechooser-li-iconcontainer ui-icon ui-iggrid-icon-first

    Classes applied to the move first icon for the column moving dialog.
  • ui-iggrid-featurechooser-li-iconcontainer ui-icon ui-iggrid-icon-last

    Classes applied to the move last icon for the column moving dialog.
  • ui-iggrid-featurechooser-li-iconcontainer ui-icon ui-iggrid-icon-left

    Classes applied to the move left icon for the column moving dialog.
  • ui-icon ui-iggrid-icon-move

    Classes applied to the feature chooser icon for column moving feature.
  • ui-iggrid-featurechooser-li-iconcontainer ui-icon ui-iggrid-icon-right

    Classes applied to the move right icon for the column moving dialog.
  • ui-iggrid-featurechooser-list-submenu ui-menu ui-widget ui-widget-content ui-corner-all

    Classes applied to the feature chooser submenu containing the moving items.
  • ui-iggrid-featurechooser-list-submenu-item ui-state-default

    Classes applied to the feature chooser submenu moving items.
  • ui-state-hover

    Classes applied to the feature chooser submenu moving items when hovering over them with the mouse.
  • ui-state-hover

    Classes applied to the table header cells when the mouse hovers on them.
  • ui-icon ui-icon-close

    Classes applied to the close button for the moving dialog.
  • ui-iggrid-moving-dialog-columns

    Classes applied to the lists of items in the moving dialog.
  • ui-widget-content

    Classes applied to the items in the item lists in the moving dialog.
  • ui-button ui-corner-all ui-button-icon-only ig-sorting-indicator

    Classes applied to the inner button elements of the arrow indicators in the moving dialog.
  • ui-icon-arrowthick-1-s ui-button-icon-primary ui-icon

    Classes applied to the move down arrow of each list item in the moving dialog.
  • ui-icon-arrowthick-1-n ui-button-icon-primary ui-icon

    Classes applied to the move up arrow of each list item in the moving dialog.
  • ui-iggrid-dialog-text

    Classes applied to the text of each list item in the moving dialog.

Copyright © 1996 - 2024 Infragistics, Inc. All rights reserved.
