ui.igRadialGauge

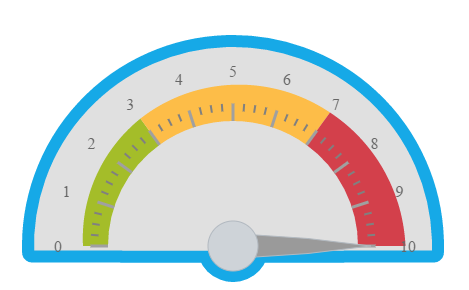

ui.igRadialGauge_image

Make your data visualizations and dashboards more engaging with Radial Gauges that show off KPIs with rich style and interactivity. The round and semi-round gauges are powerful, easy to use, and highly configurable to present dashboards capable of displaying clocks, industrial panels, automotive dashboards, and even aircraft cockpits.

The following code snippet demonstrates how to initialize the igRadialGauge.

For details on how to reference the required scripts and themes for the igRadialGauge control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
    <script src="js/infragistics.dv.js" type="text/javascript"></script>
</head>
<body>
	<div id="radialgauge"></div>

    <script>
        $(function () {
            $("#radialgauge").igRadialGauge({
				height: "500px",
				width: "500px",
				minimumValue: "0",
				maximumValue: "10",
				value: "10",

				//Scale Settings
				scaleStartAngle: "180",
				scaleEndAngle: "0",
				scaleBrush: "transparent",

				//Backing Settings
				backingShape: "fitted",
				backingOutline: "rgba(22, 169, 231, 1)",
				backingBrush: "rgba(224, 224, 224, 1)",

				transitionDuration: "3000",

				//Needle Settings
				needleShape: "needle",
				needlePivotShape: "circleOverlay",
				needleEndExtent: "0.55",
				needlePointFeatureExtent: "0.3",
				needlePivotWidthRatio: "0.2",

				//TickMark Settings
				tickBrush: "rgba(160, 160, 160, 1)",
				minorTickBrush: "gray",

				//Label Settings
				labelExtent: "0.7"

			});

			$("#radialgauge").igRadialGauge("option", "ranges", [{ name: "range1", remove: true }]);
			$("#radialgauge").igRadialGauge("option", "ranges", [{ name: "range2", remove: true }]);
			$("#radialgauge").igRadialGauge("option", "ranges", [{ name: "range3", remove: true }]);

			$("#radialgauge").igRadialGauge("option", "ranges", [{
				name: "range1",
				brush: "rgba(164, 189, 41, 1)",
				startValue: "0",
				endValue: "3",
				outerStartExtent: "0.6",
				outerEndExtent: "0.63"
			}, {
				name: "range2",
				brush: "rgba(253, 189, 72, 1)",
				startValue: "3",
				endValue: "7",
				outerStartExtent: "0.63",
				outerEndExtent: "0.66"
			}, {
				name: "range3",
				brush: "rgba(211, 64, 75, 1)",
				startValue: "7",
				endValue: "10",
				outerStartExtent: "0.66",
				outerEndExtent: "0.69"
			}]);
        });
    </script>
</body>
</html>


Related Samples

Related Topics

Dependencies

jquery.js
jquery-ui.js
infragistics.util.js
infragistics.util.jquery.js
infragistics.ext_core.js
infragistics.ext_collections.js
infragistics.ext_ui.js
infragistics.dv_core.js
infragistics.dv_geometry.js
infragistics.dv_jquerydom.js
infragistics.radialgauge.js
infragistics.ui.widget.js

Inherits

  • backingBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use to fill the backing of the gauge.

    Code Sample

      //Initialize
            $(".selector").igRadialGauge({
              backingBrush: "rgba(236, 237, 239, 1)"
            });

            //Get
            var backBrush = $(".selector").igRadialGauge("option", "backingBrush");

            //Set
            $(".selector").igRadialGauge("option", "backingBrush", [ "#ff0000", "#ffff00", "#00ffff" ]);
  • backingCornerRadius

    Type:
    number
    Default:
    4

    Gets or sets the corner rounding radius to use for the fitted scale backings.

    Code Sample

      //Initialize
            $(".selector").igRadialGauge({
                backingCornerRadius: "0.4"
            });

            //Get
            var backCornerRadius = $(".selector").igRadialGauge("option", "backingCornerRadius");

            //Set
            $(".selector").igRadialGauge("option", "backingCornerRadius", "0.4");
  • backingInnerExtent

    Type:
    number
    Default:
    0.12

    Gets or sets the inner extent of the gauge backing.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                backingInnerExtent: "0.4"
            });

            //Get
            var backInnerExtent = $(".selector").igRadialGauge("option", "backingInnerExtent");

            //Set
            $(".selector").igRadialGauge("option", "backingInnerExtent", "0.4");
  • backingOuterExtent

    Type:
    number
    Default:
    0.82

    Gets or sets the outer extent of the gauge backing.

    Code Sample

      //Initialize
            $(".selector").igRadialGauge({
                backingOuterExtent: "0.4"
            });

            //Get
            var backOuterExtent = $(".selector").igRadialGauge("option", "backingOuterExtent");

            //Set
            $(".selector").igRadialGauge("option", "backingOuterExtent", "0.4");
  • backingOutline

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for the outline of the backing.

    Code Sample

      //Initialize
            $(".selector").igRadialGauge({
                backingOutline: "rgba(236, 237, 239, 1)"
            });

            //Get
            var backOutline = $(".selector").igRadialGauge("option", "backingOutline");

            //Set
            $(".selector").igRadialGauge("option", "backingOutline", [ "#ff0000", "#ffff00", "#00ffff" ]);
  • backingOversweep

    Type:
    number
    Default:
    3

    Gets or sets the over sweep angle to apply to the backing if it is displaying fitted (in degrees). Must be greater or equal to 0.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                backingOversweep: "20"
            });

            //Get
            var backOversweep = $(".selector").igRadialGauge("option", "backingOversweep");

            //Set
            $(".selector").igRadialGauge("option", "backingOversweep", "20");
  • backingShape

    Type:
    enumeration
    Default:
    circular

    Gets or sets the type of shape to use for the backing of the gauge.

    Members

    • circular
    • Type:string
    • A circular backing shape.
    • fitted
    • Type:string
    • A fitted backing shape.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                backingShape: "fitted"
            });

            //Get
            var backShape = $(".selector").igRadialGauge("option", "backingShape");

            //Set
            $(".selector").igRadialGauge("option", "backingShape", "20");
  • backingStrokeThickness

    Type:
    number
    Default:
    12

    Gets or sets the stroke thickness of the backing outline.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                backingStrokeThickness: "1"
            });

            //Get
            var backStrokeThickness = $(".selector").igRadialGauge("option", "backingStrokeThickness");

            //Set
            $(".selector").igRadialGauge("option", "backingStrokeThickness", "1");
  • centerX

    Type:
    number
    Default:
    0.5

    Gets or sets the x position of the center of the gauge with the value ranging from 0 to 1.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                centerX: "0.5"
            });

            //Get
            var cenX = $(".selector").igRadialGauge("option", "centerX");

            //Set
            $(".selector").igRadialGauge("option", "centerX", "0.5");
  • centerY

    Type:
    number
    Default:
    0.5

    Gets or sets the y position of the center of the gauge with the value ranging from 0 to 1.

    Code Sample

    //Initialize
            $(".selector").igRadialGauge({
                centerY: "0.8"
            });

            //Get
            var cenY = $(".selector").igRadialGauge("option", "centerY");

            //Set
            $(".selector").igRadialGauge("option", "centerY", "0.8");
  • duplicateLabelOmissionStrategy

    Type:
    enumeration
    Default:
    omitLast

    Gets or sets the strategy to use for omitting labels if the first and last label have the same value.

    Members

    • omitLast
    • Type:string
    • Omit the last label.
    • omitFirst
    • Type:string
    • Omit the first label.
    • omitNeither
    • Type:string
    • Omit no labels.
    • omitBoth
    • Type:string
    • Omit both labels.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                duplicateLabelOmissionStrategy: "omitLast"
            });

            //Get
            var dupLabelOmissionStrategy = $(".selector").igRadialGauge("option", "duplicateLabelOmissionStrategy");

            //Set
            $(".selector").igRadialGauge("option", "duplicateLabelOmissionStrategy", "omitLast");
  • font

    Type:
    string
    Default:
    null

    Gets or sets the font.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                font: "rgba(236, 237, 239, 1)"
            });

            //Get
            var gaugeFont = $(".selector").igRadialGauge("option", "font");

            //Set
            $(".selector").igRadialGauge("option", "font", [ "#ff0000", "#ffff00", "#00ffff" ]);
  • fontBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for the label font.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                fontBrush: "rgba(236, 237, 239, 1)"
            });

            //Get
            var gaugeFontBrush = $(".selector").igRadialGauge("option", "fontBrush");

            //Set
            $(".selector").igRadialGauge("option", "fontBrush", [ "#ff0000", "#ffff00", "#00ffff" ]);
  • height

    Type:
    enumeration
    Default:
    null

    The height of the gauge. It can be set as a number in pixels, string (px) or percentage (%).

    Members

      • string
      • The widget height can be set in pixels (px) and percentage (%).
      • number
      • The widget height can be set as a number.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                height: 250
            });

            //Get
            var height= $(".selector").igRadialGauge("option", "height");

            //Set
            $(".selector").igRadialGauge("option", "height", 250);
  • interval

    Type:
    number
    Default:
    NaN

    Gets or sets the interval to use for the scale.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                interval: "1"
            });

            //Get
            var gaugeInterval = $(".selector").igRadialGauge("option", "gaugeInterval");

            //Set
            $(".selector").igRadialGauge("option", "gaugeInterval", "1");
  • isNeedleDraggingConstrained

    Type:
    bool
    Default:
    true

    Gets or sets whether the needle is constrained within the minimum and maximum value range during dragging.

    Code Sample

     // Initialize
            $(".selector").igRadialGauge({
                isNeedleDraggingConstrained: true
            });

            // Get
            var isDraggingEnabled = $(".selector").igRadialGauge("option", "isNeedleDraggingConstrained");

            // Set
            $(".selector").igRadialGauge("option", "isNeedleDraggingConstrained", true);

  • isNeedleDraggingEnabled

    Type:
    bool
    Default:
    false

    Gets or sets whether needle dragging is enabled or not.

    Code Sample

     // Initialize
            $(".selector").igRadialGauge({
                isNeedleDraggingEnabled: true
            });

            // Get
            var isDraggingEnabled = $(".selector").igRadialGauge("option", "isNeedleDraggingEnabled");

            // Set
            $(".selector").igRadialGauge("option", "isNeedleDraggingEnabled", true);
  • labelExtent

    Type:
    number
    Default:
    0.65

    Gets or sets the position at which to put the labels as a value from 0 to 1, measured form the center of the gauge.
    Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                labelExtent: "0.5"
            });

            //Get
            var gaugeLabelExtent = $(".selector").igRadialGauge("option", "labelExtent");

            //Set
            $(".selector").igRadialGauge("option", "labelExtent", "0.5");
  • labelInterval

    Type:
    number
    Default:
    NaN

    Gets or sets the interval to use for rendering labels. This defaults to be the same interval as the tickmarks on the scale.

    Code Sample

    //Initialize
            $(".selector").igRadialGauge({
                labelInterval: "1"
            });

            //Get
            var gaugeLabelInterval = $(".selector").igRadialGauge("option", "labelInterval");

            //Set
            $(".selector").igRadialGauge("option", "backingShape", "20");
  • language
    Inherited

    Type:
    string
    Default:
    "en"

    Set/Get the locale language setting for the widget.

    Code Sample


    					//Initialize
    				$(".selector").igRadialGauge({
    					language: "ja"
    				});

    				// Get
    				var language = $(".selector").igRadialGauge("option", "language");

    				// Set
    				$(".selector").igRadialGauge("option", "language", "ja");

  • locale
    Inherited

    Type:
    object
    Default:
    null

    Set/Get the locale setting for the widget.

    Code Sample


    					//Initialize
    				$(".selector").igRadialGauge({
    					locale: {}
    				});

    				// Get
    				var locale = $(".selector").igRadialGauge("option", "locale");

    				// Set
    				$(".selector").igRadialGauge("option", "locale", {});

  • maximumValue

    Type:
    number
    Default:
    100

    Gets or sets the maximum value of the scale.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                maximumValue: "100"
            });

            //Get
            var maxValue = $(".selector").igRadialGauge("option", "maximumValue");

            //Set
            $(".selector").igRadialGauge("option", "maximumValue", "100");
  • minimumValue

    Type:
    number
    Default:
    0

    Gets or sets the minimum value of the scale.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                 minimumValue: "0"
            });

            //Get
            var minValue = $(".selector").igRadialGauge("option", "minimumValue");

            //Set
            $(".selector").igRadialGauge("option", "minimumValue", "0");
  • minorTickBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for the minor tickmarks.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                minorTickBrush: "rgba(236, 237, 239, 1)"
            });

            //Get
            var minTickBrush = $(".selector").igRadialGauge("option", "minorTickBrush");

            //Set
            $(".selector").igRadialGauge("option", "minorTickBrush", [ "#ff0000", "#ffff00", "#00ffff" ]);
  • minorTickCount

    Type:
    number
    Default:
    3

    Gets or sets the number of minor tickmarks to place between major tickmarks.

    Code Sample

    //Initialize
            $(".selector").igRadialGauge({
                minorTickCount: "1"
            });

            //Get
            var minTickCount = $(".selector").igRadialGauge("option", "minorTickCount");

            //Set
            $(".selector").igRadialGauge("option", "minorTickCount", "1");
  • minorTickEndExtent

    Type:
    number
    Default:
    0.57

    Gets or sets the position at which to stop rendering the minor tickmarks as a value from 0 to 1, measured from the center of the gauge.
    Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                minorTickEndExtent: "0.5"
            });

            //Get
            var minTickEndExtent = $(".selector").igRadialGauge("option", "minorTickEndExtent");

            //Set
            $(".selector").igRadialGauge("option", "minorTickEndExtent", "0.5");
  • minorTickStartExtent

    Type:
    number
    Default:
    0.54

    Gets or sets the position at which to start rendering the minor tickmarks as a value from 0 to 1, measured from the center of the gauge.
    Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                minorTickStartExtent: "0.5"
            });

            //Get
            var minTickStartExtent = $(".selector").igRadialGauge("option", "minorTickStartExtent");

            //Set
            $(".selector").igRadialGauge("option", "minorTickStartExtent", "0.5");
  • minorTickStrokeThickness

    Type:
    number
    Default:
    2

    Gets or sets the stroke thickness to use when rendering minor ticks.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                minorTickStrokeThickness: "1"
            });

            //Get
            var minTickStrokeThickness = $(".selector").igRadialGauge("option", "minorTickStrokeThickness");

            //Set
            $(".selector").igRadialGauge("option", "minorTickStrokeThickness", "1");
  • needleBaseFeatureExtent

    Type:
    number
    Default:
    NaN

    Gets or sets the extent of the feature which is closest to the base (e.g. a bulb) with a value from -1 to 1. Note: Only some needle shapes respect this property, namely: NeedleWithBulb, RectangleWithBulb, TrapezoidWithBulb, and TriangleWithBulb.
    Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                needleBaseFeatureExtent: "0.5"
            });

            //Get
            var gaugeNeedleBaseFeatureExtent = $(".selector").igRadialGauge("option", "needleBaseFeatureExtent");

            //Set
            $(".selector").igRadialGauge("option", "needleBaseFeatureExtent", "0.5");
  • needleBaseFeatureWidthRatio

    Type:
    number
    Default:
    NaN

    Gets or sets the width of the needle at its feature which is closest to the base (e.g. a bulb) with a value from 0 to 1. Note: Only some needle shapes respect this property, namely: NeedleWithBulb, RectangleWithBulb, TrapezoidWithBulb, and TriangleWithBulb.
    Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                needleBaseFeatureWidthRatio: "0.5"
            });

            //Get
            var gaugeNeedleBaseFeatureWidthRatio = $(".selector").igRadialGauge("option", "needleBaseFeatureWidthRatio");

            //Set
            $(".selector").igRadialGauge("option", "needleBaseFeatureWidthRatio", "0.5");
  • needleBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use when rendering the fill of the needle.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                needleBrush: "rgba(236, 237, 239, 1)"
            });

            //Get
            var gaugeNeedleBrush = $(".selector").igRadialGauge("option", "needleBrush");

            //Set
            $(".selector").igRadialGauge("option", "needleBrush", [ "#ff0000", "#ffff00", "#00ffff" ]);
  • needleEndExtent

    Type:
    number
    Default:
    NaN

    Gets or sets the extent (from -1 to 1) at which to end rendering the needle, measured from the center of the gauge.
    Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                needleEndExtent: "0.5"
            });

            //Get
            var gaugeNeedleEndExtent = $(".selector").igRadialGauge("option", "needleEndExtent");

            //Set
            $(".selector").igRadialGauge("option", "needleEndExtent", "0.5");
  • needleEndWidthRatio

    Type:
    number
    Default:
    NaN

    Gets or sets the width of the needle at its point using a value from (0 to 1). Note: Only some needle shapes respect this property.
    Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                needleEndWidthRatio: "0.5"
            });

            //Get
            var gaugeNeedleEndWidthRatio = $(".selector").igRadialGauge("option", "needleEndWidthRatio");

            //Set
            $(".selector").igRadialGauge("option", "needleEndWidthRatio", "0.5");
  • needleOutline

    Type:
    string
    Default:
    null

    Gets or sets the brush to use when rendering the outline of the needle.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                needleOutline: "rgba(236, 237, 239, 1)"
            });

            //Get
            var gaugeNeedleOutline = $(".selector").igRadialGauge("option", "needleOutline");

            //Set
            $(".selector").igRadialGauge("option", "needleOutline", [ "#ff0000", "#ffff00", "#00ffff" ]);
  • needlePivotBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for filling the needle cap. Note: this only applies to certain cap shapes.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                needlePivotBrush: "rgba(236, 237, 239, 1)"
            });

            //Get
            var gaugeNeedlePivotBrush = $(".selector").igRadialGauge("option", "needlePivotBrush");

            //Set
            $(".selector").igRadialGauge("option", "needlePivotBrush", [ "#ff0000", "#ffff00", "#00ffff" ]);
  • needlePivotInnerWidthRatio

    Type:
    number
    Default:
    NaN

    Gets or sets the width of the inner cutout section of the needle cap with a value from 0 to 1. Note: Will only take effect if you have a cap set on the needle that has a cutout section.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                needlePivotInnerWidthRatio: "0.5"
            });

            //Get
            var gaugeNeedlePivotInnerWidthRatio = $(".selector").igRadialGauge("option", "needlePivotInnerWidthRatio");

            //Set
            $(".selector").igRadialGauge("option", "needlePivotInnerWidthRatio", "0.5");
  • needlePivotOutline

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for the outlines of the needle cap.

    Code Sample

      //Initialize
            $(".selector").igRadialGauge({
                needlePivotOutline: "rgba(236, 237, 239, 1)"
            });

            //Get
            var gaugeNeedlePivotOutline = $(".selector").igRadialGauge("option", "needlePivotOutline");

            //Set
            $(".selector").igRadialGauge("option", "needlePivotOutline", [ "#ff0000", "#ffff00", "#00ffff" ]);
  • needlePivotShape

    Type:
    enumeration
    Default:
    circleOverlay

    Gets or sets the shape to use for the needle cap.

    Members

    • none
    • Type:string
    • No pivot shape.
    • circle
    • Type:string
    • A circle shaped pivot.
    • circleWithHole
    • Type:string
    • A circle pivot with a hole in it.
    • circleOverlay
    • Type:string
    • A circle pivot overlayed on top of the needle.
    • circleOverlayWithHole
    • Type:string
    • A circle pivot with a hole in it overlayed on top of the needle.
    • circleUnderlay
    • Type:string
    • A circle pivot rendered underneath the needle.
    • circleUnderlayWithHole
    • Type:string
    • A circle pivot with a hold in it rendered underneath the needle.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                needlePivotShape: "circle"
            });

            //Get
            var gaugeNeedlePivotShape = $(".selector").igRadialGauge("option", "needlePivotShape");

            //Set
            $(".selector").igRadialGauge("option", "needlePivotShape", "circle");
  • needlePivotStrokeThickness

    Type:
    number
    Default:
    1

    Gets or sets the stroke thickness to use for the outline of the needle cap.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                needlePivotStrokeThickness: "2"
            });

            //Get
            var gaugeNeedlePivotStrokeThicknesso = $(".selector").igRadialGauge("option", "needlePivotStrokeThickness");

            //Set
            $(".selector").igRadialGauge("option", "needlePivotStrokeThickness", "2");
  • needlePivotWidthRatio

    Type:
    number
    Default:
    NaN

    Gets or sets the width of the cap of the needle with a value from 0 to 1. Note: Will only take effect if you have a cap set on the needle.
    Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

    Code Sample

    //Initialize
            $(".selector").igRadialGauge({
                needlePivotWidthRatio: "0.5"
            });

            //Get
            var gaugeNeedlePivotWidthRatio = $(".selector").igRadialGauge("option", "needlePivotWidthRatio");

            //Set
            $(".selector").igRadialGauge("option", "needlePivotWidthRatio", "0.5");
  • needlePointFeatureExtent

    Type:
    number
    Default:
    NaN

    Gets or sets the extent of the feature which is closest to the point (e.g. the tapering point of a needle) with a value from -1 to 1. Note: Only some needle shapes respect this property.
    Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                needlePointFeatureExtent: "0.5"
            });

            //Get
            var gaugeNeedlePointFeatureExtent = $(".selector").igRadialGauge("option", "needlePointFeatureExtent");

            //Set
            $(".selector").igRadialGauge("option", "needlePointFeatureExtent", "0.5");
  • needlePointFeatureWidthRatio

    Type:
    number
    Default:
    NaN

    Gets or sets the width of the needle at its feature which is closest to the point (e.g. the tapering point of a needle) with a value from 0 to 1. Note: Only some needle shapes respect this property.
    Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                needlePointFeatureWidthRatio: "0.5"
            });

            //Get
            var gaugeNeedlePointFeatureWidthRatio = $(".selector").igRadialGauge("option", "needlePointFeatureWidthRatio");

            //Set
            $(".selector").igRadialGauge("option", "needlePointFeatureWidthRatio", "0.5");
  • needleShape

    Type:
    enumeration
    Default:
    trapezoid

    Gets or sets the shape to use when rendering the needle from a number of options.

    Members

    • none
    • Type:string
    • No shape.
    • rectangle
    • Type:string
    • A rectangle shape.
    • triangle
    • Type:string
    • A triangle shape.
    • needle
    • Type:string
    • A needle shape.
    • trapezoid
    • Type:string
    • A trapezoid shape.
    • rectangleWithBulb
    • Type:string
    • A rectangle shape with a bulb at the end.
    • triangleWithBulb
    • Type:string
    • A triangle shape with a bulb at the end.
    • needleWithBulb
    • Type:string
    • A needle shape with a bulb at the end.
    • trapezoidWithBulb
    • Type:string
    • A trapezoid shape with a bulb at the end.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                needleShape: "trapezoidWithBulb"
            });

            //Get
            var gaugeNeedleShape = $(".selector").igRadialGauge("option", "needleShape");

            //Set
            $(".selector").igRadialGauge("option", "needleShape", "trapezoidWithBulb");
  • needleStartExtent

    Type:
    number
    Default:
    NaN

    Gets or sets the extent (from -1 to 1) at which to start rendering the needle, measured from the center of the gauge.
    Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                needleStartExtent: "0.5"
            });

            //Get
            var gaugeNeedleStartExtent = $(".selector").igRadialGauge("option", "needleStartExtent");

            //Set
            $(".selector").igRadialGauge("option", "needleStartExtent", "0.5");
  • needleStartWidthRatio

    Type:
    number
    Default:
    NaN

    Gets or sets the width of the needle at its point using a value from (0 to 1). Note: Only some needle shapes respect this property.
    Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                needleStartWidthRatio: "0.5"
            });

            //Get
            var gaugeNeedleStartWidthRatio = $(".selector").igRadialGauge("option", "needleStartWidthRatio");

            //Set
            $(".selector").igRadialGauge("option", "needleStartWidthRatio", "0.5");
  • needleStrokeThickness

    Type:
    number
    Default:
    1

    Gets or sets the stroke thickness of the needle outline.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                needleStrokeThickness: "2"
            });

            //Get
            var gaugeNeedleStrokeThickness = $(".selector").igRadialGauge("option", "needleStrokeThickness");

            //Set
            $(".selector").igRadialGauge("option", "needleStrokeThickness", "2");
  • pixelScalingRatio

    Type:
    number
    Default:
    NaN

    Gets or sets the scaling value used to affect the pixel density of the control.
    A higher scaling ratio will produce crisper visuals at the expense of memory. Lower values will cause the control
    to appear blurry.

    Code Sample


    // Initialize
    $(".selector").igRadialGauge({
        pixelScalingRatio: 2
    });

    // Get
    var pixelScalingRatio = $(".selector").igRadialGauge("option", "pixelScalingRatio");

    // Set
    $(".selector").igRadialGauge("option", "pixelScalingRatio", 2);

  • radiusMultiplier

    Type:
    number
    Default:
    1

    Gets or sets the multiplying factor to apply to the normal radius of the gauge.
    The radius of the gauge is defined by the minimum of the width and height of the control divided by 2.0.
    This introduces a multiplicative factor to that value.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                radiusMultiplier: "0.5"
            });

            //Get
            var gaugeRadiusMultiplier = $(".selector").igRadialGauge("option", "radiusMultiplier");

            //Set
            $(".selector").igRadialGauge("option", "radiusMultiplier", "0.5");
  • rangeBrushes

    Type:
    object
    Default:
    null

    Gets or sets a collection of brushes to be used as the palette for gauge ranges.
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

    Code Sample


         // Initialize
         $(".selector").igRadialGauge({
            rangeBrushes: ["#164F6D", "green", "#AF3", "yellow"],
         });

         // Get
         var rangeBrushes = $(".selector").igRadialGauge("option", "rangeBrushes");

         // Set
         $(".selector").igRadialGauge("option", "rangeBrushes", ["#164F6D", "green", "#AF3", "yellow"]);


  • rangeOutlines

    Type:
    object
    Default:
    null

    Gets or sets a collection of brushes to be used as the palette for gauge outlines.
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

    Code Sample


          // Initialize
          $(".selector").igRadialGauge({
             rangeOutlines: ["#164F6D", "green", "#AF3", "yellow"],
          });

          // Get
          var rangeOutlines = $(".selector").igRadialGauge("option", "rangeOutlines");

          // Set
         $(".selector").igRadialGauge("option", "rangeOutlines", ["#164F6D", "green", "#AF3", "yellow"]);


  • ranges

    Type:
    array
    Default:
    []
    Elements Type:
    object

    Gets or sets the scale ranges to render on the linear gauge.

    Code Sample

    //Initialize
            $(".selector").igRadialGauge({
                ranges: [
                  { name: "range1", brush: "rgba(164, 189, 41, 1)", startValue: "0", endValue: "3", outerStartExtent: "0.6", outerEndExtent: "0.63" },
                  { name: "range2", brush: "rgba(253, 189, 72, 1)", startValue: "3", endValue: "7", outerStartExtent: "0.63", outerEndExtent: "0.66" },
                  { name: "range3", brush: "rgba(211, 64, 75, 1)",  startValue: "7", endValue: "10", outerStartExtent: "0.66", outerEndExtent: "0.69" }
              ]
          });

          //Get
          var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");

          //Set
          $(".selector").igRadialGauge("option", "ranges", [{ name: "range1", startValue: "0" }]);
    • brush

      Type:
      string
      Default:
      null

      Gets or sets the brush for the entire range.

      Code Sample

       //Initialize
              $(".selector").igRadialGauge({
                  ranges: [
                    { name: "range1", brush: "rgba(164, 189, 41, 1)"},
                    { name: "range3", brush: "rgba(211, 64, 75, 1)" }
                ]
            });

            //Get
            var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");
            var rangeBrush = gaugeRanges[0].brush;
    • endValue

      Type:
      number
      Default:
      0

      Gets or sets the ending value of the range.

      Code Sample

       //Initialize
                    $(".selector").igRadialGauge({
                      ranges: [
                        { name: "range1", brush: "rgba(164, 189, 41, 1)", startValue: "0", endValue: "3", outerStartExtent: "0.6", outerEndExtent: "0.63" },
                        { name: "range2", brush: "rgba(253, 189, 72, 1)", startValue: "3", endValue: "7", outerStartExtent: "0.63", outerEndExtent: "0.66" },
                        { name: "range3", brush: "rgba(211, 64, 75, 1)",  startValue: "7", endValue: "10", outerStartExtent: "0.66", outerEndExtent: "0.69" }
                      ]
                    });

                    //Get
                    var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");
                    var rangeEndValue = gaugeRanges[0].endValue;
    • innerEndExtent

      Type:
      number
      Default:
      0

      Gets or sets the ending value of the inner extent of the range.

      Code Sample

       //Initialize
                    $(".selector").igRadialGauge({
                      ranges: [
                        { name: "range1", brush: "rgba(164, 189, 41, 1)", startValue: "0", endValue: "3", innerStartExtent: "0.6", innerEndExtent: "0.63" },
                        { name: "range2", brush: "rgba(253, 189, 72, 1)", startValue: "3", endValue: "7", innerStartExtent: "0.63", innerEndExtent: "0.66" },
                        { name: "range3", brush: "rgba(211, 64, 75, 1)",  startValue: "7", endValue: "10", innerStartExtent: "0.66", innerEndExtent: "0.69" }
                      ]
                    });

                    //Get
                    var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");
                    var rangeInnerEndExtent = gaugeRanges[0].innerEndExtent;
    • innerStartExtent

      Type:
      number
      Default:
      0

      Gets or sets the starting value of the inner extent of the range.

      Code Sample

       //Initialize
                    $(".selector").igRadialGauge({
                      ranges: [
                        { name: "range1", brush: "rgba(164, 189, 41, 1)", startValue: "0", endValue: "3", innerStartExtent: "0.6", innerEndExtent: "0.63" },
                        { name: "range2", brush: "rgba(253, 189, 72, 1)", startValue: "3", endValue: "7", innerStartExtent: "0.63", innerEndExtent: "0.66" },
                        { name: "range3", brush: "rgba(211, 64, 75, 1)",  startValue: "7", endValue: "10", innerStartExtent: "0.66", innerEndExtent: "0.69" }
                      ]
                    });

                    //Get
                    var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");
                    var rangeInnerStartExtent = gaugeRanges[0].innerStartExtent;
    • name

      Type:
      string
      Default:
      null

      Gets or sets the name of the range.

      Code Sample

       //Initialize
                    $(".selector").igRadialGauge({
                      ranges: [
                        { name: "range1", brush: "rgba(164, 189, 41, 1)", startValue: "0", endValue: "3", innerStartExtent: "0.6", innerEndExtent: "0.63" },
                        { name: "range2", brush: "rgba(253, 189, 72, 1)", startValue: "3", endValue: "7", innerStartExtent: "0.63", innerEndExtent: "0.66" },
                        { name: "range3", brush: "rgba(211, 64, 75, 1)",  startValue: "7", endValue: "10", innerStartExtent: "0.66", innerEndExtent: "0.69" }
                      ]
                    });

                    //Get
                    var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");
                    var rangeName = gaugeRanges[0].name;
    • outerEndExtent

      Type:
      number
      Default:
      0

      Gets or sets the ending value of the outer extent of the range.

      Code Sample

       //Initialize
                    $(".selector").igRadialGauge({
                      ranges: [
                        { name: "range1", brush: "rgba(164, 189, 41, 1)", startValue: "0", endValue: "3", outerStartExtent: "0.6", outerEndExtent: "0.63" },
                        { name: "range2", brush: "rgba(253, 189, 72, 1)", startValue: "3", endValue: "7", outerStartExtent: "0.63", outerEndExtent: "0.66" },
                        { name: "range3", brush: "rgba(211, 64, 75, 1)",  startValue: "7", endValue: "10", outerStartExtent: "0.66", outerEndExtent: "0.69" }
                      ]
                    });

                    //Get
                    var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");
                    var rangeOuterEndExtent = gaugeRanges[0].outerEndExtent;
    • outerStartExtent

      Type:
      number
      Default:
      0

      Gets or sets the starting value of the outer extent of the range.

      Code Sample

        //Initialize
                    $(".selector").igRadialGauge({
                      ranges: [
                        { name: "range1", brush: "rgba(164, 189, 41, 1)", startValue: "0", endValue: "3", outerStartExtent: "0.6", outerEndExtent: "0.63" },
                        { name: "range2", brush: "rgba(253, 189, 72, 1)", startValue: "3", endValue: "7", outerStartExtent: "0.63", outerEndExtent: "0.66" },
                        { name: "range3", brush: "rgba(211, 64, 75, 1)",  startValue: "7", endValue: "10", outerStartExtent: "0.66", outerEndExtent: "0.69" }
                      ]
                    });

                    //Get
                    var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");
                    var rangeOuterStartExtent = gaugeRanges[0].outerStartExtent;
    • outline

      Type:
      string
      Default:
      null

      Gets or sets the brush for the outline of the range.

      Code Sample

       //Initialize
                    $(".selector").igRadialGauge({
                      ranges: [
                        { name: "range1", brush: "rgba(164, 189, 41, 1)", outline: "rgba(164, 189, 41, 1)",  startValue: "0", endValue: "3", outerStartExtent: "0.6", outerEndExtent: "0.63" },
                        { name: "range2", brush: "rgba(253, 189, 72, 1)", outline: "rgba(164, 189, 41, 1)", startValue: "3", endValue: "7", outerStartExtent: "0.63", outerEndExtent: "0.66" },
                        { name: "range3", brush: "rgba(211, 64, 75, 1)",  outline: "rgba(164, 189, 41, 1)", startValue: "7", endValue: "10", outerStartExtent: "0.66", outerEndExtent: "0.69" }
                      ]
                    });

                    //Get
                    var gaugeRanges = $(".selector").igRadialGauge("option", "ranges");
                    var rangeOutline = gaugeRanges[0].outline;
    • remove

      Type:
      bool
      Default:
      false

      Gets or sets the flag used to determine if the range should be removed. If set to true, the range (if existing) is removed.

      Code Sample


                    $("#radialgauge").igRadialGauge("option", "ranges", [{ name: "range1", remove: true }]);

    • startValue

      Type:
      number
      Default:
      0

      Gets or sets the starting value of the range.

      Code Sample

       //Initialize
              $(".selector").igRadialGauge({
                  needlePivotInnerWidthRatio: "0.5"
              });

              //Get
              var gaugeNeedlePivotInnerWidthRatio = $(".selector").igRadialGauge("option", "needlePivotInnerWidthRatio");

              //Set
              $(".selector").igRadialGauge("option", "needlePivotInnerWidthRatio", "0.5");
    • strokeThickness

      Type:
      number
      Default:
      0

      Gets or sets the thickness of the range outline.

      Code Sample

       //Initialize
              $(".selector").igRadialGauge({
                  needlePivotInnerWidthRatio: "0.5"
              });

              //Get
              var gaugeNeedlePivotInnerWidthRatio = $(".selector").igRadialGauge("option", "needlePivotInnerWidthRatio");

              //Set
              $(".selector").igRadialGauge("option", "needlePivotInnerWidthRatio", "0.5");
  • regional
    Inherited

    Type:
    enumeration
    Default:
    defaults

    Set/Get the regional setting for the widget.

    Code Sample


    				//Initialize
    				$(".selector").igRadialGauge({
    					regional: "ja"
    				});
    				// Get
    				var regional = $(".selector").igRadialGauge("option", "regional");
    				// Set
    				$(".selector").igRadialGauge("option", "regional", "ja");

  • scaleBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use to fill the background of the scale.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                scaleBrush: "rgba(236, 237, 239, 1)"
            });

            //Get
            var rangeScaleBrush = $(".selector").igRadialGauge("option", "scaleBrush");

            //Set
            $(".selector").igRadialGauge("option", "scaleBrush", [ "#ff0000", "#ffff00", "#00ffff" ]);

  • scaleEndAngle

    Type:
    number
    Default:
    45

    Gets or sets the end angle for the scale in degrees.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                scaleEndAngle: "75"
            });

            //Get
            var gaugeScaleEndAngle = $(".selector").igRadialGauge("option", "scaleEndAngle");

            //Set
            $(".selector").igRadialGauge("option", "scaleEndAngle", "75");
  • scaleEndExtent

    Type:
    number
    Default:
    0.57

    Gets or sets the position at which to stop rendering the scale as a value from 0 to 1 measured from the center of the gauge.
    Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                scaleEndExtent: "0.5"
            });

            //Get
            var gaugeScaleEndExtent = $(".selector").igRadialGauge("option", "scaleEndExtent");

            //Set
            $(".selector").igRadialGauge("option", "scaleEndExtent", "0.5");
  • scaleOversweep

    Type:
    number
    Default:
    2.8

    Gets or sets the extra degrees of sweep to apply to the scale background. Must be greater or equal to 0.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                scaleOversweep: "75"
            });

            //Get
            var gaugeScaleOversweep = $(".selector").igRadialGauge("option", "scaleOversweep");

            //Set
            $(".selector").igRadialGauge("option", "scaleOversweep", "75");
  • scaleOversweepShape

    Type:
    enumeration
    Default:
    auto

    Gets or sets the oversweep shape to use for the excess fill area for the scale.

    Members

    • auto
    • Type:string
    • A default oversweep shape.
    • circular
    • Type:string
    • A circular oversweep shape.
    • fitted
    • Type:string
    • A fitted oversweep shape.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                scaleOversweepShape: "circular"
            });

            //Get
            var gaugeScaleOversweepShape = $(".selector").igRadialGauge("option", "scaleOversweepShape");

            //Set
            $(".selector").igRadialGauge("option", "scaleOversweepShape", "circular");
  • scaleStartAngle

    Type:
    number
    Default:
    135

    Gets or sets the start angle for the scale in degrees.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                scaleStartAngle: "75"
            });

            //Get
            var gaugeScaleStartAngle = $(".selector").igRadialGauge("option", "scaleStartAngle");

            //Set
            $(".selector").igRadialGauge("option", "scaleStartAngle", "75");
  • scaleStartExtent

    Type:
    number
    Default:
    0.5

    Gets or sets the position at which to start rendering the scale, measured from the center of the gauge as a value from 0 to 1.
    Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

    Code Sample

      //Initialize
            $(".selector").igRadialGauge({
                scaleStartExtent: "0.5"
            });

            //Get
            var gaugeScaleStartExtent = $(".selector").igRadialGauge("option", "scaleStartExtent");

            //Set
            $(".selector").igRadialGauge("option", "scaleStartExtent", "0.5");
  • scaleSweepDirection

    Type:
    enumeration
    Default:
    clockwise

    Gets or sets the direction in which the scale sweeps around the center from the start angle to end angle.

    Members

    • counterclockwise
    • Type:string
    • In a direction opposite the typical forward movement of the hands of a clock.
    • clockwise
    • Type:string
    • In a direction corresponding to the typical forward movement of the hands of a clock.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                scaleSweepDirection: "counterclockwise"
            });

            //Get
            var gaugeScaleSweepDirection = $(".selector").igRadialGauge("option", "scaleSweepDirection");

            //Set
            $(".selector").igRadialGauge("option", "scaleSweepDirection", "counterclockwise");
  • tickBrush

    Type:
    string
    Default:
    null

    Gets or sets the brush to use for the major tickmarks.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                tickBrush: "rgba(236, 237, 239, 1)"
            });

            //Get
            var gaugeTickBrush = $(".selector").igRadialGauge("option", "tickBrush");

            //Set
            $(".selector").igRadialGauge("option", "tickBrush", [ "#ff0000", "#ffff00", "#00ffff" ]);

  • tickEndExtent

    Type:
    number
    Default:
    0.57

    Gets or sets the position at which to stop rendering the major tickmarks as a value from 0 to 1, measured from the center of the gauge.
    Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                tickEndExtent: "0.5"
            });

            //Get
            var gaugeTickEndExtent = $(".selector").igRadialGauge("option", "tickEndExtent");

            //Set
            $(".selector").igRadialGauge("option", "tickEndExtent", "0.5");
  • tickStartExtent

    Type:
    number
    Default:
    0.5

    Gets or sets the position at which to start rendering the major tickmarks as a value from 0 to 1, measured from the center of the gauge.
    Values further from zero than 1 can be used to make this extend further than the normal radius of the gauge.

    Code Sample

    //Initialize
            $(".selector").igRadialGauge({
                tickStartExtent: "0.5"
            });

            //Get
            var gaugeTickStartExtent = $(".selector").igRadialGauge("option", "tickStartExtent");

            //Set
            $(".selector").igRadialGauge("option", "tickStartExtent", "0.5");
  • tickStrokeThickness

    Type:
    number
    Default:
    3

    Gets or sets the stroke thickness to use when rendering ticks.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                tickStrokeThickness: "2"
            });

            //Get
            var gaugeTickStrokeThickness = $(".selector").igRadialGauge("option", "tickStrokeThickness");

            //Set
            $(".selector").igRadialGauge("option", "tickStrokeThickness", "2");
  • transitionDuration

    Type:
    number
    Default:
    0

    Gets or sets the number of milliseconds over which changes to the gauge should be animated.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                transitionDuration: "3000"
            });

            //Get
            var gaugeTransitionDuration: "3000" = $(".selector").igRadialGauge("option", "transitionDuration");

            //Set
            $(".selector").igRadialGauge("option", "transitionDuration", "3000");
  • transitionEasingFunction

    Type:
    object
    Default:
    null

    Gets or sets the easing function used to morph the current series.

    Code Sample

      //Initialize
            $(".selector").igRadialGauge({
                transitionEasingFunction: "cubic"
            });

            //Get
            var gaugeTransitionEasingFunction = $(".selector").igRadialGauge("option", "transitionEasingFunction");

            //Set
            $(".selector").igRadialGauge("option", "transitionEasingFunction", "cubic");
  • transitionProgress

    Type:
    number
    Default:
    0

    Gets the transition progress of the animation when the control is animating.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                transitionProgress: "0.5"
            });

            //Get
            var gaugeTransitionProgress = $(".selector").igRadialGauge("option", "transitionProgress");

            //Set
            $(".selector").igRadialGauge("option", "transitionProgress", "0.5");
  • value

    Type:
    number
    Default:
    0

    Gets or sets the value at which to point the needle of the gauge.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                value: "10"
            });

            //Get
            var gaugeValue = $(".selector").igRadialGauge("option", "value");

            //Set
            $(".selector").igRadialGauge("option", "value", "10");
  • width

    Type:
    enumeration
    Default:
    null

    The width of the gauge. It can be set as a number in pixels, string (px) or percentage (%).

    Members

      • string
      • The widget width can be set in pixels (px) and percentage (%).
      • number
      • The widget width can be set as a number.

    Code Sample

     //Initialize
            $(".selector").igRadialGauge({
                width: 250
            });

            //Get
            var width= $(".selector").igRadialGauge("option", "width");

            //Set
            $(".selector").igRadialGauge("option", "width", 250);

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • alignLabel

    Cancellable:
    false

    Event which is raised when a label of the gauge is aligned along the scale.
    Function takes first argument null and second argument ui.
    Use ui.owner to obtain reference to gauge widget.
    Use ui.actualMinimumValue to obtain the minimum value of gauge scale.
    Use ui.actualMaximumValue to obtain the maximum value of gauge scale.
    Use ui.startAngle to obtain the starting angle of gauge scale.
    Use ui.endAngle to obtain the ending angle of gauge scale.
    Use ui.angle to obtain the angle on the gauge scale at which the label will be located.
    Use ui.value to obtain the value on the gauge scale associated with the label.
    Use ui.label to obtain the string value of the label.
    Use ui.width to obtain the width of the label.
    Use ui.height to obtain the height of the label.
    Use ui.offsetX to obtain the X offset of the label on the gauge scale.
    Use ui.offsetY to obtain the Y offset of the label on the gauge scale.

    Code Sample


    //Bind
    $(document).delegate(".selector", "igradialgaugealignlabel", function (evt, ui) {
        // Get reference to igRadialGauge.
        ui.owner;

        // Get the mimimum value of gauge scale
        ui.actualMinimumValue;

        // Get the maximum value of gauge scale
        ui.actualMaximumValue;

        // Get the startAngle of gauge scale
        ui.startAngle;

        // Get the the ending angle of gauge scale.
        ui.endAngle;

        // Get the angle on the gauge scale at which the label will be located
        ui.angle;

        // Get the value on the gauge scale associated with the label.
        ui.value;

        // Get whether the string value of the label.
        ui.label;

        //Get the width of the label.
        ui.width;

        // Get the height of the label.
        ui.height;

        // Get the X offset of the label on the gauge scale.
        ui.offsetX;

        // Get the Y offset of the label on the gauge scale.
        ui.offsetY;
    });

    // Initialize
    $(".selector").igRadialGauge({
        alignLabel: function(evt, ui) {...}
    });

  • formatLabel

    Cancellable:
    false

    Event which is raised when a label of the gauge is formatted.
    Function takes first argument null and second argument ui.
    Use ui.owner to obtain reference to gauge widget.
    Use ui.actualMinimumValue to obtain the minimum value of gauge scale.
    Use ui.actualMaximumValue to obtain the maximum value of gauge scale.
    Use ui.startAngle to obtain the starting angle of gauge scale.
    Use ui.endAngle to obtain the ending angle of gauge scale.
    Use ui.angle to obtain the angle on the gauge scale at which the label will be located.
    Use ui.value to obtain the value on the gauge scale associated with the label.
    Use ui.label to obtain the string value of the label.

    Code Sample


    //Bind
    $(document).delegate(".selector", "igradialgaugeformatlabel", function (evt, ui) {
        // Get reference to igRadialGauge.
        ui.owner;

        // Get the mimimum value of gauge scale
        ui.actualMinimumValue;

        // Get the maximum value of gauge scale
        ui.actualMaximumValue;

        // Get the startAngle of gauge scale
        ui.startAngle;

        // Get the the ending angle of gauge scale.
        ui.endAngle;

        // Get the angle on the gauge scale at which the label will be located
        ui.angle;

        // Get the value on the gauge scale associated with the label.
        ui.value;

        // Get whether the string value of the label.
        ui.label;
    });

    // Initialize
    $(".selector").igRadialGauge({
        formatLabel: function(evt, ui) {...}
    });

  • valueChanged

    Cancellable:
    false

    Occurs when the Value property changes.

    Code Sample


    //Bind
    $(document).delegate(".selector", "igradialgaugevaluechanged", function (evt, ui) {
        // Get reference to igRadialGauge.
        ui.owner;

        // Get the previous value before the change.
        ui.oldValue;

        // Get the new value after the change.
        ui.newValue;
    });

    // Initialize
    $(".selector").igRadialGauge({
        valueChanged: function(evt, ui) {...}
    });

  • addRange

    .igRadialGauge( "addRange", value:object );

    Adds a new range to the radial gauge.

    • value
    • Type:object

    Code Sample

     $(".selector").igRadialGauge("addRange", {"Range1": 10} );
  • changeGlobalLanguage
    Inherited

    .igRadialGauge( "changeGlobalLanguage" );

    Changes the widget language to global language. Global language is the value in $.ig.util.language.

    Code Sample


    				$(".selector").igRadialGauge("changeGlobalLanguage");

  • changeGlobalRegional
    Inherited

    .igRadialGauge( "changeGlobalRegional" );

    Changes the widget regional settins to global regional settings. Global regional settings are container in $.ig.util.regional.

    Code Sample


    				$(".selector").igRadialGauge("changeGlobalRegional");

  • changeLocale
    Inherited

    .igRadialGauge( "changeLocale", $container:object );

    Changes the all locales contained into a specified container to the language specified in options.language
    Note that this method is for rare scenarios, use language or locale option setter.

    • $container
    • Type:object
    • Optional parameter - if not set it would use the element of the widget as $container.

    Code Sample


    				$(".selector").igRadialGauge("changeLocale");

  • clearRanges

    .igRadialGauge( "clearRanges" );

    Clears the ranges in the radial gauge.

    Code Sample

     $(".selector").igRadialGauge("clearRanges" );
  • destroy

    .igRadialGauge( "destroy" );

    Destroys widget.

    Code Sample

     $(".selector").igRadialGauge("destroy" );
  • exportVisualData

    .igRadialGauge( "exportVisualData" );

    Exports the visual data for the radial gauge.

    Code Sample

     $(".selector").igRadialGauge("exportVisualData" );
  • flush

    .igRadialGauge( "flush" );

    Flushes the gauge.

    Code Sample

     $(".selector").igRadialGauge("flush" );
  • getPointForValue

    .igRadialGauge( "getPointForValue", value:object, extent:object );

    Gets the point on the gauge for a given scale value and extent.

    • value
    • Type:object
    • extent
    • Type:object

    Code Sample


    var point = $(".selector").igRadialGauge("getPointForValue", 20, 0);

  • getRangeNames

    .igRadialGauge( "getRangeNames" );
    Return Type:
    string
    Return Type Description:
    .

    Returns a string containing the names of all the ranges delimited with a \n symbol.

    Code Sample

     $(".selector").igRadialGauge("getRangeNames" );
  • getValueForPoint

    .igRadialGauge( "getValueForPoint", x:object, y:object );
    Return Type:
    number
    Return Type Description:
    The value for the main scale of the gauge.

    Gets the value for the main scale of the gauge for a given point within the bounds of the gauge.

    • x
    • Type:object
    • y
    • Type:object

    Code Sample

     $(".selector").igRadialGauge("getValueForPoint", "4", "5" );
  • needleContainsPoint

    .igRadialGauge( "needleContainsPoint", x:object, y:object );

    Returns true if the main gauge needle bounding box contains the point provided, otherwise false.

    • x
    • Type:object
    • y
    • Type:object

    Code Sample

     $(".selector").igRadialGauge("needleContainsPoint", "4", "5" );
  • removeRange

    .igRadialGauge( "removeRange", value:object );

    Removes a specified range.

    • value
    • Type:object

    Code Sample

     $(".selector").igRadialGauge("removeRange", "range1" );
  • scaleValue

    .igRadialGauge( "scaleValue", value:object );

    Scales a value on the gauge's main scale to an angle around the center point of the gauge, in radians.

    • value
    • Type:object

    Code Sample

     $(".selector").igRadialGauge("scaleValue", "1" );
  • styleUpdated

    .igRadialGauge( "styleUpdated" );

    Returns true if the style was updated for the radial gauge.

    Code Sample

     $(".selector").igRadialGauge("styleUpdated");
  • unscaleValue

    .igRadialGauge( "unscaleValue", value:object );

    Unscales a value from an angle in radians to the represented value along the main scale of the gauge.

    • value
    • Type:object

    Code Sample

     $(".selector").igRadialGauge("unscaleValue", "1" );
  • updateRange

    .igRadialGauge( "updateRange", value:object );

    Updates the range.

    • value
    • Type:object

    Code Sample

     $(".selector").igRadialGauge("updateRange", "range1" );
  • ui-radialgauge

    Get the class applied to main element: ui-radialGauge ui-corner-all ui-widget-content.
  • ui-html5-non-html5-supported-message ui-helper-clearfix ui-html5-non-html5

    Get the class applied to main element, shown when the radialGauge is opened in a non HTML5 compatible browser.

Copyright © 1996 - 2024 Infragistics, Inc. All rights reserved.
