Creating a Basic Column Template in igHierarchicalGrid

Topic Overview

Purpose

This topic demonstrates how to create basic column template for the igHierarchicalGrid.

Creating a Basic Colum Template in igHierarchicalGrid

Introduction

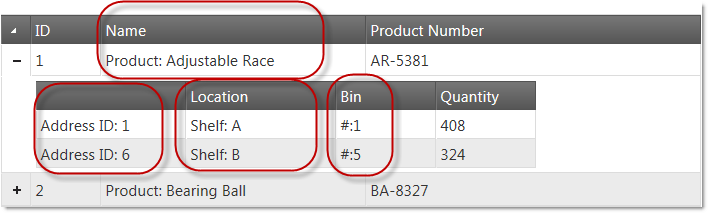

In this example basic column templates are applied to the hierarchical grid. Only the columns circled with red have assigned column templates.

Preview

The following screenshot is a preview of the final result.

Steps

The following steps demonstrate how to create basic column template into the igHierarchicalGrid

​1. Prepare an html page

To prepare the html page, add an igLoader and configure it to load igHierarchicalGrid resources.

In Javascript:

<script src="http://localhost/ig_ui/js/infragistics.loader.js"></script>
<script type="text/javascript">
$.ig.loader({
      scriptPath: "http://localhost/ig_ui/js/",
      cssPath: "http://localhost/ig_ui/css/",
      resources: "igHierarchicalGrid"
});
</script>

​2. Add and apply the column template

  • Add sample data to the page and table tag to the body of the page.

In Javascript:

<script type="text/javascript">
 var productsInventories = [{
      "ProductID": 1,
      "Name": "Adjustable Race",
      "ProductNumber": "AR-5381",
      "ProductInventories": {
            "Records": [
                {"ProductID": 1, "LocationID": 1, "Shelf": "A", "Bin": 1, "Quantity": 408},
                {"ProductID": 1, "LocationID": 6, "Shelf": "B", "Bin": 5, "Quantity": 324}             ]
      }
}, {
      "ProductID": 2,
      "Name": "Bearing Ball",
      "ProductNumber": "BA-8327",
      "ProductInventories": {
            "Records": [
                {"ProductID": 2, "LocationID": 1, "Shelf": "A","Bin": 2, "Quantity": 427}
            ]
      }
}]</script>

In HTML:

<body>
<table id="grid1"></table>
</body>
  • Add igHierarchicalGrid with column templates set on both root and child levels.

In Javascript:

<script type="text/javascript">
$.ig.loader(function () {
      $("#grid1").igHierarchicalGrid({
            initialDataBindDepth: 1,
            odata: true,
            dataSource: productsInventories,
            dataSourceType: "json",
            width: "700",
            autoGenerateColumns: false,
            autoGenerateLayouts: false,
            primaryKey: "ProductID",
            columns: [
                  { key: "ProductID", headerText: "ID ", width: "70px" },
                  { key: "Name", headerText: "Name", width: "265px", template: "Product: ${Name}" },
                  { key: "ProductNumber", headerText: "Product Number", dataType: "string", width: "150px" }
            ],
            columnLayouts: [
                  {
                        key: "ProductInventories",
                        responseDataKey: "Records",
                        autoGenerateColumns: false,
                        autoGenerateLayouts: false,
                        generateCompactJSONResponse: false,
                        primaryKey: "LocationID",
                        foreignKey: "ProductID",
                        columns: [
                            { key: "LocationID", headerText: " ", width: "150px", template: "Address ID: ${LocationID}" },
                            { key: "Shelf", headerText: "Location", width: "150px", template: "Shelf: ${Shelf}" },
                            { key: "Bin", headerText: "Bin", width: "100px", template: "#:${Bin}" },
                            { key: "Quantity", headerText: "Quantity", width: "100px" }
                        ]
                  }
            ]
      });
});</script>
