jsRender Integration (igGrid)

Topic Overview

Purpose

This topic contains an overview of the jsRender integration, an explanation of its configuration and a code example for creating a custom column template using jsRender syntax.

Required background

The following table lists the concepts, topics, and articles required as a prerequisite to understanding this topic.

In this topic

This topic contains the following sections:

jsRender integration Overview

JsRender is a JavaScript library that allows you to define a boilerplate structure once and reuse it to generate HTML dynamically. JsRender brings a new templating library to HTML5 development that has a codeless tag syntax and high performance, has no dependency on jQuery nor on the Document Object Model (DOM), supports creating custom functions and uses pure string-based rendering.

Since v13.2 igGrid supports jsRender templating. It is controlled by the option templatingEngine. The default value of the option is “infragistics” and in this case the igGrid is using the Infragistics templating engine for rendering the templates in the control. You need to set the property to “jsRender” in order to use it as templating engine.

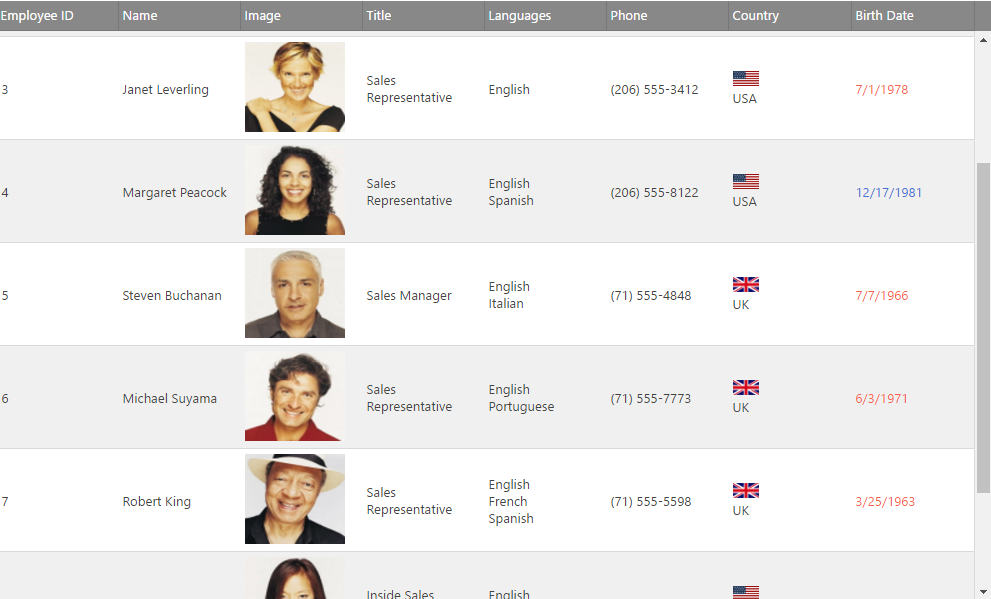

The screenshot below is of a grid rendered with jsRender .

Configuring jsRender templating – Conceptual Overview

By default, the igGrid control uses the Infragistics template engine. Consequently, in order to use jsRender you need to configure it explicitly using the templatingEngine option. This is done differently in JavaScript and ASP.NET MVC.

The following table briefly explains how to configure jsRender templating for the igGrid control. For details, refer to the code example following the table.

To use jsRender as templating engine in… Do this…
JavaScript In the configuration of the igGrid set the templatingEngine option value to “jsRender”.
ASP.NET MVC In the configuration of the Grid set the parameter’s value of the TemplatingEngine method to be GridTemplatingEngine.JsRender.

Code Example: Creating a custom column template using jsRender syntax in JavaScript

This procedure explains how to create a custom column template in igGrid using the jsRender syntax, helper functions.

Preview

The following screenshot previews of the result. In this example the rows the cells with Birth Date before 1950 use a blue colored font; otherwise, the font color is red. The country cell is templated with an image.

Prerequisites

To complete the procedure, you need the following:

  1. The required Ignite UI JavaScript and CSS files for version 13.2
  2. The jsRender library referenced on the page

In JavaScript:

<script type="text/javascript" src="http://cdn.jsdelivr.net/jsrender/1.0pre35/jsrender.js"></script>

Overview

Following is a conceptual overview of the process:

  1. Configuring the igGrid to use jsRender templating engine
  2. Creating a string column templates
  3. Declaring a helper function specific to the template
  4. Setting the column template values

Steps

Following are the general conceptual steps for Binding igGrid to DataTable with manually created columns and enabled updating feature.

  1. Configure the igGrid to use the jsRender templating engine

    Set the value of the templatingEngine option to be “jsRender”

    Defines the columns as an array for other functions for creating the column template.

    In JavaScript:

      $("#grid12").igGrid({
                 width: "100%",
                 height: "600px",
                 autoGenerateColumns: false,
                 autoCommit:true,
                 columns: [
                         { headerText: "Employee ID", key: "ID", dataType: "number" },
                         { headerText: "Name", key: "Name", dataType: "string" },
                         { headerText: "Image", key: "ImageUrl", dataType: "object" },
                         { headerText: "Title", key: "Title", dataType: "string" },
                         { headerText: "Languages", key: "Languages", dataType: "object" },
                         { headerText: "Phone", key: "Phone", dataType: "string" },
                         { headerText: "Country", key: "Country", dataType: "string" },
                         { headerText: "Birth Date", key: "BirthDate", dataType: "date" }
                     ],
                 dataSource: northwindEmployees,
                 primaryKey: "ID",
                 templatingEngine: "jsrender"
         });

  2. Declare a helper function specific to the template

    Define a helper function for converting the string data to Date.

    Use this function for comparing dates stored as strings in the data source in the column template .

    In JavaScript:

      $.views.helpers(
             {
                 toDate: function (val) {
                     return new Date(val);
                 }
            });

             $.views.helpers(
             {
                 toFullName: function (val) {
                     var name = val.split(',').reverse().join(" ");
                     return name;
                 }
             });

  3. Create string column templates

    Define a jsRender template for two columns

    For the template of the column “BirthDate” is used the helper function “toDate” directly in the string context. The template of column Country is using an image.

    In JavaScript:

     <img width='100' height='90' src={{>ImageUrl}}></img>

     <img width='20' height='15' src='{Images folder root}/ {{>Country}}.gif'></img>{{>Country}}

     <span style='color:{{if #view.hlp('toDate')(BirthDate) > #view.hlp('toDate')('1950-01-01T00:00:00.000')}} blue {{else}} red {{/if}};'>{{>BirthDate}}</span>

  4. Set the column template values

    Defining the column template option to use the custom jsRender template

    In JavaScript:

      $("#grid12").igGrid({
                 width: "100%",
                 height: "600px",
                 autoGenerateColumns: false,
                 autoCommit:true,
                 columns: [
                         { headerText: "Employee ID", key: "ID", dataType: "number" },
                         { headerText: "Name", key: "Name", dataType: "string", template: "{{>#view.hlp('toFullName')(Name)}}" },
                         {
                             headerText: "Image", key: "ImageUrl", dataType: "object",
                             template: "<img width='100' height='90' src={{>ImageUrl}}></img>"
                         },
                         { headerText: "Title", key: "Title", dataType: "string" },
                         {
                             headerText: "Languages", key: "Languages", dataType: "object",
                             template: "{{for Languages}}<div>{{:name}}</div>{{/for}}"
                         },
                         { headerText: "Phone", key: "Phone", dataType: "string" },
                         {
                             headerText: "Country", key: "Country", dataType: "string",
                             template: "<img width='26' height='15' src='http://www.igniteui.com/images/samples/nw/countries/{{>Country}}.gif'></img> <span style='display: table-cell;vertical-align: middle;'>{{>Country}}</span>"
                         },
                         {
                             headerText: "Birth Date", key: "BirthDate", dataType: "date",
                             template: "<span style='color:{{if #view.hlp('toDate')(BirthDate) > #view.hlp('toDate')('1980-01-01T00:00:00.000')}}#4573D6{{else}}#F75F4F{{/if}};'>{{>BirthDate}}</span>"
                         }
                     ],
                 dataSource: northwindEmployees,
                 primaryKey: "ID",
                 templatingEngine: "jsrender"
         });

  5. Working sample

Integration with Row Edit Template and advanced filtering

By default, the Row Edit Template and Advanced filter dialog use the Infragistics templating engine. Setting the templatingEngine property to “jsRender”, render both of them using it as a templating engine.

The templates using the Infragistics templating engine are not compatible with the jsRender templating engine. In order to use the jsRender you should rewrite all the column templates, responsive configuration templates and your custom row edit templates in its syntax.
