This topic provides a conceptual overview of labels with the igRadialGauge™ control. It describes the properties of the labels and also provides an example of how to configure the labels.
The following topics are prerequisites to understanding this topic:
igRadialGauge: This section gives you an overview of the igRadialGauge™ control and its main features.
Adding igRadialGauge: This topic explains using a code example how to add the igRadialGauge™ control to a page.
This topic contains the following sections:
The gauge labels are visual elements displaying numeric values at a specified interval on the scale.

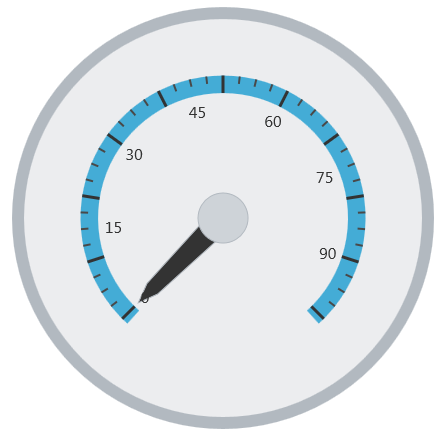

The following image is a preview of the igRadialGauge control displaying labels:
The following table summarizes the igRadialGauge control’s label properties:
| Property Name | Property Type | Description |
|---|---|---|
| labelExtent | double | Determines the label position as a value between 0 and 1 from the center of the gauge with 0 placing the labels at the center of the gauge and 1 placing the labels on the radius of the gauge. |
| labelInterval | double | Determines the interval to use for rendering labels; by default this is the same interval as the tick marks on the scale. |
The following table summarizes the igRadialGauge control’s label related events.
| Event Name | Description |
|---|---|
| alignLabel | This event is raised when aligning a gauge label along the scale |
| formatLabel | This event is raised when formatting a gauge label |
The following screenshot illustrates how the igRadialGauge control renders with the label’s properties configured like this:
| Property | Value |
|---|---|
| labelInterval | 15 |
| labelExtent | 0.44 |
The following is the code for implementing this example:
In JavaScript:
$("#gauge").igRadialGauge({
width: "400px",
height: "400px",
labelExtent: 0.44,
labelInterval: 15
});
The following example demonstrates how to configure the Radial Gauge control's Label settings. Use the slider to see how the labelExtent and labelInterval properties affect the Label.
