This topic explains conceptually the kinds of chart series that can be produced with the igDataChart
™ control.
The following topics are prerequisite to understanding this topic:
This topic provides conceptual information about the igDataChart
control including its main features, minimum requirements for using charts and user functionality.
This topic contains the following sections:
The igDataChart
control allows for a variety of series types to be implemented for different visualization purposes.
See the next block for detailed information on supported series types and basic configuration information.
Note: Pie charts can be created using the separate
igPieChart
control. For details see igPieChart Overview.
Chart type  Series type  Description
Series.type property setting

Data binding properties

Bar and Column  Bar  Visualizes categorized data with horizontal bars.
bar

valueMemberPath
Column  Visualizes categorized data with vertical columns.
column

valueMemberPath
Stacked Bar  Visualize categorized data with horizontal bars containing horizontally stacked segments.
stackedBar

valueMemberPath
Stacked 100 Bar  Visualize categorized data with horizontal bars containing horizontally stacked segments normalized to percentage values.
stacked100Bar

valueMemberPath
Stacked Column  Visualize categorized data with vertically stacked columns.
stackedColumn

valueMemberPath
Stacked 100 Column  Visualize categorized data with vertically stacked columns where the values are normalized to percentages.
stacked100Column

valueMemberPath
Bubble  Bubble  Visualizes data described by multiple parameters with colored circles with different diameter.
bubble


Category  Line  Visualizes categorized data with a line with sharp edges on data points.
line

valueMemberPath
Area  Visualizes categorized data with colored area below a line with sharp edges on data points.
area

valueMemberPath
Spline  Visualizes categorized data with a line with smooth edges on data points.
spline

valueMemberPath
Spline Area  Visualizes categorized data with colored area below a line with smooth edges on data points.
splineArea

valueMemberPath
Waterfall  Visualizes categorized data with vertical columns where the first column for the first category starts from the xaxis and each next category starts where the previous one ends.
waterfall

valueMemberPath
Point  Visualize categorized data with individually plotted point markers.
point

valueMemberPath
Stacked Area  Visualize categorized data with stacked colored area below a line with sharp edges on data points.
stackedArea

valueMemberPath
Stacked Line  Visualize categorized data in stacked lines with sharp edges on data points.
stackedLine

valueMemberPath
Stacked Spline  Visualize categorized data in stacked lines with smooth edges on data points
stackedSpline

valueMemberPath
Stacked Spline Area  Visualize categorized data with stacked colored area below a line with smooth edges on data points.
stacked100Bar

valueMemberPath
Stacked 100 Area  Visualize categorized data with stacked colored area below a line with sharp edges on data points where the values are normalized to percentages.
stacked100Area

valueMemberPath
Stacked 100 Line  Visualize categorized data in stacked lines with sharp edges on data points where the values are normalized to percentages.
stacked100Line

valueMemberPath
Stacked 100 Spline  Visualize categorized data in stacked lines with smooth edges on data points where the values are normalized to percentages.
stacked100Spline

valueMemberPath
Stacked 100 Spline Area  Visualize categorized data with stacked colored area below a line with smooth edges on data points where the values are normalized to percentages.
stacked100SplineArea

valueMemberPath
Financial  Candlestick  Displays opening, closing, highest and lowest value of a financial (investment) instrument in the form of a candlestick.
candlestick


OHLC  Abbreviation for Open, High, Low, Close. Displays opening, closing, highest and lowest value of a financial (investment) instrument in the form of vertical lines with markings for opening and closing values.
ohlc


Polar  Polar Scatter  Visualizes data with dots (or other types of markers) in a polar coordinate system.
polarScatter


Polar Line  Visualizes data with a line with sharp edges on data points in a polar coordinate system.
polarLine


Polar Area  Visualizes data with colored area below a line with sharp edges on data points in a polar coordinate system.
polarArea


Polar Spline  Visualize data with a spline displaying Beziercurved transitions between data points in a polar coordinate system.
polarSpline


Polar Spline Area  Visualize data with colored area below a spline displaying Beziercurved transitions between data points in a polar coordinate system.
polarSplineArea


Radial  Radial Line  Visualizes categorized data with a line with sharp edges on data points with all categories distributed in a circle.
radialLine

valueMemberPath
Radial Column  Visualizes categorized data with columns starting from a common center and turned on different angles.
radialColumn

valueMemberPath
Radial Pie  Visualizes categorized data with pieslice shaped elements starting from a common center and turned on different angles.
radialPie

valueMemberPath
Radial Area  Visualize categorized data with colored area below a line with sharp edges on data points with all categories distributed in a circle.
radialArea

valueMemberPath
Range Category  Range Area  Visualizes categorized data in ranges between two values with colored area between two lines with sharp edges on data points.
rangeArea


Range Column  Visualizes categorized data in ranges between two values with columns.
rangeColumn


Scatter  Scatter  Visualizes data with dots in Cartesian coordinate system.
scatter


Scatter Line  Visualizes data with a line with sharp edges on data points in Cartesian coordinate system.
scatterLine


Scatter Spline  Visualize data with a spline displaying Beziercurved transitions between data points in Carthesian coordinate system.
scatterSpline


Scatter Area  Visualize data as a colored 2D surface based on a triangulation of X+Y+Value points in a Cartesian coordinate system.
scatterArea


Scatter Contour  Visualize data as isarithmic contours based on a triangulation of X+Y+Value points in a Cartesian coordinate system.
scatterContour


Scatter Polygon  Visualize data as a series of polygons in a Cartesian coordinate system.
scatterPolygon


Scatter Polyline  Visualize data as a series of polylines in a Cartesian coordinate system.
scatterPolyline

Bar and column charts visualize data with the help of filled rectangles where the larger size corresponds to the visualized value.
Technically, bar and column charts mean one and the same but we make a distinction that bar charts have bars span horizontally and column charts have bars span vertically.

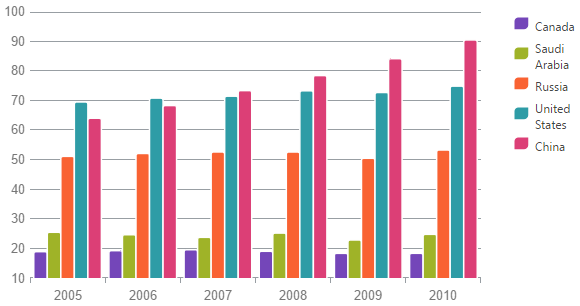

Bar charts are used to display data of separate functions for a discrete category axis values. For example the figure below shows a bar chart with the volume of car sales from three manufacturers (separate functions, i.e. single manufacturer sales as a function of region) for different geographical regions (discrete category axis values).
Bubble charts represent data entities with four independent numeric parameters in the form of (typically) filled circles.
The coordinates of the center of each circle represent the common x and ycoordinate parameters of each entity. The radius of the bubble represents the third parameter. Part of the bubbles can be filled with different color to represent a possible fourth parameter of the data series. The fourth parameter is not mandatory and if skipped all bubbles will be depicted with the same color. There is also an additional fifth parameter that can be used as a label for each data point.
Category series charts are a range of series types for the igDataChart
control that allow data for separate distinct category axis values to be plotted. This various types are: area, column, line, spline, spline area, step area, step line and waterfall. For more details you can investigate the topic dedicated on category series charts.
Following is an example of a waterfall chart.

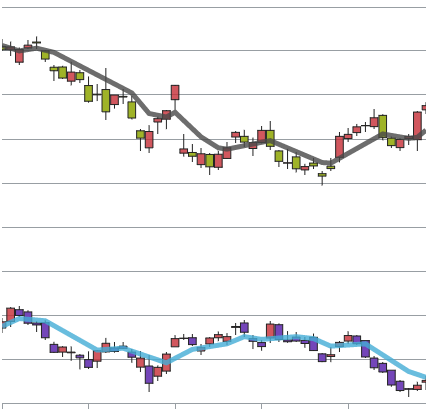

Financial charts (also called candlestick charts) are a variation of bar charts which allows for more variables to be depicted.
They are mainly used to visualize stock market movements of a particular commodity, currency or stock representing opening, closing, minimum and maximum price for a particular period. Each “candlestick” stands for a specific time period (for example, a day), the lowest point of the candlestick is the lowest price, the highest point is the highest price, and the lower and higher end of the bar are the closing and opening prices, correspondingly.
Usually these charts are combined with trend lines which are derived by using some mathematical function applied on the data series to calculate approximation and extrapolation of the data. For example, average, quadratic, or logarithmic functions.

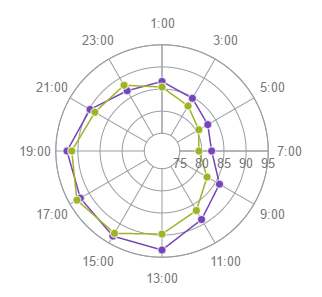

Polar scatter charts are plotted in polar coordinate system where the first coordinate is expressed in angle units (degrees, radians) and the second as distance from center (radius). The chart shows discrete points which are not connected and is useful to assess the “density” of the points (for example, measurement samples) in a certain area on the chart.
It is also possible to plot polar line or area depending on the purpose.
Radial line charts are similar to polar scatter charts but it is a category type series, i.e. it lacks angle coordinate and instead data is divided into categories that are spread evenly across a full circle. The distance from the center depicts the visualized value.
It is usually used to visualize small datasets and to compare quantitatively between multiple aspects of one object. For example, it is used for player statistics in sports regarding different aspects like agility, speed, effectiveness, etc.
Range category charts are used to depict the spread between two values that fall in a certain category. The variables used to plot the chart are the category coordinate, and two values in the same measurement unit for the category.
This chart was invented by stock market traders and used primarily in that industry. The specific feature is that these charts are not time based but rather movement based, i.e. two different values on the category (x) axis represent two different movements and the change between deals can be tracked.
Using igDataChart
you can implement range area and range column charts, and the sample chart above is a range area chart.
Scatter charts depict individual points in orthogonal (Cartesian) coordinate system, and is sometimes also called XYchart. It is possible to plot only discrete points or points connected with lines.
Scatter charts are used to represent scientific measurement or other data collection for the relation of two variables and easily shows the density of samples in particular area of the measurement, and it is possible to spot trends in the distribution of data.

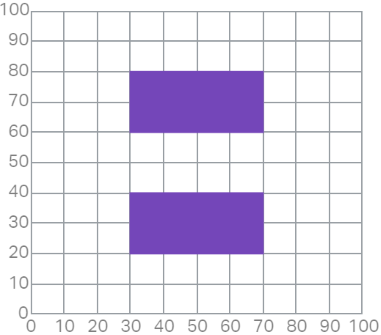

Two of the scatter types, scatterPolygon
and scatterPolyline
, depict data differently than the other types. They depict collections of points as twodimensional shapes where each point makes up one corner, or vertex, of the shape. For example, a rectangle is produced by having 4 points, one in each corner. The scatterPolygon
type depicts a filled shape while the scatterPolyline
type depicts the point collection as line segments connecting each point.
Composite charts plot at least two data series that either use different axis ranges or are visualized by two different types of graphs. That means that, for example, one function spans between 1 and 100, and the other between 5 and 500, or even has a logarithmic scale, or one function is depicted by columns and the other by line.

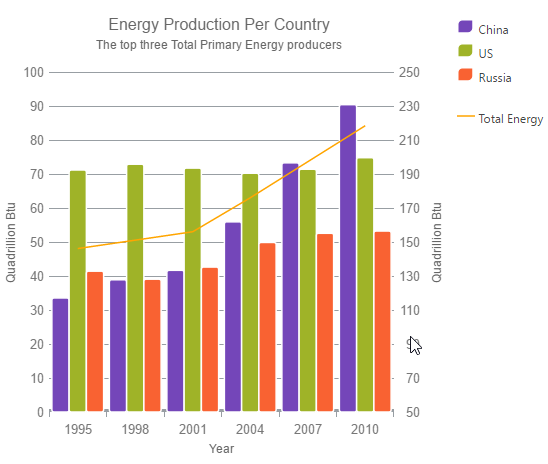

This sample demonstrates how to configure a composite chart with two Yaxes with different range and two different data series types: column and line series. There are no specific settings for creating composite charts but rather you can mix different series types and use multiple axes.
