igPivotDataSelector Overview

Topic Overview

Purpose

This topic provides conceptual information about the igPivotDataSelector™ control including its main features, minimum requirements, and user functionality.

Required background

The following table lists the topics and concepts required as a prerequisite to understanding this topic.

Topics

External Resources

In this topic

This topic contains the following sections:

Introduction

igPivotDataSelector summary

igPivotDataSelector is an interactive UI control (jQuery UI widget) that enables users to select data slices, typically, when data is being visualized in an igPivotGrid™. It is a supplementary control working together with the data source components. The igPivotDataSelector control comprises:

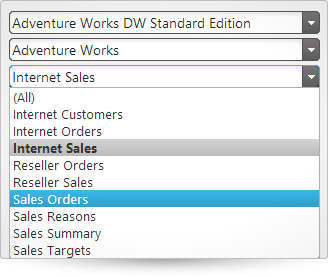

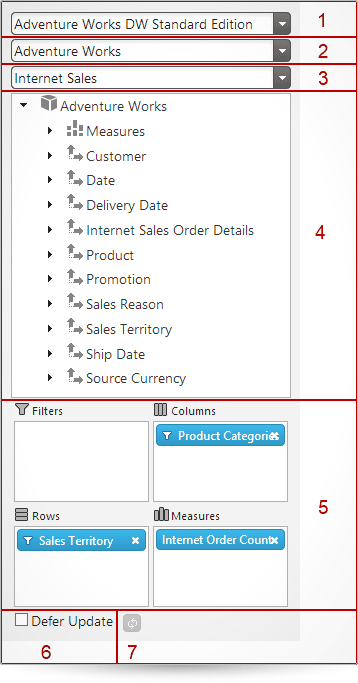

  • Drop-downs for selecting database (1), cube (2) and measure group (3) (when using igOlapXmlaDataSource™ only)

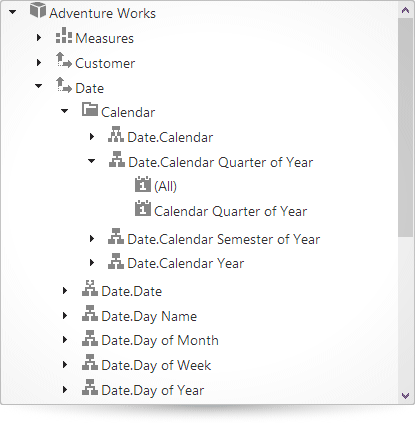

  • A metadata tree displaying all dimensions, measures, hierarchies and levels (4)
  • Drop areas for selecting of hierarchies and measures (5)
  • A deferred update checkbox (6)
  • An update button (7)

Here is the typical manner in which the user operates the igPivotDataSelector control: when the user selects a database and cube from a drop-downs, the metadata tree with all available dimensions loads along with the respective hierarchies and measures. If igOlapXmlaDataSource is used, the tree loads upon user selection; if igOlapFlatDataSource™ is used or a database and cube have been set in advance, the tree will load when the igPivotDataSelector is initialized. This way, the igPivotDataSelector provides an interactive UI component to select a database to connect to (if you are using database data), cube to extract data from, and a measure group to use.

The igPivotDataSelector is placed directly on the page using a div element, just like most data visualization controls.

Main Features

Main features summary chart

The following table summarizes the main features of the igPivotDataSelector control.

Feature Description
Data Selection Given a data source, the igPivotDataSelector provides drop-downs to select a database to connect to (if you are using database data), cube to extract data from, and a set of measure groups.
Metadata Tree All the available dimensions with their respective hierarchies along with a list with all the available measures are loaded in a tree once the user chooses a database, cube, and measure group. When the user selects a Measure group, the measures are filtered accordingly. If none is selected, all measures will be available in the metadata tree.

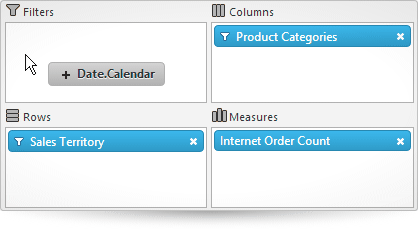

Slice Interaction Unless custom restrictions are applied, all available hierarchies from the tree can be drag-and-dropped to one of the following areas: Rows, Columns, Filters. All available measures from the tree can be drag-and-dropped to the Measures area.
Deferred Update The igPivotDataSelector supports two data source update modes based on when the data source gets updated after the user makes a change in the control:
  • Immediate – when the user makes a change in the control, that change gets executed immediately in the underlying back-end to update the data source. The user has to wait until the control is refreshed to the new state before they are can interact with the control again.
  • Deferred – the system is not updated until the user explicitly carries out a refresh operation (via an update button). This enables users to perform multiple changes without having to wait for the control to refresh after each change.
Deferred update improves the performance of the control by not taxing system resources, especially when very large amounts of data are involved.In igPivotDataSelector, the user can control the refresh mode through the Defer Update checkbox and, if the box is checked, manually refresh the data source at their discretion by pressing the update button.
Support for interaction with other Ignite UI for jQuery controls igPivotDataSelector uses the same data source instance as other Ignite UI for jQuery controls, such as igPivotGrid. This enables you to build complete OLAP data visualization applications. (You can use the igPivotView control which has similar purpose.)

User Interactions and Usability

User interactions summary chart

The following table summarizes the user interaction capabilities of the igPivotDataSelector control.

The user can… Using… Details Configurable?
Change database, cube, and measure group (igOlapXmlaDataSource only) The data selector combo boxes. You can set up initial the database, cube and measure group programmatically using the catalog, cube, and measureGroup properties of the igOlapXmlaDataSource framework.
Browse data source dimensions and measures The metadata tree control. The user can see all available, dimensions, measures, hierarchies and levels.
Select hierarchies for the rows, columns, and filters Perform drag-and-drop from the tree to the rows, columns and filters areas. Unless custom restrictions are set in place, the user can drag all the hierarchies available in the metadata tree to one of the rows, columns, or filters areas. yes
Select measures Perform drag-and-drop from the tree to the measures area. Unless custom restrictions are set in place, the user can drag all the measures available in the metadata tree to the measures area. yes
Filter the members in a hierarchy Using the filter menu for each hierarchy that is added to the rows, columns, or filters. After an item is added to an area, it can be removed by the user.For hierarchies, a filter menu is available where members of the hierarchy can be expanded/collapsed or selected/unselected, thus adding/removing the member to/from the result. yes
Enable/Disable Deferred Update Checking/unchecking the Deferred Update checkbox - yes
Update the grid on demand if Deferred Update is enabled By clicking the Update Layout button (). - no

Requirements

Requirements summary

Because the igPivotDataSelector control is a jQuery UI widget, it depends on jQuery and jQuery UI libraries. The Modernzr library is also used internally for detecting browser and device capabilities. The control uses several Ignite UI for jQuery shared resources for its functionality. References to these resources are needed nevertheless, in spite of pure jQuery or Ignite UI for MVC being used. The Infragistics.Web.Mvc assembly is required when the control is used in the context of ASP.NET MVC.

For a detailed list of the required resources for using the igPivotDataSelector control, refer to the Adding igPivotDataSelector to an HTML Page topic.

Related Content

Topics

The following topics provide additional information related to this topic.

Samples

The following samples provide additional information related to this topic.

  • Binding to Xmla Data Source: This sample demonstrates how to bind the igPivotGrid to an igOlapXmlaDataSource and uses an igPivotDataSelector for data selection.

  • Using the ASP.NET MVC Helper with Xmla Data Source: This sample demonstrates how to use the ASP.NET MVC Helper for the igOlapXmlaDataSource and how to use this data source in igPivotDataSelector and igPivotGrid.

  • Remote Xmla Provider: This sample demonstrates one of the benefits of using the remote provider feature of the igOlapXmlaDataSource - less network traffic. All requests are proxied through the server application to avoid cross domain problems. In addition, the data is translated to JSON reducing the size of the response.
