ui.igCategoryChart

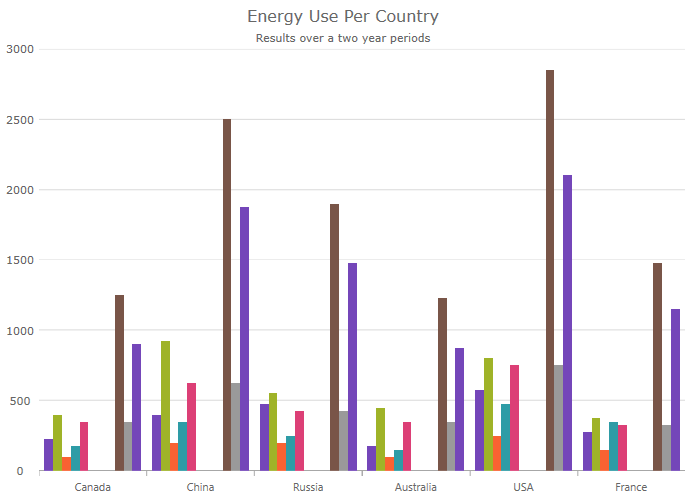

ui.igCategoryChart_image

The igCategoryChart is a lightweight, highly performant chart. This chart can be easily configured to display category data using an extremely simple and intuitive API. All you need to do is bind your data (a collection or a collection of collections) and the chart takes care of everything else.

The following code snippet demonstrates how to initialize the igCategoryChart control.

For details on how to reference the required scripts and themes for the igPieChart control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


<!DOCTYPE html>
<html>
<head>
    <title>Ignite UI igCategoryChart</title>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
    <script src="js/infragistics.dv.js" type="text/javascript"></script>

	<script type="text/javascript">
		$(function () {
			var tabularData = [
				{ "Label": "1995", "Brazil": 161, "Indonesia": 197, "United States": 266, "India": 920, "China": 1297 },
				{ "Label": "2005", "Brazil": 186, "Indonesia": 229, "United States": 295, "India": 1090, "China": 1216 },
				{ "Label": "2015", "Brazil": 204, "Indonesia": 256, "United States": 322, "India": 1251, "China": 1361 },
				{ "Label": "2025", "Brazil": 218, "Indonesia": 277, "United States": 351, "India": 1396, "China": 1394 }];
			tabularData.__dataIntents = new Array();
			tabularData.__dataIntents["Brazil"] = ["DontPlot"];

			$("#chart").igCategoryChart({
				dataSource: tabularData
			});
        });
	</script>
</head>
<body>
    <div id="chart"></div>
</body>
</html>


Related Samples

Related Topics

Dependencies

jquery.js
jquery-ui.js
infragistics.util.js
infragistics.datasource.js
infragistics.templating.js
infragistics.ext_core.js
infragistics.ext_collections.js
infragistics.ext_ui.js
infragistics.dv_core.js
infragistics.dv_datasource.js
infragistics.dv_dataseriesadapter.js
infragistics.dv_geometry.js
infragistics.datachart_core.js
infragistics.datachart_categorycore.js
infragistics.dvcommonwidget.js
infragistics.ui.basechart.js
infragistics.datachart_category.js
infragistics.categorychart.js

Inherits

  • alignsGridLinesToPixels

    Type:
    bool
    Default:
    true

    Gets or sets a value indicating whether grid and tick lines are aligned to device pixels.

  • bottomMargin

    Type:
    number
    Default:
    0

    Gets or sets the bottom margin around the chart content in the canvas.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	bottomMargin: 20
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "bottomMargin");

    // Set
    $(".selector").igCategoryChart("option", "bottomMargin", 20);

  • brushes

    Type:
    object
    Default:
    null

    Gets or sets the palette of brushes to use for coloring the chart series. The value provided should be an array of CSS color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	brushes: [ "#ff0000", "#ffff00", "#00ffff" ]
    });

    // Get
    var brushes = $(".selector").igCategoryChart("option", "brushes");

    // Set
    $(".selector").igCategoryChart("option", "brushes", [ "#ff0000", "#ffff00", "#00ffff" ]);

  • chartType

    Type:
    enumeration
    Default:
    line

    Gets or sets the type of chart series to generate from the data.

    Members

    • line
    • Type:string
    • Specifies category line series with markers at each data point.
    • area
    • Type:string
    • Specifies category area series.
    • column
    • Type:string
    • Specifies category column chart with vertical rectangles at each data point.
    • point
    • Type:string
    • Specifies category point chart with markers at each data point.
    • stepLine
    • Type:string
    • Specifies category step line chart.
    • stepArea
    • Type:string
    • Specifies category step area chart.
    • spline
    • Type:string
    • Specifies category spline line series with markers at each data point.
    • splineArea
    • Type:string
    • Specifies category spline area series.
    • waterfall
    • Type:string
    • Specifies category waterfall chart.
    • auto
    • Type:string
    • Specifies automatic selection of chart type based on suggestions from Data Adapter.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	chartType: "area"
    });

    // Get
    var chartType = $(".selector").igCategoryChart("option", "chartType");

    // Set
    $(".selector").igCategoryChart("option", "chartType", "area");

  • dataSource
    Inherited

    Type:
    object
    Default:
    null

    Gets sets a valid data source.
    That can be instance of array or primitives, array of objects, instance of $.ig.DataSource, or any other data accepted by $.ig.DataSource.
    Note: if it is set to string and "dataSourceType" option is not set, then $.ig.JSONPDataSource is used.

    Code Sample


    // Given the following data...
    var data1 = [
    	{ "ID": 1, "Cost": 12.5 },
    	{ "ID": 2, "Cost": 18.56 },
    	{ "ID": 3, "Cost": 22.18 }];

    // Initialize
    $(".selector").igCategoryChart({
    	dataSource: data1
    });

    // Get
    var dataSource = $(".selector").igCategoryChart("option", "dataSource");

    // Set
    $(".selector").igCategoryChart("option", "dataSource", data1);

  • dataSourceType
    Inherited

    Type:
    string
    Default:
    null

    Gets sets data source type (such as "json", "xml", etc). Please refer to the documentation of $.ig.DataSource and its type property.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	dataSourceType: "array"
    });

    // Get
    var dataSourceType = $(".selector").igCategoryChart("option", "dataSourceType");

    // Set
    $(".selector").igCategoryChart("option", "dataSourceType", "array");

  • dataSourceUrl
    Inherited

    Type:
    string
    Default:
    null

    Gets sets url which is used for sending JSON on request for remote data.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	dataSourceUrl: "http://www.example.com"
    });

    // Get
    var dataUrl = $(".selector").igCategoryChart("option", "dataSourceUrl");

    // Set
    $(".selector").igCategoryChart("option", "dataSourceUrl", "http://www.example.com");

  • excludedProperties

    Type:
    object
    Default:
    null

    Gets or sets a set of property paths that should be excluded from consideration by the category chart.

    Code Sample


    // Given the following data bound to the chart...
    var data1 = [
    	{ "ID": 1, "Cost": 12.5, "Discount": 0.5, "ProductName": "Shirts" },
    	{ "ID": 2, "Cost": 18.56, "Discount": 0.25, "ProductName": "Hats" },
    	{ "ID": 3, "Cost": 22.18, "Discount": 0.1, "ProductName": "Shoes" }];

    // Initialize
    $(".selector").igCategoryChart({
    	excludedProperties: [ "ID", "Discount" ]
    });

    // Get
    var excludedProps = $(".selector").igCategoryChart("option", "excludedProperties");

    // Set
    $(".selector").igCategoryChart("option", "excludedProperties", [ "ID", "Discount" ]);

  • height
    Inherited

    Type:
    number
    Default:
    null

    The height of the chart.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
        height: 250
    });

    // Get
    var height = $(".selector").igCategoryChart("option", "height");

    // Set
    $(".selector").igCategoryChart("option", "height", 250);

  • includedProperties

    Type:
    object
    Default:
    null

    Gets or sets a set of property paths that should be included for consideration by the category chart, leaving the remaineder excluded. If null, all properties will be considered.

    Code Sample


    // Given the following data bound to the chart...
    var data1 = [
    	{ "ID": 1, "Cost": 12.5, "Discount": 0.5, "ProductName": "Shirts" },
    	{ "ID": 2, "Cost": 18.56, "Discount": 0.25, "ProductName": "Hats" },
    	{ "ID": 3, "Cost": 22.18, "Discount": 0.1, "ProductName": "Shoes" }];

    // Initialize
    $(".selector").igCategoryChart({
    	includedProperties: [ "ProductName", "Cost" ]
    });

    // Get
    var includedProps = $(".selector").igCategoryChart("option", "includedProperties");

    // Set
    $(".selector").igCategoryChart("option", "includedProperties", [ "ProductName", "Cost" ]);

  • isHorizontalZoomEnabled

    Type:
    bool
    Default:
    false

    Gets or sets whether the chart should perform horizontal zoom when the user initiates a mouse wheel or mouse drag operation.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
        isHorizontalZoomEnabled: true
    });

    // Get
    var zoomEnabled = $(".selector").igCategoryChart("option", "isHorizontalZoomEnabled");

    // Set
    $(".selector").igCategoryChart("option", "isHorizontalZoomEnabled", true);

  • isTransitionInEnabled

    Type:
    bool
    Default:
    false

    Gets or sets whether animation of series plots is enabled when the chart is loading into view.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
        isTransitionInEnabled: true
    });

    // Get
    var transitionEnabled = $(".selector").igCategoryChart("option", "isTransitionInEnabled");

    // Set
    $(".selector").igCategoryChart("option", "isTransitionInEnabled", true);

  • isVerticalZoomEnabled

    Type:
    bool
    Default:
    false

    Gets or sets whether the chart should perform vertical zoom when the user initiates a mouse wheel or mouse drag operation.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
        isVerticalZoomEnabled: true
    });

    // Get
    var zoomEnabled = $(".selector").igCategoryChart("option", "isVerticalZoomEnabled");

    // Set
    $(".selector").igCategoryChart("option", "isVerticalZoomEnabled", true);

  • itemsSource

    Type:
    object
    Default:
    null

    Gets or sets a collection of data items used to generate the chart.
    Value of this property can be a list of objects containing one or more numeric properties. Additionally, if the objects in the list implement the IEnumerable interface, the Category Chart will attempt to delve into the sub-collections when reading through the data source. Databinding can be further configured by attributing the data item classes with the DataSeriesMemberIntentAttribute.

    Code Sample


    // Given the following data...
    var data1 = [
    	{ "ID": 1, "Cost": 12.5 },
    	{ "ID": 2, "Cost": 18.56 },
    	{ "ID": 3, "Cost": 22.18 }];

    // Initialize
    $(".selector").igCategoryChart({
    	itemsSource: data1
    });

    // Get
    var itemsSource = $(".selector").igCategoryChart("option", "itemsSource");

    // Set
    $(".selector").igCategoryChart("option", "itemsSource", data1);

  • leftMargin

    Type:
    number
    Default:
    0

    Gets or sets the left margin of the chart content in the canvas.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	leftMargin: 20
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "leftMargin");

    // Set
    $(".selector").igCategoryChart("option", "leftMargin", 20);

  • legend

    Type:
    object
    Default:
    null

    Sets the legend to connect this chart to.
    When the legend property is set, the chart will use it to display information about its series. Legends can be shared by multiple chart controls.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
        legend: { element: 'legend', type: 'legend' }
    });

    // Get
    var legend = $(".selector").igCategoryChart("option", "legend");

    // Set
    $(".selector").igCategoryChart("option", "legend", { element: 'legend', type: 'legend' });

  • markerBrushes

    Type:
    object
    Default:
    null

    Gets or sets the palette of brushes used for coloring fill of data point markers.
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	markerBrushes: [ "#ff0000", "#ffff00", "#00ffff" ]
    });

    // Get
    var brushes = $(".selector").igCategoryChart("option", "markerBrushes");

    // Set
    $(".selector").igCategoryChart("option", "markerBrushes", [ "#ff0000", "#ffff00", "#00ffff" ]);

  • markerCollisionAvoidance

    Type:
    enumeration
    Default:
    omit

    Gets or sets behavior for markers in each series which are placed too close together for the current view, resulting in a collision.

    Members

    • none
    • Type:string
    • .
    • omit
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	markerCollisionAvoidance: "omit"
    });

    // Get
    var collisionAvoidance = $(".selector").igCategoryChart("option", "markerCollisionAvoidance");

    // Set
    $(".selector").igCategoryChart("option", "markerCollisionAvoidance", "omit");

  • markerOutlines

    Type:
    object
    Default:
    null

    Gets or sets the palette of brushes used for coloring outline of data point markers.
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	markerOutlines: [ "#ff0000", "#ffff00", "#00ffff" ]
    });

    // Get
    var outlines = $(".selector").igCategoryChart("option", "markerOutlines");

    // Set
    $(".selector").igCategoryChart("option", "markerOutlines", [ "#ff0000", "#ffff00", "#00ffff" ]);

  • markerTypes

    Type:
    object
    Default:
    null

    Gets or sets collection of marker shapes used for representing data points of series in this chart.
    When MarkerTypes is null or empty, each series' marker type will be set to none or automatic, depending on the series type.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	markerTypes: [ "triangle", "pentagon", "diamond" ]
    });

    // Get
    var markerTypes = $(".selector").igCategoryChart("option", "markerTypes");

    // Set
    $(".selector").igCategoryChart("option", "markerTypes", [ "triangle", "pentagon", "diamond" ]);

  • maxRecCount
    Inherited

    Type:
    number
    Default:
    0

    Gets sets maximum number of displayed records in chart.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	maxRecCount: 1000
    });

    // Get
    var maxRecCount = $(".selector").igCategoryChart("option", "maxRecCount");

    // Set
    $(".selector").igCategoryChart("option", "maxRecCount", 1000);

  • negativeBrushes

    Type:
    object
    Default:
    null

    Gets or sets the palette used for coloring negative items of Waterfall chart type.
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	negativeBrushes: [ "#ff0000", "#ffff00", "#00ffff" ]
    });

    // Get
    var brushes = $(".selector").igCategoryChart("option", "negativeBrushes");

    // Set
    $(".selector").igCategoryChart("option", "negativeBrushes", [ "#ff0000", "#ffff00", "#00ffff" ]);

  • negativeOutlines

    Type:
    object
    Default:
    null

  • outlines

    Type:
    object
    Default:
    null

    Gets or sets the palette of brushes to use for outlines on the chart series. The value provided should be an array of CSS color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	outlines: [ "#ff0000", "#ffff00", "#00ffff" ]
    });

    // Get
    var outlines = $(".selector").igCategoryChart("option", "outlines");

    // Set
    $(".selector").igCategoryChart("option", "outlines", [ "#ff0000", "#ffff00", "#00ffff" ]);

  • resolution

    Type:
    number
    Default:
    1

    Gets or sets the rendering resolution for series in this chart.
    Where n = Resolution, for every n horizontal pixels, combine all items into a single datapoint. When Resolution = 0, all datapoints will be rendered as graphical objects. Charts with a higher resolution will have faster performance.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	resolution: 2
    });

    // Get
    var resolution = $(".selector").igCategoryChart("option", "resolution");

    // Set
    $(".selector").igCategoryChart("option", "resolution", 2);

  • responseDataKey
    Inherited

    Type:
    string
    Default:
    null

    See $.ig.DataSource. This is basically the property in the responses where data records are held, if the response is wrapped.

    Code Sample


    // Initialize
    $(".selector").igDataChart({
        responseDataKey: "Records"
    });

    // Get
    var responseDataKey = $(".selector").igDataChart("option", "responseDataKey");

    // Set
    $(".selector").igDataChart("option", "responseDataKey", "Records");

  • responseTotalRecCountKey
    Inherited

    Type:
    string
    Default:
    null

    See $.ig.DataSource. property in the response specifying the total number of records on the server.

    Code Sample


    // Initialize
    $(".selector").igDataChart({
        responseTotalRecCountKey: "RecordCount"
    });

    // Get
    var responseTotalRecCountKey = $(".selector").igDataChart("option", "responseTotalRecCountKey");

    // Set
    $(".selector").igDataChart("option", "responseTotalRecCountKey", "RecordCount");

  • rightMargin

    Type:
    number
    Default:
    0

    Gets or sets the right margin of the chart content in the canvas.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	rightMargin: 20
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "rightMargin");

    // Set
    $(".selector").igCategoryChart("option", "rightMargin", 20);

  • subtitle

    Type:
    string
    Default:
    null

    Gets or sets text to display below the chart Title, above the plot area.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	subtitle: "This is a subtitle"
    });

    // Get
    var subtitle = $(".selector").igCategoryChart("option", "subtitle");

    // Set
    $(".selector").igCategoryChart("option", "subtitle", "This is a subtitle");

  • subtitleAlignment

    Type:
    enumeration
    Default:
    center

    Gets or sets horizontal alignment which determines the subtitle position, relative to the left and right edges of the chart.

    Members

    • left
    • Type:string
    • .
    • center
    • Type:string
    • .
    • right
    • Type:string
    • .
    • stretch
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	subtitleAlignment: "center"
    });

    // Get
    var alignment = $(".selector").igCategoryChart("option", "subtitleAlignment");

    // Set
    $(".selector").igCategoryChart("option", "subtitleAlignment", "center");

  • subtitleBottomMargin

    Type:
    number
    Default:
    0

    Gets or sets the bottom margin of chart subtitle.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	subtitleBottomMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "subtitleBottomMargin");

    // Set
    $(".selector").igCategoryChart("option", "subtitleBottomMargin", 10);

  • subtitleLeftMargin

    Type:
    number
    Default:
    0

    Gets or sets the left margin of chart subtitle.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	subtitleLeftMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "subtitleLeftMargin");

    // Set
    $(".selector").igCategoryChart("option", "subtitleLeftMargin", 10);

  • subtitleRightMargin

    Type:
    number
    Default:
    0

    Gets or sets the right margin of chart subtitle.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	subtitleRightMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "subtitleRightMargin");

    // Set
    $(".selector").igCategoryChart("option", "subtitleRightMargin", 10);

  • subtitleTextColor

    Type:
    string
    Default:
    null

    Gets or sets color of chart subtitle.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	subtitleTextColor: "blue"
    });

    // Get
    var color = $(".selector").igCategoryChart("option", "subtitleTextColor");

    // Set
    $(".selector").igCategoryChart("option", "subtitleTextColor", "blue");

  • subtitleTextStyle

    Type:
    string
    Default:
    null

    Gets or sets CSS font property for the chart subtitle.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	subtitleTextStyle: "16pt Verdona"
    });

    // Get
    var textStyle = $(".selector").igCategoryChart("option", "subtitleTextStyle");

    // Set
    $(".selector").igCategoryChart("option", "subtitleTextStyle", "16pt Verdona");

  • subtitleTopMargin

    Type:
    number
    Default:
    0

    Gets or sets the top margin of chart subtitle.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	subtitleTopMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "subtitleTopMargin");

    // Set
    $(".selector").igCategoryChart("option", "subtitleTopMargin", 10);

  • thickness

    Type:
    number
    Default:
    1

    Gets or sets the thickness of the chart series. Depending on the ChartType, this can be the main brush used, or just the outline.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	thickness: 5
    });

    // Get
    var thickness = $(".selector").igCategoryChart("option", "thickness");

    // Set
    $(".selector").igCategoryChart("option", "thickness", 5);

  • title

    Type:
    string
    Default:
    null

    Gets or sets text to display above the plot area.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	title: "This is a title"
    });

    // Get
    var title = $(".selector").igCategoryChart("option", "title");

    // Set
    $(".selector").igCategoryChart("option", "title", "This is a title");

  • titleAlignment

    Type:
    enumeration
    Default:
    center

    Gets or sets horizontal alignment which determines the title position, relative to the left and right edges of the chart.

    Members

    • left
    • Type:string
    • .
    • center
    • Type:string
    • .
    • right
    • Type:string
    • .
    • stretch
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	titleAlignment: "center"
    });

    // Get
    var alignment = $(".selector").igCategoryChart("option", "titleAlignment");

    // Set
    $(".selector").igCategoryChart("option", "titleAlignment", "center");

  • titleBottomMargin

    Type:
    number
    Default:
    0

    Gets or sets the bottom margin of chart title.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	titleBottomMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "titleBottomMargin");

    // Set
    $(".selector").igCategoryChart("option", "titleBottomMargin", 10);

  • titleLeftMargin

    Type:
    number
    Default:
    0

    Gets or sets the left margin of chart title.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	titleLeftMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "titleLeftMargin");

    // Set
    $(".selector").igCategoryChart("option", "titleLeftMargin", 10);

  • titleRightMargin

    Type:
    number
    Default:
    0

    Gets or sets the right margin of chart title.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	titleRightMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "titleRightMargin");

    // Set
    $(".selector").igCategoryChart("option", "titleRightMargin", 10);

  • titleTextColor

    Type:
    string
    Default:
    null

    Gets or sets color of chart title.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	titleTextColor: "red"
    });

    // Get
    var color = $(".selector").igCategoryChart("option", "titleTextColor");

    // Set
    $(".selector").igCategoryChart("option", "titleTextColor", "red");

  • titleTextStyle

    Type:
    string
    Default:
    null

    Gets or sets CSS font property for the chart title.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	titleTextStyle: "24pt Verdona"
    });

    // Get
    var textStyle = $(".selector").igCategoryChart("option", "titleTextStyle");

    // Set
    $(".selector").igCategoryChart("option", "titleTextStyle", "24pt Verdona");

  • titleTopMargin

    Type:
    number
    Default:
    0

    Gets or sets the top margin of chart title.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	titleTopMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "titleTopMargin");

    // Set
    $(".selector").igCategoryChart("option", "titleTopMargin", 10);

  • tooltipTemplate

    Type:
    string
    Default:
    null

    Gets or sets the id of a template element to use for tooltips, or markup representing the tooltip template.

    Code Sample


    // Given the following data...
    var data1 = [
    	{ "ID": 1, "Cost": 12.5 },
    	{ "ID": 2, "Cost": 18.56 },
    	{ "ID": 3, "Cost": 22.18 }];

    // And the following template...
    <script id="chartTooltip" type="text/x-jquery-tmpl">
    	<div>
    		This is custom tooltip content.<br />
    		<span>${item.ID}</span><br />
    		<span>${item.Cost}</span><br />
    	</div>
    </script>

    // Initialize
    $(".selector").igCategoryChart({
    	tooltipTemplate: chartTooltip
    });

    // Get
    var template = $(".selector").igCategoryChart("option", "tooltipTemplate");

    // Set
    $(".selector").igCategoryChart("option", "tooltipTemplate", chartTooltip);

  • topMargin

    Type:
    number
    Default:
    0

    Gets or sets the top margin of the chart content in the canvas.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	topMargin: 20
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "topMargin");

    // Set
    $(".selector").igCategoryChart("option", "topMargin", 20);

  • transitionDuration

    Type:
    number
    Default:
    0

    Gets or sets the duration used for animating series plots when the data is changing.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	transitionDuration: 500
    });

    // Get
    var duration = $(".selector").igCategoryChart("option", "transitionDuration");

    // Set
    $(".selector").igCategoryChart("option", "transitionDuration", 500);

  • transitionEasingFunction

    Type:
    object
    Default:
    null

    Gets or sets the easing function used for animating series plots when the data is changing.
    This can be set to one of the known values "linear" or "cubic," or it can be set to an easing function which takes a single numeric parameter and returns a number.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	transitionEasingFunction: "cubic"
    });

    // Get
    var easingFunc = $(".selector").igCategoryChart("option", "transitionEasingFunction");

    // Set
    $(".selector").igCategoryChart("option", "transitionEasingFunction", "cubic");

  • transitionInDuration

    Type:
    number
    Default:
    0

    Gets or sets the duration used for animating series plots when the chart is loading into view.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	transitionInDuration: 500
    });

    // Get
    var duration = $(".selector").igCategoryChart("option", "transitionInDuration");

    // Set
    $(".selector").igCategoryChart("option", "transitionInDuration", 500);

  • transitionInEasingFunction

    Type:
    object
    Default:
    null

    Gets or sets the easing function used for animating series plots when the chart is loading into view
    This can be set to one of the known values "linear" or "cubic," or it can be set to an easing function which takes a single numeric parameter and returns a number.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	transitionInEasingFunction: "cubic"
    });

    // Get
    var easingFunc = $(".selector").igCategoryChart("option", "transitionInEasingFunction");

    // Set
    $(".selector").igCategoryChart("option", "transitionInEasingFunction", "cubic");

  • transitionInMode

    Type:
    enumeration
    Default:
    auto

    Gets or sets the method that determines how to animate series plots when the chart is loading into view.

    Members

    • auto
    • Type:string
    • .
    • fromZero
    • Type:string
    • .
    • sweepFromLeft
    • Type:string
    • .
    • sweepFromRight
    • Type:string
    • .
    • sweepFromTop
    • Type:string
    • .
    • sweepFromBottom
    • Type:string
    • .
    • sweepFromCenter
    • Type:string
    • .
    • accordionFromLeft
    • Type:string
    • .
    • accordionFromRight
    • Type:string
    • .
    • accordionFromTop
    • Type:string
    • .
    • accordionFromBottom
    • Type:string
    • .
    • expand
    • Type:string
    • .
    • sweepFromCategoryAxisMinimum
    • Type:string
    • .
    • sweepFromCategoryAxisMaximum
    • Type:string
    • .
    • sweepFromValueAxisMinimum
    • Type:string
    • .
    • sweepFromValueAxisMaximum
    • Type:string
    • .
    • accordionFromCategoryAxisMinimum
    • Type:string
    • .
    • accordionFromCategoryAxisMaximum
    • Type:string
    • .
    • accordionFromValueAxisMinimum
    • Type:string
    • .
    • accordionFromValueAxisMaximum
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	transitionInMode: "sweepFromRight"
    });

    // Get
    var mode = $(".selector").igCategoryChart("option", "transitionInMode");

    // Set
    $(".selector").igCategoryChart("option", "transitionInMode", "sweepFromRight");

  • transitionInSpeedType

    Type:
    enumeration
    Default:
    auto

    Gets or sets the arrival speed used for animating series plots when the chart is loading into view.

    Members

    • auto
    • Type:string
    • .
    • normal
    • Type:string
    • .
    • valueScaled
    • Type:string
    • .
    • indexScaled
    • Type:string
    • .
    • random
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	transitionInSpeedType: "indexScaled"
    });

    // Get
    var speedType = $(".selector").igCategoryChart("option", "transitionInSpeedType");

    // Set
    $(".selector").igCategoryChart("option", "transitionInSpeedType", "indexScaled");

  • trendLineBrushes

    Type:
    object
    Default:
    null

    Gets or sets the palette of brushes to used for coloring trend lines in this chart. The value provided should be an array of CSS color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection
    The value provided should be an array of css color strings or JavaScript objects defining gradients. Optionally the first element can be a string reading "RGB" or "HSV" to specify the interpolation mode of the collection.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	trendLineBrushes: [ "#ff0000", "#ffff00", "#00ffff" ]
    });

    // Get
    var brushes = $(".selector").igCategoryChart("option", "trendLineBrushes");

    // Set
    $(".selector").igCategoryChart("option", "trendLineBrushes", [ "#ff0000", "#ffff00", "#00ffff" ]);

  • trendLineThickness

    Type:
    number
    Default:
    1.5

    Gets or sets the thickness of the trend lines in this chart.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	trendLineThickness: 5
    });

    // Get
    var thickness = $(".selector").igCategoryChart("option", "trendLineThickness");

    // Set
    $(".selector").igCategoryChart("option", "trendLineThickness", 5);

  • trendLineType

    Type:
    enumeration
    Default:
    null

    Gets or sets the formula used for calculating trend lines in this chart.

    Members

    • none
    • Type:string
    • .
    • linearFit
    • Type:string
    • .
    • quadraticFit
    • Type:string
    • .
    • cubicFit
    • Type:string
    • .
    • quarticFit
    • Type:string
    • .
    • quinticFit
    • Type:string
    • .
    • logarithmicFit
    • Type:string
    • .
    • exponentialFit
    • Type:string
    • .
    • powerLawFit
    • Type:string
    • .
    • simpleAverage
    • Type:string
    • .
    • exponentialAverage
    • Type:string
    • .
    • modifiedAverage
    • Type:string
    • .
    • cumulativeAverage
    • Type:string
    • .
    • weightedAverage
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	trendLineType: "simpleAverage"
    });

    // Get
    var trendLineType = $(".selector").igCategoryChart("option", "trendLineType");

    // Set
    $(".selector").igCategoryChart("option", "trendLineType", "simpleAverage");

  • unknownValuePlotting

    Type:
    enumeration
    Default:
    null

    Gets or sets behavior that determines how unknown values will be plotted on the chart. Null and Double.NaN are two examples of unknown values.

    Members

    • linearInterpolate
    • Type:string
    • .
    • dontPlot
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	unknownValuePlotting: "linearInterpolate"
    });

    // Get
    var unknownValuePlotting = $(".selector").igCategoryChart("option", "unknownValuePlotting");

    // Set
    $(".selector").igCategoryChart("option", "unknownValuePlotting", "linearInterpolate");

  • widget

    Type:
    object
    Default:
    null

  • width
    Inherited

    Type:
    number
    Default:
    null

    The width of the chart.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	width: 250
    });

    // Get
    var width = $(".selector").igCategoryChart("option", "width");

    // Set
    $(".selector").igCategoryChart("option", "width", 250);

  • windowRect

    Type:
    object
    Default:
    null

    Gets or sets the rectangle representing the current scroll and zoom state of the chart.
    WindowRect is expressed as a Rectangle with coordinates and sizes between 0 and 1.
    The provided object should have numeric properties called left, top, width and height.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	windowRect: { left: 0, top: 0, width: 0.5, height: 0.5 }
    });

    // Get
    var windowRect = $(".selector").igCategoryChart("option", "windowRect");

    // Set
    $(".selector").igCategoryChart("option", "windowRect", { left: 0, top: 0, width: 0.5, height: 0.5 });

  • xAxisExtent

    Type:
    number
    Default:
    50

    Gets or sets the distance between the X-axis and the bottom of the chart.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisExtent: 10
    });

    // Get
    var extent = $(".selector").igCategoryChart("option", "xAxisExtent");

    // Set
    $(".selector").igCategoryChart("option", "xAxisExtent", 10);

  • xAxisFormatLabel

    Type:
    object
    Default:
    null

    Gets or sets function which takes an context object and returns a formatted label for the X-axis.

    Code Sample


    // Given the following data where ID is the X axis...
    var data1 = [
    	{ "ID": 1, "Cost": 12.5 },
    	{ "ID": 2, "Cost": 18.56 },
    	{ "ID": 3, "Cost": 22.18 }];

    // Initialize
    $(".selector").igCategoryChart({
    	xAxisFormatLabel: function (item) {
    		return "ID " + item; // results: "ID 1", "ID 2" & "ID 3" labels
    	}
    });

  • xAxisGap

    Type:
    number
    Default:
    0

    Gets or sets the amount of space between adjacent categories for the X-axis.
    The gap is silently clamped to the range [0, 1] when used.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisGap: 0.5
    });

    // Get
    var gap = $(".selector").igCategoryChart("option", "xAxisGap");

    // Set
    $(".selector").igCategoryChart("option", "xAxisGap", 0.5);

  • xAxisInterval

    Type:
    number
    Default:
    0

    Gets or sets the frequency of displayed labels along the X-axis.
    Gets or sets the set value is a factor that determines which labels will be hidden. For example, an interval of 2 will display every other label.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisInterval: 2
    });

    // Get
    var interval = $(".selector").igCategoryChart("option", "xAxisInterval");

    // Set
    $(".selector").igCategoryChart("option", "xAxisInterval", 2);

  • xAxisInverted

    Type:
    bool
    Default:
    null

    Gets or sets whether the direction of the X-axis is inverted, placing the first data items on the right side instead of left side.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisInverted: true
    });

    // Get
    var isInverted = $(".selector").igCategoryChart("option", "xAxisInverted");

    // Set
    $(".selector").igCategoryChart("option", "xAxisInverted", true);

  • xAxisLabel

    Type:
    object
    Default:
    null

    Gets or sets the format for labels along the X-axis.

    Code Sample


    // Given the following data bound to the chart...
    var data1 = [
    	{ "ID": 1, "Cost": 12.5, "Discount": 0.5, "ProductName": "Shirts" },
    	{ "ID": 2, "Cost": 18.56, "Discount": 0.25, "ProductName": "Hats" },
    	{ "ID": 3, "Cost": 22.18, "Discount": 0.1, "ProductName": "Shoes" }];

    // Initialize
    $(".selector").igCategoryChart({
    	xAxisLabel: "ProductName"
    });

    // Get
    var label = $(".selector").igCategoryChart("option", "xAxisLabel");

    // Set
    $(".selector").igCategoryChart("option", "xAxisLabel", "ProductName");

  • xAxisLabelAngle

    Type:
    number
    Default:
    0

    Gets or sets the angle of rotation for labels along the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisLabelAngle: 30
    });

    // Get
    var angle = $(".selector").igCategoryChart("option", "xAxisLabelAngle");

    // Set
    $(".selector").igCategoryChart("option", "xAxisLabelAngle", 30);

  • xAxisLabelBottomMargin

    Type:
    number
    Default:
    5

    Gets or sets the bottom margin of labels on the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisLabelBottomMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "xAxisLabelBottomMargin");

    // Set
    $(".selector").igCategoryChart("option", "xAxisLabelBottomMargin", 10);

  • xAxisLabelHorizontalAlignment

    Type:
    enumeration
    Default:
    center

    Gets or sets the horizontal alignment of X-axis labels.

    Members

    • left
    • Type:string
    • .
    • center
    • Type:string
    • .
    • right
    • Type:string
    • .
    • stretch
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisLabelHorizontalAlignment: "center"
    });

    // Get
    var alignment = $(".selector").igCategoryChart("option", "xAxisLabelHorizontalAlignment");

    // Set
    $(".selector").igCategoryChart("option", "xAxisLabelHorizontalAlignment", "center");

  • xAxisLabelLeftMargin

    Type:
    number
    Default:
    0

    Gets or sets the left margin of labels on the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisLabelLeftMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "xAxisLabelLeftMargin");

    // Set
    $(".selector").igCategoryChart("option", "xAxisLabelLeftMargin", 10);

  • xAxisLabelRightMargin

    Type:
    number
    Default:
    0

    Gets or sets the right margin of labels on the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisLabelRightMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "xAxisLabelRightMargin");

    // Set
    $(".selector").igCategoryChart("option", "xAxisLabelRightMargin", 10);

  • xAxisLabelTextColor

    Type:
    string
    Default:
    null

    Gets or sets color of labels on the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisLabelTextColor: "blue"
    });

    // Get
    var textColor = $(".selector").igCategoryChart("option", "xAxisLabelTextColor");

    // Set
    $(".selector").igCategoryChart("option", "xAxisLabelTextColor", "blue");

  • xAxisLabelTextStyle

    Type:
    string
    Default:
    null

    Gets or sets CSS font property for labels on X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisLabelTextStyle: "16pt Verdona"
    });

    // Get
    var textStyle = $(".selector").igCategoryChart("option", "xAxisLabelTextStyle");

    // Set
    $(".selector").igCategoryChart("option", "xAxisLabelTextStyle", "16pt Verdona");

  • xAxisLabelTopMargin

    Type:
    number
    Default:
    5

    Gets or sets the top margin of labels on the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisLabelTopMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "xAxisLabelTopMargin");

    // Set
    $(".selector").igCategoryChart("option", "xAxisLabelTopMargin", 10);

  • xAxisLabelVerticalAlignment

    Type:
    enumeration
    Default:
    top

    Gets or sets the vertical alignment of X-axis labels.

    Members

    • top
    • Type:string
    • .
    • center
    • Type:string
    • .
    • bottom
    • Type:string
    • .
    • stretch
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisLabelVerticalAlignment: "center"
    });

    // Get
    var alignment = $(".selector").igCategoryChart("option", "xAxisLabelVerticalAlignment");

    // Set
    $(".selector").igCategoryChart("option", "xAxisLabelVerticalAlignment", "center");

  • xAxisLabelVisibility

    Type:
    enumeration
    Default:
    null

    Gets or sets the visibility of X-axis labels.

    Members

    • visible
    • Type:string
    • .
    • collapsed
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisLabelVisibility: "visible"
    });

    // Get
    var visibility = $(".selector").igCategoryChart("option", "xAxisLabelVisibility");

    // Set
    $(".selector").igCategoryChart("option", "xAxisLabelVisibility", "visible");

  • xAxisMajorStroke

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to major gridlines along the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisMajorStroke: "blue"
    });

    // Get
    var stroke = $(".selector").igCategoryChart("option", "xAxisMajorStroke");

    // Set
    $(".selector").igCategoryChart("option", "xAxisMajorStroke", "blue");

  • xAxisMajorStrokeThickness

    Type:
    number
    Default:
    1

    Gets or sets the thickness to apply to major gridlines along the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisMajorStrokeThickness: 5
    });

    // Get
    var thickness = $(".selector").igCategoryChart("option", "xAxisMajorStrokeThickness");

    // Set
    $(".selector").igCategoryChart("option", "xAxisMajorStrokeThickness", 5);

  • xAxisMinorInterval

    Type:
    number
    Default:
    0

    Gets or sets the frequency of displayed minor lines along the X-axis.
    Gets or sets the set value is a factor that determines how the minor lines will be displayed.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisMinorInterval: 1
    });

    // Get
    var interval = $(".selector").igCategoryChart("option", "xAxisMinorInterval");

    // Set
    $(".selector").igCategoryChart("option", "xAxisMinorInterval", 1);

  • xAxisMinorStroke

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to minor gridlines along the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisMinorStroke: "grey"
    });

    // Get
    var stroke = $(".selector").igCategoryChart("option", "xAxisMinorStroke");

    // Set
    $(".selector").igCategoryChart("option", "xAxisMinorStroke", "grey");

  • xAxisMinorStrokeThickness

    Type:
    number
    Default:
    0

    Gets or sets the thickness to apply to minor gridlines along the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisMinorStrokeThickness: 5
    });

    // Get
    var thickness = $(".selector").igCategoryChart("option", "xAxisMinorStrokeThickness");

    // Set
    $(".selector").igCategoryChart("option", "xAxisMinorStrokeThickness", 5);

  • xAxisOverlap

    Type:
    number
    Default:
    0

    Gets or sets the amount of overlap between adjacent categories for the X-axis.
    Gets or sets the overlap is silently clamped to the range [-1, 1] when used.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisOverlap: 0.5
    });

    // Get
    var overlap = $(".selector").igCategoryChart("option", "xAxisOverlap");

    // Set
    $(".selector").igCategoryChart("option", "xAxisOverlap", 0.5);

  • xAxisStrip

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to stripes along the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisStrip: "grey"
    });

    // Get
    var strip = $(".selector").igCategoryChart("option", "xAxisStrip");

    // Set
    $(".selector").igCategoryChart("option", "xAxisStrip", "grey");

  • xAxisStroke

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to the X-axis line.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisStroke: "blue"
    });

    // Get
    var stroke = $(".selector").igCategoryChart("option", "xAxisStroke");

    // Set
    $(".selector").igCategoryChart("option", "xAxisStroke", "blue");

  • xAxisStrokeThickness

    Type:
    number
    Default:
    0

    Gets or sets the thickness to apply to the X-axis line.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisStrokeThickness: 5
    });

    // Get
    var thickness = $(".selector").igCategoryChart("option", "xAxisStrokeThickness");

    // Set
    $(".selector").igCategoryChart("option", "xAxisStrokeThickness", 5);

  • xAxisTickLength

    Type:
    number
    Default:
    5

    Gets or sets the length of tickmarks along the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisTickLength: 5
    });

    // Get
    var tickLength = $(".selector").igCategoryChart("option", "xAxisTickLength");

    // Set
    $(".selector").igCategoryChart("option", "xAxisTickLength", 5);

  • xAxisTickStroke

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to tickmarks along the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisTickStroke: "blue"
    });

    // Get
    var stroke = $(".selector").igCategoryChart("option", "xAxisTickStroke");

    // Set
    $(".selector").igCategoryChart("option", "xAxisTickStroke", "blue");

  • xAxisTickStrokeThickness

    Type:
    number
    Default:
    1

    Gets or sets the thickness to apply to tickmarks along the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisTickStrokeThickness: 5
    });

    // Get
    var thickness = $(".selector").igCategoryChart("option", "xAxisTickStrokeThickness");

    // Set
    $(".selector").igCategoryChart("option", "xAxisTickStrokeThickness", 5);

  • xAxisTitle

    Type:
    string
    Default:
    null

    Text to display below the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisTitle: "This is an axis title"
    });

    // Get
    var title = $(".selector").igCategoryChart("option", "xAxisTitle");

    // Set
    $(".selector").igCategoryChart("option", "xAxisTitle", "This is an axis title");

  • xAxisTitleAlignment

    Type:
    enumeration
    Default:
    center

    Gets or sets the horizontal alignment of the X-axis title.

    Members

    • left
    • Type:string
    • .
    • center
    • Type:string
    • .
    • right
    • Type:string
    • .
    • stretch
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisTitleAlignment: "center"
    });

    // Get
    var alignment = $(".selector").igCategoryChart("option", "xAxisTitleAlignment");

    // Set
    $(".selector").igCategoryChart("option", "xAxisTitleAlignment", "center");

  • xAxisTitleAngle

    Type:
    number
    Default:
    0

    Gets or sets the angle of rotation for the X-axis title.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisTitleAngle: 30
    });

    // Get
    var angle = $(".selector").igCategoryChart("option", "xAxisTitleAngle");

    // Set
    $(".selector").igCategoryChart("option", "xAxisTitleAngle", 30);

  • xAxisTitleBottomMargin

    Type:
    number
    Default:
    0

    Gets or sets the bottom margin of a title on the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisTitleBottomMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "xAxisTitleBottomMargin");

    // Set
    $(".selector").igCategoryChart("option", "xAxisTitleBottomMargin", 10);

  • xAxisTitleExtent

    Type:
    number
    Default:
    0

    Gets or sets the extent area dedicated to the a title on the X-axis. If unspecified, this value is auto-calculated.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisTitleExtent: 10
    });

    // Get
    var extent = $(".selector").igCategoryChart("option", "xAxisTitleExtent");

    // Set
    $(".selector").igCategoryChart("option", "xAxisTitleExtent", 10);

  • xAxisTitleLeftMargin

    Type:
    number
    Default:
    0

    Gets or sets the left margin of a title on the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisTitleLeftMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "xAxisTitleLeftMargin");

    // Set
    $(".selector").igCategoryChart("option", "xAxisTitleLeftMargin", 10);

  • xAxisTitleMargin

    Type:
    number
    Default:
    0

    Gets or sets the margin around a title on the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisTitleMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "xAxisTitleMargin");

    // Set
    $(".selector").igCategoryChart("option", "xAxisTitleMargin", 10);

  • xAxisTitleRightMargin

    Type:
    number
    Default:
    0

    Gets or sets the right margin of a title on the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisTitleRightMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "xAxisTitleRightMargin");

    // Set
    $(".selector").igCategoryChart("option", "xAxisTitleRightMargin", 10);

  • xAxisTitleTextColor

    Type:
    string
    Default:
    null

    Gets or sets color of title on the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisTitleTextColor: "blue"
    });

    // Get
    var color = $(".selector").igCategoryChart("option", "xAxisTitleTextColor");

    // Set
    $(".selector").igCategoryChart("option", "xAxisTitleTextColor", "blue");

  • xAxisTitleTextStyle

    Type:
    string
    Default:
    null

    Gets or sets CSS font property for title on X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisTitleTextStyle: "26pt Times New Roman|Georgia|Serif"
    });

    // Get
    var textStyle = $(".selector").igCategoryChart("option", "xAxisTitleTextStyle");

    // Set
    $(".selector").igCategoryChart("option", "xAxisTitleTextStyle", "26pt Times New Roman|Georgia|Serif");

  • xAxisTitleTopMargin

    Type:
    number
    Default:
    0

    Gets or sets the top margin of a title on the X-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	xAxisTitleTopMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "xAxisTitleTopMargin");

    // Set
    $(".selector").igCategoryChart("option", "xAxisTitleTopMargin", 10);

  • yAxisExtent

    Type:
    number
    Default:
    50

    Gets or sets the distance between the Y-axis and the left edge of the chart.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisExtent: 10
    });

    // Get
    var extent = $(".selector").igCategoryChart("option", "yAxisExtent");

    // Set
    $(".selector").igCategoryChart("option", "yAxisExtent", 10);

  • yAxisFormatLabel

    Type:
    object
    Default:
    null

    Gets or sets function which takes a context object and returns a formatted label for the Y-axis.

    Code Sample


    // Given the following data where Cost is the Y axis...
    var data1 = [
    	{ "ID": 1, "Cost": 12.5 },
    	{ "ID": 2, "Cost": 18.56 },
    	{ "ID": 3, "Cost": 22.18 }];

    // Initialize
    $(".selector").igCategoryChart({
    	yAxisFormatLabel: function (item) {
    		return item.toFixed(2).replace(/(\d)(?=(\d{3})+\.)/g, "$1,");
    	}
    });

  • yAxisInterval

    Type:
    number
    Default:
    0

    Gets or sets the distance between each labels and grid line along the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisInterval: 2
    });

    // Get
    var interval = $(".selector").igCategoryChart("option", "yAxisInterval");

    // Set
    $(".selector").igCategoryChart("option", "yAxisInterval", 2);

  • yAxisInverted

    Type:
    bool
    Default:
    null

    Gets or sets whether the direction of the Y-axis is inverted, placing minimum numeric value at the top of the axis instead of bottom.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisInverted: true
    });

    // Get
    var isInverted = $(".selector").igCategoryChart("option", "yAxisInverted");

    // Set
    $(".selector").igCategoryChart("option", "yAxisInverted", true);

  • yAxisIsLogarithmic

    Type:
    bool
    Default:
    null

    Gets or sets whether the Y-axis should use a logarithmic scale instead of a linear one.
    Since log(-1) is imaginary and log(0) is undefined, it is recommended to enable this property only when the Y-axis minimum is greater than zero.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisIsLogarithmic: true
    });

    // Get
    var isInverted = $(".selector").igCategoryChart("option", "yAxisIsLogarithmic");

    // Set
    $(".selector").igCategoryChart("option", "yAxisIsLogarithmic", true);

  • yAxisLabel

    Type:
    object
    Default:
    null

    Gets or sets the format for labels along the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisLabel: "{0:n}"
    });

    // Get
    var label = $(".selector").igCategoryChart("option", "yAxisLabel");

    // Set
    $(".selector").igCategoryChart("option", "yAxisLabel", "{0:n}");

  • yAxisLabelAngle

    Type:
    number
    Default:
    0

    Gets or sets the angle of rotation for labels along the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisLabelAngle: 30
    });

    // Get
    var angle = $(".selector").igCategoryChart("option", "yAxisLabelAngle");

    // Set
    $(".selector").igCategoryChart("option", "yAxisLabelAngle", 30);

  • yAxisLabelBottomMargin

    Type:
    number
    Default:
    0

    Gets or sets the bottom margin of labels on the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisLabelBottomMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "yAxisLabelBottomMargin");

    // Set
    $(".selector").igCategoryChart("option", "yAxisLabelBottomMargin", 10);

  • yAxisLabelHorizontalAlignment

    Type:
    enumeration
    Default:
    right

    Gets or sets the horizontal alignment of Y-axis labels.

    Members

    • left
    • Type:string
    • .
    • center
    • Type:string
    • .
    • right
    • Type:string
    • .
    • stretch
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisLabelHorizontalAlignment: "center"
    });

    // Get
    var alignment = $(".selector").igCategoryChart("option", "yAxisLabelHorizontalAlignment");

    // Set
    $(".selector").igCategoryChart("option", "yAxisLabelHorizontalAlignment", "center");

  • yAxisLabelLeftMargin

    Type:
    number
    Default:
    5

    Gets or sets the left margin of labels on the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisLabelLeftMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "yAxisLabelLeftMargin");

    // Set
    $(".selector").igCategoryChart("option", "yAxisLabelLeftMargin", 10);

  • yAxisLabelRightMargin

    Type:
    number
    Default:
    5

    Gets or sets the right margin of labels on the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisLabelRightMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "yAxisLabelRightMargin");

    // Set
    $(".selector").igCategoryChart("option", "yAxisLabelRightMargin", 10);

  • yAxisLabelTextColor

    Type:
    string
    Default:
    null

    Gets or sets color of labels on the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisLabelTextColor: "blue"
    });

    // Get
    var textColor = $(".selector").igCategoryChart("option", "yAxisLabelTextColor");

    // Set
    $(".selector").igCategoryChart("option", "yAxisLabelTextColor", "blue");

  • yAxisLabelTextStyle

    Type:
    string
    Default:
    null

    Gets or sets CSS font property for labels on Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisLabelTextStyle: "16pt Verdona"
    });

    // Get
    var textStyle = $(".selector").igCategoryChart("option", "yAxisLabelTextStyle");

    // Set
    $(".selector").igCategoryChart("option", "yAxisLabelTextStyle", "16pt Verdona");

  • yAxisLabelTopMargin

    Type:
    number
    Default:
    0

    Gets or sets the top margin of labels on the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisLabelTopMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "yAxisLabelTopMargin");

    // Set
    $(".selector").igCategoryChart("option", "yAxisLabelTopMargin", 10);

  • yAxisLabelVerticalAlignment

    Type:
    enumeration
    Default:
    center

    Gets or sets the vertical alignment of Y-axis labels.

    Members

    • top
    • Type:string
    • .
    • center
    • Type:string
    • .
    • bottom
    • Type:string
    • .
    • stretch
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisLabelVerticalAlignment: "center"
    });

    // Get
    var alignment = $(".selector").igCategoryChart("option", "yAxisLabelVerticalAlignment");

    // Set
    $(".selector").igCategoryChart("option", "yAxisLabelVerticalAlignment", "center");

  • yAxisLabelVisibility

    Type:
    enumeration
    Default:
    null

    Gets or sets the visibility of Y-axis labels.

    Members

    • visible
    • Type:string
    • .
    • collapsed
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisLabelVisibility: "visible"
    });

    // Get
    var visibility = $(".selector").igCategoryChart("option", "yAxisLabelVisibility");

    // Set
    $(".selector").igCategoryChart("option", "yAxisLabelVisibility", "visible");

  • yAxisLogarithmBase

    Type:
    number
    Default:
    10

    Gets or sets the base value to use in the log function when mapping the position of data items along the Y-axis.
    This property is effective only when YAxisIsLogarithmic is true.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisLogarithmBase: 10
    });

    // Get
    var logBase = $(".selector").igCategoryChart("option", "yAxisLogarithmBase");

    // Set
    $(".selector").igCategoryChart("option", "yAxisLogarithmBase", 10);

  • yAxisMajorStroke

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to major gridlines along the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisMajorStroke: "blue"
    });

    // Get
    var stroke = $(".selector").igCategoryChart("option", "yAxisMajorStroke");

    // Set
    $(".selector").igCategoryChart("option", "yAxisMajorStroke", "blue");

  • yAxisMajorStrokeThickness

    Type:
    number
    Default:
    1

    Gets or sets the thickness to apply to major gridlines along the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisMajorStrokeThickness: 5
    });

    // Get
    var thickness = $(".selector").igCategoryChart("option", "yAxisMajorStrokeThickness");

    // Set
    $(".selector").igCategoryChart("option", "yAxisMajorStrokeThickness", 5);

  • yAxisMaximumValue

    Type:
    number
    Default:
    ""

    Gets or sets the data value corresponding to the maximum value of the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisMaximumValue: 100
    });

    // Get
    var maxValue = $(".selector").igCategoryChart("option", "yAxisMaximumValue");

    // Set
    $(".selector").igCategoryChart("option", "yAxisMaximumValue", 100);

  • yAxisMinimumValue

    Type:
    number
    Default:
    ""

    Gets or sets the data value corresponding to the minimum value of the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisMinimumValue: 0
    });

    // Get
    var minValue = $(".selector").igCategoryChart("option", "yAxisMinimumValue");

    // Set
    $(".selector").igCategoryChart("option", "yAxisMinimumValue", 0);

  • yAxisMinorInterval

    Type:
    number
    Default:
    0

    Gets or sets the frequency of displayed minor lines along the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisMinorInterval: 1
    });

    // Get
    var interval = $(".selector").igCategoryChart("option", "yAxisMinorInterval");

    // Set
    $(".selector").igCategoryChart("option", "yAxisMinorInterval", 1);

  • yAxisMinorStroke

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to minor gridlines along the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisMinorStroke: "grey"
    });

    // Get
    var stroke = $(".selector").igCategoryChart("option", "yAxisMinorStroke");

    // Set
    $(".selector").igCategoryChart("option", "yAxisMinorStroke", "grey");

  • yAxisMinorStrokeThickness

    Type:
    number
    Default:
    0

    Gets or sets the thickness to apply to minor gridlines along the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisMinorStrokeThickness: 5
    });

    // Get
    var thickness = $(".selector").igCategoryChart("option", "yAxisMinorStrokeThickness");

    // Set
    $(".selector").igCategoryChart("option", "yAxisMinorStrokeThickness", 5);

  • yAxisStrip

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to stripes along the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisStrip: "grey"
    });

    // Get
    var strip = $(".selector").igCategoryChart("option", "yAxisStrip");

    // Set
    $(".selector").igCategoryChart("option", "yAxisStrip", "grey");

  • yAxisStroke

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to the Y-axis line.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisStroke: "blue"
    });

    // Get
    var stroke = $(".selector").igCategoryChart("option", "yAxisStroke");

    // Set
    $(".selector").igCategoryChart("option", "yAxisStroke", "blue");

  • yAxisStrokeThickness

    Type:
    number
    Default:
    0

    Gets or sets the thickness to apply to the Y-axis line.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisStrokeThickness: 5
    });

    // Get
    var thickness = $(".selector").igCategoryChart("option", "yAxisStrokeThickness");

    // Set
    $(".selector").igCategoryChart("option", "yAxisStrokeThickness", 5);

  • yAxisTickLength

    Type:
    number
    Default:
    0

    Gets or sets the length of tickmarks along the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisTickLength: 5
    });

    // Get
    var tickLength = $(".selector").igCategoryChart("option", "yAxisTickLength");

    // Set
    $(".selector").igCategoryChart("option", "yAxisTickLength", 5);

  • yAxisTickStroke

    Type:
    string
    Default:
    null

    Gets or sets the color to apply to tickmarks along the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisTickStroke: "blue"
    });

    // Get
    var stroke = $(".selector").igCategoryChart("option", "yAxisTickStroke");

    // Set
    $(".selector").igCategoryChart("option", "yAxisTickStroke", "blue");

  • yAxisTickStrokeThickness

    Type:
    number
    Default:
    1

    Gets or sets the thickness to apply to tickmarks along the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisTickStrokeThickness: 5
    });

    // Get
    var thickness = $(".selector").igCategoryChart("option", "yAxisTickStrokeThickness");

    // Set
    $(".selector").igCategoryChart("option", "yAxisTickStrokeThickness", 5);

  • yAxisTitle

    Type:
    string
    Default:
    null

    Text to display to the left of the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisTitle: "This is an axis title"
    });

    // Get
    var title = $(".selector").igCategoryChart("option", "yAxisTitle");

    // Set
    $(".selector").igCategoryChart("option", "yAxisTitle", "This is an axis title");

  • yAxisTitleAlignment

    Type:
    enumeration
    Default:
    center

    Gets or sets the vertical alignment of the Y-axis title.

    Members

    • top
    • Type:string
    • .
    • center
    • Type:string
    • .
    • bottom
    • Type:string
    • .
    • stretch
    • Type:string

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisTitleAlignment: "center"
    });

    // Get
    var alignment = $(".selector").igCategoryChart("option", "yAxisTitleAlignment");

    // Set
    $(".selector").igCategoryChart("option", "yAxisTitleAlignment", "center");

  • yAxisTitleAngle

    Type:
    number
    Default:
    0

    Gets or sets the angle of rotation for the Y-axis title.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisTitleAngle: 30
    });

    // Get
    var angle = $(".selector").igCategoryChart("option", "yAxisTitleAngle");

    // Set
    $(".selector").igCategoryChart("option", "yAxisTitleAngle", 30);

  • yAxisTitleBottomMargin

    Type:
    number
    Default:
    0

    Gets or sets the bottom margin of a title on the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisTitleBottomMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "yAxisTitleBottomMargin");

    // Set
    $(".selector").igCategoryChart("option", "yAxisTitleBottomMargin", 10);

  • yAxisTitleExtent

    Type:
    number
    Default:
    0

    Gets or sets the extent area dedicated to the a title on the Y-axis. If unspecified, this value is auto-calculated.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisTitleExtent: 10
    });

    // Get
    var extent = $(".selector").igCategoryChart("option", "yAxisTitleExtent");

    // Set
    $(".selector").igCategoryChart("option", "yAxisTitleExtent", 10);

  • yAxisTitleLeftMargin

    Type:
    number
    Default:
    0

    Gets or sets the left margin of a title on the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisTitleLeftMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "yAxisTitleLeftMargin");

    // Set
    $(".selector").igCategoryChart("option", "yAxisTitleLeftMargin", 10);

  • yAxisTitleMargin

    Type:
    number
    Default:
    0

    Gets or sets the margin around a title on the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisTitleMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "yAxisTitleMargin");

    // Set
    $(".selector").igCategoryChart("option", "yAxisTitleMargin", 10);

  • yAxisTitleRightMargin

    Type:
    number
    Default:
    0

    Gets or sets the right margin of a title on the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisTitleRightMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "yAxisTitleRightMargin");

    // Set
    $(".selector").igCategoryChart("option", "yAxisTitleRightMargin", 10);

  • yAxisTitleTextColor

    Type:
    string
    Default:
    null

    Gets or sets color of title on the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisTitleTextColor: "blue"
    });

    // Get
    var color = $(".selector").igCategoryChart("option", "yAxisTitleTextColor");

    // Set
    $(".selector").igCategoryChart("option", "yAxisTitleTextColor", "blue");

  • yAxisTitleTextStyle

    Type:
    string
    Default:
    null

    Gets or sets CSS font property for title on Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisTitleTextStyle: "26pt Times New Roman|Georgia|Serif"
    });

    // Get
    var textStyle = $(".selector").igCategoryChart("option", "yAxisTitleTextStyle");

    // Set
    $(".selector").igCategoryChart("option", "yAxisTitleTextStyle", "26pt Times New Roman|Georgia|Serif");

  • yAxisTitleTopMargin

    Type:
    number
    Default:
    0

    Gets or sets the top margin of a title on the Y-axis.

    Code Sample


    // Initialize
    $(".selector").igCategoryChart({
    	yAxisTitleTopMargin: 10
    });

    // Get
    var margin = $(".selector").igCategoryChart("option", "yAxisTitleTopMargin");

    // Set
    $(".selector").igCategoryChart("option", "yAxisTitleTopMargin", 10);


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • dataBinding
    Inherited

    Cancellable:
    true

    Event which is raised before data binding.
    Return false in order to cancel data binding.
    Function takes first argument null and second argument ui.
    Use ui.owner to obtain reference to chart widget.
    Use ui.dataSource to obtain reference to instance of $.ig.DataSource.

    Code Sample


    // Delegate
    $(document).delegate(".selector", "igcategorychartdatabinding", function (evt, ui) {
        // Get reference to igCategoryChart.
        ui.owner;

        // Get reference to instance of $.ig.DataSource.
        ui.dataSource;
    });

    // Initialize
    $(".selector").igCategoryChart({
        dataBinding: function(evt, ui) {...}
    });

  • dataBound
    Inherited

    Cancellable:
    false

    Event which is raised after data binding.
    Function takes first argument null and second argument ui.
    Use ui.owner to obtain reference to chart widget.
    Use ui.data to obtain reference to array actual data which is displayed by chart.
    Use ui.dataSource to obtain reference to instance of $.ig.DataSource.

    Code Sample


    // Delegate
    $(document).delegate(".selector", "igcategorychartdatabound", function (evt, ui) {
        // Get reference to igCategoryChart.
        ui.owner;

        // Get reference to igCategoryChart's array data.
        ui.data;

        // Get reference to instance of $.ig.DataSource.
        ui.dataSource;
    });

    // Initialize
    $(".selector").igCategoryChart({
        dataBound: function(evt, ui) {...}
    });

  • hideTooltip
    Inherited

    Cancellable:
    true

    Event which is raised before tooltip is hidden.
    Return false in order to cancel hiding and keep tooltip visible.
    Function takes first argument null and second argument ui.
    Use ui.owner to obtain reference to chart widget.
    Use ui.item to obtain reference to item.
    Use ui.element to obtain reference to jquery object which represents tooltip or value of ui.element from last updateTooltip event. Value of that member can be replaced by custom element.

    Code Sample


    // Delegate
    $(document).delegate(".selector", "igcategorycharthidetooltip", function (evt, ui) {
        // Get reference to igCategoryChart.
        ui.owner;

        // Get reference to the data object.
        ui.item;

        // Get or set the jQuery object representing the tooltip.
        ui.element;
    });

    // Initialize
    $(".selector").igCategoryChart({
        hideTooltip: function(evt, ui) {...}
    });

  • propertyChanged

    Cancellable:
    false

    Event raised when a property value is changed.

    Code Sample


    // Delegate
    $(document).delegate(".selector", "igcategorychartpropertychanged", function (evt, ui) {

        // Gets the name of the property that changed.
        ui.propertyName;
    });

    // Initialize
    $(".selector").igCategoryChart({
        propertyChanged: function (evt, ui) {...}
    });

  • updateTooltip
    Inherited

    Cancellable:
    true

    Event which is raised before tooltip is updated.
    Return false in order to cancel updating and hide tooltip.
    Function takes first argument null and second argument ui.
    Use ui.owner to obtain reference to chart widget.
    Use ui.text to obtain html of tooltip. Value of that member can be modified. If modified value is null or empty string, then current content of tooltip keeps old value.
    Use ui.item to obtain reference to item. Value of that member can be modified or replaced by custom item.
    Use ui.x to obtain left position of tooltip in pixels relative to widget. Value of that member can be modified.
    Use ui.y to obtain top position of tooltip in pixels relative to widget. Value of that member can be modified.
    Use ui.element to obtain reference to jquery object which represents tooltip. Value of that member can be replaced by custom element.

    Code Sample


    // Delegate
    $(document).delegate(".selector", "igcategorychartupdatetooltip", function (evt, ui) {
        // Get reference to igCategoryChart.
        ui.owner;

        // Get or set the tooltip HTML.
        ui.text;

        // Get reference to the data object.
        ui.item;

        // Get or set the tooltip's left position relative to the widget in pixels.
        ui.x;

        // Get or set the tooltip's top position relative to the widget in pixels.
        ui.y;

        // Get or set the jQuery object representing the tooltip.
        ui.element;
    });

    // Initialize
    $(".selector").igCategoryChart({
        updateTooltip: function(evt, ui) {...}
    });

  • addItem
    Inherited

    .igCategoryChart( "addItem", item:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Adds a new item to the data source and notifies the chart.

    • item
    • Type:object
    • The item that we want to add to the data source.

    Code Sample


    $(".selector").igCategoryChart("addItem", dataItem);

  • chart
    Inherited

    .igCategoryChart( "chart" );
    Return Type:
    object
    Return Type Description:
    Returns reference to chart.

    Get reference to chart object.

    Code Sample


    // Not intended for use with derived widget
    var chart = $(".selector").igCategoryChart("chart");

  • dataBind
    Inherited

    .igCategoryChart( "dataBind" );

    Binds data to the chart.

    Code Sample


    $(".selector").igCategoryChart("dataBind");

  • destroy

    .igCategoryChart( "destroy" );

    Code Sample


    $(".selector").igCategoryChart("destroy");

  • exportVisualData

    .igCategoryChart( "exportVisualData" );

    Code Sample


    var visualData = $(".selector").igCategoryChart("exportVisualData");

  • findIndexOfItem
    Inherited

    .igCategoryChart( "findIndexOfItem", item:object );
    Return Type:
    number
    Return Type Description:
    Returns -1 or index of item.

    Find index of item within actual data used by chart.

    • item
    • Type:object
    • The reference to item.

    Code Sample


    var index = $(".selector").igCategoryChart("findIndexOfItem", item);

  • getData
    Inherited

    .igCategoryChart( "getData" );
    Return Type:
    array
    Return Type Description:
    Returns null or reference to data.

    Get reference of actual data used by chart.

    Code Sample


    var data = $(".selector").igCategoryChart("getData");

  • getDataItem
    Inherited

    .igCategoryChart( "getDataItem", index:object );
    Return Type:
    object
    Return Type Description:
    Returns null or reference to data item.

    Get item within actual data used by chart. That is similar to this.getData()[ index ].

    • index
    • Type:object
    • Index of data item.

    Code Sample


    var item = $(".selector").igCategoryChart("getDataItem", 0);

  • id

    .igCategoryChart( "id" );

    Code Sample


    var id = $(".selector").igCategoryChart("id");

  • insertItem
    Inherited

    .igCategoryChart( "insertItem", item:object, index:number );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Inserts a new item to the data source and notifies the chart.

    • item
    • Type:object
    • the new item that we want to insert in the data source.
    • index
    • Type:number
    • The index in the data source where the new item will be inserted.

    Code Sample


    var chart = $(".selector").igCategoryChart("insertItem", item, 9);

  • notifyClearItems
    Inherited

    .igCategoryChart( "notifyClearItems", dataSource:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Notifies the chart that the items have been cleared from an associated data source.
    It's not necessary to notify more than one target of a change if they share the same items source.

    • dataSource
    • Type:object
    • The data source in which the change happened.

    Code Sample


    var chart = $(".selector").igCategoryChart("notifyClearItems", dataSource);

  • notifyInsertItem
    Inherited

    .igCategoryChart( "notifyInsertItem", dataSource:object, index:number, newItem:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Notifies the target axis or series that an item has been inserted at the specified index in its data source.
    It's not necessary to notify more than one target of a change if they share the same items source.

    • dataSource
    • Type:object
    • The data source in which the change happened.
    • index
    • Type:number
    • The index in the items source where the new item has been inserted.
    • newItem
    • Type:object
    • the new item that has been set in the collection.

    Code Sample


    var chart = $(".selector").igCategoryChart("notifyInsertItem", dataSource, 9, newItem);

  • notifyRemoveItem
    Inherited

    .igCategoryChart( "notifyRemoveItem", dataSource:object, index:number, oldItem:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Notifies the target axis or series that an item has been removed from the specified index in its data source.
    It's not necessary to notify more than one target of a change if they share the same items source.

    • dataSource
    • Type:object
    • The data source in which the change happened.
    • index
    • Type:number
    • The index in the items source from where the old item has been removed.
    • oldItem
    • Type:object
    • the old item that has been removed from the collection.

    Code Sample


    var chart = $(".selector").igBaseChart("notifyRemoveItem", dataSource, 0, oldItem);

  • notifySetItem
    Inherited

    .igCategoryChart( "notifySetItem", dataSource:object, index:number, newItem:object, oldItem:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Notifies the chart that an item has been set in an associated data source.

    • dataSource
    • Type:object
    • The data source in which the change happened.
    • index
    • Type:number
    • The index in the items source that has been changed.
    • newItem
    • Type:object
    • the new item that has been set in the collection.
    • oldItem
    • Type:object
    • the old item that has been overwritten in the collection.

    Code Sample


    $(".selector").igCategoryChart("notifySetItem", dataSource, 1, {"Item1": "Value1", "Item2": 1000, "Item3": 1019.75}, {"Item1": "Value2", "Item2": 500, "Item3": 156.22});

  • removeItem
    Inherited

    .igCategoryChart( "removeItem", index:number );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Deletes an item from the data source and notifies the chart.

    • index
    • Type:number
    • The index in the data source from where the item will be been removed.

    Code Sample


    $(".selector").igCategoryChart("removeItem", 0);

  • setItem
    Inherited

    .igCategoryChart( "setItem", index:number, item:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Updates an item in the data source and notifies the chart.

    • index
    • Type:number
    • The index of the item in the data source that we want to change.
    • item
    • Type:object
    • The new item object that will be set in the data source.

    Code Sample


    $(".selector").igCategoryChart("setItem", 0, item);

  • ui-category ui-corner-all ui-widget-content ui-categorychart-container

    Get the class applied to main element: ui-category ui-corner-all ui-widget-content.
  • ui-category-tooltip ui-widget-content ui-corner-all

    Get the class applied to the tooltip element: ui-category-tooltip ui-widget-content ui-corner-all.
  • ui-html5-non-html5-supported-message ui-helper-clearfix ui-html5-non-html5

    Get the class applied to main element, shown when the chart is opened in a non HTML5 compatible browser.

Copyright © 1996 - 2024 Infragistics, Inc. All rights reserved.
