ui.igTreeGridHiding

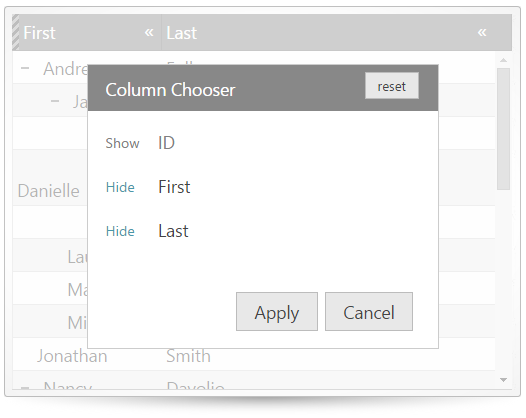

ui.igTreeGridHiding_image

The igTreeGrid includes the column hiding feature that allows users to remove and restore columns from the visible layout of the grid. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


        <!DOCTYPE html>
        <html>
        <head>
            <!-- Infragistics Combined CSS -->
            <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
            <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />

            <!-- jQuery Core -->
            <script src="js/jquery.js" type="text/javascript"></script>

            <!-- jQuery UI -->
            <script src="js/jquery-ui.js" type="text/javascript"></script>

            <!-- Infragistics Combined Scripts -->
            <script src="js/infragistics.core.js" type="text/javascript"></script>
            <script src="js/infragistics.lob.js" type="text/javascript"></script>

            <script type="text/javascript">
                var employees = [
                    { "employeeId": 0, "supervisorId": -1, "firstName": "Andrew", "lastName": "Fuller" },
                    { "employeeId": 1, "supervisorId": -1, "firstName": "Jonathan", "lastName": "Smith" },
                    { "employeeId": 2, "supervisorId": -1, "firstName": "Nancy", "lastName": "Davolio" },
                    { "employeeId": 3, "supervisorId": -1, "firstName": "Steven", "lastName": "Buchanan" },

                    // Andrew Fuller's direct reports
                    { "employeeId": 4, "supervisorId": 0, "firstName": "Janet", "lastName": "Leverling" },
                    { "employeeId": 5, "supervisorId": 0, "firstName": "Laura", "lastName": "Callahan" },
                    { "employeeId": 6, "supervisorId": 0, "firstName": "Margaret", "lastName": "Peacock" },
                    { "employeeId": 7, "supervisorId": 0, "firstName": "Michael", "lastName": "Suyama" },

                    // Janet Leverling's direct reports
                    { "employeeId": 8, "supervisorId": 4, "firstName": "Anne", "lastName": "Dodsworth" },
                    { "employeeId": 9, "supervisorId": 4, "firstName": "Danielle", "lastName": "Davis" },
                    { "employeeId": 10, "supervisorId": 4, "firstName": "Robert", "lastName": "King" },

                    // Nancy Davolio's direct reports
                    { "employeeId": 11, "supervisorId": 2, "firstName": "Peter", "lastName": "Lewis" },
                    { "employeeId": 12, "supervisorId": 2, "firstName": "Ryder", "lastName": "Zenaida" },
                    { "employeeId": 13, "supervisorId": 2, "firstName": "Wang", "lastName": "Mercedes" },

                    // Steve Buchanan's direct reports
                    { "employeeId": 14, "supervisorId": 3, "firstName": "Theodore", "lastName": "Zia" },
                    { "employeeId": 15, "supervisorId": 3, "firstName": "Lacota", "lastName": "Mufutau" },

                    // Lacota Mufutau's direct reports
                    { "employeeId": 16, "supervisorId": 15, "firstName": "Jin", "lastName": "Elliott" },
                    { "employeeId": 17, "supervisorId": 15, "firstName": "Armand", "lastName": "Ross" },
                    { "employeeId": 18, "supervisorId": 15, "firstName": "Dane", "lastName": "Rodriquez" },

                    // Dane Rodriquez's direct reports
                    { "employeeId": 19, "supervisorId": 18, "firstName": "Declan", "lastName": "Lester" },
                    { "employeeId": 20, "supervisorId": 18, "firstName": "Bernard", "lastName": "Jarvis" },

                    // Bernard Jarvis' direct report
                    { "employeeId": 21, "supervisorId": 20, "firstName": "Jeremy", "lastName": "Donaldson" }
                ];

               $(function () {
                   $("#treegrid").igTreeGrid({
                       dataSource: employees,
                       primaryKey: "employeeId",
                       foreignKey: "supervisorId",
                       autoGenerateColumns: false,
                       columns: [
                           { headerText: "ID", key: "employeeId", width: "150px", dataType: "number" },
                           { headerText: "First", key: "firstName", width: "150px", dataType: "string" },
                           { headerText: "Last", key: "lastName", width: "150px", dataType: "string" }
                       ],
                       features: [
                         {
                             name: "Hiding",
                             columnSettings: [
                             {
                                columnKey: "employeeId",
                                allowHiding: true,
                                hidden: true
                             },
                             {
                                columnKey: "lastName",
                                allowHiding: false
                             }
                          ]
                         }
                     ]
                   });
               });
            </script>
        </head>
        <body>
            <div id="treegrid"></div>
        </body>
        </html>


Related Topics

Dependencies

jquery-1.4.4.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.datasource.js
infragistics.ui.shared.js
infragistics.ui.treegrid.js
infragistics.util.js
infragistics.ui.grid.framework.js
infragistics.ui.grid.hiding.js

Inherits

  • columnChooserAnimationDuration
    Inherited

    Type:
    number
    Default:
    200

    Specifies time of milliseconds for animation duration to show/hide modal dialog.

    Code Sample


          //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        columnChooserAnimationDuration: 300
                    }
                ]
            });
            //Get
            var duration = $(".selector").igTreeGridHiding("option", "columnChooserAnimationDuration");

  • columnChooserButtonApplyText
    Inherited

    Type:
    string
    Default:
    ""

    Specifies text of button which apply changes in modal dialog.

    Code Sample


          //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        columnChooserButtonApplyText: "Apply"
                    }
                ]
            });
            //Get
            var text = $(".selector").igTreeGridHiding("option", "columnChooserButtonApplyText");

  • columnChooserButtonCancelText
    Inherited

    Type:
    string
    Default:
    ""

    Specifies text of button which cancel changes in modal dialog.

    Code Sample

          //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        columnChooserButtonCancelText: "Cancel"
                    }
                ]
            });
            //Get
            var text = $(".selector").igTreeGridHiding("option", "columnChooserButtonCancelText");

  • columnChooserCaptionText
    Inherited

    Type:
    string
    Default:
    ""

    The caption of the column chooser dialog.

    Code Sample


          //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        columnChooserCaptionText: "New Caption"
                    }
                ]
            });
            //Get
            var columnChooserCaptionText = $(".selector").igTreeGridHiding("option", "columnChooserCaptionText");

  • columnChooserContainment
    Inherited

    Type:
    string
    Default:
    "owner"

    Controls containment behavior.
    owner The column chooser dialog will be draggable only in the grid area
    window The column chooser dialog will be draggable in the whole window area.

    Code Sample


          //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        columnChooserContainment: "window"
                    }
                ]
            });

            //Get
            var columnChooserContainment = $(".selector").igTreeGridHiding("option", "columnChooserContainment");

  • columnChooserDisplayText
    Inherited

    Type:
    string
    Default:
    ""

    The text used in the drop down tools menu(Feature Chooser) to launch the column chooser dialog.

    Code Sample

          //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        columnChooserDisplayText: "New Text"
                    }
                ]
            });

            //Get
            var columnChooserDisplayText = $(".selector").igTreeGridHiding("option", "columnChooserDisplayText");

  • columnChooserHeight
    Inherited

    Type:
    string
    Default:
    ""

    The default column chooser height.

    Code Sample


          //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        columnChooserHeight: 100
                    }
                ]
            });
            //Get
            var columnChooserHeight = $(".selector").igTreeGridHiding("option", "columnChooserHeight");

  • columnChooserHideOnClick
    Inherited

    Type:
    bool
    Default:
    false

    Specifies on click show/hide directly to be shown/hidden columns. If columnChooserHideOnClick is false then Apply and Cancel Buttons are shown on the bottom of modal dialog. Columns are Shown/Hidden after the Apply button is clicked.

    Code Sample

          //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        columnChooserHideOnClick: true
                    }
                ]
            });
            //Get
            var onClick = $(".selector").igTreeGridHiding("option", "columnChooserHideOnClick");

  • columnChooserHideText
    Inherited

    Type:
    string
    Default:
    ""

    The text used in the column chooser to hide column.

    Code Sample


             //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        columnChooserHideText: "Hide column"
                    }
                ]
            });
            //Get
            var text = $(".selector").igTreeGridHiding("option", "columnChooserHideText");

  • columnChooserResetButtonLabel
    Inherited

    Type:
    string
    Default:
    ""

    Text label for reset button.

    Code Sample

           //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        columnChooserResetButtonLabel: "Reset"
                    }
                ]
            });
            //Get
            var text = $(".selector").igTreeGridHiding("option", "columnChooserResetButtonLabel");

  • columnChooserShowText
    Inherited

    Type:
    string
    Default:
    ""

    The text used in the column chooser to show column.

    Code Sample

           //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        columnChooserShowText: "Show Column"
                    }
                ]
            });
            //Get
            var text = $(".selector").igTreeGridHiding("option", "columnChooserShowText");


  • columnChooserWidth
    Inherited

    Type:
    string
    Default:
    "350"

    The default column chooser width.

    Code Sample


          //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        columnChooserWidth: 100
                    }
                ]
            });
            //Get
            var columnChooserWidth = $(".selector").igTreeGridHiding("option", "columnChooserWidth");

  • columnHideText
    Inherited

    Type:
    string
    Default:
    ""

    The text used in the drop down tools menu(Feature Chooser) to hide a column.

    Code Sample


          //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        columnHideText: "Functionallity to hide the column"
                    }
                ]
            });
    		//Get
            var columnHideText = $(".selector").igTreeGridHiding("option", "columnHideText");

  • columnSettings
    Inherited

    Type:
    array
    Default:
    []
    Elements Type:
    object

    A list of column settings that specifies hiding options on a per column basis.

    Code Sample


          //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        columnSettings: [
                            { columnKey: "employeeId", allowHiding: true },
                        ]
                    }
                ]
            });
    		//Get
            var columnSettings = $(".selector").igTreeGridHiding("option", "columnSettings");

    • allowHiding

      Type:
      bool
      Default:
      true

      Allows the column to be hidden.

      Code Sample


                //Initialize
      			$(".selector").igTreeGrid({
      				features: [
      					{
      						name: "Hiding",
      						columnSettings: [
      							{ columnIndex: 0, allowHiding: true },
      						]
      					}
      				]
      			});
      			//Get
      				var columnSettings = $(".selector").igTreeGridHiding("option", "columnSettings");
      				var allowHiding = columnSettings[0].allowHiding;

    • columnIndex

      Type:
      number
      Default:
      null

      Column index. Can be used in place of column key. the preferred way of populating a column setting is to always use the column keys as identifiers.

      Code Sample

                //Initialize
      			$(".selector").igTreeGrid({
      				features: [
      					{
      						name: "Hiding",
      						columnSettings: [
      							{ columnIndex: 0, allowHiding: true },
      						]
      					}
      				]
      			});

    • columnKey

      Type:
      string
      Default:
      null

      Column key. this is a required property in every column setting if columnIndex is not set.

      Code Sample

                /Initialize
      			$(".selector").igTreeGrid({
      				features: [
      					{
      						name: "Hiding",
      						columnSettings: [
      							{ columnKey: "employeeId", allowHiding: true },
      						]
      					}
      				]
      			});

    • hidden

      Type:
      bool
      Default:
      false

      Sets the initial visibility of the column.

      Code Sample

                //Initialize
      			$(".selector").igTreeGrid({
      				features: [
      					{
      						name: "Hiding",
      						columnSettings: [
      							{ columnKey: "employeeId", hidden: true },
      						]
      					}
      				]
      			});

  • dropDownAnimationDuration
    Inherited

    Type:
    number
    Default:
    500

    The duration of the dropdown animation in milliseconds.

    Code Sample

          //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        dropDownAnimationDuration: 500
                    }
                ]
            });
    		//Get
            var dropDownAnimationDuration = $(".selector").igTreeGridHiding("option", "dropDownAnimationDuration");

  • hiddenColumnIndicatorHeaderWidth
    Inherited

    Type:
    number
    Default:
    7

    The width in pixels of the hidden column indicator in the header.

    Code Sample

          //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        hiddenColumnIndicatorHeaderWidth: 15
                    }
                ]
            });
    		//Get
            var hiddenColumnIndicatorHeaderWidth = $(".selector").igTreeGridHiding("option", "hiddenColumnIndicatorHeaderWidth");

  • hiddenColumnIndicatorTooltipText
    Inherited

    Type:
    string
    Default:
    ""

    The text displayed in the tooltip of the hidden column indicator.

    Code Sample


          //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        hiddenColumnIndicatorTooltipText: "New Tooltip Text"
                    }
                ]
            });
            //Get
            var hiddenColumnIndicatorTooltipText = $(".selector").igTreeGridHiding("option", "hiddenColumnIndicatorTooltipText");

  • inherit
    Inherited

    Type:
    bool
    Default:
    false

    Enables/disables feature inheritance for the child layouts. NOTE: It only applies for igHierarchicalGrid.

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • columnChooserButtonApplyClick
    Inherited

    Cancellable:
    false

    Event fired when button Apply in column chooser is clicked
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridHiding widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.columnChooserElement to get a reference to the Column Chooser element. This is a jQuery object.
    Use ui.columnsToShow to get array of columns identifiers which should be shown
    Use ui.columnsToHide to get array of columns identifiers which should be hidden.

    Code Sample

          //Bind after initialization
    		$(document).delegate(".selector", "igtreegridhidingcolumnchooserbuttonapplyclick", function (evt, ui) {
                //return the triggered event
                evt;

                // reference to the igTreeGridHiding widget.
                ui.owner;

                // reference to the grid widget.
                ui.owner.grid;

                // reference to the Column Chooser jQuery element.
                ui.columnChooserElement;

                // reference to array of columns identifiers which should be shown.
                ui.columnsToShow;

                // reference to array of columns identifiers which should be hidden.
                ui.columnsToHide;
            });

            //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
    					columnChooserButtonApplyClick: function(evt, ui){ ... }
                    }
                ]
            });

  • columnChooserButtonResetClick
    Inherited

    Cancellable:
    false

    Event fired when button Reset in column chooser is clicked
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridHiding widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.columnChooserElement to get a reference to the Column Chooser element. This is a jQuery object.

    Code Sample


          //Bind after initialization
    		$(document).delegate(".selector", "igtreegridhidingcolumnchooserbuttonresetclick", function (evt, ui) {
                //return the triggered event
                evt;

                // reference to the igTreeGridHiding widget.
                ui.owner;

                // reference to the grid widget.
                ui.owner.grid;

                // reference to the Column Chooser jQuery element.
                ui.columnChooserElement;
            });

            //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
    					columnChooserButtonResetClick: function(evt, ui){ ... }
                    }
                ]
            });

  • columnChooserClosed
    Inherited

    Cancellable:
    false

    Event fired after the column chooser has been closed.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridHiding widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.columnChooserElement to get a reference to the Column Chooser element. This is a jQuery object.

    Code Sample

          //Bind after initialization
    		$(document).delegate(".selector", "igtreegridhidingcolumnchooserclosed", function (evt, ui) {
                //return the triggered event
                evt;

                // reference to the Column Chooser jQuery element.
                ui.columnChooserElement;

                // reference to the igTreeGridHiding widget
                ui.owner;
            });

            //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
    					columnChooserClosed: function(evt, ui){ ... }
                    }
                ]
            });

  • columnChooserClosing
    Inherited

    Cancellable:
    true

    Event fired before the column chooser is closed.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridHiding widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.columnChooserElement to get a reference to the Column Chooser element. This is a jQuery object.

    Code Sample


            //Bind after initialization
    		$(document).delegate(".selector", "igtreegridhidingcolumnchooserclosing", function (evt, ui) {
                //return the triggered event
                evt;

                // reference to the Column Chooser jQuery element.
                ui.columnChooserElement;

                // reference to the igTreeGridHiding widget
                ui.owner;
            });

            //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
    					columnChooserClosing: function(evt, ui){ ... }
                    }
                ]
            });

  • columnChooserContentsRendered
    Inherited

    Cancellable:
    false

    Event fired after the contents of the column chooser are rendered.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridHiding widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.columnChooserElement to get a reference to the Column Chooser element. This is a jQuery object.

    Code Sample

          //Bind after initialization
    		$(document).delegate(".selector", "igtreegridhidingcolumnchoosercontentsrendered", function (evt, ui) {
                //return the triggered event
                evt;

                // reference to the Column Chooser jQuery element.
                ui.columnChooserElement;

                // reference to the igTreeGridHiding widget
                ui.owner;

            });

            //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
    					columnChooserContentsRendered: function(evt, ui){ ... }
                    }
                ]
            });

  • columnChooserContentsRendering
    Inherited

    Cancellable:
    true

    Event fired before the contents of the column chooser are rendered.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridHiding widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.columnChooserElement to get a reference to the Column Chooser element. This is a jQuery object.

    Code Sample


          //Bind after initialization
    		$(document).delegate(".selector", "igtreegridhidingcolumnchoosercontentsrendering", function (evt, ui) {
                //return the triggered event
                evt;

                // reference to the Column Chooser jQuery element.
                ui.columnChooserElement;

                // reference to the igTreeGridHiding widget
                ui.owner;

            });

            //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
    					columnChooserContentsRendering: function(evt, ui){ ... }
                    }
                ]
            });

  • columnChooserMoving
    Inherited

    Cancellable:
    true

    Event fired every time the column chooser changes its position.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridHiding widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.columnChooserElement to get a reference to the Column Chooser element. This is a jQuery object.
    Use ui.originalPosition to get the original position of the column chooser div as { top, left } object, relative to the page.
    Use ui.position to get the current position of the column chooser div as { top, left } object, relative to the page.

    Code Sample


          //Bind after initialization
    		$(document).delegate(".selector", "igtreegridhidingcolumnchoosermoving", function (evt, ui) {
                //return the triggered event
                evt;

                // reference to the Column Chooser jQuery element.
                ui.columnChooserElement;

                // reference to the igTreeGridHiding widget
                ui.owner;

                // current postion
                ui.position;

                // previous position
                ui.originalPosition;

            });

            //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
    					columnChooserMoving: function(evt, ui){ ... }
                    }
                ]
            });

  • columnChooserOpened
    Inherited

    Cancellable:
    false

    Event fired after the column chooser is already opened.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridHiding widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.columnChooserElement to get a reference to the Column Chooser element. This is a jQuery object.

    Code Sample

          //Bind after initialization
    		$(document).delegate(".selector", "igtreegridhidingcolumnchooseropened", function (evt, ui) {
                //return the triggered event
                evt;

                // reference to the Column Chooser jQuery element.
                ui.columnChooserElement;

                // reference to the igTreeGridHiding widget
                ui.owner;
            });

            //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
    					columnChooserOpened: function(evt, ui){ ... }
                    }
                ]
            });

  • columnChooserOpening
    Inherited

    Cancellable:
    true

    Event fired before the column chooser is opened.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridHiding widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.columnChooserElement to get a reference to the Column Chooser element. This is a jQuery object.

    Code Sample


          //Bind after initialization
    		$(document).delegate(".selector", "igtreegridhidingcolumnchooseropening", function (evt, ui) {
                //return the triggered event
                evt;

                // reference to the Column Chooser jQuery element.
                ui.columnChooserElement;

                // reference to the igTreeGridHiding widget
                ui.owner;

            });

            //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
    					columnChooserOpening: function(evt, ui){ ... }
                    }
                ]
            });

  • columnHidden
    Inherited

    Cancellable:
    false

    Event fired after the hiding has been executed and results are rendered.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridHiding widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.columnIndex to get the hidden column index. Has a value only if the column's key is a number.
    Use ui.columnKey to get the hidden column key. Has a value only if the column's key is a string.

    Code Sample

          //Bind after initialization
    		$(document).delegate(".selector", "igtreegridhidingcolumnhidden", function (evt, ui) {
                //return the triggered event
                evt;

                // the index of the column, which is hidden
                ui.columnIndex;

                // the key of the column, which is hidden
                ui.columnKey;

                // reference to the igTreeGridHiding widget
                ui.owner;

            });

            //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
    					columnHidden: function(evt, ui){ ... }
                    }
                ]
            });

  • columnHiding
    Inherited

    Cancellable:
    true

    Event fired before a hiding operation is executed.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridHiding widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.columnIndex to get the hidden column index. Has a value only if the column's key is a number.
    Use ui.columnKey to get the hidden column key. Has a value only if the column's key is a string.

    Code Sample


          //Bind after initialization
    		$(document).delegate(".selector", "igtreegridhidingcolumnhiding", function (evt, ui) {
                //return the triggered event
                evt;

                // the index of the column, which is going to be hidden
                ui.columnIndex;

                // the key of the column, which is going to be hidden
                ui.columnKey;

                // reference to the igTreeGridHiding widget
                ui.owner;

            });

            //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
    					columnHiding: function(evt, ui){ ... }
                    }
                ]
            });

  • columnHidingRefused
    Inherited

    Cancellable:
    false

    Event fired when trying to hide all columns in fixed or unfixed area.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridHiding widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.columnKeys array of column keys. Has a value only if the column's key is a string.

    Code Sample

          //Bind after initialization
            $(document).delegate(".selector", "igtreegridhidingcolumnhidingrefused", function (evt, ui) {
                //return the triggered event
                evt;

                // array of column keys, which are refused to hide
                ui.columnKeys;

                // reference to the igTreeGridHiding widget
                ui.owner;

            });

            //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        columnHidingRefused: function(evt, ui){ ... }
                    },
                    {
                        name: "ColumnFixing"
                    }
                ]
            });


  • columnShowing
    Inherited

    Cancellable:
    true

    Event fired before a showing operation is executed.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridHiding widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.columnIndex to get the shown column index.
    Use ui.columnKey to get the shown column key.

    Code Sample


          //Bind after initialization
    		$(document).delegate(".selector", "igtreegridhidingcolumnshowing", function (evt, ui) {
                //return the triggered event
                evt;

                // the index of the column, which is going to be shown
                ui.columnIndex;

                // the key of the column, which is going to be shown
                ui.columnKey;

                // reference to the igTreeGridHiding widget
                ui.owner;

            });

            //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
    					columnShowing: function(evt, ui){ ... }
                    }
                ]
            });

  • columnShowingRefused
    Inherited

    Cancellable:
    false

    Event fired when trying to show column(s) in fixed area and total width of fixed are will be larger than whole grid width.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridHiding widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.columnKeys array of column keys. Has a value only if the column's key is a string.

    Code Sample


           //Bind after initialization
            $(document).delegate(".selector", "igtreegridshowingcolumnhidingrefused", function (evt, ui) {
                //return the triggered event
                evt;

                // array of column keys, which are refused to show
                ui.columnKeys;

                // reference to the igTreeGridHiding widget
                ui.owner;

            });

            //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
                        columnShowingRefused: function(evt, ui){ ... }
                    },
                    {
                        name: "ColumnFixing"
                    }
                ]
            });

  • columnShown
    Inherited

    Cancellable:
    false

    Event fired after the showing has been executed and results are rendered.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridHiding widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.columnIndex to get the shown column index.
    Use ui.columnKey to get the shown column key.

    Code Sample

          //Bind after initialization
    		$(document).delegate(".selector", "igtreegridhidingcolumnshown", function (evt, ui) {
                //return the triggered event
                evt;

                // the index of the column, which is shown
                ui.columnIndex;

                // the key of the column, which is shown
                ui.columnKey;

                // reference to the igTreeGridHiding widget
                ui.owner;

            });

            //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
    					columnShown: function(evt, ui){ ... }
                    }
                ]
            });

  • multiColumnHiding
    Inherited

    Cancellable:
    true

    Event fired before a hiding operation is executed.
    The handler function takes arguments evt and ui.
    Use ui.owner to get the reference to the igGridHiding widget.
    Use ui.owner.grid to get the reference to the igGrid widget.
    Use ui.columnKeys to get array of the hidden column keys. In case when click on Reset button in column chooser then this is an array of column keys.

    Code Sample


          //Bind after initialization
    		    $(document).delegate(".selector", "igtreegridhidingmulticolumnhiding", function (evt, ui) {
                  //return the triggered event
                  evt;

                  // reference to the igTreeGridHiding widget
                  ui.owner;

                  // reference to the igTreeGrid widget
                  ui.owner.grid;

                  // array of the hidden column keys
                  ui.columnKeys;
              });

            //Initialize
            $(".selector").igTreeGrid({
                features : [
                    {
                        name : "Hiding",
    					          multiColumnHiding: function(evt, ui){ ... }
                    }
                ]
            });

  • destroy

    .igTreeGridHiding( "destroy" );

    Code Sample


          $(".selector").igTreeGridHiding("destroy");

  • hideColumn
    Inherited

    .igTreeGridHiding( "hideColumn", column:object, [isMultiColumnHeader:bool], [callback:function] );

    Hides a visible column. If the column is hidden the method does nothing.
    Note: This method is asynchronous which means that it returns immediately and any subsequent code will execute in parallel. This may lead to runtime errors. To avoid them put the subsequent code in the callback parameter provided by the method.

    • column
    • Type:object
    • An identifier for the column. If a number is provided it will be used as a column index else if a strings is provided it will be used as a column key.
    • isMultiColumnHeader
    • Type:bool
    • Optional
    • If it is true then the column is of type multicolumnheader. An identifier for the column should be of type string.
    • callback
    • Type:function
    • Optional
    • Specifies a custom function to be called when the column is hidden(optional).

    Code Sample


          //Hide column with columnIndex 0
    		$(".selector").igTreeGridHiding("hideColumn", 0);

        //Hide multicolumnheader with key 'Root'
    		$(".selector").igTreeGridHiding("hideColumn", 'Root', true);

        //Hide column with key 'Name' with a callback function which executes after the column is hidden (hiding column operation is asynchronous)
    		$(".selector").igTreeGridHiding("hideColumn", 'Name', false, function () {
          // Custom code which executes after the hide column operation is complete.
        });

  • hideColumnChooser
    Inherited

    .igTreeGridHiding( "hideColumnChooser" );

    Hides the Column Chooser dialog. If it is not visible the method does nothing.

    Code Sample


          $(".selector").igTreeGridHiding("hideColumnChooser");

  • hideMultiColumns
    Inherited

    .igTreeGridHiding( "hideMultiColumns", columns:array, [callback:function] );

    Hides visible columns specified by the array. If the column is hidden the method does nothing.
    Note: This method is asynchronous which means that it returns immediately and any subsequent code will execute in parallel. This may lead to runtime errors. To avoid them put the subsequent code in the callback parameter provided by the method.

    • columns
    • Type:array
    • An array of identifiers for the columns. If a number is provided it will be used as a column index else if a strings is provided it will be used as a column key.
    • callback
    • Type:function
    • Optional
    • Specifies a custom function to be called when all columns are hidden(optional).

    Code Sample


          // the parameter is an array of the column keys
          	$(".selector").igTreeGridHiding("hideMultiColumns", ['FirstName', 'Address', 'PhoneNumber'] );

            // the parameter is an array of the column index
          	$(".selector").igTreeGridHiding("hideMultiColumns", [1, 3, 4] );

            // the parameters are an array of column keys and a callback function which executes after the columns are hidden
            $(".selector").igTreeGridHiding("hideMultiColumns", ['FirstName', 'Address', 'PhoneNumber'], function () {
            // Custom code which executes after the hide columns operation is complete.
            });

  • isToRenderButtonReset
    Inherited

    .igTreeGridHiding( "isToRenderButtonReset" );

    Gets whether the reset button in the column chooser dialog is to be rendered or not.

    Code Sample


          $(".selector").igTreeGridHiding("isToRenderButtonReset");

  • removeColumnChooserResetButton
    Inherited

    .igTreeGridHiding( "removeColumnChooserResetButton" );

    Remove Reset button in column chooser modal dialog.

    Code Sample

          $(".selector").igTreeGridHiding("removeColumnChooserResetButton");

  • renderColumnChooserResetButton
    Inherited

    .igTreeGridHiding( "renderColumnChooserResetButton" );

    Renders the Reset button in the Column Chooser dialog.

    Code Sample

          $(".selector").igTreeGridHiding("renderColumnChooserResetButton");

  • resetHidingColumnChooser
    Inherited

    .igTreeGridHiding( "resetHidingColumnChooser" );

    Reset hidden/shown column to initial state of dialog(when it is opened).

    Code Sample

          $(".selector").igTreeGridHiding("resetHidingColumnChooser");

  • showColumn
    Inherited

    .igTreeGridHiding( "showColumn", column:object, [isMultiColumnHeader:bool], [callback:function] );

    Shows a hidden column. If the column is not hidden the method does nothing.
    Note: This method is asynchronous which means that it returns immediately and any subsequent code will execute in parallel. This may lead to runtime errors. To avoid them put the subsequent code in the callback parameter provided by the method.

    • column
    • Type:object
    • An identifier for the column. If a number is provided it will be used as a column index else if a strings is provided it will be used as a column key.
    • isMultiColumnHeader
    • Type:bool
    • Optional
    • If it is true then the column is of type multicolumnheader. An identifier for the column should be of type string.
    • callback
    • Type:function
    • Optional
    • Specifies a custom function to be called when the column(s) is shown(optional).

    Code Sample


          //Show column with columnIndex 0
    		$(".selector").igTreeGridHiding("showColumn", 0);

        //Show multicolumnheader with key 'Root'
    		$(".selector").igTreeGridHiding("showColumn", 'Root', true);

        //Show column with key 'Name' with a callback function which executes after the column is shown (showing column operation is asynchronous)
    		$(".selector").igTreeGridHiding("showColumn", 'Name', false, function () {
          // Custom code which executes after the show column operation is complete.
        });

  • showColumnChooser
    Inherited

    .igTreeGridHiding( "showColumnChooser" );

    Shows the Column Chooser dialog. If it is visible the method does nothing.

    Code Sample


          $(".selector").igTreeGridHiding("showColumnChooser");

  • showMultiColumns
    Inherited

    .igTreeGridHiding( "showMultiColumns", columns:array, [callback:function] );

    Show visible columns specified by the array. If the column is shown the method does nothing.
    Note: This method is asynchronous which means that it returns immediately and any subsequent code will execute in parallel. This may lead to runtime errors. To avoid them put the subsequent code in the callback parameter provided by the method.

    • columns
    • Type:array
    • An array of identifiers for the columns. If a number is provided it will be used as a column index else if a strings is provided it will be used as a column key.
    • callback
    • Type:function
    • Optional
    • Specifies a custom function to be called when all columns are shown(optional).

    Code Sample


          // the parameter is an array of the column keys
          	$(".selector").igTreeGridHiding("showMultiColumns", ['FirstName', 'Address', 'PhoneNumber'] );

            // the parameter is an array of the column index
          	$(".selector").igTreeGridHiding("showMultiColumns", [1, 3, 4] );

            // the parameters are an array of column keys and a callback function which executes after the columns are shown
          	$(".selector").igTreeGridHiding("showMultiColumns", ['FirstName', 'Address', 'PhoneNumber'], function () {
              // Custom code which executes after the show columns operation is complete.
            });

  • ui-dialog ui-draggable ui-resizable ui-iggrid-dialog ui-widget ui-widget-content ui-corner-all

    Classes applied to the column chooser element.
  • ui-dialog-content ui-iggrid-columnchooser-content

    Classes applied to the column chooser dialog content.
  • ui-iggrid-columnchooser-handlebar

    Classes applied to the column chooser handlebar at the bottom.
  • ui-dialog-titlebar ui-iggrid-columnchooser-caption ui-widget-header ui-corner-top ui-helper-reset ui-helper-clearfix

    Classes applied to the column chooser dialog header caption area.
  • ui-dialog-title ui-iggrid-columnchooser-caption-title

    Classes applied to the column chooser dialog header caption title.
  • ui-iggrid-columnchooser-hidebutton

    Classes applied to hide button in list item(which shows single column) in column chooser.
  • ui-iggrid-columnchooser-item ui-widget-content

    Classes applied to list item(which shows single column) in column chooser.
  • ui-iggrid-columnchooser-itemhidden

    Classes applied to list item(which shows single column) in column chooser when column is hidden.
  • ui-iggrid-dialog-text

    Classes applied to show button in list item(which shows single column) in column chooser.
  • ui-iggrid-columnchooser-listitems

    Classes applied to list(which shows all columns) in column chooser.
  • ui-icon ui-iggrid-icon-hide

    Classes applied to the feature chooser icon for hiding feature.
  • ui-icon ui-iggrid-icon-column-chooser

    Classes applied to the feature chooser icon for column chooser feature.
  • ui-iggrid-hiding-hiddencolumnindicator

    Classes applied to the hidden column indicator in the header.
  • ui-iggrid-hiding-indicator-mouseover

    Classes applied to the hidden column indicator in the header when the mouse is over it.
  • ui-iggrid-hiding-indicator-selected

    Classes applied to the hidden column indicator in the header when it is selected(user has clicked and the dropdown is visible).
  • ui-iggrid-hiding-dropdown-dialog ui-widget ui-widget-content ui-corner-all

    Classes applied to the hidden columns dropdown div.
  • ui-iggrid-hiding-dropdown-ddlistitemicons ui-state-default

    Classes applied to the hidden columns dropdown li.
  • ui-iggrid-hiding-dropdown-listitem-hover ui-state-active ui-state-hover

    Classes applied to the hidden columns dropdown li when hovered.
  • ui-iggrid-hiding-dropdown-ddlistitemtext

    Classes applied to the hidden columns dropdown span inside the li.
  • ui-iggrid-hiding-dropdown-list ui-menu

    Classes applied to the hidden columns dropdown ul.
  • ui-iggrid-hiding-indicator

    Classes applied to the hiding header icon.

Copyright © 1996 - 2024 Infragistics, Inc. All rights reserved.

#
