Configuring igOlapXmlaDataSource Through a Remote Provider

Topic Overview

Purpose

This topic explains how to configure a remote data provider for the igOlapXmlaDataSource™ component.

Required background

The following table lists the topics and articles required as a prerequisite to understanding this topic.

Topics

• igOlapXmlaDataSource Overview: This topic provides an overview of the igOlapXmlaDataSource component and its main features.

• Adding igOlapXmlaDataSource to an HTML Page: This topic explains how to add the igOlapXmlaDataSource to and HTML page and how to configure it for retrieving data from a Microsoft® SQL Server Analysis Services (SSAS) Server.

• Data Provider Configuration Overview (igOlapXmlaDataSource): This topic provides an overview of the supported data providers for the igOlapXmlaDataSource component and conceptual-level information on how to configure them.

External Resources

• Developing with ADOMD.NET: This is a group of topics related the ADOMD.NET.

• Configure HTTP Access to Analysis Services on Internet Information Services (IIS) 7.0: An article explaining how to configure an HTTP data provider (msmdpump.dll) for your SSAS Server.

In this topic

This topic contains the following sections:

• Introduction
• Configuring a Remote Data Provider – Conceptual Overview
  • Remote data provider configuration summary
  • Requirements
  • Steps
• Configuring a Remote Data Provider – Example
  • Introduction
  • Preview
  • Prerequisites
  • Overview
  • Steps
  • Full code – Controller
  • Full code – View
• Related Content
  • Topics
  • Samples
  • Resources

Introduction

To configure the igOlapXmlaDataSource for a remote data provider, you need to first add the data provider to your ASP.NET MVC application and then configure igOlapXmlaDataSource to use a remote provider and supply it with the provider URL.

For conceptual explanation of configuring remote data providers, refer to Data Provider Configuration Overview (igOlapXmlaDataSource)

Configuring a Remote Data Provider – Conceptual Overview

Remote data provider configuration summary

The following table lists the types of remote data providers supported by the igOlapXmlaDataSource component and briefly explains them.

Requirements

Following are the general requirements for configuring igOlapXmlaDataSource through a remote data provider.

• A MS SSAS Server with at least one database
• (Conditional – ADOMD provider only) ADOMD.NET Client (Microsoft.AnalysisServices.AdomdClient.dll assembly version 10.0.0.0) installed on the server
• (Conditional – XMLA provider only) The HTTP server having read access to the MS SQL Server instance
• An ASP.NET MVC application with references to the following assemblies:
  • Infragistics.Web.Mvc.dll
  • (Conditional – ADOMD provider only) Infragistics.Olap.DataProvider.Adomd.Mvc.dll

Steps

Following are the general conceptual steps for configuring igOlapXmlaDataSource through a remote data provider.

1. Configuring the endpoint

2. Configuring igOlapXmlaDataSource

For a concrete example of this procedure, see Configuring a Remote Data Provider – Example.

Configuring a Remote Data Provider – Example

Introduction

This procedure sets up either an ADOMD.NET remote data provider or an XMLA remote data provider in an ASP.NET MVC Application, and configures an igOlapXmlaDataSource that consumes the data from the data provider and visualizes it in an igPivotGrid™. (Optionally you can preload a catalog, cube, rows, columns, and measures or further configure the data source. In this procedure, a pivot grid is added for displaying the result.)

Preview

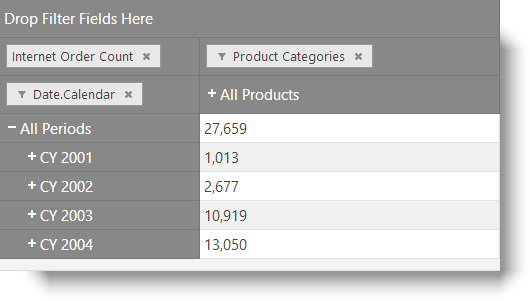

The following screenshot is a preview of the final result: the pivot grid fed with data from the remote data provider.

Prerequisites

To complete the procedure, you need the following:

• The required JS/CSS resources, as listed in Adding igPivotGrid to an HTML Page or the JavaScript and CSS combined files

Overview

Following is a conceptual overview of the process:

1. Configuring the endpoint

2. Configuring the igOlapXmlaDataSource

Steps

The following steps demonstrate how to configure the igOlapXmlaDataSource through a remote data provider.

1. Configure the endpoint.

   To make the remote data provider available to the igOlapXmlaDataSource, configure an Action in the Controller to which the igOlapXmlaDataSource will connect.

   For ADOMD remote provider

   The Action requires applying the AdomdDataSourceActionAttribute. In the Action’s body, return a new View passing an AdomdDataSourceModel instance with its ConnectionString property set accordingly.

   In C#:

    [AdomdDataSourceAction]
    public ActionResult RemoteAdomdProviderEndpoint()
    {
        return View(new AdomdDataSourceModel { ConnectionString = "Provider=MSOLAP.4;Persist Security Info=True;Data Source=http://sampledata.infragistics.com/olap/msmdpump.dll;Initial Catalog=Adventure Works DW Standard Edition;MDX Compatibility=1;Safety Options=2;MDX Missing Member Mode=Error"});
    }


   If you do not have version 10.0.0.0 of the Microsoft.AnalysisServices.AdomdClient assembly installed on your server, but you have another version already installed, you can add the following binding redirect section to the web.config file of your web application and use the version you have:

   In XML:

    <runtime>
      <assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">
        <dependentAssembly>
          <assemblyIdentity name="Microsoft.AnalysisServices.AdomdClient" publicKeyToken="89845dcd8080cc91" culture="neutral" />
          <bindingRedirect oldVersion="0.0.0.0-65535.65535.65535.65535" newVersion="[your version]" />
        </dependentAssembly>
      </assemblyBinding>
    </runtime>


   For XMLA remote provider

   The Action requires applying the XmlaDataSourceActionAttribute. In the Action’s body, return a new View passing an XmlaDataSourceModel instance with its ServerUrl property set to the URL of the mdsmdpump data provider.

   In C#:

    [XmlaDataSourceAction]
    public ActionResult RemoteXmlaProviderEndpoint()
    {
        return View(new XmlaDataSourceModel{ ServerUrl = "http://sampledata.infragistics.com/olap/msmdpump.dll" });
    }


2. Configure igOlapXmlaDataSource.

   For igOlapXmlaDataSource to work with the remote data provider, set the serverUrl to the URL of the action defined in step 1 and set the isRemote option to true.

   For this example procedure, add a pivot grid for displaying the result. (Optionally you can preload a catalog, cube, rows, columns, and measures or further configure the data source.)

   In JavaScript:

    $(function () {
        var remoteDataSource = new $.ig.OlapXmlaDataSource({
            isRemote: true,
            // if using ADOMD
            serverUrl: '@Url.Action("RemoteAdomdProviderEndpoint")',
            // if using XMLA
            //serverUrl: '@Url.Action("RemoteXmlaProviderEndpoint")',
            catalog: 'Adventure Works DW 2008',
            cube: 'Adventure Works',
            rows: '[Date].[Calendar]',
            columns: '[Product].[Product Categories]',
            measures: '[Measures].[Internet Order Count]'
        });
        $("#pivotGrid").igPivotDataSelector({
            dataSource: remoteDataSource,
            width: "900px",
            height: "500px"
        });
    });


Full code – Controller

Following is the full code code for the PivotGridController.

In C#:

using System.Web.Mvc;
using Infragistics.Web.Mvc;
namespace OlapAdomdMvc.Controllers
{
    public class PivotGridController : Controller
    {
        [AdomdDataSourceAction]
        public ActionResult RemoteAdomdProviderEndpoint()
        {
            return View(new AdomdDataSourceModel { ConnectionString = "Provider=MSOLAP.4;Persist Security Info=True;Data Source=http://sampledata.infragistics.com/olap/msmdpump.dll;Initial Catalog=Adventure Works DW Standard Edition;MDX Compatibility=1;Safety Options=2;MDX Missing Member Mode=Error" });
        }
        [XmlaDataSourceAction]
        public ActionResult RemoteXmlaProviderEndpoint()
        {
            return View(new XmlaDataSourceModel { ServerUrl = "http://sampledata.infragistics.com/olap/msmdpump.dll" });
        }
        public ActionResult RemoteDataProvider()
        {
            return View("RemoteDataProvider");
        }
    }
}

Full code – View

Following is the code for the RemoteDataProviderSample View.

In HTML:

<!DOCTYPE html>
<html>
<head>
    <title></title>
    <!-- Ignite UI for jQuery Required Combined CSS Files -->
    <link href="@Url.Content("[IG root]/css/themes/infragistics/infragistics.theme.css")" rel="stylesheet" />
    <link href="@Url.Content("[IG root]/css/structure/infragistics.css")" rel="stylesheet" />
    <script src="@Url.Content("~/js/modernizr.min.js")"></script>
    <script src="@Url.Content("~/js/jquery.min.js")"></script>
    <script src="@Url.Content("~/js/jquery-ui.min.js")"></script>
    <!-- Ignite UI for jQuery Required Combined JavaScript Files -->
    <script src="@Url.Content("[IG root]/js/infragistics.core.js")"></script>
    <script src="@Url.Content("[IG root]/js/infragistics.lob.js")"></script>
</head>
<body>
    <script type="text/javascript">
        $.support.cors = true;
        $(function () {
            var remoteDataSource = new $.ig.OlapXmlaDataSource({
                isRemote: true,
                serverUrl: '@Url.Action("RemoteXmlaProviderEndpoint")',
                catalog: 'Adventure Works DW 2008',
                cube: 'Adventure Works',
                rows: '[Date].[Calendar]',
                columns: '[Product].[Product Categories]',
                measures: '[Measures].[Internet Order Count]'
            });
            $("#pivotGrid").igPivotGrid({
                dataSource: remoteDataSource,
                width: "500px",
                height: "270px"
            });
        });
    </script>
    <div id="pivotGrid"></div>
</body>
</html>

Related Content

Topics

The following topics provide additional information related to this topic.

• Configuring the Tabular View of the Result Set by Arranging the Columns, Rows, Filters, and Measures of the Pivot Grid (igOlapFlatDataSource, igOlapXmlaDataSource, igPivotDataSelector, igPivotGrid, igPivotView): This topic explains how to configure the tabular View of the OLAP cube result set by arranging the hierarchies of the pivot grid columns, rows, filters, and measures, either from the grid’s interface or programmatically in the code.

Samples

The following samples provide additional information related to this topic.

• Remote Xmla Provider: This sample demonstrates reducing the network traffic using a remote provider with the igOlapXmlaDataSource component.

• ADOMD.NET Remote Data Provider: This sample demonstrates using the ADOMD.NET remote provider with the igPivotGrid control.

Resources

The following material (available outside the Infragistics family of content) provides additional information related to this topic.

• ADOMD.NET Download Page: Microsoft’s download page for ADOMD.NET.
