Data Binding (igPieChart)

Purpose

This topic explains how to bind various data sources to the igPieChart™ control.

Required Background

Concepts

  • Data Binding
  • JSON
  • XML
  • Web Services
  • WCF Services
  • ASP.NET MVC

Topics

  • igDataSource: This is a reference page that links to all topics related to the igDataSource™.

  • igDataSource Overview: This topic introduces the igDataSource control and demonstrates its basic usage and features.

  • igPieChart Overview: Contains basic information about the igPieChart control for displaying pie charts in web pages.

  • Adding an igPieChart: Provides step by step instructions for adding an igPieChart to a web page.

In This Topic

This topic contains the following sections:

Binding to Data Sources

Supported data sources

The igPieChart control supports the following data sources:

Data Source Binding
igDataSource Used internally by the control to manage data operations
IQueryable<T> Used to supply data from an MVC controller method

Requirements for binding

Each data source has different requirements for data binding to the igDataSource control. The following table lists each requirement category.

Requirement category Requirement listing
Data structure
  • JSON (client side or from a web or WCF service)
  • XML (client side or from a web or WCF service)
  • JavaScript array
  • IQueryable<T> in ASP.NET MVC
Data types
  • String: for category axes only
  • Number
  • Date

Data sources summary

Data binding for igPieChart is done identically to binding for other controls from the Ignite UI™ library. The way to bind data is by either by assigning a data source to the dataSource option or to provide a URL in the dataSourceUrl if data is provided by a web or WCF service.

Bind to a JavaScript Array

Introduction

This procedure shows in simple steps how to bind a JavaScript data array to an igPieChart control.

Prerequisites

To complete the procedure, you need the following:

  • An HTML5 web page
  • All required JavaScript and CSS files added to your web site or web application project. For detailed information on instantiation and configuration of an igPieChart see Adding an igPieChart.

Preview

The following screenshot is a preview of the final result.

Steps

The following steps demonstrate how to bind JavaScript data array to an igPieChart control.

  1. Define a JavaScript data array.

    For the sake of the example, use the following JavaScript array.

    In HTML:

     <script type="text/javascript">
         var data = [
                 { "Budget": 950000, "Department": "Accounting" },
                 { "Budget": 1500000, "Department": "Sales" },
                 { "Budget": 1400000, "Department": "Marketing" },
                 { "Budget": 2000000, "Department": "Logistics" },
                 { "Budget": 800000, "Department": "IT" }
             ];
     </script>

  2. Instantiate chart control and set data source.

    1. Add the chart div element to the web page.

      Add a div element in the body part of your web page using the following code:

      In HTML:

       <body>
           ...
           <div id="chart"></div>
           ...
       </body>

    2. Instantiate the igPieChart control and configure the data source.

      Add the following code into a script tag in order to instantiate and configure an igPieChart. Note how the data array defined in the previous step is assigned to the dataSource options of the igPieChart control.

      In HTML:

       <script type="text/javascript">
           $(function () {
               $("#chart").igPieChart({
                   width: "450px",
                   height: "450px",
                   dataSource: data,
                   dataValue: "Budget",
                   dataLabel: "Department",
                   radiusFactor: 0.8,
                   explodedSlices: "[0,1,2]",
                   legend: { element: "legend", type: "item" }
               });
           });
       </script>


Data sources summary

Data binding for igPieChart is done identically to binding for other controls from the Ignite UI™ library. The way to bind data is by either by assigning a data source to the dataSource option or to provide a URL in the dataSourceUrl if data is provided by a web or WCF service.

Bind to XML

Introduction

This procedure shows in several steps how to bind an XML string to an igPieChart control.

Prerequisites

To complete the procedure, you need the following:

  • An HTML5 web page
  • All required JavaScript and CSS files added to your web site or web application project. For detailed information on instantiation and configuration of an igPieChart see Adding an igPieChart.

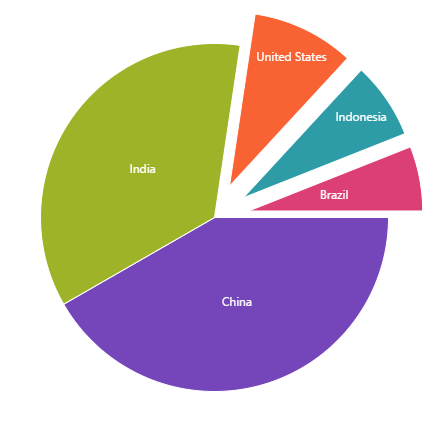

Preview

The following screenshot is a preview of the final result.

Steps

The following steps demonstrate how to bind an XML string to an igPieChart control. In order to link the XML data to the chart it will require to specify a DataSchema as well and pass both to an instance of igDataSource. The main role of this data component is to output data in a readable for IgniteUI widgets format.

  1. Prepare the data in a readable for igPieChart format.

    1. At first, define an XML data sting. In this example, it will be the following XML data.

      In HTML:

       <script type="text/javascript">
           //Sample XML Data
           var xmlDoc = '<Countries>' +
               '<Country Name="China" Population="1333" />' +
               '<Country Name="India" Population="1140" />' +
               '<Country Name="United States" Population="304" />' +
               '<Country Name="Indonesia" Population="228" />' +
               '<Country Name="Brazil" Population="192" />' +
           '</Countries>';
       </script>

    2. Binding to XML requires a igDataSchema to define data fields. This component handles transformations for Array, JSON and XML data objects for the igDataSource. Specify where the records in the date source are located using searchField option. Notice how the fields are defined by specifying an “xpath” property for every field definition. This is unique to XML data sources. In this way, you are telling the data source the path to the property you are binding, in every hierarchical object that is in the list.

       <script type="text/javascript">
           var xmlSchema = new $.ig.DataSchema("xml",
               {
                   //searchField serves as the base node(s) for the XPaths
                   searchField: "//Country",
                   fields: [
                       { name: "Name", xpath: "./@Name" },
                       { name: "Population", xpath: "./@Population", type: "number" },
                   ]
               }
           );
       </script>

    3. Create an Infragistics datasource which can be consumed by the chart from the already configured XML Data and igDataSchema.

       <script type="text/javascript">
           var ds = new $.ig.DataSource({
               type: "xml",
               dataSource: xmlDoc,
               schema: xmlSchema
           });
       </script>

  2. Instantiate chart control and set data source.

    1. Add the chart div element to the web page.

      Add a div element in the body part of your web page using the following code:

      In HTML:

       <body>
           ...
           <div id="chart"></div>
           ...
       </body>

    2. Instantiate the igPieChart control and configure the data source.

      In HTML:

       <script type="text/javascript">
           $(function () {
               $("#chart").igPieChart({
                   width: "435px",
                   height: "435px",
                   dataSource: ds, //$.ig.DataSource defined above
                   dataValue: "Population",
                   dataLabel: "Name",
                   labelsPosition: "bestFit",
                   explodedSlices: [0,2,3,4]
               });
           });
       </script>


The following sample implements the above steps.

Bind to an IQueryable<T> in ASP.NET MVC

Introduction

This procedure shows how to bind a list of data objects from a backend controller method to a pie chart using the ASP.NET helper provided in the Ignite UI library.

Prerequisites

To complete the procedure, you need the following:

  • An ASP.NET MVC application
  • All required JavaScript and CSS files added to your web site or web application project. For detailed information on instantiation and configuration of an igPieChart see Adding an igPieChart.

Preview

The following screenshot is a preview of the final result.

Steps

The following steps demonstrate how to instantiate and bind an igPieChart control in ASP.NET MVC by providing a list of data objects to a strongly typed view and use the MVC helper for data chart.

  1. Define data model.

    Add the following data model class:

    In C#:

     public class DepartmentSpending
     {
         public string Department { get; set; }
         public decimal Budget { get; set; }
     }

  2. Define the controller method.

    Add the following logic to a controller method in order to instantiate an array of DepartmentSpending objects. Note that in this place you can add custom logic that gets data from data base, for example.

    In C#:

     public ActionResult Index()
     {
         List<DepartmentSpending> companyBudget = new List<DepartmentSpending>
         {
             new DepartmentSpending { Budget = 950000, Department = "Accounting" },
             new DepartmentSpending { Budget = 1500000, Department = "Sales" },
             new DepartmentSpending { Budget = 1400000, Department = "Marketing" },
             new DepartmentSpending { Budget = 2000000, Department = "Logistics" },
             new DepartmentSpending { Budget = 500000, Department = "IT" }
         };
         return View(companyBudget.AsQueryable());
     }


    Note how the list of DepartmentSpending objects is converted to an IQueryable< DepartmentSpending> before submitting to the view. This can alternatively be done in the MVC helper call in the view but the implementation provided is cleaner.

  3. Instantiate chart control and set data source.

    Add the following code into your ASP.NET MVC view in order to instantiate an igPieChart and assign the list. Note how the data model of the strongly-typed view is mapped to the chart with the PieChart(Model) call. Further, the DataValue() method maps the item.Budget property to the slices’ size and the DataLabel() method maps the item.Department property for each data item to slices’ names. The DataBind() method does the actual data binding and at the end the Render() method emits the final JavaScript code to be executed on the client-side.

    In ASPX:

     <%@ Page Language="C#" Inherits="System.Web.Mvc.ViewPage<IQueryable<PieChartSample.Models.DepartmentSpending>>" %>
     <%@ Import Namespace="Infragistics.Web.Mvc" %>
     ...
     <%= Html.Infragistics().PieChart(Model)
             .ID("chart")
             .DataValue(item => item.Budget)
             .DataLabel(item => item.Department)
             .DataBind()
             .Render()
     %>


Bind to a WCF Service

Introduction

This procedure shows how to bind an igPieChart to a WCF service with the help of the dataSourceUrl option. Binding to a Web service is identical.

Prerequisites

To complete the procedure, you need the following:

  • An HTML5 web page
  • All required JavaScript and CSS files added to your web site or web application project. For detailed information on instantiation and configuration of an igPieChart see Adding an igPieChart.

Preview

The following screenshot is a preview of the final result.

Steps

The following steps demonstrate how to bind an igPieChart control to a WCF service.

  1. WCF Service interface.

    The full implementation of the WCF service is omitted because it is not relevant to the example. Here follows a sample service contract class and operation contract method that serves data to the client upon a GET HTTP request. The data model class is the same as in the previous procedure “Bind to an IQueryable<T> in ASP.NET MVC”.

    Here follows the interface of the sample BudgetData WCF service that serves financial data to clients in the form of a List of DepartmentSpending objects.

    In C#:

     [ServiceContract]
     [AspNetCompatibilityRequirements(RequirementsMode = AspNetCompatibilityRequirementsMode.Allowed)]
     public class BudgetData
     {
         [OperationContract]
         [WebGet(BodyStyle = WebMessageBodyStyle.Bare, ResponseFormat = WebMessageFormat.Json)]
         public List<DepartmentSpending> GetCompanyBudget()
         {
             return CompanyBudgetDB.GetBudgetsByDepartment();
         }
     }


    The important things to note here is the WebGet attribute applied to the server method GetCompanyBudget(). It declares that this method will respond to GET requests and that the response will be a bare (not wrapped) JSON encoded array of data.

  2. Instantiate chart control and set data source.

    HTML/jQuery

    Add the following code into the head part of your HTML5 page in order to instantiate an igPieChart. The WCF service address is set as data source by assigning the address to the dataSourceUrl option.

    The option dataValue is set to point to the Budget property of the data provided by the server and the dataLabel is set to point to the Department property.

    In this example it is assumed that the WCF service is installed and running on the address http://www.example.com/Services/BudgetData.svc/GetCompanyBudget.

    In Javascript:

     $(function () {
         $("#chart").igPieChart({
             dataSourceUrl: "http://www.example.com/Services/BudgetData.svc/GetCompanyBudget",
             dataValue: "Budget",
             dataLabel: "Department"
         });
     });


    ASP.NET MVC

    Add the following code into your ASP.NET MVC view in order to instantiate an igPieChart and set the WCF service address. The meaning of the code is the same as in the HTML example.

    In ASPX:

     <%@ Page Language="C#" Inherits="System.Web.Mvc.ViewPage<dynamic>" %>
     <%@ Import Namespace="Infragistics.Web.Mvc" %>
     ...
     <%= Html.Infragistics().PieChart()
             .ID("chart")
             .DataValue("Budget")
             .DataLabel("Department")
             .DataSourceUrl("http://www.example.com/Services/BudgetData.svc/GetCompanyBudget")
             .DataBind()
             .Render()
     %>
