Configuring Comparative Ranges (igBulletGraph)

Topic Overview

Purpose

This topic explains, with code examples, how to configure ranges in the igBulletGraph™ control. This includes the number of ranges and their positions, lengths, widths, and formatting.

Required background

The following topics are prerequisites to understanding this topic:

igBulletGraph Overview: This topic provides conceptual information about the igBulletGraph control including its main features, minimum requirements, and user functionality.
Adding igBulletGraph: This is a group of topics explaining how to add the igBulletGraph control to an HTML page and an ASP.NET MVC application.

In this topic

This topic contains the following sections:

Configuring Comparative Ranges

Comparative ranges configuration summary

The igBulletGraph control supports multiple comparative ranges via instantiating its ranges object.

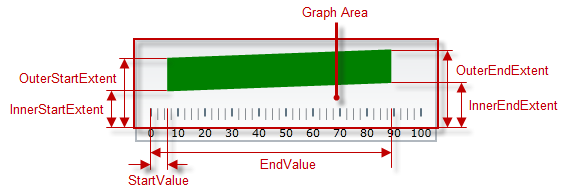

Each range can be configured individually by specifying its starting and ending value (in the measures of the scale), fill color, and border thickness and color. The size of a comparative range in the across-the-scale is configurable by adjusting its inner and outer margins.

Comparative ranges configuration summary chart

The following table explains briefly the configurable aspects of igBulletGraph control’s comparative ranges and maps them to properties that configure them.

Configurable aspects		Property	Default value
Number (of ranges in the graph)		ranges	Not set
Length, width, and position		startValue	Not set
		endValue	Not set
		innerStartExtent	Not set
		innerEndExtent	Not set
		outerStartExtent	Not set
		outerEndExtent	Not set
Look-and-feel	Fill color	brush	Defined in the default theme
	Border color	outline	Defined in the default theme
	Border thickness	strokeThickness	1.0
Tooltip		rangeToolTipTemplate	The start and end values of the range separated by a hyphen (-).

Note: If you do not explicitly provide values for the brush and outline properties for each range, the values are retrieved from the values of igBulletGraph’s rangeBrushes and rangeOutlines objects. They can also be used to predefine a set of brushes to be used consecutively for setting each range’s color or outline fill.

Property settings

The following table maps the desired behavior to its respective property settings.

In order to configure:			Use this property:	And set it to:
Aspect		Details	Use this property:	And set it to:
Name		A name for the range. Used for displaying in the tooltip.	name	A string expressing the name of the range
Position along the scale	Range start	Position on the scale at which the range begins	startValue	The desired value (in the measures of the scale)
Position along the scale	Range end	Position on the scale at which the range ends	endValue	The desired value (in the measures of the scale)
Breadth and position (across the scale)	Inner vertex of the starting edge of the range	The position of the inner vertex of the starting edge across the scale relative to the edge of the Reserved area. (Inner vertex is the point of the starting edge that is the closest to the edge of the Reserved area.)	innerStartExtent	The desired value as a relative part of the height/width of the Graph area depending on the orientation (horizontal / vertical) presented as a fraction of 1 (e.g. 0.2)
	Inner vertex of the ending edge of the range	The position of the inner vertex of the ending edge across the scale relative to the edge of the Reserved area	innerEndExtent	The desired value as a relative part of the height/width of the Graph area depending on the orientation (horizontal / vertical) presented as a fraction of 1 (e.g. 0.3)
	Outer vertex of the starting edge of the range	The position of the outer vertex of the starting edge across the scale relative to the edge of the Reserved area. (Outer vertex is the point of the starting edge that is the closest to the edge of the Reserved area)	outerStartExtent	The desired value as a relative part of the height/width of the Graph area depending on the orientation (horizontal / vertical) presented as a fraction of 1 (e.g. 0.7)
	Outer vertex of the ending edge of the range	The position of the outer vertex of the ending edge across the scale relative to the edge of the Reserved area	outerEndExtent	The desired value as a relative part of the height/width of the Graph area depending on the orientation (horizontal / vertical) presented as a fraction of 1 (e.g. 0.8)
Look-and-feel	Fill color	Fill color of the range	brush	The desired color
	Border thickness	Thickness of the range’s border	strokeThickness	The desired value in pixels
	Border color	Color of the range’s border	outline	The desired color
Tooltip		Content of the tooltip of the comparative range(s)	rangeToolTipTemplate	The desired template(See Configuring the Tooltips (igBulletGraph).)

Example

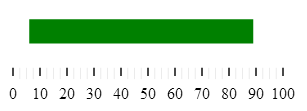

The screenshot below demonstrates how a comparative range added to the igBulletGraph looks as a result of the following settings:

Property	Value
brush	“Green”
name	“range1”
startValue	“6”
endValue	“89”
innerStartExtent	“0.5”
innerEndExtent	“0.5”
outerStartExtent	“0.8”
outerEndExtent	“0.8”
outline	“Black”

Following is the code that implements this example.

In JavaScript:

$(function () {
    $("#bulletgraph").igBulletGraph({
                width: "300",
                height: "100",
                ranges: [{
                     name: 'range1',
                     brush:'#008000',
                     startValue:"6",
                     endValue:"89",
                     innerStartExtent:"0.5",
                     innerEndExtent:"0.5",
                     outerStartExtent:"0.8",
                     outerEndExtent:"0.8"
                }]    });});
