ig.MashupDataSource

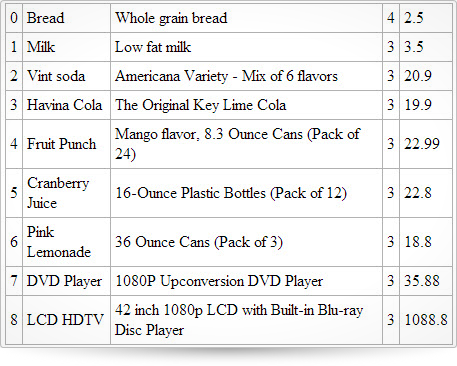

ig.MashupDataSource_image

The MashupDataSource is used to create a single collection of data from multiple sources. The sources are combined using a common primary key field. This class is an extension of the DataSource class which adds the options for mashupSettings. For more details on the MashupDataSource component’s API, refer to the base DataSource component’s API documentation. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the MashupDataSource control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the MashupDataSource control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>

    <script type="text/javascript">
    $(function () {
        var jsArray = new Array(), xmlDoc, xmlSchema, mashupSources, dsMashup;

	    jsArray[0] = { "ID": 0, "Name": "Bread", "Description": "Whole grain bread" };
	    jsArray[1] = { "ID": 1, "Name": "Milk", "Description": "Low fat milk" };
	    jsArray[2] = { "ID": 2, "Name": "Vint soda", "Description": "Americana Variety - Mix of 6 flavors" };
	    jsArray[3] = { "ID": 3, "Name": "Havina Cola", "Description": "The Original Key Lime Cola"};
	    jsArray[4] = { "ID": 4, "Name": "Fruit Punch", "Description": "Mango flavor, 8.3 Ounce Cans (Pack of 24)"};
	    jsArray[5] = { "ID": 5, "Name": "Cranberry Juice", "Description": "16-Ounce Plastic Bottles (Pack of 12)"};
	    jsArray[6] = { "ID": 6, "Name": "Pink Lemonade", "Description": "36 Ounce Cans (Pack of 3)" };
	    jsArray[7] = { "ID": 7, "Name": "DVD Player", "Description": "1080P Upconversion DVD Player" };
	    jsArray[8] = { "ID": 8, "Name": "LCD HDTV", "Description": "42 inch 1080p LCD with Built-in Blu-ray Disc Player" };

	    xmlDoc = "<feed>\r\n" +
                    "<entry>\r\n" +
                        "<id>0</id>\r\n    <title>Bread</title>\r\n    <summary>Whole grain bread</summary>\r\n    <content id=\"0\" rating=\"4\" price=\"2.5\"></content>\r\n </entry>\r\n" +
                    "<entry>\r\n" +
                        "<id>1</id>\r\n    <title>Milk</title>\r\n    <summary>Low fat milk</summary>\r\n    <content id=\"1\" rating=\"3\" price=\"3.5\"></content>\r\n  </entry>\r\n" +
                    "<entry>\r\n" +
                        "<id>2</id>\r\n    <title>Vint soda</title>\r\n    <summary>Americana Variety - Mix of 6 flavors</summary>\r\n    <content id=\"2\" rating=\"3\" price=\"20.9\"></content>\r\n  </entry>\r\n" +
                    "<entry>\r\n" +
                        "<id>3</id>\r\n    <title>Havina Cola</title>\r\n    <summary>The Original Key Lime Cola</summary>\r\n    <content id=\"3\" rating=\"3\" price=\"19.9\"></content>\r\n  </entry>\r\n" +
                    "<entry>\r\n" +
                        "<id>4</id>\r\n    <title>Fruit Punch</title>\r\n    <summary>Mango flavor, 8.3 Ounce Cans (Pack of 24)</summary>\r\n    <content id=\"4\" rating=\"3\" price=\"22.99\"></content>\r\n  </entry>\r\n" +
                    "<entry>\r\n" +
                        "<id>5</id>\r\n    <title>Cranberry Juice</title>\r\n    <summary>16-Ounce Plastic Bottles (Pack of 12)</summary>\r\n    <content id=\"5\" rating=\"3\" price=\"22.8\"></content>\r\n  </entry>\r\n" +
                    "<entry>\r\n" +
                        "<id>6</id>\r\n    <title>Pink Lemonade</title>\r\n    <summary>36 Ounce Cans (Pack of 3)</summary>\r\n    <content id=\"6\" rating=\"3\" price=\"18.8\"></content>\r\n  </entry>\r\n" +
                    "<entry>\r\n" +
                        "<id>7</id>\r\n    <title>DVD Player</title>\r\n    <summary>1080P Upconversion DVD Player</summary>\r\n    <content id=\"7\" rating=\"3\" price=\"35.88\"></content>\r\n  </entry>\r\n" +
                    "<entry>\r\n" +
                        "<id>8</id>\r\n    <title>LCD HDTV</title>\r\n    <summary>42 inch 1080p LCD with Built-in Blu-ray Disc Player</summary>\r\n    <content id=\"8\" rating=\"3\" price=\"1088.8\"></content>\r\n  </entry>\r\n" +
                "</feed>";

        xmlSchema = new $.ig.DataSchema("xml", {
		    fields: [
			    { name : "ID", xpath: "id" },
			    { name : "Rating", xpath: "content/@rating" },
			    { name : "Price", xpath : "content/@price" }
		    ],
		    searchField: "//entry"
	    });

	    mashupSources = [
		    { dataSource: jsArray, primaryKey: "ID" },
		    { dataSource: xmlDoc, type: "xml", primaryKey: "ID" ,schema: xmlSchema }
	    ];

	    dsMashup = new $.ig.MashupDataSource({ dataSource: mashupSources });
	    dsMashup.dataBind();

      var template = "<tr><td>${ID}</td><td>${Name}</td><td>${Description}</td><td>${Rating}</td><td>${Price}</td></tr>",
      resultHtml = $.ig.tmpl(template, dsMashup.dataView());
      $("#mashupDataSource").html(resultHtml);
    });
    </script>
</head>
<body>
	<table id="mashupDataSource">
        <thead></thead>
        <tbody></tbody>
    </table>
</body>
</html>


Related Samples

Related Topics

Dependencies

jquery-1.9.1.js
infragistics.util.js
infragistics.util.jquery.js
  • mashupSettings

    Type:
    object
    Default:
    {}

    Defines the configuration setting for the mashup data source.

    Code Sample


                var jsArray = new Array(), xmlDoc, xmlSchema, mashupSources, dsMashup;

    			jsArray[0] = { "ID": 0, "Name": "Bread", "Description": "Whole grain bread" };
    			jsArray[1] = { "ID": 1, "Name": "Milk", "Description": "Low fat milk" };
    			jsArray[2] = { "ID": 2, "Name": "Vint soda", "Description": "Americana Variety - Mix of 6 flavors" };
    			jsArray[3] = { "ID": 3, "Name": "Havina Cola", "Description": "The Original Key Lime Cola"};
    			jsArray[4] = { "ID": 4, "Name": "Fruit Punch", "Description": "Mango flavor, 8.3 Ounce Cans (Pack of 24)"};
    			jsArray[5] = { "ID": 5, "Name": "Cranberry Juice", "Description": "16-Ounce Plastic Bottles (Pack of 12)"};
    			jsArray[6] = { "ID": 6, "Name": "Pink Lemonade", "Description": "36 Ounce Cans (Pack of 3)" };
    			jsArray[7] = { "ID": 7, "Name": "DVD Player", "Description": "1080P Upconversion DVD Player" };
    			jsArray[8] = { "ID": 8, "Name": "LCD HDTV", "Description": "42 inch 1080p LCD with Built-in Blu-ray Disc Player" };

    			xmlDoc = loadXMLDoc("XML.Products.xml");
    			xmlSchema = new $.ig.DataSchema("xml", {
    				fields: [
    					{ name : "ID", xpath: "id" },
    					{ name : "Rating", xpath: "content/@rating" },
    					{ name : "Price", xpath : "content/@price" }
    				],
    				searchField: "//entry"
    			});

    			mashupSources = [
    				{ dataSource: jsArray, primaryKey: "ID" },
    				{ dataSource: xmlDoc, type: "xml", primaryKey: "ID" ,schema: xmlSchema }
    			];

    			dsMashup = new $.ig.MashupDataSource({ dataSource: mashupSources });
    			dsMashup.dataBind();

    • dataSource

      Type:
      array
      Default:
      []
      Elements Type:
      object

      An array of $.ig.DataSource instances holding the disperse data.

      Code Sample


                	//Initializenew
                  $.ig.MashupDataSource({ dataSource: [
      				{ dataSource: jsArray, primaryKey: "ID" },
      				{ dataSource: xmlDoc, type: "xml", primaryKey: "ID" ,schema: xmlSchema }
      			    ]
                  });

    • ignorePartialRecords

      Type:
      bool
      Default:
      false

      Indicates whether to ignore records that have no corresponding data in all of the provided data sources.

      Code Sample


                  //Initializenew
                  $.ig.MashupDataSource({
                      ignorePartialRecords: true
                  });

  • settings
    Inherited

    Type:
    object
    Default:
    {}

    The Infragistics Data Source client-side component is implemented as a class, and has support for paging, sorting, and filtering
    it supports binding to various types of data sources including JSON, XML, HTML Table, WCF/REST services, JSONP, JSONP and OData combined, etc.

    Code Sample


    			var render = function (success, error) {
    				if (success) {
    					var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
    					resultHtml = $.ig.tmpl(template, ds.dataView());
    					$("#table").html(resultHtml);
    				} else {
    					alert(error);
    				}
    			}

    			var ds;

    			$(window).load(function () {
    			var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    			ds = new $.ig.MashupDataSource({
    			callback: render,
    			dataSource: url,
    			schema: {
    				fields: [{
    					name: "Name"
    				}, {
    					name: "Price"
    				}, {
    					name: "Rating"
    				}],
    					searchField: "d"
    			},
    			responseDataKey: "d",
    			responseDataType: "jsonp",
    			filtering: {
    				type: "remote",
    				filterExprUrlKey: "filter",
    				expressions: [{
    					fieldName: "Name",
    					cond: "Contains",
    					expr: "Cr"
    				}]
    			},
    			paging: {
    				enabled: true,
    				pageSize: 3,
    				type: "local"
    			}
    			});

    			ds.dataBind();
    			});

    • aggregateTransactions

      Type:
      bool
      Default:
      false

      If set to true, the following behavior will take place:
      if a new row is added, and then deleted, there will be no transaction added to the log
      if an edit is made to a row or cell, then the value is brought back to its original value, the transaction should be removed
      Note: This option takes effect only when autoCommit is set to false.

      Code Sample


      				var ds = new $.ig.MashupDataSource({
      					aggregateTransactions: true,
      					dataSource: arrayOfObjects
      				});

    • autoCommit

      Type:
      bool
      Default:
      false

      If auto commit is true, data will be automatically commited to the data source, once a value or a batch of values are updated via saveChanges().

      Code Sample


      				var ds = new $.ig.MashupDataSource({
      					autoCommit: true
      				});

    • callback

      Type:
      function
      Default:
      null

      Callback function to call when data binding is complete.

      Code Sample


      				var render = function (success, error) {
      					if (success) {
      						alert("success");
      					} else {
      						alert(error);
      					}
      				}

      				$(window).load(function () {
      					var url = "http://odata.netflix.com/Catalog/Titles?$format=json&$callback=?";
      					ds = new $.ig.MashupDataSource({
      						type: "remoteUrl",
      						callback: render,
      						dataSource: url,
      						schema: oDataSchema,
      						responseDataKey : "d.results",
      						responseDataType: "jsonp",
      					});
      					ds.dataBind();
      				});

    • callee

      Type:
      object
      Default:
      null

      Object on which to invoke the callback function.

      Code Sample


      				var Bob = {
      					name: "Bob",
      					greet: function () {
      						alert("Hi, I'm " + this.name);
      					}
      				};

      				var products = [];
      				products[0] = {
      					"ProductID": 1,
      					"Name": "Adjustable Race",
      					"ProductNumber": "AR-5381"
      				};
      				products[1] = {
      					"ProductID": 2,
      					"Name": "Bearing Ball",
      					"ProductNumber": "BA-8327"
      				};

      				var ds;

      				$(document).ready(function () {
      					ds = new $.ig.MashupDataSource({
      						dataSource: products,
      						callee: Bob,
      						callback: Bob.greet
      					});

      					ds.dataBind();
      				});

    • data

      Type:
      array
      Default:
      []
      Elements Type:
      object

      This is the normalized (transformed) resulting data, after it's fetched from the data source.

      Code Sample


      				var ds = new $.ig.MashupDataSource({
      					data: normalizedArrayOfObjects
      				});

    • dataBinding

      Type:
      object
      Default:
      null

      Client-side dataBinding event. Can be a string pointing to a function name, or an object pointing to a function.

      Code Sample


      				var myDataBinding = function () {
      					alert("myDataBinding");
      				}

      				var products = [];
      				products[0] = {
      					"ProductID": 1,
      					"Name": "Adjustable Race",
      					"ProductNumber": "AR-5381"
      				};
      				products[1] = {
      					"ProductID": 2,
      					"Name": "Bearing Ball",
      					"ProductNumber": "BA-8327"
      				};

      				var ds;

      				$(window).ready(function () {
      					ds = new $.ig.MashupDataSource({
      						dataBinding: myDataBinding,
      						dataSource: products
      					});
      				});

    • dataBound

      Type:
      object
      Default:
      null

      Client-side dataBound event. Can be a string pointing to a function name, or an object pointing to a function.

      Code Sample


      				var myDataBound = function () {
      					alert("myDataBound");
      				}

      				var products = [];
      				products[0] = {
      					"ProductID": 1,
      					"Name": "Adjustable Race",
      					"ProductNumber": "AR-5381"
      				};
      				products[1] = {
      					"ProductID": 2,
      					"Name": "Bearing Ball",
      					"ProductNumber": "BA-8327"
      				};

      				var ds;

      				$(window).ready(function () {
      					ds = new $.ig.MashupDataSource({
      						dataBound: myDataBound
      					});

      					ds.dataBind();

      				});

    • dataSource

      Type:
      object
      Default:
      null

      This is the source of data - non normalized. Can be an array, can be reference to some JSON object, can be a DOM element for a HTML TABLE, or a function.

      Code Sample


      				var jsonSchema = new $.ig.DataSchema("json", {fields:[
      					{name: "ProductID", type: "number"},
      					{name: "Name", type: "string"},
      					{name: "ProductNumber", type: "string"},
      					{name: "Color", type: "string"},
      					{name: "StandardCost", type: "string"}],
      					searchField:"Records" });

      				ds = new $.ig.MashupDataSource({type: "json", dataSource: jsonData, schema: jsonSchema});
      				ds.dataBind();

    • fields
      Deprecated

      Type:
      array
      Default:
      []
      Elements Type:
      object

      *** IMPORTANT DEPRECATED ***
      A list of field definitions specifying the schema of the data source.
      Field objects description: {name, [type], [xpath]}.

      Code Sample


      				var products = [];
      				products[0] = {
      					"ProductID": 1,
      					"Name": "Adjustable Race",
      					"ProductNumber": "AR-5381"
      				};
      				products[1] = {
      					"ProductID": 2,
      					"Name": "Bearing Ball",
      					"ProductNumber": "BA-8327"
      				};

      				var ds;
      				$(window).ready(function () {

      					ds = new $.ig.MashupDataSource({
      						dataSource: products,
      						fields: [{
      							name: "ProductID",
      							type: "number"
      						}, {
      							name: "Name",
      							type: "string"
      						}, {
      							name: "ProductNumber",
      							type: "string"
      						}]
      					});

      					ds.dataBind();
      				});

    • filtering

      Type:
      object
      Default:
      {}

      Settings related to built-in filtering functionality.

      Code Sample


      				jsonDs = new $.ig.MashupDataSource( {
      					filtering: {
      						type: "local",
      						caseSensitive: true,
      						applyToAllData: true
      					},
      					dataSource: jsonData
      				}).dataBind();

      • applyToAllData

        Type:
        bool
        Default:
        true

        If the type of paging/sorting/filtering is local and applyToAllData is true, filtering will be performed on the whole data source that's present locally, otherwise only on the current dataView. if type is remote, this setting doesn't have any effect.

        Code Sample


        					jsonDs = new $.ig.MashupDataSource( {
        						filtering: {
        							type: "local",
        							caseSensitive: true,
        							applyToAllData: true
        						},
        						dataSource: jsonData
        					}).dataBind();

      • caseSensitive

        Type:
        bool
        Default:
        false

        Enables or disables case sensitive filtering on the data. Works only for local filtering.

        Code Sample


        					jsonDs = new $.ig.MashupDataSource( {
        						filtering: {
        							type: "local",
        							caseSensitive: true,
        							applyToAllData: true
        						},
        						dataSource: jsonData
        					}).dataBind();

      • customConditions

        Type:
        object
        Default:
        null

        An object containing custom defined filtering conditions as objects.

        Code Sample


        					jsonDs = new $.ig.DataSource( {
        						filtering: {
        							type: "local",
        							caseSensitive: true,
        							applyToAllData: true,
        							customConditions: [
        								BE: {
        								labelText: "BE",
        								expressionText: "BE-####",
        								requireExpr: false,
        								filterFunc: filterProductNumber
        								},
        								CA: {
        									labelText: "CA",
        									expressionText: "CA-####",
        									requireExpr: false,
        									filterFunc: filterProductNumber1
        								}
        							]
        						},
        						dataSource: jsonData
        					}).dataBind()
        					function filterProductNumber(value, expression, dataType, ignoreCase, preciseDateFormat) {
        						return value.startsWith("BE");
        					}
        					function filterProductNumber1(value, expression, dataType, ignoreCase, preciseDateFormat) {
        						return value.startsWith("CA");
        					}

      • customFunc

        Type:
        object
        Default:
        null

        Can point to either a string or a function object. The parameters that are passed are 1) the data array to be filtered, 2) the filtering expression definitions. Should return an array of the filtered data.

        Code Sample


        					var ds;

        					var render = function (success, error) {
        						if (success) {
        							var expr = "Cr";
        							cond = "startsWith";

        							ds.filter([{
        								fieldName: "Name",
        								expr: expr,
        								cond: cond
        							}], true);

        							var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        							resultHtml = $.ig.tmpl(template, ds.dataView());
        							$("#table").html(resultHtml);
        						} else {
        							alert(error);
        						}
        					}


        					var myCustomFunc = function (fieldExpression, data) {
        						var result = [];
        						result[0] = data[0];
        						return result;
        					}

        					$(window).load(function () {
        						var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        						ds = new $.ig.MashupDataSource({
        							callback: render,
        							dataSource: url,
        							schema: {
        								fields: [{
        									name: "Name"
        								}, {
        									name: "Price"
        								}, {
        									name: "Rating"
        								}],
        								searchField: "d"
        							},
        							responseDataKey: "d",
        							responseDataType: "jsonp",
        							filtering: {
        								type: "remote",
        								customFunc: myCustomFunc
        							}
        						});
        						ds.dataBind();

        					});

      • defaultFields

        Type:
        array
        Default:
        []
        Elements Type:
        object

        Data will be initially filtered accordingly, directly after dataBind().

        Code Sample


        					$(window).load(function () {
        						var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        						ds = new $.ig.MashupDataSource({
        							callback: render,
        							dataSource: url,
        							schema: {
        								fields: [{
        									name: "Name"
        								}, {
        									name: "Price"
        								}, {
        									name: "Rating"
        								}],
        								searchField: "d"
        							},
        							responseDataKey: "d",
        							responseDataType: "jsonp",
        							filtering: {
        								type: "remote",
        								defaultFields: [{
        									fieldName: "Price",
        									cond:"GreaterThan",
        									expr: 20
        								}]
        							}
        						});
        						ds.dataBind();
        					});

      • expressions

        Type:
        array
        Default:
        []
        Elements Type:
        object

        A list of expression objects, containing the following key-value pairs: fieldName, expression (search string), condition , and logic (AND/OR).

        Code Sample


        					var url = "/demos/server/proxy.php?url=http://services.odata.org/OData/OData.svc/Products?$format=json";
        					ds = new $.ig.MashupDataSource({
        						callback:render,
        						dataSource: url,
        						localSchemaTransform: false,
        						responseDataKey: "d",
        						filtering: {
        							expressions:[
        								{
        									fieldName: "Price",
        									cond:"GreaterThan",
        									expr: 20
        								}
        							]
        						},
        						schema: {
        							fields: [
        								{name : "Price"},
        								{name : "Name"},
        								{name: "Rating"}
        							],
        							searchField: "d"
        						}
        					});

        					ds.dataBind();

      • exprString

        Type:
        string
        Default:
        ""

        An "SQL-like' encoded expressions string. Takes precedence over "expressions". Example: col2 > 100; col2 LIKE %test%.

        Code Sample


        					var render = function (success, error) {
        						if (success) {
        							var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        							resultHtml = $.ig.tmpl(template, ds.dataView());
        							$("#table").html(resultHtml);
        						} else {
        							alert(error);
        						}
        					}

        					var ds;

        					$(window).load(function () {
        						var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        						ds = new $.ig.MashupDataSource({
        							callback: render,
        							dataSource: url,
        							schema: {
        								fields: [{
        									name: "Name"
        								}, {
        									name: "Price"
        								}, {
        									name: "Rating"
        								}],
        								searchField: "d"
        							},
        							responseDataKey: "d",
        							responseDataType: "jsonp",
        							filtering: {
        								type: "remote",
        								exprString: "Name LIKE Cr%"
        							}
        						});
        						ds.dataBind();
        					});

      • filterExprUrlKey

        Type:
        string
        Default:
        null

        Url key that will be encoded in the request if remote filtering is performed. Default value of null implies OData-style URL encoding. Please see http://www.odata.org/developers/protocols/uri-conventions for details.

        Code Sample


        					var render = function (success, error) {
        						if (success) {
        							var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        							resultHtml = $.ig.tmpl(template, ds.dataView());
        							$("#table").html(resultHtml);
        						} else {
        							alert(error);
        						}
        					}

        					var ds;

        					$(window).load(function () {
        						var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        						ds = new $.ig.MashupDataSource({
        							callback: render,
        							dataSource: url,
        							schema: {
        								fields: [{
        									name: "Name"
        								}, {
        									name: "Price"
        								}, {
        									name: "Rating"
        								}],
        								searchField: "d"
        							},
        							responseDataKey: "d",
        							responseDataType: "jsonp",
        							filtering: {
        								type: "remote",
        								filterExprUrlKey: "filter",
        								expressions: [{
        									fieldName: "Name",
        									cond: "Contains",
        									expr: "Cr"
        								}]
        							}
        						});
        						ds.dataBind();
        					});

      • filterLogicUrlKey

        Type:
        string
        Default:
        "filterLogic"

        Url key that will be encoded in the request, specifying if the filtering logic will be AND or OR.

        Code Sample


        					var render = function (success, error) {
        						if (success) {
        							var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        							resultHtml = $.ig.tmpl(template, ds.dataView());
        							$("#table").html(resultHtml);
        						} else {
        							alert(error);
        						}
        					}

        					var ds;

        					$(window).load(function () {
        						var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        						ds = new $.ig.MashupDataSource({
        							callback: render,
        							dataSource: url,
        							schema: {
        								fields: [{
        									name: "Name"
        								}, {
        									name: "Price"
        								}, {
        									name: "Rating"
        								}],
        								searchField: "d"
        							},
        							responseDataKey: "d",
        							responseDataType: "jsonp",
        							filtering: {
        								type: "remote",
        								filterLogicUrlKey: "testFilterLogicUrlKey",
        								expressions: [{
        									fieldName: "Name",
        									cond: "Contains",
        									expr: "Cr",
        									logic: "OR"
        								}]
        							}
        						});
        						ds.dataBind();
        					});

      • type

        Type:
        enumeration
        Default:
        remote

        Filtering type.

        Members

        • remote
        • Type:string
        • Parameters will be encoded and it's up to the backend to interpred them from the response.
        • local
        • Type:string
        • The data will be filtered automatically client-side.
    • groupby

      Type:
      object
      Default:
      {}

      Settings related to built-in group by functionality.

      Code Sample


      				ds = new $.ig.MashupDataSource({
      					dataSource: products,
      					groupby: {
      						defaultCollapseState: true
      					}
      				});

      				ds.dataBind();

      • defaultCollapseState

        Type:
        bool
        Default:
        false

        Default collapse state.

        Code Sample


        					ds = new $.ig.MashupDataSource({
        						dataSource: products,
        						groupby: {
        							defaultCollapseState: true
        						}
        					});

      • groupRecordKey

        Type:
        string
        Default:
        "__gbRecord"

        The name of the property that determines whether a record from the group data view is a group record.

        Code Sample


        						ds = new $.ig.MashupDataSource({
        						dataSource: products,
        						groupby: {
        							groupRecordKey: "__gbRecord"
        						}
        					});

      • groupSummaryRecordKey

        Type:
        string
        Default:
        "__gbSummaryRecord"

        The name of the property that determines whether a record from the group data view is a summary group record.

        Code Sample


        						ds = new $.ig.MashupDataSource({
        						dataSource: products,
        						groupby: {
        							groupRecordKey: "__gbRecord"
        						}
        					});

      • pagingMode

        Type:
        enumeration
        Default:
        allRecords

        . Specifies how paging should be applied when there is at least one grouped column.

        Members

        • allRecords
        • Type:string
        • Paging is applied for all records - data and non-data records(like group-by records).
        • dataRecordsOnly
        • Type:string
        • Paging is applied ONLY for data records. Non-data records are disregarded in paging calculations.

        Code Sample


        					ds = new $.ig.MashupDataSource({
        						dataSource: products,
        						groupby: {
        							pagingMode: "allRecords"
        						}
        					});

      • summaries

        Type:
        array
        Default:
        []
        Elements Type:
        object

        Array of objects containing the summaries for each field.
        Each summary object has the following format { field:"fieldName", summaryFunctions: [] }, where the summaryFunctions arrays can contain either a summary name (avg, sum, count etc.) or a custom function for caclulating a custom summary.

        Code Sample


        						ds = new $.ig.MashupDataSource({
        						dataSource: data,
        						groupby: {
        							summaries: [
        							{
        								field:"Age",
        								summaryFunctions: ["avg","sum"]
        							},
        							{
        								field: "Name",
        								summaryFunctions: ["count", customFunc]
        							}]
        						}
        					});

      • summariesPosition

        Type:
        enumeration
        Default:
        bottom

        Specifies the postion for the summaries for each field inside each group.

        Members

        • top
        • Type:string
        • One summary row will be displayed at the top for each group.
        • bottom
        • Type:string
        • One summary row will be displayed at the bottom for each group.
        • both
        • Type:string
        • Two summary rows will be be display for each group. One on the top and one on the bottom.

        Code Sample


        					ds = new $.ig.MashupDataSource({
        					dataSource: data,
        					groupby: {
        						summariesPosition: "top",
        						summaries: [
        						{
        							field:"Age",
        							summaryFunctions: ["avg","sum"]
        						},
        						{
        							field: "Name",
        							summaryFunctions: ["count", customFunc]
        						}]
        					}
        				});

    • id

      Type:
      string
      Default:
      "ds"

      Setting this is only necessary when the data source is set to a table in string format. we need to create an invisible dummy data container in the body and append the table data to it.

      Code Sample


      				var ds = $.ig.DataSource({
      					id: "myId"
      				});

    • localSchemaTransform

      Type:
      bool
      Default:
      true

      If set to false will disable transformations on schema, even if it is defined locally in the javascript code.

      Code Sample


      				var url = "/demos/server/proxy.php?url=http://services.odata.org/OData/OData.svc/Products?$format=json";
      				ds = new $.ig.MashupDataSource({
      					callback:render,
      					dataSource: url,
      					localSchemaTransform: false,
      					responseDataKey: "d",
      					schema: {fields: [
      						{name : "Price"},
      						{name : "Name"},
      						{name: "Rating"}
      					]}
      				});

      				ds.dataBind();

    • outputResultsName

      Type:
      string
      Default:
      null

      This is the property in the dataView where actual resulting records will be put. (So the dataView will not be array but an object if this is defined), after the potential data source transformation.

      Code Sample


      				var render = function (success, error) {
      					if (success) {
      						var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
      						resultHtml = $.ig.tmpl(template, ds.dataView());
      						$("#table").html(resultHtml);
      					} else {
      						alert(error);
      					}
      				}
      				var ds;
      				$(window).load(function () {
      					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
      					ds = new $.ig.MashupDataSource({
      						callback: render,
      						dataSource: url,
      						schema: {
      							fields: [{
      								name: "Name"
      							}, {
      								name: "Price"
      							}, {
      								name: "Rating"
      							}],
      							searchField: "d"
      						},
      						responseDataKey: "d",
      						responseDataType: "jsonp",
      						outputResultsName: "myOutputResultsName"
      					});
      					ds.dataBind();
      				});

    • paging

      Type:
      object
      Default:
      {}

      Settings related to built-in paging functionality.

      Code Sample


      				$(window).load(function () {
      					ds = new $.ig.MashupDataSource({
      						type: "json",
      						dataSource: adventureWorks,
      						responseDataKey: "Records",
      						paging: {
      							enabled : true,
      							pageSize:10,
      							type: "local"
      						}
      					});

      					ds.dataBind();
      				});

      • appendPage

        Type:
        bool
        Default:
        false

        Whether when a new page of data is requested we should append the new data to the existing data.

        Code Sample


        					var ds = new $.ig.MashupDataSource({
        						dataSource: products,
        						paging: {
        							enabled: true,
        							appendPage : true
        						}
        					});

      • enabled

        Type:
        bool
        Default:
        false

        Paging is not enabled by default.

        Code Sample


        					ds = new $.ig.MashupDataSource({
        						type: "json",
        						dataSource: adventureWorks,
        						responseDataKey: "Records",
        						paging: {
        							enabled : true,
        							pageSize:10,
        							type: "local"
        						}
        					});

      • pageIndex

        Type:
        number
        Default:
        0

        Current page index.

        Code Sample


        					ds = new $.ig.MashupDataSource({
        						type: "json",
        						dataSource: adventureWorks,
        						responseDataKey: "Records",
        						schema: jsonSchema,
        						paging:
        						{
        							enabled : true,
        							pageSize:10,
        							type: "local",
        							pageIndex: 2
        						}
        					});
        					ds.dataBind();

      • pageIndexUrlKey

        Type:
        string
        Default:
        null

        Denotes the name of the encoded URL parameter that will state what is the currently requested page index.

        Code Sample


        					var ds = new $.ig.MashupDataSource({
        						type: "json",
        						dataSource: adventureWorks,
        						responseDataKey: "Records",
        						paging: {
        							enabled: true,
        							pageSize: 10,
        							pageIndex: 2,
        							pageIndexUrlKey: "myPageIndexUrlKey",
        							type: "local"
        						}
        					});

      • pageSize

        Type:
        number
        Default:
        5

        Number of records on each page.

        Code Sample


        					ds = new $.ig.MashupDataSource({
        						type: "json",
        						dataSource: adventureWorks,
        						responseDataKey: "Records",
        						paging: {
        							enabled : true,
        							pageSize:10,
        							type: "local"
        						}
        					});

      • pageSizeUrlKey

        Type:
        string
        Default:
        null

        Denotes the name of the encoded URL parameter that will state what is the currently requested page size.

        Code Sample


        					var ds = new $.ig.MashupDataSource({
        						type: "json",
        						dataSource: adventureWorks,
        						responseDataKey: "Records",
        						paging: {
        							enabled: true,
        							pageSize: 10,
        							pageSizeUrlKey: "myPageSizeUrlKey",
        							type: "local"
        						}
        					});

      • type

        Type:
        enumeration
        Default:
        remote

        Type for the paging operation.

        Members

        • local
        • Type:string
        • Data is paged client-side.
        • remote
        • Type:string
        • A remote request is done and URL params encoded.

        Code Sample


        					jsonDs = new $.ig.MashupDataSource( {
        						filtering: {
        							type: "local",
        							caseSensitive: true,
        							applyToAllData: true
        						},
        						dataSource: jsonData
        					}).dataBind();

    • primaryKey

      Type:
      string
      Default:
      null

      The unique field identifier.

      Code Sample


      				$(window).load(function () {
      					ds = new $.ig.MashupDataSource({
      						primaryKey: "CustomerID",
      						type: "json",
      						dataSource: adventureWorks,
      						responseDataKey: "Records",
      					});

      					ds.dataBind();
      				});

    • requestType

      Type:
      string
      Default:
      "GET"

      Specifies the HTTP verb to be used to issue the request.

      Code Sample


      				$(window).load(function () {
      					ds = new $.ig.MashupDataSource({
      						primaryKey: "CustomerID",
      						requestType: "get",
      						dataSource: "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?",
      						responseDataKey: "Records",
      					});

      					ds.dataBind();
      				});

    • responseContentType

      Type:
      string
      Default:
      null

      Content type of the response. See http://api.jquery.com/jQuery.ajax/ => contentType.

      Code Sample


      				var ds = new $.ig.MashupDataSource({
      					type: "json",
      					dataSource: adventureWorks,
      					responseDataKey: "Records",
      					responseContentType: "application/x-www-form-urlencoded; charset=UTF8;"
      				});

    • responseDataKey

      Type:
      string
      Default:
      null

      Property in the response which specifies where the data records array will be held (if the response is wrapped).

      Code Sample


      				var url = "http://odata.netflix.com/Catalog/Titles?$format=json&$callback=?";
      				var jsonp = new $.ig.MashupDataSource({
      					type: "json",
      					dataSource: url,
      					responseDataKey: "d.results"
      				});

    • responseDataType

      Type:
      enumeration
      Default:
      null

      Response type when a URL is set as the data source. See http://api.jquery.com/jQuery.ajax/ => dataType.

      Members

      • json
      • Type:string
      • xml
      • Type:string
      • html
      • Type:string
      • script
      • Type:string
      • jsonp
      • Type:string
      • text
      • Type:string

      Code Sample


      				var render = function (success, error) {
      					if (success) {
      						alert("success");
      					} else {
      						alert(error);
      					}
      				}
      				$(window).load(function () {
      					var url = "http://odata.netflix.com/Catalog/Titles?$format=json&$callback=?";
      					ds = new $.ig.MashupDataSource({
      						type: "remoteUrl",
      						callback: render,
      						dataSource: url,
      						schema: oDataSchema,
      						responseDataKey: "d.results",
      						responseDataType: "jsonp",
      					});
      					ds.dataBind();
      				});

    • responseTotalRecCountKey

      Type:
      string
      Default:
      null

      Property in the response which specifies the total number of records in the backend (this is needed for paging).

      Code Sample


      				var ds = new $.ig.MashupDataSource({
      					type: "json",
      					dataSource: adventureWorks,
      					responseDataKey: "Records",
      					responseTotalRecCountKey: "1024"
      				});

    • rowAdded

      Type:
      function
      Default:
      null

      A function to call when row is added.
      Function takes first argument item and second argument dataSource.
      Use item.row to obtain reference to the added row.
      Use item.rowId to get the row ID.
      Use dataSource to obtain reference to $.ig.DataSource.

      Code Sample


      				$.ig.DataSource({
      					rowAdded: function (item, dataSource) {…}
      				});

    • rowDeleted

      Type:
      function
      Default:
      null

      A function to call when row is deleted.
      Use item.row to obtain reference to the deleted row.
      Use item.rowId to get the row ID.
      Use item.rowIndex to get the row index.
      Use dataSource to obtain reference to $.ig.DataSource.

      Code Sample


      				$.ig.DataSource({
      					rowDeleted: function (item, dataSource) {…}
      				});

    • rowInserted

      Type:
      function
      Default:
      null

      A function to call when row is inserted.
      Function takes first argument item and second argument dataSource.
      Use item.row to obtain reference to the inserted row.
      Use item.rowId to get the row ID.
      Use item.rowIndex to get the row index.
      Use dataSource to obtain reference to $.ig.DataSource.

      Code Sample


      				$.ig.DataSource({
      					rowInserted: function (item, dataSource) {…}
      				});

    • rowUpdated

      Type:
      function
      Default:
      null

      A function to call when row is updated (edited).
      Function takes first argument item and second argument dataSource.
      Use item.rowIndex to get the row index.
      Use item.newRow to obtain reference to the updated row.
      Use item.oldRow to obtain reference to the row that was updated.
      Use dataSource to obtain reference to $.ig.DataSource.

      Code Sample


      				$.ig.DataSource({
      					rowUpdated: function (item, dataSource) {…}
      				});

    • schema

      Type:
      object
      Default:
      null

      A schema object that defines which fields from the data to bind to.

      Code Sample


      				var jsonSchema = new $.ig.DataSchema("json", {fields:[
      					{name: "ProductID", type: "number"},
      					{name: "Name", type: "string"},
      					{name: "ProductNumber", type: "string"},
      					{name: "Color", type: "string"},
      					{name: "StandardCost", type: "string"}],
      					searchField:"Records" });

      				ds = new $.ig.MashupDataSource({
      					type: "json",
      					dataSource: jsonData,
      					schema: jsonSchema
      				});
      				ds.dataBind();

    • serializeTransactionLog

      Type:
      bool
      Default:
      true

      If true, will serialize the transaction log of updated values - if any - whenever commit is performed via a remote request.

      Code Sample


      				$.ig.DataSource({
      					serializeTransactionLog: false
      				});

    • sorting

      Type:
      object
      Default:
      {}

      Settings related to built-in sorting functionality.

      Code Sample


      				$(window).load(function () {
      					ds = new $.ig.MashupDataSource({
      						type: "json",
      						dataSource: adventureWorks,
      						sorting: {
      							type: "local",
      							caseSensitive: true
      						}
      					});

      					ds.dataBind();
      				});

      • applyToAllData

        Type:
        bool
        Default:
        true

        If the sorting type is local and applyToAllData is true, sorting will be performed on the whole data source that's present locally, otherwise only on the current dataView. If sorting type is remote, this setting doesn't have any effect.

        Code Sample


        					jsonDs = new $.ig.MashupDataSource({
        						sorting: {
        							type: "local",
        							applyToAllData: true
        						},
        						dataSource: jsonData
        					}).dataBind();

      • caseSensitive

        Type:
        bool
        Default:
        false

        Specifies if sorting will be case sensitive or not. Works only for local sorting.

        Code Sample


        					$(window).load(function () {
        						ds = new $.ig.MashupDataSource({
        							type: "json",
        							dataSource: adventureWorks,
        							sorting: {
        								type: "local",
        								caseSensitive: true
        							}
        						});

        						ds.dataBind();
        					});

      • compareFunc

        Type:
        object
        Default:
        null

        Custom comparison sorting function. Accepts the following arguments: fields, schema, booleand value whether sorting is ascending , convert function(please check option for customConvertFunc) and returns a value 0 indicating that values are equal, 1 indicating that val1 > val2 and -1 indicating that val1 < val2.

        Code Sample


        					var render = function (success, error) {
        						if (success) {
        							var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        							resultHtml = $.ig.tmpl(template, ds.dataView());
        							$("#table").html(resultHtml);
        						} else {
        							alert(error);
        						}
        					}

        					var myCompareFunc = function (fields, schema, reverse, convertf) {
        						return function (val1, val2) {
        							if (val1.Price > val2.Price) {
        								return 1;
        							}

        							if (val1.Price < val2.Price) {
        								return -1;
        							}

        							return 0;
        						}
        					}

        					var ds;
        					$(window).load(function () {
        						var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        						ds = new $.ig.MashupDataSource({
        							callback: render,
        							dataSource: url,
        							schema: {
        								fields: [{
        									name: "Name"
        								}, {
        									name: "Price"
        								}, {
        									name: "Rating"
        								}],
        								searchField: "d"
        							},
        							responseDataKey: "d",
        							responseDataType: "jsonp",
        							sorting: {
        								type: "local",
        								compareFunc: myCompareFunc,
        								defaultFields: [{
        									fieldName: "Price"
        								}]
        							}
        						});
        						ds.dataBind();
        					});

      • customConvertFunc

        Type:
        object
        Default:
        null

        Custom data value conversion function(called from sorting function). Accepts a value of the data cell and column key and should return the converted value.

        Code Sample


        					var render = function (success, error) {
        						if (success) {
        							var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        							resultHtml = $.ig.tmpl(template, ds.dataView());
        							$("#table").html(resultHtml);
        						} else {
        							alert(error);
        						}
        					}

        					var myCompareFunc = function (fields, schema, reverse, convertf) {
        						return function (obj1, obj2) {
        							a = convertf(obj1);
        							b = convertf(obj2);

        							if (a > b) {
        								return 1;
        							}

        							if (a < b) {
        								return -1;
        							}

        							return 0;
        						}
        					}

        				var myCustomConvertFunc = function (obj) {
        						return obj.Price;
        					}

        					var ds;
        					$(window).load(function () {
        						var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        						ds = new $.ig.MashupDataSource({
        							callback: render,
        							dataSource: url,
        							schema: {
        								fields: [{
        									name: "Name"
        								}, {
        									name: "Price"
        								}, {
        									name: "Rating"
        								}],
        								searchField: "d"
        							},
        							responseDataKey: "d",
        							responseDataType: "jsonp",
        							sorting: {
        								type: "local",
        								compareFunc: myCompareFunc,
        								customConvertFunc: myCustomConvertFunc,
        								defaultFields: [{
        									fieldName: "Price"
        								}]
        							}
        						});
        						ds.dataBind();
        					});

      • customFunc

        Type:
        object
        Default:
        null

        Custom sorting function that can point to either a string or a function object. When the function is called, the following arguments are passed: data array, fields (array of field definitions) , direction ("asc" or "desc"). The function should return a sorted data array.

        Code Sample


        					var render = function (success, error) {
        						if (success) {
        							var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
        							resultHtml = $.ig.tmpl(template, ds.dataView());
        							$("#table").html(resultHtml);
        						} else {
        							alert(error);
        						}
        					}

        					var myCustomFunc = function (data, fields, direction) {
        						function myCompareFunc(obj1, obj2) {
        							if (direction == "desc") {
        								return obj2[fields[0].fieldName] - obj1[fields[0].fieldName];
        							}

        							return obj1[fields[0].fieldName] - obj2[fields[0].fieldName];
        						}
        						var result = data.sort(myCompareFunc);
        						return result;
        					}

        					var ds;
        					$(window).load(function () {
        						var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        						ds = new $.ig.MashupDataSource({
        							callback: render,
        							dataSource: url,
        							schema: {
        								fields: [{
        									name: "Name"
        								}, {
        									name: "Price"
        								}, {
        									name: "Rating"
        								}],
        								searchField: "d"
        							},
        							responseDataKey: "d",
        							responseDataType: "jsonp",
        							sorting: {
        								type: "local",
        								customFunc: myCustomFunc,
        								defaultFields: [{
        									fieldName: "Price"
        								}],
        								defaultDirection: "desc"
        							}
        						});
        						ds.dataBind();
        					});

      • defaultDirection

        Type:
        enumeration
        Default:
        none

        Sorting direction.

        Members

        • none
        • Type:string
        • asc
        • Type:string
        • desc
        • Type:string

        Code Sample


        					jsonDs = new $.ig.MashupDataSource({
        						sorting: {
        							type: "local",
        							defaultDirection: "asc"
        						},
        						dataSource: jsonData
        					}).dataBind();

      • defaultFields

        Type:
        array
        Default:
        []
        Elements Type:
        object

        When defaultDirection is different than "none", and defaultFields is specified, data will be initially sorted accordingly, directly after dataBind().

        Code Sample


        					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        					var ds = new $.ig.MashupDataSource({
        						callback: render,
        						dataSource: url,
        						schema: {
        							fields: [{
        								name: "Name"
        							}, {
        								name: "Price"
        							}, {
        								name: "Rating"
        							}],
        							searchField: "d"
        						},
        						responseDataKey: "d",
        						responseDataType: "jsonp",
        						sorting: {
        							type: "local",
        							defaultFields: [{
        							fieldName: "Price"
        							}]
        						}
        					});

      • expressions

        Type:
        array
        Default:
        []
        Elements Type:
        object

        A list of sorting expressions , consisting of the following keys (and their respective values): fieldName, direction and compareFunc (optional).

        Code Sample


        					ds = new $.ig.MashupDataSource({
        						callback: render,
        						dataSource: url,
        						localSchemaTransform: false,
        						responseDataKey: "d",
        						sorting: {
        							expressions:[
        								{
        									fieldName:"Rating",
        									dir:"asc"
        								},
        								{
        									fieldName:"Price", dir:"asc"
        								}
        							]
        						}
        					});

      • exprString

        Type:
        string
        Default:
        ""

        Takes precedence over experssions, an "SQL-like" encoded expressions string : see sort(). Example col2 > 100 ORDER BY asc.

        Code Sample


        					function sortRemote() {
        						ds.settings.sorting.type = "remote";

        						// remote sort
        						ds.settings.sorting.exprString = "GNP " + dir;
        						ds.dataBind();
        					}

      • sortUrlAscValueKey

        Type:
        string
        Default:
        null

        URL param value for ascending type of sorting. Default is null and uses OData conventions.

        Code Sample


        					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        					var ds = new $.ig.MashupDataSource({
        						callback: render,
        						dataSource: url,
        						schema: {
        							fields: [{
        								name: "Name"
        							}, {
        								name: "Price"
        							}, {
        								name: "Rating"
        							}],
        							searchField: "d"
        						},
        						responseDataKey: "d",
        						responseDataType: "jsonp",
        						sorting: {
        							type: "local",
        							sortUrlAscValueKey: "mySortUrlAscValueKey"
        						}
        					});

      • sortUrlDescValueKey

        Type:
        string
        Default:
        null

        URL param value for descending type of sorting. Default is null and uses OData conventions.

        Code Sample


        					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        					var ds = new $.ig.MashupDataSource({
        						callback: render,
        						dataSource: url,
        						schema: {
        							fields: [
        								{name: "Name"},
        								{name: "Price"},
        								{name: "Rating"}
        							],
        							searchField: "d"
        						},
        						responseDataKey: "d",
        						responseDataType: "jsonp",
        						sorting: {
        							type: "local",
        							sortUrlDescValueKey: "mySortUrlDescValueKey"
        						}
        					});

      • sortUrlKey

        Type:
        string
        Default:
        null

        URL param name which specifies how sorting expressions will be encoded in the URL. Default is null and uses OData conventions.

        Code Sample


        					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        					var ds = new $.ig.MashupDataSource({
        						callback: render,
        						dataSource: url,
        						schema: {
        							fields: [
        								{name: "Name"},
        								{name: "Price"},
        								{name: "Rating"}
        							],
        							searchField: "d"
        						},
        						responseDataKey: "d",
        						responseDataType: "jsonp",
        						sorting: {
        							type: "local",
        							sortUrlKey: "mySortUrlKey"
        						}
        					});

      • type

        Type:
        enumeration
        Default:
        remote

        Specifies whether sorting will be applied locally or remotely (via a remote request).

        Members

        • remote
        • Type:string
        • local
        • Type:string

        Code Sample


        					$(window).load(function () {
        						ds = new $.ig.MashupDataSource({
        							type: "json",
        							dataSource: adventureWorks,
        							sorting: {
        								type: "local",
        								caseSensitive: true
        							}
        						});
        						ds.dataBind();
        					});

    • summaries

      Type:
      object
      Default:
      {}

      Settings related to built-in summaries functionality.

      Code Sample


      				var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
      				var ds = new $.ig.MashupDataSource({
      					callback: render,
      					dataSource: url,
      					schema: {
      						fields: [{
      							name: "Name"
      						}, {
      							name: "Price"
      						}, {
      							name: "Rating"
      						}],
      						searchField: "d"
      					},
      					responseDataKey: "d",
      					responseDataType: "jsonp",
      					summaries: {
      						type: "remote",
      						columnSettings: [{
      							columnKey: "Price",
      							allowSummaries: false,
      							summaryOperands: [{
      								type: "count",
      								active: true,
      								order: 0
      							}]
      						}],
      						summariesResponseKey: "d"
      					}
      				});

      • columnSettings

        Type:
        array
        Default:
        []
        Elements Type:
        object

        A list of column settings that specifies custom summaries options per column basis.

        Code Sample


        					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        					var ds = new $.ig.MashupDataSource({
        						callback: render,
        						dataSource: url,
        						schema: {
        							fields: [{
        								name: "Name"
        							}, {
        								name: "Price"
        							}, {
        								name: "Rating"
        							}],
        							searchField: "d"
        						},
        						responseDataKey: "d",
        						responseDataType: "jsonp",
        						summaries: {
        							columnSettings: [{
        								columnKey: "Price",
        								allowSummaries: false,
        								summaryOperands: [{
        									type: "count",
        									active: true,
        									order: 0
        								}]
        							}]
        						}

        					});

      • summariesResponseKey

        Type:
        string
        Default:
        "summaries"

        Key for retrieving data from the summaries response - used only when summaries are remote.

        Code Sample


        					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        					var ds = new $.ig.MashupDataSource({
        						callback: render,
        						dataSource: url,
        						schema: {
        							fields: [{
        								name: "Name"
        							}, {
        								name: "Price"
        							}, {
        								name: "Rating"
        							}],
        							searchField: "d"
        						},
        						responseDataKey: "d",
        						responseDataType: "jsonp",
        						summaries: {
        							summariesResponseKey: "d"
        						}
        					});

      • summaryExecution

        Type:
        enumeration
        Default:
        afterfilteringandpaging

        Determines when the summary values are calculated.

        Members

        • priortofilteringandpaging
        • Type:string
        • afterfilteringbeforepaging
        • Type:string
        • afterfilteringandpaging
        • Type:string

        Code Sample


        					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        					var ds = new $.ig.MashupDataSource({
        						callback: render,
        						dataSource: url,
        						schema: {
        							fields: [{
        								name: "Name"
        							}, {
        								name: "Price"
        							}, {
        								name: "Rating"
        							}],
        							searchField: "d"
        						},
        						responseDataKey: "d",
        						responseDataType: "jsonp",
        						summaries: {
        							summaryExecution: "priortofilteringandpaging"
        						}
        					});

      • summaryExprUrlKey

        Type:
        string
        Default:
        "summaries"

        Url key for retrieving data from response - used only when summaries are remote.

        Code Sample


        					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        					var ds = new $.ig.MashupDataSource({
        						callback: render,
        						dataSource: url,
        						schema: {
        							fields: [{
        								name: "Name"
        							}, {
        								name: "Price"
        							}, {
        								name: "Rating"
        							}],
        							searchField: "d"
        						},
        						responseDataKey: "d",
        						responseDataType: "jsonp",
        						summaries: {
        							summaryExprUrlKey: "mySummaries"
        						}
        					});

      • type

        Type:
        enumeration
        Default:
        remote

        Specifies whether summaries will be applied locally or remotely (via a remote request).

        Members

        • remote
        • Type:string
        • A remote request is done and URL params encoded.
        • local
        • Type:string
        • Data is paged client-side.

        Code Sample


        					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
        					var ds = new $.ig.MashupDataSource({
        						callback: render,
        						dataSource: url,
        						schema: {
        							fields: [{
        								name: "Name"
        							}, {
        								name: "Price"
        							}, {
        								name: "Rating"
        							}],
        							searchField: "d"
        						},
        						responseDataKey: "d",
        						responseDataType: "jsonp",
        						summaries: {
        							type: "remote"
        						}
        					});

    • type

      Type:
      enumeration
      Default:
      unknown

      Type of the data source.

      Members

      • json
      • Type:string
      • Specifies that the data source is an already evaluated JSON (JavaScript object/array) or a string that can be evaluated to JSON.
      • xml
      • Type:string
      • Specifies that the data source is a XML Document object or a string that can be evaluated to XML.
      • unknown
      • Type:string
      • Specifies that the data source is of unknown type. In that case it will be analyzed and automatically detected if possible.
      • array
      • Type:string
      • Specifies that the data source is a simple array of objects.
      • function
      • Type:string
      • Specifies that the data source points to a function. During data binding the function will be called and the result will be assumed to be an array of objects.
      • htmlTableString
      • Type:string
      • Specifies that the data source points to a string that represents a HTML table.
      • htmlTableId
      • Type:string
      • Specifies that the data source points to an ID of a HTML Table element that's loaded on the page.
      • htmlTableDom
      • Type:string
      • The data source points to a DOM object that is of TABLE type.
      • invalid
      • Type:string
      • Set whenever data source is analyzed (in case its type is unknown) and the type cannot be detected.
      • remoteUrl
      • Type:string
      • Specifies that the data source points to a remote URL, from which data will be retrieved using an AJAX call ($.ajax).
      • htmlListDom
      • Type:string
      • The data source points to a DOM object that is of UL/OL type.
      • htmlSelectDom
      • Type:string
      • The data source points to a DOM object that is of SELECT type.
      • empty
      • Type:string

      Code Sample


      				$(window).load(function () {
      					var url = "http://odata.netflix.com/Catalog/Titles?$format=json&$callback=?";
      					ds = new $.ig.MashupDataSource({
      						type: "remoteUrl",
      						callback: render,
      						dataSource: url,
      						schema: oDataSchema,
      						responseDataKey : "d.results",
      						responseDataType: "jsonp",
      					});
      					ds.dataBind();
      				});

    • updateUrl

      Type:
      string
      Default:
      null

      Specifies an update remote URL, to which an AJAX request will be made as soon as saveChages() is called.

      Code Sample


      				var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
      				var ds = new $.ig.MashupDataSource({
      					callback: render,
      					dataSource: url,
      					schema: {
      						fields: [{
      							name: "Name"
      						}, {
      							name: "Price"
      						}, {
      							name: "Rating"
      						}],
      						searchField: "d"
      					},
      					responseDataKey: "d",
      					responseDataType: "jsonp",
      					updateUrl: "http://example.com/myUpdateUrl/"

      				});

    • urlParamsEncoded

      Type:
      object
      Default:
      null

      Event that is fired after URL parameters are encoded (When a remote request is done). Can point to a function name or the function object itself.

      Code Sample


      				var render = function (success, error) {
      					if (success) {
      						var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
      						resultHtml = $.ig.tmpl(template, ds.dataView());
      						$("#table").html(resultHtml);
      					} else {
      						alert(error);
      					}
      				}

      				var myUrlParamsEncoded = function (item, params) {
      					alert("myUrlParamsEncoded");
      				}

      				var ds;
      				$(window).load(function () {
      					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
      					ds = new $.ig.MashupDataSource({
      						callback: render,
      						dataSource: url,
      						schema: {
      							fields: [{
      								name: "Name"
      							}, {
      								name: "Price"
      							}, {
      								name: "Rating"
      							}],
      							searchField: "d"
      						},
      						responseDataKey: "d",
      						responseDataType: "jsonp",
      						urlParamsEncoded: myUrlParamsEncoded
      					});
      					ds.dataBind();
      				});

    • urlParamsEncoding

      Type:
      object
      Default:
      null

      Event that is fired before URL parameters are encoded. Can point to a function name or the function object itself.

      Code Sample


      				var render = function (success, error) {
      					if (success) {
      						var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
      						resultHtml = $.ig.tmpl(template, ds.dataView());
      						$("#table").html(resultHtml);
      					} else {
      						alert(error);
      					}
      				}

      				var myUrlParamsEncoding = function (item, params) {
      					alert("myUrlParamsEncoding");
      				}

      				var ds;
      				$(window).load(function () {
      					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
      					ds = new $.ig.MashupDataSource({
      						callback: render,
      						dataSource: url,
      						schema: {
      							fields: [{
      								name: "Name"
      							}, {
      								name: "Price"
      							}, {
      								name: "Rating"
      							}],
      							searchField: "d"
      						},
      						responseDataKey: "d",
      						responseDataType: "jsonp",
      						urlParamsEncoding: myUrlParamsEncoding
      					});
      					ds.dataBind();
      				});

The current widget has no events.
  • ig.MashupDataSource
    Constructor

    new $.ig.MashupDataSource( options:object );

    • options
    • Type:object
  • addNode
    Inherited

    .addNode( data:object );

    Adds a new node to the tree data source. Creates a transaction that can be committed / rolled back.

    • data
    • Type:object
    • the transaction data.
  • addRow

    .addRow( rowId:object, rowObject:object, autoCommit:bool );
    Return Type:
    object
    Return Type Description:
    . The transaction object that was created.

    Adds a new row to the data source. Creates a transaction that can be committed / rolled back.

    • rowId
    • Type:object
    • the record key - primaryKey (string) or index (number).
    • rowObject
    • Type:object
    • the new record data.
    • autoCommit
    • Type:bool
    • if autoCommit is true, the datasource will be updated automatically and the transaction is still stored in the accumulated transaction log.

    Code Sample


    				var dsMashup;

    				var render = function (success, error) {
    					if (success) {
    					dsMashup.addRow(123, {Name : "CD Player", Description: "", Rating : 4, Price : 40}, true);
    						var template = "<tr><td>${ID}</td><td>${Name}</td><td>${Description}</td><td>${Rating}</td><td>${Price}</td></tr>",
    					    resultHtml = $.ig.tmpl(template, dsMashup.dataView());
    						$("#mashupDataSource").html(resultHtml);
    					} else {
    						alert(error);
    					}
    				}

    				$(window).load(function () {
    					dsMashup = new $.ig.MashupDataSource({
    						callback: render,
    						dataSource: mashupSources
    					});
    					dsMashup.dataBind();
    				});

  • allTransactions
    Inherited

    .allTransactions( );
    Return Type:
    array

    Returns a list of all transaction objects that are either pending, or have been committed in the data source.

    Code Sample


    				var ds;

    				var render = function (success, error) {
    					if (success) {
    						ds.addRow(123, {
    							Name: "CD Player",
    							Price: "40",
    							Rating: "4"
    						}, true);
    						var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
    						resultHtml = $.ig.tmpl(template, ds.dataView());
    						console.log(ds.allTransactions());
    						$("#table").html(resultHtml);
    					} else {
    						alert(error);
    					}
    				}

    				$(window).load(function () {
    					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    					ds = new $.ig.MashupDataSource({
    						callback: render,
    						dataSource: url,
    						schema: {
    							fields: [{
    								name: "Name"
    							}, {
    								name: "Price"
    							}, {
    								name: "Rating"
    							}],
    							searchField: "d"
    						},
    						responseDataKey: "d",
    						responseDataType: "jsonp"
    					});
    					ds.dataBind();

    				});

  • analyzeDataSource
    Inherited

    .analyzeDataSource( );
    Return Type:
    string

    Analyzes the dataSource setting to automatically determine the type of the data source. Returns the data source type. See settings.type.

    Code Sample


    				var ds;

    				var render = function (success, error) {
    					if (success) {
    					console.log(ds.analyzeDataSource());
    						var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
    						resultHtml = $.ig.tmpl(template, ds.dataView());
    						$("#table").html(resultHtml);
    					} else {
    						alert(error);
    					}
    				}

    				$(window).load(function () {
    				var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    				ds = new $.ig.MashupDataSource({
    					callback: render,
    					dataSource: url,
    					schema: {
    						fields: [{
    							name: "Name"
    						}, {
    							name: "Price"
    						}, {
    							name: "Rating"
    						}],
    						searchField: "d"
    					},
    					responseDataKey: "d",
    					responseDataType: "jsonp"
    					});
    					ds.dataBind();
    				});

  • clearLocalFilter
    Inherited

    .clearLocalFilter( );

    This clears local filtering applied to the data view by resetting it to the original data and applying any paging.

    Code Sample


    				ds.clearLocalFilter();

  • clearLocalSorting
    Inherited

    .clearLocalSorting( );

    This clears local sorting applied to the data view by resetting it to the original data and applying any paging.

    Code Sample


    				ds.clearLocalSorting();

  • commit
    Inherited

    .commit( [id:number] );

    Update the data source with every transaction from the log.

    • id
    • Type:number
    • Optional
    • Id of the transaction to commit. If no id is specified, will commit all transactions to the data source.

    Code Sample


    				var ds;

    				var render = function (success, error) {
    					if (success) {
    						ds.addRow(123, {
    							Name: "CD Player",
    							Price: "40",
    							Rating: "4"
    						});
    						ds.commit();

    							var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
    							resultHtml = $.ig.tmpl(template, ds.dataView());
    							$("#table").html(resultHtml);

    					} else {
    						alert(error);
    					}
    				}

    				$(window).load(function () {
    					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    					ds = new $.ig.MashupDataSource({
    						callback: render,
    						dataSource: url,
    						schema: {
    							fields: [{
    								name: "Name"
    							}, {
    								name: "Price"
    							}, {
    								name: "Rating"
    							}],
    							searchField: "d"
    						},
    						responseDataKey: "d",
    						responseDataType: "jsonp"
    					});

    					ds.dataBind();
    				});

  • data
    Inherited

    .data( );
    Return Type:
    object

    Returns all of the bound data, without taking into account local paging, sorting, filtering, etc.

    Code Sample


    				var ds;
    				var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    				ds = new $.ig.MashupDataSource({
    					callback: render,
    					dataSource: url,
    					schema: {
    						fields: [{
    							name: "Name"
    						}, {
    							name: "Price"
    						}, {
    							name: "Rating"
    						}],
    						searchField: "d"
    					},
    					responseDataKey: "d",
    					responseDataType: "jsonp"
    				});

    				var data = ds.data();

  • dataBind

    .dataBind( );

    Data binds to the current data source.

    Code Sample


    				var mashupSources = [
    					{ dataSource: jsArray, primaryKey: "ID" },
    					{ dataSource: xmlDoc, type: "xml", primaryKey: "ID" ,schema: xmlSchema }
    				];
    				var dsMashup = new $.ig.MashupDataSource({ dataSource: mashupSources });
    				dsMashup.dataBind();

  • dataSource
    Inherited

    .dataSource( [ds:object] );
    Return Type:
    object

    Gets/sets the dataSource setting. If no parameter is specified, returns settings.dataSource.

    • ds
    • Type:object
    • Optional
    • .

    Code Sample


    				var ds;
    				var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    				ds = new $.ig.MashupDataSource({
    					callback: render,
    					schema: {
    						fields: [{
    							name: "Name"
    						}, {
    							name: "Price"
    						}, {
    							name: "Rating"
    						}],
    						searchField: "d"
    					},
    					responseDataKey: "d",
    					responseDataType: "jsonp"
    				});

    				// Set
    				ds.dataSource(url);

    				// Get
    				var dataSource = ds.dataSource();

  • dataSummaries
    Inherited

    .dataSummaries( );
    Return Type:
    object
    Return Type Description:
    *.

    Returns summaries data.

    Code Sample


    				var ds;
    				var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    				ds = new $.ig.MashupDataSource({
    					callback: render,
    					dataSource: url,
    					schema: {
    						fields: [{
    							name: "Name"
    						}, {
    							name: "Price"
    						}, {
    							name: "Rating"
    						}],
    						searchField: "d"
    					},
    					responseDataKey: "d",
    					responseDataType: "jsonp"
    				});

    				var dataSummaries = ds.dataSummaries();

  • dataView
    Inherited

    .dataView( );
    Return Type:
    array
    Return Type Description:
    array of data records.

    Returns the current normalized/transformed and paged/filtered/sorted data, i.e. the dataView.

    Code Sample


    				function numberOfRows () {
    					return $("#grid1").data("igGrid").dataSource.dataView().length;
    				}

  • deleteRow
    Inherited

    .deleteRow( rowId:object, autoCommit:bool );
    Return Type:
    object
    Return Type Description:
    . The transaction object that was created.

    Deletes a row from the data source.

    • rowId
    • Type:object
    • the record key - primaryKey (string) or index (number).
    • autoCommit
    • Type:bool
    • if autoCommit is true, the datasource will be updated automatically and the transaction is still stored in the accumulated transaction log.

    Code Sample


    				var ds;

    				var render = function (success, error) {
    					if (success) {

    					ds.deleteRow(0, true);

    						var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
    						resultHtml = $.ig.tmpl(template, ds.dataView());
    						$("#table").html(resultHtml);

    					} else {
    						alert(error);
    					}
    				}

    				$(window).load(function () {
    				var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    				ds = new $.ig.MashupDataSource({
    					callback: render,
    					dataSource: url,
    					schema: {
    						fields: [{
    							name: "Name"
    						}, {
    							name: "Price"
    						}, {
    							name: "Rating"
    						}],
    						searchField: "d"
    					},
    					responseDataKey: "d",
    					responseDataType: "jsonp"
    					});
    					ds.dataBind();

    				});

  • fields
    Inherited

    .fields( [fields:object] );
    Return Type:
    object
    Return Type Description:
    if no parameters are specified, returns the existing list of fields.

    Sets a list of fields to the data source. If no parameter is specified, just returns the already existing list of fields.

    • fields
    • Type:object
    • Optional
    • a field has the following format: {key: 'fieldKey', dataType: 'string/number/date' }.

    Code Sample


    				var ds;

    				var render = function (success, error) {
    					if (success) {
    						var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
    						resultHtml = $.ig.tmpl(template, ds.dataView());
    						$("#table").html(resultHtml);
    					} else {
    						alert(error);
    					}
    				}

    				$(window).load(function () {
    					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    					ds = new $.ig.MashupDataSource({
    						callback: render,
    						dataSource: url,
    						schema: {
    							fields: [{
    								name: "Name"
    							}, {
    								name: "Price"
    							}, {
    								name: "Rating"
    							}],
    							searchField: "d"
    						},
    						responseDataKey: "d",
    						responseDataType: "jsonp",
    						fields: [{
    							key: "Name",
    							dataType: "string"
    						}, {
    							key: "Price",
    							dataType: "number"
    						}, {
    							key: "Rating",
    							dataType: "number"
    						}]
    					});
    					ds.dataBind();
    					var fields = ds.fields();
    				});

  • filter
    Inherited

    .filter( fieldExpressions:object, boolLogic:object, keepFilterState:bool, fieldExpressionsOnStrings:object );

    Filters the data source locally. Remote filtering can be performed by just calling dataBind() and
    setting the settings.filtering.expressions. The result (filtered data) can be obtained by calling dataView()
    example: [{fieldName : "firstName", expr: "abc", cond: "StartsWith"}, {fieldName : "lastName"}]
    example 2: [{fieldIndex : 1} , {fieldIndex : 2, expr: "a", cond : "contains"}]
    example 3: [{filterAllFields: true, expr: "abc", fields: [name: "Description", type: "string"]}]
    expr is the filter expression text , such as "abc", or a regular expression such as *test*
    cond is the filtering condition such as startsWith, endsWith, contains, equals, doesNotEqual, doesNotContain
    if expr is detected to be a regular expression, the "cond" part is skipped
    To filter by text "fieldExpressions" should have only one object with the following schema:
    {filterAllFields: <type="bool" should be set to true>, expr: <type="string" the text to search for>, fields: <type="array" an array of fields to search in>}.

    • fieldExpressions
    • Type:object
    • a list of field expression definitions.
    • boolLogic
    • Type:object
    • boolean logic. Accepted values are AND and OR.
    • keepFilterState
    • Type:bool
    • if keepFilterState is set to true, it will not discard previous filtering expressions.
    • fieldExpressionsOnStrings
    • Type:object
    • a list of field expression definitions (or a string with the conditions separated by AND/OR operator, example: "ID = 1 OR ID = 2"), which when applied will threat the related field as if it's string and can only apply conditions valid for string types.

    Code Sample


    				ds = new $.ig.MashupDataSource({
    					type: "json",
    					dataSource: adventureWorks,
    					schema: jsonSchema
    				});
    				ds.dataBind();

    				ds.filter([{fieldName : "Color", expr: "Red", cond: "Equals"}], "AND", true);

    				// Filter by text
    				ds.filter([{filterAllFields: true, expr: "abc", fields: [name: "Description", type: "string"]}]);

  • filterByText
    Inherited

    .filterByText( expression:string, [fields:array] );

    Filters the data source locally by text. If "fields" parameter is set search is performed only in the listed fields otherwise all fields are searched.

    • expression
    • Type:string
    • a text to search for. Multiple search texts should be separated by space. When multiple search texts are provided all of them should be presented in the search fields (bool logic "and" is applied).
    • fields
    • Type:array
    • Optional
    • an array of fields that will be searched.

    Code Sample


    				ds = new $.ig.MashupDataSource({
    					type: "json",
    					dataSource: adventureWorks,
    					schema: {
    						fields: [{
    							name: "ID", type: "number"
    						}, {
    							name: "Name", type: "string"
    						}, {
    							name: "Description", type: "string"
    						}, {
    							name: "ReleaseDate", type: "date"
    						}]
    				});
    				ds.dataBind();

    				// Search in all fields
    				ds.filterByText("Apples");
    				// Search only in "Name" field
    				ds.filterByText("Apples", [{name: "Name", type: "string"}]);

  • filteredData
    Inherited

    .filteredData( );
    Return Type:
    array
    Return Type Description:
    array of (filtered)data records.

    Returns filtered data if local filtering is applied. If filtering is not applied OR type of filtering is remote returns undefined.

    Code Sample


    				ds = new $.ig.MashupDataSource({
    					dataSource: products,
    					primaryKey: "ProductID",
    					filtering: {
    						type: "local",
    						caseSensitive: true,
    						applyToAllData: true
    					}
    				});

    				ds.dataBind();
    				//Get
    				var filteredData = ds.filteredData();

  • filterSettings
    Inherited

    .filterSettings( [f:object] );

    Gets/sets a list of filtering settings.

    • f
    • Type:object
    • Optional
    • object holding all filtering settings. See settings.filtering.

    Code Sample


    				var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    				var ds = new $.ig.MashupDataSource({
    					callback: render,
    					dataSource: url,
    					schema: {
    						fields: [
    							{name : "Name"},
    							{name : "Price"},
    							{name: "Rating"}
    						],
    						searchField: "d"
    					},
    					responseDataKey: "d",
    					responseDataType: "jsonp"
    				});

    				var myFilterSettings = {
    					type: "remote",
    					expressions: [
    					{
    						fieldName: "Name",
    						cond:"Contains",
    						expr: "Cr",
    						logic: "OR"
    					}
    				]
    				};

    				// Set
    				ds.filterSettings(myFilterSettings);

    				// Get
    				var filterSettings= ds.filterSettings();

  • findRecordByKey
    Inherited

    .findRecordByKey( key:object, [ds:string], [objPath:string] );
    Return Type:
    object
    Return Type Description:
    a JavaScript object specifying the found record, or null if no record is found.

    Returns a record by a specified key (requires that primaryKey is set in the settings).

    • key
    • Type:object
    • Primary key of the record.
    • ds
    • Type:string
    • Optional
    • the data source in which to search for the record. When not set it will use the current data source.
    • objPath
    • Type:string
    • Optional
    • Not used in $.ig.DataSource.

    Code Sample


    				var ds;

    				var render = function (success, error) {
    					if (success) {
    						var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
    						resultHtml = $.ig.tmpl(template, ds.dataView());
    						$("#table").html(resultHtml);
    						var myObj = ds.findRecordByKey("Milk");
    					} else {
    						alert(error);
    					}
    				}

    				$(window).load(function () {
    					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    					ds = new $.ig.MashupDataSource({
    						callback: render,
    						dataSource: url,
    						schema: {
    							fields: [{
    								name: "Name"
    							}, {
    								name: "Price"
    							}, {
    								name: "Rating"
    							}],
    							searchField: "d"
    						},
    						responseDataKey: "d",
    						responseDataType: "jsonp",
    						primaryKey: "Name"
    					});
    					ds.dataBind();
    				});

  • getCellValue
    Inherited

    .getCellValue( fieldName:string, record:object );
    Return Type:
    object
    Return Type Description:
    . The cell's value.

    Gets a cell value from the record by the specified fieldName. If there's a mapper defined for the field, the resolved by the mapper value will be returned.

    • fieldName
    • Type:string
    • the fieldName - name of the field.
    • record
    • Type:object
    • the record from which to get it.

    Code Sample


    				ds = new $.ig.MashupDataSource({
    					dataSource: products,
    					primaryKey: "ProductID"
    				});

    				ds.dataBind();
    				//Get
    				var value = ds.getCellValue("Name", {ProductID: 1, Name: "Adjustable Race", ProductNumber: "AR-5381"});

  • getDetachedRecord
    Inherited

    .getDetachedRecord( t:object );
    Return Type:
    object
    Return Type Description:
    a copy of a record from the data source.

    Returns a standalone object (copy) that represents the commited transactions, but detached from the data source.

    • t
    • Type:object
    • a transaction object.

    Code Sample


    				var ds;

    				$(window).load(function () {
    					ds = new $.ig.MashupDataSource({
    						schema: {
    						fields: [{
    							name: "Name"
    						}, {
    							name: "Price"
    						}, {
    							name: "Rating"
    						}],
    						}
    					});

    					var transactionObject = ds.addRow(123, {
    						Name: "CD Player",
    						Price: "40",
    						Rating: "4"
    					}, true);
    					var detachedObject = ds.getDetachedRecord(transactionObject);
    					});

  • groupByData
    Inherited

    .groupByData( );
    Return Type:
    array
    Return Type Description:
    array of records.

    Returns collection of data and non-data(grouped) records. Flat representation of hierarchical data.

    Code Sample


    				ds = new $.ig.MashupDataSource({
    					dataSource: products,
    					primaryKey: "ProductID",
    					groupby: {
    						defaultCollapseState: true
    					}
    				});

    				ds.dataBind();

    				var groupedData = ds.groupByData();

  • groupByDataView
    Inherited

    .groupByDataView( );
    Return Type:
    array
    Return Type Description:
    array of data and non-data(grouped) records.

    Returns the current normalized/transformed and paged/filtered/sorted group-by data.

    Code Sample


    				ds = new $.ig.MashupDataSource({
    					dataSource: products,
    					primaryKey: "ProductID",
    					groupby: {
    						defaultCollapseState: true
    					}
    				});

    				ds.dataBind();

    				var groupByDataView = ds.groupByDataView();

  • hasTotalRecordsCount
    Inherited

    .hasTotalRecordsCount( hasCount:bool );

    Gets / sets if the response from the server contains a property which specifies the total number of records in the server-side backend.

    • hasCount
    • Type:bool
    • specifies if the data source contains a property that denotes the total number of records in the server-side backend.

    Code Sample


    				var ds;
    				$(window).load(function () {
    					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    					ds = new $.ig.MashupDataSource({
    						callback: render,
    						dataSource: url,
    						schema: {
    							fields: [{
    								name: "Name"
    							}, {
    								name: "Price"
    							}, {
    								name: "Rating"
    							}],
    							searchField: "d"
    						},
    						responseDataKey: "d",
    						responseDataType: "jsonp",
    						primaryKey: "Name"
    					});
    					ds.dataBind();
    					// Get
    					var hasTotalRecords = ds.hasTotalRecordsCount();

    					// Set
    					ds.hasTotalRecordsCount(true);
    				});

  • insertRow

    .insertRow( rowId:object, rowObject:object, rowIndex:number, autoCommit:bool, parentRowId:object );
    Return Type:
    object
    Return Type Description:
    . The transaction object that was created.

    Adds a new row to the data source. Creates a transaction that can be committed / rolled back.

    • rowId
    • Type:object
    • the record key - primaryKey (string) or index (number).
    • rowObject
    • Type:object
    • the new record data.
    • rowIndex
    • Type:number
    • row index at which to insert the new row.
    • autoCommit
    • Type:bool
    • if autoCommit is true, the datasource will be updated automatically and the transaction is still stored in the accumulated transaction log.
    • parentRowId
    • Type:object
    • Not used in $.ig.DataSource.

    Code Sample


    				var dsMashup;

    				var render = function (success, error) {
    					if (success) {
    						dsMashup.insertRow(123, {
    							Name: "CD Player",
    							Price: "40",
    							Rating: "4"
    						}, 1, true);
    						var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
    						resultHtml = $.ig.tmpl(template, dsMashup.dataView());
    						$("#table").html(resultHtml);
    					} else {
    						alert(error);
    					}
    				}

    				$(window).load(function () {
    					dsMashup = new $.ig.MashupDataSource({
    						callback: render,
    						dataSource: mashupSources
    					});
    				dsMashup.dataBind();

    				});

  • isGroupByApplied
    Inherited

    .isGroupByApplied( [exprs:array] );
    Return Type:
    bool
    Return Type Description:
    Returns true if grouping is applied.

    Check whether grouping is applied for the specified sorting expressions.

    • exprs
    • Type:array
    • Optional
    • array of sorting expressions. If not set check expressions defined in sorting settings.

    Code Sample


    				ds = new $.ig.MashupDataSource({
    					dataSource: products,
    					primaryKey: "ProductID",
    					groupby: {
    						defaultCollapseState: true
    					},
    					sorting: {
    						expressions:[
    							{
    								fieldName: "Name",
    								dir: "desc"
    							}
    					]}
    				});

    				ds.dataBind();

    				var sortingExprArray = ds.settings.sorting.expressions;
    				var isApplied = ds.isGroupByApplied(sortingExprArray);

  • isGroupByRecordCollapsed
    Inherited

    .isGroupByRecordCollapsed( gbRec:object );
    Return Type:
    bool
    Return Type Description:
    if true the grouped record is collapsed.

    Check whether the specified gorupby record is collapsed.

    • gbRec
    • Type:object
    • id of the grouped record OR grouped record.

    Code Sample


    				ds = new $.ig.MashupDataSource({
    					dataSource: products,
    					primaryKey: "ProductID",
    					groupby: {
    						defaultCollapseState: true
    					}
    				});

    				ds.dataBind();

    				var isCollapsed = ds.isGroupByRecordCollapsed({id:"ProductID:49"});

  • metadata
    Inherited

    .metadata( key:string );
    Return Type:
    object
    Return Type Description:
    metadata object.

    Returns metadata object for the specified key.

    • key
    • Type:string
    • Primary key of the record.

    Code Sample


    				var ds;

    				var render = function (success, error) {
    					if (success) {
    						var template = "<tr><td>${Name}</td><td>${Price}</td><td>${Rating}</td></tr>",
    						resultHtml = $.ig.tmpl(template, ds.dataView());
    						$("#table").html(resultHtml);
    					} else {
    						alert(error);
    					}
    				}

    				$(window).load(function () {
    					var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    					ds = new $.ig.MashupDataSource({
    						callback: render,
    						dataSource: url,
    						schema: {
    							fields: [{
    								name: "Name"
    							}, {
    								name: "Price"
    							}, {
    								name: "Rating"
    							}],
    							searchField: "d"
    						},
    						responseDataKey: "d",
    						responseDataType: "jsonp",
    						primaryKey: "Name"
    					});
    					ds.dataBind();

    					var metadata = ds.metadata();

    				});

  • nextPage
    Inherited

    .nextPage( );

    Sets the page index to be equal to the next page index and rebinds the data source.

    Code Sample


    				ds = new $.ig.MashupDataSource({
    					type: "json",
    					dataSource: adventureWorks,
    					paging: {
    						enabled : true,
    						pageSize:10,
    						type: "local"
    					}
    				});

    				ds.nextPage();

  • pageCount
    Inherited

    .pageCount( );
    Return Type:
    number
    Return Type Description:
    total number of pages.

    Returns the total number of pages.

    Code Sample


    				ds = new $.ig.MashupDataSource({
    					type: "json",
    					dataSource: adventureWorks,
    					paging: {
    						enabled : true,
    						pageSize:10,
    						type: "local"
    					}
    				});

    				var count = ds.pageCount();

  • pageIndex
    Inherited

    .pageIndex( [index:number] );
    Return Type:
    number
    Return Type Description:
    the current page index.

    Gets /sets the current page index. If an index is passed as a parameter, the data source is re-bound.

    • index
    • Type:number
    • Optional
    • the page index. If none is specified, returns the current page index.

    Code Sample


    				ds = new $.ig.MashupDataSource({
    					type: "json",
    					dataSource: adventureWorks,
    					paging: {
    						enabled : true,
    						pageSize:10,
    						type: "local"
    					}
    				});

    				//Get
    				var currentIndex = ds.pageIndex();

    				//Set
    				ds.pageIndex(5);

  • pageSize
    Inherited

    .pageSize( [s:number] );
    Return Type:
    number
    Return Type Description:
    Returns the current page size if getter is used and the current instance of the $.ig.DataSource when setter is used.

    Gets /sets the page size and rebinds the data source if a parameter is specified. If no parameter is passed, returns the current page size.

    • s
    • Type:number
    • Optional
    • the page size.

    Code Sample


    				ds = new $.ig.MashupDataSource({
    					type: "json",
    					dataSource: adventureWorks,
    					paging: {
    						enabled : true,
    						pageSize:10,
    						type: "local"
    					}
    				});

    				//Get
    				var size = ds.pageSize();

    				//Set
    				ds.pageSize(25);

  • pageSizeDirty
    Inherited

    .pageSizeDirty( );

    For internal use.

    Code Sample


    				var ds = new $.ig.MashupDataSource({
    					type: "json",
    					dataSource: adventureWorks,
    					paging: {
    						enabled: true,
    						pageSize: 10,
    						type: "local"
    					}
    				});

    				ds.pageSizeDirty();

  • pagingSettings
    Inherited

    .pagingSettings( [p:object] );
    Return Type:
    object
    Return Type Description:
    Returns an object holding the current paging settings when you use the getter and the current instance of the $.ig.DataSource when you use the setter.

    Gets/sets a list of paging settings.

    • p
    • Type:object
    • Optional
    • object holding all paging settings. See settings.paging.

    Code Sample


    				var ds = new $.ig.MashupDataSource({
    					type: "json",
    					dataSource: adventureWorks,
    					paging: {
    						enabled: true,
    						pageSize: 10,
    						type: "local"
    					}
    				});

    				var myPagingSettings = {
    					enabled: true,
    					pageSize: 10,
    					pageIndex: 2,
    					pageIndexUrlKey: "myPageIndexUrlKey",
    					type: "local"
    				};

    				// Set
    				ds.pagingSettings(myPagingSettings);

    				// Get
    				var pagingSettings = ds.pagingSettings();

  • pendingTransactions
    Inherited

    .pendingTransactions( );
    Return Type:
    array

    Returns a list of all transaction objects that are pending to be committed or rolled back to the data source.

    Code Sample


    				var ds = new $.ig.MashupDataSource({
    					schema: {
    					fields: [{
    							name: "Name"
    						}, {
    							name: "Price"
    						}, {
    							name: "Rating"
    						}],
    						searchField: "d"
    					},
    					responseDataKey: "d",
    					responseDataType: "jsonp"
    					});

    					ds.addRow(123, {
    						Name: "CD Player",
    						Price: "40",
    						Rating: "4"
    				});
    				var pendingTransactions = ds.pendingTransactions());

  • persistedPageIndex
    Inherited

    .persistedPageIndex( [value:number] );
    Return Type:
    number
    Return Type Description:
    the current page index(that should be persisted).

    Gets /sets the page index that should be persisted. For now ONLY when filtering is applied and call explicitly DataBind.

    • value
    • Type:number
    • Optional
    • the page index that should be persisted. If none is specified, returns the current page index that should be persisted.
  • prevPage
    Inherited

    .prevPage( );

    Sets the page index to be equal to the previous page index and rebinds the data source.

    Code Sample


    				ds = new $.ig.MashupDataSource({
    					type: "json",
    					dataSource: adventureWorks,
    					paging: {
    						enabled : true,
    						pageSize:10,
    						type: "local"
    					}
    				});

    				ds.prevPage();

  • recordsForPage
    Inherited

    .recordsForPage( p:number );

    Returns a list of records for the specified page. Implies that paging is enabled.

    • p
    • Type:number
    • the page index for which records will be returned.

    Code Sample


    				var ds = new $.ig.MashupDataSource({
    					type: "json",
    					dataSource: adventureWorks,
    					paging: {
    						enabled: true,
    						pageSize: 10,
    						type: "local"
    					}
    				});

    				var recordsForPage = ds.recordsForPage(2);

  • removeNode
    Inherited

    .removeNode( data:object );

    Removes a node from the tree data source. Creates a transaction that can be committed / rolled back.

    • data
    • Type:object
    • the transaction data.
  • removeRecordByIndex
    Inherited

    .removeRecordByIndex( index:number, origDs:object );

    Removes a record from the data source at specific index.

    • index
    • Type:number
    • index of record.
    • origDs
    • Type:object

    Code Sample


    				var ds = new $.ig.MashupDataSource({
    					schema: {
    						fields: [{
    							name: "Name"
    						}, {
    							name: "Price"
    						}, {
    							name: "Rating"
    						}],
    						searchField: "d"
    					},
    					responseDataKey: "d",
    					responseDataType: "jsonp"
    				});
    				ds.addRow(0, {
    					Name: "CD Player",
    					Price: "40",
    					Rating: "4"
    				}, true);
    				ds.addRow(1, {
    					Name: "CD Player1",
    					Price: "40",
    					Rating: "4"
    				}, true);
    				ds.addRow(2, {
    					Name: "CD Player2",
    					Price: "40",
    					Rating: "4"
    				}, true);

    				ds.removeRecordByIndex(0);

  • removeRecordByKey
    Inherited

    .removeRecordByKey( key:object, origDs:object );

    Removes a specific record denoted by the primaryKey of the passed key parameter from the data source.

    • key
    • Type:object
    • primary key of the record.
    • origDs
    • Type:object

    Code Sample


    				var ds = new $.ig.MashupDataSource({
    					schema: {
    						fields: [{
    							name: "Name"
    						}, {
    							name: "Price"
    						}, {
    							name: "Rating"
    						}],
    						searchField: "d"
    					},
    					responseDataKey: "d",
    					responseDataType: "jsonp",
    					primaryKey: "Name"
    				});
    				ds.addRow(0, {
    					Name: "CD Player",
    					Price: "40",
    					Rating: "4"
    				}, true);
    				ds.addRow(1, {
    					Name: "CD Player1",
    					Price: "40",
    					Rating: "4"
    				}, true);
    				ds.addRow(2, {
    					Name: "CD Player2",
    					Price: "40",
    					Rating: "4"
    				}, true);

    				ds.removeRecordByKey("CD Player2");

  • rollback
    Inherited

    .rollback( [id:object] );

    Clears the transaction log without updating anything in the data source.

    • id
    • Type:object
    • Optional
    • Record Id to find transactions for. If no id is specified, will rollback all transactions to the data source.

    Code Sample


    				var ds = new $.ig.MashupDataSource({
    					schema: {
    						fields: [{
    							name: "Name"
    						}, {
    							name: "Price"
    						}, {
    							name: "Rating"
    						}],
    						searchField: "d"
    					},
    					responseDataKey: "d",
    					responseDataType: "jsonp",
    					primaryKey: "Name"
    				});

    				ds.addRow(0, {
    					Name: "CD Player",
    					Price: "40",
    					Rating: "4"
    				});
    				ds.addRow(1, {
    					Name: "CD Player1",
    					Price: "40",
    					Rating: "4"
    				});
    				ds.addRow(2, {
    					Name: "CD Player2",
    					Price: "40",
    					Rating: "4"
    				});

    				ds.rollback();

  • saveChanges
    Inherited

    .saveChanges( success:function, error:function );

    Posts to the settings.updateUrl using $.ajax, by serializing the changes as url params.

    • success
    • Type:function
    • Specifies a custom function to be called when AJAX request to the updateUrl option succeeds(optional).
    • error
    • Type:function
    • Specifies a custom function to be called when AJAX request to the updateUrl option fails(optional).

    Code Sample


    				var ds = new $.ig.MashupDataSource({
    					schema: {
    						fields: [{
    							name: "Name"
    						}, {
    							name: "Price"
    						}, {
    							name: "Rating"
    						}]
    					},
    					updateUrl: "http://example.com/myUpdateUrl/"
    				});

    				ds.addRow(0, {
    					Name: "CD Player",
    					Price: "40",
    					Rating: "4"
    				}, true);
    				ds.addRow(1, {
    					Name: "CD Player1",
    					Price: "40",
    					Rating: "4"
    				}, true);
    				ds.addRow(2, {
    					Name: "CD Player2",
    					Price: "40",
    					Rating: "4"
    				}, true);

    				// Option 1: Save changes without callbacks
    				ds.saveChanges();

    				// Option 2: Save changes with success and error callbacks
    				ds.saveChanges(function (data) {
    					$("#message").text("Changes were saved successfully").fadeIn(3000).fadeOut(5000);
    				},
    				function(jqXHR, textStatus, errorThrown) {
    					$("#message").text("An error occurred while saving the changes. Error details: " + textStatus).fadeIn(3000).fadeOut(5000);
    				});

  • schema
    Inherited

    .schema( [s:object], [t:string] );

    Gets/sets the schema definition.

    • s
    • Type:object
    • Optional
    • a schema object.
    • t
    • Type:string
    • Optional
    • type of the data source. See settings.type.

    Code Sample


    				var jsonSchema = new $.ig.DataSchema("json", {
    					fields: [{
    						name: "ProductID",
    						type: "number"
    					}, {
    						name: "Name",
    						type: "string"
    					}, {
    						name: "ProductNumber",
    						type: "string"
    					}, {
    						name: "Color",
    						type: "string"
    					}, {
    						name: "StandardCost",
    						type: "string"
    					}],
    					searchField: "Records"
    				});

    				ds = new $.ig.MashupDataSource();

    				// Set
    				ds.schema(jsonSchema);

    				// Get
    				var myJsonSchema = ds.schema();

  • setCellValue

    .setCellValue( rowId:object, colId:object, val:object, autoCommit:bool );
    Return Type:
    object
    Return Type Description:
    . The transaction object that was created.

    Sets a cell value for the cell denoted by rowId and colId. Creates a transaction for the update operation and returns it.

    • rowId
    • Type:object
    • the rowId - row key (string) or index (number).
    • colId
    • Type:object
    • the column id - column key (string) or index (number).
    • val
    • Type:object
    • The new value.
    • autoCommit
    • Type:bool
    • if autoCommit is true, it updates the datasource automatically and the transaction is still stored in the accumulated transaction log.

    Code Sample


    				dsMashup.setCellValue(1, "Name", "CD Player", true);

  • sort
    Inherited

    .sort( fields:object, direction:string );

    Sorts the data source locally. The result (filtered data) can be obtained by calling dataView().
    Remote filtering can be performed by just calling dataBind() and setting the settings.filtering.expressions
    multi-column sorting can be enabled by setting keepSortState to true.
    fields => an array of fields object definitions:
    example: [{fieldName : "firstName"}, {fieldName : "lastName"}]
    example 2: [{fieldIndex : 1} , {fieldIndex : 2}].

    • fields
    • Type:object
    • an array of fields object definitions.
    • direction
    • Type:string
    • asc / desc direction.

    Code Sample


    				var ds = new $.ig.MashupDataSource({
    					schema: {
    						fields:[
    							{ name : "col1" },
    							{
    								name : "col2",
    								type: "number"
    							}
    						]
    					},
    					sorting: { type: "local"},
    					dataSource: $("#t1")[0]
    				}).dataBind();

    				ds.sort([{fieldName : "col2"}], "desc", false);

  • sortSettings
    Inherited

    .sortSettings( [s:object] );
    Return Type:
    object
    Return Type Description:
    Returns an object holding the current sorting settings when getter is used and the current instance of the $.ig.DataSource when setter is used.

    Gets/sets a list of paging settings.

    • s
    • Type:object
    • Optional
    • object holding all sorting settings. See settings.sorting.

    Code Sample


    				var ds = new $.ig.MashupDataSource({
    					schema: {
    						fields: [{
    							name: "col1"
    						}, {
    							name: "col2",
    							type: "number"
    						}]
    					}
    				}).dataBind();

    				var sortSettings = {
    					type: "local",
    					defaultFields: [{
    						fieldName: "col2"
    					}],
    					defaultDirection: "desc"
    				};

    				// Set
    				ds.sortSettings(sortSettings);

    				// Get
    				var mySortSettings = ds.sortSettings();

  • stringToJSONObject
    Inherited

    .stringToJSONObject( s:string );

    Parses the string and returns an evaluated JSON object.

    • s
    • Type:string
    • the JSON as string.

    Code Sample


    				ds = new $.ig.MashupDataSource();
    				var jsonObj = ds.stringToJSONObject('[{"Name":"CD Player","Price":10.90,"Rating":3}]');

  • stringToXmlObject
    Inherited

    .stringToXmlObject( s:string );

    Parses a string and returns a XML Document.

    • s
    • Type:string
    • the XML represented as a string.

    Code Sample


    				ds = new $.ig.MashupDataSource();
    				var xmlObj = ds.stringToXmlObject("<Element><Name>CD Player</Name><Price>10.90</Price><Rating>3</Rating></Element>");

  • summariesResponse
    Inherited

    .summariesResponse( [key:string], [dsObj:object] );
    Return Type:
    object
    Return Type Description:
    object of data summaries - e.g.: if datasource has 2 columns - ID and Name then expected format for data summaries is {ID : {max: 1, min: 0, count: 2}, Name: {count: 1}}.

    Applicable only when the data source is bound to remote data.
    Gets or sets summaries data.
    If key or dsObj are not set then returns summaries data.
    Takes summary data from passed argument dsObj(using argument key).

    • key
    • Type:string
    • Optional
    • response key to take summary data(for example "Metadata.Summaries").
    • dsObj
    • Type:object
    • Optional
    • data source object - usually contains information about data records and metadata(holds info about summaries).

    Code Sample


    				var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    				var ds = new $.ig.MashupDataSource({
    					callback: render,
    					dataSource: url,
    					schema: {
    						fields: [{
    							name: "Name"
    						}, {
    							name: "Price"
    						}, {
    							name: "Rating"
    						}],
    						searchField: "d"
    					},
    					responseDataKey: "d",
    					responseDataType: "jsonp"
    				});

    				var mySummariesSettings = {
    					type: "remote",
    					columnSettings: [{
    						columnKey: "Price",
    						allowSummaries: false,
    						summaryOperands: [{
    							type: "count",
    							active: true,
    							order: 0
    						}]
    					}],
    					summariesResponseKey: "d"
    				};

    				// Set
    				ds.summariesSettings(mySummariesSettings);

    				// Get
    				var summariesSettings = ds.summariesSettings();

  • summariesSettings
    Inherited

    .summariesSettings( [s:object] );

    Gets/sets a list of summaries settings.

    • s
    • Type:object
    • Optional
    • object holding all summaries settings. See settings.summaries.
  • tableToObject
    Inherited

    .tableToObject( tableDOM:domelement );
    Return Type:
    object

    Converts a HTML TABLE dom element to a JavaScript array of objects that contain the records data.

    • tableDOM
    • Type:domelement
    • TABLE dom element to transform.

    Code Sample


    				ds = new $.ig.MashupDataSource();
    				var tableObj = ds.tableToObject("<table><tr><td>CD Player</td><td>10.90</td><td>3</td></tr><tr><td>CD Player 1</td><td>10.90</td><td>3</td></tr><tr><td>CD Player 2</td><td>10.90</td><td>3</td></tr></table>");

  • toggleGroupByRecord
    Inherited

    .toggleGroupByRecord( id:string, collapsed:bool );

    Toggle grouped record with the specified id and updates collections visible groupby data and data view.

    • id
    • Type:string
    • data-id attribute of the respective group row in the DOM.
    • collapsed
    • Type:bool
    • if true the record should be collapsed, otherwise expanded.

    Code Sample


    				ds = new $.ig.MashupDataSource({
    					dataSource: products,
    					primaryKey: "ProductID",
    					groupby: {
    						defaultCollapseState: true
    					}
    				});

    				ds.dataBind();
    				//Set
    				ds.toggleGroupByRecord("ProductID:49", true);

  • totalLocalRecordsCount
    Inherited

    .totalLocalRecordsCount( );
    Return Type:
    number
    Return Type Description:
    the number of records that are bound / exist locally.

    Returns the total number of records in the local data source.

    Code Sample


    				ds = new $.ig.MashupDataSource({
    					callback:render,
    					dataSource: "/demos/server/server.php",
    					responseDataKey: "records",
    				}).dataBind();

    				var count = ds.totalLocalRecordsCount();

  • totalRecordsCount
    Inherited

    .totalRecordsCount( [count:number], key:object, dsObj:object, context:object );
    Return Type:
    number
    Return Type Description:
    Returns total records count of the current dasource instance.

    Applicable only when the data source is bound to remote data.
    Gets / sets the total number of records in the data source.
    If data binding is remote, and there's paging or filtering enabled,
    the actual total number of records may not
    match the number of records that exists on the client.

    • count
    • Type:number
    • Optional
    • the total number of records.
    • key
    • Type:object
    • dsObj
    • Type:object
    • context
    • Type:object

    Code Sample


    				ds = new $.ig.MashupDataSource({
    					callback:render,
    					dataSource: "/demos/server/server.php",
    					responseDataKey: "records",
    				}).dataBind();

    				//Get
    				var count = ds.totalRecordsCount();

    				//Set
    				ds.totalRecordsCount(42);

  • transactionsAsString
    Inherited

    .transactionsAsString( );
    Return Type:
    string

    Returns the accumulated transaction log as a string. The purpose of this is to be passed to URLs or used conveniently.

    Code Sample


    			var ds = new $.ig.MashupDataSource({
    				schema: {
    					fields: [{
    						name: "Name"
    					}, {
    						name: "Price"
    					}, {
    						name: "Rating"
    					}],
    					searchField: "d"
    				},
    				responseDataKey: "d",
    				responseDataType: "jsonp"
    			});
    			ds.addRow(123, {
    			Name: "CD Player",
    			Price: "40",
    			Rating: "4"
    			});
    			var transactionsAsString = ds.transactionsAsString();

  • transformedData
    Inherited

    .transformedData( transformedExecution:object );
    Return Type:
    object

    Returns transformed data according to transformed execution:
    1. Before paging and filtering
    2. After filtering before paging
    3. After filtering and paging.

    • transformedExecution
    • Type:object

    Code Sample


    				var url = "http://services.odata.org/OData/OData.svc/Products?$format=json&$callback=?";
    				var ds = new $.ig.MashupDataSource({
    					callback: render,
    					dataSource: url,
    					schema: {
    						fields: [{
    							name: "Name"
    						}, {
    							name: "Price"
    						}, {
    							name: "Rating"
    						}],
    						searchField: "d"
    					},
    					responseDataKey: "d",
    					responseDataType: "jsonp"
    				});

    				ds.transformedData("priortofilteringandpaging");

  • type
    Inherited

    .type( [t:object] );
    Return Type:
    enumeration
    Return Type Description:
    Can return 'json|xml|unknown|array|function|htmlTableString|htmlTableId|htmlTableDom|invalid|remoteUrl|empty'.

    Gets/sets the type of the dataSource. If no parameter is specified, returns settings.type.

    • t
    • Type:object
    • Optional
    • .

    Code Sample


    				ds = new $.ig.MashupDataSource();

    				// Set
    				ds.type("json");

    				// Get
    				var myType = ds.type();

  • updateRow

    .updateRow( rowId:object, rowObject:object, autoCommit:bool );
    Return Type:
    object
    Return Type Description:
    . The transaction object that was created.

    Updates a record in the datasource. Creates a transaction that can be committed / rolled back.

    • rowId
    • Type:object
    • the record key - primaryKey (string) or index (number).
    • rowObject
    • Type:object
    • the record object containing the key/value pairs we want to update. It doesn't have to include key/value pairs for all fields defined in the schema or in the data source (if no schema is defined).
    • autoCommit
    • Type:bool
    • if autoCommit is true, the datasource will be updated automatically and the transaction is still stored in the accumulated transaction log.

    Code Sample


    			dsMashup.updateRow(1, {
    					Name: "DVD Player1",
    					Price: "10",
    					Rating: "5"
    				}, true);

  • visibleGroupByData
    Inherited

    .visibleGroupByData( );
    Return Type:
    array
    Return Type Description:
    array of records.

    Returns collection of data and non-data(grouped) records. Returns only visible records(children of collapsed grouped records are not included in the collection).

    Code Sample


    				ds = new $.ig.MashupDataSource({
    					dataSource: products,
    					callback: render,
    					groupby: {
    						defaultCollapseState: true
    					}
    				});

    				ds.dataBind();
    				//Get
    				var visibleGroupByData = ds.visibleGroupByData();


Copyright © 1996 - 2019 Infragistics, Inc. All rights reserved.
