ui.igGridGroupBy

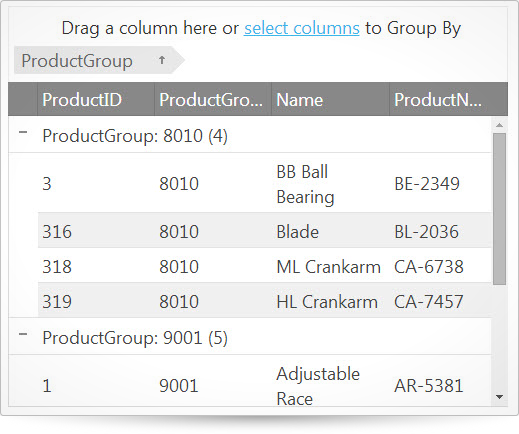

ui.igGridGroupBy_image

Both the igGrid and igHierarchicalGrid controls feature column grouping in the grid. The grouping feature allows users to group rows of data in the grid by common column values. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igGrid control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!doctype html>
<html>
<head>
    <title>Ignite UI igGridGroupBy</title>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
	  <script src="js/infragistics.core.js" type="text/javascript"></script>
	  <script src="js/infragistics.lob.js" type="text/javascript"></script>
    <script type="text/javascript">
        $(function () {
            var products = [
                      { "ProductID": 1, "ProductGroup": "9001", "Name": "Adjustable Race", "ProductNumber": "AR-5381" },
                      { "ProductID": 2, "ProductGroup": "9001", "Name": "Bearing Ball", "ProductNumber": "BA-8327" },
                      { "ProductID": 3, "ProductGroup": "8010", "Name": "BB Ball Bearing", "ProductNumber": "BE-2349" },
                      { "ProductID": 4, "ProductGroup": "9001", "Name": "Headset Ball Bearings", "ProductNumber": "BE-2908" },
                      { "ProductID": 316, "ProductGroup": "8010", "Name": "Blade", "ProductNumber": "BL-2036" },
                      { "ProductID": 317, "ProductGroup": "9001", "Name": "LL Crankarm", "ProductNumber": "CA-5965" },
                      { "ProductID": 318, "ProductGroup": "8010", "Name": "ML Crankarm", "ProductNumber": "CA-6738" },
                      { "ProductID": 319, "ProductGroup": "8010", "Name": "HL Crankarm", "ProductNumber": "CA-7457" },
                      { "ProductID": 320, "ProductGroup": "9001", "Name": "Chainring Bolts", "ProductNumber": "CB-2903" }
                  ];

            $("#grid").igGrid({
                autoGenerateColumns: true,
                dataSource: products,
                height: "400px",
                features: [{
                    name: "GroupBy",
                    type: "local",
                    columnSettings: [{
                        columnKey: "ProductGroup",
                        isGroupBy: true
                    }, {
                        columnKey: "ProductID",
                        allowGrouping: false
                    }]
                }]
            });
            $("#grid").igGrid("dataBind");
        });
      </script>
</head>
<body>
    <table id="grid">
    </table>
</body>
</html>


Related Samples

Related Topics

Dependencies

jquery-1.9.1.js
jquery.ui.core.js
jquery.ui.widget.js
jquery.ui.mouse.js
jquery.ui.draggable.js
jquery.ui.droppable.js
infragistics.ui.widget.js
infragistics.ui.grid.framework.js
infragistics.ui.grid.shared.js
infragistics.ui.grid.featurechooser.js

Inherits

  • collapseTooltip
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies the collapse indicator tooltip for grouped rows. Use option locale.collapseTooltip.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							collapseTooltip: "Collapse group"
    						}
    					]
    				});

    				//Get
    				var opValue = $(".selector").igGridGroupBy("option", "collapseTooltip");

    				//Set
    				$(".selector").igGridGroupBy("option", "collapseTooltip", "Collapse group");

  • columnSettings

    Type:
    object
    Default:
    []

    Configures individual column settings.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							columnSettings: [
    								{ columnKey: "Name", isGroupBy: true },
    								{ columnKey: "BoxArt", allowGrouping: false }
    							]
    						}
    					]
    				});

    				//Get
    				var arrayOfColumnSettings = $(".selector").igGridGroupBy("option", "columnSettings");

    • allowGrouping

      Type:
      bool
      Default:
      true

      Enables/disables grouping a column from the UI. By default all columns can be grouped.

      Code Sample


      						//Initialize
      						$(".selector").igGrid({
      							features: [
      								{
      									name: "GroupBy",
      									columnSettings: [
      										{ columnKey: "Name", allowGrouping: false }
      									]
      								}
      							]
      						});

      						//Get
      						var groupBySettings = $(".selector").igGridGroupBy("option", "columnSettings");
      						var allowGroupingFirstColumn = groupBySettings[0].allowGrouping;

    • compareFunc

      Type:
      enumeration
      Default:
      null

      Reference/name of a function (string or function) used for custom comparison. The function accepts the following arguments:
      val1 - the first value to compare
      val2 - the second value to compare
      recordsData - an object having three properties: fieldName - the name of the sorted field; record1 - first record to compare; record2 - second record to compare
      The function returns the following numeric value:
      0 - indicating that values are equal
      1 - indicating that val1 > val2
      -1 - indicating that val1 < val2.

      Members

      • string
      • Type:string
      • the name of the function as a string located in the global window object.
      • function
      • Type:function
      • function which will be used for custom comparison.

      Code Sample


      						//Initialize
      						$(".selector").igGrid({
      							features: [
      								{
      									name: "GroupBy",
      									columnSettings: [
      										{
      											columnKey: "ProductID",
      											isGroupBy: true,
      											compareFunc: function(val1, val2, recordsData) {
      												return val1 > val2 ? 1 : val1 < val2 ? -1 : 0;
      											}
      										}
      								]
      								}
      							]
      						});

    • dir

      Type:
      enumeration
      Default:
      asc

      Specifies the sort order - ascending or descending when the column is initially grouped (isGroupBy = true).

      Code Sample


      						//Initialize
      						$(".selector").igGrid({
      							features: [
      								{
      									name: "GroupBy",
      									columnSettings: [
      										{ columnKey: "Name", isGroupBy: true, dir: "desc" }
      									]
      								}
      							]
      						});

    • groupComparerFunction
      Deprecated

      Type:
      function
      Default:
      null

      Specifies a custom group by function, which accepts the column setting, the first and the second value to compare and returns bool. This option is deprecated - please use option compareFunc instead.

      Code Sample


                //Initialize
      			    $(".selector").igGrid({
      				    features: [
      					    {
      						    name: "GroupBy",
      						    columnSettings: [{
      							    columnKey: "Name",
      							    groupComparerFunction: function (columnSetting, val1, val2) {
      								    return (val1 === val2);
      							    }
      						    }]
      					    }
      				    ]
      			    });

    • groupLabelFormatter

      Type:
      enumeration
      Default:
      null

      Reference/name of a function (string or function) which will be used for formatting the cell values. The function should accept a value from the grouped column and return the new formatted value in the label of the row.

      Members

      • string
      • Type:string
      • the name of the function as a string located in the global window object.
      • function
      • Type:function
      • which will be used for formatting the cell values.

      Code Sample


      						//Initialize
      						$(".selector").igGrid({
      							features: [
      								{
      									name: "GroupBy",
      									columnSettings: [{
      										columnKey: "Name",
      										groupLabelFormatter: function(val) {return (val === 1)? "Yes" : "No";}
      									}]
      								}
      							]
      						});
      						//Get
      						var groupBySettings = $(".selector").igGridGroupBy("option", "columnSettings");
      						var labelFormatterFirstColumn = groupBySettings[0].groupLabelFormatter;

    • groupSummaries

      Type:
      enumeration
      Default:
      []

      Enables/disables default summaries per group data island or specifies summaries that are applied to specific column no matter the group.

      Code Sample


      						//Initialize
      						$(".selector").igGrid({
      							features: [
      								{
      									name: "GroupBy",
      									groupSummariesPosition: "top",
      									groupSummaries:
      									[
      										{
      											summaryFunction: "Sum",
      											label: "Sum = ",
      											format: ".##"
      										}
      									],
      									columnSettings: [
      										{
      											columnKey: "State",
      											isGroupBy: true,
      											groupSummaries: [
      												{
      													summaryFunction: "Count",
      													label: "Custom label",
      													summaryTemplate: "{label} : {value}"
      												}
      											]
      										},
      									]
      								}
      							]
      						});

      • format

        Type:
        string
        Default:
        null

        Applies format for the summary value.
        This format option is null by default and is not taken into account, but if column format is specified, it will take that into consideration.
        If neither this option and a column format are specified, depending on the autoFormat option, it will decide if it should take the regional settings.

        Code Sample


        								//Initialize
        								$(".selector").igGrid({
        									features: [{
        										name: "GroupBy",
        										columnSettings: [{
        											columnKey: "ListPrice",
        											groupSummaries: [{
        												summaryFunction: "Sum",
        												format: "currency"
        											}]
        										}]
        									}]
        								});

      • label

        Type:
        string
        Default:
        ""

        Label for the summary result.

        Code Sample


        								//Initialize
        								$(".selector").igGrid({
        									features: [{
        										name: "GroupBy",
        										columnSettings: [{
        											columnKey: "ListPrice",
        											groupSummaries: [{
        												summaryFunction: "Avg",
        												label: "Average = "
        											}]
        										}]
        									}]
        								});

      • summaryFunction

        Type:
        enumeration
        Default:
        null

        Specifies the summary name or function that will be applied. If the name is not found in $.ig.util.defaultSummaryMethods and if a function with the same name is defined inside the window, it will use it instead.

        Members

        • string
        • Type:string
        • the name of the summary that will be used. All summaries are defined in $.ig.util.defaultSummaryMethods.
        • function
        • Type:function
        • custom function that will be used as a summary.

        Code Sample


        								//Initialize
        								$(".selector").igGrid({
        									features: [
        										{
        											name: "GroupBy",
        											columnSettings: [
        												{
        													columnKey: "Color",
        													isGroupBy: true
        												},
        												{
        													columnKey: "ListPrice",
        													isGroupBy: true,
        													groupSummaries: [
        														{
        															summaryFunction: "avg", label: "Average = "
        														},
        														{
        															//	Set a custom function to calculate the difference between
        															//	the minimum and the maximum values in the group
        															//	The fullData contains the data for all records inside the group
        															summaryFunction: function(data, dataType, fullData) {
        																var valuesList = data.array, min = valuesList[0], max = valuesList[0];
        																for(i = 1; i < valuesList.length; i++) {
        																	if(valuesList[i] < min)	min = valuesList[i];
        																	if(valuesList[i] > max)	max = valuesList[i];
        																}
        																return (max - min);
        															},
        															label: "Delta = "
        														}
        													]
        												}
        											]
        										}
        									]
        								});

      • summaryTemplate

        Type:
        string
        Default:
        "{label}{result}"

        Template specifying how the label and the result from the summary should be displayed.

        Code Sample


        								//Initialize
        								$(".selector").igGrid({
        									features: [{
        										name: "GroupBy",
        										columnSettings: [{
        											columnKey: "ListPrice",
        											groupSummaries: [{
        												summaryFunction: "Count",
        												label: " in stock",
        												summaryTemplate: "{result}{label}"
        											}]
        										}]
        									}]
        								});

    • isGroupBy

      Type:
      bool
      Default:
      false

      Specifies the initial column grouped state.

      Code Sample


      						//Initialize
      						$(".selector").igGrid({
      							features: [
      								{
      									name: "GroupBy",
      									columnSettings: [
      										{ columnKey: "Name", isGroupBy: true }
      									]
      								}
      							]
      						});

    • summaries

      Type:
      object
      Default:
      []

      A list of aggregation functions to calculate on the column values for each group. When not specified the default aggregate function is "count".

      Code Sample


      						//Initialize
      						$(".selector").igGrid({
      							features: [
      								{
      									name: "GroupBy",
      									columnSettings: [
      										//	The code in this example specifies that data must be grouped by
      										//	the ListPrice column and the average, the minimum and the maximum
      										//	must be calculated and displayed for each group.
      										{
      											columnKey: "ListPrice",
      											isGroupBy: true,
      					summaries: [
      						{
      													summaryFunction: "avg", text: " Average:"
      												},
      												{
      													summaryFunction: "min", text: " Minimum:"
      												},
      												{
      													summaryFunction: "max", text: " Maximum:"
      												}
      											]
      										}
      									]
      								}
      							]
      						});

      • customSummary

        Type:
        enumeration
        Default:
        null

        Specifies a custom summary function, which is called for each group, it should return the custom summary result. It takes as argument object with the following signature: {dataRecords: [], array: [], key: "", allGroupData: []} where,
        dataRecords - array of grouped (for the data view) data records,
        array - array of cell values for the specified column,
        key - key of the grouped column,
        allGroupData - array of data records for the group(for the whole data source - not only for the data view).

        Members

        • string
        • Type:string
        • the name of the function as a string located in the global window object.
        • function
        • Type:function
        • which will be used for calculating the summary value.

        Code Sample


        								//Initialize
        								$(".selector").igGrid({
        									features: [
        										{
        											name: "GroupBy",
        											columnSettings: [
        												{
        													columnKey: "Color",
        													isGroupBy: true
        												},
        												{
        													columnKey: "ListPrice",
        													isGroupBy: true,
        													summaries: [
        														{
        															//	Set average price summary value
        															summaryFunction: "avg", text: " Average:"
        														},
        														{
        															//	Set a custom function to calculate the difference between
        															//	the minimum and the maximum values in the group
        															summaryFunction: "custom",
        															text: " Delta:",
        															customSummary: function(data) {
        																//	Initialize minmum and maximum values with the first element
        																var valuesList = data.array, min = valuesList[0], max = valuesList[0];
        																//	Iterate all values in the list and find minimum and maximum
        																for(i = 1; i < valuesList.length; i++) {
        																	if(valuesList[i] < min)	min = valuesList[i];
        																	if(valuesList[i] > max)	max = valuesList[i];
        																}
        																//	Return difference between minimum and maximum
        																return (max - min);
        															}
        														}
        													]
        												}
        											]
        										}
        									]
        								});

      • summaryFunction

        Type:
        enumeration
        Default:
        avg

        the summary function key.

        Members

        • avg
        • Type:string
        • average summary function.
        • min
        • Type:string
        • minimum summary function.
        • max
        • Type:string
        • maximum summary function.
        • sum
        • Type:string
        • sum summary function.
        • count
        • Type:string
        • count summary function.
        • custom
        • Type:string
        • custom summary summary function.

        Code Sample


        								//Initialize
        								$(".selector").igGrid({
        									features: [{
        										name: "GroupBy",
        										columnSettings: [{
        											columnKey: "ListPrice",
        											summaries: [{
        												summaryFunction: "avg"
        											}]
        										}]
        									}]
        								});

      • text

        Type:
        string
        Default:
        null

        Specifies the summary text that will be shown before the value.

        Code Sample


        								//Initialize
        								$(".selector").igGrid({
        									features: [{
        										name: "GroupBy",
        										columnSettings: [{
        											columnKey: "ListPrice",
        											summaries: [{
        												summaryFunction: "Avg",
        												text: "Average:"
        											}]
        										}]
        									}]
        								});

  • defaultSortingDirection

    Type:
    enumeration
    Default:
    asc

    default sort order - ascending or descending.

    Members

    • asc
    • Type:string
    • The group is sorted in ascending order.
    • desc
    • Type:string
    • The group is sorted in descending order.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							defaultSortingDirection: "desc"
    						}
    					]
    				});
    				//	Get
    				var defaultDireciton = $(".selector").igGridGroupBy("option", "defaultSortingDirection");
    				//	Set
    				$(".selector").igGridGroupBy("option", "defaultSortingDirection", "desc");

  • dialogWidget

    Type:
    string
    Default:
    "igGridModalDialog"

    Name of the dialog widget to be used. It should inherit from $.ui.igGridModalDialog. Checkout the Extending igGrid Modal Dialog topic for details.

    Code Sample


    				//create dialog widget that inherits from $.ui.igGridModalDialog
    				$.widget("ui.CustomDialog", $.ui.igGridModalDialog, {});
    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "GroupBy",
    						dialogWidget: "CustomDialog"
    						}
    					]
    				});

    				//Get
    				var dialogWidget = $(".selector").igGridGroupBy("option", "dialogWidget");

  • emptyGroupByAreaContentSelectColumnsCaption
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies caption for the hyperlink which opens the GroupBy Dialog. Use option locale.emptyGroupByAreaContentSelectColumnsCaption.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						emptyGroupByAreaContentSelectColumnsCaption: "Select Columns to Group By"
    					}]
    				});

    				//	Get
    				var text = $(".selector").igGridGroupBy("option", "emptyGroupByAreaContentSelectColumnsCaption");

    				//	Set
    				$(".selector").igGridGroupBy("option", "emptyGroupByAreaContentSelectColumnsCaption", "Select Columns to Group By");

  • expandTooltip
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies the expand indicator tooltip for grouped rows. Use option locale.expandTooltip.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						expandTooltip: "Custom expand tooltip"
    					}]
    				});

    				//	Get
    				var opValue = $(".selector").igGridGroupBy("option", "expandTooltip");

    				//	Set
    				$(".selector").igGridGroupBy("option", "expandTooltip", "Custom expand tooltip");

  • expansionIndicatorVisibility

    Type:
    bool
    Default:
    true

    Specifies if grouped rows will have an expander image that will allow end users to expand and collapse them. This option can be set only at initialization.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						expansionIndicatorVisibility: true
    					}]
    				});

    				//	Get
    				var opValue = $(".selector").igGridGroupBy("option", "expansionIndicatorVisibility");

  • groupByAreaVisibility

    Type:
    enumeration
    Default:
    top

    Sets the place in the grid where the GroupBy area will be.

    Members

    • top
    • Type:string
    • the GroupBy area will be rendered above the grid headers.
    • hidden
    • Type:string
    • the GroupBy area will not be rendered.
    • bottom
    • Type:string
    • the GroupBy area will be rendered below the grid footer (and above the pager, if any).

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						groupByAreaVisibility: "bottom"
    					}]
    				});
    				//	Get
    				var opValue = $(".selector").igGridGroupBy("option", "groupByAreaVisibility");
    				//	Set
    				$(".selector").igGridGroupBy("option", "groupByAreaVisibility", "hidden");

  • groupByDialogContainment

    Type:
    enumeration
    Default:
    owner

    Controls containment behavior for the GroupBy Dialog.

    Members

    • owner
    • Type:string
    • The GroupBy Dialog will be draggable only in the grid area.
    • window
    • Type:string
    • The GroupBy Dialog will be draggable in the whole window area.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name : "GroupBy",
    							groupByDialogContainment : "window"
    						}
    					]
    				});
    				//Get
    				var groupByDialogContainment = $(".selector").igGridGroupBy("option", "groupByDialogContainment");

  • groupByLabelWidth

    Type:
    number
    Default:
    null

    By default, the column width for the header is taken. If this is specified it's used for all headers.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						groupByLabelWidth: 100
    					}]
    				});

    				//	Get
    				var opValue = $(".selector").igGridGroupBy("option", "groupByLabelWidth");

    				//	Set
    				$(".selector").igGridGroupBy("option", "groupByLabelWidth", 100);

  • groupByUrlKey

    Type:
    string
    Default:
    null

    URL param name which specifies a GroupBy expression. When groupByUrlKey, groupByUrlKeyAscValue and groupByUrlKeyDescValue are set the request looks like: ?<groupByUrlKey>(<columnKey>)=<groupByUrlKeyAscValue/groupByUrlKeyDescValue> (Example: ?groupby(col1)=asc). Otherwise the OData conventions for sorting params are used.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "GroupBy",
    							groupByUrlKey: "myCustomGroupBy",
    							groupByUrlKeyAscValue : "myAsc",
    							groupByUrlKeyDescValue : "myDesc"
    						}
    					]
    				});

    				//Get
    				var groupByUrlKey = $(".selector").igGridGroupBy("option", "groupByUrlKey");

    				//Set
    				$(".selector").igGridGroupBy("option", "groupByUrlKey", "myGroupBy");

  • groupByUrlKeyAscValue

    Type:
    string
    Default:
    null

    URL param value denoting ascending grouping. When groupByUrlKey, groupByUrlKeyAscValue and groupByUrlKeyDescValue are set the request looks like: ?<groupByUrlKey>(<columnKey>)=<groupByUrlKeyAscValue/groupByUrlKeyDescValue> (Example: ?groupby(col1)=asc). Otherwise the OData conventions for sorting params are used.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "GroupBy",
    							groupByUrlKey: "myCustomGroupBy",
    							groupByUrlKeyAscValue : "myAsc",
    							groupByUrlKeyDescValue : "myDesc"
    						}
    					]
    				});

    				//Get
    				var groupByAsc = $(".selector").igGridGroupBy("option", "groupByUrlKeyAscValue");

    				//Set
    				$(".selector").igGridGroupBy("option", "groupByUrlKeyAscValue", "myAsc");

  • groupByUrlKeyDescValue

    Type:
    string
    Default:
    null

    URL param value denoting descending grouping. When groupByUrlKey, groupByUrlKeyAscValue and groupByUrlKeyDescValue are set the request looks like: ?<groupByUrlKey>(<columnKey>)=<groupByUrlKeyAscValue/groupByUrlKeyDescValue> (Example: ?groupby(col1)=asc). Otherwise the OData conventions for sorting params are used.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "GroupBy",
    							groupByUrlKey: "myCustomGroupBy",
    							groupByUrlKeyAscValue : "myAsc",
    							groupByUrlKeyDescValue : "myDesc"
    						}
    					]
    				});

    				//Get
    				var groupByDesc = $(".selector").igGridGroupBy("option", "groupByUrlKeyDescValue");

    				//Set
    				$(".selector").igGridGroupBy("option", "groupByUrlKeyDescValue", "myDesc");

  • groupedColumns

    Type:
    array
    Default:
    []
    Elements Type:
    object

    Returns the list of currently grouped columns. The option is read-only and cannot be set at initialization or at runtime.

    Code Sample


    				//	Get
    				var groupedColumns = $(".selector").igGridGroupBy("option", "groupedColumns");

    				//	Enumerates all grouped columns
    				for(i = 0; i < groupedColumns.length; i++) {
    					//	Get column object
    					var col = groupedColumns[i].col;

    					//	Get the sort order for this column
    					var dir = groupedColumns[i].dir;

    					//	Get the key of the grouped column
    					var key = groupedColumns[i].key;

    					//	Get the key of the columnLayour if this is hierarchical view
    					var layout = groupedColumns[i].layout;
    				}

    • col

      Type:
      object
      Default:
      null

      column object for the column that is grouped.

      Code Sample


      						//	Get
      						var groupedColumns = $(".selector").igGridGroupBy("option", "groupedColumns");

      						//	Enumerates all grouped columns
      						for(i = 0; i < groupedColumns.length; i++) {
      							//	Get column object
      							var col = groupedColumns[i].col;
      						}

    • dir

      Type:
      enumeration
      Default:
      asc

      sort order - ascending or descending.

      Code Sample


      						//	Get
      						var groupedColumns = $(".selector").igGridGroupBy("option", "groupedColumns");
      						//	Enumerates all grouped columns
      						for(i = 0; i < groupedColumns.length; i++) {
      							//	Get the sort order for this column
      							var dir = groupedColumns[i].dir;
      						}

    • key

      Type:
      string
      Default:
      null

      Key of the column that's grouped.

      Code Sample

      			      //	Get
      			      var groupedColumns = $(".selector").igGridGroupBy("option", "groupedColumns");

      			      //	Enumerates all grouped columns
      			      for(i = 0; i < groupedColumns.length; i++) {
      				      //	Get the key of the grouped column
      				      groupedColumns.key
      			      }

    • layout

      Type:
      string
      Default:
      null

      Key of the columnLayout, if the grid is hierarchical.

      Code Sample


      						//	Get
      						var groupedColumns = $(".selector").igGridGroupBy("option", "groupedColumns");

      						//	Enumerates all grouped columns
      						for(i = 0; i < groupedColumns.length; i++) {
      							//	Get the key of the columnLayour if this is hierarchical view
      							var layout = groupedColumns[i].layout;
      						}

  • groupedRowTextTemplate

    Type:
    string
    Default:
    "${key}: ${val} (${count})"

    Template for the grouped row's text. Variables available for the template are ${key}, ${val} and ${count}.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							groupedRowTextTemplate: "Cost $ ${val} (Count: ${count})"
    						}
    					]
    				});

    				//	Get
    				var opValue = $(".selector").igGridGroupBy("option", "groupedRowTextTemplate");

    				//	Set
    				$(".selector").igGridGroupBy("option", "groupedRowTextTemplate", "Cost $ ${val} (Count: ${count})");

  • groupSummaries

    Type:
    enumeration
    Default:
    []

    Specifies default summaries that will appear when grouping by a column on the bottom of each group as a row. This option has a lower priority than the groupSummaries defined under columnSettings for each column.
    All default summaries are defined under $.ig.util.defaultSummaryMethods.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name : "GroupBy",
    							groupSummaries : true
    						}
    					]
    				});

    • format

      Type:
      string
      Default:
      null

      Applies format for the summary value.
      This format option is null by default and is not taken into account, but if column format is specified, it will take that into consideration.
      If neither this option and a column format are specified, depending on the autoFormat option, it will decide if it should take the regional settings.

      Code Sample


      						//Initialize
      						$(".selector").igGrid({
      							features: [{
      								name: "GroupBy",
      								groupSummaries: [{
      									summaryFunction: "Sum",
      									format: "currency"
      								}]
      							}]
      						});

    • label

      Type:
      string
      Default:
      ""

      Label for the summary result.

      Code Sample


      						//Initialize
      						$(".selector").igGrid({
      							features: [{
      								name: "GroupBy",
      								groupSummaries: [{
      									summaryFunction: "Avg",
      									label: "Average = "
      								}]
      							}]
      						});

    • summaryFunction

      Type:
      enumeration
      Default:
      ""

      Specifies the summary name that will be applied to the appropriate column.

      Members

      • function
      • Type:function
      • Custom summary function that will be appliled to all columns.

      Code Sample


      						//Initialize
      						$(".selector").igGrid({
      							features: [{
      								name: "GroupBy",
      								groupSummaries: [
      									{
      										summaryFunction: "Sum",	label: "Sum = "
      									},
      									{
      										summaryFunction: "Count", label: "Count = "
      									}
      								]
      							}]
      						});

    • summaryTemplate

      Type:
      string
      Default:
      "{label}{value}"

      Template specifying how the label and the result from the summary should be displayed.

      Code Sample


      						//Initialize
      						$(".selector").igGrid({
      							features: [{
      								name: "GroupBy",
      								groupSummaries: [{
      									summaryFunction: "Count",
      									label: " in stock",
      									summaryTemplate: "{result}{label}"
      								}]
      							}]
      						});

  • groupSummariesPosition

    Type:
    enumeration
    Default:
    bottom

    Specifies the groupSummaries postion inside each group.

    Members

    • top
    • Type:string
    • One summary row will be displayed at the top for each group.
    • bottom
    • Type:string
    • One summary row will be displayed at the bottom for each group.
    • both
    • Type:string
    • Two summary rows will be be display for each group. One on the top and one on the bottom.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						groupSummariesPosition: "top"
    					}]
    				});

  • indentation

    Type:
    number
    Default:
    30

    Specifies the indentation for a grouped row. If several columns are grouped, the total indentation will grow.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							indentation: 50
    						}
    					]
    				});

    				//	Get
    				var opValue = $(".selector").igGridGroupBy("option", "indentation");

    				//	Set
    				$(".selector").igGridGroupBy("option", "indentation", 50);

  • inherit

    Type:
    bool
    Default:
    false

    Enables/disables feature inheritance for the child layouts. NOTE: It only applies for igHierarchicalGrid.

  • initialExpand

    Type:
    bool
    Default:
    true

    Specifies if after grouping, the grouped rows will be initially expanded or collapsed.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							initialExpand: false
    						}
    					]
    				});

    				//	Get
    				var opValue = $(".selector").igGridGroupBy("option", "initialExpand");

    				//	Set
    				$(".selector").igGridGroupBy("option", "initialExpand", false);

  • labelDragHelperOpacity

    Type:
    number
    Default:
    0.5

    Specifies the opacity of the drag markup, while a column header is being dragged. The value must be between 0 and 1.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    						features: [
    							{
    								name: "GroupBy",
    								labelDragHelperOpacity: 0.75
    							}
    						]
    				});

    				//	Get
    				var opValue = $(".selector").igGridGroupBy("option", "labelDragHelperOpacity");

    				//	Set
    				$(".selector").igGridGroupBy("option", "labelDragHelperOpacity", 0.75);

  • language
    Inherited

    Type:
    string
    Default:
    "en"

    Set/Get the locale language setting for the widget.

    Code Sample


    					//Initialize
    				$(".selector").igGridGroupBy({
    					language: "ja"
    				});

    				// Get
    				var language = $(".selector").igGridGroupBy("option", "language");

    				// Set
    				$(".selector").igGridGroupBy("option", "language", "ja");

  • locale

    Type:
    object
    Default:
    {}

    • collapseTooltip

      Type:
      string
      Default:
      ""

      Specifies the collapse groups button tooltip.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							collapseTooltip: "Collapse"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").collapseTooltip;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { collapseTooltip: "Collapse" });

    • emptyGroupByAreaContent

      Type:
      string
      Default:
      ""

      Specifies the group by area text.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							emptyGroupByAreaContent: "Group By"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").emptyGroupByAreaContent;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { emptyGroupByAreaContent: "Group By" });

    • emptyGroupByAreaContentSelectColumns

      Type:
      string
      Default:
      ""

      Specifies the text for the hyperlink which opens the GroupBy Dialog.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							emptyGroupByAreaContentSelectColumns: "Select Columns to Group By"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").emptyGroupByAreaContentSelectColumns;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { emptyGroupByAreaContentSelectColumns: "Select Columns to Group By" });

    • emptyGroupByAreaContentSelectColumnsCaption

      Type:
      string
      Default:
      ""

      Specifies the caption for the hyperlink which opens the GroupBy Dialog.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							emptyGroupByAreaContentSelectColumnsCaption: "Select Columns to Group By"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").emptyGroupByAreaContentSelectColumnsCaption;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { emptyGroupByAreaContentSelectColumnsCaption: "Select Columns to Group By" });

    • expandTooltip

      Type:
      string
      Default:
      ""

      Specifies the expand groups button tooltip.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							expandTooltip: "Expand"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").expandTooltip;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { expandTooltip: "Expand" });

    • modalDialogButtonApplyText

      Type:
      string
      Default:
      ""

      Specifies text of button which apply changes in modal dialog.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							modalDialogButtonApplyText: "Apply"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").modalDialogButtonApplyText;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { modalDialogButtonApplyText: "Apply" });

    • modalDialogButtonCancelText

      Type:
      string
      Default:
      ""

      Specifies text of button which cancel changes in modal dialog.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							modalDialogButtonCancelText: "Cancel"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").modalDialogButtonCancelText;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { modalDialogButtonCancelText: "Cancel" });

    • modalDialogCaptionButtonAsc

      Type:
      string
      Default:
      ""

      Specifies caption for each descending sorted column in GroupBy Dialog.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							modalDialogCaptionButtonAsc: "Ascending"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").modalDialogCaptionButtonAsc;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { modalDialogCaptionButtonAsc: "Ascending" });

    • modalDialogCaptionButtonDesc

      Type:
      string
      Default:
      ""

      Specifies caption for each descending sorted column in GroupBy Dialog.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							modalDialogCaptionButtonDesc: "Descending"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").modalDialogCaptionButtonDesc;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { modalDialogCaptionButtonDesc: "Descending" });

    • modalDialogCaptionButtonUngroup

      Type:
      string
      Default:
      ""

      Specifies caption for ungroup button in GroupBy Dialog.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							modalDialogCaptionButtonUngroup: "Ascending"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").modalDialogCaptionButtonUngroup;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { modalDialogCaptionButtonUngroup: "Ascending" });

    • modalDialogCaptionText

      Type:
      string
      Default:
      ""

      Specifies caption text for the GroupBy Dialog.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							modalDialogCaptionText: "Dialog Caption"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").modalDialogCaptionText;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { modalDialogCaptionText: "Dialog Caption" });

    • modalDialogClearAllButtonLabel

      Type:
      string
      Default:
      ""

      Specifies label for "Clear all" button in the GroupBy Dialog.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							modalDialogClearAllButtonLabel: "Clear All"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").modalDialogClearAllButtonLabel;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { modalDialogClearAllButtonLabel: "Clear All" });

    • modalDialogDropDownButtonCaption

      Type:
      string
      Default:
      ""

      Specifies caption of layouts dropdown button in the GroupBy Dialog.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							modalDialogDropDownButtonCaption: "Clear All"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").modalDialogDropDownButtonCaption;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { modalDialogDropDownButtonCaption: "Clear All" });

    • modalDialogDropDownLabel

      Type:
      string
      Default:
      ""

      Specifies label for layouts dropdown in the GroupBy Dialog.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							modalDialogDropDownLabel: "Layouts"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").modalDialogDropDownLabel;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { modalDialogDropDownLabel: "Layouts" });

    • modalDialogGroupByButtonText

      Type:
      string
      Default:
      ""

      Specifies text for group button in GroupBy Dialog.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							modalDialogGroupByButtonText: "Ascending"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").modalDialogGroupByButtonText;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { modalDialogGroupByButtonText: "Ascending" });

    • modalDialogRootLevelHierarchicalGrid

      Type:
      string
      Default:
      ""

      Specifies name of the root layout which is shown for the layouts in the modal dialog tree.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							modalDialogRootLevelHierarchicalGrid: "Clear All"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").modalDialogRootLevelHierarchicalGrid;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { modalDialogRootLevelHierarchicalGrid: "Clear All" });

    • removeButtonTooltip

      Type:
      string
      Default:
      ""

      Specifies the remove group button tooltip.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							removeButtonTooltip: "Remove"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").removeButtonTooltip;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { removeButtonTooltip: "Remove" });

    • summaryIconTitle

      Type:
      string
      Default:
      ""

      Specifies the summary icon title.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							summaryIconTitle: "Summary for {0}: {1}"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").summaryIconTitle;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { summaryIconTitle: "Summary for {0}: {1}" });

    • summaryRowTitle

      Type:
      string
      Default:
      ""

      Specifies the summary row title.

      Code Sample


      				//Initialize
      				$(".selector").igGrid({
      					features: [{
      						name: "GroupBy",
      						locale: {
      							summaryRowTitle: "Grouping summary row"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igGridGroupBy("option", "locale").summaryRowTitle;

      				//	Set
      				$(".selector").igGridGroupBy("option", "locale", { summaryRowTitle: "Grouping summary row" });

  • modalDialogAnimationDuration

    Type:
    number
    Default:
    200

    Specifies time in milliseconds for animation duration to show/hide modal dialog.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							modalDialogAnimationDuration: 300
    						}
    					]
    				});

    				//	Get
    				var duration = $(".selector").igGridGroupBy("option", "modalDialogAnimationDuration");

    				//	Set
    				$(".selector").igGridGroupBy("option", "modalDialogAnimationDuration", 200);

  • modalDialogButtonApplyText
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies text of button which cancel changes in the GroupBy Dialog. Use option locale.modalDialogButtonApplyText.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							modalDialogButtonApplyText: "Apply"
    						}
    					]
    				});

    				//	Get
    				var text = $(".selector").igGridGroupBy("option", "modalDialogButtonApplyText");

    				//	Set
    				$(".selector").igGridGroupBy("option", "modalDialogButtonApplyText", "Apply");

  • modalDialogButtonCancelText
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies text of button which cancel changes in the GroupBy Dialog. Use option locale.modalDialogButtonCancelText.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							modalDialogButtonCancelText: "Cancel"
    						}
    					]
    				});

    				//	Get
    				var text = $(".selector").igGridGroupBy("option", "modalDialogButtonCancelText");

    				//	Set
    				$(".selector").igGridGroupBy("option", "modalDialogButtonCancelText", "Cancel");

  • modalDialogCaptionButtonAsc
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies caption for each ascending sorted column in GroupBy Dialog. Use option locale.modalDialogCaptionButtonAsc.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							modalDialogCaptionButtonAsc: "Acsending"
    						}
    					]
    				});

    				//	Get
    				var text = $(".selector").igGridGroupBy("option", "modalDialogCaptionButtonAsc");

    				//	Set
    				$(".selector").igGridGroupBy("option", "modalDialogCaptionButtonAsc", "Acsending");

  • modalDialogCaptionButtonDesc
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies caption for each descending sorted column in GroupBy Dialog. Use option locale.modalDialogCaptionButtonDesc.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							modalDialogCaptionButtonDesc: "Descending"
    						}
    					]
    				});

    				//	Get
    				var text = $(".selector").igGridGroupBy("option", "modalDialogCaptionButtonDesc");

    				//	Set
    				$(".selector").igGridGroupBy("option", "modalDialogCaptionButtonDesc", "Descending");

  • modalDialogCaptionButtonUngroup
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies caption button ungroup in GroupBy Dialog. Use option locale.modalDialogCaptionButtonUngroup.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							modalDialogCaptionButtonUngroup: "Ungroup"
    						}
    					]
    				});

    				//	Get
    				var text = $(".selector").igGridGroupBy("option", "modalDialogCaptionButtonUngroup");

    				//	Set
    				$(".selector").igGridGroupBy("option", "modalDialogCaptionButtonUngroup", "Ungroup");

  • modalDialogCaptionText
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies caption text for the GroupBy Dialog. Use option locale.modalDialogCaptionText.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							modalDialogCaptionText: "Modal Dialog"
    						}
    					]
    				});

    				//	Get
    				var text = $(".selector").igGridGroupBy("option", "modalDialogCaptionText");

    				//	Set
    				$(".selector").igGridGroupBy("option", "modalDialogCaptionText", "Modal Dialog");

  • modalDialogClearAllButtonLabel
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies label for "Clear all" button in the GroupBy Dialog. Use option locale.modalDialogClearAllButtonLabel.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							modalDialogClearAllButtonLabel: "Clear All"
    						}
    					]
    				});

    				//	Get
    				var text = $(".selector").igGridGroupBy("option", "modalDialogClearAllButtonLabel");

    				//	Set
    				$(".selector").igGridGroupBy("option", "modalDialogClearAllButtonLabel", "Clear All");

  • modalDialogDropDownAreaWidth

    Type:
    number
    Default:
    null

    Specifies width of layouts dropdown in the GroupBy Dialog.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							modalDialogDropDownAreaWidth: 300
    						}
    					]
    				});

    				//	Get
    				var width = $(".selector").igGridGroupBy("option", "modalDialogDropDownAreaWidth");

    				//	Set
    				$(".selector").igGridGroupBy("option", "modalDialogDropDownAreaWidth", 300);

  • modalDialogDropDownButtonCaption
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies caption of layouts dropdown button in the GroupBy Dialog. Use option locale.modalDialogDropDownButtonCaption.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							modalDialogDropDownButtonCaption: "Layouts"
    						}
    					]
    				});

    				//	Get
    				var text = $(".selector").igGridGroupBy("option", "modalDialogDropDownButtonCaption");

    				//	Set
    				$(".selector").igGridGroupBy("option", "modalDialogDropDownButtonCaption", "Layouts");

  • modalDialogDropDownLabel
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies label for layouts dropdown in the GroupBy Dialog. Use option locale.modalDialogDropDownLabel.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							modalDialogDropDownLabel: "Layouts"
    						}
    					]
    				});

    				//	Get
    				var text = $(".selector").igGridGroupBy("option", "modalDialogDropDownLabel");

    				//	Set
    				$(".selector").igGridGroupBy("option", "modalDialogDropDownLabel", "Layouts");

  • modalDialogDropDownWidth

    Type:
    number
    Default:
    200

    Specifies width of layouts dropdown in the GroupBy Dialog.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							modalDialogDropDownWidth: 300
    						}
    					]
    				});

    				//	Get
    				var width = $(".selector").igGridGroupBy("option", "modalDialogDropDownWidth");

    				//	Set
    				$(".selector").igGridGroupBy("option", "modalDialogDropDownWidth", 300);

  • modalDialogGroupByButtonText
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies the text of GroupBy button in the GroupBy Dialog. Use option locale.modalDialogGroupByButtonText.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							modalDialogGroupByButtonText: "Group"
    						}
    					]
    				});

    				//	Get
    				var text = $(".selector").igGridGroupBy("option", "modalDialogGroupByButtonText");

    				//	Set
    				$(".selector").igGridGroupBy("option", "modalDialogGroupByButtonText", "Group");

  • modalDialogGroupByOnClick

    Type:
    bool
    Default:
    false

    Enables/disables immediate column grouping/ungrouping. When false operation is delayed until after "Apply" button is clicked by the user.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							modalDialogGroupByOnClick: true
    						}
    					]
    				});

    				//	Get
    				var onClick = $(".selector").igGridGroupBy("option", "modalDialogGroupByOnClick");

    				//	Set
    				$(".selector").igGridGroupBy("option", "modalDialogGroupByOnClick", true);

  • modalDialogHeight

    Type:
    enumeration
    Default:
    ""

    Specifies height of the GroupBy Dialog.

    Members

    • string
    • Type:string
    • The dialog height can be set in pixels (px) or percentage (%). Example values: "800px", "800" (defaults to pixels), "100%".
    • number
    • Type:number
    • The dialog height can be set in pixels as a number. Example values: 800, 700.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							modalDialogHeight: 500
    						}
    					]
    				});
    				//	Get
    				var height = $(".selector").igGridGroupBy("option", "modalDialogHeight");
    				//	Set
    				$(".selector").igGridGroupBy("option", "modalDialogHeight", 500);

  • modalDialogRootLevelHierarchicalGrid
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies caption of layouts dropdown button in the GroupBy Dialog. Use option locale.modalDialogRootLevelHierarchicalGrid.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							modalDialogRootLevelHierarchicalGrid: "Root Layout"
    						}
    					]
    				});

    				//	Get
    				var rootLabel = $(".selector").igGridGroupBy("option", "modalDialogRootLevelHierarchicalGrid");

    				//	Set
    				$(".selector").igGridGroupBy("option", "modalDialogRootLevelHierarchicalGrid", "Root Layout");

  • modalDialogWidth

    Type:
    enumeration
    Default:
    400

    Specifies width of the GroupBy Dialog.

    Members

    • string
    • Type:string
    • The dialog width can be set in pixels (px) or percentage (%). Example values: "800px", "800" (defaults to pixels), "100%".
    • number
    • Type:number
    • The dialog width can be set in pixels as a number. Example values: 800, 700.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							modalDialogWidth: 300
    						}
    					]
    				});
    				//	Get
    				var width = $(".selector").igGridGroupBy("option", "modalDialogWidth");
    				//	Set
    				$(".selector").igGridGroupBy("option", "modalDialogWidth", 300);

  • pagingMode

    Type:
    enumeration
    Default:
    allRecords

    Specifies when paging is applied and there is at least one grouped column which records should be included in page processing.

    Members

    • allRecords
    • Type:string
    • All records are included in page processing - data records and group-by metadata records.
    • dataRecordsOnly
    • Type:string
    • Only data records are included in page processing(metadata group-by records are ignored).

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							pagingMode: "dataRecordsOnly"
    						}
    					]
    				});
    				//	Get
    				var opValue = $(".selector").igGridGroupBy("option", "pagingMode");

  • persist

    Type:
    bool
    Default:
    true

    Enables / disables GroupBy persistence between states. Checkout the GroupBy Persistence topic for details.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "GroupBy",
    							persist : false
    						}
    					]
    				});

    				//Get
    				var persist = $(".selector").igGridGroupBy("option", "persist");

    				//Set
    				$(".selector").igGridGroupBy("option", "persist", false);

  • regional
    Inherited

    Type:
    enumeration
    Default:
    en-US

    Set/Get the regional setting for the widget.

    Code Sample


    				//Initialize
    				$(".selector").igGridGroupBy({
    					regional: "ja"
    				});
    				// Get
    				var regional = $(".selector").igGridGroupBy("option", "regional");
    				// Set
    				$(".selector").igGridGroupBy("option", "regional", "ja");

  • removeButtonTooltip
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies the tooltip for the remove button. Use option locale.removeButtonTooltip.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							removeButtonTooltip: "Do not group by this column"
    						}
    					]
    				});

    				//	Get
    				var opValue = $(".selector").igGridGroupBy("option", "removeButtonTooltip");

    				//	Set
    				$(".selector").igGridGroupBy("option", "removeButtonTooltip", "Do not group by this column");

  • resultResponseKey

    Type:
    string
    Default:
    null

    Specifies a key to get group by data from the remote response.

    Code Sample


    				//	Get
    				var opValue = $(".selector").igGridGroupBy("option", "resultResponseKey");

    				//	Set
    				$(".selector").igGridGroupBy("option", "resultResponseKey", "Cost");

  • summarySettings

    Type:
    object
    Default:
    {}

    Specifies the settings for GroupBy summaries.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    			summarySettings: {
    							multiSummaryDelimiter: " | ",
    							summaryFormat: "#0.00"
    						}
    					}]
    				});

    				//	Get
    				var opValue = $(".selector").igGridGroupBy("option", "summarySettings");

    				//	Set
    				$(".selector").igGridGroupBy("option", "summarySettings", {
    					multiSummaryDelimiter: " | ",
    					summaryFormat: "#0.00"
    				});

    • multiSummaryDelimiter

      Type:
      string
      Default:
      ","

      Specifies the delimiter for multiple summaries.

      Code Sample


      					//Initialize
      					$(".selector").igGrid({
      						features: [{
      							name: "GroupBy",
      							summarySettings: {
      								multiSummaryDelimiter: " | "
      							}
      						}]
      					});

      					//	Get
      					var summarySettings = $(".selector").igGridGroupBy("option", "summarySettings");
      					//	Get the value of multiSummaryDelimiter
      					summarySettings.multiSummaryDelimiter

      					//	Set
      					//	Get current summary settings and set a new value to multiSummaryDelimiter
      					var summarySettings = $(".selector").igGridGroupBy("option", "summarySettings");
      					summarySettings.multiSummaryDelimiter = " | ";
      					//	Set the new value to the widget
      					$(".selector").igGridGroupBy("option", "summarySettings", summarySettings);

    • summaryFormat

      Type:
      string
      Default:
      "#.00"

      Format of the summary value. By default, two digits are shown after the decimal place. Checkout Formatting Dates, Numbers and Strings for details on the valid formatting specifiers.

      Code Sample


      					//Initialize
      					$(".selector").igGrid({
      						features: [{
      							name: "GroupBy",
      							summarySettings: {
      								summaryFormat: "#0.00"
      							}
      						}]

      						//	Get
      						var summarySettings = $(".selector").igGridGroupBy("option", "summarySettings");
      						//	Get the value of summaryFormat
      						summarySettings.summaryFormat

      						//	Set
      						//	Get current summary settings and set a new value to summaryFormat
      						var summarySettings = $(".selector").igGridGroupBy("option", "summarySettings");
      						summarySettings.summaryFormat = "#0.00";
      						//	Set the new value to the widget
      						$(".selector").igGridGroupBy("option", "summarySettings", summarySettings);
      					});

  • type

    Type:
    enumeration
    Default:
    null

    Specifies whether the GroupBy operation takes place locally on client-side or remotely on server-side.

    Members

    • local
    • Type:string
    • Execute the GroupBy operation locally on client-side.
    • remote
    • Type:string
    • Execute the GroupBy operation by a request to the server.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							type: "local"
    						}
    					]
    				});
    				//	Get
    				var opValue = $(".selector").igGridGroupBy("option", "type");
    				//	Set
    				$(".selector").igGridGroupBy("option", "type", "local");

  • useGridColumnFormatter

    Type:
    bool
    Default:
    true

    Format grouped column using the formatter set in igGrid.columns.formatter or igGrid.columns.format.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "GroupBy",
    							useGridColumnFormatter: false
    						}
    					]
    				});

    				//	Get
    				var useGridColumnFormatter = $(".selector").igGridGroupBy("option", "useGridColumnFormatter");

    				//	Set
    				$(".selector").igGridGroupBy("option", "useGridColumnFormatter", false);


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • groupedColumnsChanged

    Cancellable:
    false

    Event which is fired when the groupedColumns collection has changed. This event is fired also when group/ungroup from GroupBy modal dialog but key, layout and grid are not set.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets access the GroupBy widget object.

        • owner.grid
          Type: Object

          Gets access the grid widget option.

        • groupedColumns
          Type: Array

          Gets a reference to the current groupedColumns.

        • key
          Type: String

          Gets a reference to the current column's key that's being grouped(not set if called from modal dialog).

        • layout
          Type: Object

          Gets a reference to the current layout object, if any(not set if called from modal dialog).

        • grid
          Type: Object

          Gets a reference to the current child grid element, in case it's an hierarchical grid(not set if called from modal dialog).

        • triggeredBy
          Type: String

          Gets which user interaction triggers the event - possible options are dragAndDrop|modalDialog|sortStateChanged|removeButton|regroup.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridgroupbygroupedcolumnschanged", function (evt, ui) {
    					//return browser event
    					evt.originalEvent;

    					//	Get a reference to the igGridGroupBy widget that fired the event
    					ui.owner;

    					//	Get a reference to the igGrid widget to which the igGridGroupBy is bound
    					ui.owner.grid;

    					//	Get a reference to the list of currently grouped columns
    					ui.groupedColumns;

    					//	Get a reference to the current grouped column"s key
    					ui.key;

    					//	Get a reference to the current layout object, if any
    					ui.layout;

    					//	Get a reference to the current child grid element, in case it"s a hierarchical grid
    					ui.grid;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						groupedColumnsChanged: function (evt, ui) { ... }
    					}]
    				});

  • groupedColumnsChanging

    Cancellable:
    true

    Event which is fired when the grouped columns collection is about to change. This event is fired even when button OK is clicked from the modal dialog(after event modalDialogButtonApplyClick is fired).

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets access the GroupBy widget object.

        • owner.grid
          Type: Object

          Gets access the grid widget option.

        • groupedColumns
          Type: Array

          Gets a reference to the current groupedColumns.

        • newGroupedColumns
          Type: Object

          Gets the object of the new grouped columns that should be applied.(it is set ONLY if called from modal dialog).

        • key
          Type: String

          Gets a reference to the current column's key that's being grouped(not set if called from modal dialog).

        • layout
          Type: Object

          Gets a reference to the current layout object, if any(not set if called from modal dialog).

        • grid
          Type: Object

          Gets a reference to the current child grid element, in case it's an hierarchical grid(not set if called from modal dialog).

        • triggeredBy
          Type: String

          Gets which user interaction triggers the event - possible options are dragAndDrop|modalDialog|sortStateChanged|removeButton|regroup.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridgroupbygroupedcolumnschanging", function (evt, ui) {
    					//return browser event
    					evt.originalEvent;

    					//	Get a reference to the igGridGroupBy widget that fired the event
    					ui.owner;

    					//	Get a reference to the igGrid widget to which the igGridGroupBy is bound
    					ui.owner.grid;

    					//	Get a reference to the list of currently grouped columns
    					ui.groupedColumns;

    					//	Get a reference to the current grouped column"s key
    					ui.key;

    					//	Get a reference to the current layout object, if any
    					ui.layout;

    					//	Get a reference to the current child grid element, in case it"s a hierarchical grid
    					ui.grid;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						groupedColumnsChanging: function (evt, ui) { ... }
    					}]
    				});

  • modalDialogButtonApplyClick

    Cancellable:
    true

    Event fired when the button is Apply is clicked.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets access the GroupBy widget object.

        • owner.grid
          Type: Object

          Gets access the grid widget option.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

        • groupedColumns
          Type: Array

          Gets the array of grouped columns.

        • groupedColumnLayouts
          Type: Array

          Gets the array of column layouts.

        • sortingExpr
          Type: Array

          Gets the array of sorted columns.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridgroupbymodaldialogbuttonapplyclick", function (evt, ui) {
    					//return browser event
    					evt.originalEvent;

    					//	Get a reference to the igGridGroupBy widget that fired the event.
    					ui.owner;

    					//	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
    					ui.owner.grid;

    					//	Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;

    					//	Get a reference to the list of currently grouped columns.
    					ui.groupedColumns;

    					//	Get a reference to the list of currently grouped layouts.
    					ui.groupedColumnLayouts;

    					//	Get a reference to the array of currently sorted columns.
    					ui.sortingExpr;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						modalDialogButtonApplyClick: function (evt, ui) { ... }
    					}]
    				});

  • modalDialogButtonResetClick

    Cancellable:
    true

    Event fired when reset button is clicked.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets access the GroupBy widget object.

        • owner.grid
          Type: Object

          Gets access the grid widget option.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridgroupbymodaldialogbuttonresetclick", function (evt, ui) {
    					//return browser event
    					evt.originalEvent;

    					//	Get a reference to the igGridGroupBy widget that fired the event.
    					ui.owner;

    					//	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
    					ui.owner.grid;

    					//	Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						modalDialogButtonResetClick: function (evt, ui) { ... }
    					}]
    				});

  • modalDialogClosed

    Cancellable:
    false

    Event fired after the modal dialog has been closed.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets access the GroupBy widget object.

        • owner.grid
          Type: Object

          Gets access the grid widget option.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridgroupbymodaldialogclosed", function (evt, ui) {
    					//return browser event
    					evt.originalEvent;

    					//	Get a reference to the igGridGroupBy widget that fired the event.
    					ui.owner;

    					//	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
    					ui.owner.grid;

    					//	Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						modalDialogClosed: function (evt, ui) { ... }
    					}]
    				});

  • modalDialogClosing

    Cancellable:
    true

    Event fired before the modal dialog is closed.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets access the GroupBy widget object.

        • owner.grid
          Type: Object

          Gets access the grid widget option.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridgroupbymodaldialogclosing", function (evt, ui) {
    					//return browser event
    					evt.originalEvent;

    					//	Get a reference to the igGridGroupBy widget that fired the event.
    					ui.owner;

    					//	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
    					ui.owner.grid;

    					//	Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						modalDialogClosing: function (evt, ui) { ... }
    					}]
    				});

  • modalDialogContentsRendered

    Cancellable:
    false

    Event fired after the contents of the modal dialog are rendered.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets access the GroupBy widget object.

        • owner.grid
          Type: Object

          Gets access the grid widget option.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridgroupbymodaldialogcontentsrendered", function (evt, ui) {
    					//return browser event
    					evt.originalEvent;

    					//	Get a reference to the igGridGroupBy widget that fired the event.
    					ui.owner;

    					//	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
    					ui.owner.grid;

    					//	Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						modalDialogContentsRendered: function (evt, ui) { ... }
    					}]
    				});

  • modalDialogContentsRendering

    Cancellable:
    true

    Event fired before the contents of the modal dialog are rendered.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets access the GroupBy widget object.

        • owner.grid
          Type: Object

          Gets access the grid widget option.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridgroupbymodaldialogcontentsrendering", function (evt, ui) {
    					//return browser event
    					evt.originalEvent;

    					//	Get a reference to the igGridGroupBy widget that fired the event.
    					ui.owner;

    					//	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
    					ui.owner.grid;

    					//	Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						modalDialogContentsRendering: function (evt, ui) { ... }
    					}]
    				});

  • modalDialogGroupColumn

    Cancellable:
    false

    Event fired when column in modal dialog is clicked to be grouped.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets access the GroupBy widget object.

        • owner.grid
          Type: Object

          Gets access the grid widget option.

        • key
          Type: String

          The key of the column to be grouped.

        • groupedColumns
          Type: Array

          Gets a reference to the current groupedColumns.

        • layout
          Type: Object

          Gets a reference to the current layout object, if any.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridgroupbymodaldialoggroupcolumn", function (evt, ui) {
    					//return browser event
    					evt.originalEvent;

    					//	Get a reference to the igGridGroupBy widget that fired the event.
    					ui.owner;

    					//	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
    					ui.owner.grid;

    					//	Get the key of the column to be grouped.
    					ui.key;

    					//	Get a reference to the list of currently grouped columns.
    					ui.groupedColumns;

    					//	Get a reference to the current layout object, if any.
    					ui.layout;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						modalDialogGroupColumn: function (evt, ui) { ... }
    					}]
    				});

  • modalDialogGroupingColumn

    Cancellable:
    true

    Event fired when column in modal dialog is clicked to be grouped.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets access the GroupBy widget object.

        • owner.grid
          Type: Object

          Gets access the grid widget option.

        • key
          Type: String

          The key of the column to be grouped.

        • layout
          Type: Object

          Gets a reference to the current layout object, if any.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridgroupbymodaldialoggroupingcolumn", function (evt, ui) {
    					//return browser event
    					evt.originalEvent;

    					//	Get a reference to the igGridGroupBy widget that fired the event.
    					ui.owner;

    					//	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
    					ui.owner.grid;

    					//	Get the key of the column to be grouped.
    					ui.key;

    					//	Get a reference to the current layout object, if any.
    					ui.layout;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						modalDialogGroupingColumn: function (evt, ui) { ... }
    					}]
    				});

  • modalDialogMoving

    Cancellable:
    false

    Event fired every time the GroupBy Dialog changes its position.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets access the GroupBy widget object.

        • owner.grid
          Type: Object

          Gets access the grid widget option.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

        • originalPosition
          Type: Object

          Gets the original position of the GroupBy Dialog div as { top, left } object, relative to the page.

        • position
          Type: Object

          Gets the current position of the GroupBy Dialog div as { top, left } object, relative to the page.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridgroupbymodaldialogmoving", function (evt, ui) {
    					//return browser event
    					evt.originalEvent;

    					//	Get a reference to the igGridGroupBy widget that fired the event.
    					ui.owner;

    					//	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
    					ui.owner.grid;

    					//	Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;

    					//	Get the original position of the GroupBy Dialog div as { top, left } object, relative to the page.
    					ui.originalPosition;

    					//	Get the current position of the GroupBy Dialog div as { top, left } object, relative to the page.
    					ui.position;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						modalDialogMoving: function (evt, ui) { ... }
    					}]
    				});

  • modalDialogOpened

    Cancellable:
    false

    Event fired after the modal dialog is already opened.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets access the GroupBy widget object.

        • owner.grid
          Type: Object

          Gets access the grid widget option.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridgroupbymodaldialogopened", function (evt, ui) {
    					//return browser event
    					evt.originalEvent;

    					//	Get a reference to the igGridGroupBy widget that fired the event.
    					ui.owner;

    					//	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
    					ui.owner.grid;

    					//	Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						modalDialogOpened: function (evt, ui) { ... }
    					}]
    				});

  • modalDialogOpening

    Cancellable:
    true

    Event fired before the modal dialog is opened.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets access the GroupBy widget object.

        • owner.grid
          Type: Object

          Gets access the grid widget option.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridgroupbymodaldialogopening", function (evt, ui) {
    					//return browser event
    					evt.originalEvent;

    					//	Get a reference to the igGridGroupBy widget that fired the event.
    					ui.owner;

    					//	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
    					ui.owner.grid;

    					//	Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						modalDialogOpening: function (evt, ui) { ... }
    					}]
    				});

  • modalDialogSortGroupedColumn

    Cancellable:
    true

    Event fired when column in modal dialog is sorted.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets access the GroupBy widget object.

        • owner.grid
          Type: Object

          Gets access the grid widget option.

        • key
          Type: String

          Gets the key of the column to be grouped.

        • layout
          Type: Object

          Get a reference to the current layout object, if any.

        • isAsc
          Type: Bool

          Gets whether column should be sorted ascending or descending.

    Code Sample


    				 //Bind after initialization
    				$(document).delegate(".selector", "iggridgroupbymodaldialogsortgroupedcolumn", function (evt, ui) {
    					//return browser event
    					evt.originalEvent;

    					//	Get a reference to the igGridGroupBy widget that fired the event.
    					ui.owner;

    					//	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
    					ui.owner.grid;

    					//	Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;

    					//	Get the key of the column to be grouped.
    					ui.key;

    					//	Get a reference to the current layout object, if any.
    					ui.layout;

    					// Get whether column should be sorted ascending or descending.
    					ui.isAsc;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						modalDialogSortGroupedColumn: function (evt, ui) { ... }
    					}]
    				});

  • modalDialogUngroupColumn

    Cancellable:
    false

    Event fired when column in modal dialog is clicked to be ungrouped.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets access the GroupBy widget object.

        • owner.grid
          Type: Object

          Gets access the grid widget option.

        • groupedColumns
          Type: Array

          Gets a reference to the current groupedColumns.

        • key
          Type: String

          Gets the key of the column to be grouped.

        • layout
          Type: Object

          Get a reference to the current layout object, if any.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridgroupbymodaldialogungroupcolumn", function (evt, ui) {
    					//return browser event
    					evt.originalEvent;

    					//	Get a reference to the igGridGroupBy widget that fired the event.
    					ui.owner;

    					//	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
    					ui.owner.grid;

    					//	Get the key of the column to be grouped.
    					ui.key;

    					//	Get a reference to the list of currently grouped columns.
    					ui.groupedColumns;

    					//	Get a reference to the current layout object, if any.
    					ui.layout;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						modalDialogUngroupColumn: function (evt, ui) { ... }
    					}]
    				});

  • modalDialogUngroupingColumn

    Cancellable:
    true

    Event fired when column in modal dialog is clicked to be ungrouped.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets access the GroupBy widget object.

        • owner.grid
          Type: Object

          Gets access the grid widget option.

        • key
          Type: String

          The key of the column to be grouped.

        • layout
          Type: String

          Get a reference to the current layout object, if any.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "iggridgroupbymodaldialogungroupingcolumn", function (evt, ui) {
    					//return browser event
    					evt.originalEvent;

    					//	Get a reference to the igGridGroupBy widget that fired the event.
    					ui.owner;

    					//	Get a reference to the igGrid widget to which the igGridGroupBy is bound.
    					ui.owner.grid;

    					//	Get the key of the column to be grouped.
    					ui.key;

    					//	Get a reference to the current layout object, if any.
    					ui.layout;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [{
    						name: "GroupBy",
    						modalDialogUngroupingColumn: function (evt, ui) { ... }
    					}]
    				});

  • changeLocale

    .igGridGroupBy( "changeLocale" );

    Changes the all locales into the widget element to the language specified in options.language
    Note that this method is for rare scenarios, see language or locale option setter.

    Code Sample


    				$(".selector").igGridGroupBy("changeLocale");

  • changeRegional

    .igGridGroupBy( "changeRegional" );

    Changes the the regional settings of widget element to the language specified in options.regional
    Note that this method is for rare scenarios, use regional option setter.

    Code Sample


    				$(".selector").igGridGroupBy("changeRegional");

  • checkColumnIsGrouped

    .igGridGroupBy( "checkColumnIsGrouped", key:string, layout:string );

    Check whether column with specified key and layout is grouped.

    • key
    • Type:string
    • key of the column.
    • layout
    • Type:string
    • layout name.

    Code Sample


    				$(".selector").igGridGroupBy("checkColumnIsGrouped", "ProductID", "Product");

  • closeDropDown

    .igGridGroupBy( "closeDropDown" );

    Close layouts dropdown.

    Code Sample


    				$(".selector").igGridGroupBy("closeDropDown");

  • closeGroupByDialog

    .igGridGroupBy( "closeGroupByDialog" );

    Close groupby modal dialog.

    Code Sample


    				$(".selector").igGridGroupBy("closeGroupByDialog");

  • collapse

    .igGridGroupBy( "collapse", rowId:string );

    Expand group row with specified id.

    • rowId
    • Type:string
    • data-id attribute of the group row in the DOM.

    Code Sample


    				var groupRows = $(".selector").find("tr[data-grouprow]");
    				groupRows.each(function() {
    					$(".selector").igGridGroupBy("collapse", $(this).attr("data-id"));
    				});

  • destroy

    .igGridGroupBy( "destroy" );

    Destroys the group by feature object.

    Code Sample


    				$(".selector").igGridGroupBy("destroy");

  • expand

    .igGridGroupBy( "expand", rowId:string );

    Expand group row with specified id.

    • rowId
    • Type:string
    • data-id attribute of the group row in the DOM.

    Code Sample


    				var groupRows = $(".selector").find("tr[data-grouprow]");
    				groupRows.each(function() {
    					$(".selector").igGridGroupBy("expand", $(this).attr("data-id"));
    				});

  • getGroupedData

    .igGridGroupBy( "getGroupedData", data:array, colKey:string, [idval:string] );
    Return Type:
    array
    Return Type Description:
    returns array of data records grouped by the column's value.

    Get grouped data by value for the specific column. NOTE: Before calling this function the data(that is passed as an argument) should be sorted by colKey.

    • data
    • Type:array
    • data (sorted by colKey) that is used to get the records from.
    • colKey
    • Type:string
    • key of the column for which grouping will be applied.
    • idval
    • Type:string
    • Optional
    • value of the column by which grouping will be applied.

    Code Sample


    				// Sort the data in the grid's data source
    				var ds = $(".selector").data("igGrid").dataSource, records;
    				ds.sort([{fieldName: "MakeFlag"}], "asc");

    				// Get all the records that have MakeFlag=true
    				records = $(".selector").igGridGroupBy("getGroupedData", ds.dataView(), "MakeFlag", true);

  • groupByColumn

    .igGridGroupBy( "groupByColumn", key:string, [layout:string], [sortingDirection:object] );

    Groups by a column.

    • key
    • Type:string
    • Column Key - group by the column with the specified key.
    • layout
    • Type:string
    • Optional
    • layout is an optional parameter. if set it means the grouped column is not in the root level but is a child layout column.
    • sortingDirection
    • Type:object
    • Optional
    • if not set it is taken from option defaultSortingDirection.

    Code Sample


    				$(".selector").igGridGroupBy("groupByColumn", "columnKey", "layout");

  • groupByColumns

    .igGridGroupBy( "groupByColumns" );
    Return Type:
    object
    Return Type Description:
    returns the currently grouped columns collection.

    Adds a column to the group by columns list, executes the group by operation and updates the view.

    Code Sample


    				var groupedColumns = $(".selector").igGridGroupBy("groupByColumns");

  • openDropDown

    .igGridGroupBy( "openDropDown" );

    Open layouts dropdown.

    Code Sample


    				$(".selector").igGridGroupBy("openDropDown");

  • openGroupByDialog

    .igGridGroupBy( "openGroupByDialog" );

    Open groupby modal dialog.

    Code Sample


    				$(".selector").igGridGroupBy("openGroupByDialog");

  • renderGroupByModalDialog

    .igGridGroupBy( "renderGroupByModalDialog" );

    Render groupby modal dialog and its content.

    Code Sample


    				$(".selector").igGridGroupBy("renderGroupByModalDialog");

  • ungroupAll

    .igGridGroupBy( "ungroupAll" );

    Clears the group by columns list and updates the view.

    Code Sample


    				$(".selector").igGridGroupBy("ungroupAll");

  • ungroupByColumn

    .igGridGroupBy( "ungroupByColumn", key:string, [layout:string] );

    Removes the specified column from the group by columns list, executes the group by operation and updates the view.

    • key
    • Type:string
    • Column Key - ungroup by the column with the specified key.
    • layout
    • Type:string
    • Optional
    • Layout is an optional parameter. If set it means the grouped column is not in the root level but is a child layout column.

    Code Sample


    				$(".selector").igGridGroupBy("ungroupByColumn", "columnKey", "layout");

  • ui-button ui-corner-all ui-button-icon-only ig-sorting-indicator

    Classes which are applied to indicator for ascending sorted columns in the GroupBy Dialog.
  • ui-button-icon-primary ui-icon ui-icon-arrowthick-1-n

    Classes which are applied to icon indicator for ascending sorted columns in the GroupBy Dialog.
  • ui-button ui-corner-all ui-button-icon-only ig-sorting-indicator

    Classes which are applied to indicator for descending sorted columns in the GroupBy Dialog.
  • ui-button-icon-primary ui-icon ui-icon-arrowthick-1-s

    Classes which are applied to icon indicator for descending sorted columns in the GroupBy Dialog.
  • ui-state-hover

    Classes which are applied to hover state of buttons.
  • ui-iggrid-dialog-groupedbuttons ui-button ui-widget ui-state-default ui-corner-all ui-button-icon-only ui-igbutton ui-widget-content ui-igbutton-remove

    Classes which are applied to button which ungroup columns in the GroupBy Dialog.
  • ui-button-icon-primary ui-icon ui-icon-circle-close

    Classes which are applied to container which holds all columns(NOT grouped) in the GroupBy Dialog.
  • ui-iggrid-groupby-dialog-groupedcolumns

    Classes which are applied to container of grouped columns the GroupBy Dialog.
  • ui-iggrid-dialog-text

    Classes which are applied to column name container for each grouped column in the GroupBy Dialog.
  • ui-widget-content

    Classes which are applied to each of grouped columns in the GroupBy Dialog.
  • ui-iggrid-dialog-layouts-dd ui-widget-content ui-corner-all ig-combo-icon-container

    Classes which are applied to the container which holds layouts dropdown in the GroupBy Dialog.
  • ui-icon ui-icon-triangle-1-s ui-iggrid-dialog-layouts-dd-button

    Classes which are applied to the layers dropdown button in the GroupBy Dialog.
  • ui-iggrid-dialog-layouts-dd-field

    Classes which are applied to the layouts dropdown field in the GroupBy Dialog.
  • ui-iggrid-dialog-list-groupedcolumns

    Classes which are applied to the list of grouped columns in the GroupBy Dialog.
  • ui-iggrid-dialog-list-ungroupedcolumns

    Classes which are applied to the list of columns(NOT grouped) in the GroupBy Dialog.
  • ui-iggrid-dialog-groupby-button

    Classes which are applied to GroupBy button of columns(NOT grouped) in the GroupBy Dialog.
  • ui-iggrid-dialog-text

    Classes which are applied to each column name container of columns(NOT grouped) in the GroupBy Dialog.
  • ui-widget-content

    Classes which are applied to each of columns(NOT grouped) in the GroupBy Dialog.
  • ui-iggrid-groupby-dialog-ungroupedcolumns

    Classes which are applied to container of columns which are not grouped the GroupBy Dialog.
  • ui-iggrid-dragmarkup

    Classes applied to the markup that's being dragged.
  • ui-iggrid-featurechooser-dropdown-dialog ui-widget ui-widget-content ui-corner-all

    Classes which are applied to the container which holds layouts tree in the GroupBy Dialog.
  • ui-iggrid-header ui-widget-header

    Classes applied to the special group by cell rendered in the header (the small empty first cell).
  • ui-icon ui-iggrid-icon-groupby

    Classes which are applied to the feature chooser GroupBy item.
  • ui-widget-content ui-iggrid-footerextracell

    Classes which are applied to the extra rendered cell in the footer.
  • ui-iggrid-groupbyarea

    Classes applied to the group by area, where column headers can be dropped.
  • ui-iggrid-groupbyareahover

    Class applied when we are dragging a label and we are over a GroupBy area, before it's dropped.
  • ui-iggrid-groupbyareatext

    Classes applied to the text container in the group by area.
  • ui-icon ui-iggrid-expandbutton ui-icon-plus

    Classes applied to the group by expander span element, when the group row is collapsed.
  • ui-icon ui-iggrid-expandbutton ui-iggrid-expandbuttonexpanded ui-icon-minus

    Classes applied to the group by expander span element, when the group row is expanded.
  • ui-iggrid-expandcolumn

    Classes applied to the groupBy expander TD cell.
  • ui-iggrid-last-emptycell

    Classes which are added to the last empty cell before expander cell.
  • ui-icon ui-icon-circle-close ui-iggrid-groupbyremovebutton

    Classses applied to the remove button that appears for every column label that's dropped in the groupBy area. The button appears on hover.
  • ui-iggrid-summarycolumn

    Classes applied to the groupBy summary TD cell.
  • ui-iggrid-summaryemptycellcolumn

    Classes applied to the groupBy summary empty TD cell.
  • ui-icon ui-icon-calculator ui-iggrid-groupsummary-icon

  • ui-iggrid-summaryiconcolumn

    Classes applied to the groupBy summary icon TD cell.
  • ui-iggrid-groupedcolumnlabel ui-state-default

    Classes applied to the LI which is rendered in the GroupBy area, when a column header is dropped there.
  • ui-iggrid-groupbylabelrightedge

    Classes applied to the right edge of a groupBy column label, when it's in the middle of the bread-crumb.
  • ui-iggrid-groupbylabelrightedgeend

    Classes applied to the right edge of the groupBy area bread-crumb labels, when there are no more labels to the right. so that it appears as triangle.
  • ui-iggrid-groupedcolumnlabeltext

    Classes applied to the text in the group by label.
  • ui-iggrid-groupbylayoutlabel

    Classes apppled to the text container, which specifies the columnLayout name in front of the groupBy column label, in case the grid is hierarchical.
  • ui-iggrid-groupedrow

    Classes applied to every group row TR.
  • ui-iggrid-expandheadercellgb

    Classes which are applied to the extra rendered cell in the header.
  • ui-iggrid-groupby-dialog-layoutscontainer

    Classes which are applied to the layouts container in the GroupBy Dialog.
  • ui-iggrid-groupby-dialog-tree

    Classes which are applied to the container of layout tree in GroupBy Dialog.
  • ui-iggrid-nongrouprowemptycell

    Classes applied to every cell that's rendered in front of a data cell, which is not a grouped row. this is necessary so that data rows and grouped rows align well.
  • ui-iggrid-summaryrow

    Classes applied to every summary row TR.

Copyright © 1996 - 2019 Infragistics, Inc. All rights reserved.
