ui.igGridSelection

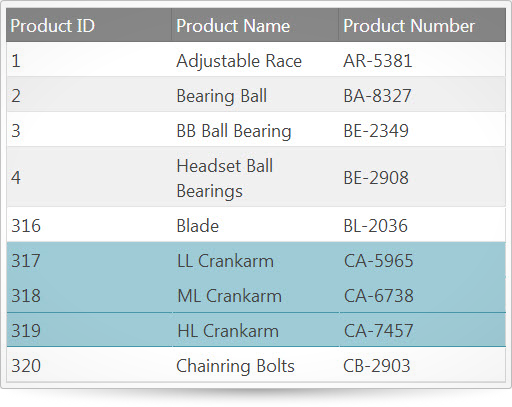

ui.igGridSelection_image

Both the igGrid and igHierarchicalGrid controls feature cell selection. Available modes include single or multiple cell selection on the grid. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igGrid control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


        <!doctype html>
        <html>
        <head>
            <!-- Infragistics Combined CSS -->
            <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
            <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
            <!-- jQuery Core -->
            <script src="js/jquery.js" type="text/javascript"></script>
            <!-- jQuery UI -->
            <script src="js/jquery-ui.js" type="text/javascript"></script>
            <!-- Infragistics Combined Scripts -->
            <script src="js/infragistics.core.js" type="text/javascript"></script>
                  <script src="js/infragistics.lob.js" type="text/javascript"></script>
            <script type="text/javascript">
                var products = [
                    { "ProductID": 1, "Name": "Adjustable Race", "ProductNumber": "AR-5381" },
                    { "ProductID": 2, "Name": "Bearing Ball", "ProductNumber": "BA-8327" },
                    { "ProductID": 3, "Name": "BB Ball Bearing", "ProductNumber": "BE-2349" },
                    { "ProductID": 4, "Name": "Headset Ball Bearings", "ProductNumber": "BE-2908" },
                    { "ProductID": 316, "Name": "Blade", "ProductNumber": "BL-2036" },
                    { "ProductID": 317, "Name": "LL Crankarm", "ProductNumber": "CA-5965" },
                    { "ProductID": 318, "Name": "ML Crankarm", "ProductNumber": "CA-6738" },
                    { "ProductID": 319, "Name": "HL Crankarm", "ProductNumber": "CA-7457" },
                    { "ProductID": 320, "Name": "Chainring Bolts", "ProductNumber": "CB-2903" }
                ];

                $(function () {
                    $("#gridSelection").igGrid({
                        columns: [
                            { headerText: "Product ID", key: "ProductID", dataType: "number" },
                            { headerText: "Product Name", key: "Name", dataType: "string" },
                            { headerText: "Product Number", key: "ProductNumber", dataType: "string" }
                        ],
                        features: [{
                            name: "Selection",
                            mode: "row",
                            multipleSelection: true,
                            activation: true
                        }],
                        width: "500px",
                        dataSource: products
                    });
                });
            </script>
        </head>
        <body>
            <table id="gridSelection"></table>
        </body>
        </html>


Related Samples

Related Topics

Dependencies

jquery-1.9.1.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.ui.grid.framework.js
infragistics.ui.shared.js
infragistics.datasource.js
infragistics.util.js

Inherits

  • activation

    Type:
    bool
    Default:
    true

    Enables / disables activation of rows and cells. Activation implies ability to perform navigating through cells and rows via the keyboard, and selecting rows and cells using CTRL / SHIFT - in the way cells/rows are selected in Ms Excel.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "Selection",
    							activation : false
    						}
    					]
    				});

    				//Get
    				var activation = $(".selector").igGridSelection("option", "activation");

    				//Set
    				$(".selector").igGridSelection("option", "activation", true);

  • allowMultipleRangeSelection

    Type:
    bool
    Default:
    true

    Enables / disables the ability to ctrl drag multiple selection windows when selection mode is 'cell'.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "Selection",
    							allowMultipleRangeSelection : value
    						}
    					]
    				});

    				//Get
    				var allowMultipleRangeSelection = $(".selector").igGridSelection("option", "multipleSelection");

    				//Set
    				$(".selector").igGridSelection("option", "allowMultipleRangeSelection", value);

  • mode

    Type:
    enumeration
    Default:
    row

    Defines type of the selection.

    Members

    • row
    • Type:string
    • Defines row selection mode.
    • cell
    • Type:string
    • Defines cell selection mode.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "Selection",
    							mode : "cell"
    						}
    					]
    				});
    				//Get
    				var selectionMode = $(".selector").igGridSelection("option", "mode");
    				//Set
    				$(".selector").igGridSelection("option", "mode", "cell");

  • mouseDragSelect

    Type:
    bool
    Default:
    true

    Enables / disables selection via dragging with the mouse - only applicable for cell selection.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "Selection",
    							mouseDragSelect : false
    						}
    					]
    				});

    				//Get
    				var dragSelect = $(".selector").igGridSelection("option", "mouseDragSelect");

    				//Set
    				$(".selector").igGridSelection("option", "mouseDragSelect", false);

  • multipleCellSelectOnClick

    Type:
    bool
    Default:
    false

    If true multiple selection of cells is done as if CTRL is being held. the option is disregarded if mode is set to row. this option is useful for enabling multiple discountinued selection on touch environments.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "Selection",
    							multipleCellSelectOnClick : true
    						}
    					]
    				});

    				//Get
    				var dragSelect = $(".selector").igGridSelection("option", "multipleCellSelectOnClick");

    				//Set
    				$(".selector").igGridSelection("option", "multipleCellSelectOnClick", true);

  • multipleSelection

    Type:
    bool
    Default:
    false

    Enables / Disables multiple selection of cells and rows - depending on the mode.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "Selection",
    							multipleSelection : value
    						}
    					]
    				});

    				//Get
    				var multiSelect = $(".selector").igGridSelection("option", "multipleSelection");

    				//Set
    				$(".selector").igGridSelection("option", "multipleSelection", value);

  • persist

    Type:
    bool
    Default:
    true

    Enables / disables selection persistance between states.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "Selection",
    							persist : false
    						}
    					]
    				});

    				//Get
    				var persist = $(".selector").igGridSelection("option", "persist");

    				//Set
    				$(".selector").igGridSelection("option", "persist", false);

  • skipChildren

    Type:
    bool
    Default:
    true

    If true will basically skip going into child grids with down / up / right / left arrow keys, when in the context of hierarchical grid.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "Selection",
    							skipChildren : false
    						}
    					]
    				});

    				//Get
    				var skipChildren = $(".selector").igGridSelection("option", "skipChildren");

    				//Set
    				$(".selector").igGridSelection("option", "skipChildren", false);

  • touchDragSelect

    Type:
    bool
    Default:
    true

    Deprecated="true" Enables / disables selection via continuous touch event - only applicable for cell selection and touch-supported environments.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "Selection",
    							touchDragSelect : false
    						}
    					]
    				});

    				//Get
    				var dragSelect = $(".selector").igGridSelection("option", "touchDragSelect");

    				//Set
    				$(".selector").igGridSelection("option", "touchDragSelect", false);

  • wrapAround

    Type:
    bool
    Default:
    true

    If wrapAround is enabled and selection is on the first or last row or cell, then when the end user tries to go beyond that, the first/last row or cell will be selected.

    Code Sample


    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "Selection",
    							wrapAround : false
    						}
    					]
    				});


    				//Get
    				var wrap = $(".selector").igGridSelection("option", "wrapAround");

    				//Set
    				$(".selector").igGridSelection("option", "wrapAround", false);


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • activeCellChanged

    Cancellable:
    false

    Event fired after a cell becomes active (focus style applied).

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets reference to GridSelection.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • cell
          Type: Object

          Gets reference to the cell object.

        • cell.element
          Type: jQuery

          Gets reference to cell DOM element.

        • cell.columnKey
          Type: String

          Gets the column key.

        • cell.rowId
          Type: Object

          Gets the row id if primary key is defined or persistence is enabled.

        • cell.index
          Type: Number

          Gets the column index.

        • cell.row
          Type: jQuery

          Gets reference to row DOM element.

        • cell.rowIndex
          Type: Number

          Gets the row index.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "iggridselectionactivecellchanged", function (evt, ui) {
    					//return reference to igGridSelection object
    					ui.owner;
    					//return reference to cell object
    					ui.cell;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "Selection",
    							mode: "cell",
    							activeCellChanged: function (evt, ui) {...}
    						}
    					]
    				});

  • activeCellChanging

    Cancellable:
    true

    Event fired before a cell becomes active (focus style applied) (cancellable).
    Return false in order to cancel active cell changing.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets reference to GridSelection.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • cell
          Type: Object

          Gets reference to the cell object.

        • cell.element
          Type: jQuery

          Gets reference to cell DOM element.

        • cell.columnKey
          Type: String

          Gets the column key.

        • cell.rowId
          Type: Object

          Gets the row id if primary key is defined or persistence is enabled.

        • cell.index
          Type: Number

          Gets the column index.

        • cell.row
          Type: jQuery

          Gets reference to row DOM element.

        • cell.rowIndex
          Type: Number

          Gets the row index.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "iggridselectionactivecellchanging", function (evt, ui) {
    					//return reference to igGridSelection object
    					ui.owner;
    					//return reference to cell object
    					ui.cell;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "Selection",
    							mode: "cell",
    							activeCellChanging: function (evt, ui) {...}
    						}
    					]
    				});

  • activeRowChanged

    Cancellable:
    false

    Event fired after a row becomes active (focus style applied).

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets reference to GridSelection.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • row
          Type: Object

          Gets a reference to the row object.

        • row.element
          Type: jQuery

          Gets a reference to active row DOM element.

        • row.index
          Type: Number

          Gets the active row index.

        • row.id
          Type: Object

          Gets the active row id if primary key is defined or persistence is enabled.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "iggridselectionactiverowchanged", function (evt, ui) {
    					//return reference to igGridSelection object
    					ui.owner;
    					//return reference to row object
    					ui.row;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "Selection",
    							mode: "row",
    							activeRowChanged: function (evt, ui) {...}
    						}
    					]
    				});

  • activeRowChanging

    Cancellable:
    true

    Event fired before a row becomes active (focus style applied) (cancellable).
    Return false in order to cancel active row changing.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets reference to GridSelection.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • row
          Type: Object

          Gets a reference to the row object.

        • row.element
          Type: jQuery

          Gets a reference to active row DOM element.

        • row.index
          Type: Number

          Gets the active row index.

        • row.id
          Type: Object

          Gets the active row id if primary key is defined or persistence is enabled.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "iggridselectionactiverowchanging", function (evt, ui) {
    					//return reference to igGridSelection object
    					ui.owner;
    					//return reference to row object
    					ui.row;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "Selection",
    							mode: "row",
    							activeRowChanging: function (evt, ui) {...}
    						}
    					]
    				});

  • cellSelectionChanged

    Cancellable:
    true

    Event fired after cell(s) are selected.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets reference to GridSelection.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • cell
          Type: Object

          Gets reference to the cell object.

        • cell.element
          Type: jQuery

          Gets reference to cell DOM element.

        • cell.columnKey
          Type: String

          Gets reference to column key.

        • cell.rowId
          Type: Object

          Gets the row id if primary key is defined or persistence is enabled.

        • cell.index
          Type: Number

          Gets column index.

        • cell.row
          Type: jQuery

          Gets reference to row DOM element.

        • cell.rowIndex
          Type: Number

          Gets the row index.

        • selectedCells
          Type: Array

          Gets reference to selected cells object array.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "iggridselectioncellselectionchanged", function (evt, ui) {
    					//return reference to igGridSelection object
    					ui.owner;
    					//return reference to cell object
    					ui.cell;
    					//return reference to selected cells object array
    					ui.selectedCells;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "Selection",
    							mode: "cell",
    							cellSelectionChanged: function (evt, ui) {...}
    						}
    					]
    				});

  • cellSelectionChanging

    Cancellable:
    true

    Event fired before cell(s) are about to be selected (cancellable).
    Return false in order to cancel cell selection changing.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets reference to GridSelection.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • cell
          Type: Object

          Gets reference to the cell object.

        • cell.element
          Type: jQuery

          Gets reference to cell DOM element.

        • cell.columnKey
          Type: String

          Gets reference to column key.

        • cell.rowId
          Type: Object

          Gets the row id if primary key is defined or persistence is enabled.

        • cell.index
          Type: Number

          Gets column index.

        • cell.row
          Type: jQuery

          Gets reference to row DOM element.

        • cell.rowIndex
          Type: Number

          Gets the row index.

        • selectedCells
          Type: Array

          Gets reference to selected cells object array.

        • firstColumnIndex
          Type: Number

          Gets the column index for the first cell in a range selection.

        • firstRowIndex
          Type: Number

          Gets the row index for the first cell in a range selection.

        • lastColumnIndex
          Type: Number

          Gets the column index for the last cell in a range selection.

        • lastRowIndex
          Type: Number

          Gets the row index for the last cell in a range selection.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "iggridselectioncellselectionchanging", function (evt, ui) {
    					//return reference to igGridSelection object
    					ui.owner;
    					//return reference to cell object
    					ui.cell;
    					//return reference to selected cells object array
    					ui.selectedCells;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "Selection",
    							mode: "cell",
    							cellSelectionChanging: function (evt, ui) {...}
    						}
    					]
    				});

  • rowSelectionChanged

    Cancellable:
    false

    Event fired after row(s) are selected.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets reference to GridSelection.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • row
          Type: Object

          Gets reference to the row object.

        • row.element
          Type: jQuery

          Gets a reference to row DOM element.

        • row.index
          Type: Number

          Gets the row index.

        • row.id
          Type: Number

          Gets the row id if primary key is defined or persistence is enabled.

        • selectedRows
          Type: Array

          Gets reference to rows object array.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "iggridselectionrowselectionchanged", function (evt, ui) {
    					//return reference to igGridSelection object
    					ui.owner;
    					//return reference to igGrid object
    					ui.owner.grid
    					//return reference to row object in format {index, element}
    					ui.row;
    					//return row index
    					ui.row.index
    					//return reference to row DOM element
    					ui.row.element
    					//return reference to selected cells object array
    					ui.selectedRows;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "Selection",
    							mode: "row",
    							rowSelectionChanged: function (evt, ui) {...}
    						}
    					]
    				});

  • rowSelectionChanging

    Cancellable:
    true

    Event fired before row(s) are about to be selected (cancellable).
    Return false in order to cancel selection changing.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets reference to GridSelection.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • row
          Type: Object

          Gets reference to the row object.

        • row.element
          Type: jQuery

          Gets a reference to row DOM element.

        • row.index
          Type: Number

          Gets the row index.

        • row.id
          Type: Number

          Gets the row id if primary key is defined or persistence is enabled.

        • selectedRows
          Type: Array

          Gets reference to rows object array.

        • startIndex
          Type: Number

          Gets the start index for a range row selection.

        • endIndex
          Type: Number

          Gets the end index for a range row selection.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "iggridselectionrowselectionchanging", function (evt, ui) {
    					//return reference to igGridSelection object
    					ui.owner;
    					//return reference to igGrid object
    					ui.owner.grid
    					//return reference to row object in format {index, element}
    					ui.row;
    					//return row index
    					ui.row.index
    					//return reference to row DOM element
    					ui.row.element
    					//return reference to selected cells object array
    					ui.selectedRows;
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features: [
    						{
    							name: "Selection",
    							mode: "row",
    							rowSelectionChanging: function (evt, ui) {...}
    						}
    					]
    				});

  • activeCell

    .igGridSelection( "activeCell" );
    Return Type:
    object

    Returns the currently active (focused) cell that has the format { element: , row: , index: , rowIndex: , columnKey: }, if any.

    Code Sample


    				var cell = $(".selector").igGridSelection("activeCell");

  • activeRow

    .igGridSelection( "activeRow" );
    Return Type:
    object

    Returns the currently active (focused) row that has the format { element: , index: }, if any.

    Code Sample


    				var row = $(".selector").igGridSelection("activeRow");

  • clearSelection

    .igGridSelection( "clearSelection" );

    Clears all selected cells, selected rows, active cell and active row. Also updates the UI accordingly.

    Code Sample


    				$(".selector").igGridSelection("clearSelection");

  • deselectCell

    .igGridSelection( "deselectCell", row:number, col:number, [isFixed:bool] );

    Deselects a cell by row/col.

    • row
    • Type:number
    • Row index.
    • col
    • Type:number
    • Column index.
    • isFixed
    • Type:bool
    • Optional
    • If the cell is part of the fixed or unfixed area of the grid.

    Code Sample


    				$(".selector").igGridSelection("deselectCell", 1, 2);

  • deselectCellById

    .igGridSelection( "deselectCellById", id:object, colKey:string );

    Deselects a cell by row id/column key.

    • id
    • Type:object
    • Row Id.
    • colKey
    • Type:string
    • Column key.

    Code Sample


    				$(".selector").igGridSelection("deselectCellById", 1, "Name");

  • deselectRow

    .igGridSelection( "deselectRow", index:number );

    Deselects a row by index.

    • index
    • Type:number
    • Row index.

    Code Sample


    				 $(".selector").igGridSelection("deselectRow", 5);

  • deselectRowById

    .igGridSelection( "deselectRowById", id:object );

    Deselects a row by row id.

    • id
    • Type:object
    • Row Id.

    Code Sample


    				$(".selector").igGridSelection("deselectRowById", 0);

  • destroy

    .igGridSelection( "destroy" );

    Destroys the selection widget.

    Code Sample


    				$(".selector").igGridSelection("destroy");

  • selectCell

    .igGridSelection( "selectCell", row:number, col:number, [isFixed:bool] );

    Selects a cell by row/col.

    • row
    • Type:number
    • Row index.
    • col
    • Type:number
    • Column index.
    • isFixed
    • Type:bool
    • Optional
    • If the cell is part of the fixed or unfixed area of the grid.

    Code Sample


    				$(".selector").igGridSelection("selectCell", 1, 5);

  • selectCellById

    .igGridSelection( "selectCellById", id:object, colKey:string );

    Selects a cell by row id/column key.

    • id
    • Type:object
    • Row Id.
    • colKey
    • Type:string
    • Column key.

    Code Sample


    				$(".selector").igGridSelection("selectCellById", "DF-5678-FG", "ProductNumber");

  • selectedCell

    .igGridSelection( "selectedCell" );
    Return Type:
    object

    Returns the currently selected cell that has the format { element: , row: , index: , rowIndex: , columnKey: }, if any.

    If multiple selection is enabled the function will return null.

    Code Sample


    				var cells = $(".selector").igGridSelection("selectedCell");

  • selectedCells

    .igGridSelection( "selectedCells" );
    Return Type:
    array

    Returns an array of selected cells in arbitrary order where every objects has the format { element: , row: , index: , rowIndex: , columnKey: } .

    If multiple selection is disabled the function will return null.

    Code Sample


    				var cell = $(".selector").igGridSelection("selectedCells");

  • selectedRow

    .igGridSelection( "selectedRow" );
    Return Type:
    object

    Returns the currently selected row that has the format { element: , index: }, if any.

    If multiple selection is enabled the function will return null.

    Code Sample


    				var row = $(".selector").igGridSelection("selectedRow");

  • selectedRows

    .igGridSelection( "selectedRows" );
    Return Type:
    array

    Returns an array of selected rows in arbitrary order where every object has the format { element: , index: } .

    If multiple selection is disabled the function will return null.

    Code Sample


    				var row = $(".selector").igGridSelection("selectedRows");

  • selectRow

    .igGridSelection( "selectRow", index:number );

    Selects a row by index.

    • index
    • Type:number
    • Row index.

    Code Sample


    				$(".selector").igGridSelection("selectRow", 10);

  • selectRowById

    .igGridSelection( "selectRowById", id:object );

    Selects a row by row id.

    • id
    • Type:object
    • Row Id.

    Code Sample


    				$(".selector").igGridSelection("selectRowById", 1);

  • ui-iggrid-activecell ui-state-focus

    Classes applied to the currently active cell, if any (mode = "cell").
  • ui-iggrid-activerow ui-state-focus

    Classes applied to the currently active row, if any (mode = "row").
  • ui-iggrid-selectedcell ui-state-active

    Classes applied to a cell once it's selected.
  • ui-iggrid-selectedrow ui-state-active

    Classes applied to a row once it's selected.

Copyright © 1996 - 2018 Infragistics, Inc. All rights reserved.
