ui.igSparkline

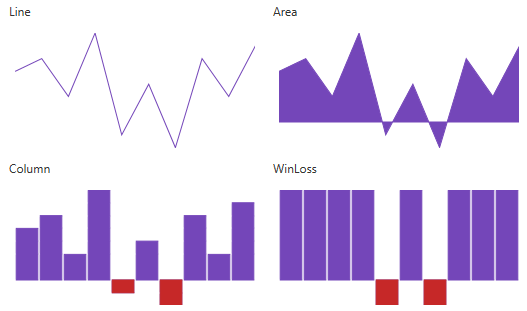

ui.igSparkline_image

The Sparkline control is a data-intense, design-simple graphic that allows end users to spot trends, variations and patterns in data in a clear and compact representation. It supports the following chart types: line, column, area, and win-loss, and displays more details using markers, tooltips, normal ranges, and trend lines.

Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igSparkline control.

For details on how to reference the required scripts and themes for the igSparkline control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


<!DOCTYPE html>
<html>
<head>
		<title></title>

		<!-- Ignite UI Required Combined CSS Files -->
		<link href="/infragistics/css/themes/infragistics/infragistics.theme.css" rel="stylesheet" />
		<link href="/infragistics/css/structure/infragistics.css" rel="stylesheet" />

		<script src="/js/modernizr.min.js"></script>
		<script src="/js/jquery.min.js"></script>
		<script src="/js/jquery-ui.min.js"></script>

		<!-- Ignite UI Required Combined JavaScript Files -->
		<script src="/infragistics/js/infragistics.core.js"></script>
		<script src="/infragistics/js/infragistics.dv.js"></script>

</head>
<body>

		<!-- Target element for the igSparkline -->
		<div id="sparkline"></div>

		<script>

				$(function () {

						var invoiceData = [
								{ "OrderDate": "\/Date(836452800000)\/", "ExtendedPrice": 168.0000, "Freight": 32.3800 },
								{ "OrderDate": "\/Date(836452800000)\/", "ExtendedPrice": 98.0000, "Freight": 32.3800 },
								{ "OrderDate": "\/Date(836452800000)\/", "ExtendedPrice": 174.0000, "Freight": 32.3800 },
								{ "OrderDate": "\/Date(836539200000)\/", "ExtendedPrice": 167.4000, "Freight": 11.6100 },
								{ "OrderDate": "\/Date(836539200000)\/", "ExtendedPrice": 1696.0000, "Freight": 11.6100 },
								{ "OrderDate": "\/Date(836798400000)\/", "ExtendedPrice": 77.0000, "Freight": 65.8300 },
								{ "OrderDate": "\/Date(836798400000)\/", "ExtendedPrice": 1261.4000, "Freight": 65.8300 },
								{ "OrderDate": "\/Date(836798400000)\/", "ExtendedPrice": 214.2000, "Freight": 65.8300 },
								{ "OrderDate": "\/Date(836798400000)\/", "ExtendedPrice": 95.7600, "Freight": 41.3400 },
								{ "OrderDate": "\/Date(836798400000)\/", "ExtendedPrice": 222.3000, "Freight": 41.3400 },
								{ "OrderDate": "\/Date(836798400000)\/", "ExtendedPrice": 336.0000, "Freight": 41.3400 },
								{ "OrderDate": "\/Date(836884800000)\/", "ExtendedPrice": 2462.4000, "Freight": 51.3000 },
								{ "OrderDate": "\/Date(836884800000)\/", "ExtendedPrice": 47.5000, "Freight": 51.3000 },
								{ "OrderDate": "\/Date(836884800000)\/", "ExtendedPrice": 1088.0000, "Freight": 51.3000 },
								{ "OrderDate": "\/Date(836971200000)\/", "ExtendedPrice": 200.0000, "Freight": 58.1700 },
								{ "OrderDate": "\/Date(836971200000)\/", "ExtendedPrice": 604.8000, "Freight": 58.1700 },
								{ "OrderDate": "\/Date(836971200000)\/", "ExtendedPrice": 640.0000, "Freight": 58.1700 },
								{ "OrderDate": "\/Date(837057600000)\/", "ExtendedPrice": 45.9000, "Freight": 22.9800 },
								{ "OrderDate": "\/Date(837057600000)\/", "ExtendedPrice": 342.7200, "Freight": 22.9800 },
								{ "OrderDate": "\/Date(837057600000)\/", "ExtendedPrice": 168.0000, "Freight": 22.9800 },
								{ "OrderDate": "\/Date(837144000000)\/", "ExtendedPrice": 304.0000, "Freight": 148.3300 },
						];

						$("#sparkline").igSparkline({
								dataSource: invoiceData,
								height: "100px",
								width: "300px",
								valueMemberPath: 'ExtendedPrice',
								labelMemberPath: 'OrderDate'
						});

				});
		</script>

</body>
</html>


Related Samples

Related Topics

Dependencies

jquery.js
jquery-ui.js
infragistics.util.js
infragistics.util.jquery.js
infragistics.datasource.js
infragistics.templating.js
infragistics.dv_jquerydom.js
infragistics.ui.widget.js
infragistics.ext_core.js
infragistics.ext_collections.js
infragistics.dv_core.js
infragistics.dv_interactivity.js
infragistics.ext_ui.js
infragistics.ui.basechart.js
infragistics.sparkline.js

Inherits

  • brush

    Type:
    string
    Default:
    null

    Gets or sets the sparkline brush.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		brush : "#00FF00"
    });

    // Get
    var brush = $(".selector").igSparkline("option", "brush");

    // Set
    $(".selector").igSparkline("option", "brush", "#00FF00");
  • dataSource
    Inherited

    Type:
    object
    Default:
    null

    Gets sets a valid data source.
    That can be instance of array or primitives, array of objects, instance of $.ig.DataSource, or any other data accepted by $.ig.DataSource.
    Note: if it is set to string and "dataSourceType" option is not set, then $.ig.JSONPDataSource is used.

    Code Sample


    //Initialize
    $(".selector").igSparkline({
        dataSource : data
    });

    //Get
    var data = $(".selector").igSparkline("option", "dataSource");

    //Set
    $(".selector").igSparkline("option", "dataSource", data);

  • dataSourceType
    Inherited

    Type:
    string
    Default:
    null

    Gets sets data source type (such as "json", "xml", etc). Please refer to the documentation of $.ig.DataSource and its type property.

    Code Sample


    //Initialize
    $(".selector").igSparkline({
        dataSourceType : "json"
    });

    //Get
    var type = $(".selector").igSparkline("option", "dataSourceType");

    //Set
    $(".selector").igSparkline("option", "dataSourceType", "json");

  • dataSourceUrl
    Inherited

    Type:
    string
    Default:
    null

    Gets sets url which is used for sending JSON on request for remote data.

    Code Sample


    //Initialize
    $(".selector").igSparkline({
        dataSourceUrl : "http://myhost/data"
    });

    //Get
    var url = $(".selector").igSparkline("option", "dataSourceUrl");

    //Set
    $(".selector").igSparkline("option", "http://myhost/data");

  • displayNormalRangeInFront

    Type:
    bool
    Default:
    true

    Gets or sets the position of the normal range on the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		displayNormalRangeInFront : true
    });

    // Get
    var display = $(".selector").igSparkline("option", "displayNormalRangeInFront");

    // Set
    $(".selector").igSparkline("option", "displayNormalRangeInFront", true);
  • displayType

    Type:
    enumeration
    Default:
    line

    Gets or sets the display type of the sparkline.

    Members

    • line
    • Type:string
    • Display the sparkline as a line.
    • area
    • Type:string
    • Display the sparkline as a filled polygon.
    • column
    • Type:string
    • Display the sparkline as a set of columns.
    • winLoss
    • Type:string
    • Display the sparkline as a set of columns on a boolean scale.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		displayType : "area"
    });

    // Get
    var type = $(".selector").igSparkline("option", "displayType");

    // Set
    $(".selector").igSparkline("option", "displayType", "area");
  • firstMarkerBrush

    Type:
    string
    Default:
    null

    Gets or sets the first marker brush of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		firstMarkerBrush : "#00FF00"
    });

    // Get
    var brush = $(".selector").igSparkline("option", "firstMarkerBrush");

    // Set
    $(".selector").igSparkline("option", "firstMarkerBrush", "#00FF00");
  • firstMarkerSize

    Type:
    number
    Default:
    -1

    Gets or sets the first marker size of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		firstMarkerSize : 1
    });

    // Get
    var size = $(".selector").igSparkline("option", "firstMarkerSize");

    // Set
    $(".selector").igSparkline("option", "firstMarkerSize", 1);
  • firstMarkerVisibility

    Type:
    enumeration
    Default:
    collapsed

    Gets or sets the first marker visibility of the sparkline.

    Members

    • visible
    • Type:string
    • Display the element.
    • collapsed
    • Type:string
    • Do not display the element.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		firstMarkerVisibility : "visible"
    });

    // Get
    var visibility = $(".selector").igSparkline("option", "firstMarkerVisibility");

    // Set
    $(".selector").igSparkline("option", "firstMarkerVisibility", "visible");
  • formatLabel

    Type:
    object
    Default:
    null

    Sets or gets a function which takes an object that produces a formatted label for displaying in the chart.

    Code Sample


    function formatFunction(val) {
    		return "Label: " + val;
    };

    // Initialize
    $(".selector").igSparkline({
    		formatLabel : formatFunction
    });

    // Get
    var func = $(".selector").igSparkline("option", "formatLabel");

    // Set
    $(".selector").igSparkline("option", "formatLabel", formatFunction);


  • height

    Type:
    enumeration
    Default:
    null

    The height of the sparkline. It can be set as a number in pixels, string (px) or percentage (%).

    Members

      • string
      • The widget height can be set in pixels (px) and percentage (%).
      • number
      • The widget height can be set as a number.

    Code Sample

    				// Initialize
    					$(".selector").igSparkline({
    							height : "100px"
    					});

    					// Get
    					var height = $(".selector").igSparkline("option", "height");

    					// Set
    					$(".selector").igSparkline("option", "height", "200px");

  • highMarkerBrush

    Type:
    string
    Default:
    null

    Gets or sets the high marker brush of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		highMarkerBrush : "#00FF00"
    });

    // Get
    var brush = $(".selector").igSparkline("option", "highMarkerBrush");

    // Set
    $(".selector").igSparkline("option", "highMarkerBrush", "#00FF00");
  • highMarkerSize

    Type:
    number
    Default:
    -1

    Gets or sets the high marker size of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		highMarkerSize : 1
    });

    // Get
    var size = $(".selector").igSparkline("option", "highMarkerSize");

    // Set
    $(".selector").igSparkline("option", "highMarkerSize", 1);
  • highMarkerVisibility

    Type:
    enumeration
    Default:
    collapsed

    Gets or sets the high marker visibility of the sparkline.

    Members

    • visible
    • Type:string
    • Display the element.
    • collapsed
    • Type:string
    • Do not display the element.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		highMarkerVisibility : "visible"
    });

    // Get
    var visibility = $(".selector").igSparkline("option", "highMarkerVisibility");

    // Set
    $(".selector").igSparkline("option", "highMarkerVisibility", "visible");
  • horizontalAxisBrush

    Type:
    string
    Default:
    null

    Gets or sets the horizontal axis line brush of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		horizontalAxisBrush : "#00FF00"
    });

    // Get
    var brush = $(".selector").igSparkline("option", "horizontalAxisBrush");

    // Set
    $(".selector").igSparkline("option", "horizontalAxisBrush", "#00FF00");
  • horizontalAxisLabel

    Type:
    object
    Default:
    null

    The value or content to display on the horizontal axis.
    This can be set to a formatted string, such as "{0}", or it can be set to a DataTemplate.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		horizontalAxisLabel : "Label"
    });

    // Get
    var label = $(".selector").igSparkline("option", "horizontalAxisLabel");

    // Set
    $(".selector").igSparkline("option", "horizontalAxisLabel", "Label");
  • horizontalAxisVisibility

    Type:
    enumeration
    Default:
    collapsed

    Gets or sets the display state of the horizontal axis.

    Members

    • visible
    • Type:string
    • Display the element.
    • collapsed
    • Type:string
    • Do not display the element.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		horizontalAxisVisibility : "visible"
    });

    // Get
    var visibility = $(".selector").igSparkline("option", "horizontalAxisVisibility");

    // Set
    $(".selector").igSparkline("option", "horizontalAxisVisibility", "visible");
  • labelMemberPath

    Type:
    string
    Default:
    null

    String identifier of a column or property name to get labels from on each item in the data source. These labels will be retrieved from the first and last item, and displayed by the horizontal axis.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		labelMemberPath : "label"
    });

    // Get
    var path = $(".selector").igSparkline("option", "labelMemberPath");

    // Set
    $(".selector").igSparkline("option", "labelMemberPath", "label");
  • lastMarkerBrush

    Type:
    string
    Default:
    null

    Gets or sets the last marker brush of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		lastMarkerBrush : "#00FF00"
    });

    // Get
    var brush = $(".selector").igSparkline("option", "lastMarkerBrush");

    // Set
    $(".selector").igSparkline("option", "lastMarkerBrush", "#00FF00");
  • lastMarkerSize

    Type:
    number
    Default:
    -1

    Gets or sets the last marker size of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		lastMarkerSize : 1
    });

    // Get
    var size = $(".selector").igSparkline("option", "lastMarkerSize");

    // Set
    $(".selector").igSparkline("option", "lastMarkerSize", 1);
  • lastMarkerVisibility

    Type:
    enumeration
    Default:
    collapsed

    Gets or sets the last marker visibility of the sparkline.

    Members

    • visible
    • Type:string
    • Display the element.
    • collapsed
    • Type:string
    • Do not display the element.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		lastMarkerVisibility : "visible"
    });

    // Get
    var visibility = $(".selector").igSparkline("option", "lastMarkerVisibility");

    // Set
    $(".selector").igSparkline("option", "lastMarkerVisibility", "visible");
  • lineThickness

    Type:
    number
    Default:
    -1

    Gets or sets the line thickness of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		lineThickness : 1
    });

    // Get
    var size = $(".selector").igSparkline("option", "lineThickness");

    // Set
    $(".selector").igSparkline("option", "lineThickness", 1);
  • lowMarkerBrush

    Type:
    string
    Default:
    null

    Gets or sets the low marker brush of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		lowMarkerBrush : "#00FF00"
    });

    // Get
    var brush = $(".selector").igSparkline("option", "lowMarkerBrush");

    // Set
    $(".selector").igSparkline("option", "lowMarkerBrush", "#00FF00");
  • lowMarkerSize

    Type:
    number
    Default:
    -1

    Gets or sets the low marker size of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		lowMarkerSize : 1
    });

    // Get
    var size = $(".selector").igSparkline("option", "lowMarkerSize");

    // Set
    $(".selector").igSparkline("option", "lowMarkerSize", 1);
  • lowMarkerVisibility

    Type:
    enumeration
    Default:
    collapsed

    Gets or sets the low marker visibility of the sparkline.

    Members

    • visible
    • Type:string
    • Display the element.
    • collapsed
    • Type:string
    • Do not display the element.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		lowMarkerVisibility : "visible"
    });

    // Get
    var visibility = $(".selector").igSparkline("option", "lowMarkerVisibility");

    // Set
    $(".selector").igSparkline("option", "lowMarkerVisibility", "visible");
  • markerBrush

    Type:
    string
    Default:
    null

    Gets or sets the marker brush of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		markerBrush : "#00FF00"
    });

    // Get
    var brush = $(".selector").igSparkline("option", "markerBrush");

    // Set
    $(".selector").igSparkline("option", "markerBrush", "#00FF00");
  • markerSize

    Type:
    number
    Default:
    -1

    Gets or sets the marker size of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		markerSize : 1
    });

    // Get
    var size = $(".selector").igSparkline("option", "markerSize");

    // Set
    $(".selector").igSparkline("option", "markerSize", 1);
  • markerVisibility

    Type:
    enumeration
    Default:
    collapsed

    Gets or sets the marker visibility of the sparkline.

    Members

    • visible
    • Type:string
    • Display the element.
    • collapsed
    • Type:string
    • Do not display the element.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		markerVisibility : "visible"
    });

    // Get
    var visibility = $(".selector").igSparkline("option", "markerVisibility");

    // Set
    $(".selector").igSparkline("option", "markerVisibility", "visible");
  • maxRecCount
    Inherited

    Type:
    number
    Default:
    0

    Gets sets maximum number of displayed records in chart.

    Code Sample


    //Initialize
    $(".selector").igSparkline({
        maxRecCount : 100
    });

    //Get
    var count = $(".selector").igSparkline("option", "maxRecCount");

    //Set
    $(".selector").igSparkline("option", "maxRecCount", 100);

  • negativeBrush

    Type:
    string
    Default:
    null

    Gets or sets the negative brush of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		negativeBrush : "#00FF00"
    });

    // Get
    var brush = $(".selector").igSparkline("option", "negativeBrush");

    // Set
    $(".selector").igSparkline("option", "negativeBrush", "#00FF00");
  • negativeMarkerBrush

    Type:
    string
    Default:
    null

    Gets or sets the negative marker brush of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		negativeMarkerBrush : "#00FF00"
    });

    // Get
    var brush = $(".selector").igSparkline("option", "negativeMarkerBrush");

    // Set
    $(".selector").igSparkline("option", "negativeMarkerBrush", "#00FF00");
  • negativeMarkerSize

    Type:
    number
    Default:
    -1

    Gets or sets the negative marker size of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		negativeMarkerSize : 1
    });

    // Get
    var size = $(".selector").igSparkline("option", "negativeMarkerSize");

    // Set
    $(".selector").igSparkline("option", "negativeMarkerSize", 1);
  • negativeMarkerVisibility

    Type:
    enumeration
    Default:
    collapsed

    Gets or sets the negative marker visibility of the sparkline.

    Members

    • visible
    • Type:string
    • Display the element.
    • collapsed
    • Type:string
    • Do not display the element.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		negativeMarkerVisibility : "visible"
    });

    // Get
    var visibility = $(".selector").igSparkline("option", "negativeMarkerVisibility");

    // Set
    $(".selector").igSparkline("option", "negativeMarkerVisibility", "visible");
  • normalRangeFill

    Type:
    string
    Default:
    null

    Gets or sets the normal range brush of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		normalRangeFill : "#00FF00"
    });

    // Get
    var brush = $(".selector").igSparkline("option", "normalRangeFill");

    // Set
    $(".selector").igSparkline("option", "normalRangeFill", "#00FF00");
  • normalRangeMaximum

    Type:
    number
    Default:
    0

    Gets or sets the maximum value of the normal range.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		normalRangeMaximum : 100
    });

    // Get
    var max = $(".selector").igSparkline("option", "normalRangeMaximum");

    // Set
    $(".selector").igSparkline("option", "normalRangeMaximum", 100);
  • normalRangeMinimum

    Type:
    number
    Default:
    0

    Gets or sets the minimum value of the normal range.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		normalRangeMinimum : 10
    });

    // Get
    var min = $(".selector").igSparkline("option", "normalRangeMinimum");

    // Set
    $(".selector").igSparkline("option", "normalRangeMinimum", 10);
  • normalRangeVisibility

    Type:
    enumeration
    Default:
    collapsed

    Gets or sets the normal range visibility of the sparkline.

    Members

    • visible
    • Type:string
    • Display the element.
    • collapsed
    • Type:string
    • Do not display the element.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		normalRangeVisibility : "visible"
    });

    // Get
    var visibility = $(".selector").igSparkline("option", "normalRangeVisibility");

    // Set
    $(".selector").igSparkline("option", "normalRangeVisibility", "visible");
  • pixelScalingRatio

    Type:
    number
    Default:
    NaN

    Gets or sets the scaling value used to affect the pixel density of the control.
    A higher scaling ratio will produce crisper visuals at the expense of memory. Lower values will cause the control
    to appear blurry.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
        pixelScalingRatio: 2
    });

    // Get
    var pixelScalingRatio = $(".selector").igSparkline("option", "pixelScalingRatio");

    // Set
    $(".selector").igSparkline("option", "pixelScalingRatio", 2);

  • responseDataKey
    Inherited

    Type:
    string
    Default:
    null

    See $.ig.DataSource. This is basically the property in the responses where data records are held, if the response is wrapped.

    Code Sample


    //Initialize
    $(".selector").igSparkline({
        responseDataKey : "d.results"
    });

    //Get
    var key = $(".selector").igSparkline("option", "responseDataKey");

    //Set
    $(".selector").igSparkline("option", "responseDataKey", "d.results");

  • responseTotalRecCountKey
    Inherited

    Type:
    string
    Default:
    null

    See $.ig.DataSource. property in the response specifying the total number of records on the server.

    Code Sample


    //Initialize
    $(".selector").igSparkline({
        responseTotalRecCountKey : "total"
    });

    //Get
    var key = $(".selector").igSparkline("option", "responseTotalRecCountKey");

    //Set
    $(".selector").igSparkline("option", "responseTotalRecCountKey", "total");

  • tooltipTemplate
    Inherited

    Type:
    string
    Default:
    null

    Gets sets template for tooltip associated with chart item.
    Example: "Value: $(ValueMemberPathInDataSource)".

    Code Sample


    //Initialize
    $(".selector").igSparkline({
        tooltipTemplate : "High: ${High}"
    });

    //Get
    var template = $(".selector").igSparkline("option", "tooltipTemplate");

    //Set
    $(".selector").igSparkline("option", "tooltipTemplate", "High: ${High}");

  • trendLineBrush

    Type:
    string
    Default:
    null

    Gets or sets the trendline brush of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		trendLineBrush : "#00FF00"
    });

    // Get
    var brush = $(".selector").igSparkline("option", "trendLineBrush");

    // Set
    $(".selector").igSparkline("option", "trendLineBrush", "#00FF00");
  • trendLinePeriod

    Type:
    number
    Default:
    7

    Gets or sets the trendline period used by the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		trendLinePeriod : 10
    });

    // Get
    var period = $(".selector").igSparkline("option", "trendLinePeriod");

    // Set
    $(".selector").igSparkline("option", "trendLinePeriod", 10);
  • trendLineThickness

    Type:
    number
    Default:
    -1

    Gets or sets the thickness of the sparkline's trendline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		trendLineThickness : 1
    });

    // Get
    var size = $(".selector").igSparkline("option", "trendLineThickness");

    // Set
    $(".selector").igSparkline("option", "trendLineThickness", 1);
  • trendLineType

    Type:
    enumeration
    Default:
    none

    Gets or sets the type of trendline used by the sparkline.

    Members

    • none
    • Type:string
    • No trend line will be displayed.
    • linearFit
    • Type:string
    • Linear fit.
    • quadraticFit
    • Type:string
    • Quadratic polynomial fit.
    • cubicFit
    • Type:string
    • Cubic polynomial fit.
    • quarticFit
    • Type:string
    • Quartic polynomial fit.
    • quinticFit
    • Type:string
    • Quintic polynomial fit.
    • logarithmicFit
    • Type:string
    • Logarithmic fit.
    • exponentialFit
    • Type:string
    • Exponential fit.
    • powerLawFit
    • Type:string
    • Powerlaw fit.
    • simpleAverage
    • Type:string
    • Simple moving average.
    • exponentialAverage
    • Type:string
    • Exponential moving average.
    • modifiedAverage
    • Type:string
    • Modified moving average.
    • cumulativeAverage
    • Type:string
    • Cumulative moving average.
    • weightedAverage
    • Type:string
    • Weighted moving average.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		trendLineType : "linearFit"
    });

    // Get
    var type = $(".selector").igSparkline("option", "trendLineType");

    // Set
    $(".selector").igSparkline("option", "trendLineType", "linearFit");
  • unknownValuePlotting

    Type:
    enumeration
    Default:
    dontPlot

    Gets or sets the way null values are interpreted.

    Members

    • linearInterpolate
    • Type:string
    • Plot the unknown value as the midpoint between surrounding known values using linear interpolation.
    • dontPlot
    • Type:string
    • Do not plot the unknown value on the chart.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		unknownValuePlotting : "linearInterpolate"
    });

    // Get
    var type = $(".selector").igSparkline("option", "unknownValuePlotting");

    // Set
    $(".selector").igSparkline("option", "unknownValuePlotting", "linearInterpolate");
  • valueMemberPath

    Type:
    string
    Default:
    null

    Gets or sets the string path to the value column.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		valueMemberPath : "value"
    });

    // Get
    var path = $(".selector").igSparkline("option", "valueMemberPath");

    // Set
    $(".selector").igSparkline("option", "valueMemberPath", "value");
  • verticalAxisBrush

    Type:
    string
    Default:
    null

    Gets or sets the vertical axis line brush of the sparkline.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		verticalAxisBrush : "#00FF00"
    });

    // Get
    var brush = $(".selector").igSparkline("option", "verticalAxisBrush");

    // Set
    $(".selector").igSparkline("option", "verticalAxisBrush", "#00FF00");
  • verticalAxisLabel

    Type:
    object
    Default:
    null

    The value or content to display on the vertical axis.
    This can be set to a formatted string, such as "{0:n}", or it can be set to a DataTemplate.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		verticalAxisLabel : "Label"
    });

    // Get
    var label = $(".selector").igSparkline("option", "verticalAxisLabel");

    // Set
    $(".selector").igSparkline("option", "verticalAxisLabel", "Label");
  • verticalAxisVisibility

    Type:
    enumeration
    Default:
    collapsed

    Gets or sets the display state of the vertical axis.

    Members

    • visible
    • Type:string
    • Display the element.
    • collapsed
    • Type:string
    • Do not display the element.

    Code Sample


    // Initialize
    $(".selector").igSparkline({
    		verticalAxisVisibility : "visible"
    });

    // Get
    var visibility = $(".selector").igSparkline("option", "verticalAxisVisibility");

    // Set
    $(".selector").igSparkline("option", "verticalAxisVisibility", "visible");
  • width

    Type:
    enumeration
    Default:
    null

    The width of the sparkline. It can be set as a number in pixels, string (px) or percentage (%).

    Members

      • string
      • The widget width can be set in pixels (px) and percentage (%).
      • number
      • The widget width can be set as a number.

    Code Sample

    			// Initialize
    				$(".selector").igSparkline({
    						width : "300px"
    				});

    				// Get
    				var width = $(".selector").igSparkline("option", "width");

    				// Set
    				$(".selector").igSparkline("option", "width", "500px");


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • dataBinding

    Cancellable:
    true

    Event which is raised before data binding.
    Function takes first argument null and second argument ui.
    Use ui.owner to obtain reference to igSparkline.
    Use ui.dataSource to obtain reference to instance of $.ig.DataSource.

    Code Sample


    //Delegate
    $(document).delegate(".selector", "igsparklinedatabinding", function (evt, ui) {
    		// Get reference to igSparkline.
    		ui.owner;

    		// Get reference to instance of $.ig.DataSource.
    		ui.dataSource;
    });

    // Initialize
    $(".selector").igSparkline({
    		dataBinding: function(evt, ui) {...}
    });
  • dataBound

    Cancellable:
    false

    Event which is raised after data binding.
    Function takes first argument null and second argument ui.
    Use ui.owner to obtain reference to igSparkline.
    Use ui.data to obtain reference to array actual data which is displayed by chart.
    Use ui.dataSource to obtain reference to instance of $.ig.DataSource.

    Code Sample


    //Delegate
    $(document).delegate(".selector", "igsparklinedatabound", function (evt, ui) {
    		// Get reference to igSparkline.
    		ui.owner;

    		// Get reference to igSparkline's array data.
    		ui.data;

    		// Get reference to instance of $.ig.DataSource.
    		ui.dataSource;
    });

    // Initialize
    $(".selector").igSparkline({
    		dataBound: function(evt, ui) {...}
    });
  • hideTooltip
    Inherited

    Cancellable:
    true

    Event which is raised before tooltip is hidden.
    Return false in order to cancel hiding and keep tooltip visible.
    Function takes first argument null and second argument ui.
    Use ui.owner to obtain reference to chart widget.
    Use ui.item to obtain reference to item.
    Use ui.element to obtain reference to jquery object which represents tooltip or value of ui.element from last updateTooltip event. Value of that member can be replaced by custom element.

    Code Sample


    //Delegate
    $(document).delegate(".selector", "igsparklinehidetooltip", function (evt, ui) {
        // Get reference to igSparkline.
        ui.owner;

        // Get reference to the data object.
        ui.item;

        // Get or set the jQuery object representing the tooltip.
        ui.element;
    });

    //Initialize
    $(".selector").igSparkline({
        hideTooltip: function(evt, ui) {...}
    });

  • updateTooltip
    Inherited

    Cancellable:
    true

    Event which is raised before tooltip is updated.
    Return false in order to cancel updating and hide tooltip.
    Function takes first argument null and second argument ui.
    Use ui.owner to obtain reference to chart widget.
    Use ui.text to obtain html of tooltip. Value of that member can be modified. If modified value is null or empty string, then current content of tooltip keeps old value.
    Use ui.item to obtain reference to item. Value of that member can be modified or replaced by custom item.
    Use ui.x to obtain left position of tooltip in pixels relative to widget. Value of that member can be modified.
    Use ui.y to obtain top position of tooltip in pixels relative to widget. Value of that member can be modified.
    Use ui.element to obtain reference to jquery object which represents tooltip. Value of that member can be replaced by custom element.

    Code Sample


    //Delegate
    $(document).delegate(".selector", "igsparklineupdatetooltip", function (evt, ui) {
        // Get reference to igSparkline.
        ui.owner;

        // Get or set the tooltip HTML.
        ui.text;

        // Get reference to the data object.
        ui.item;

        // Get or set the tooltip's left position relative to the widget in pixels.
        ui.x;

        // Get or set the tooltip's top position relative to the widget in pixels.
        ui.y;

        // Get or set the jQuery object representing the tooltip.
        ui.element;
    });

    //Initialize
    $(".selector").igSparkline({
        updateTooltip: function(evt, ui) {...}
    });

  • addItem
    Inherited

    .igSparkline( "addItem", item:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Adds a new item to the data source and notifies the chart.

    • item
    • Type:object
    • The item that we want to add to the data source.

    Code Sample

     $(".selector").igSparkline("addItem", dataItem);
  • chart
    Inherited

    .igSparkline( "chart" );
    Return Type:
    object
    Return Type Description:
    Returns reference to chart.

    Get reference to chart object.

    Code Sample


    // Not intended for use with derived widget
    var chart = $(".selector").igSparkline("chart");

  • dataBind
    Inherited

    .igSparkline( "dataBind" );

    Binds data to the chart.

    Code Sample

     $(".selector").igSparkline("dataBind");
  • destroy

    .igSparkline( "destroy" );

    Code Sample


    $(".selector").igSparkline("destroy");
  • findIndexOfItem
    Inherited

    .igSparkline( "findIndexOfItem", item:object );
    Return Type:
    number
    Return Type Description:
    Returns -1 or index of item.

    Find index of item within actual data used by chart.

    • item
    • Type:object
    • The reference to item.

    Code Sample

     var index = $(".selector").igSparkline("findIndexOfItem", item);
  • flush
    Inherited

    .igSparkline( "flush" );

    Forces any pending deferred work to render on the chart before continuing.

  • getData
    Inherited

    .igSparkline( "getData" );
    Return Type:
    array
    Return Type Description:
    Returns null or reference to data.

    Get reference of actual data used by chart.

    Code Sample

     var data = $(".selector").igSparkline("getData");
  • getDataItem
    Inherited

    .igSparkline( "getDataItem", index:object );
    Return Type:
    object
    Return Type Description:
    Returns null or reference to data item.

    Get item within actual data used by chart. That is similar to this.getData()[ index ].

    • index
    • Type:object
    • Index of data item.

    Code Sample

     var item = $(".selector").igSparkline("getDataItem", 0);
  • insertItem
    Inherited

    .igSparkline( "insertItem", item:object, index:number );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Inserts a new item to the data source and notifies the chart.

    • item
    • Type:object
    • the new item that we want to insert in the data source.
    • index
    • Type:number
    • The index in the data source where the new item will be inserted.

    Code Sample

     var chart = $(".selector").igSparkline("insertItem", item, 9);
  • notifyClearItems
    Inherited

    .igSparkline( "notifyClearItems", dataSource:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Notifies the chart that the items have been cleared from an associated data source.
    It's not necessary to notify more than one target of a change if they share the same items source.

    • dataSource
    • Type:object
    • The data source in which the change happened.

    Code Sample

     var chart = $(".selector").igSparkline("notifyClearItems", dataSource);
  • notifyInsertItem
    Inherited

    .igSparkline( "notifyInsertItem", dataSource:object, index:number, newItem:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Notifies the target axis or series that an item has been inserted at the specified index in its data source.
    It's not necessary to notify more than one target of a change if they share the same items source.

    • dataSource
    • Type:object
    • The data source in which the change happened.
    • index
    • Type:number
    • The index in the items source where the new item has been inserted.
    • newItem
    • Type:object
    • the new item that has been set in the collection.

    Code Sample

     var chart = $(".selector").igSparkline("notifyInsertItem", dataSource, 9, newItem);
  • notifyRemoveItem
    Inherited

    .igSparkline( "notifyRemoveItem", dataSource:object, index:number, oldItem:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Notifies the target axis or series that an item has been removed from the specified index in its data source.
    It's not necessary to notify more than one target of a change if they share the same items source.

    • dataSource
    • Type:object
    • The data source in which the change happened.
    • index
    • Type:number
    • The index in the items source from where the old item has been removed.
    • oldItem
    • Type:object
    • the old item that has been removed from the collection.

    Code Sample

     var chart = $(".selector").igSparkline("notifyRemoveItem", dataSource, 0, oldItem);
  • notifySetItem
    Inherited

    .igSparkline( "notifySetItem", dataSource:object, index:number, newItem:object, oldItem:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Notifies the chart that an item has been set in an associated data source.

    • dataSource
    • Type:object
    • The data source in which the change happened.
    • index
    • Type:number
    • The index in the items source that has been changed.
    • newItem
    • Type:object
    • the new item that has been set in the collection.
    • oldItem
    • Type:object
    • the old item that has been overwritten in the collection.

    Code Sample

     var chart = $(".selector").igSparkline("notifySetItem", dataSource, 0, newItem, oldItem);
  • removeItem
    Inherited

    .igSparkline( "removeItem", index:number );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Deletes an item from the data source and notifies the chart.

    • index
    • Type:number
    • The index in the data source from where the item will be been removed.

    Code Sample

     var chart = $(".selector").igSparkline("removeItem", 0);
  • setItem
    Inherited

    .igSparkline( "setItem", index:number, item:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this chart.

    Updates an item in the data source and notifies the chart.

    • index
    • Type:number
    • The index of the item in the data source that we want to change.
    • item
    • Type:object
    • The new item object that will be set in the data source.

    Code Sample

     var chart = $(".selector").igSparkline("setItem", 0, item);
  • ui-sparkline ui-corner-all ui-widget-content

    Get the class applied to main element: ui-sparkline ui-corner-all ui-widget-content.
  • ui-sparkline-tooltip ui-widget-content ui-corner-all

    Get the class applied to the tooltip element: ui-sparkline-tooltip ui-widget-content ui-corner-all.
  • ui-html5-non-html5-supported-message ui-helper-clearfix ui-html5-non-html5

    Get the class applied to main element, shown when the chart is opened in a non HTML5 compatible browser.

Copyright © 1996 - 2019 Infragistics, Inc. All rights reserved.
