ui.igTreeGridResizing

ui.igTreeGridResizing_image

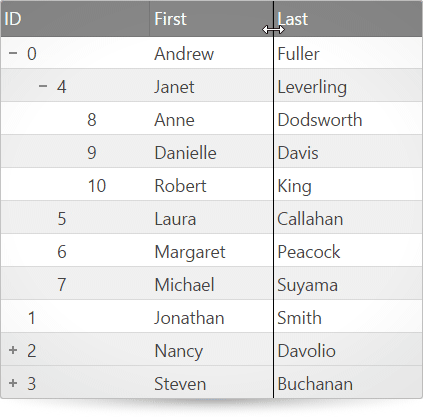

The igTreeGrid includes also the column resizing feature. Users can choose to arbitrarily adjust the width of a column or double-click the right border of the column to expand it to the width of the longest string in the column. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igTreeGrid control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


        <!doctype html>
        <html>
        <head>
            <!-- Infragistics Combined CSS -->
            <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
            <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />

            <!-- jQuery Core -->
            <script src="js/jquery.js" type="text/javascript"></script>

            <!-- jQuery UI -->
            <script src="js/jquery-ui.js" type="text/javascript"></script>

            <!-- Infragistics Combined Scripts -->
            <script src="js/infragistics.core.js" type="text/javascript"></script>
            <script src="js/infragistics.lob.js" type="text/javascript"></script>

            <script type="text/javascript">
                var employees = [
                    { "employeeId": 0, "supervisorId": -1, "firstName": "Andrew", "lastName": "Fuller" },
                    { "employeeId": 1, "supervisorId": -1, "firstName": "Jonathan", "lastName": "Smith" },
                    { "employeeId": 2, "supervisorId": -1, "firstName": "Nancy", "lastName": "Davolio" },
                    { "employeeId": 3, "supervisorId": -1, "firstName": "Steven", "lastName": "Buchanan" },

                    // Andrew Fuller's direct reports
                    { "employeeId": 4, "supervisorId": 0, "firstName": "Janet", "lastName": "Leverling" },
                    { "employeeId": 5, "supervisorId": 0, "firstName": "Laura", "lastName": "Callahan" },
                    { "employeeId": 6, "supervisorId": 0, "firstName": "Margaret", "lastName": "Peacock" },
                    { "employeeId": 7, "supervisorId": 0, "firstName": "Michael", "lastName": "Suyama" },

                    // Janet Leverling's direct reports
                    { "employeeId": 8, "supervisorId": 4, "firstName": "Anne", "lastName": "Dodsworth" },
                    { "employeeId": 9, "supervisorId": 4, "firstName": "Danielle", "lastName": "Davis" },
                    { "employeeId": 10, "supervisorId": 4, "firstName": "Robert", "lastName": "King" },

                    // Nancy Davolio's direct reports
                    { "employeeId": 11, "supervisorId": 2, "firstName": "Peter", "lastName": "Lewis" },
                    { "employeeId": 12, "supervisorId": 2, "firstName": "Ryder", "lastName": "Zenaida" },
                    { "employeeId": 13, "supervisorId": 2, "firstName": "Wang", "lastName": "Mercedes" },

                    // Steve Buchanan's direct reports
                    { "employeeId": 14, "supervisorId": 3, "firstName": "Theodore", "lastName": "Zia" },
                    { "employeeId": 15, "supervisorId": 3, "firstName": "Lacota", "lastName": "Mufutau" },

                    // Lacota Mufutau's direct reports
                    { "employeeId": 16, "supervisorId": 15, "firstName": "Jin", "lastName": "Elliott" },
                    { "employeeId": 17, "supervisorId": 15, "firstName": "Armand", "lastName": "Ross" },
                    { "employeeId": 18, "supervisorId": 15, "firstName": "Dane", "lastName": "Rodriquez" },

                    // Dane Rodriquez's direct reports
                    { "employeeId": 19, "supervisorId": 18, "firstName": "Declan", "lastName": "Lester" },
                    { "employeeId": 20, "supervisorId": 18, "firstName": "Bernard", "lastName": "Jarvis" },

                    // Bernard Jarvis' direct report
                    { "employeeId": 21, "supervisorId": 20, "firstName": "Jeremy", "lastName": "Donaldson" }
                ];

            $(function () {
                   $("#treegrid").igTreeGrid({
                       dataSource: employees,
                       primaryKey: "employeeId",
                       foreignKey: "supervisorId",
                       autoGenerateColumns: false,
                       columns: [
                           { headerText: "ID", key: "employeeId", width: "150px", dataType: "number" },
                           { headerText: "First", key: "firstName", width: "150px", dataType: "string" },
                           { headerText: "Last", key: "lastName", width: "150px", dataType: "string" }
                       ],
                 features: [
              {
              name: "Resizing",
              deferredResizing: false,
              allowDoubleClickToResize: true,
              columnSettings: [
              { columnKey: "employeeId", allowResizing: false },
              { columnKey: "firstName", minimumWidth: 40 }
              ]
              }]
                   });
               });
            </script>
        </head>
        <body>
            <table id="treegrid"></table>
        </body>
        </html>

Related Samples

Related Topics

Dependencies

jquery-1.9.1.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.datasource.js
infragistics.ui.shared.js
infragistics.ui.treegrid.js
infragistics.util.js
infragistics.ui.grid.framework.js
infragistics.ui.grid.resizing.js

Inherits

  • allowDoubleClickToResize
    Inherited

    Type:
    bool
    Default:
    true

    Resize the column to the size of the longest currently visible cell value.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Resizing",
    							allowDoubleClickToResize: true
    						}
    					]
    				});

  • columnSettings
    Inherited

    Type:
    array
    Default:
    []
    Elements Type:
    object

    A list of column settings that specifies resizing options on a per column basis.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features: [
    						{
    							name: "Resizing",
    							columnSettings: [
    								{ columnKey: "ProductID", allowResizing: true },
    							]
    						}
    					]
    				});

    • allowResizing

      Type:
      bool
      Default:
      true

      Enables disables resizing for the column.

      Code Sample


      						//Initialize
      						$(".selector").igTreeGrid({
      							features: [
      								{
      									name: "Resizing",
      									columnSettings: [
      										{ columnIndex: 0, allowResizing: true },
      									]
      								}
      							]
      						});

    • columnIndex

      Type:
      number
      Default:
      null

      Column index. Can be used in place of column key. the preferred way of populating a column setting is to always use the column keys as identifiers.

      Code Sample


      						//Initialize
      						$(".selector").igTreeGrid({
      							features: [
      								{
      									name: "Resizing",
      									columnSettings: [
      										{ columnIndex: 0, allowResizing: true },
      									]
      								}
      							]
      						});

    • columnKey

      Type:
      string
      Default:
      null

      Column key. this is a required property in every column setting if columnIndex is not set.

      Code Sample


      						//Initialize
      						$(".selector").igTreeGrid({
      							features: [
      								{
      									name: "Resizing",
      									columnSettings: [
      										{ columnKey: "ProductID", allowResizing: true },
      									]
      								}
      							]
      						});

    • maximumWidth

      Type:
      enumeration
      Default:
      null

      Maximum column width in pixels or percents.

      Code Sample


      						//Initialize
      						$(".selector").igTreeGrid({
      							features: [
      								{
      									name: "Resizing",
      									columnSettings: [
      										{ columnIndex: 0, maximumWidth: 100 },
      									]
      								}
      							]
      						});

    • minimumWidth

      Type:
      enumeration
      Default:
      20

      Minimum column width in pixels or percents.

      Code Sample


      						//Initialize
      						$(".selector").igTreeGrid({
      							features: [
      								{
      									name: "Resizing",
      									columnSettings: [
      										{ columnIndex: 0, minimumWidth: 30 },
      									]
      								}
      							]
      						});

  • deferredResizing
    Inherited

    Type:
    bool
    Default:
    false

    Specifies whether the resizing should be deferred until the user finishes resizing or applied immediately.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Resizing",
    							deferredResizing: true
    						}
    					]
    				});

  • handleThreshold
    Inherited

    Type:
    number
    Default:
    5

    The width in pixels of the resizing handle which is position at the right side of each resizeable column header.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Resizing",
    							handleThreshold: 10
    						}
    					]
    				});

  • inherit
    Inherited

    Type:
    bool
    Default:
    false

    Enables/disables feature inheritance for the child layouts. NOTE: It only applies for igHierarchicalGrid.

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • columnResized
    Inherited

    Cancellable:
    false

    Event fired after the resizing has been executed and results are rendered.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the GridResizing widget.

        • owner.grid
          Type: Object

          Gets a reference to the grid widget.

        • columnIndex
          Type: Number

          Gets the resized column index.

        • columnKey
          Type: String

          Gets the resized column key.

        • originalWidth
          Type: Number

          Gets the original column width.

        • newWidth
          Type: Number

          Gets the final column width after resizing.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridresizingcolumnresized", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// the index of the column that is resized
    					ui.columnIndex;

    					// the key of the column that is resized
    					ui.columnKey;

    					// the width of the column before resizing is done
    					ui.originalWidth;

    					// the width of the column after resizing is done
    					ui.newWidth;

    					// reference to the igTreeGridResizing widget
    					ui.owner;

    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Resizing",
    							columnResized: function(evt, ui){ ... }
    						}
    					]
    				});

  • columnResizing
    Inherited

    Cancellable:
    true

    Event fired before a resizing operation is executed.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the GridResizing widget.

        • owner.grid
          Type: Object

          Gets a reference to the grid widget.

        • columnIndex
          Type: Number

          Gets the resized column index.

        • columnKey
          Type: String

          Gets the resized column key.

        • desiredWidth
          Type: Number

          Gets the desired width(before min/max coercion) for the resized column.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridresizingcolumnresizing", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// the index of the column that is resized
    					ui.columnIndex;

    					// the key of the column that is resized
    					ui.columnKey;

    					// the current column width, during resizing
    					ui.desiredWidth;

    					// reference to the igTreeGridResizing widget
    					ui.owner;

    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Resizing",
    							columnResizing: function(evt, ui){ ... }
    						}
    					]
    				});

  • columnResizingRefused
    Inherited

    Cancellable:
    false

    Event fired(only when columnFixing is enabled) when trying to resize column in fixed area so total width of unfixed area to be less than minimalVisibleAreaWidth(option defined in columnFixing).

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the GridResizing widget.

        • owner.grid
          Type: Object

          Gets a reference to the grid widget.

        • columnIndex
          Type: Number

          Gets the resized column index.

        • columnKey
          Type: String

          Gets the resized column key.

        • desiredWidth
          Type: Number

          Gets the desired width(before min/max coercion) for the resized column.

    Code Sample


    				//Bind after initialization
    				$(document).delegate(".selector", "igtreegridresizingcolumnresizingrefused", function (evt, ui) {
    					//return the triggered event
    					evt;

    					// the index of the column that is resized
    					ui.columnIndex;

    					// the key of the column that is resized
    					ui.columnKey;

    					// get the desired width(before min/max coercion) for the resized column
    					ui.desiredWidth;

    					// reference to the igTreeGridResizing widget
    					ui.owner;

    					// get the reference to the igTreeGrid widget
    					ui.owner.grid
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Resizing",
    							columnResizingRefused: function(evt, ui){ ... }
    						}
    					]
    				});

  • destroy

    .igTreeGridResizing( "destroy" );

    Code Sample


    			$(".selector").igTreeGridResizing("destroy");

  • resize
    Inherited

    .igTreeGridResizing( "resize", column:object, [width:object] );

    Resizes a column to a specified width in pixels, percents or auto if no width is specified.

    • column
    • Type:object
    • An identifier for the column. If a number is provided it will be used as a columnIndex else if a strings is provided it will be used as a columnKey.
    • width
    • Type:object
    • Optional
    • Width of the column in pixels or percents. If no width or "*" is specified the column will be auto-sized to the width of the data in it (including header and footer cells).

    Code Sample


    				$(".selector").igTreeGridResizing("resize", 0, 50);

  • ui-iggrid-resize-line

    Class applied to the resize line that is visible during resizing.
  • ui-iggrid-resizing-handle

    Class applied to the resizing handle.
  • ui-iggrid-resizing-handle-cursor

    Class applied to the resizing handle and the body to change the cursor.
