ui.igMap

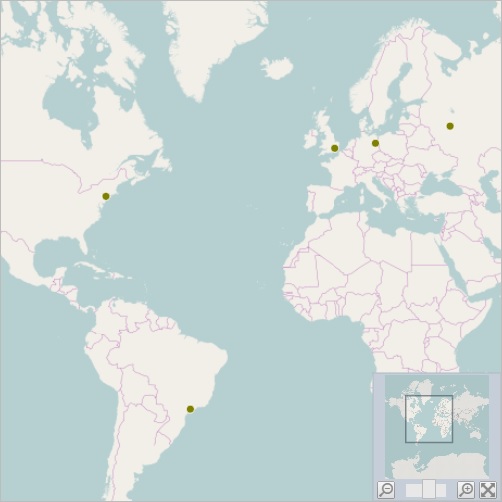

ui.igMap_image

The igMap control is a HTML5 jQuery map control based on the Infragistics Silverlight xamMap™ control. The control plots generic map data from map providers (e.g. OpenStreetMap®, Bing® Maps, and CloudMade® Maps) and exposes the ability to render additional map layers. For example, you can mark specific map locations and display information on the map point, you can use shape files to draw shapes around geographical regions and use differing colors depending on data parameters attached to map regions. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igMap control.

For details on how to reference the required scripts and themes for the igMap control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample

<!doctype html>
<html>
<head>
    <title>Ignite UI igMap</title>
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Loader -->
    <script type="text/javascript" src="http://localhost/ig_ui/js/infragistics.loader.js"></script>

    <script type="text/javascript">
        var data = [
                { Name: "London", Country: "England", Latitude: 51.50, Longitude: 0.12 },
                { Name: "Berlin", Country: "Germany", Latitude: 52.50, Longitude: 13.33 },
                { Name: "Moscow", Country: "Russia", Latitude: 55.75, Longitude: 37.51 },
                { Name: "Sydney", Country: "Australia", Latitude: -33.83, Longitude: 151.2 },
                { Name: "Tokyo", Country: "Japan", Latitude: 35.6895, Longitude: 139.6917 },
                { Name: "Shanghai", Country: "China", Latitude: 31.2244, Longitude: 121.4759 },
                { Name: "New York", Country: "United States", Latitude: 40.7561, Longitude: -73.9870 },
                { Name: "Sao Paulo", Country: "Brasil", Latitude: -23.5489, Longitude: -46.6388 },
                { Name: "Los Angeles", Country: "United States", Latitude: 34.0522, Longitude: -118.2434 }
            ];
    </script>

    <script id="cityTemplate" type="text/x-jquery-tmpl">
        <table>
            <tr><td>${item.Name}, ${item.Country}</td></tr>
            <tr><td>Latitude: ${item.Latitude}</td></tr>
            <tr><td>Longitude: ${item.Longitude}</td></tr>
        </table>
    </script>

    <script type="text/javascript">
        $.ig.loader({
            scriptPath: "http://localhost/ig_ui/js/",
            cssPath: "http://localhost/ig_ui/css/",
            resources: "igMap,igOverviewPlusDetailPane"
        });

        $(function () {
            $("#map").igMap({
                overviewPlusDetailPaneVisibility: "visible",
                overviewPlusDetailPaneBackgroundImageUri: "http://www.igniteui.com/images/samples/maps/world.png",
                backgroundContent: { type: "openStreet" },
                series: [{
                    type: "geographicSymbol",
                    name: "worldCities",
                    dataSource: data,
                    latitudeMemberPath: "Latitude",
                    longitudeMemberPath: "Longitude",
                    markerType: "automatic",
                    markerBrush: "olive",
                    showTooltip: true,
                    tooltipTemplate: "cityTemplate"
                }],
                windowResponse: "immediate",
                windowRect: {
                    left: 0.20,
                    top: 0.20,
                    height: 0.45,
                    width: 0.45
                }
            });
        });
    </script>
</head>
<body>
    <div id="map"></div>
</body>
</html>


Related Samples

Related Topics

Dependencies

jquery.js
jquery-ui.js
jquery.ui.widget.js
infragistics.util.js
infragistics.util.jquery.js
infragistics.datasource.js
infragistics.templating.js
infragistics.ext_core.js
infragistics.ext_collections.js
infragistics.ext_ui.js
infragistics.dv_core.js
infragistics.dv_geometry.js
infragistics.datachart_core.js
infragistics.dvcommonwidget.js
infragistics.datachart_scatter.js
infragistics.ext_text.js
infragistics.ext_io.js
infragistics.ext_threading.js
infragistics.ext_web.js
infragistics.dv_geo.js
infragistics.dv_jquerydom.js
infragistics.geographicmap_core.js

Inherits

  • autoMarginHeight

    Type:
    number
    Default:
    0

    Sets or gets the automatic height to add when automatically adding margins to the map.

    Code Sample

    //Initialize
    $(".selector").igMap({
        autoMarginHeight : 100
    });

    //Get
    var height = $(".selector").igMap("option", "autoMarginHeight");

    //Set
    $(".selector").igMap("option", "autoMarginHeight", 100);

  • autoMarginWidth

    Type:
    number
    Default:
    20

    Sets or gets the automatic width to add when automatically adding margins to the map.

    Code Sample

    //Initialize
    $(".selector").igMap({
        autoMarginWidth : 200
    });

    //Get
    var width = $(".selector").igMap("option", "autoMarginWidth");

    //Set
    $(".selector").igMap("option", "autoMarginWidth", 200);

  • backgroundContent

    Type:
    object
    Default:
    {}

    Background content object.

    Code Sample

    //Initialization
    $("#map").igMap({
        backgroundContent: {
            type: "bing",
            key: "abcdefghijk123456"
        }
    });

    //Get
    var backgroundContent = $(".selector").igMap("option", "backgroundContent");

    //Set
    $(".selector").igMap("option", "backgroundContent", {
        type: "bing",
        key: "abcdefghijk123456"
    });

    • bingUrl

      Type:
      string
      Default:
      "http://dev.virtualearth.net/REST/v1/Imagery/Metadata/"

      Gets or sets the bing maps url.

      Code Sample

      //Initialization
      $("#map").igMap({
          backgroundContent: {
              type: "bing",
              key: "abcdefghijk123456",
      		bingUrl: "http://dev.virtualearth.net/rest/v1/imagery/metadata/"
          }
      });

      //Get
      var backgroundContent = $(".selector").igMap("option", "backgroundContent");
      backgroundContent.bingUrl;

      //Set
      $(".selector").igMap("option", "backgroundContent", {
          type: "bing",
          key: "abcdefghijk123456",
      	bingUrl: "http://dev.virtualearth.net/rest/v1/imagery/metadata/"
      });

    • imagerySet

      Type:
      string
      Default:
      "AerialWithLabels"

      Gets or sets the type of the imagery.

      Code Sample

      //Initialization
      $("#map").igMap({
          backgroundContent: {
              type: "bing",
              key: "abcdefghijk123456",
      		imagerySet: "aerial"
          }
      });

      //Get
      var backgroundContent = $(".selector").igMap("option", "backgroundContent");
      backgroundContent.imagerySet;

      //Set
      $(".selector").igMap("option", "backgroundContent", {
          type: "bing",
          key: "abcdefghijk123456",
      	imagerySet: "aerial"
      });

    • key

      Type:
      string
      Default:
      null

      Gets or sets the key.

      Code Sample

      //Initialization
      $("#map").igMap({
          backgroundContent: {
              type: "bing",
              key: "abcdefghijk123456"
          }
      });

      //Get
      var backgroundContent = $(".selector").igMap("option", "backgroundContent");
      backgroundContent.key;

      //Set
      $(".selector").igMap("option", "backgroundContent", {
          type: "bing",
          key: "abcdefghijk123456"
      });

    • parameter

      Type:
      string
      Default:
      null

      Gets or sets the parameter.

      Code Sample

      //Initialization
      $("#map").igMap({
          backgroundContent: {
              type: "bing",
              key: "abcdefghijk123456",
      		parameter: 2
          }
      });

      //Get
      var backgroundContent = $(".selector").igMap("option", "backgroundContent");
      backgroundContent.parameter;

      //Set
      $(".selector").igMap("option", "backgroundContent", {
          type: "bing",
          key: "abcdefghijk123456",
      	parameter: 2
      });

    • tilePath

      Type:
      string
      Default:
      null

      Gets or sets the map tile image uri.
      For Bing Maps this is populated by bing imagery.
      For Open Street Map this option can accept custom URL for the tiles. Default is: 'tile.openstreetmap.org/{Z}/{X}/{Y}.png'. No protocol set means that 'http://' or 'https://' will be prepended automatically depending on the hosting site protocol. {Z} - denotes tile zoom, {X} - denotes tile horizontal position, {Y} - denotes tile vertical position.

      Code Sample

      //Initialization
      $("#map").igMap({
          backgroundContent: {
              type: "bing",
              key: "abcdefghijk123456",
      		tilePath: "http://www.example.com/tiles/"
          }
      });

      //Get
      var backgroundContent = $(".selector").igMap("option", "backgroundContent");
      backgroundContent.tilePath;

      //Set
      $(".selector").igMap("option", "backgroundContent", {
          type: "bing",
          key: "abcdefghijk123456",
      	tilePath: "http://www.example.com/tiles/"
      });

    • type

      Type:
      enumeration
      Default:
      openStreet

      Type of the background content for the map.

      Members

      • openStreet
      • Type:string
      • Specify the background content to display OpenStreetMap geographic data. Set as default.
      • cloudMade
      • Type:string
      • Specify the background content to display CloudMade geographic data.
      • bing
      • Type:string
      • Specify the background content to BingMaps geographic data.

      Code Sample

      //Initialization
      $("#map").igMap({
          backgroundContent: {
              type: "bing",
              key: "abcdefghijk123456"
          }
      });

      //Get
      var backgroundContent = $(".selector").igMap("option", "backgroundContent");
      backgroundContent.type;

      //Set
      $(".selector").igMap("option", "backgroundContent", {
          type: "bing",
          key: "abcdefghijk123456"
      });

  • circleMarkerTemplate

    Type:
    object
    Default:
    null

    Gets or sets the template to use for circle markers on the map.
    Defines the marker template used for
    series with a marker type of circle.
    The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

    Code Sample

    //Initialize
    $(".selector").igMap({
        circleMarkerTemplate: {
            measure: function(measureInfo) {
                measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                measureInfo.data;       // if present, represents the contextual data for this template]
            },
            render: function (renderInfo) {
                renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                renderInfo.data;               //    if present, specifies the data that is in context for this content
                renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
            }
        }
    });

  • crosshairPoint

    Type:
    object
    Default:
    {}

    Gets or sets the cross hair point (in world coordinates)
    Either or both of the crosshair point's X and Y may be set to double.NaN, in which
    case the relevant crosshair line is hidden.

    Code Sample

    //  Initialization
    $(".selector").igMap({
        crosshairPoint: { x: 0.5, y: 0.5 }
    });

    //  Get
    var crosshairPoint = $(".selector").igMap("option", "crosshairPoint");

    //  Set
    $(".selector").igMap("option", "crosshairPoint", { x: 0.5, y: 0.5 });

    • x

      Type:
      number
      Default:
      ""

      The x coordinate.

      Code Sample

      //  Initialization
      $(".selector").igMap({
          crosshairPoint: { x: 0.5, y: 0.5 }
      });

      //  Get
      var crosshairPoint = $(".selector").igMap("option", "crosshairPoint");
      var x =  crosshairPoint.x;

      //  Set
      $(".selector").igMap("option", "crosshairPoint", { x: 0.5, y: 0.5 });

    • y

      Type:
      number
      Default:
      ""

      The y coordinate.

      Code Sample

      //  Initialization
      $(".selector").igMap({
          crosshairPoint: { x: 0.5, y: 0.5 }
      });

      //  Get
      var crosshairPoint = $(".selector").igMap("option", "crosshairPoint");
      var y =  crosshairPoint.y;

      //  Set
      $(".selector").igMap("option", "crosshairPoint", { x: 0.5, y: 0.5 });

  • crosshairVisibility

    Type:
    enumeration
    Default:
    collapsed

    Gets or sets the current Map's crosshair visibility override.

    Members

    • visible
    • Type:string
    • Crosshair should be visible.
    • collapsed
    • Type:string
    • Crosshair should not be visible.

    Code Sample

    //  Initialization
    $(".selector").igMap({
        crosshairVisibility: "collapsed"
    });

    //  Get
    var crosshairVisibility = $(".selector").igMap("option", "crosshairVisibility");

    //  Set
    $(".selector").igMap("option", "crosshairVisibility", "collapsed");

  • dataSource

    Type:
    object
    Default:
    null

    Can be any valid data source accepted by $.ig.DataSource, or an instance of an $.ig.DataSource itself.

    Code Sample

    //  Initialization
    var data = [
        { Name: "London", Country: "England", Latitude: 51.50, Longitude: 0.12 },
        { Name: "Berlin", Country: "Germany", Latitude: 52.50, Longitude: 13.33 },
        { Name: "Moscow", Country: "Russia", Latitude: 55.75, Longitude: 37.51 },
        { Name: "Sydney", Country: "Australia", Latitude: -33.83, Longitude: 151.2 }
    ];
    $(".selector").igMap({
        dataSource: data
    });

    //  Get
    var dataSource = $(".selector").igMap("option", "dataSource");

    //  Set
    $(".selector").igMap("option", "dataSource", data);

  • dataSourceType

    Type:
    string
    Default:
    null

    Explicitly set data source type (such as "json"). Please refer to the documentation of $.ig.DataSource and its type property.

    Code Sample

    //  Initialization
    $(".selector").igMap({
        dataSourceType: "array"
    });

    //  Get
    var dataSourceType = $(".selector").igMap("option", "dataSourceType");

    //  Set
    $(".selector").igMap("option", "dataSourceType", "array");

  • dataSourceUrl

    Type:
    string
    Default:
    null

    Specifies a remote URL accepted by $.ig.DataSource in order to request data from it.

    Code Sample

    //  Initialization
    $(".selector").igMap({
        dataSourceUrl: "http://www.example.com"
    });

    //  Get
    var dataSourceUrl = $(".selector").igMap("option", "dataSourceUrl");

    //  Set
    $(".selector").igMap("option", "dataSourceUrl", "http://www.example.com");

  • defaultInteraction

    Type:
    enumeration
    Default:
    dragPan

    Gets or sets the DefaultInteraction property. The default interaction state defines the map's response to mouse events.

    Members

    • none
    • Type:string
    • User gesture will not change the state of the map.
    • dragZoom
    • Type:string
    • User gesture will start a drag rectangle to zoom the map.
    • dragPan
    • Type:string
    • User gesture will start a pan action to move the map's window.

    Code Sample

    //  Initialization
    $(".selector").igMap({
        defaultInteraction: "dragZoom"
    });

    //  Get
    var defaultInteraction = $(".selector").igMap("option", "defaultInteraction");

    //  Set
    $(".selector").igMap("option", "defaultInteraction", "dragZoom");

  • diamondMarkerTemplate

    Type:
    object
    Default:
    null

    Gets or sets the template to use for diamond markers on the map.
    Defines the marker template used for
    series with a marker type of diamond.
    The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

    Code Sample

    //Initialize
    $(".selector").igMap({
        diamondMarkerTemplate: {
            measure: function(measureInfo) {
                measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                measureInfo.data;       // if present, represents the contextual data for this template]
            },
            render: function (renderInfo) {
                renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                renderInfo.data;               //    if present, specifies the data that is in context for this content
                renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
            }
        }
    });

  • dragModifier

    Type:
    enumeration
    Default:
    none

    Gets or sets the current Map's DragModifier property.

    Members

    • none
    • Type:string
    • No modifier key is set.
    • alt
    • Type:string
    • The modifier is set to alt key.
    • control
    • Type:string
    • The modifier is set to control key.
    • shift
    • Type:string
    • The modifier is set to shift key.

    Code Sample

    //  Initialization
    $(".selector").igMap({
        dragModifier: "control"
    });

    //  Get
    var dragModifier = $(".selector").igMap("option", "dragModifier");

    //  Set
    $(".selector").igMap("option", "dragModifier", "control");

  • height

    Type:
    enumeration
    Default:
    null

    The height of the map. It can be set as a number in pixels, string (px) or percentage (%).

    Members

      • string
      • The widget height can be set in pixels (px) and percentage (%).
      • number
      • The widget height can be set as a number.

    Code Sample

    //  Initialization
    $(".selector").igMap({
        height: 250
    });

    //  Get
    var height = $(".selector").igMap("option", "height");

    //  Set
    $(".selector").igMap("option", "height", 250);

  • hexagonMarkerTemplate

    Type:
    object
    Default:
    null

    Gets or sets the template to use for hexagon markers on the map.
    Defines the marker template used for
    series with a marker type of hexagon.
    The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

    Code Sample

    //Initialize
    $(".selector").igMap({
        hexagonMarkerTemplate: {
            measure: function(measureInfo) {
                measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                measureInfo.data;       // if present, represents the contextual data for this template]
            },
            render: function (renderInfo) {
                renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                renderInfo.data;               //    if present, specifies the data that is in context for this content
                renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
            }
        }
    });

  • hexagramMarkerTemplate

    Type:
    object
    Default:
    null

    Gets or sets the template to use for hexagram markers on the map.
    Defines the marker template used for
    series with a marker type of hexagram.
    The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

    Code Sample

    //Initialize
    $(".selector").igMap({
        hexagramMarkerTemplate: {
            measure: function(measureInfo) {
                measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                measureInfo.data;       // if present, represents the contextual data for this template]
            },
            render: function (renderInfo) {
                renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                renderInfo.data;               //    if present, specifies the data that is in context for this content
                renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
            }
        }
    });

  • overviewPlusDetailPaneBackgroundImageUri

    Type:
    string
    Default:
    null

    The background image uri use in the overview detail pane.

    Code Sample

    //  Initialization
    $(".selector").igMap({
        overviewPlusDetailPaneBackgroundImageUri: "Content/img/World.png"
    });

    //  Get
    var OPDImageUri = $(".selector").igMap("option",
        "overviewPlusDetailPaneBackgroundImageUri");

    //  Set
    $(".selector").igMap("option", "overviewPlusDetailPaneBackgroundImageUri",
        "Content/img/World.png");

  • panModifier

    Type:
    enumeration
    Default:
    shift

    Gets or sets the current Map's PanModifier property.

    Members

    • none
    • Type:string
    • No modifier key is set.
    • alt
    • Type:string
    • The modifier is set to alt key.
    • control
    • Type:string
    • The modifier is set to control key.
    • shift
    • Type:string
    • The modifier is set to shift key.

    Code Sample

    //  Initialization
    $(".selector").igMap({
        panModifier: "control"
    });

    //  Get
    var panModifier = $(".selector").igMap("option", "panModifier");

    //  Set
    $(".selector").igMap("option", "panModifier", "control");

  • pentagonMarkerTemplate

    Type:
    object
    Default:
    null

    Gets or sets the template to use for pentagon markers on the map.
    Defines the marker template used for
    series with a marker type of pentagon.
    The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

    Code Sample

    //Initialize
    $(".selector").igMap({
        pentagonMarkerTemplate: {
            measure: function(measureInfo) {
                measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                measureInfo.data;       // if present, represents the contextual data for this template]
            },
            render: function (renderInfo) {
                renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                renderInfo.data;               //    if present, specifies the data that is in context for this content
                renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
            }
        }
    });

  • pentagramMarkerTemplate

    Type:
    object
    Default:
    null

    Gets or sets the template to use for pentragram markers on the map.
    Defines the marker template used for
    series with a marker type of pentagram.
    The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

    Code Sample

    //Initialize
    $(".selector").igMap({
        pentagramMarkerTemplate: {
            measure: function(measureInfo) {
                measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                measureInfo.data;       // if present, represents the contextual data for this template]
            },
            render: function (renderInfo) {
                renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                renderInfo.data;               //    if present, specifies the data that is in context for this content
                renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
            }
        }
    });

  • plotAreaBackground

    Type:
    string
    Default:
    null

    Gets or sets the brush used as the background for the current Map object's plot area.

    Code Sample

    //Initialize
    $(".selector").igMap({
        plotAreaBackground: "grey"
    });

    //Get
    var plotAreaBackground = $(".selector").igMap("option", "plotAreaBackground");

    //Set
    var plotAreaBackground = $(".selector").igMap("option", "plotAreaBackground", "grey");

  • preferHigherResolutionTiles

    Type:
    bool
    Default:
    false

    Sets whether the series viewer should prefer selecting higher resolution tiles over lower resolution tiles when performing tile zooming. Setting this to true will lower performance but increase quality.

    Code Sample


    //Initialize
    $(".selector").igMap({
        preferHigherResolutionTiles: true
    });

    //Get
    var preferHighResTiles = $(".selector").igMap("option", "preferHigherResolutionTiles");

    //Set
    $(".selector").igMap("option", "preferHigherResolutionTiles", true);

  • previewRect

    Type:
    object
    Default:
    null

    Gets or sets the preview rectangle.
    The preview rectangle may be set to Rect.Empty, in which case the visible preview
    strokePath is hidden.
    The provided object should have numeric properties called left, top, width and height.

    Code Sample

    //  Initialization
    $(".selector").igMap({
      previewRect:
        {
            left: 0.3,
            top: 0.3,
            width: 0.5,
            height: 0.5
        }
    });

    //  Get
    var previewRect = $(".selector").igMap("option", "previewRect");

    //  Set
    $(".selector").igMap("option", "previewRect", {
        left: 0.3,
        top: 0.3,
        width: 0.5,
        height: 0.5
    });

  • pyramidMarkerTemplate

    Type:
    object
    Default:
    null

    Gets or sets the template to use for pyramid markers on the map.
    Defines the marker template used for
    series with a marker type of pyramid.
    The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

    Code Sample

    //Initialize
    $(".selector").igMap({
        pyramidMarkerTemplate: {
            measure: function(measureInfo) {
                measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                measureInfo.data;       // if present, represents the contextual data for this template]
            },
            render: function (renderInfo) {
                renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                renderInfo.data;               //    if present, specifies the data that is in context for this content
                renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
            }
        }
    });

  • responseDataKey

    Type:
    string
    Default:
    null

    See $.ig.DataSource. Specifies the name of the property in which data records are held if the response is wrapped.

    Code Sample

    //Initialize
    $(".selector").igMap({
        responseDataKey: "Records"
    });

    //Get
    var responseDataKey = $(".selector").igMap("option", "responseDataKey");

    //Set
    var responseDataKey = $(".selector").igMap("option", "responseDataKey", "Records");

  • series

    Type:
    array
    Default:
    []
    Elements Type:
    object

    An array of series objects.

    Code Sample

    //Initialization
    var data = [
        { Name: "London", Country: "England", Latitude: 51.50, Longitude: 0.12 },
        { Name: "Berlin", Country: "Germany", Latitude: 52.50, Longitude: 13.33 }
    ];

    $("#map").igMap({
        series: [{
            type: "geographicSymbol",
            name: "worldCities",
            dataSource: data,
            latitudeMemberPath: "Latitude",
            longitudeMemberPath: "Longitude"
        }]
    });

    //Get
    var series = $(".selector").igMap("option", "series");
    series[0];

    //Set
    $(".selector").igMap("option", "series", [{
            type: "geographicSymbol",
            name: "worldCities",
            latitudeMemberPath: "Latitude",
            longitudeMemberPath: "Longitude"
        }]
    );

    • angleMemberPath

      Type:
      number
      Default:
      null

      Gets or sets the x-radius of the ellipse that is used to round the corners of the column.

      Code Sample

      //Initialization
      $(".selector").igMap({
          series: [{
              angleMemberPath: "Index"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].angleMemberPath;

      //Set
      $(".selector").igMap("option", "series", [{
          angleMemberPath: "Index"
      }]);

    • brush

      Type:
      string
      Default:
      null

      Gets or sets the brush to use for the series.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              brush: "blue"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].brush;

      //Set
      $(".selector").igMap("option", "series", [{
          brush: "blue"
      }]);

    • clipSeriesToBounds

      Type:
      bool
      Default:
      null

      Gets or sets whether to clip the series to the bounds.
      Setting this to true can affect performance.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              clipSeriesToBounds: true
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].clipSeriesToBounds;

      //Set
      $(".selector").igMap("option", "series", [{
          clipSeriesToBounds: true
      }]);

    • closeMemberPath

      Type:
      string
      Default:
      null

      Gets or sets the close mapping property for the current series object.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              closeMemberPath: "Close"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].closeMemberPath;

      //Set
      $(".selector").igMap("option", "series", [{
          closeMemberPath: "Close"
      }]);

    • colorMemberPath

      Type:
      string
      Default:
      null

      The name of the property on each data item containing a numeric value which can be converted to a color by the ColorScale.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              colorMemberPath: "Temperature"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].colorMemberPath;

      //Set
      $(".selector").igMap("option", "series", [{
          colorMemberPath: "Temperature"
      }]);

    • colorScale

      Type:
      object
      Default:
      null

      The ColorScale used to resolve the color values of points in the series.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              name: "sampleSeries",
              type: "geographicScatterArea",
              colorScale: {
                  type: "customPalette",
                  interpolationMode: "interpolateRGB",
                  palette: [
                      "#3300CC",
                      "#4775FF"
                  ]
              }
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].colorScale;

      //Set
      $(".selector").igMap("option", "series", [{
          name: "sampleSeries",
          colorScale: {
              type: "customPalette",
              interpolationMode: "interpolateRGB",
              palette: [
                  "#3300CC",
                  "#4775FF"
              ]
          }
      }]);

    • databaseSource

      Type:
      string
      Default:
      null

      String The database source URI.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              name: "sampleSeries",
              type: "geographicShape",
              databaseSource: "ShapeData.dbf"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].databaseSource;

      //Set
      $(".selector").igMap("option", "series", [{
          name: "sampleSeries",
          databaseSource: "ShapeData.dbf"
      }]);

    • dataSource

      Type:
      object
      Default:
      null

      Can be any valid data source accepted by $.ig.DataSource, or an instance of an $.ig.DataSource itself.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              dataSource: data
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].dataSource;

      //Set
      $(".selector").igMap("option", "series", [{
          dataSource: data
      }]);

    • dataSourceType

      Type:
      string
      Default:
      null

      Explicitly set data source type (such as "json"). Please refer to the documentation of $.ig.DataSource and its type property.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              dataSourceType: "array"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].dataSourceType;

      //Set
      $(".selector").igMap("option", "series", [{
          dataSourceType: "array"
      }]);

    • dataSourceUrl

      Type:
      string
      Default:
      null

      Specifies a remote URL accepted by $.ig.DataSource in order to request data from it.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              dataSourceUrl: "http://www.example.com/map-data"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].dataSourceUrl;

      //Set
      $(".selector").igMap("option", "series", [{
          dataSourceUrl: "http://www.example.com/map-data"
      }]);

    • discreteLegendItemTemplate

      Type:
      object
      Default:
      null

      Gets or sets the DiscreteLegendItemTemplate property.
      The legend item control content is created according to the DiscreteLegendItemTemplate on-demand by
      the series object itself.
      The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              discreteLegendItemTemplate: {
                      measure: function(measureInfo) {
                          measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                          measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                          measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                          measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                          measureInfo.data;       // if present, represents the contextual data for this template]
                      },
                      render: function (renderInfo) {
                          renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                          renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                          renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                          renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                          renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                          renderInfo.data;               //    if present, specifies the data that is in context for this content
                          renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
                      }
                  }
          }]
      });

    • fillMemberPath

      Type:
      string
      Default:
      null

      The name of the property on data source items which contains a numeric value to convert to a Brush using the FillScale.

      Code Sample

      //Initialization
      $(".selector").igMap({
          series: [{
              name: "sampleSeries",
              type: "geographicContourLine",
              fillMemberPath: "Temperature"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].fillMemberPath;

      //Set
      $(".selector").igMap("option", "series", [{
          name: "series1",
          fillMemberPath: "Temperature"
      }]);

    • fillScale

      Type:
      object
      Default:
      null

      The ValueBrushScale to use when determining Brushes for each Shape, based on the values found in FillMemberPath.

      Code Sample

      //Initialization
      $(".selector").igMap({
          series: [{
              name: "sampleSeries",
              type: "geographicContourLine",
              fillScale: {
                      type: "value",
                      brushes: ["#3300CC", "#4775FF", "#0099CC", "#00CC99", "#33CC00", "#99CC00", "#CC9900", "#FFC20A", "#CC3300"]
                  }
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].fillScale;

      //Set
      $(".selector").igMap("option", "series", [{
          name: "series1",
          fillScale: {
                  type: "value",
                  brushes: ["#3300CC", "#4775FF", "#0099CC", "#00CC99", "#33CC00", "#99CC00", "#CC9900", "#FFC20A", "#CC3300"]
              }
      }]);

    • heatMaximum

      Type:
      number
      Default:
      50

      Gets or sets the value that maps to the maximum heat color.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              heatMaximum: 100
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].heatMaximum;

      //Set
      $(".selector").igMap("option", "series", [{
          heatMaximum: 100
      }]);

    • heatMinimum

      Type:
      number
      Default:
      0

      Gets or sets the density value that maps to the minimum heat color.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              heatMinimum: 5
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].heatMinimum;

      //Set
      $(".selector").igMap("option", "series", [{
          heatMinimum: 5
      }]);

    • highMemberPath

      Type:
      string
      Default:
      null

      Gets or sets the value mapping property for the current series object.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              highMemberPath: "High"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].highMemberPath;

      //Set
      $(".selector").igMap("option", "series", [{
          highMemberPath: "High"
      }]);

    • ignoreFirst

      Type:
      number
      Default:
      0

      Gets or sets the number of values to hide at the beginning of the indicator.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              ignoreFirst: 5
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].ignoreFirst;

      //Set
      $(".selector").igMap("option", "series", [{
          ignoreFirst: 5
      }]);

    • labelMemberPath

      Type:
      string
      Default:
      null

      Gets or sets the Label mapping property for the current series object.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              labelMemberPath: "Name"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].labelMemberPath;

      //Set
      $(".selector").igMap("option", "series", [{
          labelMemberPath: "Name"
      }]);

    • latitudeMemberPath

      Type:
      string
      Default:
      null

      The name of the property of data source items which contains the latitude coordinate of the symbol.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              latitudeMemberPath: "Latitude"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].latitudeMemberPath;

      //Set
      $(".selector").igMap("option", "series", [{
          latitudeMemberPath: "Latitude"
      }]);

    • legendItemBadgeTemplate

      Type:
      object
      Default:
      null

      Gets or sets the LegendItemBadgeTemplate property.
      The legend item badge is created according to the LegendItemBadgeTemplate on-demand by
      the series object itself.
      The provided object should have properties called render and optionally measure.
      These are functions which will be called that will be called to handle the user specified custom rendering.
      measure will be passed an object that looks like this:
      {
      context: [either a DOM element or a CanvasContext2D depending on the particular template scenario],
      width: [if value is present, specifies the available width, user may set to desired width for content],
      height: [if value is present, specifies the available height, user may set to desired height for content],
      isConstant: [user should set to true if desired with and height will always be the same for this template],
      data: [if present, represents the contextual data for this template]
      }
      render will be passed an object that looks like this:
      {
      context: [either a DOM element or a CanvasContext2D depending on the particular template scenario],
      xPosition: [if present, specifies the x position at which to render the content],
      yPosition: [if present, specifies the y position at which to render the content],
      availableWidth: [if present, specifies the available width in which to render the content],
      availableHeight: [if present, specifies the available height in which to render the content],
      data: [if present, specifies the data that is in context for this content],
      isHitTestRender: [if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used]
      }.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              legendItemBadgeTemplate: {
                  measure: function(measureInfo) {
                      measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                      measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                      measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                      measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                      measureInfo.data;       // if present, represents the contextual data for this template]
                  },
                  render: function (renderInfo) {
                      renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                      renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                      renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                      renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                      renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                      renderInfo.data;               //    if present, specifies the data that is in context for this content
                      renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
                  }
              }
          }]
      });

    • legendItemTemplate

      Type:
      object
      Default:
      null

      Gets or sets the LegendItemTemplate property.
      The legend item control content is created according to the LegendItemTemplate on-demand by
      the series object itself.
      The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              legendItemTemplate: {
                  measure: function(measureInfo) {
                      measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                      measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                      measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                      measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                      measureInfo.data;       // if present, represents the contextual data for this template]
                  },
                  render: function (renderInfo) {
                      renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                      renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                      renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                      renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                      renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                      renderInfo.data;               //    if present, specifies the data that is in context for this content
                      renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
                  }
              }
          }]
      });

    • longitudeMemberPath

      Type:
      string
      Default:
      null

      The name of the property of data source items which contains the longitude coordinate of the symbol.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              longitudeMemberPath: "Longitude"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].longitudeMemberPath;

      //Set
      $(".selector").igMap("option", "series", [{
          longitudeMemberPath: "Longitude"
      }]);

    • longPeriod

      Type:
      number
      Default:
      0

      Gets or sets the short moving average period for the current AbsoluteVolumeOscillatorIndicator object.
      The typical, and initial, value for long AVO periods is 30.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              longPeriod: 50
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].longPeriod;

      //Set
      $(".selector").igMap("option", "series", [{
          longPeriod: 50
      }]);

    • lowMemberPath

      Type:
      string
      Default:
      null

      Gets or sets the value mapping property for the current series object.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              lowMemberPath: "Low"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].lowMemberPath;

      //Set
      $(".selector").igMap("option", "series", [{
          lowMemberPath: "Low"
      }]);

    • markerBrush

      Type:
      string
      Default:
      null

      Gets or sets the brush that specifies how the current series object's marker interiors are painted.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              markerBrush: "blue"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].markerBrush;

      //Set
      $(".selector").igMap("option", "series", [{
          markerBrush: "blue"
      }]);

    • markerCollisionAvoidance

      Type:
      enumeration
      Default:
      none

      Gets or sets the MarkerCollisionAvoidance.

      Members

      • none
      • Type:string
      • No collision avoidance is attempted.
      • omit
      • Type:string
      • Markers that collide will be omitted.
      • fade
      • Type:string
      • Markers that collide will be faded in opacity.
      • omitAndShift
      • Type:string
      • Markers that collide may be shifted or omitted.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              markerCollisionAvoidance: "fadeAndShift"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].markerCollisionAvoidance;

      //Set
      $(".selector").igMap("option", "series", [{
          markerCollisionAvoidance: "fadeAndShift"
      }]);

    • markerOutline

      Type:
      string
      Default:
      null

      Gets or sets the brush that specifies how the current series object's marker outlines are painted.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              markerOutline: "black"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].markerOutline;

      //Set
      $(".selector").igMap("option", "series", [{
          markerOutline: "black"
      }]);

    • markerTemplate

      Type:
      object
      Default:
      null

      Gets or sets the MarkerTemplate for the current series object.
      The provided object should have properties called render and optionally measure.
      These are functions which will be called that will be called to handle the user specified custom rendering.
      measure will be passed an object that looks like this:
      {
      context: [either a DOM element or a CanvasContext2D depending on the particular template scenario],
      width: [if value is present, specifies the available width, user may set to desired width for content],
      height: [if value is present, specifies the available height, user may set to desired height for content],
      isConstant: [user should set to true if desired with and height will always be the same for this template],
      data: [if present, represents the contextual data for this template]
      }
      render will be passed an object that looks like this:
      {
      context: [either a DOM element or a CanvasContext2D depending on the particular template scenario],
      xPosition: [if present, specifies the x position at which to render the content],
      yPosition: [if present, specifies the y position at which to render the content],
      availableWidth: [if present, specifies the available width in which to render the content],
      availableHeight: [if present, specifies the available height in which to render the content],
      data: [if present, specifies the data that is in context for this content],
      isHitTestRender: [if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used]
      }.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              markerTemplate: {
                  measure: function(measureInfo) {
                      measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                      measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                      measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                      measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                      measureInfo.data;       // if present, represents the contextual data for this template]
                  },
                  render: function (renderInfo) {
                      renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                      renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                      renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                      renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                      renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                      renderInfo.data;               //    if present, specifies the data that is in context for this content
                      renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
                  }
              }
          }]
      });

    • markerType

      Type:
      enumeration
      Default:
      none

      Gets or sets the marker type for the current series object. If the MarkerTemplate property is set, the setting of the MarkerType property will be ignored.

      Members

      • unset
      • Type:string
      • none
      • Type:string
      • automatic
      • Type:string
      • circle
      • Type:string
      • triangle
      • Type:string
      • pyramid
      • Type:string
      • square
      • Type:string
      • diamond
      • Type:string
      • pentagon
      • Type:string
      • hexagon
      • Type:string
      • tetragram
      • Type:string
      • pentagram
      • Type:string
      • hexagram
      • Type:string

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              markerType: "square"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].markerType;

      //Set
      $(".selector").igMap("option", "series", [{
          markerType: "square"
      }]);

    • maximumMarkers

      Type:
      number
      Default:
      400

      Gets or sets the maximum number of markerItems displayed by the current series.
      If more than the specified number of markerItems are visible, the series will automatically
      choose a representative set.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              maximumMarkers: 150
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].maximumMarkers;

      //Set
      $(".selector").igMap("option", "series", [{
          maximumMarkers: 150
      }]);

    • mouseOverEnabled

      Type:
      bool
      Default:
      false

      Gets or sets the whether the map reacts to mouse move events.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              mouseOverEnabled: true
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].mouseOverEnabled;

      //Set
      $(".selector").igMap("option", "series", [{
          mouseOverEnabled: true
      }]);

    • name

      Type:
      string
      Default:
      null

      The unique identifier of the series.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              name: "seriesName"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].name;

      //Set
      $(".selector").igMap("option", "series", [{
          name: "seriesName"
      }]);

    • negativeBrush

      Type:
      string
      Default:
      null

      Gets or sets the brush to use for negative portions of the series.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              negativeBrush: "red"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].negativeBrush;

      //Set
      $(".selector").igMap("option", "series", [{
          negativeBrush: "red"
      }]);


    • openMemberPath

      Type:
      string
      Default:
      null

      Gets or sets the value mapping property for the current series object.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              openMemberPath: "Open"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].openMemberPath;

      //Set
      $(".selector").igMap("option", "series", [{
          openMemberPath: "Open"
      }]);

    • outline

      Type:
      string
      Default:
      null

      Gets or sets the brush to use for the outline of the series.
      Some series types, such as LineSeries, do not display outlines.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              outline: "black"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].outline;

      //Set
      $(".selector").igMap("option", "series", [{
          outline: "black"
      }]);


    • period

      Type:
      number
      Default:
      0

      Gets or sets the moving average period for the current AverageDirectionalIndexIndicator object.
      The typical, and initial, value for AverageDirectionalIndexIndicator periods is 14.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              period: 45
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].period;

      //Set
      $(".selector").igMap("option", "series", [{
          period: 45
      }]);

    • progressiveLoad

      Type:
      bool
      Default:
      true

      Gets or sets the whether to progressively load the data into the map.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              progressiveLoad: false
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].progressiveLoad;

      //Set
      $(".selector").igMap("option", "series", [{
          progressiveLoad: false
      }]);

    • radiusMemberPath

      Type:
      string
      Default:
      null

      Gets or sets the radius mapping property for the current series object.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              radiusMemberPath: "Sales"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].radiusMemberPath;

      //Set
      $(".selector").igMap("option", "series", [{
          radiusMemberPath: "Sales"
      }]);

    • radiusScale

      Type:
      object
      Default:
      null

      Gets or sets the radius size scale for the bubbles.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              radiusScale: 0.8
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].radiusScale;

      //Set
      $(".selector").igMap("option", "series", [{
          radiusScale: 0.8
      }]);


    • remove

      Type:
      bool
      Default:
      false

      Set to true in order to have an existing series removed from the map, by name.

      Code Sample

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "series1",
          remove: true
      }]);

    • resolution

      Type:
      number
      Default:
      1

      Gets or sets the current series object's rendering resolution.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              resolution: 300
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].resolution;

      //Set
      $(".selector").igMap("option", "series", [{
          resolution: true
      }]);

    • responseDataKey

      Type:
      string
      Default:
      null

      See $.ig.DataSource. Specifies the name of the property in which data records are held if the response is wrapped.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              responseDataKey: "Results"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].responseDataKey;

      //Set
      $(".selector").igMap("option", "series", [{
          responseDataKey: "Results"
      }]);

    • shapeDataSource

      Type:
      string
      Default:
      null

      The triangulated file source URI or an instance of $.ig.ShapeDataSource.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              shapeDataSource: "ShapeData.shp"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].shapeDataSource;

      //Set
      $(".selector").igMap("option", "series", [{
          shapeDataSource: "ShapeData.shp"
      }]);


    • shapeFilterResolution

      Type:
      number
      Default:
      2

      Gets or sets the resolution at which to filter out shapes in the series.
      For example, if the shapeFilterResolution is set to 3, then elements with a bounding rectangle smaller than 3 X 3 pixels will be filtered out.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              shapeFilterResolution: 50
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].shapeFilterResolution;

      //Set
      $(".selector").igMap("option", "series", [{
          shapeFilterResolution: 50
      }]);

    • shapeMemberPath

      Type:
      string
      Default:
      null

      The name of the property on data source items which, for each shape, contains a list of points to be converted to a polygon.
      To be consistent with the Shapefile technical description, it is expected that each list of points is defined as an IEnumerable of IEnumerable of Point, or in other words, a list of lists of points.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              shapeMemberPath: "points"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].shapeMemberPath;

      //Set
      $(".selector").igMap("option", "series", [{
          shapeMemberPath: "points"
      }]);

    • shapeStyle

      Type:
      object
      Default:
      null

      The default style to apply to all Shapes in the series.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              shapeStyle: {
                  fill: "blue",
                  stroke: "black"
              }
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].shapeStyle;

      //Set
      $(".selector").igMap("option", "series", [{
          name: "seriesName",
          shapeStyle: {
              fill: "blue",
              stroke: "black"
          }
      }]);

    • shapeStyleSelector

      Type:
      object
      Default:
      null

      The StyleSelector which is used to select a style for each Shape.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              shapeStyleSelector: {
      			selectStyle = function (shapeData, o) {
                      var shapeID = shapeData.fields.item("ID");
      				return {
      					fill: "blue",
      					stroke: "black"
      				};
                  }
      		}
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].shapeStyleSelector;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          shapeStyleSelector: {
      		selectStyle = function (shapeData, o) {
      			var shapeID = shapeData.fields.item("ID");
      			return {
      				fill: "blue",
      				stroke: "black"
      			};
      		}
      	}
      }]);

    • shortPeriod

      Type:
      number
      Default:
      0

      Gets or sets the short moving average period for the current AbsoluteVolumeOscillatorIndicator object.
      The typical, and initial, value for short AVO periods is 10.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              shortPeriod: 15
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].shortPeriod;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          shortPeriod: 15
      }]);

    • showTooltip

      Type:
      bool
      Default:
      false

      Whether the map should render a tooltip.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              showTooltip: true
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].showTooltip;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          showTooltip: true
      }]);

    • splineType

      Type:
      enumeration
      Default:
      natural

      Gets or sets the type of spline to be rendered.

      Members

      • natural
      • Type:string
      • Calculates the spline using a natural spline calculation formula.
      • clamped
      • Type:string
      • Calculated the spline using a clamped spline calculation formula.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              splineType: "clamped"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].splineType;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          splineType: "clamped"
      }]);

    • stiffness

      Type:
      number
      Default:
      0.5

      Gets or sets the Stiffness property.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              stiffness: 0.8
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].stiffness;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          stiffness: 0.8
      }]);

    • thickness

      Type:
      number
      Default:
      0

      Gets or sets the width of the current series object's line thickness.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              thickness: 2
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].thickness;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          thickness: 2
      }]);

    • title

      Type:
      string
      Default:
      null

      Gets or sets the Title property.
      The legend item control is created according to the Title on-demand by
      the series object itself.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              title: "Sales"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].title;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          title: "Sales"
      }]);

    • transitionDuration

      Type:
      number
      Default:
      0

      Gets or sets the duration of the current series's morph.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              transitionDuration: 500
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].transitionDuration;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          transitionDuration: 500
      }]);

    • trendLineBrush

      Type:
      string
      Default:
      null

      Gets or sets the brush to use to draw the trend line.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              trendLineBrush: "green"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].trendLineBrush;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          trendLineBrush: "green"
      }]);

    • trendLinePeriod

      Type:
      number
      Default:
      7

      Gets or sets the moving average period for the current scatter series object.
      The typical, and initial, value for trend line period is 7.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              trendLinePeriod: 20
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].trendLinePeriod;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          trendLinePeriod: 20
      }]);

    • trendLineThickness

      Type:
      number
      Default:
      1.5

      Gets or sets the thickness of the current scatter series object's trend line.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              trendLineThickness: 3
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].trendLineThickness;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          trendLineThickness: 3
      }]);

    • trendLineType

      Type:
      enumeration
      Default:
      none

      Gets or sets the trend type for the current scatter series.

      Members

      • none
      • Type:string
      • No trendline should display.
      • linearFit
      • Type:string
      • Linear fit.
      • quadraticFit
      • Type:string
      • Quadratic polynomial fit.
      • cubicFit
      • Type:string
      • Cubic polynomial fit.
      • quarticFit
      • Type:string
      • Quartic polynomial fit.
      • quinticFit
      • Type:string
      • Quintic polynomial fit.
      • logarithmicFit
      • Type:string
      • Logarithmic fit.
      • exponentialFit
      • Type:string
      • Exponential fit.
      • powerLawFit
      • Type:string
      • Powerlaw fit.
      • simpleAverage
      • Type:string
      • Simple moving average.
      • exponentialAverage
      • Type:string
      • Exponential moving average.
      • modifiedAverage
      • Type:string
      • Modified moving average.
      • cumulativeAverage
      • Type:string
      • Cumulative moving average.
      • weightedAverage
      • Type:string
      • Weighted moving average.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              trendLineType: "logarithmicFit"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].trendLineType;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          trendLineType: "logarithmicFit"
      }]);

    • trendLineZIndex

      Type:
      number
      Default:
      1001

      Gets or sets the Z-Index of the trend line. Values greater than 1000 will result in the trend line being rendered in front of the series data.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              trendLineZIndex: 500
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].trendLineZIndex;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          trendLineZIndex: 500
      }]);

    • trianglesSource

      Type:
      object
      Default:
      null

      The source of triangulation data.
      This property is optional. If it is left as null, the triangulation will be created based on the items in the data source. Triangulation is a demanding operation, so the runtime performance will be better when specifying a TriangulationSource, especially when a large number of data items are present.

      Code Sample

      var data = [
          { longitude: 0, latitude: 0, value: 1 },
          { longitude: 50, latitude: 0, value: 2 },
          { longitude: 50, latitude: 50, value: 3 },
          { longitude: 0, latitude: 50, value: 1 }
      ];

      // Initialization
      $("#map").igMap({
          series: [{
              name: "series1",
              type: "geographicScatterArea",
              latitudeMemberPath: "latitude",
              longitudeMemberPath: "longitude",
              colorMemberPath: "value",
              colorScale: {
                  minimumValue: 1,
                  interpolationMode: "select",
                  palette: ["darkgreen", "green", 'limegreen', 'lightgreen']
              },
              trianglesSource: data
          }]
      });

      // Get
      var series = $(".selector").igMap("option", "series");
      series[0].trianglesSource;

      // Set
      $(".selector").igMap("option", "series", [{
          name: "series1",
          type: "geographicScatterArea",
          latitudeMemberPath: "latitude",
          longitudeMemberPath: "longitude",
          colorMemberPath: "value",
          colorScale: {
              minimumValue: 1,
              interpolationMode: "select",
              palette: ["darkgreen", "green", 'limegreen', 'lightgreen']
          },
          trianglesSource: data
      }]);

    • triangleVertexMemberPath1

      Type:
      string
      Default:
      null

      The name of the property of the TrianglesSource items which, for each triangle, contains the index of the first vertex point in the data source.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              triangleVertexMemberPath1: "v1"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].triangleVertexMemberPath1;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          triangleVertexMemberPath1: "v1"
      }]);

    • triangleVertexMemberPath2

      Type:
      string
      Default:
      null

      The name of the property of the TrianglesSource items which, for each triangle, contains the index of the second vertex point in the data source.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              triangleVertexMemberPath2: "v2"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].triangleVertexMemberPath2;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          triangleVertexMemberPath2: "v2"
      }]);

    • triangleVertexMemberPath3

      Type:
      string
      Default:
      null

      The name of the property of the TrianglesSource items which, for each triangle, contains the index of the third vertex point in the data source.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              triangleVertexMemberPath3: "v3"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].triangleVertexMemberPath3;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          triangleVertexMemberPath3: "v3"
      }]);

    • triangulationDataSource

      Type:
      string
      Default:
      null

      The triangulated file source URI or an instance of $.ig.TriangulationDataSource.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              triangulationDataSource: "Triangulation.itf"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].triangulationDataSource;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          triangulationDataSource: "Triangulation.itf"
      }]);

    • type

      Type:
      enumeration
      Default:
      null

      Type of the series.

      Members

      • geographicSymbolSeries
      • Type:string
      • Specify the series as geographic Symbol Series series.
      • geographicPolyLine
      • Type:string
      • Specify the series as geographic Polyline series.
      • geographicScatterArea
      • Type:string
      • Specify the series as geographic Scatter Area series.
      • geographicShape
      • Type:string
      • Specify the series as geographic Shape series.
      • geographicContourLine
      • Type:string
      • Specify the series as geographic Contour Line series.
      • geographicHighDensityScatter
      • Type:string
      • Specify the series as geographic High Density Scatter series.
      • geographicProportionalSymbol
      • Type:string
      • Specify the series as geographic Proportional Symbol series.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              type: "geographicPolyLine"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].type;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          type: "geographicPolyLine"
      }]);

    • unknownValuePlotting

      Type:
      enumeration
      Default:
      dontPlot

      Determines how unknown values will be plotted on the map. Null and Double.NaN are two examples of unknown values.

      Members

      • linearInterpolate
      • Type:string
      • Plot the unknown value as the midpoint between surrounding known values using linear interpolation.
      • dontPlot
      • Type:string
      • Do not plot the unknown value on the map.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              unknownValuePlotting: "linearInterpolate"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].unknownValuePlotting;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          unknownValuePlotting: "linearInterpolate"
      }]);

    • useBruteForce

      Type:
      bool
      Default:
      false

      Gets or sets the whether to use use brute force mode.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              useBruteForce: true
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].useBruteForce;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          useBruteForce: true
      }]);

    • useCartesianInterpolation

      Type:
      bool
      Default:
      true

      Gets or sets whether Cartesian Interpolation should be used rather than Archimedian
      spiral based interpolation.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              useCartesianInterpolation: false
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].useCartesianInterpolation;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          useCartesianInterpolation: false
      }]);

    • useSquareCutoffStyle

      Type:
      bool
      Default:
      false

      Gets or sets the whether to use squares when halting a render traversal rather than the shape of the coalesced area.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              useSquareCutoffStyle: true
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].useSquareCutoffStyle;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          useSquareCutoffStyle: true
      }]);

    • valueMemberPath

      Type:
      string
      Default:
      null

      Gets or sets the item path that provides the values for the current series.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              valueMemberPath: "Population"
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].valueMemberPath;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          valueMemberPath: "Population"
      }]);

    • valueResolver

      Type:
      object
      Default:
      null

      Gets or sets the ContourValueResolver used to determine the numeric values of contours.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: {
              valueResolver: {
                  type: "linear",
                  valueCount: 300
              }
          }
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series.valueResolver;

      //Set
      $(".selector").igMap("option", "series", {
          valueResolver: {
                  type: "linear",
                  valueCount: 300
              }
      });

    • visibleFromScale

      Type:
      number
      Default:
      0

      The minimum scale at which this series becomes visible.
      The default value for this property is 1.0, which means the series will always be visible. At a VisibleFromScale setting of 0.0, the series will never be visible. At a VisibleFromScale setting of 0.5, the series will be visible as long as the map is zoomed in to at least 200%.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              visibleFromScale: 0.5
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].visibleFromScale;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          visibleFromScale: 0.5
      }]);

    • volumeMemberPath

      Type:
      string
      Default:
      null

      Gets or sets the volume mapping property for the current series object.

      Code Sample

      //Initialization
      $("#map").igMap({
          series: [{
              volumeMemberPath: Sales
          }]
      });

      //Get
      var series = $(".selector").igMap("option", "series");
      series[0].volumeMemberPath;

      //Set
      $(".selector").igMap("option", "series", [{
      	name: "seriesName",
          volumeMemberPath: Sales
      }]);

  • squareMarkerTemplate

    Type:
    object
    Default:
    null

    Gets or sets the template to use for square markers on the map.
    Defines the marker template used for
    series with a marker type of square.
    The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

    Code Sample

    //Initialize
    $(".selector").igMap({
        squareMarkerTemplate: {
            measure: function(measureInfo) {
                measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                measureInfo.data;       // if present, represents the contextual data for this template]
            },
            render: function (renderInfo) {
                renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                renderInfo.data;               //    if present, specifies the data that is in context for this content
                renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
            }
        }
    });

  • tetragramMarkerTemplate

    Type:
    object
    Default:
    null

    Gets or sets the template to use for tetragram markers on the map.
    Defines the marker template used for
    series with a marker type of tetragram.
    The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

    Code Sample

    //Initialize
    $(".selector").igMap({
        tetragramMarkerTemplate: {
            measure: function(measureInfo) {
                measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                measureInfo.data;       // if present, represents the contextual data for this template]
            },
            render: function (renderInfo) {
                renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                renderInfo.data;               //    if present, specifies the data that is in context for this content
                renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
            }
        }
    });

  • theme

    Type:
    string
    Default:
    "c"

    The swatch used to style this widget.

    Code Sample

    //Initialize
    $(".selector").igMap({
        theme: "metro"
    });

    //Get
    var theme = $(".selector").igMap("option", "theme");

  • triangleMarkerTemplate

    Type:
    object
    Default:
    null

    Gets or sets the template to use for triangle markers on the map.
    Defines the marker template used for
    series with a marker type of triangle.
    The provided object should have properties called render and optionally measure. See definition for option: legendItemBadgeTemplate.

    Code Sample

    //Initialize
    $(".selector").igMap({
        triangleMarkerTemplate: {
            measure: function(measureInfo) {
                measureInfo.context;    // either a DOM element or a CanvasContext2D depending on the particular template scenario
                measureInfo.width;      // if value is present, specifies the available width, user may set to desired width for content
                measureInfo.height;     // if value is present, specifies the available height, user may set to desired height for content
                measureInfo.isConstant; // user should set to true if desired with and height will always be the same for this template
                measureInfo.data;       // if present, represents the contextual data for this template]
            },
            render: function (renderInfo) {
                renderInfo.context;            //    either a DOM element or a CanvasContext2D depending on the particular template scenario
                renderInfo.xPosition;          //    if present, specifies the x position at which to render the content
                renderInfo.yPosition;          //    if present, specifies the y position at which to render the content
                renderInfo.availableWidth;     //    if present, specifies the available width in which to render the content
                renderInfo.availableHeight;    //    if present, specifies the available height in which to render the content
                renderInfo.data;               //    if present, specifies the data that is in context for this content
                renderInfo.isHitTestRender;    //    if true, indicates that this is a special render pass for hit testing, in which case the brushes from the data should be used
            }
        }
    });

  • useTiledZooming

    Type:
    bool
    Default:
    false

    Sets whether the series viewer should use cached tiles during zooms rather than the default live content.

    Code Sample


    //Initialize
    $(".selector").igMap({
        useTiledZooming: true
    });

    //Get
    var useTiledZooming = $(".selector").igMap("option", "useTiledZooming");

    //Set
    $(".selector").igMap("option", "useTiledZooming", true);

  • width

    Type:
    enumeration
    Default:
    null

    The width of the map. It can be set as a number in pixels, string (px) or percentage (%).

    Members

      • string
      • The widget width can be set in pixels (px) and percentage (%).
      • number
      • The widget width can be set as a number.

    Code Sample

    //  Initialization
    $(".selector").igMap({
        width: 250
    });

    //  Get
    var width = $(".selector").igMap("option", "width");

    //  Set
    $(".selector").igMap("option", "width", 250);

  • windowPositionHorizontal

    Type:
    number
    Default:
    0

    A number between 0 and 1 determining the position of the horizontal scroll.
    This property is effectively a shortcut to the X position of the WindowRect property.

    Code Sample

    //  Initialization
    $(".selector").igMap({
        windowPositionHorizontal: 0.25
    });

    //  Get
    var windowPositionHorizontal = $(".selector").igMap("option", "windowPositionHorizontal");

    //  Set
    $(".selector").igMap("windowPositionHorizontal", 0.25);

  • windowPositionVertical

    Type:
    number
    Default:
    0

    A number between 0 and 1 determining the position of the vertical scroll.
    This property is effectively a shortcut to the Y position of the WindowRect property.

    Code Sample

    //  Initialization
    $(".selector").igMap({
        windowPositionVertical: 0.25
    });

    //  Get
    var windowPositionVertical = $(".selector").igMap("option", "windowPositionVertical");

    //  Set
    $(".selector").igMap("windowPositionVertical", 0.25);

  • windowRect

    Type:
    object
    Default:
    null

    A rectangle representing the portion of the map currently in view.
    A rectangle at X=0, Y=0 with a Height and Width of 1 implies the entire plotting area is in view. A Height and Width of .5 would imply that the view is halfway zoomed in.
    The provided object should have numeric properties called left, top, width and height.

    Code Sample

    //    Initialization
    $(".selector").igMap({
      windowRect:
          {
              left: 0,
              top: 0,
              width: 0.5,
              height: 0.5
          }
    });

    //    Get
    var windowRect = $(".selector").igMap("option", "windowRect");

    //    Set
    $(".selector").igMap("windowRect",
      {
        left: 0,
        top: 0,
        width: 0.5,
        height: 0.5
    });

  • windowRectMinWidth

    Type:
    number
    Default:
    0

    Sets or gets the minimum width that the window rect is allowed to reach before being clamped.
    Decrease this value if you want to allow for further zooming into the viewer.
    If this value is lowered too much it can cause graphical corruption due to floating point arithmetic inaccuracy.

    Code Sample

    // Initialization
    $(".selector").igMap({
        windowRectMinWidth: 0.5
    });

    // Get
    var windowRectMinWidth = $(".selector").igMap("option", "windowRectMinWidth");

    // Set
    $(".selector").igMap("option", "windowRectMinWidth", 0.5);

  • windowResponse

    Type:
    enumeration
    Default:
    null

    The response to user panning and zooming: whether to update the view immediately while the user action is happening, or to defer the update to after the user action is complete. The user action will be an action such as a mouse drag which causes panning and/or zooming to occur.

    Members

    • deferred
    • Type:string
    • Defer the view update until after the user action is complete.
    • immediate
    • Type:string
    • Update the view immediately while the user action is happening.

    Code Sample

    //  Initialization
    $(".selector").igMap({
        windowResponse: "immediate"
    });

    //  Get
    var windowResponse = $(".selector").igMap("option", "windowResponse");

    //  Set
    $(".selector").igMap("option", "windowResponse", "immediate");

  • windowScale

    Type:
    number
    Default:
    1

    Gets or sets the current Map's zoom scale.

    Code Sample


    //  Initialization
    $(".selector").igMap({
        windowScale: "0.5"
    });

    //  Get
    var windowScale = $(".selector").igMap("option", "windowScale");

    //  Set
    $(".selector").igMap("option", "windowScale", "0.5");

  • zoomable

    Type:
    bool
    Default:
    true

    Gets or sets the current Map's zoomability.

    Code Sample


    //  Initialization
    $(".selector").igMap({
        zoomable: "0.5"
    });

    //  Get
    var zoomable = $(".selector").igMap("option", "zoomable");

    //  Set
    $(".selector").igMap("option", "zoomable", "0.5");

  • zoomTileCacheSize

    Type:
    number
    Default:
    30

    Sets the maximum number of zoom tiles that the series viewer should cache while in tiled zooming mode.

    Code Sample


    //  Initialization
    $(".selector").igMap({
        zoomTileCacheSize: "15"
    });

    //  Get
    var zoomTileCacheSize = $(".selector").igMap("option", "zoomTileCacheSize");

    //  Set
    $(".selector").igMap("option", "zoomTileCacheSize", "15");


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • browserNotSupported

    Cancellable:
    false

    Event fired when the control is displayed on a non HTML5 compliant browser.

    Code Sample

    // Delegate
    $(document).delegate(".selector", "igmapbrowsernotsupported", function (evt, ui) {

    });

    // Initialize
    $(".selector").igMap({
        browserNotSupported: function (evt, ui) {

        }
    });

  • gridAreaRectChanged

    Cancellable:
    false

    Occurs just after the current Map's grid area rectangle is changed.
    The grid area may change as the result of the Map being resized.
    Function takes arguments evt and ui.
    Use ui.map to get reference to map object.
    Use ui.newHeight to get new height value.
    Use ui.newLeft to get new left value.
    Use ui.newTop to get new top value.
    Use ui.newWidth to get new top value.
    Use ui.oldHeight to get old height value.
    Use ui.oldLeft to get old left value.
    Use ui.oldTop to get old top value.
    Use ui.oldWidth to get old top value.

    Code Sample

    // Delegate
    $(document).delegate(".selector", "igmapgridarearectchanged", function (evt, ui) {
        // Get reference to map object.
        ui.map;

        // Get new height value.
        ui.newHeight;

        // Get new left value.
        ui.newLeft;

        // Get new top value.
        ui.newTop;

        // Get new top value.
        ui.newWidth;

        // Get old height value.
        ui.oldHeight;

        // Get old left value.
        ui.oldLeft;

        // Get old top value.
        ui.oldTop;

        // Get old top value.
        ui.oldWidth;
    });

    // Initialize
    $(".selector").igMap({
        gridAreaRectChanged: function (evt, ui) {

        }
    });

  • refreshCompleted

    Cancellable:
    false

    Raised when the map's processing for an update has completed.
    Function takes arguments evt and ui.
    Use ui.map to get reference to map object.

    Code Sample

    // Delegate
    $(document).delegate(".selector", "igmaprefreshcompleted", function (evt, ui) {
        // Get reference to map object.
        ui.map;
    });

    // Initialize
    $(".selector").igMap({
        refreshCompleted: function (evt, ui) {

        }
    });

  • seriesCursorMouseMove

    Cancellable:
    false

    Occurs when the cursors are moved over a series in this map.
    Function takes arguments evt and ui.
    Use ui.item to get reference to current series item object.
    Use ui.map to get reference to map object.
    Use ui.series to get reference to current series object.
    Use ui.actualItemBrush to get item brush.
    Use ui.actualSeriesBrush to get series brush.
    Use ui.positionX to get mouse X position.
    Use ui.positionY to get mouse Y position.

    Code Sample

    // Delegate
    $(document).delegate(".selector", "igmapseriescursormousemove", function (evt, ui) {
        // Get reference to current series item object.
        ui.item;

        // Get reference to chart object.
        ui.map;

        // Get reference to current series object.
        ui.series;

        // Get item brush.
        ui.actualItemBrush;

        // Get series brush.
        ui.actualSeriesBrush;

        // Get mouse X position.
        ui.positionX;

        // Get mouse Y position.
        ui.positionY;
    });

    // Initialize
    $(".selector").igMap({
        seriesCursorMouseMove: function (evt, ui) {

        }
    });

  • seriesMouseEnter

    Cancellable:
    false

    Occurs when the left mouse pointer enters an element of this map.
    Function takes arguments evt and ui.
    Use ui.item to get reference to current series item object.
    Use ui.map to get reference to map object.
    Use ui.series to get reference to current series object.
    Use ui.actualItemBrush to get item brush.
    Use ui.actualSeriesBrush to get series brush.
    Use ui.positionX to get mouse X position.
    Use ui.positionY to get mouse Y position.

    Code Sample

    // Delegate
    $(document).delegate(".selector", "igmapseriesmouseenter", function (evt, ui) {
        // Get reference to current series item object.
        ui.item;

        // Get reference to map object.
        ui.map;

        // Get reference to current series object.
        ui.series;

        // Get item brush.
        ui.actualItemBrush;

        // Get series brush.
        ui.actualSeriesBrush;

        // Get mouse X position.
        ui.positionX;

        // Get mouse Y position.
        ui.positionY;
    });

    // Initialize
    $(".selector").igMap({
        seriesMouseEnter: function (evt, ui) {

        }
    });

  • seriesMouseLeave

    Cancellable:
    false

    Occurs when the left mouse pointer leaves an element of this map.
    Function takes arguments evt and ui.
    Use ui.item to get reference to current series item object.
    Use ui.map to get reference to map object.
    Use ui.series to get reference to current series object.
    Use ui.actualItemBrush to get item brush.
    Use ui.actualSeriesBrush to get series brush.
    Use ui.positionX to get mouse X position.
    Use ui.positionY to get mouse Y position.

    Code Sample

    // Delegate
    $(document).delegate(".selector", "igmapseriesmouseleave", function (evt, ui) {
        // Get reference to current series item object.
        ui.item;

        // Get reference to map object.
        ui.map;

        // Get reference to current series object.
        ui.series;

        // Get item brush.
        ui.actualItemBrush;

        // Get series brush.
        ui.actualSeriesBrush;

        // Get mouse X position.
        ui.positionX;

        // Get mouse Y position.
        ui.positionY;
    });

    // Initialize
    $(".selector").igMap({
        seriesMouseLeave: function (evt, ui) {

        }
    });

  • seriesMouseLeftButtonDown

    Cancellable:
    false

    Occurs when the left mouse button is pressed while the mouse pointer is over an element of this map.
    Function takes arguments evt and ui.
    Use ui.item to get reference to current series item object.
    Use ui.map to get reference to map object.
    Use ui.series to get reference to current series object.
    Use ui.actualItemBrush to get item brush.
    Use ui.actualSeriesBrush to get series brush.
    Use ui.positionX to get mouse X position.
    Use ui.positionY to get mouse Y position.

    Code Sample

    // Delegate
    $(document).delegate(".selector", "igmapseriesmouseleftbuttondown", function (evt, ui) {
        // Get reference to current series item object.
        ui.item;

        // Get reference to map object.
        ui.map;

        // Get reference to current series object.
        ui.series;

        // Get item brush.
        ui.actualItemBrush;

        // Get series brush.
        ui.actualSeriesBrush;

        // Get mouse X position.
        ui.positionX;

        // Get mouse Y position.
        ui.positionY;
    });

    // Initialize
    $(".selector").igMap({
        seriesMouseLeftButtonDown: function (evt, ui) {

        }
    });

  • seriesMouseLeftButtonUp

    Cancellable:
    false

    Occurs when the left mouse button is released while the mouse pointer is over an element of this map.
    Function takes arguments evt and ui.
    Use ui.item to get reference to current series item object.
    Use ui.map to get reference to map object.
    Use ui.series to get reference to current series object.
    Use ui.actualItemBrush to get item brush.
    Use ui.actualSeriesBrush to get series brush.
    Use ui.positionX to get mouse X position.
    Use ui.positionY to get mouse Y position.

    Code Sample

    // Delegate
    $(document).delegate(".selector", "igmapseriesmouseleftbuttonup", function (evt, ui) {
        // Get reference to current series item object.
        ui.item;

        // Get reference to map object.
        ui.map;

        // Get reference to current series object.
        ui.series;

        // Get item brush.
        ui.actualItemBrush;

        // Get series brush.
        ui.actualSeriesBrush;

        // Get mouse X position.
        ui.positionX;

        // Get mouse Y position.
        ui.positionY;
    });

    // Initialize
    $(".selector").igMap({
        seriesMouseLeftButtonUp: function (evt, ui) {

        }
    });

  • seriesMouseMove

    Cancellable:
    false

    Occurs when the left mouse pointer moves while over an element of this map.
    Function takes arguments evt and ui.
    Use ui.item to get reference to current series item object.
    Use ui.map to get reference to map object.
    Use ui.series to get reference to current series object.
    Use ui.actualItemBrush to get item brush.
    Use ui.actualSeriesBrush to get series brush.
    Use ui.positionX to get mouse X position.
    Use ui.positionY to get mouse Y position.

    Code Sample

    // Delegate
    $(document).delegate(".selector", "igmapseriesmousemove", function (evt, ui) {
        // Get reference to current series item object.
        ui.item;

        // Get reference to map object.
        ui.map;

        // Get reference to current series object.
        ui.series;

        // Get item brush.
        ui.actualItemBrush;

        // Get series brush.
        ui.actualSeriesBrush;

        // Get mouse X position.
        ui.positionX;

        // Get mouse Y position.
        ui.positionY;
    });

    // Initialize
    $(".selector").igMap({
        seriesMouseMove: function (evt, ui) {

        }
    });

  • tooltipHidden

    Cancellable:
    false

    Event fired after a tooltip is hidden
    Function takes arguments evt and ui.
    Use ui.element to get reference to tooltip DOM element.
    Use ui.item to get reference to current series item object.
    Use ui.map to get reference to map object.
    Use ui.series to get reference to current series object.
    Use ui.actualItemBrush to get item brush.
    Use ui.actualSeriesBrush to get series brush.

    Code Sample

    // Delegate
    $(document).delegate(".selector", "igmaptooltiphidden", function (evt, ui) {
        // Get reference to tooltip DOM element.
        ui.element;

        // Get reference to current series item object.
        ui.item;

        // Get reference to map object.
        ui.map;

        // Get reference to current series object.
        ui.series;

        // Get item brush.
        ui.actualItemBrush;

        // Get series brush.
        ui.actualSeriesBrush;
    });

    // Initialize
    $(".selector").igMap({
        tooltipHidden: function (evt, ui) {

        }
    });

  • tooltipHiding

    Cancellable:
    true

    Event fired when the mouse has left a series and the tooltip is about to hide
    Function takes arguments evt and ui.
    Use ui.element to get reference to tooltip DOM element.
    Use ui.item to get reference to current series item object.
    Use ui.map to get reference to map object.
    Use ui.series to get reference to current series object.
    Use ui.actualItemBrush to get item brush.
    Use ui.actualSeriesBrush to get series brush.

    Code Sample

    // Delegate
    $(document).delegate(".selector", "igmaptooltiphiding", function (evt, ui) {
        // Get reference to tooltip DOM element.
        ui.element;

        // Get reference to current series item object.
        ui.item;

        // Get reference to map object.
        ui.map;

        // Get reference to current series object.
        ui.series;

        // Get item brush.
        ui.actualItemBrush;

        // Get series brush.
        ui.actualSeriesBrush;
    });

    // Initialize
    $(".selector").igMap({
        tooltipHiding: function (evt, ui) {

        }
    });

  • tooltipShowing

    Cancellable:
    true

    Event fired when the mouse has hovered on a series and the tooltip is about to show
    Function takes arguments evt and ui.
    Use ui.element to get reference to tooltip DOM element.
    Use ui.item to get reference to current series item object.
    Use ui.map to get reference to map object.
    Use ui.series to get reference to current series object.
    Use ui.actualItemBrush to get item brush.
    Use ui.actualSeriesBrush to get series brush.

    Code Sample

    // Delegate
    $(document).delegate(".selector", "igmaptooltipshowing", function (evt, ui) {
        // Get reference to tooltip DOM element.
        ui.element;

        // Get reference to current series item object.
        ui.item;

        // Get reference to chart object.
        ui.map;

        // Get reference to current series object.
        ui.series;

        // Get item brush.
        ui.actualItemBrush;

        // Get series brush.
        ui.actualSeriesBrush;
    });

    // Initialize
    $(".selector").igMap({
        tooltipShowing: function (evt, ui) {

        }
    });

  • tooltipShown

    Cancellable:
    false

    Event fired after a tooltip is shown
    Function takes arguments evt and ui.
    Use ui.element to get reference to tooltip DOM element.
    Use ui.item to get reference to current series item object.
    Use ui.map to get reference to map object.
    Use ui.series to get reference to current series object.
    Use ui.actualItemBrush to get item brush.
    Use ui.actualSeriesBrush to get series brush.

    Code Sample

    // Delegate
    $(document).delegate(".selector", "igmaptooltipshown", function (evt, ui) {
        // Get reference to tooltip DOM element.
        ui.element;

        // Get reference to current series item object.
        ui.item;

        // Get reference to map object.
        ui.map;

        // Get reference to current series object.
        ui.series;

        // Get item brush.
        ui.actualItemBrush;

        // Get series brush.
        ui.actualSeriesBrush;
    });

    // Initialize
    $(".selector").igMap({
        tooltipShown: function (evt, ui) {

        }
    });

  • triangulationStatusChanged

    Cancellable:
    false

    Event fired when the status of an ongoing Triangulation has changed.
    Function takes arguments evt and ui.
    Use ui.map to get reference to map object.
    Use ui.series to get reference to current series object.
    Use ui.currentStatus to get current status.

    Code Sample

    // Delegate
    $(document).delegate(".selector", "igmaptriangulationstatuschanged", function (evt, ui) {
        // Get reference to chart object.
        ui.map;

        // Get the current series object.
        ui.series;

        // Get the current triangulation status.
        ui.currentStatus;
    });

    // Initialize
    $(".selector").igMap({
        triangulationStatusChanged: function (evt, ui) {

        }
    });

  • windowRectChanged

    Cancellable:
    false

    Occurs just after the current Map's window rectangle is changed.
    Function takes arguments evt and ui.
    Use ui.map to get reference to map object.
    Use ui.newHeight to get new height value.
    Use ui.newLeft to get new left value.
    Use ui.newTop to get new top value.
    Use ui.newWidth to get new top value.
    Use ui.oldHeight to get old height value.
    Use ui.oldLeft to get old left value.
    Use ui.oldTop to get old top value.
    Use ui.oldWidth to get old top value.

    Code Sample

    // Delegate
    $(document).delegate(".selector", "igmapwindowrectchanged", function (evt, ui) {
        // Get reference to chart object.
        ui.map;

        // Get new height value.
        ui.newHeight;

        // Get new left value.
        ui.newLeft;

        // Get new top value.
        ui.newTop;

        // Get new top value.
        ui.newWidth;

        // Get old height value.
        ui.oldHeight;

        // Get old left value.
        ui.oldLeft;

        // Get old top value.
        ui.oldTop;

        // Get old top value.
        ui.oldWidth;
    });

    // Initialize
    $(".selector").igMap({
        windowRectChanged: function (evt, ui) {

        }
    });

  • addItem

    .igMap( "addItem", item:object, targetName:string );

    Adds a new item to the data source and notifies the map.

    • item
    • Type:object
    • The item that we want to add to the data source.
    • targetName
    • Type:string
    • The name of the series bound to the data source.

    Code Sample

    $(".selector").igMap("addItem", {"Latitude": 42.2, "Longitude": 22.5 }, "series1" );

  • clearTileZoomCache

    .igMap( "clearTileZoomCache" );

    Clears the tile zoom tile cache so that new tiles will be generated. Only applies if the viewer is using a tile based zoom..

    Code Sample


    $(".selector").igMap("clearTileZoomCache");

  • destroy

    .igMap( "destroy" );

    Destroys the widget.

    Code Sample

    $(".selector").igMap("destroy");

  • endTiledZoomingIfRunning

    .igMap( "endTiledZoomingIfRunning" );

    Manually ends a tiled zoom if one is running.

    Code Sample


    $(".selector").igMap("endTiledZoomingIfRunning");

  • exportImage

    .igMap( "exportImage", [width:object], [height:object] );
    Return Type:
    object
    Return Type Description:
    Returns a IMG DOM element.

    Exports the map to a PNG image.

    • width
    • Type:object
    • Optional
    • The width of the image.
    • height
    • Type:object
    • Optional
    • The height of the image.

    Code Sample

    var pngImage = $(".selector").igMap("exportImage", 200, 100);

  • exportVisualData

    .igMap( "exportVisualData" );

    Exports visual data from the map to aid in unit testing.

    Code Sample

    var data = $(".selector").igMap("exportVisualData");

  • flush

    .igMap( "flush" );

    Forces any pending deferred work to render on the map before continuing.

    Code Sample

    $(".selector").igMap("flush");

  • getActualMaximumValue

    .igMap( "getActualMaximumValue", targetName:object );

    Gets the actual maximum value of the target xAxis or yAxis.

    • targetName
    • Type:object

    Code Sample

    //	Get maximum value for geographic latitude
    var maxLat = $(".selector").igMap("getActualMaximumValue", "yAxis");

    //	Get maximum value for geographic longitude
    var maxLon = $(".selector").igMap("getActualMaximumValue", "xAxis");

  • getActualMinimumValue

    .igMap( "getActualMinimumValue", targetName:object );

    Gets the actual minimum value of the target xAxis or yAxis.

    • targetName
    • Type:object

    Code Sample

    //	Get minimum value for geographic latitude
    var maxLat = $(".selector").igMap("getActualMinimumValue", "yAxis");

    //	Get minimum value for geographic longitude
    var maxLon = $(".selector").igMap("getActualMinimumValue", "xAxis");

  • getGeographicFromZoom

    .igMap( "getGeographicFromZoom", rect:object );
    Return Type:
    object
    Return Type Description:
    The window zoom area.

    Given the current plot area of the control and a geographic region, get the WindowRect that would encompass that geographic region.

    • rect
    • Type:object
    • The geographic area rectangle.

    Code Sample

    var geographic = $(".selector").igMap("getGeographicFromZoom", {
        left: 0,
        top: 0,
        width: 0.5,
        height: 0.5
    });

  • getZoomFromGeographic

    .igMap( "getZoomFromGeographic", rect:object );
    Return Type:
    object
    Return Type Description:
    The window zoom area.

    Given the current plot area of the control and a geographic region, get the WindowRect that would encompass that geographic region.

    • rect
    • Type:object
    • The geographic area rectangle.

    Code Sample

    var zoom = $(".selector").igMap("getZoomFromGeographic", {
        left: 10,
        top: 10,
        width: 3,
        height: 3
    });

  • id

    .igMap( "id" );
    Return Type:
    string

    Returns the ID of parent element holding the map.

    Code Sample

    var dataContainerElement = $(".selector").igMap("id");

  • insertItem

    .igMap( "insertItem", item:object, index:number, targetName:string );

    Inserts a new item to the data source and notifies the map.

    • item
    • Type:object
    • the new item that we want to insert in the data source.
    • index
    • Type:number
    • The index in the data source where the new item will be inserted.
    • targetName
    • Type:string
    • The name of the series bound to the data source.

    Code Sample

    $(".selector").igMap("insertItem", {"Latitude": 42.2, "Longitude": 22.5 }, 1, "series1" );

  • notifyClearItems

    .igMap( "notifyClearItems", dataSource:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this igMap.

    Notifies the the map that the items have been cleared from an associated data source.
    It's not necessary to notify more than one target of a change if they share the same items source.

    • dataSource
    • Type:object
    • The data source in which the change happened.

    Code Sample

    var response = $(".selector").igMap("notifyClearItems", series1DataSource);

  • notifyContainerResized

    .igMap( "notifyContainerResized" );

    Notifies the map that the container was resized.

    Code Sample

    $(".selector").igMap("notifyContainerResized");

  • notifyInsertItem

    .igMap( "notifyInsertItem", dataSource:object, index:number, newItem:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this igMap.

    Notifies the the target series that an item has been inserted at the specified index in its data source.
    It's not necessary to notify more than one target of a change if they share the same items source.

    • dataSource
    • Type:object
    • The data source in which the change happened.
    • index
    • Type:number
    • The index in the items source where the new item has been inserted.
    • newItem
    • Type:object
    • The new item that has been set in the collection.

    Code Sample

    var response = $(".selector").igMap("notifyInsertItem", series1DataSource, 1,
        {"Latitude": 42.2, "Longitude": 22.5 });

  • notifyRemoveItem

    .igMap( "notifyRemoveItem", dataSource:object, index:number, oldItem:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this igMap.

    Notifies the the target series that an item has been removed from the specified index in its data source.
    It's not necessary to notify more than one target of a change if they share the same items source.

    • dataSource
    • Type:object
    • The data source in which the change happened.
    • index
    • Type:number
    • The index in the items source from where the old item has been removed.
    • oldItem
    • Type:object
    • The old item that has been removed from the collection.

    Code Sample

    var response = $(".selector").igMap("notifyRemoveItem", series1DataSource, 1,
        {"Latitude": 42.2, "Longitude": 22.5 });

  • notifySetItem

    .igMap( "notifySetItem", dataSource:object, index:number, newItem:object, oldItem:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this igMap.

    Notifies the the map that an item has been set in an associated data source.

    • dataSource
    • Type:object
    • The data source in which the change happened.
    • index
    • Type:number
    • The index in the items source that has been changed.
    • newItem
    • Type:object
    • The new item that has been set in the collection.
    • oldItem
    • Type:object
    • The old item that has been overwritten in the collection.

    Code Sample

    var response = $(".selector").igMap("notifySetItem", series1DataSource, 1,
        {"Latitude": 42.2, "Longitude": 22.5 });

  • option

    .igMap( "option" );

    Code Sample


    $(".selector").igMap("option");

  • print

    .igMap( "print" );

    Creates a print preview page with the map, hiding all other elements on the page.

    Code Sample

    $(".selector").igMap("print");

  • removeItem

    .igMap( "removeItem", index:number, targetName:string );

    Deletes an item from the data source and notifies the map.

    • index
    • Type:number
    • The index in the data source from where the item will be been removed.
    • targetName
    • Type:string
    • The name of the series bound to the data source.

    Code Sample

    $(".selector").igMap("removeItem", 1, "series1");

  • renderSeries

    .igMap( "renderSeries", targetName:string, animate:bool );

    Indicates that a series should render, even though no option has been modified that would normally cause it to refresh.

    • targetName
    • Type:string
    • The name of the series to render.
    • animate
    • Type:bool
    • Whether the change should be animated, if possible.

    Code Sample

    $(".selector").igMap("renderSeries", "xAxis", true);

  • resetZoom

    .igMap( "resetZoom" );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this igMap.

    Resets the zoom level of the map to default.

    Code Sample

    var response = $(".selector").igMap("resetZoom");

  • scaleValue

    .igMap( "scaleValue", targetName:string, unscaledValue:number );
    Return Type:
    number
    Return Type Description:
    Returns the scaled value.

    Either xAxis or yAxis (longitude or latitude) that it should scale the requested value into map space from axis space.
    For example you can use this method if you want to find where longitude 50 stands scaled to map's width.

    • targetName
    • Type:string
    • Either xAxis or yAxis to notify.
    • unscaledValue
    • Type:number
    • The value in axis space to translate into map space.

    Code Sample

    var scaled = $(".selector").igMap("scaleValue", "series1", 250);

  • scrollIntoView

    .igMap( "scrollIntoView", targetName:string, item:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this igMap.

    Notifies the target series or axis that it should scroll the requested data item into view.

    • targetName
    • Type:string
    • The name of the series or axis notify.
    • item
    • Type:object
    • The data item to bring into view, if possible.

    Code Sample

    var response = $(".selector").igMap("scrollIntoView", 5);

  • setItem

    .igMap( "setItem", index:number, item:object, targetName:string );

    Updates an item in the data source and notifies the map.

    • index
    • Type:number
    • The index of the item in the data source that we want to change.
    • item
    • Type:object
    • The new item object that will be set in the data source.
    • targetName
    • Type:string
    • The name of the series bound to the data source.

    Code Sample

    $(".selector").igMap("setItem", 5, {"Latitude": 42.2, "Longitude": 22.5 }, "series1");

  • startTiledZoomingIfNecessary

    .igMap( "startTiledZoomingIfNecessary" );

    Manually starts a tiled zoom if one isn't already running.

    Code Sample


    $(".selector").igMap("startTiledZoomingIfNecessary");

  • styleUpdated

    .igMap( "styleUpdated" );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this igMap.

    Notify the map that styles it draws colors from may have been updated.

    Code Sample

    var response = $(".selector").igMap("styleUpdated");

  • unscaleValue

    .igMap( "unscaleValue", targetName:string, scaledValue:number );
    Return Type:
    number
    Return Type Description:
    Returns the unscaled value.

    Either xAxis or yAxis (longitude or latitude) that it should unscale the requested value into axis space from map space.
    For example you can use this method if you want to find what is the longitude unscaled from 0 width of the map.

    • targetName
    • Type:string
    • Either xAxis or yAxis to notify.
    • scaledValue
    • Type:number
    • The value in map space to translate into axis space.

    Code Sample

    var unscaled = $(".selector").igMap("unscaleValue", "series1", 50);

  • zoomToGeographic

    .igMap( "zoomToGeographic", rect:object );
    Return Type:
    object
    Return Type Description:
    Returns a reference to this igMap.

    Zoom in to the geographic region specified, when possible (may need to wait fior map to be initialized).

    • rect
    • Type:object
    • The geographic area rectangle.

    Code Sample


    $(".selector").igMap("zoomToGeographic", {
    	left: 10,
    	top: 10,
    	width: 3,
    	height: 3
    });

  • ui-corner-all ui-widget-content

    Get or set the class applied on a div element.
  • ui-chart-tooltip ui-widget-content ui-corner-all

    Get or set the class applied to the tooltip div element.
  • ui-chart-non-html5-supported-message ui-helper-clearfix

    Get or set the class applied on a div element, shown when the map is opened in a non HTML5 compatible browser.

Copyright © 1996 - 2024 Infragistics, Inc. All rights reserved.
