ui.igHierarchicalGrid

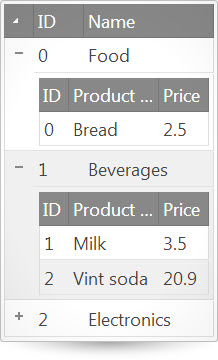

ui.igHierarchicalGrid_image

The igHierarchicalGrid control is a hierarchical jQuery Grid control that features filtering, group by, column hiding, paging, column resizing, row selectors, cell selection, sorting, column summaries, tooltips, and updating functionality. For more information on each of these features, see their corresponding API document: igGridFiltering, igGridGroupBy, igGridHiding, igGridResizing, igGridPaging, igGridRowSelectors, igGridSelection, igGridSorting, igGridSummaries, igGridTooltips, igGridUpating. The igHierarchicalGrid control is built on top of the stand-alone flat-data igGrid control. The API for the igGrid control serves as the base for configuring the igHierarchicalGrid control and its columnLayouts settings. See the igGrid control API document for more details.

The following code snippet demonstrates how to initialize the igHierarchicalGrid control.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igHierarchicalGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
	  <script src="js/infragistics.lob.js" type="text/javascript"></script>
    <script type="text/javascript">
    $(function () {
        var jsonData = { "d": [
            {
                "ID": 0,
                "Name": "Food",
                "Category": { "ID": 0, "Name": "Food", "Active": true, "Date": "\/Date(1059660800000)\/" },
                "Products": [
                    { "ID": 0, "Name": "Bread", "Price": "2.5" }
                ]
            },
            {
                "ID": 1,
                "Name": "Beverages",
                "Category": { "ID": 2, "Name": "Beverages", "Active": true, "Date": "\/Date(1159660800000)\/" },
                "Products": [
                    { "ID": 1, "Name": "Milk", "Price": "3.5" },
                    { "ID": 2, "Name": "Vint soda", "Price": "20.9" }
                ]
            },
            {
                "ID": 2,
                "Name": "Electronics",
                "Category": { "ID": 5, "Name": "Electronics", "Active": false, "Date": "\/Date(1859660800000)\/" },
                "Products": [
                    { "ID": 7, "Name": "DVD Player", "Price": "35.88" },
                    { "ID": 8, "Name": "LCD HDTV", "Price": "1088.8" }
                ]
            }
        ]}

        $("#hierarchicalGrid").igHierarchicalGrid({
            initialDataBindDepth: 1,
            dataSource: jsonData,
            dataSourceType: "json",
            responseDataKey: "d",

            autoGenerateColumns: false,
            primaryKey: "ID",
            columns: [
			    { headerText: "ID", key: "ID", width: "50px", dataType: "number" },
			    { headerText: "Name", key: "Name", width: "130px", dataType: "string" }
		    ],
            autoGenerateLayouts: false,
            columnLayouts: [
		    {
			    key: "Products",
			    responseDataKey: "",
			    childrenDataProperty: "Products",
			    autoGenerateColumns: false,
			    primaryKey: "ID",
			    columns: [
				    { key: "ID", headerText: "ID", width: "25px" },
				    { key: "Name", headerText: "Product Name", width: "90px" },
				    { key: "Price", headerText: "Price", dataType: "number", width: "55px" }
			    ]
		    }
	    ]
        });
    });
    </script>
</head>
<body>
<table id="hierarchicalGrid"></table>
</body>


Related Samples

Related Topics

Dependencies

jquery-1.9.1.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.datasource.js
infragistics.ui.shared.js
infragistics.util.js
infragistics.ui.grid.framework.js

Inherits

  • adjustVirtualHeights
    Inherited

    Type:
    bool
    Default:
    false

    If this option is set to true, the height of the grid row will be calculated automatically based on the avgRowHeight and the visible virtual records. If no avgRowHeight is specified, it will be calculated automatically at runtime.

    Code Sample


    				// Initialize
    				$(".selector").igHierarchicalGrid({
    					adjustVirtualHeights : true
    				});

    				// Get
    				var virtualHeights = $(".selector").igHierarchicalGrid("option", "adjustVirtualHeights");

  • aggregateTransactions
    Inherited

    Type:
    bool
    Default:
    false

    If set to true, the following behavior will take place:
    If a new row is added, and then deleted, there will be no transaction added to the log.
    If a new row is added, edited, then deleted, there will be no transaction added to the log.
    If several edits are made to a row or an individual cell, this should result in a single transaction.
    Note: This option takes effect only when autoCommit is set to false.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					aggregateTransactions : true
    				});

    				//Get
    				var aggregateTransactions = $(".selector").igHierarchicalGrid("option", "aggregateTransactions");

  • alternateRowStyles
    Inherited

    Type:
    bool
    Default:
    true

    Enables/disables rendering of alternating row styles (odd and even rows receive different styling).

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					alternateRowStyles : true;
    				});

    				//Get
    				var rowAltStyles = $(".selector").igHierarchicalGrid("option", "alternateRowStyles");

    				//Set
    				$(".selector").igHierarchicalGrid("option", "alternateRowStyles", true);

  • animationDuration

    Type:
    number
    Default:
    500

    The row expanding/collapsing animation duration in ms.

    Code Sample


            //Initialize
            $(".selector").igHierarchicalGrid({
                animationDuration: 1000
            });

            //Get
            var accessibility = $(".selector").igHierarchicalGrid("option", "animationDuration");

            //Set
            $(".selector").igHierarchicalGrid("option", "animationDuration", 1000);
            $(".selector").igHierarchicalGrid("dataBind");

  • autoAdjustHeight
    Inherited

    Type:
    bool
    Default:
    true

    If autoAdjustHeight is set to false, the height will be set only on the scrolling container, and all other UI elements such as paging footer / filter row / headers will add on top of that, so the total height of the grid will be more than this value - the height of the scroll container (content area) will not be dynamically calculated. Setting this option to false will usually result in a lot better initial rendering performance for large data sets ( > 1000 rows rendered at once, no virtualization enabled), since no reflows will be made by browsers when accessing DOM properties such as offsetHeight.

    Code Sample


    				// Initialize
    				$(".selector").igHierarchicalGrid({
    					autoAdjustHeight : false
    				});

    				// Get
    				var adjustHeight = $(".selector").igHierarchicalGrid("option", "autoAdjustHeight");

  • autoCommit
    Inherited

    Type:
    bool
    Default:
    false

    Automatically commits the transactions as rows/cells are being edited to the client data source. A saveChanges call still needs to be performed in order to commit the transactions to a server-side data source.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					autoCommit : true
    				});

    				//Get
    				var commit = $(".selector").igHierarchicalGrid("option", "autoCommit");

  • autofitLastColumn
    Inherited

    Type:
    bool
    Default:
    true

    If set to true and all columns' widths are specified and their combined width is less than the grid width then the last column width will be automatically adjusted to fill the remaining empty space of the grid.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					autofitLastColumn : true
    				});

    				//Get
    				var autoFit = $(".selector").igHierarchicalGrid("option", "autofitLastColumn");

  • autoFormat
    Inherited

    Type:
    enumeration
    Default:
    date

    Sets gets ability to automatically format text in cells for numeric and date columns. The format patterns and rules for numbers and dates are defined in $.ig.regional.defaults object. Here column formatting is explained in details.

    Members

    • date
    • Type:string
    • formats only Date columns.
    • number
    • Type:string
    • formats only number columns.
    • dateandnumber
    • Type:string
    • formats both Date and number columns.
    • true
    • Type:bool
    • formats Date and number columns.
    • false
    • Type:bool
    • auto formatting is disabled.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					autoFormat : "number"
    				});
    				//Get
    				var autoFormat = $(".selector").igHierarchicalGrid("option", "autoFormat");

  • autoGenerateColumns
    Inherited

    Type:
    bool
    Default:
    true

    If no columns collection is defined, and autoGenerateColumns is set to true, columns will be inferred from the data source before the dataRendering event is fired. The inferred columns collection will be available to the developer for modification at dataRendering. If autoGenerateColumns is not explicitly set and columns has at least one column defined then autoGenerateColumns is automatically set to false.
    If autoGenerateColumns is true and there are columns defined auto-generated columns will render after the explicitly defined ones.
    Since auto-generated columns don't have width defined consider setting defaultColumnWidth as well.

    Code Sample


    				// Initialize
    				$(".selector").igHierarchicalGrid({
    					autoGenerateColumns : false
    				});

    				// Get
    				var autoCols = $(".selector").igHierarchicalGrid("option", "autoGenerateColumns");

  • autoGenerateLayouts

    Type:
    bool
    Default:
    false

    If true, will autogenerate all layouts assuming default values for "childrenDataProperty"
    When autoGenerateLayouts is enabled, it will automatically generate all columns recursively. (all columns on all levels).

    Code Sample


           //Initialize
            $(".selector").igHierarchicalGrid({
                autoGenerateLayouts: true
            });
            //Get
            var accessibility = $(".selector").igHierarchicalGrid("option", "autoGenerateLayouts");

            //Set
            $(".selector").igHierarchicalGrid("option", "autoGenerateLayouts", true);

  • avgColumnWidth
    Inherited

    Type:
    enumeration
    Default:
    null

    Used for column virtualization in fixed mode. This is the average value in pixels for a column width.

    Members

    • string
    • Type:string
    • The avarage column width can be set in pixels ("25px").
    • number
    • Type:number
    • The avarage column width can be set in pixels as a number (25).

    Code Sample


    				// Initialize
    				$(".selector").igHierarchicalGrid({
    					avgColumnWidth : "100px"
    				});
    				// Get
    				var width = $(".selector").igHierarchicalGrid("option", "avgColumnWidth");

  • avgRowHeight
    Inherited

    Type:
    enumeration
    Default:
    25

    Used for row virtualization in fixed mode. This is the average value in pixels (default) that will be used to calculate how many rows to render as the end user scrolls. Also all rows' height will be automatically set to this value.

    Members

    • string
    • Type:string
    • The avarage row height can be set in pixels ("25px").
    • number
    • Type:number
    • The avarage row height can be set in pixels as a number (25).

    Code Sample


    				// Initialize
    				$(".selector").igHierarchicalGrid({
    					avgRowHeight : "35px"
    				});
    				// Get
    				var height = $(".selector").igHierarchicalGrid("option", "avgRowHeight");

  • caption
    Inherited

    Type:
    string
    Default:
    null

    Caption text that will be shown above the grid header.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					caption : "Sales Data"
    				});

    				//Get
    				var caption = $(".selector").igHierarchicalGrid("option", "caption");

    				//Set
    				$(".selector").igHierarchicalGrid("option", "caption", "Sales Data");

  • collapseTooltip

    Type:
    string
    Default:
    ""

    Specifies the default tooltip applied to an expand column cell, that is currently expanded.

    Code Sample


            //Initialize
            $(".selector").igHierarchicalGrid({
                collapseTooltip: "Custom Collapse Tooltip Text"
            });

            //Get
            var accessibility = $(".selector").igHierarchicalGrid("option", "collapseTooltip");

            //Set
            $(".selector").igHierarchicalGrid("option", "collapseTooltip", "Custom Collapse Tooltip Text");

  • columnLayouts

    Type:
    array
    Default:
    []
    Elements Type:
    object

    List of columnLayout objects that specify the structure of the child grids. All options that are applicable to a flat grid are also applicable here.

    Code Sample


              //Initialize
              $(".selector").igHierarchicalGrid({
                autoGenerateLayouts: false,
    			columnLayouts: [
    				{
    					key: "Products",
    					primaryKey: "ProductID",
    					foreignKey: "CategoryID",
                        responseDataKey: "d.results",
    					autoGenerateColumns: true
    				}
    			]
                });

    • foreignKey

      Type:
      string
      Default:
      null

      Specifies the foreignKey of the columnLayout. This is also the column key of the parent grid.

      Code Sample


                  //Initialize
                  $(".selector").igHierarchicalGrid({
                  autoGenerateLayouts: false,
      			columnLayouts: [
      				{
      					foreignKey: "CategoryID"
      				}
      			]
                  });

    • key

      Type:
      string
      Default:
      null

      Specifies the columnLayout key. This is the property that holds the data records for the current column layout.

      Code Sample


                  $(".selector").igHierarchicalGrid({
                  autoGenerateLayouts: false,
      			columnLayouts: [
      				{
      					key: "Products"
      				}
      			]
                  });
    • primaryKey

      Type:
      string
      Default:
      null

      Specifies the primaryKey of the columnLayout. This also serves as the column key for the current column layout.

      Code Sample


                  //Initialize
                  $(".selector").igHierarchicalGrid({
                  autoGenerateLayouts: false,
      			columnLayouts: [
      				{
      					primaryKey: "ProductID"
      				}
      			]
                  });

  • columns
    Inherited

    Type:
    array
    Default:
    []
    Elements Type:
    object

    An array of column objects. Checkout the Columns and Layout topic for details on configuring the columns array.

    Code Sample


    				// Initialize
    				$(".selector").igHierarchicalGrid({
    					autoGenerateColumns: false,
    			columns: [
    						{ headerText: "Product ID", key: "ProductID", dataType: "number" },
    						{ headerText: "Product Name", key: "Name", dataType: "string" },
    						{ headerText: "ProductNumber", key: "ProductNumber", dataType: "string" },
    						{ headerText: "Color", key: "Color", dataType: "string" },
    						{ headerText: "StandardCost", key: "StandardCost", dataType: "number" },
    					]
    				});

    				// Get
    				var cols = $(".selector").igHierarchicalGrid("option", "columns");

    				// Set
    				var newColumn = { headerText: "New Column", key: "NewCol" };
    				cols.push(newColumn);
    				$(".selector").igHierarchicalGrid("option", "columns", cols);

    • colSpan

      Type:
      number
      Default:
      1

      Specifies the colSpan of the cell in a Multi-Row Layout configuration. colSpan 0 is not supported and will be changed to 1 by the grid. Here you can find more about the Multi-Row Layout feature.

      Code Sample


      						//Initialize
      						$(".selector").igHierarchicalGrid({
      							autoGenerateColumns: false,
      							columns: [
      								{ headerText: "Product ID", key: "ProductID", dataType: "number" },
      								{ headerText: "Product Name", key: "Name", dataType: "string", colSpan: 2 },
      								{ headerText: "ProductNumber", key: "ProductNumber", dataType: "string" },
      								{ headerText: "Color", key: "Color", dataType: "string" },
      								{ headerText: "StandardCost", key: "StandardCost", dataType: "number", colSpan: 2 },
      							]
      						});

      						//Get
      						var colSpan = $(".selector").igHierarchicalGrid("option", "columns")[0].colSpan;

    • columnCssClass

      Type:
      string
      Default:
      null

      Space-separated list of CSS classes to be applied on the data cells of this column. The class is not applied if the column has a column template defined, which contains full <td> definition in the template.

      Code Sample


      						<style>
      							.colStyle {
      								background-color: red;
      							}
      						</style>

      						$(".selector").igHierarchicalGrid({
      						autoGenerateColumns: false,
      						columns: [
      							{ headerText: "Product ID", key: "ProductID", dataType: "number", columnCssClass: "colStyle" },
      							{ headerText: "Product Name", key: "Name", dataType: "string" },
      							{ headerText: "ProductNumber", key: "ProductNumber", dataType: "string" },
      							{ headerText: "Color", key: "Color", dataType: "string" },
      							{ headerText: "StandardCost", key: "StandardCost", dataType: "number" }
      						]
      						});
      						//Get
      						var colCssClass =  $(".selector").igHierarchicalGrid("option", "columns")[0].columnCssClass;

    • columnIndex

      Type:
      number
      Default:
      null

      Specifies the column index of the cell in a Multi-Row Layout configuration. All columns must have this property set for the multi-row-layout mode to be enabled. Here you can find more about the Multi-Row Layout feature.

      Code Sample


      						//Initialize
      						$(".selector").igHierarchicalGrid({
      							autoGenerateColumns: false,
      							columns: [
      								{ headerText: "Product ID", key: "ProductID", dataType: "number", rowIndex: 0, columnIndex: 0 },
      								{ headerText: "Product Name", key: "Name", dataType: "string", rowIndex: 0, columnIndex: 1, colSpan: 3 },
      								{ headerText: "ProductNumber", key: "ProductNumber", dataType: "string", rowIndex: 1, columnIndex: 0 },
      								{ headerText: "Color", key: "Color", dataType: "string", rowIndex: 1, columnIndex: 1 },
      								{ headerText: "StandardCost", key: "StandardCost", dataType: "number", rowIndex: 1, columnIndex: 2, colSpan: 2 },
      							]
      						});

      						//Get
      						var colIndex = $(".selector").igHierarchicalGrid("option", "columns")[0].columnIndex;

    • dataType

      Type:
      enumeration
      Default:
      string

      Data type of the column cell values: string, number, bool, date, object.

      Code Sample


      						//Initialize
      						$(".selector").igHierarchicalGrid({
      							autoGenerateColumns: false,
      							columns: [
      								{ headerText: "Product ID", key: "ProductID", dataType: "number" },
      								{ headerText: "Product Name", key: "Name", dataType: "string" },
      								{ headerText: "Production Date", key: "ProductionDate", dataType: "date" },
      							]
      						});
      						//Get
      						var cols = $(".selector").igHierarchicalGrid("option", "columns");
      						var productIdDataType = cols[0].dataType;

    • dateDisplayType

      Type:
      enumeration
      Default:
      local

      Determines the way in which dates will be displayed in the grid for this column.

      Members

      • local
      • Type:string
      • The dates for this column will be rendered in the client's local timezone.
      • utc
      • Type:string
      • The dates for this column will be rendered in their UTC representation.

      Code Sample


      						// Initialize
      						$(".selector").igHierarchicalGrid({
      							columns: [
      								{ headerText: "Departure Date", key: "DepartureDate", dataType: "date", dateDisplayType: "local" },
      								{ headerText: "Arrival Date", key: "ArrivalDate", dataType: "date", dateDisplayType: "utc" }
      							]
      						});
      						// Get
      						var cols = $('.selector').igHierarchicalGrid('option', 'columns');
      						var departureDateDisplayType = cols[0].dateDisplayType;

    • format

      Type:
      string
      Default:
      null

      Gets/Sets the type of formatting for cells of the column. Default value is null. Checkout Formatting Dates, Numbers and Strings for details on the valid formatting specifiers.

      If dataType is "date", then supported formats are following: "date", "dateLong", "dateTime", "time", "timeLong", "MM/dd/yyyy", "MMM-d, yy, h:mm:ss tt", "dddd d MMM", etc.
      If dataType is "number", then supported numeric formats are following: "number", "currency", "percent", "int", "double", "0.00", "#.0####", "0", "#.#######", etc.
      The value of "double" will be similar to "number", but with unlimited maximum number of decimal places.
      The format patterns and rules for numbers and dates are defined in $.ig.regional.defaults object.
      If dataType is "string" or not set, then format is rendered as it is with replacement of possible "{0}" flag by value in cell. Example, if format is set to "Name: {0}" and value in cell is "Bob", then value will appear as "Name: Bob"
      If value is set to "checkbox", then checkboxes are used regardless of renderCheckboxes option of the grid. That has effect only when dataType option of column is set to "bool".

      Code Sample


      						// Initialize
      						$(".selector").igHierarchicalGrid({
      							autoGenerateColumns: false,
      							columns: [
      								{ headerText: "Product ID", key: "ProductID", dataType: "number", format: "number" },
      								{ headerText: "Production Date", key: "ProductionDate", dataType: "date", format: "ddd, MMM-d-yy HH:mm" },
      							]
      						});

      						// Get
      						var cols = $(".selector").igHierarchicalGrid("option", "columns");
      						var productIdFormat = cols[0].format;

    • formatter

      Type:
      enumeration
      Default:
      null

      Reference to a function (string or function) which will be used for formatting the cell values. The function should accept a value and return the new formatted value. Here column formatting is explained in details.

      Members

      • string
      • Type:string
      • The name of the function which will be used for formatting the cell values.
      • function
      • Type:function
      • Function which will be used for formatting the cell values. The function should accept a value and return the new formatted value.

      Code Sample


      						// Initialize
      						$(".selector").igHierarchicalGrid({
      							autoGenerateColumns: false,
      							columns: [
      								{ headerText: "In production", key: "InProduction", formatter: function(val, record) {return (val === 1)? "Yes" : "No";} }
      							]
      						});
      						// Get
      						var cols = $(".selector").igHierarchicalGrid("option", "columns");
      						var inProductionFormatter = cols[0].formatter;

    • formula

      Type:
      enumeration
      Default:
      null

      A reference to or the name of a JavaScript function, which will calculate the value of the current cell based on other cell values in the same row. Used with unbound columns.

      Members

      • string
      • Type:string
      • The name of the JavaScript function.
      • function
      • Type:function
      • Reference to the JavaScript function.

      Code Sample


      						// Initialize
      						$(".selector").igHierarchicalGrid({
      							autoGenerateColumns: false,
      							columns: [
      								{ headerText: "Total", key: "TotalUC", unbound: true,  formula: function (data, grid)
      									{
      										return data["UnitPrice"] * data["UnitsInStock"];
      									}
      								}
      							]
      						});
      						// Get
      						var totalUC = $('.selector').igHierarchicalGrid('getUnboundColumnByKey', 'TotalUC');
      						var totalFormula = totalUC.formula;

    • group

      Type:
      array
      Default:
      []
      Elements Type:
      object

      Array of child column definitions. If the column has the property group than the grid has multi column headers.

      Code Sample


      						// Initialize
      						$(".selector").igHierarchicalGrid({
      							columns: [
      								{ headerText: "Product Data", key: "ProductData", group: [
      									{ headerText: "Product Name", key: "Name", dataType: "string" },
      									{ headerText: "Product Number", key: "ProductNumber", dataType: "string" }
      								]}
      							],
      							features:[
      								{
      									name: "MultiColumnHeaders"
      								}
      							],
      							width: "500px"
      						});

      						// Get
      						// getMultiColumnHeaders method returns multicolumn headers array. if there aren't multicolumn headers returns undefined.
      						var columns = $(".selector").igHierarchicalGridMultiColumnHeaders("getMultiColumnHeaders");
      						var group = columns[0].group;

    • groupOptions

      Type:
      object
      Default:
      {}

      Options used to configure collapsible column groups.

      Code Sample


      						//Initialize
      						$(".selector").igHierarchicalGrid({
      							columns: [
      								{
      									headerText: "Company Information",
      									group: [
      										{
      											headerText: "Company Name", key: "CompanyName", dataType: "string", width: "150px",
      											groupOptions: {
      												hidden: "parentcollapsed"
      											}
      										},
      										{
      											headerText: "Contact Name", key: "ContactName", dataType: "string", width: "150px",
      											groupOptions: {
      												hidden: "parentcollapsed"
      											}
      										},
      										{ headerText: "Contact Title", key: "ContactTitle", dataType: "string", width: "150px" }
      									],
      									groupOptions: {
      										expanded: false,
      										allowGroupCollapsing: true
      									},
      									key: "companyInfo"
      								}
      							],
      							features: [
      								{
      									name: "MultiColumnHeaders"
      								}
      							],
      							width: "500px"
      						});

      						//Get
      						var columns = $(".selector").igHierarchicalGridMultiColumnHeaders("getMultiColumnHeaders");
      						var groupOptions = columns[0].groupOptions;

      • allowGroupCollapsing

        Type:
        bool
        Default:
        false

        Sets whether expansion indicators are visible in the group header.

        Code Sample


        							//Initialize
        							$(".selector").igHierarchicalGrid({
        								columns: [
        									{
        										headerText: "Company Information",
        										group: [
        											{
        												headerText: "Company Name", key: "CompanyName", dataType: "string", width: "150px",
        												groupOptions: {
        													hidden: "parentcollapsed"
        												}
        											},
        											{
        												headerText: "Contact Name", key: "ContactName", dataType: "string", width: "150px",
        												groupOptions: {
        													hidden: "parentcollapsed"
        												}
        											},
        											{ headerText: "Contact Title", key: "ContactTitle", dataType: "string", width: "150px" }
        										],
        										groupOptions: {
        											expanded: false,
        											allowGroupCollapsing: true
        										},
        										key: "companyInfo"
        									}
        								],
        								features: [
        									{
        										name: "MultiColumnHeaders"
        									}
        								],
        								width: "500px"
        							});

        							//Get
        							var columns = $(".selector").igHierarchicalGridMultiColumnHeaders("getMultiColumnHeaders");
        							var groupOptions = columns[0].groupOptions;
        							var allowGroupCollapsing = groupOptions.allowGroupCollapsing;

      • expanded

        Type:
        bool
        Default:
        true

        Sets whether the group is expanded or collapsed. Applied only if the allowGroupCollapsing is set to true.

        Code Sample


        							//Initialize
        							$(".selector").igHierarchicalGrid({
        								columns: [
        									{
        										headerText: "Company Information",
        										group: [
        											{
        												headerText: "Company Name", key: "CompanyName", dataType: "string", width: "150px",
        												groupOptions: {
        													hidden: "parentcollapsed"
        												}
        											},
        											{
        												headerText: "Contact Name", key: "ContactName", dataType: "string", width: "150px",
        												groupOptions: {
        													hidden: "parentcollapsed"
        												}
        											},
        											{ headerText: "Contact Title", key: "ContactTitle", dataType: "string", width: "150px" }
        										],
        										groupOptions: {
        											expanded: false,
        											allowGroupCollapsing: true
        										},
        										key: "companyInfo"
        									}
        								],
        								features: [
        									{
        										name: "MultiColumnHeaders"
        									}
        								],
        								width: "500px"
        							});

        							//Get
        							var columns = $(".selector").igHierarchicalGridMultiColumnHeaders("getMultiColumnHeaders");
        							var groupOptions = columns[0].groupOptions;
        							var expanded = groupOptions.expanded;

      • hidden

        Type:
        enumeration
        Default:
        never

        Sets when should the group be hidden. Applied only if the allowGroupCollapsing is set to true.

        Members

        • never
        • Type:string
        • never hide the group.
        • always
        • Type:string
        • always hide the group.
        • parentcollapsed
        • Type:string
        • hide the group when its parent group is collapsed.
        • parentexpanded
        • Type:string
        • hide the group when its parent group is expanded.

        Code Sample


        							//Initialize
        							$(".selector").igHierarchicalGrid({
        								columns: [
        									{
        										headerText: "Company Information",
        										group: [
        											{
        												headerText: "Company Name", key: "CompanyName", dataType: "string", width: "150px",
        												groupOptions: {
        													hidden: "parentcollapsed"
        												}
        											},
        											{
        												headerText: "Contact Name", key: "ContactName", dataType: "string", width: "150px",
        												groupOptions: {
        													hidden: "parentcollapsed"
        												}
        											},
        											{ headerText: "Contact Title", key: "ContactTitle", dataType: "string", width: "150px" }
        										],
        										groupOptions: {
        											expanded: false,
        											allowGroupCollapsing: true
        										},
        										key: "companyInfo"
        									}
        								],
        								features: [
        									{
        										name: "MultiColumnHeaders"
        									}
        								],
        								width: "500px"
        							});
        							//Get
        							var columns = $(".selector").igHierarchicalGridMultiColumnHeaders("getMultiColumnHeaders");
        							var groupOptions = columns[0].group[0].groupOptions;
        							var hidden = groupOptions.hidden;

    • headerCssClass

      Type:
      string
      Default:
      null

      Space-separated list of CSS classes to be applied on the header cell of this column.

      Code Sample


      						<style>
      							.headerCss {
      								background-color: red;
      							}
      						</style>

      						// Initialize
      						$(".selector").igHierarchicalGrid({
      							autoGenerateColumns: false,
      							columns: [
      								{ headerText: "Product Name", key: "Name", dataType: "string", headerCssClass: "headerCss" }
      							]
      						});

      						// Get
      						var headerCss = $(".selector").igHierarchicalGrid("option", "columns");
      						var headerCssClass = cols[0].headerCssClass;

    • headerText

      Type:
      string
      Default:
      null

      Header text for the specified column.

      Code Sample


      						// Initialize
      						$(".selector").igHierarchicalGrid({
      							autoGenerateColumns: false,
      							columns: [
      								{ headerText: "Product Name", key: "Name", dataType: "string" },
      							]
      						});

      						// Get
      						var cols = $(".selector").igHierarchicalGrid("option", "columns");
      						var productNameHeaderText = cols[0].headerText;

    • hidden

      Type:
      bool
      Default:
      false

      Initial visibility of the column. A column can be hidden without the Hiding feature being enabled but there will be no UI for unhiding it. Columns can be defined as hidden in the options of the Hiding feature as well and those definitions take precedence.

      Code Sample


      						// Initialize
      						$('.selector').igHierarchicalGrid({
      							autoGenerateColumns: false,
      							columns: [
      								{ headerText: "Product Name", key: "Name", dataType: "string", hidden: true },
      							]
      						});

      						// Get
      						var cols = $('.selector').igHierarchicalGrid('option', 'columns');
      						var productNameHidden = cols[0].hidden;

    • key

      Type:
      string
      Default:
      null

      The property in the data source to which the column is bound. Also used to identify the column by, and find specific columns with API methods such as columnByKey.

      Code Sample


      						// Initialize
      						$(".selector").igHierarchicalGrid({
      							autoGenerateColumns: false,
      							columns: [
      								{ headerText: "Product Name", key: "Name", dataType: "string" },
      							]
      						});

      						// Get
      						var cols = $(".selector").igHierarchicalGrid("option", "columns");
      						var productNameKey = cols[0].key;

    • mapper

      Type:
      enumeration
      Default:
      null

      This option is applicable only for columns with dataType of object. Reference to a function, or the name of the function, that will be used for complex data extraction from the data records, whose return value will be used for all data operations associated with this column and will be displayed as cell value. Here you can find more examples of how to setup a column mapper.

      Members

      • string
      • Type:string
      • The name of the mapper function.
      • function
      • Type:function
      • Reference to the mapper function.

      Code Sample


      						//Initialize
      						$(".selector").igHierarchicalGrid({
      							columns: [
      								{ headerText: "Product ID", key: "ProductID", dataType: "number" },
      								{ headerText: "Product Name", key: "Name", dataType: "string" },
      								{ headerText: "Product Number", key: "ProductNumber", dataType: "string" },
      								{
      									headerText: "Category",
      									key: "Category",
      									dataType: "object",
      									mapper: function (record) {
      										return record.Category.Name;
      									}
      								}
      							]
      						});
      						//Get
      						var cols = $(".selector").igHierarchicalGrid("option", "columns");
      						var categoryMapper = cols[3].mapper;

    • navigationIndex

      Type:
      number
      Default:
      null

      Specifies the navigation index of the cell for the TAB sequence when the cells are in edit mode in a Multi-Row Layout grid. Has no effect otherwise. Here you can find more about the Multi-Row Layout feature.

      Code Sample


      					//Initialize
      					$(".selector").igHierarchicalGrid({
      						autoGenerateColumns: false,
      						columns: [
      							{ headerText: "Product ID", key: "ProductID", dataType: "number", rowIndex: 0, columnIndex: 0 },
      							{ headerText: "Product Name", key: "Name", dataType: "string", rowIndex: 0, columnIndex: 1, colSpan: 3, navigationIndex: 1 },
      							{ headerText: "ProductNumber", key: "ProductNumber", dataType: "string", rowIndex: 1, columnIndex: 0, navigationIndex: 2 },
      							{ headerText: "Color", key: "Color", dataType: "string", rowIndex: 1, columnIndex: 1, navigationIndex: 4 },
      							{ headerText: "StandardCost", key: "StandardCost", dataType: "number", rowIndex: 1, columnIndex: 2, colSpan: 2, navigationIndex: 3 }
      						]
      					});
      					//Get
      					var colIndex = $(".selector").igHierarchicalGrid("option", "columns")[1].navigationIndex;

    • rowIndex

      Type:
      number
      Default:
      null

      Specifies the row index of the cell in a Multi-Row Layout configuration. All columns must have this property set for the multi-row-layout mode to be enabled. Here you can find more about the Multi-Row Layout feature.

      Code Sample


      						//Initialize
      						$(".selector").igHierarchicalGrid({
      							autoGenerateColumns: false,
      							columns: [
      								{ headerText: "Product ID", key: "ProductID", dataType: "number", rowIndex: 0, columnIndex: 0 },
      								{ headerText: "Product Name", key: "Name", dataType: "string", rowIndex: 0, columnIndex: 1, colSpan: 3 },
      								{ headerText: "ProductNumber", key: "ProductNumber", dataType: "string", rowIndex: 1, columnIndex: 0 },
      								{ headerText: "Color", key: "Color", dataType: "string", rowIndex: 1, columnIndex: 1 },
      								{ headerText: "StandardCost", key: "StandardCost", dataType: "number", rowIndex: 1, columnIndex: 2, colSpan: 2 },
      							]
      						});

      						//Get
      						var rowIndex = $(".selector").igHierarchicalGrid("option", "columns")[0].rowIndex;

    • rowspan
      Deprecated

      Type:
      number
      Default:
      0

      This option has been deprecated as of the June 2016 service release.
      Adjust span of multi column header cell. Use option rowSpan.

    • rowSpan

      Type:
      number
      Default:
      1

      Specifies the rowSpan of the cell in a Multi-Row Layout configuration. rowSpan 0 is not supported and will be changed to 1 by the grid. Here you can find more about the Multi-Row Layout feature. If multi-row-layout is not used but multi-column-header is set then this option is used to adjust span of header cell.

      Code Sample


      						//Initialize
      						$(".selector").igHierarchicalGrid({
      							autoGenerateColumns: false,
      							columns: [
      								{ headerText: "Product ID", key: "ProductID", dataType: "number", rowIndex: 0, columnIndex: 0, rowSpan: 2 },
      								{ headerText: "Product Name", key: "Name", dataType: "string", rowIndex: 0, columnIndex: 1, colSpan: 3 },
      								{ headerText: "ProductNumber", key: "ProductNumber", dataType: "string", rowIndex: 1, columnIndex: 1 },
      								{ headerText: "Color", key: "Color", dataType: "string", rowIndex: 1, columnIndex: 2 },
      								{ headerText: "StandardCost", key: "StandardCost", dataType: "number", rowIndex: 1, columnIndex: 3 },
      							]
      						});

      						//Get
      						var rowSpan = $(".selector").igHierarchicalGrid("option", "columns")[0].rowSpan;

    • template

      Type:
      string
      Default:
      null

      Sets a template for an individual column. the contents of the template should be the HTML markup that goes inside the table cell, or the entire table cell markup. Here's an example of creating a basic column template.

      Code Sample


      						// Initialize
      						$(".selector").igHierarchicalGrid({
      							autoGenerateColumns: false,
      							columns: [
      								{ headerText: "Product Name", key: "Name", dataType: "string", template: "Product: ${Name}" },
      							]
      						});

      						// Get
      						var cols = $(".selector").igHierarchicalGrid("option", "columns");
      						var template = cols[0].template;

    • unbound

      Type:
      bool
      Default:
      false

      Sets whether column data is derived from the datasource. If set to true, then the cells in this column are not bound to the data source. The data in this column is populated using formula, or using unboundValues, or through the setUnboundValues API method. Here's an overview of the unbound columns feature.

      Code Sample


      						// Initialize
      						$(".selector").igHierarchicalGrid({
      							autoGenerateColumns: false,
      							columns: [
      								{
      									headerText: "Promotion Expired Date",
      									key: "PromExpDate",
      									dataType: "date",
      									unbound: true,
      									unboundValues: [
      										new Date('4/24/2016'),
      										new Date('8/24/2016'),
      										new Date('6/24/2016'),
      										new Date('10/24/2016'),
      										new Date('11/24/2016')
      									]
      								}
      							]
      						});

      						// Get
      						var unboundColumn = $(".selector").igHierarchicalGrid('getUnboundColumnByKey', 'PromExpDate');
      						var isUnbound = unboundColumn.unbound;

    • unboundValues

      Type:
      array
      Default:
      null
      Elements Type:

      Array of values which will be populated in the column cells at initialization, if the column is unbound.

      Code Sample


      						// Initialize
      						$(".selector").igHierarchicalGrid({
      							autoGenerateColumns: false,
      							columns: [
      								{
      									headerText: "Promotion Expired Date",
      									key: "PromotionExpDate",
      									dataType: "date",
      									unbound: true,
      									unboundValues: [
      										new Date('4/24/2016'),
      										new Date('8/24/2016'),
      										new Date('6/24/2016'),
      										new Date('10/24/2016'),
      										new Date('11/24/2016')
      									]
      								}
      							]
      						});

    • width

      Type:
      enumeration
      Default:
      null

      Width of the column in pixels or percentage. Can also be set as '*', in which case the width auto-size based on the content of the column cells (including the header text). If width is not defined and defaultColumnWidth is set, it is assumed for all columns.

      Members

      • string
      • Type:string
      • The column width can be set in pixels (px), percentage (%) or as '*' in order to auto-size based on the cells and header content.
      • number
      • Type:number
      • The column width can be set as a number.

      Code Sample


      							// Initialize
      							$(".selector").igHierarchicalGrid({
      								autoGenerateColumns: false,
      								columns: [
      									{ headerText: "Product Name", key: "Name", width: "100px", dataType: "string" },
      								]
      							});
      							// Get
      							var cols = $(".selector").igHierarchicalGrid("option", "columns");
      							var productNameWidth = cols[0].width;

  • columnVirtualization
    Inherited

    Type:
    bool
    Default:
    false

    Enables virtualization for columns only. Column virtualization can work only in combination with fixed row virtalization. Setting columnVirtualization to true will automatically set virtualization to true and virtualizationMode to "fixed".

    Code Sample


    				// Initialize
    				$(".selector").igHierarchicalGrid({
    					columnVirtualization : true
    				});

    				// Get
    				var columnVirtualization = $(".selector").igHierarchicalGrid("option", "columnVirtualization");

  • dataSource
    Inherited

    Type:
    object
    Default:
    null

    Can be any valid data source accepted by $.ig.DataSource, or an instance of an $.ig.DataSource itself.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					dataSource : ds
    				});

    				//Get
    				var ds = $(".selector").igHierarchicalGrid("option", "dataSource");

    				Note:
    				This code will return the original data source used when initializing the grid.
    				To get the igDataSource instance use the following syntax:
    				var igDs = $(".selector").data("igHierarchicalGrid").dataSource;

    				//Set
    				$(".selector").igHierarchicalGrid("option", "dataSource", ds);

  • dataSourceType
    Inherited

    Type:
    string
    Default:
    null

    Explicitly set data source type (such as "json"). Please refer to the documentation of $.ig.DataSource type.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					dataSourceType : "xml"
    				});

    				//Get
    				var dsType = $(".selector").igHierarchicalGrid("option", "dataSourceType");

  • dataSourceUrl
    Inherited

    Type:
    string
    Default:
    null

    Specifies a remote URL as a data source, from which data will be retrieved using the $.ig.DataSource.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					dataSourceUrl : urlString
    				});

    				//Get
    				var urlString = $(".selector").igHierarchicalGrid("option", "dataSourceUrl");

  • defaultChildrenDataProperty

    Type:
    string
    Default:
    "children"

    Specifies the default property in the response where children will be located.

    Code Sample


                //Initialize
                $(".selector").igHierarchicalGrid({
    			    defaultChildrenDataProperty: "childLayout"
                });

                //Get
                var accessibility = $(".selector").igHierarchicalGrid("option", "defaultChildrenDataProperty");

                //Set
                $(".selector").igHierarchicalGrid("option", "defaultChildrenDataProperty", "childLayout");

  • defaultColumnWidth
    Inherited

    Type:
    enumeration
    Default:
    null

    Default column width that will be set for all columns, that don't have column width defined.

    Members

    • string
    • Type:string
    • The default column width can be set in pixels ("100px").
    • number
    • Type:number
    • The default column width can be set in pixels as a number (100).

    Code Sample


    				// Initialize
    				$(".selector").igHierarchicalGrid({
    					defaultColumnWidth : 100
    				});
    				// Get
    				var width = $(".selector").igHierarchicalGrid("option", "defaultColumnWidth");

  • enableHoverStyles
    Inherited

    Type:
    bool
    Default:
    true

    Enables/disables rendering of hover styles when the mouse is over a record. This can be useful in templating scenarios, for example, where we don't want to apply hover styling to templated content.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					enableHoverStyles : false
    				});

    				//Get
    				var enableHoverStyles = $(".selector").igHierarchicalGrid("option", "enableHoverStyles");

  • enableResizeContainerCheck
    Inherited

    Type:
    bool
    Default:
    true

    Enables/disables grid adjusting its dimensions when its width and/or height is set in percent (%) and grid parent DOM container is resized.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					enableResizeContainerCheck : false
    				});

    				//Get
    				var enableResizeContainerCheck = $(".selector").igHierarchicalGrid("option", "enableResizeContainerCheck");

    				//Set
    				$(".selector").igHierarchicalGrid("option", "enableResizeContainerCheck", false);

  • enableUTCDates
    Inherited

    Type:
    bool
    Default:
    false

    Nables/Disables serializing client date as UTC ISO 8061 string instead of using the local time and zone values.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					enableUTCDates : true
    				});

    				//Get
    				var enableHoverStyles = $(".selector").igHierarchicalGrid("option", "enableUTCDates");

    				//Set
    				$(".selector").igHierarchicalGrid("option", "enableUTCDates", true);

  • expandCollapseAnimations

    Type:
    bool
    Default:
    true

    Applies a linear animation - either expanding or collapsing depending on the parent row state.

    Code Sample


            //Initialize
            $(".selector").igHierarchicalGrid({
                expandCollapseAnimations: true
            });

            //Get
            var accessibility = $(".selector").igHierarchicalGrid("option", "expandCollapseAnimations");

            //Set
            $(".selector").igHierarchicalGrid("option", "expandCollapseAnimations", true);

  • expandColWidth

    Type:
    number
    Default:
    30

    Specifies the expand column width.

    Code Sample


           //Initialize
            $(".selector").igHierarchicalGrid({
                expandColWidth: 50
            });

  • expandTooltip

    Type:
    string
    Default:
    ""

    Specifies the default tooltip applied to an expand column cell, that is currently collapsed.

    Code Sample


            //Initialize
            $(".selector").igHierarchicalGrid({
                expandTooltip: "Custom expnad tooltip text"
            });

            //Get
            var accessibility = $(".selector").igHierarchicalGrid("option", "expandTooltip");

            //Set
            $(".selector").igHierarchicalGrid("option", "expandTooltip", "Custom expnad tooltip text");
            $(".selector").igHierarchicalGrid("dataBind");

  • featureChooserIconDisplay
    Inherited

    Type:
    enumeration
    Default:
    desktopOnly

    Configures how the feature chooser icon should display on header cells - e.g. to display as gear icon or not.

    Members

    • none
    • Type:string
    • Always hide the feature chooser icon; The feature chooser is shown on tapping/clicking the column header.
    • desktopOnly
    • Type:string
    • Always show the icon on desktop but hide when touch device detected.
    • always
    • Type:string
    • Always show it in any environment. Chooser is shown when tapping the gear icon or column header.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					featureChooserIconDisplay : "always"
    				});
    				//Get
    				var featureChooserIconDisplay = $(".selector").igHierarchicalGrid("option", "featureChooserIconDisplay");

  • features
    Inherited

    Type:
    array
    Default:
    []
    Elements Type:
    object

    List of grid feature definitions: sorting, paging, etc. Each feature goes with its separate options that are documented for the feature accordingly. Here you can find detailed documentation for all igGrid features.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    			features: [
    				{
    							name: "Paging",
    							type: "local",
    							pageSize: 13
    						},
    						{
    							name: "Sorting",
    							type: "local"
    						},
    						{
    							name: "Selection"
    						},
    						{
    							name: "Filtering",
    							type: "local",
    							filterDropDownItemIcons: false,
    							filterDropDownWidth: 200
    						}
    					]
    				});

    				//Get
    				var features = $(".selector").igHierarchicalGrid("option", "features");

    • name

      Type:
      string
      Default:
      null

      Name of the feature to be enabled.

  • fixedFooters
    Inherited

    Type:
    bool
    Default:
    true

    Footers will be fixed if this option is set to true, and only the grid data will be scrollable. If virtualization is enabled, fixedFooters will always act as if it's true, no matter which value is set.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					fixedFooters : false
    				});

    				//Get
    				var fixed = $(".selector").igHierarchicalGrid("option", "fixedFooters");

    				//Set
    				$(".selector").igHierarchicalGrid("option", "fixedFooters", false);

  • fixedHeaders
    Inherited

    Type:
    bool
    Default:
    true

    Headers will be fixed if this option is set to true, and only the grid data will be scrollable. If virtualization is enabled, fixedHeaders will always act as if it's true, no matter which value is set.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					fixedHeaders : false
    				});

    				//Get
    				var fixedHeaders = $(".selector").igHierarchicalGrid("option", "fixedHeaders");

  • height
    Inherited

    Type:
    enumeration
    Default:
    null

    This is the total height of the grid, including all UI elements - scroll container with data rows, header, footer, filter row - (if any), etc. Here you can find more info about setting igGrid height.

    Members

    • string
    • Type:string
    • The widget height can be set in pixels (px) and percentage (%).
    • number
    • Type:number
    • The widget height can be set as a number.
    • null
    • Type:object
    • will stretch vertically to fit data.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					height : "850px"
    				});
    				// Get
    				var height = $(".selector").igHierarchicalGrid("option", "height");
    				// Set
    				$(".selector").igHierarchicalGrid("option", "height", "800px");

  • initialDataBindDepth

    Type:
    number
    Default:
    -1

    Only the first level will be data-bound initially. Also serves as "render" depth, meaning that depending on this prop, the grid will.

    Code Sample


            //Initialize
            $(".selector").igHierarchicalGrid({
                initialDataBindDepth: 1
            });

            //Get
            var accessibility = $(".selector").igHierarchicalGrid("option", "initialDataBindDepth");

  • initialExpandDepth

    Type:
    number
    Default:
    -1

    No levels will be automatically expanded when the widget is instantiated for the first time.

    Code Sample


            //Initialize
            $(".selector").igHierarchicalGrid({
                initialExpandDepth: 1
            });

            //Get
            var accessibility = $(".selector").igHierarchicalGrid("option", "initialExpandDepth");

  • jsonpRequest
    Inherited

    Type:
    bool
    Default:
    false

    When dataSource is a remote URL, defines whether to set the type of the remote data source to JSONP.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					jsonpRequest : true
    				});

    				//Get
    				var jsonpRequest = $(".selector").igHierarchicalGrid("option", "jsonpRequest");

  • localSchemaTransform
    Inherited

    Type:
    bool
    Default:
    true

    If this option is set to false, the data to which the grid is bound will be used "as is" with no additional transformations based on columns defined. Otherwise only the subset of data properties used in the columns defined will be extracted in a new object and used.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					localSchemaTransform : false
    				});

    				//Get
    				var schemaTransform = $(".selector").igHierarchicalGrid("option", "localSchemaTransform");

  • maxDataBindDepth

    Type:
    number
    Default:
    -1

    Specifies the limit on the number of levels to bind to.

    Code Sample


            //Initialize
            $(".selector").igHierarchicalGrid({
                maxDataBindDepth: 3
            });

            //Get
            var accessibility = $(".selector").igHierarchicalGrid("option", "maxDataBindDepth");

  • mergeUnboundColumns
    Inherited

    Type:
    bool
    Default:
    false

    Merge unbound columns values inside data source when data source is remote. If true then the unbound columns are merged to the data source at runtime on the server. Note that data source is expanded with the new data and this could cause performance issues when the data is huge. If mergeUnboundColumns is false then the unbound data is sent and merged on the client. This option is used by the igGrid MVC Helper.
    Checkout Populating Unbound Columns Remotely (igGrid) topic for more information.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					mergeUnboundColumns : true,
    					dataSource : REMOTE_URL
    				});

    				//Get
    				var mergeUC = $(".selector").igHierarchicalGrid("option", "mergeUnboundColumns");

  • odata

    Type:
    bool
    Default:
    false

    If true, encodes all requests using OData conventions and the $expand syntax.

    Code Sample


            //Initialize
            $(".selector").igHierarchicalGrid({
                odata: true
            });

            //Get
            var accessibility = $(".selector").igHierarchicalGrid("option", "odata");

            //Set
            $(".selector").igHierarchicalGrid("option", "odata", true);

  • pathSeparator

    Type:
    string
    Default:
    "/"

    Specifies the delimiter for constructing paths , for hierarchical lookup of data.

    Code Sample


            //Initialize
            $(".selector").igHierarchicalGrid({
                pathSeparator: "/"
            });

  • primaryKey
    Inherited

    Type:
    string
    Default:
    null

    Key of the column containing unique identifiers for the data records.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					primaryKey : "CustomerID"
    				});

    				//Get
    				var key = $(".selector").igHierarchicalGrid("option", "primaryKey");

  • renderCheckboxes
    Inherited

    Type:
    bool
    Default:
    false

    Gets sets ability to render checkboxes and use checkbox editor when dataType of a column is "bool". Checkboxes are not rendered for boolean values in columns with a column template.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					renderCheckboxes : true
    				});

    				//Get
    				var renderCheckboxes = $(".selector").igHierarchicalGrid("option", "renderCheckboxes");

    				//Set
    				$(".selector").igHierarchicalGrid("option", "renderCheckboxes", true);

  • requestType
    Inherited

    Type:
    string
    Default:
    "GET"

    Specifies the HTTP verb to be used to issue the requests to a remote data source.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					requestType : "POST"
    				});

    				//Get
    				var requestType = $(".selector").igHierarchicalGrid("option", "requestType");

  • responseContentType
    Inherited

    Type:
    string
    Default:
    "application/json; charset=utf-8"

    Content type of the response. See http://api.jquery.com/jQuery.ajax/ => contentType.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					responseContentType : "application/json; charset=utf-8"
    				});

    				//Get
    				var responseContentType = $(".selector").igHierarchicalGrid("option", "responseContentType");

  • responseDataKey
    Inherited

    Type:
    string
    Default:
    null

    See $.ig.DataSource responseDataKey. This is the property in the responses where data records are held, if the response is wrapped.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					responseDataKey : "records"
    				});

    				//Get
    				var responseKey = $(".selector").igHierarchicalGrid("option", "responseDataKey");

  • responseTotalRecCountKey
    Inherited

    Type:
    string
    Default:
    null

    See $.ig.DataSource responseTotalRecCountKey. Property in the response specifying the total number of records on the server.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					responseTotalRecCountKey : "totalRecords"
    				});

    				//Get
    				var recordsCount = $(".selector").igHierarchicalGrid("option", "responseTotalRecCountKey");

  • rest

    Type:
    bool
    Default:
    false

    If true, load on demand will be achieved using REST compliant resource access with appropriate url-s for
    the ajax GET calls.

    Code Sample


            //Initialize
            $(".selector").igHierarchicalGrid({
                rest: true
            });

            //Get
            var rest = $(".selector").igHierarchicalGrid("option", "rest");

  • restSettings
    Inherited

    Type:
    object
    Default:
    {}

    Settings related to REST compliant update routines.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					restSettings : {
    						create: {
    							url: "/api/customers/",
    							batch: true
    						},
    						update: {
    							url: "/api/customers/",
    							batch: true
    						},
    						remove: {
    							url: "/api/customers/",
    							batch: true
    						}
    					}
    				});

    				//Get
    				var restSettings = $(".selector").igHierarchicalGrid("option", "restSettings");

    • contentSerializer

      Type:
      function
      Default:
      null

      Specifies a custom function to serialize content sent to the server. It should accept a single object or an array of objects and return a string. If not specified, JSON.stringify() will be used.

      Code Sample


      					//Initialize
      					$(".selector").igHierarchicalGrid({
      						restSettings : {
      							contentSerializer : "customSerializeFunction" ; // the name of the function, it can be also a reference to a function
      						}
      					});

      					//Get
      					var restSettings = $(".selector").igHierarchicalGrid("option", "restSettings");
      					var contentSerializerSetting = restSettings.contentSerializer;

    • contentType

      Type:
      string
      Default:
      "application/json; charset=utf-8"

      Specifies the content type of the request. See http://api.jquery.com/jQuery.ajax/ => contentType.

      Code Sample


      						//Initialize
      						$(".selector").igHierarchicalGrid({
      							restSettings : {
      								contentType : "application/json; charset=utf-8";
      							}
      						});

      						//Get
      						var restSettings = $(".selector").igHierarchicalGrid("option", "restSettings");
      						var contentTypeSetting = restSettings.contentType;

    • create

      Type:
      object
      Default:
      {}

      Settings for create requests.

      Code Sample


      					//Initialize
      					$(".selector").igHierarchicalGrid({
      						restSettings : {
      				create: {
      								url: "/api/customers/",
      								batch: true
      							}
      						}
      					});

      					//Get
      					var restSettings = $(".selector").igHierarchicalGrid("option", "restSettings");
      					var createRestSettings = restSettings.create;

      • batch

        Type:
        bool
        Default:
        false

        Specifies whether create requests will be sent in batches.

        Code Sample


        						//Initialize
        						$(".selector").igHierarchicalGrid({
        							restSettings : {
        								create: {
        									url: "/api/customers/",
        									batch: true
        								}
        							}
        						});

        						//Get
        						var restSettings = $(".selector").igHierarchicalGrid("option", "restSettings");
        						var batch = restSettings.create.batch;

      • template

        Type:
        string
        Default:
        null

        Specifies a remote URL template. Use ${id} in place of the resource id.

        Code Sample


        						//Initialize
        						$(".selector").igHierarchicalGrid({
        							restSettings : {
        								update: {
        									template: "/api/customers/${id}"
        								}
        							}
        						});

        						//Get
        						var restSettings = $(".selector").igHierarchicalGrid("option", "restSettings");
        						var template = restSettings.update.template;

      • url

        Type:
        string
        Default:
        null

        Specifies a remote URL to which create requests will be sent. This will be used for both batch and non-batch, however if template is also set, this URL will only be used for batch requests.

        Code Sample


        						//Initialize
        						$(".selector").igHierarchicalGrid({
        							restSettings : {
        								update: {
        									url: "/api/customers/",
        									batch: true
        								}
        							}
        						});

        						//Get
        						var restSettings = $(".selector").igHierarchicalGrid("option", "restSettings");
        						var url = restSettings.update.url;

    • encodeRemoveInRequestUri

      Type:
      bool
      Default:
      true

      Specifies whether the ids of the removed resources are send through the request URI.

    • remove

      Type:
      object
      Default:
      {}

      Settings for remove requests.

      • batch

        Type:
        bool
        Default:
        false

        Specifies whether update requests will be sent in batches.

      • template

        Type:
        string
        Default:
        null

        Specifies a remote URL template. Use ${id} in place of the resource id.

      • url

        Type:
        string
        Default:
        null

        Specifies a remote URL to which remove requests will be sent. This will be used for both batch and non-batch, however if template is also set, this URL will only be used for batch requests.

    • update

      Type:
      object
      Default:
      {}

      Settings for update requests.

      • batch

        Type:
        bool
        Default:
        false

        Specifies whether update requests will be sent in batches.

      • template

        Type:
        string
        Default:
        null

        Specifies a remote URL template. Use ${id} in place of the resource id.

      • url

        Type:
        string
        Default:
        null

        Specifies a remote URL to which update requests will be sent. This will be used for both batch and non-batch, however if template is also set, this URL will only be used for batch requests.

  • rowVirtualization
    Inherited

    Type:
    bool
    Default:
    false

    Enables virtualization for rows only. Here you can find more info about igGrid row virtualization.

    Code Sample


    				// Initialize
    				$(".selector").igHierarchicalGrid({
    					rowVirtualization : true
    				});

    				// Get
    				var virtualization = $(".selector").igHierarchicalGrid("option", "rowVirtualization");

  • scrollSettings
    Inherited

    Type:
    object
    Default:
    {}

    Settings related to content scrolling.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					scrollSettings: {
    						scrollTop: 100,
    						smoothing: true,
    						smoothingStep: 2.5
    					}
    				});

    				//Get
    				var scrollSettings = $(".selector").igHierarchicalGrid("option", "scrollSettings");

    				//Set
    				var newSettings = {
    					scrollTop: 100,
    					smoothing: true,
    					smoothingStep: 2.5
    				}
    				$(".selector").igHierarchicalGrid("option", "scrollSettings", newSettings);

    • inertiaDuration

      Type:
      number
      Default:
      1

      Sets gets the modifier for how long the inertia last on touch devices.

      Code Sample


      					//Initialize
      					$(".selector").igHierarchicalGrid({
      						scrollSettings: {
      							inertiaDuration: 0.75
      						}
      					});

      					//Get
      					var value = $(".selector").igHierarchicalGrid("option", "scrollSettings").inertiaDuration;

      					//Set
      					$(".selector").igHierarchicalGrid("option", "scrollSettings", { inertiaDuration: 0.75 });

    • inertiaStep

      Type:
      number
      Default:
      1

      Sets gets the modifier for how much the inertia scrolls on touch devices. Note: Value set to 0 would disable touch movements. Value set to -1 would invert them.

      Code Sample


      					//Initialize
      					$(".selector").igHierarchicalGrid({
      						scrollSettings: {
      							inertiaStep: 2
      						}
      					});

      					//Get
      					var value = $(".selector").igHierarchicalGrid("option", "scrollSettings").inertiaStep;

      					//Set
      					$(".selector").igHierarchicalGrid("option", "scrollSettings", { inertiaStep: 2 });

    • scrollLeft

      Type:
      number
      Default:
      0

      Sets gets current horizontal position.

      Code Sample


      					//Initialize
      					$(".selector").igHierarchicalGrid({
      						scrollSettings: {
      							scrollLeft: 200
      						}
      					});

      					//Get
      					var value = $(".selector").igHierarchicalGrid("option", "scrollSettings").scrollLeft;

      					//Set
      					$(".selector").igHierarchicalGrid("option", "scrollSettings", { scrollLeft: 300 });

    • scrollTop

      Type:
      number
      Default:
      0

      Sets gets current vertical position.

      Code Sample


      					//Initialize
      					$(".selector").igHierarchicalGrid({
      						scrollSettings: {
      							scrollTop: 500
      						}
      					});

      					//Get
      					var value = $(".selector").igHierarchicalGrid("option", "scrollSettings").scrollTop;

      					//Set
      					$(".selector").igHierarchicalGrid("option", "scrollSettings", { scrollTop: 600 });

    • smoothing

      Type:
      bool
      Default:
      false

      Sets gets if smoother scrolling with small intertia should be used when using the mouse wheel.

      Code Sample


      					//Initialize
      					$(".selector").igHierarchicalGrid({
      						scrollSettings: {
      							smoothing: true
      						}
      					});

      					//Get
      					var value = $(".selector").igHierarchicalGrid("option", "scrollSettings").smoothing;

      					//Set
      					$(".selector").igHierarchicalGrid("option", "scrollSettings", { smoothing: true });

    • smoothingDuration

      Type:
      number
      Default:
      1

      Sets or gets the modifier for how long the scroll ‘animation’ lasts when using the mouse wheel once. This is used only for the smooth scrolling behavior.

      Code Sample


      					//Initialize
      					$(".selector").igHierarchicalGrid({
      						scrollSettings: {
      							smoothingDuration: 1.25
      						}
      					});

      					//Get
      					var value = $(".selector").igHierarchicalGrid("option", "scrollSettings").smoothingDuration;

      					//Set
      					$(".selector").igHierarchicalGrid("option", "scrollSettings", { smoothingDuration: 1.25 });

    • smoothingStep

      Type:
      number
      Default:
      1

      Sets or gets the modifier for how many pixels will be scrolled when using the mouse wheel once. This is used only for the smooth scrolling behavior.

      Code Sample


      					//Initialize
      					$(".selector").igHierarchicalGrid({
      						scrollSettings: {
      							smoothingStep: 2.5
      						}
      					});

      					//Get
      					var value = $(".selector").igHierarchicalGrid("option", "scrollSettings").smoothingStep;

      					//Set
      					$(".selector").igHierarchicalGrid("option", "scrollSettings", { smoothingStep: 2.5 });

    • wheelStep

      Type:
      number
      Default:
      50

      Sets gets the step of the default scrolling behavior when using the mouse wheel.

      Code Sample


      					//Initialize
      					$(".selector").igHierarchicalGrid({
      						scrollSettings: {
      							wheelStep: 100
      						}
      					});

      					//Get
      					var value = $(".selector").igHierarchicalGrid("option", "scrollSettings").wheelStep;

      					//Set
      					$(".selector").igHierarchicalGrid("option", "scrollSettings", { wheelStep: 50 });

  • serializeTransactionLog
    Inherited

    Type:
    bool
    Default:
    true

    If true, the transaction log will always be sent in the request for remote data, by the data source. Also this means that if there are values in the log, a POST will be performed instead of GET.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					serializeTransactionLog : false
    				});

    				//Get
    				var log = $(".selector").igHierarchicalGrid("option", "serializeTransactionLog");

  • showFooter
    Inherited

    Type:
    bool
    Default:
    true

    Controls the visibility of the grid footer.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					showFooter : false
    				});

    				//Get
    				var showFooter = $(".selector").igHierarchicalGrid("option", "showFooter");

    				//Set
    				$(".selector").igHierarchicalGrid("option", "showFooter", false);

  • showHeader
    Inherited

    Type:
    bool
    Default:
    true

    Controls the visibility of the grid header.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					showHeader : false
    				});

    				//Get
    				var showHeader = $(".selector").igHierarchicalGrid("option", "showHeader");

    				//Set
    				$(".selector").igHierarchicalGrid("option", "showHeader", false);

  • tabIndex
    Inherited

    Type:
    number
    Default:
    0

    Initial tabIndex attribute that will be set on all focusable elements.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					tabIndex : 3
    				});

    				//Get
    				var tabIndex = $(".selector").igHierarchicalGrid("option", "tabIndex");

  • templatingEngine
    Inherited

    Type:
    enumeration
    Default:
    infragistics

    The templating engine that will be used to render the grid column templates. Here you can find how to use templating engines other than igTemplating and jsRender.

    Members

    • infragistics
    • Type:string
    • The grid will use the Infragistics Templating engine to render its column templates and specific parts of the UI.
    • jsRender
    • Type:string
    • The grid will use jsRender to render its column templates and specific parts of the UI.

    Code Sample


    				// Initialize
    				$(".selector").igHierarchicalGrid({
    					templatingEngine : "jsRender"
    				});
    				// Get
    				var templatingEngine = $(".selector").igHierarchicalGrid("option", "templatingEngine");

  • updateUrl
    Inherited

    Type:
    string
    Default:
    null

    URL to which updating requests will be made.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					updateUrl : "http://mydomain.com/UpdateCustomer"
    				});

    				//Get
    				var updateUrl = $(".selector").igHierarchicalGrid("option", "updateUrl");

  • virtualization
    Inherited

    Type:
    bool
    Default:
    false

    Enables/disables column and row virtualization at the same time. Virtualization can greatly enhance rendering performance. If enabled, the number of actual rendered rows (DOM elements) will be constant and related to the visible viewport of the grid. As the end user scrolls, those DOM elements will be dynamically reused to render the new data. Here you can find more info about the performance guidelines when using the igGrid.

    Code Sample


    				// Initialize
    				$(".selector").igHierarchicalGrid({
    					virtualization : true
    				});

    				// Get
    				var virtualization = $(".selector").igHierarchicalGrid("option", "virtualization");

  • virtualizationMode
    Inherited

    Type:
    enumeration
    Default:
    fixed

    Determines row virtualization mode.

    Members

    • fixed
    • Type:string
    • Renders only the visible rows and/or columns in the grid. On scrolling the same rows and/or columns are updated with new data from the data source. Only fixed virtualization can work with column virtualization at the same time. Fixed virtualization is not supported by some grid features: Resizing, Group By, Responsive.
    • continuous
    • Type:string
    • renders a pre-defined number of rows in the grid. On scrolling the continuous virtualization loads another portion of rows and disposes the current one.

    Code Sample


    				// Initialize
    				$(".selector").igHierarchicalGrid({
    					virtualizationMode : "continuous"
    				});
    				// Get
    				var virtualizationMode = $(".selector").igHierarchicalGrid("option", "virtualizationMode");
    				// Set
    				$(".selector").igHierarchicalGrid("option", "virtualizationMode", "continuous");

  • virtualizationMouseWheelStep
    Inherited

    Type:
    number
    Default:
    null

    Number of pixels to scroll the grid by, when virtualization is enabled, and mouse wheel scrolling is performed over the virtual grid area. If "null" the step will be equal to the avgRowHeight.

    Code Sample


    				// Initialize
    				$(".selector").igHierarchicalGrid({
    					virtualizationMouseWheelStep : 50
    				});

    				// Get
    				var virtualizationStep = $(".selector").igHierarchicalGrid("option", "virtualizationMouseWheelStep");

    				// Set
    				$(".selector").igHierarchicalGrid("option", "virtualizationMouseWheelStep", 50);

  • width
    Inherited

    Type:
    enumeration
    Default:
    null

    Defines the grid width in pixels or percents. Here you can find more info about setting igGrid width.

    Members

    • string
    • Type:string
    • The widget width can be set in pixels (px) or percentage (%). Example values: "800px", "800" (defaults to pixels), "100%".
    • number
    • Type:number
    • The widget width can be set in pixels as a number. Example values: 800, 700.
    • null
    • Type:object
    • will stretch to fit the sum of the columns widths.

    Code Sample


    				// Initialize
    				$(".selector").igHierarchicalGrid({
    					width : "800px"
    				});
    				// Get
    				var width = $(".selector").igHierarchicalGrid("option", "width");
    				// Set
    				$(".selector").igHierarchicalGrid("option", "width", "850px");


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • captionRendered
    Inherited

    Cancellable:
    false

    Event fired after the caption has been rendered.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

        • captionContainer

          Gets a reference to the caption container.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					captionRendered: function(evt, ui) {
    						//return reference to igHierarchicalGrid
    						ui.owner;
    						//return caption container DOM element
    						ui.captionContainer;
    					}
    				});

  • captionRendering
    Inherited

    Cancellable:
    true

    Event fired before the caption starts its rendering.
    Return false in order to cancel caption rendering.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					captionRendering: function(evt, ui) {
    						//return reference to igHierarchicalGrid
    						ui.owner;
    					}
    				});

  • cellClick
    Inherited

    Cancellable:
    false

    Event fired when a cell is clicked.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • cellElement

          Gets a reference to cell DOM element.

        • rowIndex
          Type: Number

          Gets the row index.

        • rowKey
          Type: Object

          Gets the row key.

        • colIndex
          Type: Number

          Gets the column index of the DOM element.

        • colKey
          Type: String

          Gets the column key.

        • owner
          Type: Object

          Gets a reference to the grid.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "ighierarchicalgridcellclick", function (evt, ui) {
    					//return cell html element in the DOM
    					ui.cellElement;
    					//return row index
    					ui.rowIndex;
    					//return row key
    					ui.rowKey;
    					//return col index of the DOM element
    					ui.colIndex;
    					//return col key
    					ui.colKey;
    					//return reference to igHierarchicalGrid
    					ui.owner;
    				});

    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					cellClick: function(evt, ui) {...}
    				});

  • cellRightClick
    Inherited

    Cancellable:
    false

    Event fired when a cell is right clicked.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • cellElement

          Gets a reference to cell DOM element.

        • rowIndex
          Type: Number

          Gets the row index.

        • rowKey
          Type: Object

          Gets the row key.

        • colIndex
          Type: Number

          Gets the column index of the DOM element.

        • colKey
          Type: String

          Gets the column key.

        • row

          Gets a reference to the row DOM element.

        • owner
          Type: Object

          Gets a reference to the grid.

    Code Sample


    				$(document).delegate(".selector", "ighierarchicalgridcellrightclick", function (evt, ui) {
    				//return cell html element in the DOM
    				ui.cellElement;
    				//return row index
    				ui.rowIndex;
    				//return row key
    				ui.rowKey;
    				//return col index of the DOM element
    				ui.colIndex;
    				//return col key
    				ui.colKey;
    				//return reference to igHierarchicalGrid
    				ui.owner;
    				});

    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					cellRightClick: function(evt, ui) {...}
    				});

  • childGridCreated

    Cancellable:
    false

    Event fired after a child grid is created.

    • evt
      Type: Event

      JQuery event object.

    Code Sample


              //Bind after initialization
              $(document).delegate(".selector", "igchildgridcreated", function (evt, ui) {

                  //the triggered event
                  evt;

                  //reference to the DOM object on which the event is attached to (the one returned from the $(".selector"))
                  evt.target;

                  //reference to the DOM object which triggered the event
                  evt.currentTarget;

                  //type of the event according to the jQuery UI convention: "igchildgridcreated"
                  evt.type;

                  // reference to the created child grid DOM element
                  ui.element

                  //reference to the Hierarchical grid widget
                  ui.owner;

              });


  • childGridCreating

    Cancellable:
    true

    Event fired before a child grid is going to be created, allows the developer to override the child grid creation.

    • evt
      Type: Event

      JQuery event object.

    Code Sample

             //Bind after initialization
             $(document).delegate(".selector", "igchildgridcreating", function (evt, ui) {

                 //the triggered event
                 evt;

                 //reference to the DOM object on which the event is attached to (the one returned from the $(".selector"))
                 evt.target;

                 //reference to the DOM object which triggered the event
                 evt.currentTarget;

                 //type of the event according to the jQuery UI convention:	"igchildgridcreating"
                 evt.type;

                 // reference to the child grid DOM element which is to be created
                 ui.element

                 // reference to the options of the child grid which is to created
                 ui.options

                 // reference to the Hierarchical grid widget
                 ui.owner;

                 // reference to the path to the child grid which is to be created
                 ui.path

             });

  • childGridRendered

    Cancellable:
    false

    Event fired when child grid is rendered.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets access the hierarchical grid object.

        • parentrow
          Type: jQuery

          Gets access the row element for the row that's about to be populated.

        • childgrid
          Type: Object

          Gets reference to the child grid.

    Code Sample


          $(document).delegate(".selector", "igchildgridrendered", function (evt, ui) {
                //return the triggered event
                evt;

                //reference to the hierarchical grid object
                ui.owner;

                //reference to the row element for the row that's about to be populated
                ui.parentrow;

                //reference to the child grid
                ui.childgrid;
          });

  • childrenPopulated

    Cancellable:
    false

    Event which is fired when children have been populated (Load on demand).

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets access the hierarchical grid object.

        • parentrow
          Type: jQuery

          Gets access the row element for the row that was populated.

        • id
          Type: Object

          Gets the data ID of the row.

    Code Sample


            //Bind after initialization
    	$(document).delegate(".selector","ighierarchicalgridchildrenpopulated", function (evt, ui) {
                //return the triggered event
                evt;

                //pointer to the object that triggers the event, which in our case is igHierarchicalGrid
                evt.target;
                //pointer to the object that listins for the event, which in our case is igHierarchicalGrid
                evt.currentTarget;
                //the type of the event, which following the jquery UI convention is 'ighierarchicalgridchildrenpopulated'
                evt.type;


                //custom row id that is combination from the primaryKey and the id of the row
                ui.id;

                //reference to the Hierarchical grid widget
                ui.owner;
                //gets all igHierarchical Grid widgets
                ui.owner.allChildrenWidgets;

                //jQuery wrapper of the parent row object
                ui.parentrow;
                //get the HTML DOM row object
                ui.parentrow[0];
            });

            //Initialize
            $(".selector").igHierarchicalGrid({
                childrenPopulated : function(e, args) {...}
    		});

  • childrenPopulating

    Cancellable:
    true

    Event which is fired when children are about to be populated (Load on demand).

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets access the hierarchical grid object.

        • parentrow
          Type: jQuery

          Gets access the row element for the row that's about to be populated.

        • id
          Type: Object

          Gets the data ID of the row.

    Code Sample

            //Bind after initialization
    		$(document).delegate(".selector", "ighierarchicalgridchildrenpopulating", function (evt, ui) {
                //return the triggered event
                evt;

                //pointer to the object that triggers the event, which in our case is igHierarchicalGrid
                evt.target;
                //pointer to the object that listins for the event, which in our case is igHierarchicalGrid
                evt.currentTarget;
                //the type of the event, which following the jquery UI convention is 'ighierarchicalgridchildrenpopulating'
                evt.type;


                //custom row id that is combination from the primaryKey and the id of the row
                ui.id;

                //reference to the Hierarchical grid widget
                ui.owner;
                //gets all igHierarchical Grid widgets
                ui.owner.allChildrenWidgets;

                //jQuery wrapper of the parent row object
                ui.parentrow;
                //get the HTML DOM row object
                ui.parentrow[0];
            });

            //Initialize
            $(".selector").igHierarchicalGrid({
                childrenPopulating : function(e, args) {...}
    		});

  • columnsCollectionModified
    Inherited

    Cancellable:
    false

    Event fired after the columns colection has been modified(e.g. a column is hidden).

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "ighierarchicalgridcolumnscollectionmodified", function (evt, ui) {
    					//return reference to igHierarchicalGrid
    					ui.owner;
    				});

    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					columnsCollectionModified: function(evt, ui) {...}
    				});

  • created
    Inherited

    Cancellable:
    false

    Fired when the grid is created and the initial structure is rendered (this doesn't necessarily imply the data will be there if the data source is remote).

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

    Code Sample


    				//Delegate before the igHierarchicalGrid initialization code
    				$(document).delegate(".selector", "igcontrolcreated", function (evt, ui) {
    					//return reference to igHierarchicalGrid
    					ui.owner;
    				});

  • dataBinding
    Inherited

    Cancellable:
    true

    Event fired before data binding takes place.

    Return false in order to cancel data binding.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

        • dataSource
          Type: Object

          Gets a reference to the igDataSource object.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "ighierarchicalgriddatabinding", function (evt, ui) {
    					//return reference to igHierarchicalGrid
    					ui.owner;
    				});

    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					dataBinding: function(evt, ui) {...}
    				});

  • dataBound
    Inherited

    Cancellable:
    false

    Event fired after data binding is complete.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

        • dataSource
          Type: Object

          Gets a reference to the igDataSource object.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "ighierarchicalgriddatabound", function (evt, ui) {
    					//return reference to igHierarchicalGrid
    					ui.owner;
    				});

    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					dataBound: function(evt, ui) {...}
    				});

  • dataRendered
    Inherited

    Cancellable:
    false

    Event fired after all of the data records in the grid table body have been rendered.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "ighierarchicalgriddatarendered", function (evt, ui) {
    					//return reference to igHierarchicalGrid
    					ui.owner;
    				});

    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					dataRendered: function(evt, ui) {...}
    				});

  • dataRendering
    Inherited

    Cancellable:
    true

    Event fired before the TBODY holding the data records starts its rendering.
    Return false in order to cancel data records rendering.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "ighierarchicalgriddatarendering", function (evt, ui) {
    					//return reference to igHierarchicalGrid
    					ui.owner;
    					//return grid's table body DOM element
    					ui.tbody;
    				});

    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					dataRendering: function(evt, ui) {...}
    				});

  • destroyed
    Inherited

    Cancellable:
    false

    Fired when the grid is destroyed.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "igcontroldestroyed", function (evt, ui) {
    					//return reference to igHierarchicalGrid
    					ui.owner;
    				});

  • footerRendered
    Inherited

    Cancellable:
    false

    Event fired after the footer has been rendered.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

        • table

          Gets a reference to footers table DOM element.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					footerRendered: function(evt, ui) {
    						//return reference to igHierarchicalGrid
    						ui.owner;
    						//return footer html element in the DOM
    						ui.table;
    					}
    				});

  • footerRendering
    Inherited

    Cancellable:
    true

    Event fired before the footer starts its rendering.

    Return false in order to cancel footer rendering.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					footerRendering: function(evt, ui) {
    						//return reference to igHierarchicalGrid
    						ui.owner;
    					}
    				});

  • headerCellRendered
    Inherited

    Cancellable:
    false

    Event fired after every TH in the grid header has been rendered.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

        • columnKey
          Type: String

          Gets the column key.

        • th

          Gets a reference to header cell DOM element.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					headerCellRendered: function(evt, ui) {
    						//return reference to igHierarchicalGrid
    						ui.owner;
    						//return column key
    						ui.columnKey;
    						//return header cell DOM element
    						ui.th;
    					}
    				});

  • headerRendered
    Inherited

    Cancellable:
    false

    Event fired after the header has been rendered.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

        • table

          Gets a reference to headers table DOM element.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					headerRendered: function(evt, ui) {
    						//return reference to igHierarchicalGrid
    						ui.owner;
    						//return headers table DOM element
    						ui.table;
    					}
    				});

  • headerRendering
    Inherited

    Cancellable:
    true

    Event fired before the header starts its rendering.
    Return false in order to cancel header rendering.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					headerRendering: function(evt, ui) {
    						//return reference to igHierarchicalGrid
    						ui.owner;
    					}
    				});

  • rendered
    Inherited

    Cancellable:
    false

    Event fired after the whole grid widget has been rendered (including headers, footers, etc.).
    This event is fired only when the grid is being initialized.
    It will not be fired if the grid is rebound to its data
    (for example, when calling the dataBind() API method
    or when changing the page size (when paging is enabled)).

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

    Code Sample


    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					rendered: function(evt, ui) {
    						//return reference to igHierarchicalGrid
    						ui.owner;
    					}
    				});

  • rendering
    Inherited

    Cancellable:
    true

    Event fired before the grid starts rendering (all contents).
    This event is fired only when the grid is being initialized.
    It will not be fired if the grid is rebound to its data
    (for example, when calling the dataBind() API method
    or when changing the page size (when paging is enabled)).
    Return false in order to cancel grid rendering.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "ighierarchicalgridrendering", function (evt, ui) {
    					//return reference to igHierarchicalGrid
    					ui.owner;
    				});

    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					rendering: function(evt, ui) {...}
    				});

  • requestError
    Inherited

    Cancellable:
    false

    Event fired if there is an error in the request, when the grid is doing a remote operation,
    such as data binding, paging, sorting, etc.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

        • message
          Type: String

          Gets the processed error message sent by the server.

        • response
          Type: Object

          Gets a reference to the whole response object.

    Code Sample


    					//Delegate
    					$(document).delegate(".selector", 'ighierarchicalgridrequesterror', function (evt, ui) {
    						//return reference to igHierarchicalGrid
    						ui.owner
    						//return error message coming from the server
    						ui.message
    					});

    					//Initialize
    					$(".selector").igHierarchicalGrid({
    						requestError: function(evt, ui) {...}
    					});

  • rowCollapsed

    Cancellable:
    false

    Event which is fired when a hierarchical row has been collapsed.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets access the hierarchical grid object.

        • parentrow
          Type: jQuery

          Gets access the row element for the row that was collapsed.

    Code Sample


            //Bind after initialization
    		$(document).delegate(".selector", "ighierarchicalgridrowcollapsed", function (evt, ui) {
                //return the triggered event
                evt;

                //pointer to the object that triggers the event, which in our case is igHierarchicalGrid
                evt.target;
                //pointer to the object that listins for the event, which in our case is igHierarchicalGrid
                evt.currentTarget;
                //the type of the event, which following the jquery UI convention is 'ighierarchicalgridrowcollapsed'
                evt.type;


                //reference to the Hierarchical grid widget
                ui.owner;
                //gets all igHierarchical Grid widgets
                ui.owner.allChildrenWidgets;

                //jQuery wrapper of the parent row object
                ui.parentrow;
                //get the HTML DOM row object
                ui.parentrow[0];
            });

            //Initialize
            $(".selector").igHierarchicalGrid({
                rowCollapsed : function(e, args) {...}
    		});

  • rowCollapsing

    Cancellable:
    true

    Event which is fired when a hierarchical row is about to be collapsed.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets access the hierarchical grid object.

        • parentrow
          Type: jQuery

          Gets access the row element for the row that's about to be collapsed.

    Code Sample


            //Bind after initialization
    		$(document).delegate(".selector", "ighierarchicalgridrowcollapsing", function (evt, ui) {
                //return the triggered event
                evt;

                //pointer to the object that triggers the event, which in our case is igHierarchicalGrid
                evt.target;
                //pointer to the object that listins for the event, which in our case is igHierarchicalGrid
                evt.currentTarget;
                //the type of the event, which following the jquery UI convention is 'ighierarchicalgridrowcollapsing'
                evt.type;


                //reference to the Hierarchical grid widget
                ui.owner;
                //gets all igHierarchical Grid widgets
                ui.owner.allChildrenWidgets;

                //jQuery wrapper of the parent row object
                ui.parentrow;
                //get the HTML DOM row object
                ui.parentrow[0];
            });

            //Initialize
            $(".selector").igHierarchicalGrid({
                rowCollapsing : function(e, args) {...}
    		});

  • rowExpanded

    Cancellable:
    false

    Event which is fired after a hierarchical row has been expanded.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets access the hierarchical grid object.

        • parentrow
          Type: jQuery

          Gets access the row element for the row that was expanded.

    Code Sample


            //Bind after initialization
    		$(document).delegate(".selector", "ighierarchicalgridrowexpanded", function (evt, ui) {
                //return the triggered event
                evt;

                //pointer to the object that triggers the event, which in our case is igHierarchicalGrid
                evt.target;
                //pointer to the object that listins for the event, which in our case is igHierarchicalGrid
                evt.currentTarget;
                //the type of the event, which following the jquery UI convention is 'ighierarchicalgridrowexpanded'
                evt.type;


                //reference to the Hierarchical grid widget
                ui.owner;
                //gets all igHierarchical Grid widgets
                ui.owner.allChildrenWidgets;

                //jQuery wrapper of the parent row object
                ui.parentrow;
                //get the HTML DOM row object
                ui.parentrow[0];
            });

            //Initialize
            $(".selector").igHierarchicalGrid({
                rowExpanded : function(e, args) {...}
    		});

  • rowExpanding

    Cancellable:
    true

    Event which is fired when a hierarchical row is about to be expanded.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets access the hierarchical grid object.

        • parentrow
          Type: jQuery

          Gets access the row element for the row that's about to be expanded.

    Code Sample


            //Bind after initialization
    		$(document).delegate(".selector", "ighierarchicalgridrowexpanding", function (evt, ui) {
                //return the triggered event
                evt;

                //pointer to the object that triggers the event, which in our case is igHierarchicalGrid
                evt.target;
                //pointer to the object that listins for the event, which in our case is igHierarchicalGrid
                evt.currentTarget;
                //the type of the event, which following the jquery UI convention is 'ighierarchicalgridrowexpanding'
                evt.type;


                //reference to the Hierarchical grid widget
                ui.owner;
                //gets all igHierarchical Grid widgets
                ui.owner.allChildrenWidgets;

                //jQuery wrapper of the parent row object
                ui.parentrow;
                //get the HTML DOM row object
                ui.parentrow[0];
            });

            //Initialize
            $(".selector").igHierarchicalGrid({
                rowExpanding : function(e, args) {...}
    		});

  • rowsRendered
    Inherited

    Cancellable:
    false

    Event fired after data rows are rendered.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

        • tbody

          Gets reference to the grid's table body.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "ighierarchicalgridrowsrendered", function (evt, ui) {
    					//return reference to igHierarchicalGrid
    					ui.owner;
    					//return grid's table body DOM element
    					ui.tbody;
    				});

    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					rowsRendered: function(evt, ui) {...}
    				});

  • rowsRendering
    Inherited

    Cancellable:
    true

    Event fired before actual data rows (TRs) are rendered.
    Return false in order to cancel rows rendering.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

        • tbody

          Gets reference to the grid's table body.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "ighierarchicalgridrowsrendering", function (evt, ui) {
    					//return reference to igHierarchicalGrid
    					ui.owner;
    					//return grid's table body
    					ui.tbody;
    				});

    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					rowsRendering: function(evt, ui) {...}
    				});

  • schemaGenerated
    Inherited

    Cancellable:
    false

    Event fired after $.ig.DataSource schema has been generated, in case it needs to be modified.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the grid.

        • schema
          Type: Object

          Gets a reference to data source schema.

        • dataSource
          Type: Object

          Gets reference to data source.

    Code Sample


    				//Delegate
    				$(document).delegate(".selector", "ighierarchicalgridschemagenerated", function (evt, ui) {
    					//return reference to igHierarchicalGrid
    					ui.owner;
    					//return data source schema
    					ui.schema;
    					//return reference to data source
    					ui.dataSource;
    				});

    				//Initialize
    				$(".selector").igHierarchicalGrid({
    					schemaGenerated: function(evt, ui) {...}
    				});

  • allChildren

    .igHierarchicalGrid( "allChildren" );
    Return Type:
    object

    Returns a flat list of all child grid elements (recursive).

    Code Sample


            var hierarchicalGridChildren = $(".selector").igHierarchicalGrid("allChildren");

  • allChildrenWidgets

    .igHierarchicalGrid( "allChildrenWidgets" );
    Return Type:
    object

    Returns a flat list of all child grid widgets (not elements) - recursive.

    Code Sample


            var hierarchicalGridWidgets = $(".selector").igHierarchicalGrid("allChildrenWidgets");

  • collapse

    .igHierarchicalGrid( "collapse", id:domelement, [callback:function] );

    Collapses a parent row
    Note: This method is asynchronous which means that it returns immediately and any subsequent code will execute in parallel. This may lead to runtime errors. To avoid them put the subsequent code in the callback parameter provided by the method.

    • id
    • Type:domelement
    • accepts a dom element, or a jquery wrapped dom element that should be a TR and should specify a parent row.
    • callback
    • Type:function
    • Optional
    • Specifies a custom function to be called when parent row is expanded(optional). Takes 2 arguments - first is hierarchical grid object, second is the row element that was collapsed.

    Code Sample


            var parentGrid = $("#idGrid").igHierarchicalGrid("rootWidget"),
                rowDomElement = parentGrid.rowAt(0);
            $(".selector").igHierarchicalGrid("collapse", rowDomElement);
            // OR
            $(".selector").igHierarchicalGrid("collapse", rowDomElement, function () {
              // Custom code executed after the collapse operation finishes
            });

  • collapsed

    .igHierarchicalGrid( "collapsed", element:domelement );
    Return Type:
    bool
    Return Type Description:
    returns a boolean value indicating if the parent row specified by the "element" is currently collapsed or expanded.

    Checks if a parent row is currently collapsed.

    • element
    • Type:domelement
    • accepts a dom element, or a jquery wrapped dom element that should be a TR and should specify a parent row.

    Code Sample


            var parentGrid = $("#idGrid").igHierarchicalGrid("rootWidget"),
                rowDomElement = parentGrid.rowAt(0),
                accessibility = $(".selector").igHierarchicalGrid("collapsed", rowDomElement);

  • commit

    .igHierarchicalGrid( "commit" );

    Commits pending transactions to the client data source for main and all child grids.

    Code Sample

     $(".selector").igHierarchicalGrid("commit");
  • dataBind

    .igHierarchicalGrid( "dataBind" );

    Data binds the hierarchical grid. No child grids will be created or rendered by default, unless there is initialExpandDepth >= 0 set.

    Code Sample


            $(".selector").igHierarchicalGrid("dataBind");

  • destroy

    .igHierarchicalGrid( "destroy" );

    Destroys the hierarchical grid by recursively destroying all child grids.

    Code Sample

     $(".selector").igHierarchicalGrid("destroy");

  • expand

    .igHierarchicalGrid( "expand", id:domelement, [callback:function] );

    Expands (toggles) a parent row
    Note: This method is asynchronous which means that it returns immediately and any subsequent code will execute in parallel. This may lead to runtime errors. To avoid them put the subsequent code in the callback parameter provided by the method.

    • id
    • Type:domelement
    • accepts a dom element, or a jquery wrapped dom element that should be a TR and should specify a parent row.
    • callback
    • Type:function
    • Optional
    • Specifies a custom function to be called when parent row is expanded(optional). Takes 2 arguments first is hierarchical grid object, second is the row element that was expanded.

    Code Sample

            var parentGrid = $("#idGrid").igHierarchicalGrid("rootWidget"),
                rowDomElement = parentGrid.rowAt(0);
            $(".selector").igHierarchicalGrid("expand", rowDomElement);
            // OR
            $(".selector").igHierarchicalGrid("expand", rowDomElement, function () {
              // Custom code executed after the expand operation finishes
            });

  • expanded

    .igHierarchicalGrid( "expanded", element:domelement );
    Return Type:
    bool
    Return Type Description:
    specifies if the row is currently expanded or collapsed.

    Checks if a parent row is expanded or not.

    • element
    • Type:domelement
    • accepts a dom element, or a jquery wrapped dom element that should be a TR and should specify a parent row.

    Code Sample


            var parentGrid = $("#idGrid").igHierarchicalGrid("rootWidget"),
                rowDomElement = parentGrid.rowAt(0),
                accessibility =  $(".selector").igHierarchicalGrid("expanded", rowDomElement);

  • populated

    .igHierarchicalGrid( "populated", element:domelement );
    Return Type:
    bool
    Return Type Description:
    returns a boolean value indicating if the parent row's child grids are populated and created.

    Checks if a parent row is populated with data.

    • element
    • Type:domelement
    • accepts a dom element, or a jquery wrapped dom element that should be a TR and should specify a parent row.

    Code Sample


            var parentGrid = $("#idGrid").igHierarchicalGrid("rootWidget"),
                rowDomElement = parentGrid.rowAt(0),
                accessibility =  $(".selector").igHierarchicalGrid("populated", rowDomElement);

  • rollback

    .igHierarchicalGrid( "rollback", [rebind:bool] );

    Clears the transaction log (delegates to igDataSource). Note that this does not update the UI. In case the UI must be updated, set the second parameter "updateUI" to true, which will trigger a call to dataBind() to re-render the contents.

    • rebind
    • Type:bool
    • Optional
    • Whether to perform a rebind.

    Code Sample

     $(".selector").igHierarchicalGrid("rollback", true);
  • root

    .igHierarchicalGrid( "root" );
    Return Type:
    object
    Return Type Description:
    jquery wrapped element of the root grid.

    Returns the element of the root grid (igGrid).

    Code Sample


            var hierarchicalGridRoot = $(".selector").igHierarchicalGrid("root");

  • rootWidget

    .igHierarchicalGrid( "rootWidget" );
    Return Type:
    object
    Return Type Description:
    widget object of the root igGrid (not igHierarchicalGrid).

    Returns the widget object of the root grid (igGrid).

    Code Sample


            var hierarchicalGridRootWidget = $(".selector").igHierarchicalGrid("rootWidget");

  • saveChanges

    .igHierarchicalGrid( "saveChanges", success:function, error:function );

    Posts to the settings.updateUrl using $.ajax, by serializing the changes as url params.

    • success
    • Type:function
    • Specifies a custom function to be called when AJAX request to the updateUrl option succeeds(optional).
    • error
    • Type:function
    • Specifies a custom function to be called when AJAX request to the updateUrl option fails(optional).

    Code Sample


                //Example 1: Save changes without callbacks
                $(".selector").igHierarchicalGrid("saveChanges");

                // Example 2: Save changes with success and error callbacks
                $(".selector").igHierarchicalGrid("saveChanges", function (data) {
                    $("#message").text("Changes were saved successfully").fadeIn(3000).fadeOut(5000);
                },
                function(jqXHR, textStatus, errorThrown) {
                    $("#message").text("An error occurred while saving the changes. Error details: " + textStatus).fadeIn(3000).fadeOut(5000);
                });

  • toggle

    .igHierarchicalGrid( "toggle", element:domelement, [callback:function] );

    Expands or collapses (toggles) a parent row
    Note: This method is asynchronous which means that it returns immediately and any subsequent code will execute in parallel. This may lead to runtime errors. To avoid them put the subsequent code in the callback parameter provided by the method.

    • element
    • Type:domelement
    • accepts a dom element, or a jquery wrapped dom element that should be a TR and should specify a parent row.
    • callback
    • Type:function
    • Optional
    • Specifies a custom function to be called when parent row is toggled(optional). Takes 2 arguments - first is hierarchical grid object, second is the row element that was toggled.

    Code Sample


            var parentGrid = $("#idGrid").igHierarchicalGrid("rootWidget"),
                rowDomElement = parentGrid.rowAt(0);
            $(".selector").igHierarchicalGrid("toggle", rowDomElement);
            //OR
            $(".selector").igHierarchicalGrid("toggle", rowDomElement, function () {
              // Custom code executed after the toggle operation finishes
            });

  • ui-iggrid-childarea

    Classes applied to the child grid TD container when it is expanded.
  • ui-iggrid-childarea-collapsed

    Classes applied to the child grid TD container when it's collapsed.
  • ui-iggrid-childgridseparator

    Achieves a "dotted-line" effect in between two child grids, excluding first and last ones.
  • ui-iggrid-expandbutton ui-icon-plus

    Classes applied to the expand button SPAN, when it's collapsed.
  • ui-iggrid-expandbuttonclick ui-icon-plus

    Classes applied to the expand button SPAN, when it's clicked.
  • ui-iggrid-expandbutton ui-iggrid-expandbuttonexpanded ui-icon-minus

    Classes applied to the expand button SPAN, when it's expanded.
  • ui-iggrid-expandbuttonexpandedhover ui-icon-plus ui-state-hover

    Classes applied to an expanded expand button span, when it's hovered.
  • ui-iggrid-expandbuttonhover ui-icon-plus ui-state-hover

    Classes applied to a collapsed expand button span, when it's hovered.
  • ui-iggrid-expandcolumn

    Classes that are applied to the expander column TD.
  • ui-iggrid-expandcolumn-expanded

    Classes applied when the TD in which the expand/collapse indicator is located, is currently in expand state.
  • ui-iggrid-expandheadercell ui-iggrid-header ui-widget-header

    Classes applied to the special header cell TH which is for the expand column.
  • ui-icon ui-icon-triangle-1-se

    Classes applied to the SPAN holding the expand header cell icon.
  • ui-iggrid-root

    Classes applied to the root grid's table element.

Copyright © 1996 - 2024 Infragistics, Inc. All rights reserved.
