ui.igPivotView

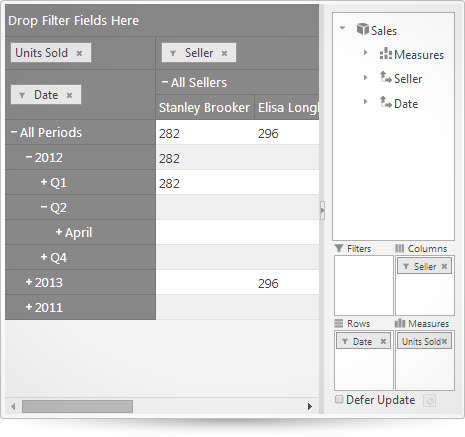

ui.igPivotView_image
The igPivotView is a two-panel control that combines a pivot grid and a data selector separated with a splitter. The view is a composite of three individual components: igPivotGrid , igPivotDataSelector, and igSplitter assembled together to provide in one place as needed tools for manipulating multidimensional (OLAP data) in a pivot grid.

Code Sample


<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
    <script src="js/infragistics.lob.js" type="text/javascript"></script>
    <script type="text/javascript">
        var data =
                [{ "ProductCategory": "Clothing", "UnitPrice": 12.81, "SellerName": "Stanley Brooker", "Country": "Bulgaria", "City": "Plovdiv", "Date": "01/01/2012", "UnitsSold": 282 },
                { "ProductCategory": "Clothing", "UnitPrice": 49.57, "SellerName": "Elisa Longbottom", "Country": "US", "City": "New York", "Date": "01/05/2013", "UnitsSold": 296 },
                { "ProductCategory": "Bikes", "UnitPrice": 3.56, "SellerName": "Lydia Burson", "Country": "Uruguay", "City": "Ciudad de la Costa", "Date": "01/06/2011", "UnitsSold": 68 },
                { "ProductCategory": "Accessories", "UnitPrice": 85.58, "SellerName": "David Haley", "Country": "UK", "City": "London", "Date": "04/07/2012", "UnitsSold": 293 },
                { "ProductCategory": "Components", "UnitPrice": 18.13, "SellerName": "John Smith", "Country": "Japan", "City": "Yokohama", "Date": "12/08/2012", "UnitsSold": 240 },
                { "ProductCategory": "Clothing", "UnitPrice": 68.33, "SellerName": "Larry Lieb", "Country": "Uruguay", "City": "Ciudad de la Costa", "Date": "05/12/2011", "UnitsSold": 456 },
                { "ProductCategory": "Components", "UnitPrice": 16.05, "SellerName": "Walter Pang", "Country": "Bulgaria", "City": "Sofia", "Date": "02/19/2013", "UnitsSold": 492 }];

        $(function () {
            $('#pivotView').igPivotView({
                dataSourceOptions: {
                    flatDataOptions:
                        {
                            dataSource: data,
                            metadata: {
                                cube: {
                                    name: "Sales",
                                    caption: "Sales",
                                    measuresDimension: {
                                        caption: "Measures",
                                        measures: [ //for each measure, name and aggregator are required
                                            {
                                                caption: "Units Sold", name: "UnitsSold",
                                                // returns a function that will be used as sum aggregatro on the 'UnitsSold property' of the data objects
                                                aggregator: $.ig.OlapUtilities.prototype.sumAggregator('UnitsSold')
                                            }]
                                    },
                                    dimensions: [ // for each dimension name and hierarchies are required
                                        {
                                            caption: "Seller", name: "Seller", hierarchies: [{
                                                caption: "Seller", name: "Seller", levels: [
                                                    {
                                                        name: "AllSellers", caption: "All Sellers",
                                                        memberProvider: function (item) { return "All Sellers"; }
                                                    },
                                                    {
                                                        name: "SellerName", caption: "Seller",
                                                        memberProvider: function (item) { return item.SellerName; }
                                                    }]
                                            }]
                                        },
                                        {
                                            caption: "Date", name: "Date", /*displayFolder: "Folder1\\Folder2",*/ hierarchies: [
                                                $.ig.OlapUtilities.prototype.getDateHierarchy(
                                                    "Date", // the source property name
                                                    ["year", "quarter", "month", "date"], // the date parts for which levels will be generated (optional)
                                                    "Dates", // The name for the hierarchy (optional)
                                                    "Date", // The caption for the hierarchy (optional)
                                                    ["Year", "Quarter", "Month", "Day"], // the captions for the levels (optional)
                                                    "All Periods") // the root level caption (optional)
                                            ]
                                        }
                                    ]
                                }
                            }
                        },
                    // Preload hiearhies for the rows, columns, filters and measures
                    rows: "[Date].[Dates]",
                    columns: "[Seller].[Seller]",
                    measures: "[Measures].[UnitsSold]"
                }
            });
        });
    </script>
</head>
<body>
    <div id="pivotView"></div>
</body>
</html>


Related Samples

Related Topics

Dependencies

jquery-1.9.1.js
jquery.ui.core.js
jquery.ui.widget.js
jquery.ui.mouse.js
jquery.ui.draggable.js
jquery.ui.droppable.js
infragistics.util.js
infragistics.ui.widget.js
infragistics.datasource.js
infragistics.olapxmladatasource.js
infragistics.olapflatdatasource.js
infragistics.ui.shared.js
infragistics.ui.scroll.js
infragistics.ui.splitter.js
infragistics.ui.tree.js
infragistics.ui.grid.framework.js
infragistics.ui.grid.multicolumnheaders.js
infragistics.ui.pivot.shared.js
infragistics.ui.pivotdataselector.js
infragistics.ui.pivotgrid.js

Inherits

  • dataSelectorOptions

    Type:
    object
    Default:
    {}

    Configuration settings that will be assigned to the igPivotDataSelector widget.

    Code Sample


          //Initialize
          $(".selector").igPivotView({
                dataSelectorOptions : {
                    customMoveValidation: function(location, itemType, uniqueName) {
                        // disable moving of any element to the columns
                        if (location == 'columns') {
                            return false;
                        }
                        // if the current item is a hierarchy containing the word "Seller" in its uniqueName, disable the move
                        if (itemType == 'Hierarchy'
                            && uniqueName.indexOf("Seller") !== -1) {
                            return false;
                        }

                        // in all other cases allow the move
                        return true;
                    },
                    dragAndDropSettings : {
                        appendTo : $("element"),
                        containment : true,
                        zIndex : 10
                    }
                }
            });

            //Get
            $(".selector").igPivotView("option", "dataSelectorOptions");

            //Set
            $(".selector").igPivotView("option", "dataSelectorOptions", options);

    • customMoveValidation

      Type:
      function
      Default:
      null

      A function that will be called to determine if an item can be moved in or dropped on an area of the data selector.
      paramType="string" The location where the item will be moved - igPivotGrid, igPivotDataSelector, filters, rows, columns or measures.
      paramType="string" The type of the item - Hierarchy, Measure or MeasureList.
      paramType="string" The unique name of the item.
      returnType="bool" The function must return true if the item should be accepted.

    • dragAndDropSettings

      Type:
      object
      Default:
      {}

      Settings for the drag and drop functionality of the igPivotDataSelector.

      • appendTo

        Type:
        enumeration
        Default:
        body

        Which element the draggable helper should be appended to while dragging.

      • containment

        Type:
        enumeration
        Default:
        false

        Specifies the containment for the drag helper. The area inside of which the helper is contained would be scrollable while dragging.

      • zIndex

        Type:
        number
        Default:
        10

        Specifies z-index that would be set for the drag helper.

    • dropDownParent

      Type:
      enumeration
      Default:
      body

      Specifies the parent for the drop downs.

  • dataSelectorPanel

    Type:
    object
    Default:
    {}

    Configuration settings for the panel containing the igPivotDataSelector.

    Code Sample


            //Initialize
            $(".selector").igPivotView({
                dataSelectorPanel : {
                    collapsed : false,
                    collapsible : true,
                    location : "left",
                    resizable : false,
                    size : 250
                }
            });

            //Get
            $(".selector").igPivotView("option", "dataSelectorPanel");

            //Set
            $(".selector").igPivotView("option", "dataSelectorPanel", object);

    • collapsed

      Type:
      bool
      Default:
      false

      Determines if the panel containing the igPivotDataSelector will initially collapsed.

    • collapsible

      Type:
      bool
      Default:
      true

      Determines if the panel containing the igPivotDataSelector will be collapsible.

    • location

      Type:
      enumeration
      Default:
      right

      Determines the position of the data selector panel inside the igPivotView widget.

    • resizable

      Type:
      bool
      Default:
      true

      Determines if the panel containing the igPivotDataSelector will be resizable.

    • size

      Type:
      enumeration
      Default:
      250

      Determines the size of the igPivotDataSelector panel. The recommended value is 250px.

      Members

      • string
      • Type:string
      • The panel size can be set in pixels (px).
      • number
      • Type:number
      • The size can be set as a number.
      • null
      • Type:object
      • will automatically size the panel.
  • dataSource

    Type:
    object
    Default:
    null

    An instance of $.ig.OlapXmlaDataSource or $.ig.OlapFlatDataSource.

    Code Sample


            //Initialize
            $(".selector").igPivotView({
                dataSource : ds
            });

            //Get
            var ds = $(".selector").igPivotView("option", "dataSource");

            //Set
            $(".selector").igPivotView("option", "dataSource", ds);

  • dataSourceOptions

    Type:
    object
    Default:
    {}

    An object that will be used to create an instance of $.ig.OlapXmlaDataSource or $.ig.OlapFlatDataSource.
    The provided value must contain an object with settings for one of the data source types - xmlaOptions or flatDataOptions.

    Code Sample


          //Initialize
          $(".selector").igPivotView({
                dataSourceOptions: {
                    flatDataOptions:
                        {
                            dataSource:
                            [{ "ProductCategory": "Clothing", "UnitPrice": 12.81, "SellerName": "Stanley Brooker", "Country": "Bulgaria", "City": "Plovdiv", "Date": "01/01/2012", "UnitsSold": 282 },
                            { "ProductCategory": "Clothing", "UnitPrice": 49.57, "SellerName": "Elisa Longbottom", "Country": "US", "City": "New York", "Date": "01/05/2013", "UnitsSold": 296 },
                            { "ProductCategory": "Bikes", "UnitPrice": 3.56, "SellerName": "Lydia Burson", "Country": "Uruguay", "City": "Ciudad de la Costa", "Date": "01/06/2011", "UnitsSold": 68 },
                            { "ProductCategory": "Accessories", "UnitPrice": 85.58, "SellerName": "David Haley", "Country": "UK", "City": "London", "Date": "04/07/2012", "UnitsSold": 293 },
                            { "ProductCategory": "Components", "UnitPrice": 18.13, "SellerName": "John Smith", "Country": "Japan", "City": "Yokohama", "Date": "12/08/2012", "UnitsSold": 240 },
                            { "ProductCategory": "Clothing", "UnitPrice": 68.33, "SellerName": "Larry Lieb", "Country": "Uruguay", "City": "Ciudad de la Costa", "Date": "05/12/2011", "UnitsSold": 456 },
                            { "ProductCategory": "Components", "UnitPrice": 16.05, "SellerName": "Walter Pang", "Country": "Bulgaria", "City": "Sofia", "Date": "02/19/2013", "UnitsSold": 492 }],
                            metadata: {
                                cube: {
                                    name: "Sales",
                                    caption: "Sales",
                                    measuresDimension: {
                                        caption: "Measures",
                                        measures: [ //for each measure, name and aggregator are required
                                            { caption: "UnitsSold", name: "UnitsSold", aggregator: $.ig.OlapUtilities.prototype.sumAggregator('UnitsSold') }]
                                    },
                                    dimensions: [ // for each dimension name and hierarchies are required
                                        {
                                            caption: "Seller", name: "Seller", hierarchies: [{
                                                caption: "Seller", name: "Seller", levels: [
                                                    {
                                                        name: "AllSellers", caption: "All Sellers",
                                                        memberProvider: function (item) { return "All Sellers"; }
                                                    },
                                                    {
                                                        name: "SellerName", caption: "Seller",
                                                        memberProvider: function (item) { return item.SellerName; }
                                                    }]
                                            }]
                                        },
                                        {
                                            caption: "Date", name: "Date", /*displayFolder: "Folder1\\Folder2",*/ hierarchies: [
                                                $.ig.OlapUtilities.prototype.getDateHierarchy(
                                                    "Date", // the source property name
                                                    ["year", "quarter", "month", "date"], // the date parts for which levels will be generated (optional)
                                                    "Dates", // The name for the hierarchy (optional)
                                                    "Date", // The caption for the hierarchy (optional)
                                                    ["Year", "Quarter", "Month", "Day"], // the captions for the levels (optional)
                                                    "AllPeriods") // the root level caption (optional)
                                            ]
                                        }
                                    ]
                                }
                            }
                        },
                    // Preload hiearhies for the rows, columns, filters and measures
                    rows: "[Date].[Dates]",
                    columns: "[Seller].[Seller]",
                    measures: "[Measures].[UnitsSold]"
                }
            });

            //Get
            $(".selector").igPivotView("option", "dataSourceOptions");

            //Set
            $(".selector").igPivotView("option", "dataSourceOptions", dataOptions);

    • columns

      Type:
      string
      Default:
      null

      A list of hierarchy names separated by comma (,). These will be the hierarchies in the columns of the data source.

    • filters

      Type:
      string
      Default:
      null

      A list of hierarchy names separated by comma (,). These will be hierarchies in the filters of the data source.

    • flatDataOptions

      Type:
      object
      Default:
      {}

      Settings for creating an instance of $.ig.OlapFlatDataSource.

      • dataSource

        Type:
        object
        Default:
        null

        Specifies any valid data source accepted by $.ig.DataSource, or an instance of an $.ig.DataSource itself.

      • dataSourceType

        Type:
        string
        Default:
        null

        Explicitly set data source type (such as "json"). Please refer to the documentation of $.ig.DataSource and its type property.

      • dataSourceUrl

        Type:
        string
        Default:
        null

        Specifies a remote URL accepted by $.ig.DataSource in order to request data from it.

      • metadata

        Type:
        object
        Default:
        {}

        Optional="false" An object containing processing instructions for the $.ig.DataSource data.

        • cube

          Type:
          object
          Default:
          {}

          Optional="false" Metadata used for the creation of the cube.

          • caption

            Type:
            string
            Default:
            null

            A caption for the cube.

          • dimensions

            Type:
            array
            Default:
            []
            Elements Type:
            object

            An array of dimension metadata objects.

            • caption

              Type:
              string
              Default:
              null

              A caption for the dimension.

            • hierarchies

              Type:
              array
              Default:
              []
              Elements Type:
              object

              An array of hierarchy metadata objects.

              • caption

                Type:
                string
                Default:
                null

                A caption for the hierarchy.

              • displayFolder

                Type:
                string
                Default:
                null

                The path to be used when displaying the hierarchy in the user interface.
                Nested folders are indicated by a backslash (\).
                The folder hierarchy will appear under parent dimension node.

              • levels

                Type:
                array
                Default:
                []
                Elements Type:
                object

                An array of level metadata objects.

                • caption

                  Type:
                  string
                  Default:
                  null

                  A caption for the level.

                • memberProvider

                  Type:
                  function
                  Default:
                  null

                  A function called for each item of the data source array when level members are created.
                  Based on the item parameter the function should return a value that will form the $.ig.Member’s name and caption.

                • name

                  Type:
                  string
                  Default:
                  null

                  Optional="false" A name for the level.
                  The unique name of the level is formed using the following pattern:
                  {<hierarchy.uniqueName>}.[<levelMetadata.name>].

              • name

                Type:
                string
                Default:
                null

                Optional="false" A name for the hierarchy.
                The unique name of the hierarchy is formed using the following pattern:
                [<parentDimension.name>].[<hierarchyMetadata.name>].

            • name

              Type:
              string
              Default:
              null

              Optional="false" A unique name for the dimension.

          • measuresDimension

            Type:
            object
            Default:
            {}

            An object providing information about the measures' root node.

            • caption

              Type:
              string
              Default:
              null

              A caption for the measures dimension.
              The default value is "Measures".

            • measures

              Type:
              array
              Default:
              []
              Elements Type:
              object

              An array of measure metadata objects.

              • aggregator

                Type:
                function
                Default:
                null

                Optional="false" An aggregator function called when each cell is evaluated.
                Returns a value for the cell. If the returned value is null, no cell will be created in for the data source result.

              • caption

                Type:
                string
                Default:
                null

                A caption for the measure.

              • displayFolder

                Type:
                string
                Default:
                null

                The path used when displaying the measure in the user interface. Nested folders are indicated by a backslash (\).

              • name

                Type:
                string
                Default:
                null

                Optional="false" A unique name for the measure.

            • name

              Type:
              string
              Default:
              null

              A unique name for the measures dimension.
              The default value is "Measures". This name is used to create the names of dimensions using the following pattern:
              [<measuresDimensionMetadata.name>].[<measureMetadata.name>].

          • name

            Type:
            string
            Default:
            null

            Optional="false" A unique name for the cube.

      • responseDataKey

        Type:
        string
        Default:
        null

        See $.ig.DataSource.
        string Specifies the name of the property in which data records are held if the response is wrapped.
        null Option is ignored.

      • responseDataType

        Type:
        string
        Default:
        null

        String Explicitly set data source type (such as "json"). Please refer to the documentation of $.ig.DataSource and its type property.
        null Option is ignored.

    • measures

      Type:
      string
      Default:
      null

      A list of measure names separated by comma (,). These will be the measures of the data source.

    • rows

      Type:
      string
      Default:
      null

      A list of hierarchy names separated by comma (,). These will be the hierarchies in the rows of the data source.

    • xmlaOptions

      Type:
      object
      Default:
      {}

      Settings for creating an instance of $.ig.OlapXmlaDataSource.

      • catalog

        Type:
        string
        Default:
        null

        The catalog name.

      • cube

        Type:
        string
        Default:
        null

        The name of the cube in the data source.

      • discoverProperties

        Type:
        object
        Default:
        null

        Additional properties sent with every discover request.
        The object is treated as a key/value store where each property name is used as the key and the property value as the value.

      • enableResultCache

        Type:
        bool
        Default:
        true

        Enables/disables caching of the XMLA result object.

      • executeProperties

        Type:
        object
        Default:
        null

        Additional properties sent with every execute request.
        The object is treated as a key/value store where each property name is used as the key and the property value as the value.

      • mdxSettings

        Type:
        object
        Default:
        {}

        Optional="true" a javascript object containing information about how the request to the xmla server should be processed.

        • addCalculatedMembersOnColumns

          Type:
          bool
          Default:
          true

          Optional="true" a value indicating whether a members' set expressions on COLUMNS axis should be wrapped with AddCalculatedMembers MDX method. Default value is true.

        • addCalculatedMembersOnRows

          Type:
          bool
          Default:
          true

          Optional="true" a value indicating whether a members' set expressions on ROWS axis should be wrapped with AddCalculatedMembers MDX method. Default value is true.

        • dimensionPropertiesOnColumns

          Type:
          array
          Default:
          []
          Elements Type:
          object

          Optional="true" a string array with the names of intrinsic non-context sensitive member properties applied on COLUMNS axis. By defult CHILDREN_CARDINALITY and PARENT_UNIQUE_NAME properties are always added to DIMENSION PROPERTIES.

        • dimensionPropertiesOnRows

          Type:
          array
          Default:
          []
          Elements Type:
          object

          Optional="true" a string array with the names of intrinsic non-context sensitive member properties applied on ROWS axis. By defult CHILDREN_CARDINALITY and PARENT_UNIQUE_NAME properties are always added to DIMENSION PROPERTIES.

        • nonEmptyOnColumns

          Type:
          bool
          Default:
          true

          Optional="true" a value indicating whether a NON EMPTY clause is present on COLUMNS axis. Default value is true.

        • nonEmptyOnRows

          Type:
          bool
          Default:
          true

          Optional="true" a value indicating whether a NON EMPTY clause is present on ROWS axis. Default value is true.

      • measureGroup

        Type:
        string
        Default:
        null

        The name of the measure group in the data source.

      • requestOptions

        Type:
        object
        Default:
        {}

        An object containing information about how the request to the XMLA server should be processed.

        • beforeSend

          Type:
          function
          Default:
          null

          A callback to be invoked right before the request is send to the server. Extends beforeSend callback of jQuery.ajax’s options object.

        • withCredentials

          Type:
          bool
          Default:
          false

          The value is applied to XmlHttpRequest.withCredentials if supported by the user agent.
          Setting this property to true will allow IE8/IE9 to make authenticated cross-origin requests to tusted domains through XmlHttpRequest instead of XDomainRequest
          and will prompt the user for credentials.

      • serverUrl

        Type:
        string
        Default:
        null

        Optional="false" The URL of the XMLA server.

  • height

    Type:
    enumeration
    Default:
    null

    Members

    • string
    • Type:string
    • The widget height can be set in pixels (px) and percentage (%).
    • number
    • Type:number
    • The widget height can be set as a number.
    • null
    • Type:object
    • will stretch vertically to fit the parent, if no other heights are defined.

    Code Sample


            //Initialize
            $(".selector").igPivotView({
                height : "640px"
            });

            //Get
            var height = $(".selector").igPivotView("option", "height");

            //Set
            $(".selector").igPivotView("option", "height", 640);

  • language
    Inherited

    Type:
    string
    Default:
    "en"

    Set/Get the locale language setting for the widget.

    Code Sample


    					//Initialize
    				$(".selector").igPivotView({
    					language: "ja"
    				});

    				// Get
    				var language = $(".selector").igPivotView("option", "language");

    				// Set
    				$(".selector").igPivotView("option", "language", "ja");

  • locale
    Inherited

    Type:
    object
    Default:
    null

    Set/Get the locale setting for the widget.

    Code Sample


    					//Initialize
    				$(".selector").igPivotView({
    					locale: {}
    				});

    				// Get
    				var locale = $(".selector").igPivotView("option", "locale");

    				// Set
    				$(".selector").igPivotView("option", "locale", {});

  • pivotGridOptions

    Type:
    object
    Default:
    {}

    Configuration settings that will be assigned to the igPivotGrid widget.

    Code Sample


          //Initialize
          $(".selector").igPivotView({
                pivotGridOptions : {
                    allowHeaderColumnsSorting : true,
                    allowHeaderRowsSorting : true,
                    allowSorting: true,
                    compactColumnHeaderIndentation: 20,
                    compactColumnHeaders : true,
                    compactRowHeaderIndentation : 30,
                    compactRowHeaders : true,
                    customMoveValidation: function(location, itemType, uniqueName) {
                        // disable moving of any element to the columns
                        if (location == 'columns') {
                            return false;
                        }
                        // if the current item is a hierarchy containing the word "Seller" in its uniqueName, disable the move
                        if (itemType == 'Hierarchy'
                            && uniqueName.indexOf("Seller") !== -1) {
                            return false;
                        }

                        // in all other cases allow the move
                        return true;
                    },
                    defaultRowHeaderWidth : 180,
                    disableColumnsDropArea : false,
                    disableFiltersDropArea : false,
                    disableMeasuresDropArea : false,
                    disableRowsDropArea : false,
                    dragAndDropSettings : {
                        appendTo : $("element"),
                        containment : true,
                        zIndex : 10
                    },
                    firstLevelSortDirection : "descending",
                    firstSortDirection : "descending",
                    gridOptions: {
                        alternateRowStyles: true,
                        caption: "My pivot grid",
                        defaultColumnWidth: 150,
                        enableHoverStyles: true
                    },
                    hideColumnsDropArea : false,
                    hideFiltersDropArea : false,
                    hideMeasuresDropArea : false,
                    hideRowsDropArea : false,
                    isParentInFrontForColumns : true,
                    isParentInFrontForRows : true,
                    levelSortDirections : [
                        { levelUniqueName: "[Date].[Dates].[year]", sortDirection: "descending" },
                        { levelUniqueName: "[Product].[Product].[ProductCategory]" }
                    ]
                }
            });

            //Get
            $(".selector").igPivotView("option", "pivotGridOptions");

            //Set
            $(".selector").igPivotView("option", "pivotGridOptions", options);

    • allowHeaderColumnsSorting

      Type:
      bool
      Default:
      false

      Enables sorting of the header cells in columns.

    • allowHeaderRowsSorting

      Type:
      bool
      Default:
      false

      Enables sorting of the header cells in rows.

    • allowSorting

      Type:
      bool
      Default:
      false

      Enables sorting of the value cells in columns.

    • compactColumnHeaderIndentation

      Type:
      number
      Default:
      30

      The indentation for every level column when the compactColumnHeaders is set to true.

    • compactColumnHeaders

      Type:
      bool
      Default:
      false

      A boolean value indicating wheter the column headers should be arranged for compact header layout – each hieararchy is in a single row.

    • compactRowHeaderIndentation

      Type:
      number
      Default:
      20

      The indentation for every level row when the rowHeadersLayout is set to 'compact'.

    • customMoveValidation

      Type:
      function
      Default:
      null

      A function that will be called to determine if an item can be moved in or dropped on an area of the pivot grid.
      paramType="string" The location where the item will be moved - igPivotGrid, igPivotDataSelector, filters, rows, columns or measures.
      paramType="string" The type of the item - Hierarchy, Measure or MeasureList.
      paramType="string" The unique name of the item.
      returnType="bool" The function must return true if the item should be accepted.

    • defaultRowHeaderWidth

      Type:
      number
      Default:
      200

      Typle="number" Specifies the width of the row headers.

    • disableColumnsDropArea

      Type:
      bool
      Default:
      false

      Disable the drag and drop for the columns drop area and the ability to use filtering and remove items from it.

    • disableFiltersDropArea

      Type:
      bool
      Default:
      false

      Disable the drag and drop for the filters drop area and the ability to use filtering and remove items from it.

    • disableMeasuresDropArea

      Type:
      bool
      Default:
      false

      Disable the drag and drop for the measures drop area and the ability to use filtering and remove items from it.

    • disableRowsDropArea

      Type:
      bool
      Default:
      false

      Disable the drag and drop for the rows drop area and the ability to use filtering and remove items from it.

    • dragAndDropSettings

      Type:
      object
      Default:
      {}

      Settings for the drag and drop functionality of the igPivotDataSelector.

      • appendTo

        Type:
        enumeration
        Default:
        body

        Which element the draggable helper should be appended to while dragging.

      • containment

        Type:
        enumeration
        Default:
        false

        Specifies the containment for the drag helper. The area inside of which the helper is contained would be scrollable while dragging.

      • zIndex

        Type:
        number
        Default:
        10

        Specifies z-index that would be set for the drag helper.

    • dropDownParent

      Type:
      enumeration
      Default:
      body

      Specifies the parent for the drop downs.

    • firstLevelSortDirection

      Type:
      enumeration
      Default:
      ascending

      Spefies the default sort direction for the levels if no sort direction is specified in an item from the levelSortDirections option.

    • firstSortDirection

      Type:
      enumeration
      Default:
      ascending

      Spefies the default sort direction for the rows.

    • gridOptions

      Type:
      object
      Default:
      {}

      Options specific to the igGrid that will render the pivot grid view.

      • alternateRowStyles

        Type:
        bool
        Default:
        true

        Enables/disables rendering of alternating row styles (odd and even rows receive different styling). Note that if a custom jQuery template is set, this has no effect and CSS for the row should be adjusted manually in the template contents.

      • caption

        Type:
        string
        Default:
        null

        Caption text that will be shown above the pivot grid header.

      • defaultColumnWidth

        Type:
        enumeration
        Default:
        null

        Default column width that will be set for all columns.

        Members

        • string
        • Type:string
        • The default column width can be set in pixels (px).
        • number
        • Type:number
        • The default column width can be set as a number.
      • enableHoverStyles

        Type:
        bool
        Default:
        false

        Enables/disables rendering of ui-state-hover classes when the mouse is over a record. This can be useful in templating scenarios, for example, where we don't want to apply hover styling to templated content.

      • features

        Type:
        object
        Default:
        []

        A list of grid features definitions. The supported features are Resizing and Tooltips. Each feature goes with its separate options that are documented for the feature accordingly.

      • fixedHeaders

        Type:
        bool
        Default:
        true

        Headers will be fixed if this option is set to true, and only the grid data will be scrollable.

      • tabIndex

        Type:
        number
        Default:
        0

        Initial tabIndex attribute that will be set on the container element.

    • hideColumnsDropArea

      Type:
      bool
      Default:
      false

      Hide the columns drop area.

    • hideFiltersDropArea

      Type:
      bool
      Default:
      false

      Hide the filters drop area.

    • hideMeasuresDropArea

      Type:
      bool
      Default:
      false

      Hide the measures drop area.

    • hideRowsDropArea

      Type:
      bool
      Default:
      false

      Hide the rows drop area.

    • isParentInFrontForColumns

      Type:
      bool
      Default:
      false

      A boolean value indicating whether a parent in the columns is in front of its children.
      If set to true, the query set sorts members in a level in their natural order - child members immediately follow their parent members.
      If set to false the query set sorts the members in a level using a post-natural order. In other words, child members precede their parents.

    • isParentInFrontForRows

      Type:
      bool
      Default:
      true

      A boolean value indicating whether a parent in the rows is in front of its children.
      If set to true, the query set sorts members in a level in their natural order - child members immediately follow their parent members.
      If set to false the query set sorts the members in a level using a post-natural order. In other words, child members precede their parents.

    • levelSortDirections

      Type:
      array
      Default:
      []
      Elements Type:
      object

      An array of level sort direction items, which predefine the sorted header cells.

      • levelUniqueName

        Type:
        string
        Default:
        null

        Specifies the unique name of the level, which will be sorted.

      • sortDirection

        Type:
        enumeration
        Default:
        null

        optional="true" Specifies the sort direction. If no direction is specified, the level is going to be sorted in the direction specified by the firstLevelSortDirection option.

    • rowHeadersLayout

      Type:
      enumeration
      Default:
      compact

      A value indicating wheter the layout that row headers should be arranged. For compact header layout – each hieararchy is in a single column.

  • pivotGridPanel

    Type:
    object
    Default:
    {}

    Configuration settings for the panel containing the igPivotGrid.

    Code Sample


            //Initialize
            $(".selector").igPivotView({
                pivotGridPanel : {
                    collapsed : false,
                    collapsible : true,
                    resizable : false,
                    size : 250
                }
            });

            //Get
            $(".selector").igPivotView("option", "pivotGridPanel");

            //Set
            $(".selector").igPivotView("option", "pivotGridPanel", object);

    • collapsed

      Type:
      bool
      Default:
      false

      Determines if the panel containing the igPivotGrid will initially collapsed.

    • collapsible

      Type:
      bool
      Default:
      false

      Determines if the panel containing the igPivotGrid will be collapsible.

    • resizable

      Type:
      bool
      Default:
      true

      Determines if the panel containing the igPivotGrid will be resizable.

    • size

      Type:
      enumeration
      Default:
      null

      Determines the size of the igPivotGrid panel.

      Members

      • string
      • Type:string
      • The panel size can be set in pixels (px).
      • number
      • Type:number
      • The size can be set as a number.
      • null
      • Type:object
      • will automatically size the panel.
  • regional
    Inherited

    Type:
    enumeration
    Default:
    en-US

    Set/Get the regional setting for the widget.

    Code Sample


    				//Initialize
    				$(".selector").igPivotView({
    					regional: "ja"
    				});
    				// Get
    				var regional = $(".selector").igPivotView("option", "regional");
    				// Set
    				$(".selector").igPivotView("option", "regional", "ja");

  • width

    Type:
    enumeration
    Default:
    null

    Members

    • string
    • Type:string
    • The widget width can be set in pixels (px) and percentage (%).
    • number
    • Type:number
    • The widget width can be set as a number.
    • null
    • Type:object
    • will stretch to fit the parent, if no other widths are defined.

    Code Sample


            //Initialize
            $(".selector").igPivotView({
                width : "700px"
            });

            //Get
            $(".selector").igPivotView("option", "width");

            //Set
            $(".selector").igPivotView("option", "width", 700);

The current widget has no events.
  • changeGlobalLanguage
    Inherited

    .igPivotView( "changeGlobalLanguage" );

    Changes the widget language to global language. Global language is the value in $.ig.util.language.

    Code Sample


    				$(".selector").igPivotView("changeGlobalLanguage");

  • changeGlobalRegional
    Inherited

    .igPivotView( "changeGlobalRegional" );

    Changes the widget regional settins to global regional settings. Global regional settings are container in $.ig.util.regional.

    Code Sample


    				$(".selector").igPivotView("changeGlobalRegional");

  • changeLocale
    Inherited

    .igPivotView( "changeLocale", $container:object );

    Changes the all locales contained into a specified container to the language specified in options.language
    Note that this method is for rare scenarios, use language or locale option setter.

    • $container
    • Type:object
    • Optional parameter - if not set it would use the element of the widget as $container.

    Code Sample


    				$(".selector").igPivotView("changeLocale");

  • dataSelector

    .igPivotView( "dataSelector" );
    Return Type:
    object

    Returns the igPivotDataSelector instance of the pivot view.

    Code Sample


          var dataSelector = $(".selector").igPivotView("dataSelector");

  • destroy

    .igPivotView( "destroy" );

    Destroy is part of the jQuery UI widget API and does the following:
    1. Remove custom CSS classes that were added.
    2. Unwrap any wrapping elements such as scrolling divs and other containers.
    3. Unbind all events that were bound.

    Code Sample


          $(".selector").igPivotView("destroy");

  • pivotGrid

    .igPivotView( "pivotGrid" );
    Return Type:
    object

    Returns the igPivotGrid instance of the pivot view.

    Code Sample


          var pivotGrid = $(".selector").igPivotView("pivotGrid");

  • splitter

    .igPivotView( "splitter" );
    Return Type:
    object

    Returns the igSplitter instance used to separate the pivot grid and the data selector.

    Code Sample


          var splitter = $(".selector").igPivotView("splitter");

The current widget has no css classes.

Copyright © 1996 - 2024 Infragistics, Inc. All rights reserved.
