ui.igGridMultiColumnHeaders

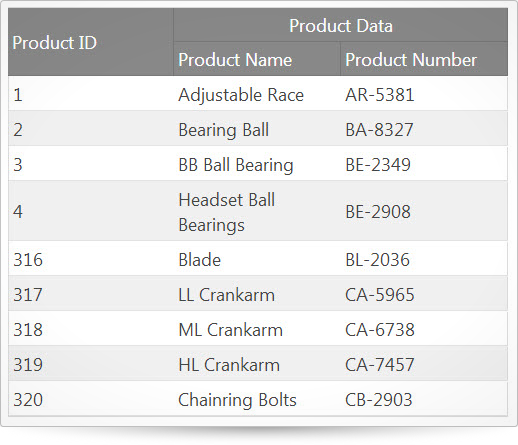

ui.igGridMultiColumnHeaders_image

Both the igGrid and igHierarchicalGrid controls feature multi-column headers. The multi-column headers feature provides header grouping and is well integrated with the Hiding, Resizing and ColumnMoving features. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

The following code snippet demonstrates how to initialize the igGrid control with multi-column headers feature.

Click here for more information on how to get started using this API . For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
	  <script src="js/infragistics.lob.js" type="text/javascript"></script>
    <script type="text/javascript">
        var products = [
            { "ProductID": 1, "Name": "Adjustable Race", "ProductNumber": "AR-5381" },
            { "ProductID": 2, "Name": "Bearing Ball", "ProductNumber": "BA-8327" },
            { "ProductID": 3, "Name": "BB Ball Bearing", "ProductNumber": "BE-2349" },
            { "ProductID": 4, "Name": "Headset Ball Bearings", "ProductNumber": "BE-2908" },
            { "ProductID": 316, "Name": "Blade", "ProductNumber": "BL-2036" },
            { "ProductID": 317, "Name": "LL Crankarm", "ProductNumber": "CA-5965" },
            { "ProductID": 318, "Name": "ML Crankarm", "ProductNumber": "CA-6738" },
            { "ProductID": 319, "Name": "HL Crankarm", "ProductNumber": "CA-7457" },
            { "ProductID": 320, "Name": "Chainring Bolts", "ProductNumber": "CB-2903" }
        ];

        $(function () {
            $("#grid").igGrid({
                columns: [
                    { headerText: "Product ID", key: "ProductID", dataType: "number" },
                    { headerText: "Product Data", key: "ProductData", group: [
                        { headerText: "Product Name", key: "Name", dataType: "string" },
                        { headerText: "Product Number", key: "ProductNumber", dataType: "string" }
                    ]}
                ],
                features:[
                    {
                        name: "MultiColumnHeaders"
                    }
                ],
                width: "500px",
                dataSource: products
            });
        });
    </script>
</head>
<body>
    <table id="grid"></table>
</body>
</html>


Related Samples

Related Topics

Dependencies

jquery-1.9.1.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.ui.grid.framework.js
infragistics.ui.shared.js
infragistics.datasource.js
infragistics.util.js

Inherits

  • inherit

    Type:
    bool
    Default:
    false

    Enables/disables feature inheritance for the child layouts. NOTE: It only applies for igHierarchicalGrid.

For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • groupCollapsed

    Cancellable:
    false

    Event fired after the group collapsing has been executed and results are rendered.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets the reference to the GridMultiColumnHeaders widget.

        • owner.grid
          Type: Object

          Gets the reference to the grid widget.

        • column
          Type: Object

          Gets the column object for the current group that is collapsed.

        • element
          Type: jQuery

          Get a reference to the jQuery object for the column being collapsed (th).

    Code Sample


    				//Bind after initialization
    				$(document).on("iggridmulticolumnheadersgroupcollapsed", ".selector", function (evt, ui) {
    					// return the triggered event
    					evt;

    					// a reference to the igGridMultiColumnHeaders widget
    					ui.owner;

    					// the column object for the current group that is collapsed
    					ui.column;

    					// a reference to the jQuery object for the column being collapsed (th)
    					ui.element
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "MultiColumnHeaders",
    							groupCollapsed: function (evt, ui) { ... }
    						}
    					]
    				});

  • groupCollapsing

    Cancellable:
    true

    Event fired before a group collapsing operation is executed.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets the reference to the GridMultiColumnHeaders widget.

        • owner.grid
          Type: Object

          Gets the reference to the grid widget.

        • column
          Type: Object

          Gets the column object for the current group that is collapsing.

        • element
          Type: jQuery

          Get a reference to the jQuery object for the column being collapsing (th).

    Code Sample


    				//Bind after initialization
    				$(document).on("iggridmulticolumnheadersgroupcollapsing", ".selector", function (evt, ui) {
    					// return the triggered event
    					evt;

    					// a reference to the igGridMultiColumnHeaders widget
    					ui.owner;

    					// the column object for the current group that is collapsing
    					ui.column;

    					// a reference to the jQuery object for the column being collapsing (th)
    					ui.element
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "MultiColumnHeaders",
    							groupCollapsing: function (evt, ui) { ... }
    						}
    					]
    				});

  • groupExpanded

    Cancellable:
    false

    Event fired after the group expanding has been executed and results are rendered.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets the reference to the GridMultiColumnHeaders widget.

        • owner.grid
          Type: Object

          Gets the reference to the grid widget.

        • owner.column
          Type: Object

          Gets the column object for the current group that is expanded.

        • element
          Type: jQuery

          Gets a reference to the jQuery object for the column being expanded (th).

    Code Sample


    				//Bind after initialization
    				$(document).on("iggridmulticolumnheadersgroupexpanded", ".selector", function (evt, ui) {
    					// return the triggered event
    					evt;

    					// a reference to the igGridMultiColumnHeaders widget
    					ui.owner;

    					// the column object for the current group that is expanded
    					ui.column;

    					// a reference to the jQuery object for the column being expanded (th)
    					ui.element
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "MultiColumnHeaders",
    							groupExpanded: function (evt, ui) { ... }
    						}
    					]
    				});

  • groupExpanding

    Cancellable:
    true

    Event fired before a group expanding operation is executed.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets the reference to the GridMultiColumnHeaders widget.

        • owner.grid
          Type: Object

          Gets the reference to the grid widget.

        • column
          Type: Object

          Gets the column object for the current group that is expanding.

        • element
          Type: jQuery

          Gets a reference to the jQuery object for the column being expanded (th).

    Code Sample


    				//Bind after initialization
    				$(document).on("iggridmulticolumnheadersgroupexpanded", ".selector", function (evt, ui) {
    					// return the triggered event
    					evt;

    					// a reference to the igGridMultiColumnHeaders widget
    					ui.owner;

    					// the column object for the current group that is expanding
    					ui.column;

    					// a reference to the jQuery object for the column being expanded (th)
    					ui.element
    				});

    				//Initialize
    				$(".selector").igGrid({
    					features : [
    						{
    							name : "MultiColumnHeaders",
    							groupExpanded: function (evt, ui) { ... }
    						}
    					]
    				});

  • changeLocale

    .igGridMultiColumnHeaders( "changeLocale" );

    Changes the all locales into the widget element to the language specified in options.language
    Note that this method is for rare scenarios, see language or locale option setter.

    Code Sample


    				$(".selector").igGridMultiColumnHeaders("changeLocale");

  • collapseGroup

    .igGridMultiColumnHeaders( "collapseGroup", groupKey:string, [callback:function] );

    Collapses an expanded group. If the group is collapsed, the method does nothing.
    Note: This method is asynchronous which means that it returns immediately and any subsequent code will execute in parallel. This may lead to runtime errors. To avoid them put the subsequent code in the callback parameter provided by the method.

    • groupKey
    • Type:string
    • Group key.
    • callback
    • Type:function
    • Optional
    • Specifies a custom function to be called when the group is collapsed.

    Code Sample


    				$(".selector").igGridMultiColumnHeaders("collapseGroup", "groupKey");

  • destroy

    .igGridMultiColumnHeaders( "destroy" );

    Destroys the multicolumn widget.

    Code Sample


    				$(".selector").igGridMultiColumnHeaders("destroy");

  • expandGroup

    .igGridMultiColumnHeaders( "expandGroup", groupKey:string, [callback:function] );

    Expands a collapsed group. If the group is expanded, the method does nothing.
    Note: This method is asynchronous which means that it returns immediately and any subsequent code will execute in parallel. This may lead to runtime errors. To avoid them put the subsequent code in the callback parameter provided by the method.

    • groupKey
    • Type:string
    • Group key.
    • callback
    • Type:function
    • Optional
    • Specifies a custom function to be called when the group is expanded.

    Code Sample


    				$(".selector").igGridMultiColumnHeaders("expandGroup", "groupKey");

  • getMultiColumnHeaders

    .igGridMultiColumnHeaders( "getMultiColumnHeaders" );
    Return Type:
    array
    Return Type Description:
    array of columns.

    Returns multicolumn headers array. if there aren"t multicolumn headers returns undefined.

    Code Sample


    				var columns = $(".selector").igGridMultiColumnHeaders("getMultiColumnHeaders");

  • toggleGroup

    .igGridMultiColumnHeaders( "toggleGroup", groupKey:string, [callback:function] );

    Toggles a collapsible group.
    Note: This method is asynchronous which means that it returns immediately and any subsequent code will execute in parallel. This may lead to runtime errors. To avoid them put the subsequent code in the callback parameter provided by the method.

    • groupKey
    • Type:string
    • Group key.
    • callback
    • Type:function
    • Optional
    • Specifies a custom function to be called when the group is toggled.

    Code Sample


    				$(".selector").igGridMultiColumnHeaders("toggleGroup", "groupKey");

  • ui-iggrid-multiheader-collapsed

    Classes applied to collapsed header button.
  • ui-iggrid-indicatorcontainer ui-iggrid-collapsibleindicatorcontainer

    Classes applied to the container of the collapsible header button.
  • ui-iggrid-multiheader-expanded

    Classes applied to expanded header button.
  • ui-iggrid-multiheader-cell

    Classes applied to the multi-column header cell(group header cell which has children in the multi-column headers).
