ui.igTreeGridSorting

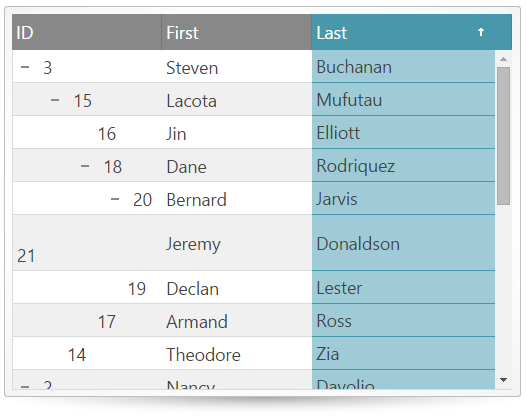

ui.igTreeGridSorting_image

The igTreeGrid sorting feature allows users to order the rows in the grid according the sort order of a given column recursively according to the hierarchy. Both ascending and descending sort directions are available. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


      <!DOCTYPE html>
      <html>
      <head>
          <!-- Infragistics Combined CSS -->
          <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
          <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />

          <!-- jQuery Core -->
          <script src="js/jquery.js" type="text/javascript"></script>

          <!-- jQuery UI -->
          <script src="js/jquery-ui.js" type="text/javascript"></script>

          <!-- Infragistics Combined Scripts -->
          <script src="js/infragistics.core.js" type="text/javascript"></script>
          <script src="js/infragistics.lob.js" type="text/javascript"></script>

          <script type="text/javascript">
              var employees = [
                  { "employeeId": 0, "supervisorId": -1, "firstName": "Andrew", "lastName": "Fuller" },
                  { "employeeId": 1, "supervisorId": -1, "firstName": "Jonathan", "lastName": "Smith" },
                  { "employeeId": 2, "supervisorId": -1, "firstName": "Nancy", "lastName": "Davolio" },
                  { "employeeId": 3, "supervisorId": -1, "firstName": "Steven", "lastName": "Buchanan" },

                  // Andrew Fuller's direct reports
                  { "employeeId": 4, "supervisorId": 0, "firstName": "Janet", "lastName": "Leverling" },
                  { "employeeId": 5, "supervisorId": 0, "firstName": "Laura", "lastName": "Callahan" },
                  { "employeeId": 6, "supervisorId": 0, "firstName": "Margaret", "lastName": "Peacock" },
                  { "employeeId": 7, "supervisorId": 0, "firstName": "Michael", "lastName": "Suyama" },

                  // Janet Leverling's direct reports
                  { "employeeId": 8, "supervisorId": 4, "firstName": "Anne", "lastName": "Dodsworth" },
                  { "employeeId": 9, "supervisorId": 4, "firstName": "Danielle", "lastName": "Davis" },
                  { "employeeId": 10, "supervisorId": 4, "firstName": "Robert", "lastName": "King" },

                  // Nancy Davolio's direct reports
                  { "employeeId": 11, "supervisorId": 2, "firstName": "Peter", "lastName": "Lewis" },
                  { "employeeId": 12, "supervisorId": 2, "firstName": "Ryder", "lastName": "Zenaida" },
                  { "employeeId": 13, "supervisorId": 2, "firstName": "Wang", "lastName": "Mercedes" },

                  // Steve Buchanan's direct reports
                  { "employeeId": 14, "supervisorId": 3, "firstName": "Theodore", "lastName": "Zia" },
                  { "employeeId": 15, "supervisorId": 3, "firstName": "Lacota", "lastName": "Mufutau" },

                  // Lacota Mufutau's direct reports
                  { "employeeId": 16, "supervisorId": 15, "firstName": "Jin", "lastName": "Elliott" },
                  { "employeeId": 17, "supervisorId": 15, "firstName": "Armand", "lastName": "Ross" },
                  { "employeeId": 18, "supervisorId": 15, "firstName": "Dane", "lastName": "Rodriquez" },

                  // Dane Rodriquez's direct reports
                  { "employeeId": 19, "supervisorId": 18, "firstName": "Declan", "lastName": "Lester" },
                  { "employeeId": 20, "supervisorId": 18, "firstName": "Bernard", "lastName": "Jarvis" },

                  // Bernard Jarvis' direct report
                  { "employeeId": 21, "supervisorId": 20, "firstName": "Jeremy", "lastName": "Donaldson" }
              ];

             $(function () {
                 $("#treegrid").igTreeGrid({
                     dataSource: employees,
                     primaryKey: "employeeId",
                     foreignKey: "supervisorId",
                     autoGenerateColumns: false,
                     columns: [
                         { headerText: "ID", key: "employeeId", width: "150px", dataType: "number" },
                         { headerText: "First", key: "firstName", width: "150px", dataType: "string" },
                         { headerText: "Last", key: "lastName", width: "150px", dataType: "string" }
                     ],
                     features: [
                         {
                             name: "Sorting"
                         }
                     ]
                 });
             });
          </script>
      </head>
      <body>
          <table id="treegrid"></table>
      </body>
      </html>


Related Samples

Related Topics

Dependencies

jquery-1.9.1.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.datasource.js
infragistics.ui.shared.js
infragistics.ui.treegrid.js
infragistics.util.js
infragistics.ui.grid.framework.js
infragistics.ui.grid.sorting.js

Inherits

  • applySortedColumnCss
    Inherited

    Type:
    bool
    Default:
    true

    Enables/disables special styling for sorted columns. If false, sorted column cells will not have any special sort-related styling.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							applySortedColumnCss : false
    						}
    					]
    				});

    				// Get
    				var sortCss = $(".selector").igTreeGridSorting("option", "applySortedColumnCss");

    				// Set
    				$(".selector").igTreeGridSorting("option", "applySortedColumnCss", false);

  • caseSensitive
    Inherited

    Type:
    bool
    Default:
    false

    Enables or disables the case sensitivity of the sorting. Works only for local sorting.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							caseSensitive : true
    						}
    					]
    				});

    				// Get
    				var caseSensitive = $(".selector").igTreeGridSorting("option", "caseSensitive");

    				// Set
    				$(".selector").igTreeGridSorting("option", "caseSensitive", true);

  • columnSettings
    Inherited

    Type:
    array
    Default:
    []
    Elements Type:
    object

    A list of custom column settings that specify custom sorting settings for a specific column (whether sorting is enabled / disabled, default sort direction, first sort direction, etc.).

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							columnSettings : [
    								{
    									columnIndex: 0,
    									allowSorting: true,
    									firstSortDirection: "ascending",
    									currentSortDirection: "descending"
    								}
    							]
    						}
    					]
    				});

    				// Get
    				var colSettings = $(".selector").igTreeGridSorting("option", "columnSettings");

    • allowSorting

      Type:
      bool
      Default:
      true

      Enables/disables sorting on the specified column. By default all columns are sortable.

      Code Sample


      						// Initialize
      						$(".selector").igTreeGrid({
      							features : [
      								{
      									name : "Sorting",
      									columnSettings : [
      										{
      											columnIndex: 0,
      					allowSorting: true,
      											firstSortDirection: "ascending",
      											currentSortDirection: "descending"
      										}
      									]
      								}
      							]
      						});

    • columnIndex

      Type:
      number
      Default:
      null

      Identifies the grid column by index. Either key or index must be set in every column setting.

      Code Sample


      						// Initialize
      						$(".selector").igTreeGrid({
      							features : [
      								{
      									name : "Sorting",
      									columnSettings : [
      										{
      											columnIndex: 0,
      											allowSorting: true,
      											firstSortDirection: "ascending",
      											currentSortDirection: "descending"
      										}
      									]
      								}
      							]
      						});

      						// Get
      						var colSettings = $(".selector").igTreeGridSorting("option", "columnSettings");
      						var colIndex = colSettings[0].columnIndex;

    • columnKey

      Type:
      string
      Default:
      null

      Identifies the grid column by key. Either key or index must be set in every column setting.

      Code Sample


      						// Initialize
      						$(".selector").igTreeGrid({
      							features : [
      								{
      									name : "Sorting",
      									columnSettings : [
      										{
      											columnKey: "ProductID",
      											allowSorting: true,
      											firstSortDirection: "ascending",
      											currentSortDirection: "descending"
      										}
      									]
      								}
      							]
      						});

      						//Get
      						var colSettings = $(".selector").igTreeGridSorting("option", "columnSettings");
      						var colKey = colSettings[0].columnKey;

    • compareFunc

      Type:
      enumeration
      Default:
      null

      Reference to a function (string or function) used for custom comparison. The function accepts the following arguments:
      val1 - the first value to compare,
      val2 - the second value to compare,
      recordsData (optional) - an object having three properties: fieldName - the name of the sorted field; record1 - first record to compare; record2 - second record to compare.
      The function returns the following numeric value:
      0 - indicating that values are equal,
      1 - indicating that val1 > val2,
      -1 - indicating that val1 < val2.

      Members

      • string
      • Type:string
      • The name of the function as a string located in the global window object.
      • function
      • Type:function
      • Function which will be used for custom comparison.

      Code Sample


      						var myCompareFunc = function (fields, schema, reverse, convertf) {
      							return function (val1, val2) {
      								if (val1.Price > val2.Price) {
      									return 1;
      								}
      								if (val1.Price < val2.Price) {
      									return -1;
      								}
      								return 0;
      							}
      						}
      						// Initialize
      						$(".selector").igTreeGrid({
      							features : [
      								{
      									name : "Sorting",
      									columnSettings: [
      										{
      											columnIndex: 0,
      											allowSorting: true,
      											firstSortDirection: "ascending",
      											compareFunc: "myCompareFunc"
      										}
      									]
      								}
      							]
      						});

    • currentSortDirection

      Type:
      enumeration
      Default:
      null

      The current (or default) sort direction. If this setting is specified, the column will be rendered sorted according to this option.

      Members

      • asc
      • Type:string
      • The initial sort of the column data will be in ascending order.
      • desc
      • Type:string
      • The initial sort of the column data will be in descending order.

      Code Sample


      						// Initialize
      						$(".selector").igTreeGrid({
      							features : [
      								{
      									name : "Sorting",
      									columnSettings : [
      										{
      											columnIndex: 0,
      											allowSorting: true,
      											firstSortDirection: "ascending",
      											currentSortDirection: "descending"
      										}
      									]
      								}
      							]
      						});

    • firstSortDirection

      Type:
      enumeration
      Default:
      null

      This will be the first sort direction when the column hasn't been sorted before.

      Members

      • asc
      • Type:string
      • The first sort of the column data will be in ascending order.
      • desc
      • Type:string
      • The first sort of the column data will be in descending order.

      Code Sample


      					// Initialize
      						$(".selector").igTreeGrid({
      							features : [
      								{
      									name : "Sorting",
      									columnSettings : [
      										{
      											columnIndex: 0,
      											allowSorting: true,
      											firstSortDirection: "ascending",
      											currentSortDirection: "descending"
      										}
      									]
      								}
      							]
      						});

  • customSortFunction
    Inherited

    Type:
    function
    Default:
    null

    Custom sort function(or name of the function as a string) accepting three parameters - the data to be sorted, an array of data source field definitions, and the direction to sort with (optional). The function should return the sorted data array.

    Code Sample


    				var myCustomFunc = function(data, fields, direction) {
    					function myCompareFunc(obj1, obj2) {
    						if (direction == "descending")
    						{
    							return obj2[fields[0].fieldName] - obj1[fields[0].fieldName];
    						}
    						return obj1[fields[0].fieldName] - obj2[fields[0].fieldName];
    					}
    					var result = data.sort(myCompareFunc);
    					return result;
    				}

    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							customSortFunction : myCustomFunc
    						}
    					]
    				});

    				//Get
    				var sortFunc = $(".selector").igTreeGridSorting("option", "customSortFunction");

    				//Set
    				$(".selector").igTreeGridSorting("option", "customSortFunction", myCustomFunc);

  • dialogWidget
    Inherited

    Type:
    string
    Default:
    "igGridModalDialog"

    Name of the dialog widget to be used. It should inherit from $.ui.igGridModalDialog.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features: [
    						{
    							name : "Sorting",
    							dialogWidget: "advancedModalDialog"
    						}
    					]
    				});

    				// Get
    				var widgetName = $(".selector").igTreeGridSorting("option", "dialogWidget");

  • featureChooserSortAsc
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies the text shown in the feature chooser item for sorting in ascending order (displayed only on touch environment).
    Use option locale.featureChooserSortAsc.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							featureChooserSortAsc : "Sort A to Z"
    						}
    					]
    				});

    				// Get
    				var featureChooserSortAsc = $(".selector").igTreeGridSorting("option", "featureChooserSortAsc");

  • featureChooserSortDesc
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies the text shown in the feature chooser item for sorting in descending order (displayed only on touch environment).
    Use option locale.featureChooserSortDesc.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							featureChooserSortDesc : "Sort Z to A"
    						}
    					]
    				});

    				// Get
    				var featureChooserSortDesc = $(".selector").igTreeGridSorting("option", "featureChooserSortDesc");

  • featureChooserText
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies the text of the feature chooser sorting button.
    Use option locale.featureChooserText.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							featureChooserText : "Sorting"
    						}
    					]
    				});

    				// Get
    				var text = $(".selector").igTreeGridSorting("option", "featureChooserText");

    				// Set
    				$(".selector").igTreeGridSorting("option", "featureChooserText", "Sorting");

  • firstSortDirection
    Inherited

    Type:
    enumeration
    Default:
    ascending

    Specifies which direction to use on the first click / keydown, if the column is sorted for the first time.

    Members

    • ascending
    • Type:string
    • The first sort of the column data will be in ascending order.
    • descending
    • Type:string
    • The first sort of the column data will be in descending order.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							firstSortDirection : "descending"
    						}
    					]
    				});
    				// Get
    				var direction = $(".selector").igTreeGridSorting("option", "firstSortDirection");
    				// Set
    				$(".selector").igTreeGridSorting("option", "firstSortDirection", "descending");

  • fromLevel

    Type:
    number
    Default:
    0

    Specifies from which data bound level to be applied sorting - 0 is the first level.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							fromLevel: 1
    						}
    					]
    				});

    				//Get
    				var fromLevel = $(".selector").igTreeGridSorting("option", "fromLevel");

  • locale
    Inherited

    Type:
    object
    Default:
    {}

    • ascending

      Type:
      string
      Default:
      ""

      Ascending text used for header title.

      Code Sample


      				//Initialize
      				$(".selector").igTreeGrid({
      					features: [{
      						name: "Sorting",
      						locale: {
      							ascending: "Ascending"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igTreeGridSorting("option", "locale").ascending;

      				//	Set
      				$(".selector").igTreeGridSorting("option", "locale", { ascending: "Ascending" });

    • descending

      Type:
      string
      Default:
      ""

      Descending text used for header title.

      Code Sample


      				//Initialize
      				$(".selector").igTreeGrid({
      					features: [{
      						name: "Sorting",
      						locale: {
      							ascending: "Ascending"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igTreeGridSorting("option", "locale").ascending;

      				//	Set
      				$(".selector").igTreeGridSorting("option", "locale", { ascending: "Ascending" });

    • featureChooserSortAsc

      Type:
      string
      Default:
      ""

      Specifies the text shown in the feature chooser item for sorting in ascending order (displayed only on touch environment).

      Code Sample


      				//Initialize
      				$(".selector").igTreeGrid({
      					features: [{
      						name: "Sorting",
      						locale: {
      							featureChooserSortAsc: "Sort A to Z"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igTreeGridSorting("option", "locale").featureChooserSortAsc;

      				//	Set
      				$(".selector").igTreeGridSorting("option", "locale", { featureChooserSortAsc: "Sort A to Z" });

    • featureChooserSortDesc

      Type:
      string
      Default:
      ""

      Specifies the text shown in the feature chooser item for sorting in descending order (displayed only on touch environment).

      Code Sample


      				//Initialize
      				$(".selector").igTreeGrid({
      					features: [{
      						name: "Sorting",
      						locale: {
      							featureChooserSortDesc: "Sort Z to A"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igTreeGridSorting("option", "locale").featureChooserSortDesc;

      				//	Set
      				$(".selector").igTreeGridSorting("option", "locale", { featureChooserSortDesc: "Sort Z to A" });

    • featureChooserText

      Type:
      string
      Default:
      ""

      Specifies the text of the feature chooser sorting button.

      Code Sample


      				//Initialize
      				$(".selector").igTreeGrid({
      					features: [{
      						name: "Sorting",
      						locale: {
      							featureChooserText: "Sorting"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igTreeGridSorting("option", "locale").featureChooserText;

      				//	Set
      				$(".selector").igTreeGridSorting("option", "locale", { featureChooserText: "Sorting" });

    • modalDialogButtonApplyText

      Type:
      string
      Default:
      ""

      Specifies text of button which applies changes in modal dialog.

      Code Sample


      				//Initialize
      				$(".selector").igTreeGrid({
      					features: [{
      						name: "Sorting",
      						locale: {
      							modalDialogButtonApplyText: "Apply"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igTreeGridSorting("option", "locale").modalDialogButtonApplyText;

      				//	Set
      				$(".selector").igTreeGridSorting("option", "locale", { modalDialogButtonApplyText: "Apply" });

    • modalDialogButtonCancelText

      Type:
      string
      Default:
      ""

      Specifies text of button which cancels the changes in the advanced sorting modal dialog.

      Code Sample


      				//Initialize
      				$(".selector").igTreeGrid({
      					features: [{
      						name: "Sorting",
      						locale: {
      							modalDialogButtonCancelText: "Cancel"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igTreeGridSorting("option", "locale").modalDialogButtonCancelText;

      				//	Set
      				$(".selector").igTreeGridSorting("option", "locale", { modalDialogButtonCancelText: "Cancel" });

    • modalDialogCaptionButtonAsc

      Type:
      string
      Default:
      ""

      Specifies caption for each ascending sorted column in multiple sorting dialog.

      Code Sample


      				//Initialize
      				$(".selector").igTreeGrid({
      					features: [{
      						name: "Sorting",
      						locale: {
      							modalDialogCaptionButtonAsc: "Ascending"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igTreeGridSorting("option", "locale").modalDialogCaptionButtonAsc;

      				//	Set
      				$(".selector").igTreeGridSorting("option", "locale", { modalDialogCaptionButtonAsc: "Ascending" });

    • modalDialogCaptionButtonDesc

      Type:
      string
      Default:
      ""

      Specifies caption for each descending sorted column in multiple sorting dialog.

      Code Sample


      				//Initialize
      				$(".selector").igTreeGrid({
      					features: [{
      						name: "Sorting",
      						locale: {
      							modalDialogCaptionButtonDesc: "Descending"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igTreeGridSorting("option", "locale").modalDialogCaptionButtonDesc;

      				//	Set
      				$(".selector").igTreeGridSorting("option", "locale", { modalDialogCaptionButtonDesc: "Descending" });

    • modalDialogCaptionButtonUnsort

      Type:
      string
      Default:
      ""

      Specifies caption for unsort button in multiple sorting dialog.

      Code Sample


      				//Initialize
      				$(".selector").igTreeGrid({
      					features: [{
      						name: "Sorting",
      						locale: {
      							modalDialogCaptionButtonUnsort: "Unsort"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igTreeGridSorting("option", "locale").modalDialogCaptionButtonUnsort;

      				//	Set
      				$(".selector").igTreeGridSorting("option", "locale", { modalDialogCaptionButtonUnsort: "Unsort" });

    • modalDialogCaptionText

      Type:
      string
      Default:
      ""

      Specifies caption text for multiple sorting dialog.

      Code Sample


      				//Initialize
      				$(".selector").igTreeGrid({
      					features: [{
      						name: "Sorting",
      						locale: {
      							modalDialogCaptionText: "Multiple Sorting"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igTreeGridSorting("option", "locale").modalDialogCaptionText;

      				//	Set
      				$(".selector").igTreeGridSorting("option", "locale", { modalDialogCaptionText: "Multiple Sorting" });

    • modalDialogResetButton

      Type:
      string
      Default:
      ""

      Specifies reset button text in the modal dialog.

      Code Sample


      				//Initialize
      				$(".selector").igTreeGrid({
      					features: [{
      						name: "Sorting",
      						locale: {
      							modalDialogResetButton: "Reset"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igTreeGridSorting("option", "locale").modalDialogResetButton;

      				//	Set
      				$(".selector").igTreeGridSorting("option", "locale", { modalDialogResetButton: "Reset" });

    • modalDialogSortByButtonText

      Type:
      string
      Default:
      ""

      Specifies sortby button text for each unsorted column in multiple sorting dialog.

      Code Sample


      				//Initialize
      				$(".selector").igTreeGrid({
      					features: [{
      						name: "Sorting",
      						locale: {
      							modalDialogSortByButtonText: "Sort By"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igTreeGridSorting("option", "locale").modalDialogSortByButtonText;

      				//	Set
      				$(".selector").igTreeGridSorting("option", "locale", { modalDialogSortByButtonText: "Sort By" });

    • sortedColumnTooltip

      Type:
      string
      Default:
      ""

      Custom sorted column tooltip in igTemplating format.

      Code Sample


      				//Initialize
      				$(".selector").igTreeGrid({
      					features: [{
      						name: "Sorting",
      						locale: {
      							sortedColumnTooltip: "Sorted ${direction}"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igTreeGridSorting("option", "locale").sortedColumnTooltip;

      				//	Set
      				$(".selector").igTreeGridSorting("option", "locale", { sortedColumnTooltip: "Sorted ${direction}" });

    • unsortedColumnTooltip

      Type:
      string
      Default:
      ""

      Unsorted column tooltip.

      Code Sample


      				//Initialize
      				$(".selector").igTreeGrid({
      					features: [{
      						name: "Sorting",
      						locale: {
      							unsortedColumnTooltip: "Sort column"
      						}
      					}]
      				});

      				//	Get
      				var text = $(".selector").igTreeGridSorting("option", "locale").unsortedColumnTooltip;

      				//	Set
      				$(".selector").igTreeGridSorting("option", "locale", { unsortedColumnTooltip: "Sort column" });

  • modalDialogAnimationDuration
    Inherited

    Type:
    number
    Default:
    200

    Specifies time of milliseconds for animation duration to show/hide modal dialog.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							modalDialogAnimationDuration : 300
    						}
    					]
    				});

    				// Get
    				var duration = $(".selector").igTreeGridSorting("option", "modalDialogAnimationDuration");

    				// Set
    				$(".selector").igTreeGridSorting("option", "modalDialogAnimationDuration", 300);

  • modalDialogButtonApplyText
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies text of button which apply changes in modal dialog.
    Use option locale.modalDialogButtonApplyText.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							modalDialogButtonApplyText : "Apply"
    						}
    					]
    				});

    				// Get
    				var text = $(".selector").igTreeGridSorting("option", "modalDialogButtonApplyText");

    				// Set
    				$(".selector").igTreeGridSorting("option", "modalDialogButtonApplyText", "Apply");

  • modalDialogButtonCancelText
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies text of button which cancels the changes in the advanced sorting modal dialog.
    Use option locale.modalDialogButtonCancelText.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							modalDialogButtonCancelText : "Cancel"
    						}
    					]
    				});

    				//Get
    				var text = $(".selector").igTreeGridSorting("option", "modalDialogButtonCancelText");

    				//Set
    				$(".selector").igTreeGridSorting("option", "modalDialogButtonCancelText", "Cancel");

  • modalDialogCaptionButtonAsc
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies caption for each ascending sorted column in multiple sorting dialog.
    Use option locale.modalDialogCaptionButtonAsc.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							modalDialogCaptionButtonAsc : "Ascending"
    						}
    					]
    				});

    				// Get
    				var caption = $(".selector").igTreeGridSorting("option", "modalDialogCaptionButtonAsc");

    				// Set
    				$(".selector").igTreeGridSorting("option", "modalDialogCaptionButtonAsc", "Ascending");

  • modalDialogCaptionButtonDesc
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies caption for each descending sorted column in multiple sorting dialog.
    Use option locale.modalDialogCaptionButtonDesc.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							modalDialogCaptionButtonDesc : "Descending"
    						}
    					]
    				});

    				// Get
    				var caption = $(".selector").igTreeGridSorting("option", "modalDialogCaptionButtonDesc");

    				// Set
    				$(".selector").igTreeGridSorting("option", "modalDialogCaptionButtonDesc", "Descending");

  • modalDialogCaptionButtonUnsort
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies caption for unsort button in multiple sorting dialog.
    Use option locale.modalDialogCaptionButtonUnsort.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							modalDialogCaptionButtonUnsort : "Unsort"
    						}
    					]
    				});

    				// Get
    				var caption = $(".selector").igTreeGridSorting("option", "modalDialogCaptionButtonUnsort");

    				// Set
    				$(".selector").igTreeGridSorting("option", "modalDialogCaptionButtonUnsort", "Unsort");

  • modalDialogCaptionText
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies caption text for multiple sorting dialog.
    Use option locale.modalDialogCaptionText.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							modalDialogCaptionText : "Multiple Sorting"
    						}
    					]
    				});

    				// Get
    				var caption = $(".selector").igTreeGridSorting("option", "modalDialogCaptionText");

    				// Set
    				$(".selector").igTreeGridSorting("option", "modalDialogCaptionText", "Multiple Sorting");

  • modalDialogHeight
    Inherited

    Type:
    enumeration
    Default:
    ""

    Specifies height of multiple sorting dialog.

    Members

    • string
    • Type:string
    • The widget height can be set in pixels (px) and percentage (%).
    • number
    • Type:number
    • The widget height can be set in pixels as a number.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							modalDialogHeight : 300
    						}
    					]
    				});
    				// Get
    				var height = $(".selector").igTreeGridSorting("option", "modalDialogHeight");
    				// Set
    				$(".selector").igTreeGridSorting("option", "modalDialogHeight", 300);

  • modalDialogResetButtonLabel
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies reset button text in multiple sorting dialog.
    Use option locale.modalDialogResetButton.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							modalDialogResetButtonLabel : "Reset"
    						}
    					]
    				});

    				// Get
    				var label = $(".selector").igTreeGridSorting("option", "modalDialogResetButtonLabel");

    				// Set
    				$(".selector").igTreeGridSorting("option", "modalDialogResetButtonLabel", "Reset");

  • modalDialogSortByButtonText
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Specifies sortby button text for each unsorted column in multiple sorting dialog.
    Use option locale.modalDialogSortByButtonText.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							modalDialogSortByButtonText : "Sort By"
    						}
    					]
    				});

    				// Get
    				var text = $(".selector").igTreeGridSorting("option", "modalDialogSortByButtonText");

    				// Set
    				$(".selector").igTreeGridSorting("option", "modalDialogSortByButtonText", "Sort By");

  • modalDialogSortOnClick
    Inherited

    Type:
    bool
    Default:
    false

    Specifies whether sorting to be applied immediately when click sort/unsort columns when using the multiple sorting dialog. When it is false Apply button shows and sorting is applied when the button is clicked.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							modalDialogSortOnClick : true
    						}
    					]
    				});

    				// Get
    				var text = $(".selector").igTreeGridSorting("option", "modalDialogSortOnClick");

    				// Set
    				$(".selector").igTreeGridSorting("option", "modalDialogSortOnClick", true);

  • modalDialogWidth
    Inherited

    Type:
    enumeration
    Default:
    350

    Specifies width of multiple sorting dialog.

    Members

    • string
    • Type:string
    • Specifies the width in pixels as a string ("300px").
    • number
    • Type:number
    • Specifies the width in pixels as a number (300).

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							modalDialogWidth : 400
    						}
    					]
    				});
    				// Get
    				var width = $(".selector").igTreeGridSorting("option", "modalDialogWidth");
    				// Set
    				$(".selector").igTreeGridSorting("option", "modalDialogWidth", 300);

  • mode
    Inherited

    Type:
    enumeration
    Default:
    single

    Defines single column sorting or multiple column sorting.

    Members

    • single
    • Type:string
    • Only a single column can be sorted. Previously sorted columns will not preserve their sorting upon sorting a new column.
    • multi
    • Type:string
    • If enabled, previous sorted state for columns won't be cleared.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							mode : "multi"
    						}
    					]
    				});
    				// Get
    				var mode = $(".selector").igTreeGridSorting("option", "mode");
    				// Set
    				$(".selector").igTreeGridSorting("option", "mode", "multi");

  • persist
    Inherited

    Type:
    bool
    Default:
    true

    Enables/disables sorting persistence when the grid is rebound.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							persist : false
    						}
    					]
    				});

    				// Get
    				var persist = $(".selector").igTreeGridSorting("option", "persist");

    				// Set
    				$(".selector").igTreeGridSorting("option", "persist", true);

  • sortingDialogContainment
    Inherited

    Type:
    string
    Default:
    "owner"

    Controls containment behavior of multiple sorting dialog.

    owner The multi sorting dialog will be draggable only in the grid area
    window The multi sorting dialog will be draggable in the whole window area.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							sortingDialogContainment : "window"
    						}
    					]
    				});

    				// Get
    				var sortingDialogContainment = $(".selector").igTreeGridSorting("option", "sortingDialogContainment");

  • sortUrlKey
    Inherited

    Type:
    string
    Default:
    null

    URL param name which specifies how sorting expressions will be encoded in the URL. Uses OData conventions. ex: ?sort(col1)=asc.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							sortUrlKey: "myCustomSort"
    						}
    					]
    				});

    				// Get
    				var sortKey = $(".selector").igTreeGridSorting("option", "sortUrlKey");

    				// Set
    				// Results in the following URL "?myCustomSort(col1)=asc"
    				$(".selector").igTreeGridSorting("option", "sortUrlKey", "myCustomSort");

  • sortUrlKeyAscValue
    Inherited

    Type:
    string
    Default:
    null

    URL param value for ascending type of sorting. Uses OData conventions. Example: ?sort(col1)=asc.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							sortUrlKey: "myCustomSort",
    							sortUrlKeyAscValue: "myAsc"
    						}
    					]
    				});

    				// Get
    				var sortKeyAsc = $(".selector").igTreeGridSorting("option", "sortUrlKeyAscValue");

    				// Set
    				// Results in the following URL "?sort(col1)=myAsc"
    				$(".selector").igTreeGridSorting("option", "sortUrlKeyAscValue", "myAsc");

  • sortUrlKeyDescValue
    Inherited

    Type:
    string
    Default:
    null

    URL param value for descending type of sorting. Uses OData conventions. Example: ?sort(col1)=desc.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							sortUrlKey: "myCustomSort",
    							sortUrlKeyDescValue: "myDesc"
    						}
    					]
    				});

    				// Get
    				var sortKeyDesc = $(".selector").igTreeGridSorting("option", "sortUrlKeyDescValue");

    				// Set
    				// Results in the following URL "?sort(col1)=myDesc"
    				$(".selector").igTreeGridSorting("option", "sortUrlKeyDescValue", "myDesc");

  • toLevel

    Type:
    number
    Default:
    -1

    Specifies to which data bound level to be applied sorting - if -1 sorting should be applied to the last data bound level.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							toLevel: -1
    						}
    					]
    				});

    				//Get
    				var toLevel = $(".selector").igTreeGridSorting("option", "toLevel");

  • type
    Inherited

    Type:
    enumeration
    Default:
    null

    Defines local or remote sorting operations.

    Members

    • remote
    • Type:string
    • Sorting is performed remotely as a server-side operation.
    • local
    • Type:string
    • Sorting is performed locally by the $.ig.DataSource component.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							type : "remote"
    						}
    					]
    				});
    				// Get
    				var sortType = $(".selector").igTreeGridSorting("option", "type");
    				// Set
    				$(".selector").igTreeGridSorting("option", "type", "remote");

  • unsortedColumnTooltip
    Removed

    Type:
    string
    Default:
    ""

    This option has been removed as of 2017.2 Volume release.
    Custom unsorted column tooltip in igTemplating format.
    Use option locale.unsortedColumnTooltip.

    Code Sample


    				// Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name : "Sorting",
    							unsortedColumnTooltip : "Unsorted"
    						}
    					]
    				});

    				// Get
    				var tooltip = $(".selector").igTreeGridSorting("option", "unsortedColumnTooltip");

    				// Set
    				$(".selector").igTreeGridSorting("option", "unsortedColumnTooltip", "Unsorted");


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • columnSorted
    Inherited

    Cancellable:
    false

    Event fired after the column has already been sorted and data - re-rendered.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to GridSorting.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • columnKey
          Type: String

          Gets the column key.

        • direction
          Type: String

          Gets the sorting direction.

        • expressions
          Type: Unknown

          Gets the sorted expressions.

    Code Sample


    				//Bind after initialization
    				$(document).on("igtreegridsortingcolumnsorted", ".selector", function (evt, ui) {
    					//return reference to igTreeGridSorting object
    					ui.owner;
    					//return reference to igTreeGrid object
    					ui.owner.grid;
    					//return column key
    					ui.columnKey;
    					//return sort direction
    					ui.direction;
    					//return sorting expressions from the datasource
    					ui.expressions;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features: [{
    						name: "Sorting",
    						type: "local",
    						columnSorted: function (evt, ui) {...}
    					}]
    				});

  • columnSorting
    Inherited

    Cancellable:
    true

    Event fired before sorting is invoked for a certain column.
    Return false in order to cancel column sorting.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to GridSorting.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • columnKey
          Type: String

          Gets the column key.

        • direction
          Type: String

          Gets the sorting direction.

        • newExpressions
          Type: Array

          Gets sorting expressions.

    Code Sample


    				//Bind after initialization
    				$(document).on("igtreegridsortingcolumnsorting", ".selector", function (evt, ui) {
    					//return reference to igTreeGridSorting object
    					ui.owner;
    					//return reference to igTreeGrid object
    					ui.owner.grid;
    					//return column key
    					ui.columnKey;
    					//return sort direction
    					ui.direction;
    					//return sorting expressions from the datasource
    					ui.newExpressions;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features: [{
    						name: "Sorting",
    						type: "local",
    						columnSorting: function (evt, ui) {...}
    					}]
    				});

  • modalDialogButtonApplyClick
    Inherited

    Cancellable:
    true

    Event fired when button Apply in modal dialog is clicked.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to GridSorting.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

        • columnKey
          Type: String

          Gets the column key.

        • columnsToSort
          Type: Array

          Gets the array of columns which should be sorted - array of objects of sort order - Asc/Desc and column key.

    Code Sample


    				//Bind after initialization
    				$(document).on("igtreegridsortingmodaldialogbuttonapplyclick", ".selector", function (evt, ui) {

    					// Get reference to igTreeGridSorting object
    					ui.owner;

    					// Get the reference to the igTreeGrid widget.
    					ui.owner.grid;

    					// Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;

    					// Get array of columns which should be sorted - array of objects of sort order - Asc/Desc and column key
    					ui.columnsToSort;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features: [{
    						name: "Sorting",
    						modalDialogButtonApplyClick: function (evt, ui) {...}
    					}]
    				});

  • modalDialogButtonResetClick
    Inherited

    Cancellable:
    true

    Event fired when the button to reset sorting is clicked.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to GridSorting.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).on("igtreegridsortingmodaldialogbuttonresetclick", ".selector", function (evt, ui) {

    					// Get reference to igTreeGridSorting object
    					ui.owner;

    					// Get the reference to the igTreeGrid widget.
    					ui.owner.grid;

    					// Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features:
    					[{
    						name: "Sorting",
    						modalDialogButtonResetClick: function (evt, ui) {...}
    					}]
    				});

  • modalDialogButtonUnsortClick
    Inherited

    Cancellable:
    true

    Event fired when button to unsort column is clicked in modal dialog.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to GridSorting.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

        • columnKey
          Type: String

          Gets the column key.

    Code Sample


    				//Bind after initialization
    				$(document).on("igtreegridsortingmodaldialogbuttonunsortclick", ".selector", function (evt, ui) {

    					// Get reference to igTreeGridSorting object
    					ui.owner;

    					// Get the reference to the igTreeGrid widget.
    					ui.owner.grid;

    					// Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;

    					// Get column key.
    					ui.columnKey;
    				});

    				//Initialize
    				$(".selector").igTreeGrid({
    					features:
    					[{
    						name: "Sorting",
    						modalDialogButtonUnsortClick: function (evt, ui) {...}
    					}]
    				});

  • modalDialogClosed
    Inherited

    Cancellable:
    false

    Event fired after the modal dialog has been closed.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to GridSorting.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).on("igtreegridsortingmodaldialogclosed", ".selector", function (evt, ui) {

    					// Get reference to igTreeGridSorting object
    					ui.owner;

    					// Get the reference to the igTreeGrid widget.
    					ui.owner.grid;

    					// Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;
    				});

    				// Initialize
    				$(".selector").igTreeGrid({
    					features:
    					[{
    						name: "Sorting",
    						modalDialogClosed: function (evt, ui) {...}
    					}]
    				});

  • modalDialogClosing
    Inherited

    Cancellable:
    true

    Event fired before the modal dialog is closed.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to GridSorting.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).on("igtreegridsortingmodaldialogclosing", ".selector", function (evt, ui) {

    					// Get reference to igTreeGridSorting object
    					ui.owner;

    					// Get the reference to the igTreeGrid widget.
    					ui.owner.grid;

    					// Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;
    				});

    				// Initialize
    				$(".selector").igTreeGrid({
    					features:
    					[{
    						name: "Sorting",
    						modalDialogClosing: function (evt, ui) {...}
    					}]
    				});

  • modalDialogContentsRendered
    Inherited

    Cancellable:
    false

    Event fired after the contents of the modal dialog are rendered.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to GridSorting.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).on("igtreegridsortingmodaldialogcontentsrendered", ".selector", function (evt, ui) {

    					// Get reference to igTreeGridSorting object
    					ui.owner;

    					// Get the reference to the igTreeGrid widget.
    					ui.owner.grid;

    					// Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;
    				});

    				// Initialize
    				$(".selector").igTreeGrid({
    					features:
    					[{
    						name: "Sorting",
    						modalDialogContentsRendered: function (evt, ui) {...}
    					}]
    				});

  • modalDialogContentsRendering
    Inherited

    Cancellable:
    true

    Event fired before the contents of the modal dialog are rendered.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to GridSorting.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).on("igtreegridsortingmodaldialogcontentsrendering", ".selector", function (evt, ui) {

    					// Get reference to igTreeGridSorting object
    					ui.owner;

    					// Get the reference to the igTreeGrid widget.
    					ui.owner.grid;

    					// Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;
    				});

    				// Initialize
    				$(".selector").igTreeGrid({
    					features:
    					[{
    						name: "Sorting",
    						modalDialogContentsRendering: function (evt, ui) {...}
    					}]
    				});

  • modalDialogMoving
    Inherited

    Cancellable:
    true

    Event fired every time the modal dialog changes its position.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to GridSorting widget.

        • owner.grid
          Type: Object

          Gets a reference to the grid widget.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

        • originalPosition
          Type: Object

          Gets the the original position of the modal dialog div as { top, left } object, relative to the page.

        • position
          Type: Object

          Gets the current position of the modal dialog div as { top, left } object, relative to the page.

    Code Sample


    				//Bind after initialization
    				$(document).on("igtreegridsortingmodaldialogmoving", ".selector", function (evt, ui) {

    					// Get reference to igTreeGridSorting object
    					ui.owner;

    					// Get the reference to the igTreeGrid widget.
    					ui.owner.grid;

    					// Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;

    					// Get the original position of the modal dialog div as { top, left } object, relative to the page.
    					ui.originalPosition;

    					// Get the current position of the modal dialog div as { top, left } object, relative to the page.
    					ui.position;
    				});

    				// Initialize
    				$(".selector").igTreeGrid({
    					features:
    					[{
    						name: "Sorting",
    						modalDialogMoving: function (evt, ui) {...}
    					}]
    				});

  • modalDialogOpened
    Inherited

    Cancellable:
    false

    Event fired after the modal dialog is already opened.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to GridSorting.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).on("igtreegridsortingmodaldialogopened", ".selector", function (evt, ui) {

    					// Get reference to igTreeGridSorting object
    					ui.owner;

    					// Get the reference to the igTreeGrid widget.
    					ui.owner.grid;

    					// Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;
    				});

    				// Initialize
    				$(".selector").igTreeGrid({
    					features:
    					[{
    						name: "Sorting",
    						modalDialogOpened: function (evt, ui) {...}
    					}]
    				});

  • modalDialogOpening
    Inherited

    Cancellable:
    true

    Event fired before the modal dialog is opened.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to GridSorting.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

    Code Sample


    				//Bind after initialization
    				$(document).on("igtreegridsortingmodaldialogopening", ".selector", function (evt, ui) {

    					// Get reference to igTreeGridSorting object
    					ui.owner;

    					// Get the reference to the igTreeGrid widget.
    					ui.owner.grid;

    					// Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;
    				});

    				// Initialize
    				$(".selector").igTreeGrid({
    					features:
    					[{
    						name: "Sorting",
    						modalDialogOpening: function (evt, ui) {...}
    					}]
    				});

  • modalDialogSortClick
    Inherited

    Cancellable:
    true

    Event fired when column(which is not sorted) is clicked to be sorted in modal dialog.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to GridSorting.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

        • columnKey
          Type: String

          Gets the column key.

    Code Sample


    				//Bind after initialization
    				$(document).on("igtreegridsortingmodaldialogsortclick", ".selector", function (evt, ui) {

    					// Get reference to igTreeGridSorting object
    					ui.owner;

    					// Get the reference to the igTreeGrid widget.
    					ui.owner.grid;

    					// Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;

    					// Get the column key.
    					ui.columnKey;
    				});

    				// Initialize
    				$(".selector").igTreeGrid({
    					features:
    					[{
    						name: "Sorting",
    						modalDialogSortClick: function (evt, ui) {...}
    					}]
    				});

  • modalDialogSortingChanged
    Inherited

    Cancellable:
    true

    Event fired when sorting of column is changed in modal dialog. Column should be sorted.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to GridSorting.

        • owner.grid
          Type: Object

          Gets a reference to the grid.

        • modalDialogElement
          Type: jQuery

          Gets a reference to the modal dialog element. This is a jQuery object.

        • columnKey
          Type: String

          Gets the column key.

        • isAsc
          Type: Bool

          Gets whether column should be ascending or not. If true it should be ascending.

    Code Sample


    				//Bind after initialization
    				$(document).on("igtreegridsortingmodaldialogsortingchanged", ".selector", function (evt, ui) {

    					// Get reference to igTreeGridSorting object
    					ui.owner;

    					// Get the reference to the igTreeGrid widget.
    					ui.owner.grid;

    					// Get a reference to the modal dialog element. This is a jQuery object.
    					ui.modalDialogElement;

    					// Get the column key.
    					ui.columnKey;

    					// Get whether column should be ascending or not. If true it should be ascending
    					ui.isAsc;
    				});

    				// Initialize
    				$(".selector").igTreeGrid({
    					features:
    					[{
    						name: "Sorting",
    						modalDialogSortingChanged: function (evt, ui) {...}
    					}]
    				});

  • changeLocale

    .igTreeGridSorting( "changeLocale" );

    Changes the all locales into the widget element to the language specified in options.language
    Note that this method is for rare scenarios, see language or locale option setter.

    Code Sample


    				$(".selector").igTreeGridSorting("changeLocale");

  • clearSorting
    Inherited

    .igTreeGridSorting( "clearSorting" );

    Removes current sorting(for all sorted columns) and updates the UI.

    Code Sample


    				$(".selector").igTreeGridSorting("clearSorting");

  • closeMultipleSortingDialog
    Inherited

    .igTreeGridSorting( "closeMultipleSortingDialog" );

    Closes the multiple sorting dialog.

    Code Sample


    				$(".selector").igTreeGridSorting("closeMultipleSortingDialog");

  • destroy

    .igTreeGridSorting( "destroy" );

    Code Sample


    			$(".selector").igTreeGridSorting("destroy");

  • isColumnSorted

    .igTreeGridSorting( "isColumnSorted", columnKey:string );
    Return Type:
    bool

    Returns whether a column with the specified columnKey is sorted(taken from the data source sorting expressions).

    • columnKey
    • Type:string
    • Column key (string).

    Code Sample


    				$(".selector").igTreeGridSorting("isColumnSorted", "employeeId");

  • openMultipleSortingDialog
    Inherited

    .igTreeGridSorting( "openMultipleSortingDialog" );

    Opens the multiple sorting dialog.

    Code Sample


    				$(".selector").igTreeGridSorting("openMultipleSortingDialog");

  • removeDialogClearButton
    Inherited

    .igTreeGridSorting( "removeDialogClearButton" );

    Remove clear button for multiple sorting dialog.

    Code Sample


    				$(".selector").igTreeGridSorting("removeDialogClearButton");

  • renderMultipleSortingDialogContent
    Inherited

    .igTreeGridSorting( "renderMultipleSortingDialogContent", isToCallEvents:object );

    Renders content of multiple sorting dialog - sorted and unsorted columns.

    • isToCallEvents
    • Type:object

    Code Sample


    				$(".selector").igTreeGridSorting("renderMultipleSortingDialogContent", true);

  • sortColumn
    Inherited

    .igTreeGridSorting( "sortColumn", index:object, direction:object );

    Sorts the data in a grid column and updates the UI.

    • index
    • Type:object
    • Column key (string) or index (number) - for multi-row grid only column key can be used. Specifies the column which we want to sort. If the mode is multiple, previous sorting states are not cleared.
    • direction
    • Type:object
    • Specifies sorting direction (ascending or descending).

    Code Sample


    				$(".selector").igTreeGridSorting("sortColumn", 1, "descending");

  • sortMultiple
    Inherited

    .igTreeGridSorting( "sortMultiple", [exprs:array] );

    Sorts the data in grid columns and updates the UI. It accepts optional argument - array of sorting expressions. If passed then sorts the data and sets sorting expressions of the data source. If not passed uses current sorting expressions of the data source.

    • exprs
    • Type:array
    • Optional
    • array of sorting expressions. If not set then the method uses expressions defined in sorting settings of the data source.

    Code Sample


    				$(".selector").igTreeGridSorting("sortMultiple");

  • unsortColumn
    Inherited

    .igTreeGridSorting( "unsortColumn", index:object );

    Removes sorting for the grid column with the specified columnKey/columnIndex and updates the UI.

    • index
    • Type:object
    • Column key (string) or index (number) - for multi-row grid only column key can be used. Specifies the column for which we want to remove sorting. If the mode is multiple, previous sorting states are not cleared.

    Code Sample


    				$(".selector").igTreeGridSorting("unsortColumn", "ProductName");

  • ui-iggrid-colasc ui-state-highlight

    Classes applied to a column's cells when it's sorted ascending.
  • ui-iggrid-colheaderasc

    Classes applied to a column header when it's sorted ascending.
  • ui-iggrid-coldesc ui-state-highlight

    Classes applied to a column's cells when it's sorted descending.
  • ui-iggrid-colheaderdesc

    Classes applied to a column header when it's sorted descending.
  • ui-iggrid-sorting-dialog-ascdescbutton

    Classes applied to ascending/descending button in multiple sorting dialog.
  • ui-button ui-corner-all ui-button-icon-only ig-sorting-indicator

    Classes applied to ascending button for sorted column in multiple sorting dialog.
  • ui-button-icon-primary ui-icon ui-icon-arrowthick-1-n

    Classes applied to ascending button icon for sorted column
    in multiple sorting dialog.
  • ui-button ui-corner-all ui-button-icon-only ig-sorting-indicator

    Classes applied to descending button icon for sorted column in multiple sorting dialog.
  • ui-button-icon-primary ui-icon ui-icon-arrowthick-1-s

    Classes applied to descending button icon for sorted column in multiple sorting dialog.
  • ui-state-hover

    Classes applied to hovered buttons - e.g. unsort button in multiple sorting dialog.
  • ui-iggrid-sorting-dialog-sortbybuttons ui-button ui-widget ui-state-default ui-corner-all ui-button-icon-only ui-igbutton ui-widget-content ui-igbutton-remove

    Classes applied to remove sorting button for sorted column in multiple sorting dialog.
  • ui-button-icon-primary ui-icon ui-icon-circle-close

    Classes applied to remove sorting button for sorted column in multiple sorting dialog.
  • ui-iggrid-dialog-text

    Classes applied to container which holds unsorted column name in multiple sorting dialog.
  • ui-iggrid-sorting-dialog-sortedcolumns

    Classes applied to container of sorted columns in multiple sorting dialog.
  • ui-widget-content

    Classes applied to list item for each sorted column in multiple sorting dialog.
  • ui-iggrid-dialog-text

    Classes applied to container which holds sorted column name in multiple sorting dialog.
  • ui-iggrid-sorting-dialog-unsortedcolumns

    Classes applied to container of unsorted columns in multiple sorting dialog.
  • ui-widget-content

    Classes applied to list item for each unsorted column in multiple sorting dialog.
  • ui-iggrid-sorting-dialog-unsortedcolumns-sortbybutton

    Classes applied to sort button for each colum in multiple sorting dialog.
  • ui-iggrid-featurechooser-li-iconcontainer ui-icon ui-iggrid-icon-sort-a-z

    Classes applied to the ascending sorting indicator in feature chooser.
  • ui-iggrid-featurechooser-li-iconcontainer ui-icon ui-iggrid-icon-sort-z-a

    Classes applied to the descending sorting indicator in feature chooser.
  • ui-icon ui-iggrid-icon-multiple-sorting

    Classes applied to the feature chooser icon to show multiple sorting dialog.
  • ui-iggrid-sorting-dialog-sortbybutton

    Classes applied to sort by button in multiple sorting dialog.
  • ui-iggrid-sortableheader ui-state-default

    Classes applied to a sortable column header.
  • ui-iggrid-sortableheaderactive ui-state-active

    Classes appied to a sortable header when it's active (navigated with keyboard / clicked).
  • ui-iggrid-sortableheaderfocus ui-state-focus

    Classes applied to the sortable column header when it has focus.
  • ui-iggrid-sortableheaderhover ui-state-hover

    Classes applied to a sortable column header when it is hovered.
  • ui-iggrid-colindicator

    Classes applied to the sorting indicator SPAN rendered inside the column header.
  • ui-iggrid-colindicator-asc ui-icon ui-icon-arrowthick-1-n

    Classes applied to the sorting indicator span when it's in ascending state.
  • ui-iggrid-colindicator-desc ui-icon ui-icon-arrowthick-1-s

    Classes applied to the sorting indicator span when it's in descending state.

Copyright © 1996 - 2019 Infragistics, Inc. All rights reserved.
