ui.igPivotGrid

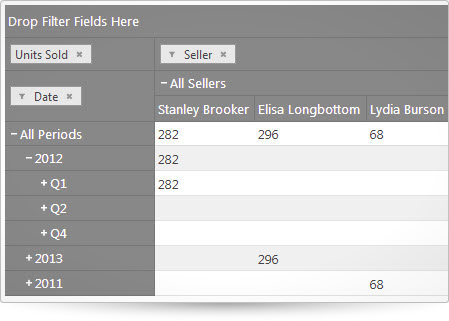

ui.igPivotGrid_image
The igPivotGrid control is a data presentation control for displaying data in a pivot table. It enables users to perform complex analysis on the supplied data. The igPivotGrid uses the Online Analytical Processing (OLAP) approach to present the results of multi-dimensional queries in an easy to comprehend manner. The igPivotGrid control uses an instance of either igOlapFlatDataSource™ or igOlapXmlaDataSource™ component as data source.

Code Sample


<!doctype html>
<html>
<head>
    <!-- Infragistics Combined CSS -->
    <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
    <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />
    <!-- jQuery Core -->
    <script src="js/jquery.js" type="text/javascript"></script>
    <!-- jQuery UI -->
    <script src="js/jquery-ui.js" type="text/javascript"></script>
    <!-- Infragistics Combined Scripts -->
    <script src="js/infragistics.core.js" type="text/javascript"></script>
    <script src="js/infragistics.lob.js" type="text/javascript"></script>
    <script type="text/javascript">
        var data =
                [{ "ProductCategory": "Clothing", "UnitPrice": 12.81, "SellerName": "Stanley Brooker", "Country": "Bulgaria", "City": "Plovdiv", "Date": "01/01/2012", "UnitsSold": 282 },
                { "ProductCategory": "Clothing", "UnitPrice": 49.57, "SellerName": "Elisa Longbottom", "Country": "US", "City": "New York", "Date": "01/05/2013", "UnitsSold": 296 },
                { "ProductCategory": "Bikes", "UnitPrice": 3.56, "SellerName": "Lydia Burson", "Country": "Uruguay", "City": "Ciudad de la Costa", "Date": "01/06/2011", "UnitsSold": 68 },
                { "ProductCategory": "Accessories", "UnitPrice": 85.58, "SellerName": "David Haley", "Country": "UK", "City": "London", "Date": "04/07/2012", "UnitsSold": 293 },
                { "ProductCategory": "Components", "UnitPrice": 18.13, "SellerName": "John Smith", "Country": "Japan", "City": "Yokohama", "Date": "12/08/2012", "UnitsSold": 240 },
                { "ProductCategory": "Clothing", "UnitPrice": 68.33, "SellerName": "Larry Lieb", "Country": "Uruguay", "City": "Ciudad de la Costa", "Date": "05/12/2011", "UnitsSold": 456 },
                { "ProductCategory": "Components", "UnitPrice": 16.05, "SellerName": "Walter Pang", "Country": "Bulgaria", "City": "Sofia", "Date": "02/19/2013", "UnitsSold": 492 }];

        $(function () {
            $('#pivotGrid').igPivotGrid({
                dataSourceOptions: {
                    flatDataOptions:
                        {
                            dataSource: data,
                            metadata: {
                                cube: {
                                    name: "Sales",
                                    caption: "Sales",
                                    measuresDimension: {
                                        caption: "Measures",
                                        measures: [ //for each measure, name and aggregator are required
                                            {
                                                caption: "Units Sold", name: "UnitsSold",
                                                // returns a function that will be used as sum aggregatro on the 'UnitsSold property' of the data objects
                                                aggregator: $.ig.OlapUtilities.prototype.sumAggregator('UnitsSold')
                                            }]
                                    },
                                    dimensions: [ // for each dimension name and hierarchies are required
                                        {
                                            caption: "Seller", name: "Seller", hierarchies: [{
                                                caption: "Seller", name: "Seller", levels: [
                                                    {
                                                        name: "AllSellers", caption: "All Sellers",
                                                        memberProvider: function (item) { return "All Sellers"; }
                                                    },
                                                    {
                                                        name: "SellerName", caption: "Seller",
                                                        memberProvider: function (item) { return item.SellerName; }
                                                    }]
                                            }]
                                        },
                                        {
                                            caption: "Date", name: "Date", /*displayFolder: "Folder1\\Folder2",*/ hierarchies: [
                                                $.ig.OlapUtilities.prototype.getDateHierarchy(
                                                    "Date", // the source property name
                                                    ["year", "quarter", "month", "date"], // the date parts for which levels will be generated (optional)
                                                    "Dates", // The name for the hierarchy (optional)
                                                    "Date", // The caption for the hierarchy (optional)
                                                    ["Year", "Quarter", "Month", "Day"], // the captions for the levels (optional)
                                                    "All Periods") // the root level caption (optional)
                                            ]
                                        }
                                    ]
                                }
                            }
                        },
                    // Preload hiearhies for the rows, columns, filters and measures
                    rows: "[Date].[Dates]",
                    columns: "[Seller].[Seller]",
                    measures: "[Measures].[UnitsSold]"
                }
            });
        });
    </script>
</head>
<body>
    <div id="pivotGrid"></div>
</body>
</html>


Related Samples

Related Topics

Dependencies

jquery-1.9.1.js
jquery.ui.core.js
jquery.ui.widget.js
jquery.ui.mouse.js
jquery.ui.draggable.js
jquery.ui.droppable.js
infragistics.util.js
infragistics.util.jquery.js
infragistics.datasource.js
infragistics.olapxmladatasource.js
infragistics.olapflatdatasource.js
infragistics.ui.widget.js
infragistics.ui.shared.js
infragistics.ui.scroll.js
infragistics.ui.tree.js
infragistics.ui.grid.framework.js
infragistics.ui.grid.multicolumnheaders.js
infragistics.ui.pivot.shared.js

Inherits

  • allowHeaderColumnsSorting

    Type:
    bool
    Default:
    false

    Enables sorting of the header cells in columns.

    Code Sample


    			//Initialize
    			$(".selector").igPivotGrid({
    				allowHeaderColumnsSorting : true
    			});

    			//Get
    			var allowHeaderColumnsSorting = $(".selector").igPivotGrid("option", "allowHeaderColumnsSorting");

    			//Set
    			$(".selector").igPivotGrid("option", "allowHeaderColumnsSorting", true);

  • allowHeaderRowsSorting

    Type:
    bool
    Default:
    false

    Enables sorting of the header cells in rows.

    Code Sample


    			//Initialize
    			$(".selector").igPivotGrid({
    				allowHeaderRowsSorting : true
    			});

    			//Get
    			var allowHeaderRowsSorting = $(".selector").igPivotGrid("option", "allowHeaderRowsSorting");

    			//Set
    			$(".selector").igPivotGrid("option", "allowHeaderRowsSorting", true);

  • allowSorting

    Type:
    bool
    Default:
    false

    Enables sorting of the value cells in columns.

    Code Sample


    			//Initialize
    			$(".selector").igPivotGrid({
    				allowSorting : true
    			});

    			//Get
    			var allowSorting = $(".selector").igPivotGrid("option", "allowSorting");

    			//Set
    			$(".selector").igPivotGrid("option", "allowSorting", true);

  • compactColumnHeaderIndentation

    Type:
    number
    Default:
    30

    The indentation for every level column when the compactColumnHeaders is set to true.

    Code Sample


    			//Initialize
    			$(".selector").igPivotGrid({
    				compactColumnHeaderIndentation : 20
    			});

    			//Get
    			var indentation = $(".selector").igPivotGrid("option", "compactColumnHeaderIndentation");

    			//Set
    			$(".selector").igPivotGrid("option", "compactColumnHeaderIndentation", 20);

  • compactColumnHeaders

    Type:
    bool
    Default:
    false

    A boolean value indicating whether the column headers should be arranged for compact header layout i.e. each hierarchy is in a single row.

    Code Sample


    			//Initialize
    			$(".selector").igPivotGrid({
    				compactColumnHeaders : true
    			});

    			//Get
    			var compactColumnHeaders = $(".selector").igPivotGrid("option", "compactColumnHeaders");

    			//Set
    			$(".selector").igPivotGrid("option", "compactColumnHeaders", true);

  • compactRowHeaderIndentation

    Type:
    number
    Default:
    20

    The indentation for every level row when the rowHeadersLayout is set to 'superCompact'.

    Code Sample


    			//Initialize
    			$(".selector").igPivotGrid({
    				compactRowHeaderIndentation : 20
    			});

    			//Get
    			var indentation = $(".selector").igPivotGrid("option", "compactRowHeaderIndentation");

    			//Set
    			$(".selector").igPivotGrid("option", "compactRowHeaderIndentation", 20);

  • compactRowHeaders

    Type:
    bool
    Default:
    true

    A boolean value indicating whether the row headers should be arranged for compact header layout i.e. each hierarchy is in a single column.

    Code Sample


    			//Initialize
    			$(".selector").igPivotGrid({
    				compactRowHeaders : true
    			});

    			//Get
    			var compactRowHeaders = $(".selector").igPivotGrid("option", "compactRowHeaders");

    			//Set
    			$(".selector").igPivotGrid("option", "compactRowHeaders", true);

  • customMoveValidation

    Type:
    function
    Default:
    null

    A function that will be called to determine if an item can be moved in or dropped on an area of the pivot grid.

    paramType="string" The location where the item will be moved - igPivotGrid, igPivotDataSelector, filters, rows, columns or measures.
    paramType="string" The type of the item - Hierarchy, Measure or MeasureList.
    paramType="string" The unique name of the item.
    returnType="bool" The function must return true if the item should be accepted.

    Code Sample


    			//Initialize
    			$(".selector").igPivotGrid({
    				customMoveValidation : function(location, itemType, uniqueName) {
    					// disable moving of any element to the columns
    					if (location == 'columns') {
    						return false;
    					}
    					// if the current item is a hierarchy containing the word "Seller" in its uniqueName, disable the move
    					if (itemType == 'Hierarchy'
    						&& uniqueName.indexOf("Seller") !== -1) {
    						return false;
    					}

    					// in all other cases allow the move
    					return true;
    				}
    			});

    			//Get
    			var customValidation = $(".selector").igPivotGrid("option", "customMoveValidation");

    			//Set
    			$(".selector").igPivotGrid("option", "customMoveValidation", validationFunc);

  • dataSource

    Type:
    object
    Default:
    null

    An instance of $.ig.OlapXmlaDataSource or $.ig.OlapFlatDataSource.

    Code Sample


    			//Initialize
    			$(".selector").igPivotGrid({
    				dataSource : ds
    			});

    			//Get
    			var dataSource = $(".selector").igPivotGrid("option", "dataSource");

    			//Set
    			$(".selector").igPivotGrid("option", "dataSource", ds);

  • dataSourceOptions

    Type:
    object
    Default:
    {}

    An object that will be used to create an instance of $.ig.OlapXmlaDataSource or $.ig.OlapFlatDataSource.
    The provided value must contain an object with settings for one of the data source types - xmlaOptions or flatDataOptions.

    Code Sample


    			$("#pivotGrid").igPivotGrid({
    				dataSourceOptions: {
    					flatDataOptions:
    						{
    							dataSource:
    							[{ "ProductCategory": "Clothing", "UnitPrice": 12.81, "SellerName": "Stanley Brooker", "Country": "Bulgaria", "City": "Plovdiv", "Date": "01/01/2012", "UnitsSold": 282 },
    							{ "ProductCategory": "Clothing", "UnitPrice": 49.57, "SellerName": "Elisa Longbottom", "Country": "US", "City": "New York", "Date": "01/05/2013", "UnitsSold": 296 },
    							{ "ProductCategory": "Bikes", "UnitPrice": 3.56, "SellerName": "Lydia Burson", "Country": "Uruguay", "City": "Ciudad de la Costa", "Date": "01/06/2011", "UnitsSold": 68 },
    							{ "ProductCategory": "Accessories", "UnitPrice": 85.58, "SellerName": "David Haley", "Country": "UK", "City": "London", "Date": "04/07/2012", "UnitsSold": 293 },
    							{ "ProductCategory": "Components", "UnitPrice": 18.13, "SellerName": "John Smith", "Country": "Japan", "City": "Yokohama", "Date": "12/08/2012", "UnitsSold": 240 },
    							{ "ProductCategory": "Clothing", "UnitPrice": 68.33, "SellerName": "Larry Lieb", "Country": "Uruguay", "City": "Ciudad de la Costa", "Date": "05/12/2011", "UnitsSold": 456 },
    							{ "ProductCategory": "Components", "UnitPrice": 16.05, "SellerName": "Walter Pang", "Country": "Bulgaria", "City": "Sofia", "Date": "02/19/2013", "UnitsSold": 492 }],
    							metadata: {
    								cube: {
    									name: "Sales",
    									caption: "Sales",
    									measuresDimension: {
    										caption: "Measures",
    										measures: [ //for each measure, name and aggregator are required
    											{ caption: "UnitsSold", name: "UnitsSold", aggregator: $.ig.OlapUtilities.prototype.sumAggregator('UnitsSold') }]
    									},
    									dimensions: [ // for each dimension name and hierarchies are required
    										{
    											caption: "Seller", name: "Seller", hierarchies: [{
    												caption: "Seller", name: "Seller", levels: [
    													{
    														name: "AllSellers", caption: "All Sellers",
    														memberProvider: function (item) { return "All Sellers"; }
    													},
    													{
    														name: "SellerName", caption: "Seller",
    														memberProvider: function (item) { return item.SellerName; }
    													}]
    											}]
    										},
    										{
    											caption: "Date", name: "Date", hierarchies: [
    												$.ig.OlapUtilities.prototype.getDateHierarchy(
    													"Date", // the source property name
    													["year", "quarter", "month", "date"], // the date parts for which levels will be generated (optional)
    													"Dates", // The name for the hierarchy (optional)
    													"Date", // The caption for the hierarchy (optional)
    													["Year", "Quarter", "Month", "Day"], // the captions for the levels (optional)
    													"AllPeriods") // the root level caption (optional)
    											]
    										}
    									]
    								}
    							}
    						},
    					// Preload hiearhies for the rows, columns, filters and measures
    					rows: "[Date].[Dates]",
    					columns: "[Seller].[Seller]",
    					measures: "[Measures].[UnitsSold]"
    				}
    			});

    			//Get
    			$(".selector").igPivotGrid("option", "dataSourceOptions");

    			//Set
    			$(".selector").igPivotGrid("option", "dataSourceOptions", dataOptions);

    • columns

      Type:
      string
      Default:
      null

      A list of hierarchy names separated by comma (,). These will be the hierarchies in the columns of the data source.

    • filters

      Type:
      string
      Default:
      null

      A list of hierarchy names separated by comma (,). These will be hierarchies in the filters of the data source.

    • flatDataOptions

      Type:
      object
      Default:
      {}

      Settings for creating an instance of $.ig.OlapFlatDataSource.

      • dataSource

        Type:
        object
        Default:
        null

        Specifies any valid data source accepted by $.ig.DataSource, or an instance of an $.ig.DataSource itself.

      • dataSourceType

        Type:
        string
        Default:
        null

        Explicitly set data source type (such as "json"). Please refer to the documentation of $.ig.DataSource and its type property.

      • dataSourceUrl

        Type:
        string
        Default:
        null

        Specifies a remote URL accepted by $.ig.DataSource in order to request data from it.

      • metadata

        Type:
        object
        Default:
        {}

        Optional="false" An object containing processing instructions for the $.ig.DataSource data.

        • cube

          Type:
          object
          Default:
          {}

          Optional="false" Metadata used for the creation of the cube.

          • caption

            Type:
            string
            Default:
            null

            A caption for the cube.

          • dimensions

            Type:
            array
            Default:
            []
            Elements Type:
            object

            An array of dimension metadata objects.

            • caption

              Type:
              string
              Default:
              null

              A caption for the dimension.

            • hierarchies

              Type:
              array
              Default:
              []
              Elements Type:
              object

              An array of hierarchy metadata objects.

              • caption

                Type:
                string
                Default:
                null

                A caption for the hierarchy.

              • displayFolder

                Type:
                string
                Default:
                null

                The path to be used when displaying the hierarchy in the user interface.
                Nested folders are indicated by a backslash (\).
                The folder hierarchy will appear under parent dimension node.

              • levels

                Type:
                array
                Default:
                []
                Elements Type:
                object

                An array of level metadata objects.

                • caption

                  Type:
                  string
                  Default:
                  null

                  A caption for the level.

                • memberProvider

                  Type:
                  function
                  Default:
                  null

                  A function called for each item of the data source array when level members are created.
                  Based on the item parameter the function should return a value that will form the $.ig.Member's name and caption.

                • name

                  Type:
                  string
                  Default:
                  null

                  Optional="false" A name for the level.
                  The unique name of the level is formed using the following pattern:
                  {<hierarchy.uniqueName>}.[<levelMetadata.name>].

              • name

                Type:
                string
                Default:
                null

                Optional="false" A name for the hierarchy.
                The unique name of the hierarchy is formed using the following pattern:
                [<parentDimension.name>].[<hierarchyMetadata.name>].

            • name

              Type:
              string
              Default:
              null

              Optional="false" A unique name for the dimension.

          • measuresDimension

            Type:
            object
            Default:
            {}

            An object providing information about the measures' root node.

            • caption

              Type:
              string
              Default:
              null

              A caption for the measures dimension.
              The default value is "Measures".

            • measures

              Type:
              array
              Default:
              []
              Elements Type:
              object

              An array of measure metadata objects.

              • aggregator

                Type:
                function
                Default:
                null

                Optional="false" An aggregator function called when each cell is evaluated.
                Returns a value for the cell. If the returned value is null, no cell will be created in for the data source result.

              • caption

                Type:
                string
                Default:
                null

                A caption for the measure.

              • displayFolder

                Type:
                string
                Default:
                null

                The path used when displaying the measure in the user interface. Nested folders are indicated by a backslash (\).

              • name

                Type:
                string
                Default:
                null

                Optional="false" A unique name for the measure.

            • name

              Type:
              string
              Default:
              null

              A unique name for the measures dimension.
              The default value is "Measures". This name is used to create the names of dimensions using the following pattern:
              [<measuresDimensionMetadata.name>].[<measureMetadata.name>].

          • name

            Type:
            string
            Default:
            null

            Optional="false" A unique name for the cube.

      • responseDataKey

        Type:
        string
        Default:
        null

        See $.ig.DataSource.
        string Specifies the name of the property in which data records are held if the response is wrapped.
        null Option is ignored.

      • responseDataType

        Type:
        string
        Default:
        null

        String Explicitly set data source type (such as "json"). Please refer to the documentation of $.ig.DataSource and its type property.
        null Option is ignored.

    • measures

      Type:
      string
      Default:
      null

      A list of measure names separated by comma (,). These will be the measures of the data source.

    • rows

      Type:
      string
      Default:
      null

      A list of hierarchy names separated by comma (,). These will be the hierarchies in the rows of the data source.

    • xmlaOptions

      Type:
      object
      Default:
      {}

      Settings for creating an instance of $.ig.OlapXmlaDataSource.

      • catalog

        Type:
        string
        Default:
        null

        The catalog name.

      • cube

        Type:
        string
        Default:
        null

        The name of the cube in the data source.

      • discoverProperties

        Type:
        object
        Default:
        null

        Additional properties sent with every discover request.
        The object is treated as a key/value store where each property name is used as the key and the property value as the value.

      • enableResultCache

        Type:
        bool
        Default:
        true

        Enables/disables caching of the XMLA result object.

      • executeProperties

        Type:
        object
        Default:
        null

        Additional properties sent with every execute request.
        The object is treated as a key/value store where each property name is used as the key and the property value as the value.

      • mdxSettings

        Type:
        object
        Default:
        {}

        Optional="true" a javascript object containing information about how the request to the xmla server should be processed.

        • addCalculatedMembersOnColumns

          Type:
          bool
          Default:
          true

          Optional="true" a value indicating whether a members' set expressions on COLUMNS axis should be wrapped with AddCalculatedMembers MDX method. Default value is true.

        • addCalculatedMembersOnRows

          Type:
          bool
          Default:
          true

          Optional="true" a value indicating whether a members' set expressions on ROWS axis should be wrapped with AddCalculatedMembers MDX method. Default value is true.

        • dimensionPropertiesOnColumns

          Type:
          array
          Default:
          []
          Elements Type:
          object

          Optional="true" a string array with the names of intrinsic non-context sensitive member properties applied on COLUMNS axis. By defult CHILDREN_CARDINALITY and PARENT_UNIQUE_NAME properties are always added to DIMENSION PROPERTIES.

        • dimensionPropertiesOnRows

          Type:
          array
          Default:
          []
          Elements Type:
          object

          Optional="true" a string array with the names of intrinsic non-context sensitive member properties applied on ROWS axis. By defult CHILDREN_CARDINALITY and PARENT_UNIQUE_NAME properties are always added to DIMENSION PROPERTIES.

        • nonEmptyOnColumns

          Type:
          bool
          Default:
          true

          Optional="true" a value indicating whether a NON EMPTY clause is present on COLUMNS axis. Default value is true.

        • nonEmptyOnRows

          Type:
          bool
          Default:
          true

          Optional="true" a value indicating whether a NON EMPTY clause is present on ROWS axis. Default value is true.

      • measureGroup

        Type:
        string
        Default:
        null

        The name of the measure group in the data source.

      • requestOptions

        Type:
        object
        Default:
        {}

        An object containing information about how the request to the XMLA server should be processed.

        • beforeSend

          Type:
          function
          Default:
          null

          A callback to be invoked right before the request is send to the server. Extends beforeSend callback of jQuery.ajax's options object.

        • withCredentials

          Type:
          bool
          Default:
          false

          The value is applied to XmlHttpRequest.withCredentials if supported by the user agent.
          Setting this property to true will allow IE8/IE9 to make authenticated cross-origin requests to tusted domains through XmlHttpRequest instead of XDomainRequest
          and will prompt the user for credentials.

      • serverUrl

        Type:
        string
        Default:
        null

        Optional="false" The URL of the XMLA server.

  • defaultLevelSortBehavior

    Type:
    enumeration
    Default:
    alphabetical

    Specifies the default sort behavior for the levels if no sort behavior is specified in an item from the levelSortDirections option.

    Members

    • system
    • Type:string
    • Sorts the headers by a specified sort key.
    • alphabetical
    • Type:string
    • Sorts alphabetically the header captions.
  • defaultRowHeaderWidth

    Type:
    number
    Default:
    200

    Specifies the width of the row headers.

    Code Sample


    			//Initialize
    			$(".selector").igPivotGrid({
    				defaultRowHeaderWidth : 180
    			});

    			//Get
    			var defaultRowHeaderWidth = $(".selector").igPivotGrid("option", "defaultRowHeaderWidth");

    			//Set
    			$(".selector").igPivotGrid("option", "defaultRowHeaderWidth", 180);

  • deferUpdate

    Type:
    bool
    Default:
    false

    Setting deferUpdate to true will not apply changes to the data source until the updateGrid method is called.

    Code Sample


    			//Initialize
    			$(".selector").igPivotGrid({
    				deferUpdate : true
    			});

    			//Get
    			var deferUpdate = $(".selector").igPivotGrid("option", "deferUpdate");

    			//Set
    			$(".selector").igPivotGrid("option", "deferUpdate", true);

  • disableColumnsDropArea

    Type:
    bool
    Default:
    false

    Disable the drag and drop for the columns drop area and the ability to use filtering and remove items from it.

    Code Sample


    			//Initialize
    			$('.selector').igPivotGrid({
    				disableColumnsDropArea : true
    			});

    			//Get
    			var disableColumnsDropArea = $(".selector").igPivotGrid("option", "disableColumnsDropArea");

    			//Set
    			$(".selector").igPivotGrid("option", "disableColumnsDropArea", true);

  • disableFiltersDropArea

    Type:
    bool
    Default:
    false

    Disable the drag and drop for the filters drop area and the ability to use filtering and remove items from it.

    Code Sample


    			//Initialize
    			$('.selector').igPivotGrid({
    				disableFiltersDropArea : true
    			});

    			//Get
    			var disableFiltersDropArea = $(".selector").igPivotGrid("option", "disableFiltersDropArea");

    			//Set
    			$(".selector").igPivotGrid("option", "disableFiltersDropArea", true);

  • disableMeasuresDropArea

    Type:
    bool
    Default:
    false

    Disable the drag and drop for the measures drop area and the ability to use filtering and remove items from it.

    Code Sample


    			//Initialize
    			$('.selector').igPivotGrid({
    				disableMeasuresDropArea : true
    			});

    			//Get
    			var disableMeasuresDropArea = $(".selector").igPivotGrid("option", "disableMeasuresDropArea");

    			//Set
    			$(".selector").igPivotGrid("option", "disableMeasuresDropArea", true);

  • disableRowsDropArea

    Type:
    bool
    Default:
    false

    Disable the drag and drop for the rows drop area and the ability to use filtering and remove items from it.

    Code Sample


    			//Initialize
    			$('.selector').igPivotGrid({
    				disableRowsDropArea : true
    			});

    			//Get
    			var disableRowsDropArea = $(".selector").igPivotGrid("option", "disableRowsDropArea");

    			//Set
    			$(".selector").igPivotGrid("option", "disableRowsDropArea", true);

  • dragAndDropSettings

    Type:
    object
    Default:
    {}

    Settings for the drag and drop functionality of the igPivotGrid.

    Code Sample


    			//Initialize
    			$(".selector").igPivotGrid({
    				dragAndDropSettings : {
    					appendTo : $("element"),
    					containment : true,
    					zIndex : 10
    				}
    			});

    			//Get
    			var dragAndDropSettings = $(".selector").igPivotGrid("option", "dragAndDropSettings");

    			//Set
    			$(".selector").igPivotGrid("option", "dragAndDropSettings", settings);

    • appendTo

      Type:
      enumeration
      Default:
      body

      Which element the draggable helper should be appended to while dragging.

    • containment

      Type:
      enumeration
      Default:
      false

      Specifies the containment for the drag helper. The area inside of which the helper is contained would be scrollable while dragging.

    • zIndex

      Type:
      number
      Default:
      10

      Specifies z-index that would be set for the drag helper.

  • dropDownParent

    Type:
    enumeration
    Default:
    body

    Specifies the parent for the drop downs.

  • firstLevelSortDirection

    Type:
    enumeration
    Default:
    ascending

    Specifies the default sort direction for the levels if no sort direction is specified in an item from the levelSortDirections option.

    Code Sample


    			//Initialize
    			$('.selector').igPivotGrid({
    				firstLevelSortDirection : "descending"
    			});
    			//Get
    			var firstLevelSortDirection = $(".selector").igPivotGrid("option", "firstLevelSortDirection");
    			//Set
    			$(".selector").igPivotGrid("option", "firstLevelSortDirection", "descending");

  • firstSortDirection

    Type:
    enumeration
    Default:
    ascending

    Specifies the default sort direction for the rows.

    Code Sample


    			//Initialize
    			$('.selector').igPivotGrid({
    				firstSortDirection : "descending"
    			});
    			//Get
    			var firstSortDirection = $(".selector").igPivotGrid("option", "firstSortDirection");
    			//Set
    			$(".selector").igPivotGrid("option", "firstSortDirection", "descending");

  • gridOptions

    Type:
    object
    Default:
    {}

    Options specific to the igGrid that will render the pivot grid view.

    Code Sample


    			//Initialize
    			$(".selector").igPivotGrid({
    				gridOptions : {
    					alternateRowStyles: true,
    					caption: "My pivot grid",
    					defaultColumnWidth: 150,
    					enableHoverStyles: true
    				}
    			});

    			//Get
    			var gridOptions = $(".selector").igPivotGrid("option", "gridOptions");

    			//Set
    			$(".selector").igPivotGrid("option", "gridOptions", options );

    • alternateRowStyles

      Type:
      bool
      Default:
      true

      Enables/disables rendering of alternating row styles (odd and even rows receive different styling). Note that if a custom jQuery template is set, this has no effect and CSS for the row should be adjusted manually in the template contents.

    • caption

      Type:
      string
      Default:
      null

      Caption text that will be shown above the pivot grid header.

    • defaultColumnWidth

      Type:
      enumeration
      Default:
      null

      Default column width that will be set for all columns.

      Members

        • string
        • The default column width can be set in pixels (px).
        • number
        • The default column width can be set as a number.
    • enableHoverStyles

      Type:
      bool
      Default:
      false

      Enables/disables rendering of ui-state-hover classes when the mouse is over a record. This can be useful in templating scenarios, for example, where we don't want to apply hover styling to templated content.

    • features

      Type:
      object
      Default:
      []

      A list of grid features definitions. The supported features are Resizing and Tooltips. Each feature goes with its separate options that are documented for the feature accordingly.

      Code Sample


      				//Initialize
      				$(".selector").igPivotGrid({
      					gridOptions : {
      						alternateRowStyles: true,
      						caption: "My pivot grid",
      						defaultColumnWidth: 150,
      						enableHoverStyles: true,
      						features: [
      							{
      							name: "Tooltips",
      							visibility: "always"
      							},
      							{
      							name: "Resizing",
      							deferredResizing: false,
      							allowDoubleClickToResize: true
      							}
      						]
      					}
      				});

    • fixedHeaders

      Type:
      bool
      Default:
      true

      Headers will be fixed if this option is set to true, and only the grid data will be scrollable.

      Code Sample


      				//Initialize
      				$('.selector').igPivotGrid({
      					fixedHeaders : true
      				});

      				//Get
      				var fixedHeaders = $(".selector").igPivotGrid("option", "fixedHeaders");

      				//Set
      				$(".selector").igPivotGrid("option", "fixedHeaders", true);

    • tabIndex

      Type:
      number
      Default:
      0

      Initial tabIndex attribute that will be set on the container element.

      Code Sample


      				//Initialize
      				$('.selector').igPivotGrid({
      					tabIndex : 1
      				});

      				//Get
      				var tabIndex = $(".selector").igPivotGrid("option", "tabIndex");

      				//Set
      				$(".selector").igPivotGrid("option", "tabIndex", 1);

  • height

    Type:
    enumeration
    Default:
    null

    This is the total height of the grid.

    Members

    • null
    • Type:object
    • Will stretch vertically to fit data, if no other heights are defined.
    • string
    • The widget height can be set in pixels (px) and percentage (%).
    • number
    • The widget height can be set as a number.

    Code Sample


    			//Initialize
    			$('.selector').igPivotGrid({
    				height : "600px"
    	  		});
    			//Get
    			$(".selector").igPivotGrid("option", "height");
    			//Set
    			$(".selector").igPivotGrid("option", "height", "600px");

  • hideColumnsDropArea

    Type:
    bool
    Default:
    false

    Hide the columns drop area.

    Code Sample


    			//Initialize
    			$('.selector').igPivotGrid({
    				hideColumnsDropArea : true
    			});

    			//Get
    			var hideColumnsDropArea = $(".selector").igPivotGrid("option", "hideColumnsDropArea");

    			//Set
    			$(".selector").igPivotGrid("option", "hideColumnsDropArea", true);

  • hideFiltersDropArea

    Type:
    bool
    Default:
    false

    Hide the filters drop area.

    Code Sample


    			//Initialize
    			$('.selector').igPivotGrid({
    				hideFiltersDropArea : true
    			});

    			//Get
    			var hideFiltersDropArea = $(".selector").igPivotGrid("option", "hideFiltersDropArea");

    			//Set
    			$(".selector").igPivotGrid("option", "hideFiltersDropArea", true);

  • hideMeasuresDropArea

    Type:
    bool
    Default:
    false

    Hide the measures drop area.

    Code Sample


    			//Initialize
    			$('.selector').igPivotGrid({
    				hideMeasuresDropArea : true
    			});

    			//Get
    			var hideMeasuresDropArea = $(".selector").igPivotGrid("option", "hideMeasuresDropArea");

    			//Set
    			$(".selector").igPivotGrid("option", "hideMeasuresDropArea", true);

  • hideRowsDropArea

    Type:
    bool
    Default:
    false

    Hide the rows drop area.

    Code Sample


    			//Initialize
    			$('.selector').igPivotGrid({
    				hideRowsDropArea : true
    			});

    			//Get
    			var hideRowsDropArea = $(".selector").igPivotGrid("option", "hideRowsDropArea");

    			//Set
    			$(".selector").igPivotGrid("option", "hideRowsDropArea", true);

  • isParentInFrontForColumns

    Type:
    bool
    Default:
    false

    A boolean value indicating whether a parent in the columns is in front of its children.
    If set to true, the query set sorts members in a level in their natural order - child members immediately follow their parent members.
    If set to false the query set sorts the members in a level using a post-natural order. In other words, child members precede their parents.

    Code Sample


    			//Initialize
    			$('.selector').igPivotGrid({
    				isParentInFrontForColumns : true
    			});

    			//Get
    			var isParentInFrontForColumns = $(".selector").igPivotGrid("option", "isParentInFrontForColumns");

    			//Set
    			$(".selector").igPivotGrid("option", "isParentInFrontForColumns", true);

  • isParentInFrontForRows

    Type:
    bool
    Default:
    true

    A boolean value indicating whether a parent in the rows is in front of its children.
    If set to true, the query set sorts members in a level in their natural order - child members immediately follow their parent members.
    If set to false the query set sorts the members in a level using a post-natural order. In other words, child members precede their parents.

    Code Sample


    			//Initialize
    			$('.selector').igPivotGrid({
    				isParentInFrontForRows : true
    			});

    			//Get
    			var isParentInFrontForRows = $(".selector").igPivotGrid("option", "isParentInFrontForRows");

    			//Set
    			$(".selector").igPivotGrid("option", "isParentInFrontForRows", true);

  • language
    Inherited

    Type:
    string
    Default:
    "en"

    Set/Get the locale language setting for the widget.

    Code Sample


    					//Initialize
    				$(".selector").igPivotGrid({
    					language: "ja"
    				});

    				// Get
    				var language = $(".selector").igPivotGrid("option", "language");

    				// Set
    				$(".selector").igPivotGrid("option", "language", "ja");

  • levelSortDirections

    Type:
    array
    Default:
    []
    Elements Type:
    object

    An array of level sort direction items, which predefine the sorted header cells.

    Code Sample


    			//Initialize
    			$('.selector').igPivotGrid({
    				levelSortDirections : [
    						{ levelUniqueName: "[Date].[Dates].[year]", sortDirection: "descending" },
    						{ levelUniqueName: "[Product].[Product].[ProductCategory]" }
    					]
    			});

    			//Get
    			var levelSortDirections = $(".selector").igPivotGrid("option", "levelSortDirections");

    			//Set
    			$(".selector").igPivotGrid("option", "levelSortDirections", array);

    • levelUniqueName

      Type:
      string
      Default:
      null

      Specifies the unique name of the level, which will be sorted.

    • sortBehavior

      Type:
      enumeration
      Default:
      null

      optional="true" Specifies what type of sorting will be applied to the header cells. If no behavior is specified, the level is going to be sorted with the behavior specified in the defaultLevelSortBehavior option.

      Members

      • system
      • Type:string
      • Sorts the headers by a specified sort key.
      • alphabetical
      • Type:string
      • Sorts alphabetically the header captions.
    • sortDirection

      Type:
      enumeration
      Default:
      null

      optional="true" Specifies the sort direction. If no direction is specified, the level is going to be sorted in the direction specified by the firstLevelSortDirection option.

  • locale
    Inherited

    Type:
    object
    Default:
    null

    Set/Get the locale setting for the widget.

    Code Sample


    					//Initialize
    				$(".selector").igPivotGrid({
    					locale: {}
    				});

    				// Get
    				var locale = $(".selector").igPivotGrid("option", "locale");

    				// Set
    				$(".selector").igPivotGrid("option", "locale", {});

  • regional
    Inherited

    Type:
    enumeration
    Default:
    defaults

    Set/Get the regional setting for the widget.

    Code Sample


    				//Initialize
    				$(".selector").igPivotGrid({
    					regional: "ja"
    				});
    				// Get
    				var regional = $(".selector").igPivotGrid("option", "regional");
    				// Set
    				$(".selector").igPivotGrid("option", "regional", "ja");

  • rowHeaderLinkGroupIndentation

    Type:
    number
    Default:
    5

    Use it when you set rowHeadersLayout to "tree". This property will set a margin between the level's caption and the next level's (underlined text) caption.

  • rowHeadersLayout

    Type:
    enumeration
    Default:
    null

    A value indicating whether the layout that row headers should be arranged. standard Each hierarchy in the rows is displayed in a separate column. The child members of a member in the rows are displayed on its right.
    superCompact Each hierarchy in the rows is displayed in a separate column. The child members of a member in the rows are displayed on above or below it (Depending on the isParentInFrontForRows setting).
    tree All hierarchies in the rows are displayed in a tree-like structure in a single column (The column's width is dependent on the defaultRowHEaderWidth, which can be set to "null" to enable the built-in auto-sizing functionality).

    Members

    • standard
    • Type:object
    • superCompact
    • Type:object
    • tree
    • Type:object
  • treeRowHeaderIndentation

    Type:
    number
    Default:
    10

    The indentation for the neighboring hierarchy's level row when the rowHeaderLayout is set to 'tree'.

  • width

    Type:
    enumeration
    Default:
    null

    .

    Members

    • null
    • Type:object
    • Will stretch to fit the data, if no other widths are defined.
    • string
    • The widget width can be set in pixels (px) and percentage (%).
    • number
    • The widget width can be set as a number.

    Code Sample


    			//Initialize
    			$('.selector').igPivotGrid({
    				width : "300px"
    			});
    			//Get
    			$(".selector").igPivotGrid("option", "width");
    			//Set
    			$(".selector").igPivotGrid("option", "width", "300px");


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • dataSourceInitialized

    Cancellable:
    false

    Fired after the data source has initialized.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the pivot grid.

        • dataSource
          Type: Object

          Gets a reference to the data source.

        • error
          Type: String

          See if an error has occured during initialization.

        • metadataTreeRoot
          Type: Object

          Gets a reference to the root of the data source metatadata root item.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotdataselectordatasourceinitialized", ".selector", function (evt, ui) {
    				//return reference to the data source
    				ui.dataSource;
    				//return a bool idicating whether an error has occured during initialization
    				ui.error;
    				//return a reference to the root of the data source metatadata root item
    				ui.metadataTreeRoot;
    				//return reference to igPivotDataSelector
    				ui.owner;
    				});

    				//Initialize
    				$(".selector").igPivotDataSelector({
    				dataSourceInitialized: function(evt, ui) {...}
    				});

  • dataSourceUpdated

    Cancellable:
    false

    Fired after the data source has updated.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the pivot grid.

        • dataSource
          Type: Object

          Gets a reference to the data source.

        • error
          Type: String

          See if an error has occured during update.

        • result
          Type: Object

          Gets the result of the update operation.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotdataselectordatasourceupdated", ".selector", function (evt, ui) {
    				//return reference to the data source
    				ui.dataSource;
    				//return a bool idicating whether an error has occured during initialization
    				ui.error;
    				//return a reference to result of the update operation
    				ui.result;
    				//return reference to igPivotDataSelector
    				ui.owner;
    				});

    				//Initialize
    				$(".selector").igPivotDataSelector({
    				dataSourceUpdated: function(evt, ui) {...}
    				});

  • drag

    Cancellable:
    true

    Fired on drag. Return false to cancel the drag.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • metadata
          Type: Object

          Gets a reference to the data.

        • helper
          Type: jQuery

          Gets a reference to the helper.

        • offset
          Type: Object

          Gets a reference to the offset.

        • originalPosition
          Type: Object

          Gets a reference to the original position of the draggable element.

        • position
          Type: Object

          Gets a reference to the current position of the draggable element.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgriddrag", ".selector", function (evt, ui) {
    				//return a reference to the helper
    				ui.helper;
    				//return a reference to the offset
    				ui.offset;
    				//return a reference to the original position of the draggable element
    				ui.originalPosition;
    				//return a reference to the current position of the draggable element
    				ui.position;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				drag: function(evt, ui) {...}
    				});

  • dragStart

    Cancellable:
    true

    Fired on drag start. Return false to cancel the dragging.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • metadata
          Type: Object

          Gets a reference to the data.

        • helper
          Type: jQuery

          Gets a reference to the helper.

        • offset
          Type: Object

          Gets a reference to the offset.

        • originalPosition
          Type: Object

          Gets a reference to the original position of the draggable element.

        • position
          Type: Object

          Gets a reference to the current position of the draggable element.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgriddragstart", ".selector", function (evt, ui) {
    				//return a reference to the data
    				ui.metadata;
    				//return a reference to the helper
    				ui.helper;
    				//return a reference to the offset
    				ui.offset;
    				//return a reference to the original position of the draggable element
    				ui.originalPosition;
    				//return a reference to the current position of the draggable element
    				ui.position;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				dragStart: function(evt, ui) {...}
    				});

  • dragStop

    Cancellable:
    false

    Fired on drag stop.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • helper
          Type: jQuery

          Gets a reference to the helper.

        • offset
          Type: Object

          Gets a reference to the offset.

        • originalPosition
          Type: Object

          Gets a reference to the original position of the draggable element.

        • position
          Type: Object

          Gets a reference to the current position of the draggable element.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgriddragstop", ".selector", function (evt, ui) {
    				//return a reference to the helper
    				ui.helper;
    				//return a reference to the offset
    				ui.offset;
    				//return a reference to the original position of the draggable element
    				ui.originalPosition;
    				//return a reference to the current position of the draggable element
    				ui.position;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				dragStop: function(evt, ui) {...}
    				});

  • filterDropDownClosed

    Cancellable:
    false

    Fired after the filter members drop down closes.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • hierarchy
          Type: Object

          A reference to the hierarchy.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridfilterdropdownclosed", ".selector", function (evt, ui) {
    				//return a reference to the hierarchy
    				ui.hierarchy;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				filterDropDownClosed: function(evt, ui) {...}
    				});

  • filterDropDownClosing

    Cancellable:
    true

    Fired before the filter members drop down closes. Return false to cancel the closing.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • hierarchy
          Type: Object

          A reference to the hierarchy.

        • dropDownElement
          Type: jQuery

          A reference to the drop down.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridfilterdropdownclosing", ".selector", function (evt, ui) {
    				//return a reference to the drop down
    				ui.dropDownElement;
    				//return a reference to the hierarchy
    				ui.hierarchy;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				filterDropDownClosing: function(evt, ui) {...}
    				});

  • filterDropDownOk

    Cancellable:
    true

    Fired after the OK button in the filter members drop down is clicked. Return false to cancel the applying of the filters.

    • ui
      Type: Object

        • hierarchy
          Type: Object

          A reference to the hierarchy.

        • filterMembers
          Type: Array

          A collection with the selected filter members. If all filter members are selected the collection will be empty.

        • dropDownElement
          Type: jQuery

          A reference to the drop down.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridfilterdropdownok", ".selector", function (evt, ui) {
    				//return a reference to the drop down
    				ui.dropDownElement;
    				//return the collection with the selected filter members. If all filter members are selected, the collection will be empty.
    				ui.filterMembers;
    				//return a reference to the hierarchy
    				ui.hierarchy;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				filterDropDownOk: function(evt, ui) {...}
    				});

  • filterDropDownOpened

    Cancellable:
    false

    Fired after the filter members drop down opens.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • hierarchy
          Type: Object

          Gets a reference to the hierarchy.

        • dropDownElement
          Type: jQuery

          Gets a reference to the drop down.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridfilterdropdownopened", ".selector", function (evt, ui) {
    				//return a reference to the drop down
    				ui.dropDownElement;
    				//return a reference to the hierarchy
    				ui.hierarchy;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				filterDropDownOpened: function(evt, ui) {...}
    				});

  • filterDropDownOpening

    Cancellable:
    true

    Fired before the filter members drop down opens. Return false to cancel the opening.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • hierarchy
          Type: Object

          Gets a reference to the hierarchy.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridfilterdropdownopening", ".selector", function (evt, ui) {
    				//return a reference to the hierarchy
    				ui.hierarchy;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				filterDropDownOpening: function(evt, ui) {...}
    				});

  • filterMembersLoaded
    Deprecated

    Cancellable:
    false

    Fired after the filter members are loaded.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • parent
          Type: jQuery

          Gets the parent node or the igTree instance in the initial load.

        • rootFilterMembers
          Type: Array

          A collection with the root filter members .

        • filterMembers
          Type: Array

          A collection with the newly loaded filter members.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridfiltermembersloaded", ".selector", function (evt, ui) {
    				//return the collection with the root filter members
    				ui.rootFilterMembers;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				filterMembersLoaded: function(evt, ui) {...}
    				});

  • headersSorted

    Cancellable:
    false

    Fired after the sorting of the headers.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the pivot grid.

        • levelSortDirections
          Type: Array

          Gets an array of the level names and sort directions that were used.

        • appliedLevelSortDirections
          Type: Array

          Gets an array of the level names and sort directions that were actually applied to the table view.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridheaderssorted", ".selector", function (evt, ui) {
    				//return an array of the level names and sort directions that were actually applied to the table view
    				ui.appliedLevelSortDirections;
    				//return an array of the level names and sort directions that were used
    				ui.levelSortDirections;
    				//return the igPivotGrid
    				ui.owner;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				headersSorted: function(evt, ui) {...}
    				});

  • headersSorting

    Cancellable:
    true

    Fired before the sorting of the headers. Return false to cancel the sorting.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the pivot grid.

        • levelSortDirections
          Type: Array

          Gets an array of the level names and sort directions that will be used.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridheaderssorting", ".selector", function (evt, ui) {
    				//return an array of the level names and sort directions that were used
    				ui.levelSortDirections;
    				//return the igPivotGrid
    				ui.owner;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				headersSorting: function(evt, ui) {...}
    				});

  • metadataDropped

    Cancellable:
    false

    Fired after a metadata item drop.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • targetElement
          Type: jQuery

          Gets a reference to the drop target.

        • draggedElement
          Type: jQuery

          Gets a reference to the dragged element.

        • metadata
          Type: Object

          Gets a reference to the data.

        • metadataIndex
          Type: Number

          Gets the index at which the metadata is inserted.

        • helper
          Type: jQuery

          Gets a reference to the helper.

        • offset
          Type: Object

          Gets a reference to the offset.

        • position
          Type: Object

          Gets a reference to the current position of the draggable element.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridmetadatadropped", ".selector", function (evt, ui) {
    				//return a reference to the dragged element
    				ui.draggedElement;
    				//return a reference to the drop target
    				ui.targetElement;
    				//return a reference to the data
    				ui.metadata;
    				//return the index at which the metadata is inserted
    				ui.metadataIndex;
    				//return a reference to the helper
    				ui.helper;
    				//return a reference to the offset
    				ui.offset;
    				//return a reference to the current position of the draggable element
    				ui.position;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				metadataDropped: function(evt, ui) {...}
    				});

  • metadataDropping

    Cancellable:
    true

    Fired before a metadata item drop. Return false to cancel the drop.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • targetElement
          Type: Object

          Gets a reference to the drop target.

        • draggedElement
          Type: Object

          Gets a reference to the metadata item element.

        • metadata
          Type: Object

          Gets a reference to the data.

        • metadataIndex
          Type: Number

          Gets the index at which the metadata will be inserted.

        • helper
          Type: jQuery

          Gets a reference to the helper.

        • offset
          Type: Object

          Gets a reference to the offset.

        • position
          Type: Object

          Gets a reference to the current position of the draggable element.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridmetadatadropping", ".selector", function (evt, ui) {
    				//return a reference to the dragged element
    				ui.draggedElement;
    				//return a reference to the drop target
    				ui.targetElement;
    				//return a reference to the data
    				ui.metadata;
    				//return the index at which the metadata is inserted
    				ui.metadataIndex;
    				//return a reference to the helper
    				ui.helper;
    				//return a reference to the offset
    				ui.offset;
    				//return a reference to the current position of the draggable element
    				ui.position;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				metadataDropping: function(evt, ui) {...}
    				});

  • metadataRemoved

    Cancellable:
    false

    Fired after a metadata item is removed when the user clicks the close icon.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • metadata
          Type: Object

          Gets a reference to the data.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridmetadataremoved", ".selector", function (evt, ui) {
    				//return a reference to the data
    				ui.metadata;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				metadataRemoved: function(evt, ui) {...}
    				});

  • metadataRemoving

    Cancellable:
    true

    Fired before a metadata item is removed when the user clicks the close icon. Return false to cancel the removing.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • targetElement
          Type: jQuery

          Gets a reference to the dragged element.

        • metadata
          Type: Object

          Gets a reference to the data.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridmetadataremoving", ".selector", function (evt, ui) {
    				//return a reference to the drop target
    				ui.targetElement;
    				//return a reference to the data
    				ui.metadata;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				metadataRemoving: function(evt, ui) {...}
    				});

  • pivotGridHeadersRendered

    Cancellable:
    false

    Event fired after the headers have been rendered.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the pivot grid.

        • grid
          Type: Object

          Gets a reference to the igGrid widget, which holds the headers.

        • table

          Gets a reference to the headers table DOM element.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridpivotgridheadersrendered", ".selector", function (evt, ui) {
    				//return a reference to the igGrid widget, which holds the headers
    				ui.grid;
    				//return a reference to the headers table DOM element
    				ui.table;
    				//return a reference to the igPivotGrid
    				ui.owner;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				pivotGridHeadersRendered: function(evt, ui) {...}
    				});

  • pivotGridRendered

    Cancellable:
    false

    Event fired after the whole grid widget has been rendered (including headers, footers, etc.).

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the pivot grid.

        • grid
          Type: Object

          Gets reference to the igGrid widget, which represents the data.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridpivotgridrendered", ".selector", function (evt, ui) {
    				//return a reference to the igGrid widget, which holds the headers
    				ui.grid;
    				//return a reference to the igPivotGrid
    				ui.owner;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				pivotGridRendered: function(evt, ui) {...}
    				});

  • sorted

    Cancellable:
    false

    Fired after the sorting of the columns.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the pivot grid.

        • sortDirections
          Type: Array

          Gets an array of the tuple indices and sort directions that were passed to the table view.

        • appliedSortDirections
          Type: Array

          Gets an array of the tuple indices and sort directions that were actually applied to the table view.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridsorted", ".selector", function (evt, ui) {
    				//return an array of the tuple indices and sort directions that were actually applied to the table view
    				ui.appliedSortDirections;
    				//return an array of the tuple indices and sort directions that were passed to the table view
    				ui.sortDirections;
    				//return a reference to the igPivotGrid
    				ui.owner;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				sorted: function(evt, ui) {...}
    				});

  • sorting

    Cancellable:
    true

    Fired before the sorting of the columns. Return false to cancel the sorting.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the pivot grid.

        • sortDirections
          Type: Array

          Gets an array of the tuple indices and sort directions that will be used.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridsorting", ".selector", function (evt, ui) {
    				//return an array of the tuple indices and sort directions that were passed to the table view
    				ui.sortDirections;
    				//return a reference to the igPivotGrid
    				ui.owner;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				sorting: function(evt, ui) {...}
    				});

  • tupleMemberCollapsed

    Cancellable:
    false

    Fired after the collapse of the tuple member.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the pivot grid.

        • dataSource
          Type: Object

          Gets a reference to the data source.

        • axisName
          Type: String

          Gets the name of axis, which holds the member and the tuple.

        • tupleIndex
          Type: Number

          Gets the index of the tuple in the axis.

        • memberIndex
          Type: Number

          Gets the index of the member in the tuple.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridtuplemembercollapsed", ".selector", function (evt, ui) {
    				//return the name of axis, which holds the member and the tuple
    				ui.axisName;
    				//return a reference to the data source
    				ui.dataSource;
    				//return the index of the member in the tuple
    				ui.memberIndex;
    				//return the index of the tuple in the axis
    				ui.tupleIndex;
    				//return a reference to the igPivotGrid
    				ui.owner;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				tupleMemberCollapsed: function(evt, ui) {...}
    				});

  • tupleMemberCollapsing

    Cancellable:
    true

    Fired before the collapse of the tuple member. Return false to cancel the collapsing.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the pivot grid.

        • dataSource
          Type: Object

          Gets a reference to the data source.

        • axisName
          Type: String

          Gets the name of axis, which holds the member and the tuple.

        • tupleIndex
          Type: Number

          Gets the index of the tuple in the axis.

        • memberIndex
          Type: Number

          Gets the index of the member in the tuple.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridtuplemembercollapsing", ".selector", function (evt, ui) {
    				//return the name of axis, which holds the member and the tuple
    				ui.axisName;
    				//return a reference to the data source
    				ui.dataSource;
    				//return the index of the member in the tuple
    				ui.memberIndex;
    				//return the index of the tuple in the axis
    				ui.tupleIndex;
    				//return a reference to the igPivotGrid
    				ui.owner;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				tupleMemberCollapsing: function(evt, ui) {...}
    				});

  • tupleMemberExpanded

    Cancellable:
    false

    Fired after the expand of the tuple member.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the pivot grid.

        • dataSource
          Type: Object

          Gets a reference to the data source.

        • axisName
          Type: String

          Gets the name of axis, which holds the member and the tuple.

        • tupleIndex
          Type: Number

          Gets the index of the tuple in the axis.

        • memberIndex
          Type: Number

          Gets the index of the member in the tuple.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridtuplememberexpanded", ".selector", function (evt, ui) {
    				//return the name of axis, which holds the member and the tuple
    				ui.axisName;
    				//return a reference to the data source
    				ui.dataSource;
    				//return the index of the member in the tuple
    				ui.memberIndex;
    				//return the index of the tuple in the axis
    				ui.tupleIndex;
    				//return a reference to the igPivotGrid
    				ui.owner;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				tupleMemberExpanded: function(evt, ui) {...}
    				});

  • tupleMemberExpanding

    Cancellable:
    true

    Fired before the expand of the tuple member. Return false to cancel the expanding.

    • evt
      Type: Event

      JQuery event object.

    • ui
      Type: Object

        • owner
          Type: Object

          Gets a reference to the pivot grid.

        • dataSource
          Type: Object

          Gets a reference to the data source.

        • axisName
          Type: String

          Gets the name of axis, which holds the member and the tuple.

        • tupleIndex
          Type: Number

          Gets the index of the tuple in the axis.

        • memberIndex
          Type: Number

          Gets the index of the member in the tuple.

    Code Sample


    				//Bind after initialization
    				$(document).on("igpivotgridtuplememberexpanding", ".selector", function (evt, ui) {
    				//return the name of axis, which holds the member and the tuple
    				ui.axisName;
    				//return a reference to the data source
    				ui.dataSource;
    				//return the index of the member in the tuple
    				ui.memberIndex;
    				//return the index of the tuple in the axis
    				ui.tupleIndex;
    				//return a reference to the igPivotGrid
    				ui.owner;
    				});

    				//Initialize
    				$(".selector").igPivotGrid({
    				tupleMemberExpanding: function(evt, ui) {...}
    				});

  • appliedColumnSortDirections

    .igPivotGrid( "appliedColumnSortDirections" );
    Return Type:
    array

    Returns an array with the applied sort directions on the igPivotGrid's columns. The returned array contains objects with the following properties:

    memberNames: The names of the members in the tuple.
    tupleIndex: The index of the tuple on the column axis in the original unsorted result.
    sortDirection: The direction of the sort - ascending or descending.

    Code Sample


    			$(".selector").igPivotGrid("appliedColumnSortDirections");

  • appliedLevelSortDirections

    .igPivotGrid( "appliedLevelSortDirections" );
    Return Type:
    array

    Returns an array with the applied level sort direction items, which were used for the sorting of the header cells. The returned array contains objects with the following properties:

    levelUniqueName: Specifies the unique name of the level, which was sorted.
    sortDirection: The direction of the header sort - ascending or descending.

    Code Sample


    			$(".selector").igPivotGrid("appliedLevelSortDirections");

  • changeGlobalLanguage
    Inherited

    .igPivotGrid( "changeGlobalLanguage" );

    Changes the widget language to global language. Global language is the value in $.ig.util.language.

    Code Sample


    				$(".selector").igPivotGrid("changeGlobalLanguage");

  • changeGlobalRegional
    Inherited

    .igPivotGrid( "changeGlobalRegional" );

    Changes the widget regional settins to global regional settings. Global regional settings are container in $.ig.util.regional.

    Code Sample


    				$(".selector").igPivotGrid("changeGlobalRegional");

  • changeLocale

    .igPivotGrid( "changeLocale" );

    Changes the all locales into the widget element to the language specified in options.language
    Note that this method is for rare scenarios, see language or locale option setter.

    Code Sample


    				$(".selector").igPivotGrid("changeLocale");

  • changeRegional

    .igPivotGrid( "changeRegional" );

    Changes the the regional settings of widget element to the language specified in options.regional
    Note that this method is for rare scenarios, use regional option setter.

    Code Sample


    				$(".selector").igPivotGrid("changeRegional");

  • collapseTupleMember

    .igPivotGrid( "collapseTupleMember", tupleLocation:string, tupleIndex:number, memberIndex:number, [shouldUpdate:bool] );
    Return Type:
    bool

    Collapses a member from the data source and returns true if the collapse succeeds. If the data source has a pending update, the method will return false. Note that igPivotGrid to will display the expanded result after the data source is updated.

    • tupleLocation
    • Type:string
    • The name of the parent axis - 'columnAxis' or 'rowAxis'.
    • tupleIndex
    • Type:number
    • The index of the containing tuple. This index should correspond to the position of the tuple in the original unsorted result of the data source.
    • memberIndex
    • Type:number
    • The index of the member in the tuple. This index should correspond to the position of the member in the original unsorted result of the data source.
    • shouldUpdate
    • Type:bool
    • Optional
    • A flag indicating whether the data source should be updated after the expand.

    Code Sample


    			$(".selector").igPivotGrid("collapseTupleMember", "columnAxis", 0, 0, true);

  • destroy

    .igPivotGrid( "destroy" );

    Destroy is part of the jQuery UI widget API and does the following:
    1. Remove custom CSS classes that were added.
    2. Unwrap any wrapping elements such as scrolling divs and other containers.
    3. Unbind all events that were bound.

    Code Sample


    			$(".selector").igPivotGrid("destroy");

  • expandTupleMember

    .igPivotGrid( "expandTupleMember", tupleLocation:string, tupleIndex:number, memberIndex:number, [shouldUpdate:bool] );
    Return Type:
    bool

    Expands a member from the data source and returns true if the expand succeeds. If the data source has a pending update, the method will return false. Note that igPivotGrid to will display the expanded result after the data source is updated.

    • tupleLocation
    • Type:string
    • The name of the parent axis - 'columnAxis' or 'rowAxis'.
    • tupleIndex
    • Type:number
    • The index of the containing tuple. This index should correspond to the position of the tuple in the original unsorted result of the data source.
    • memberIndex
    • Type:number
    • The index of the member in the tuple. This index should correspond to the position of the member in the original unsorted result of the data source.
    • shouldUpdate
    • Type:bool
    • Optional
    • A flag indicating whether the data source should be updated after the expand.

    Code Sample


    			$(".selector").igPivotGrid("expandTupleMember", "columnAxis", 0, 0, true);

  • grid

    .igPivotGrid( "grid" );
    Return Type:
    object

    Returns the igGrid instance used to render the OLAP data.

    Code Sample


    			$(".selector").igPivotGrid("grid");

  • updateGrid

    .igPivotGrid( "updateGrid" );

    Triggers an update on the data source and the igPivotGrid.

    Code Sample


    			$(".selector").igPivotGrid("updateGrid");

  • active

    Class applied to the drop areas, which can accept a drop.
  • ui-igpivotgrid-blockarea

    Classes applied to the overlay, which shows when the pivot grid is loading.
  • ui-iggrid-headerbutton ui-iggrid-headerbuttonexpanded ui-icon ui-icon-minus

    Classes applied to the elements, which collapse the pivot headers.
  • ui-igpivot-droparea

    Class applied to the drop areas.
  • ui-igpivot-dropareaheader ui-iggrid-header ui-widget-header

    Classes applied to the drop area headers.
  • ui-state-highlight

    Classes applied to the valid drop element.
  • ui-iggrid-headerbutton ui-icon ui-icon-plus

    Classes applied to the elements, which expand the pivot headers.
  • ui-igpivot-filterdropdown ui-widget ui-widget-content

    Class applied to the filters drop down element.
  • ui-icon ui-icon-pivot-smallfilter ui-icon-carat-1-s

    Classes applied to the filter icon in the metadata items.
  • ui-igpivot-filtermembers

    Class applied to the tree containing the filter members.
  • ui-iggrid-sortindicator ui-icon ui-icon-triangle-1-n

    Classes applied to the indicator for ascending header sorting in the columns.
  • ui-iggrid-sortindicator ui-icon ui-icon-triangle-1-s

    Classes applied to the indicator for descending header sorting in the columns.
  • ui-iggrid-sortindicator ui-icon ui-icon-triangle-1-n

    Classes applied to the indicator for ascending header sorting in the rows.
  • ui-iggrid-sortindicator ui-icon ui-icon-triangle-1-s

    Classes applied to the indicator for descending header sorting in the rows.
  • ui-igpivot-insertitem ui-state-highlight ui-corner-all

    Classes applied to the insert item indicator in the drop areas.
  • ui-state-error

    Classes applied to the invalid drop element.
  • ui-igpivot-metadataitem ui-widget ui-corner-all ui-state-default

    Classes applied to the elements representing metadata items - in the metadata tree and the drop areas.
  • ui-igpivot-metadatadropdown ui-widget ui-widget-content

    Classes applied to the metadata item drop down element.
  • ui-igpivot-overlaydroparea

    Class applied to the drop areas, which are over the column and row headers and the data cells.
  • ui-igpivotgrid

    Class applied to the container of the pivot grid.
  • ui-igpivotgrid-header

    Class applied to the header cells in the pivot grid.
  • ui-iggrid-sortindicator ui-icon ui-icon-triangle-1-n

    Classes applied to the indicator for ascending value sorting.
  • ui-iggrid-sortindicator ui-icon ui-icon-triangle-1-s

    Classes applied to the indicator for descending value sorting.
  • ui-iggrid-headerbutton

    Class applied to the scroll buttons added when the hierarchies and the measures overflow the drop area.
  • ui-icon ui-icon-triangle-1-w

    Classes applied to the scroll left button.
  • ui-icon ui-icon-triangle-1-e

    Classes applied to the scroll right button.

Copyright © 1996 - 2019 Infragistics, Inc. All rights reserved.
