ui.igTreeGridTooltips

ui.igTreeGridTooltips_image

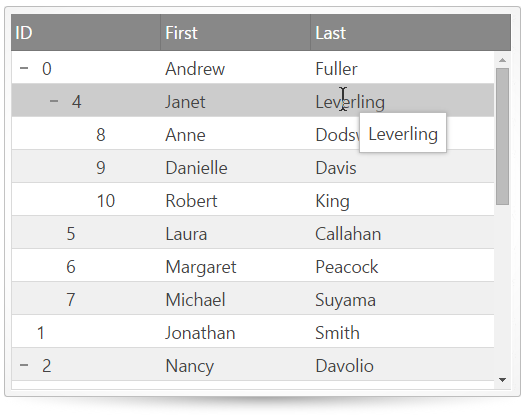

The igTreeGrid includes a Tooltips feature which allows tooltips to appear when the user hovers the mouse pointer over a grid cell. Tooltips are configurable to adjust duration and visibility options. Further information regarding the classes, options, events, methods and themes of this API are available under the associated tabs above.

Click here for more information on how to get started using this API. For details on how to reference the required scripts and themes for the igTreeGrid control read, Using JavaScript Resources in Ignite UI and Styling and Theming Ignite UI.

Code Sample


        <!DOCTYPE html>
        <html>
        <head>
            <!-- Infragistics Combined CSS -->
            <link href="css/themes/infragistics/infragistics.theme.css" rel="stylesheet" type="text/css" />
            <link href="css/structure/infragistics.css" rel="stylesheet" type="text/css" />

            <!-- jQuery Core -->
            <script src="js/jquery.js" type="text/javascript"></script>

            <!-- jQuery UI -->
            <script src="js/jquery-ui.js" type="text/javascript"></script>

            <!-- Infragistics Combined Scripts -->
            <script src="js/infragistics.core.js" type="text/javascript"></script>
            <script src="js/infragistics.lob.js" type="text/javascript"></script>

            <script type="text/javascript">
                var employees = [
                    { "employeeId": 0, "supervisorId": -1, "firstName": "Andrew", "lastName": "Fuller" },
                    { "employeeId": 1, "supervisorId": -1, "firstName": "Jonathan", "lastName": "Smith" },
                    { "employeeId": 2, "supervisorId": -1, "firstName": "Nancy", "lastName": "Davolio" },
                    { "employeeId": 3, "supervisorId": -1, "firstName": "Steven", "lastName": "Buchanan" },

                    // Andrew Fuller's direct reports
                    { "employeeId": 4, "supervisorId": 0, "firstName": "Janet", "lastName": "Leverling" },
                    { "employeeId": 5, "supervisorId": 0, "firstName": "Laura", "lastName": "Callahan" },
                    { "employeeId": 6, "supervisorId": 0, "firstName": "Margaret", "lastName": "Peacock" },
                    { "employeeId": 7, "supervisorId": 0, "firstName": "Michael", "lastName": "Suyama" },

                    // Janet Leverling's direct reports
                    { "employeeId": 8, "supervisorId": 4, "firstName": "Anne", "lastName": "Dodsworth" },
                    { "employeeId": 9, "supervisorId": 4, "firstName": "Danielle", "lastName": "Davis" },
                    { "employeeId": 10, "supervisorId": 4, "firstName": "Robert", "lastName": "King" },

                    // Nancy Davolio's direct reports
                    { "employeeId": 11, "supervisorId": 2, "firstName": "Peter", "lastName": "Lewis" },
                    { "employeeId": 12, "supervisorId": 2, "firstName": "Ryder", "lastName": "Zenaida" },
                    { "employeeId": 13, "supervisorId": 2, "firstName": "Wang", "lastName": "Mercedes" },

                    // Steve Buchanan's direct reports
                    { "employeeId": 14, "supervisorId": 3, "firstName": "Theodore", "lastName": "Zia" },
                    { "employeeId": 15, "supervisorId": 3, "firstName": "Lacota", "lastName": "Mufutau" },

                    // Lacota Mufutau's direct reports
                    { "employeeId": 16, "supervisorId": 15, "firstName": "Jin", "lastName": "Elliott" },
                    { "employeeId": 17, "supervisorId": 15, "firstName": "Armand", "lastName": "Ross" },
                    { "employeeId": 18, "supervisorId": 15, "firstName": "Dane", "lastName": "Rodriquez" },

                    // Dane Rodriquez's direct reports
                    { "employeeId": 19, "supervisorId": 18, "firstName": "Declan", "lastName": "Lester" },
                    { "employeeId": 20, "supervisorId": 18, "firstName": "Bernard", "lastName": "Jarvis" },

                    // Bernard Jarvis' direct report
                    { "employeeId": 21, "supervisorId": 20, "firstName": "Jeremy", "lastName": "Donaldson" }
                ];

               $(function () {
                   $("#treegrid").igTreeGrid({
                       dataSource: employees,
                       primaryKey: "employeeId",
                       foreignKey: "supervisorId",
                       autoGenerateColumns: false,
                       columns: [
                           { headerText: "ID", key: "employeeId", width: "150px", dataType: "number" },
                           { headerText: "First", key: "firstName", width: "150px", dataType: "string" },
                           { headerText: "Last", key: "lastName", width: "150px", dataType: "string" }
                       ],
                       features: [
                           {
                               name: "Tooltips",
                               columnSettings: [
                                   { columnKey: "employeeId", allowTooltips: false },
                                   { columnKey: "firstName", allowTooltips: true },
                                   { columnKey: "lastName", allowTooltips: true }
                               ],
                               visibility: "always",
                               showDelay: 1000,
                               hideDelay: 500
                           }
                       ]
                   });
               });
            </script>
        </head>
        <body>
            <table id="treegrid"></table>
        </body>
        </html>


Related Topics

Dependencies

jquery-1.9.1.js
jquery.ui.core.js
jquery.ui.widget.js
infragistics.datasource.js
infragistics.ui.shared.js
infragistics.ui.treegrid.js
infragistics.util.js
infragistics.ui.grid.framework.js
infragistics.ui.grid.tooltips.js

Inherits

  • columnSettings
    Inherited

    Type:
    object
    Default:
    []

    A list of custom column settings that specify custom tooltip settings for a specific column (whether tooltips are enabled / disabled).

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features: [
    						{
    							name: "Tooltips",
    							columnSettings: [
    								{ columnKey: "Name", allowTooltips: true },
    									{ columnKey: "BoxArt", allowTooltips: false }
    							]
    						}
    					]
    				});

    				//Get
    				var arrayOfColumnSettings = $(".selector").igTreeGridTooltips("option", "columnSettings");

    • allowTooltips

      Type:
      bool
      Default:
      true

      Enables / disables tooltips on the specified column. By default tooltips are displayed for each column. Note: This option is mandatory.

      Code Sample


      						//Initialize
      						$(".selector").igTreeGrid({
      							features: [
      								{
      									name: "Tooltips",
      									columnSettings: [
      										{ columnKey: "Name", allowTooltips: true },
      									]
      								}
      							]
      						});

      						//Get
      						var tooltipsSettings = $(".selector").igTreeGridTooltips("option", "columnSettings");
      						var allowTooltipFirstColumn = tooltipsSettings[0].allowResizing;

      						//Set
      						//get the array of column settings
      						var tooltipsSettings = $(".selector").igTreeGridTooltips("option", "columnSettings");
      						//set new value for the first column
      						tooltipsSettings[0].allowTooltips = false;
      						$(".selector").igTreeGridTooltips("option", "columnSettings", tooltipsSettings);

    • columnIndex

      Type:
      number
      Default:
      -1

      Either key or index must be set in every column setting.

      Code Sample


      						//Initialize
      						$(".selector").igTreeGrid({
      							features: [
      								{
      									name: "Tooltips",
      									columnSettings: [
      										{ columnIndex: 0, allowTooltips: true },
      									]
      								}
      							]
      						});

    • columnKey

      Type:
      string
      Default:
      null

      Either key or index must be set in every column setting.

      Code Sample


      						//Initialize
      						$(".selector").igTreeGrid({
      							features: [
      								{
      									name: "Tooltips",
      									columnSettings: [
      										{ columnKey: "Name", allowTooltips: true },
      									]
      								}
      							]
      						});

    • maxWidth

      Type:
      number
      Default:
      null

      Specifies the maximum width (in pixels) of the tooltip when shown for the specified column. If unset the width of the column will be used instead.

      Code Sample


      						//Initialize
      						$(".selector").igTreeGrid({
      							features: [
      								{
      									name: "Tooltips",
      									columnSettings: [
      										{ columnKey: "Name", maxWidth: 200 }
      									]
      								}
      							]
      						});

  • cursorLeftOffset
    Inherited

    Type:
    number
    Default:
    10

    Sets the left position of the tooltip relative to the mouse cursor.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features: [
    						{
    							name: "Tooltips",
    							cursorLeftOffset: 30
    						}
    					]
    				});

    				//Get
    				var accessibility = $(".selector").igTreeGridTooltips("option", "cursorLeftOffset");

    				//Set
    				$(".selector").igTreeGridTooltips("option", "cursorLeftOffset", 30);

  • cursorTopOffset
    Inherited

    Type:
    number
    Default:
    15

    Sets the top position of the tooltip relative to the mouse cursor.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features: [
    						{
    							name: "Tooltips",
    							cursorTopOffset: 50
    						}
    					]
    				});

    				//Get
    				var accessibility = $(".selector").igTreeGridTooltips("option", "cursorTopOffset");

    				//Set
    				$(".selector").igTreeGridTooltips("option", "cursorTopOffset", 50);

  • fadeTimespan
    Inherited

    Type:
    number
    Default:
    150

    Sets the time tooltip fades in and out when showing/hiding.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features: [
    						{
    							name: "Tooltips",
    							fadeTimespan: 300
    						}
    					]
    				});

    				//Get
    				var accessibility = $(".selector").igTreeGridTooltips("option", "fadeTimespan");

    				//Set
    				$(".selector").igTreeGridTooltips("option", "fadeTimespan", 300);

  • hideDelay
    Inherited

    Type:
    number
    Default:
    300

    Type="integer" The time in milliseconds after which tooltip hides when mouse
    cursor gets outside of the cell.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features: [
    						{
    							name: "Tooltips",
    							hideDelay: 1000
    						}
    					]
    				});

    				//Get
    				var accessibility = $(".selector").igTreeGridTooltips("option", "hideDelay");

    				//Set
    				$(".selector").igTreeGridTooltips("option", "hideDelay", 1000);

  • showDelay
    Inherited

    Type:
    number
    Default:
    500

    The time in milliseconds after which tooltip will show when
    mouse cursor is hovered over a cell.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features: [
    						{
    							name: "Tooltips",
    							showDelay: 2000
    						}
    					]
    				});

    				//Get
    				var accessibility = $(".selector").igTreeGridTooltips("option", "showDelay");

    				//Set
    				$(".selector").igTreeGridTooltips("option", "showDelay", 2000);

  • style
    Inherited

    Type:
    enumeration
    Default:
    tooltip

    Controls the tooltip's style.

    Members

    • tooltip
    • Type:string
    • The tooltip will be positioned according to the mouse cursor. Will render the tooltip content as plain text.
    • popover
    • Type:string
    • The tooltip will be positioned according to the target element with an arrow pointing the element. This style is more suitable for touch-supported environments. Will render the tooltip content as HTML.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features: [
    						{
    							name: "Tooltips",
    							style: "popover"
    						}
    					]
    				});
    				//Get
    				var style = $(".selector").igTreeGridTooltips("option", "style");
    				//Set
    				$(".selector").igTreeGridTooltips("option", "style", "popover");

  • visibility
    Inherited

    Type:
    enumeration
    Default:
    overflow

    Determines the tooltip visibility option.

    Members

    • always
    • Type:string
    • tooltips always show for hovered elements.
    • never
    • Type:string
    • tooltips do not show automatically.
    • overflow
    • Type:string
    • tooltips show only when the underlying data overflows its container.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features: [
    						{
    							name: "Tooltips",
    							visibility: "always"
    						}
    					]
    				});
    				//Get
    				var accessibility = $(".selector").igTreeGridTooltips("option", "visibility");
    				//Set
    				$(".selector").igTreeGridTooltips("option", "visibility", "always");


For more information on how to interact with the Ignite UI controls' events, refer to
Using Events in Ignite UI.

Note: Calling API methods programmatically does not raise events related to their operation unless specifically stated otherwise by the corresponding API documentation; those events are only raised by their respective user interaction.

Show Details
  • tooltipHidden
    Inherited

    Cancellable:
    false

    Event fired after a tooltip is hidden.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets a reference to the widget.

        • tooltip
          Type: String

          Gets the string displayed in the tooltip.

        • value
          Type: Object

          Gets the value of the cell the tooltip is displayed for.

        • element
          Type: jQuery

          Gets a reference to the cell the tooltip is displayed for.

        • index
          Type: Number

          Gets the row index of the cell the tooltip is displayed for.

        • columnKey
          Type: String

          Gets the column key of the cell the tooltip is displayed for.

        • columnIndex
          Type: Number

          Gets the column index of the cell the tooltip is displayed for.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name: "Tooltips",
    							tooltipHidden : function(evt, args) {...}
    						}
    					]
    				});

    				//Bind after initialization
    				$(document).on("igtreegridtooltipstooltiphidden", ".selector", function (evt, args) {
    					//return the triggered event
    					evt;

    					// get a reference to the widget
    					args.owner;

    					// get the string displayed in the tooltip
    					args.tooltip;

    					// get the value of the cell the tooltip was displayed for
    					args.value;

    					// get a reference to the cell the tooltip was displayed for
    					args.element;

    					// get the row index of the cell the tooltip was displayed for
    					args.index;

    					// get the column key of the cell the tooltip was displayed for
    					args.columnKey;

    					// get the column index of the cell the tooltip was displayed for
    					args.columnIndex;
    				} );

  • tooltipHiding
    Inherited

    Cancellable:
    true

    Event fired when the mouse has left an element and the tooltip is about to hide.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets a reference to the widget.

        • tooltip
          Type: String

          Gets the string displayed in the tooltip.

        • value
          Type: Object

          Gets the value of the cell the tooltip is displayed for.

        • element
          Type: jQuery

          Gets a reference to the cell the tooltip is displayed for.

        • index
          Type: Number

          Gets the row index of the cell the tooltip is displayed for.

        • columnKey
          Type: String

          Gets the column key of the cell the tooltip is displayed for.

        • columnIndex
          Type: Number

          Gets the column index of the cell the tooltip is displayed for.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name: "Tooltips",
    							tooltipHiding : function(evt, args) {...}
    						}
    					]
    				});
    				//Bind after initialization
    				$(document).on("igtreegridtooltipstooltiphidding", ".selector", function (evt, args) {
    					//return the triggered event
    					evt;

    					// get a reference to the widget
    					args.owner;

    					// get the string displayed in the tooltip
    					args.tooltip;

    					// get the value of the cell the tooltip was displayed for
    					args.value;

    					// get a reference to the cell the tooltip was displayed for
    					args.element;

    					// get the row index of the cell the tooltip was displayed for
    					args.index;

    					// get the column key of the cell the tooltip was displayed for
    					args.columnKey;

    					// get the column index of the cell the tooltip was displayed for
    					args.columnIndex;
    				} );

  • tooltipShowing
    Inherited

    Cancellable:
    true

    Event fired when the mouse has hovered on an element long enough to display a tooltip.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets a reference to the widget.

        • tooltip
          Type: String

          Gets or set the string to be displayed.

        • value
          Type: Object

          Gets the value of the cell the tooltip is displayed for.

        • element
          Type: jQuery

          Gets a reference to the cell the tooltip is displayed for.

        • index
          Type: Number

          Gets the row index of the cell the tooltip is displayed for.

        • columnKey
          Type: String

          Gets the column key of the cell the tooltip is displayed for.

        • columnIndex
          Type: Number

          Gets the column index of the cell the tooltip is displayed for.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name: "Tooltips",
    							tooltipShowing : function(evt, args) {...}
    						}
    					]
    				});

    				//Bind after initialization
    				$(document).on("igtreegridtooltipstooltipshowing", ".selector", function (evt, args) {
    					//return the triggered event
    					evt;

    					// get a reference to the widget
    					args.owner;

    					// get the string displayed in the tooltip
    					args.tooltip;

    					// get the value of the cell the tooltip was displayed for
    					args.value;

    					// get a reference to the cell the tooltip was displayed for
    					args.element;

    					// get the row index of the cell the tooltip was displayed for
    					args.index;

    					// get the column key of the cell the tooltip was displayed for
    					args.columnKey;

    					// get the column index of the cell the tooltip was displayed for
    					args.columnIndex;
    				} );

  • tooltipShown
    Inherited

    Cancellable:
    false

    Event fired after a tooltip is shown.

    • evt
      Type: Event

      JQuery event object.

    • args
      Type: Object

        • owner
          Type: Object

          Gets a reference to the widget.

        • tooltip
          Type: String

          Gets the string displayed in the tooltip.

        • value
          Type: Object

          Gets the value of the cell the tooltip is displayed for.

        • element
          Type: jQuery

          Gets a reference to the cell the tooltip is displayed for.

        • index
          Type: Number

          Gets the row index of the cell the tooltip is displayed for.

        • columnKey
          Type: String

          Gets the column key of the cell the tooltip is displayed for.

        • columnIndex
          Type: Number

          Gets the column index of the cell the tooltip is displayed for.

    Code Sample


    				//Initialize
    				$(".selector").igTreeGrid({
    					features : [
    						{
    							name: "Tooltips",
    							tooltipShown : function(evt, args) {...}
    						}
    					]
    				});

    				//Bind after initialization
    				$(document).on("igtreegridtooltipstooltipshown", ".selector", function (evt, args) {
    					//return the triggered event
    					evt;

    					// get a reference to the widget
    					args.owner;

    					// get the string displayed in the tooltip
    					args.tooltip;

    					// get the value of the cell the tooltip was displayed for
    					args.value;

    					// get a reference to the cell the tooltip was displayed for
    					args.element;

    					// get the row index of the cell the tooltip was displayed for
    					args.index;

    					// get the column key of the cell the tooltip was displayed for
    					args.columnKey;

    					// get the column index of the cell the tooltip was displayed for
    					args.columnIndex;
    				} );

  • destroy

    .igTreeGridTooltips( "destroy" );

    Code Sample


    			$(".selector").igTreeGridTooltips("destroy");

  • id
    Inherited

    .igTreeGridTooltips( "id" );
    Return Type:
    string

    Returns the ID of the parent div element bounding the ruler and the tooltip container.

    Code Sample


    				$(".selector").igTreeGridTooltips("id");

  • ui-iggrid-tooltip

    Classes applied to the tooltip widget.
  • ui-iggrid-tooltip-content

    Classes applied to the tooltip container.

Copyright © 1996 - 2024 Infragistics, Inc. All rights reserved.
